Does Oil on a Duramax Cold-Side Pipe Mean a Boost Leak?
Oil on the outside of a Duramax cold-side intercooler connection is a leak clue, not automatic proof that the intercooler core has failed. A light film inside the charge-air system can come from factory crankcase ventilation, but a wet joint, driveway drip, loose retaining clip, flattened O-ring, split boot, cracked factory plastic pipe, or actual-versus-commanded boost gap calls for a hands-on inspection.
Key Takeaways
Start at the oily connection, prove where the air and oil are escaping, and replace only the failed part before moving to a larger repair.
- A thin internal oil film can be normal on a closed-CCV Duramax; oil running down the outside of a joint is not something to ignore.
- A cold-side O-ring can leak oil without producing an obvious hiss during light driving.
- P0299 or lazy boost does not automatically condemn the pipe; check boots, clamps, the intercooler core, turbo control, sensors, and intake restriction.
- A metal pipe upgrade makes sense when the factory plastic section is cracked, distorted, poorly sealed, or repeatedly troublesome under Towing or a tuned load.
- A PCV reroute or catch can may reduce future oil carryover, but it cannot repair a damaged O-ring, boot, pipe, turbo seal, or intercooler core.
A 200,000-Mile LBZ Duramax Owner Case
Truck-focused YouTube creator @lmfscrew documented a real LBZ Duramax where visible oil led him to a failed cold-side sealing point that had not announced itself with a clear hiss or obvious seat-of-the-pants power loss.
The truck was described as roughly 20 years old with about 200,000 miles, factory crankcase ventilation still connected, and years of oil carryover inside the charge-air system. After earlier EGR cleaning disturbed the old cold-side connection, the aged O-ring stopped sealing. The useful clue showed up after parking: oil was running off the factory pipe and leaving a mark under the truck.
The install replaced the hot-side and cold-side plumbing, boots, clamps, and cold-side O-rings. The cold-side kit used in the video was described as a full 3.5-inch pipe. The installer lightly oiled the supplied O-rings, reused the factory retaining clips, removed an obstructing bracket for access, and test-fitted the larger plumbing before final assembly.
| Video Observation | What It Supports | What It Does Not Prove |
|---|---|---|
| Oil visible at the cold-side connection | The joint and O-ring needed inspection | Every LBZ leaks at the same mileage |
| No obvious hiss before repair | Small leaks can hide during light driving | The charge-air system was leak-free |
| 29 psi observed after installation | The tuned truck built boost on that pull | The pipe alone added boost or horsepower |
| Boots were trimmed for clearance on this truck | Final fitment needs a physical clearance check | Every 2006–2010 truck requires trimming |
Why Does Oil Get Into Duramax Intercooler Pipes?
Oil reaches Duramax intercooler piping when crankcase vapor enters the turbo inlet, passes through the compressor and hot-side pipe, collects in the intercooler, and moves toward the cold-side pipe.
The working path is straightforward: crankcase vapor to turbo inlet to compressor to hot-side pipe to intercooler to cold-side pipe to intake. A closed factory system can leave a light coating over time. High mileage, long idle hours, increased blow-by, a saturated separator, or heavy Towing can increase the amount. A compressor-side turbo oil leak can also feed oil into the same path, so do not blame the CCV system from location alone.
Heavy pooling deserves more work than wiping the boot. Check engine oil level, crankcase pressure, turbo shaft and compressor-side oil evidence, PCV/CCV routing, and the rate at which oil returns after cleaning. Read how crankcase ventilation carries oil vapor when the residue returns without an obvious joint failure.
Normal Oil Film vs. a Leak That Needs Repair
A light film inside the pipe can be monitored, while oil outside the connection, repeated drips, a moving boot, or a measurable boost error needs diagnosis.
| What You Find | Most Likely Direction | Next Action |
|---|---|---|
| Light film inside a closed system | Normal oil-vapor carryover may be present | Clean, document mileage, and monitor the return rate |
| Wet oil ring outside the cold-side joint | O-ring, clip, pipe seat, or adjoining seal may be weak | Disassemble and inspect the sealing surfaces |
| Oil dripping after parking | Accumulated charge-air oil is escaping at a low point | Find the joint or core leak before driving under heavy load |
| Boot creeps or blows off under Payload | Oil contamination, weak clamp grip, poor bead engagement, or pipe misalignment | Degrease, inspect the boot and bead, then correct alignment |
| P0299 with oily plumbing | A charge-air leak is possible but not proven | Compare commanded and actual boost and pressure-test the system |
| Blue smoke with rapid oil accumulation | Turbo seal, excessive blow-by, or another oil source may exist | Diagnose the engine and turbo before ordering piping |
Hot-Side vs. Cold-Side Duramax Intercooler Pipes
The hot side carries compressed air from the turbo to the intercooler, while the cold side returns cooled charge air from the intercooler to the engine intake.
| Inspection Point | Hot Side | Cold Side |
|---|---|---|
| Route | Turbo outlet to intercooler inlet | Intercooler outlet to intake/Y-bridge area |
| Air condition | Higher temperature after compression | Lower temperature after the intercooler core |
| Common hardware | Metal pipe, silicone boots, T-bolt or factory clamps | Plastic or metal pipe, O-rings, retaining clips, boots, clamps |
| Common failure clues | Heat-cycled boot, clamp movement, oil mist at a joint | Flattened O-ring, cracked plastic, clip seating, oil at the lower connection |
| First check | Turbo outlet, boot engagement, clamp position | Pipe seat, O-ring groove, retaining clip, brake-booster clearance |
Replacing both sides can make sense on a tuned or high-mileage truck when both assemblies are aged, but one failed O-ring does not automatically require a complete intercooler system. Match the repair to the inspection.

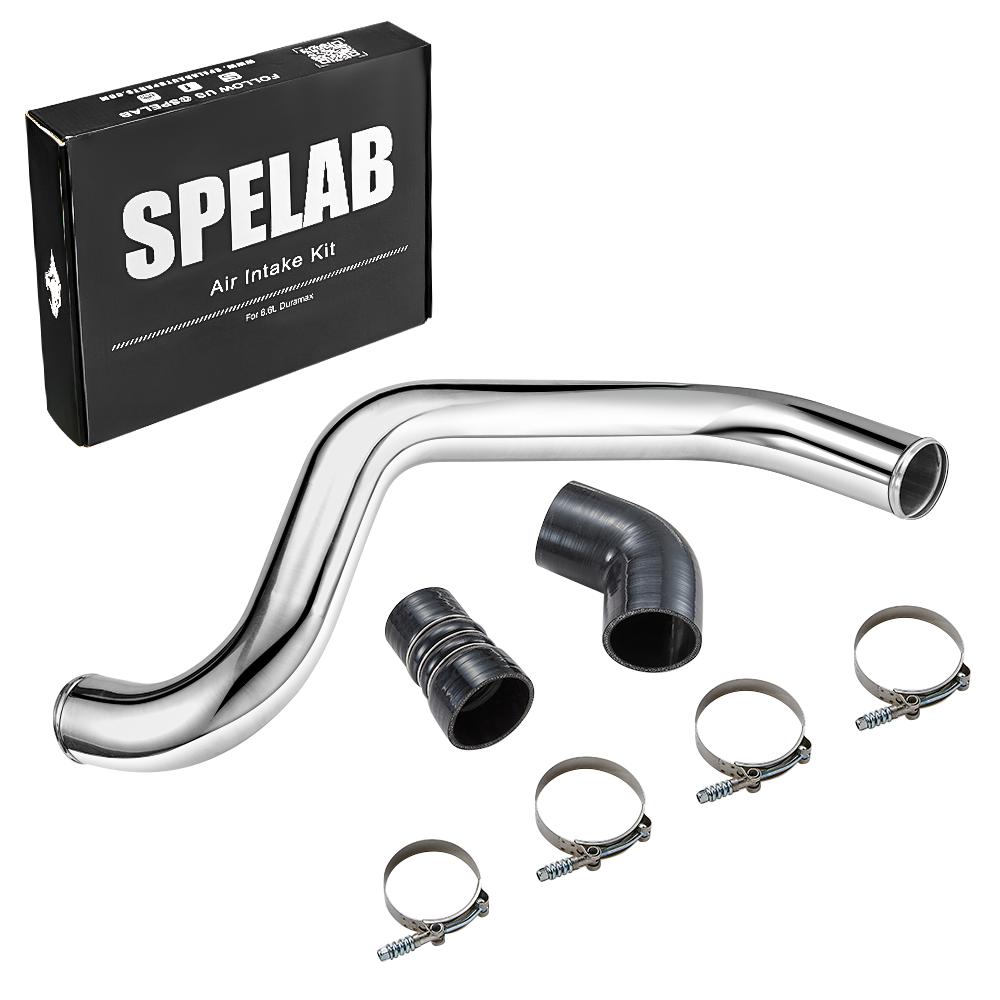

A damaged turbo-outlet connection can be addressed with a correctly matched 2004.5–2010 Duramax hot-side intercooler pipe kit; it should not be ordered to solve a confirmed cold-side O-ring leak.
2006–2010 LBZ/LMM Fitment and Pipe Specifications

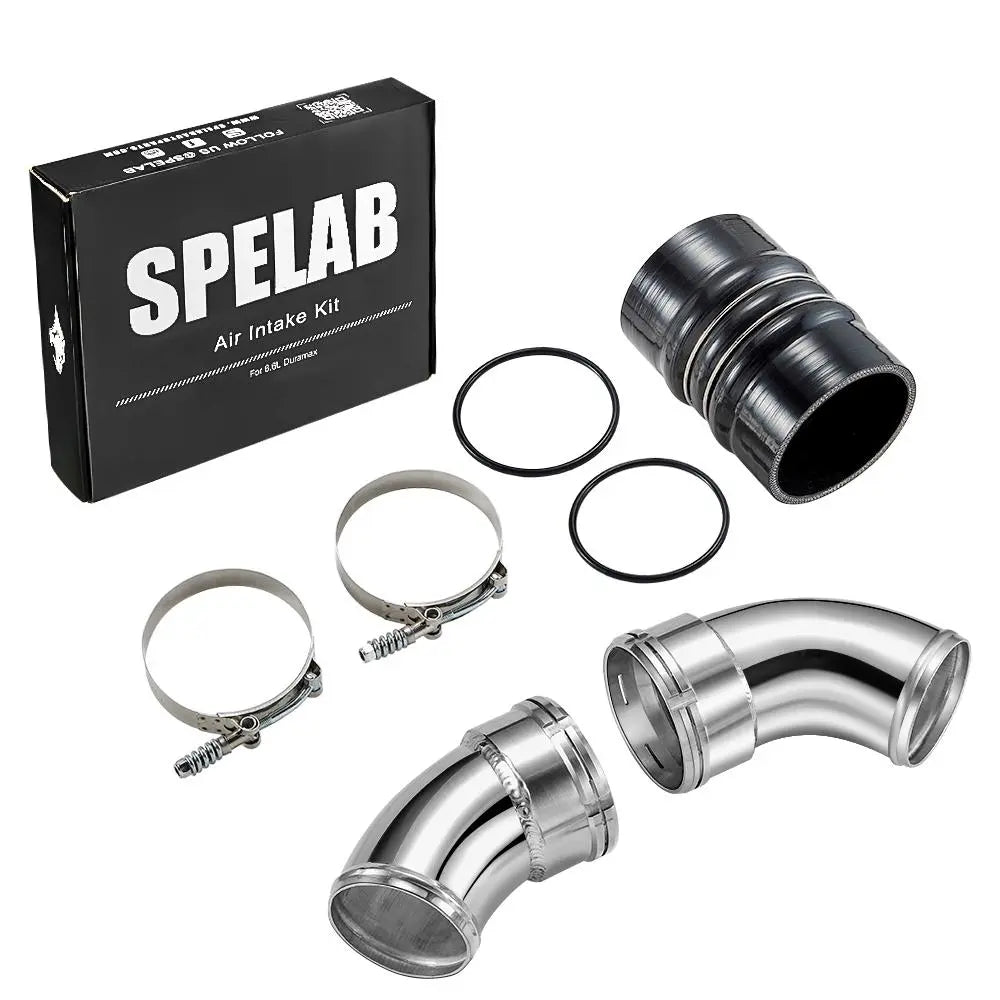

The 3.5-inch SPELAB cold-side pipe discussed here is listed for 2006–2007 LBZ and 2007.5–2010 LMM 6.6L Duramax applications, not every Duramax generation.
| Item | Verified Product Detail | Fitment Check |
|---|---|---|
| Cold-side pipe diameter | 3.5 inches | Do not apply this diameter to other Duramax kits |
| Pipe material | Mandrel-bent 6061 aluminum | Inspect welds, bead engagement, and surrounding clearance during test-fit |
| Coupler | Triple-reinforced silicone | Keep oil off the final clamping surface |
| Clamping hardware | T-bolt clamps | Position behind the pipe bead and tighten to the supplied instruction |
| Cold-side kit contents | Two cold-side pipe sections, one silicone boot, two T-bolt clamps, and two 5/8-inch heater hoses | Confirm the selected variant before disassembly |
| Available variants | Cold side, hot side, or hot-side plus cold-side kit | Order by the failed section and truck configuration |
LB7, LLY, LML, and L5P trucks use different plumbing and sealing details. Confirm VIN, engine code, model year, existing modifications, and the exact product variant before treating any pipe as a Bolt-on match.
How to Diagnose a Duramax Intercooler Pipe Leak
Clean the system, inspect every sealing surface, collect scan data, and pressure-test before replacing the pipe or intercooler.
- Record the leak before cleaning. Photograph the oil track, joint, clip, clamp position, and lowest drip point.
- Check engine oil level. An overfilled crankcase can increase oil carryover and confuse the diagnosis.
- Remove and inspect the O-ring. Look for flattening, hardening, cuts, swelling, twist, or a section sitting outside the groove.
- Inspect the factory clip and pipe seat. A bent clip or incomplete engagement can leave the joint partly unlocked.
- Inspect boots and clamps. Check for oil-softened silicone, torn fabric layers, a clamp sitting ahead of the bead, and polished movement marks.
- Inspect the pipe and intercooler. Look for plastic cracks, rubbed-through aluminum, damaged end-tank joints, and oil trails at the core.
- Scan before clearing codes. Record P0299 and related MAP, MAF, turbo-control, or intake codes with freeze-frame data.
-
Compare desired and actual boost. Log the enhanced
Desired BoostorCommanded BoostPID against actual boost when the scan tool supports both. If it only reportsMAPandBARO, estimate gauge boost as MAP absolute pressure minus barometric pressure. Record RPM, engine load or throttle position, MAF, and VGT command/position when supported, then repeat the same tune, gear, load, and safe test condition. - Pressure- or smoke-test the charge-air system. Use the engine-specific service method and regulated pressure; do not copy a universal test PSI from a forum post.
- Clean and recheck. Drive a fixed distance, inspect the same joint, and note how quickly oil or movement returns.
Boot and clamp preparation matters. Follow the detailed process to prepare and seal charge-air joints without turning this diagnosis into a second installation article.
Do Not Blame the Intercooler Pipe Too Fast
Low boost, smoke, oil, or a lazy pull can come from the pipe, but the same symptoms can also come from the turbo, sensors, intake restriction, exhaust-side control, excessive blow-by, or the intercooler core.
- Turbo oil source: Compressor-side leakage can feed oil into otherwise sound charge-air plumbing.
- Excessive blow-by: Worn rings or cylinder wear can overwhelm the factory vapor-control system.
- Sensor error: Contaminated MAP passages or bad data can make boost control look like a plumbing failure.
- Intercooler core leak: A cracked core or end-tank joint will not be repaired by a new pipe.
- Turbo-control problem: Vane, actuator, vacuum, exhaust, or calibration problems can set underboost without a charge-pipe leak.
- Intake restriction: A restricted air filter or collapsed intake tract reduces available airflow before the turbo.
O-Ring, Boot, Pipe Kit, or Intercooler: What Should You Replace?
Replace the smallest failed assembly that restores a rigid, oil-resistant, pressure-tight charge-air path, then upgrade farther only when condition and use justify it.
| Inspection Result | Best Next Move | Why | Do Not Assume |
|---|---|---|---|
| Pipe is sound; O-ring is flat or cut | Install the correct O-ring and verify clip engagement | Fixes the failed seal without replacing good hardware | The intercooler needs replacement |
| Boot is swollen, torn, or slipping | Replace the boot and inspect clamp/bead alignment | Restores grip under boost and engine movement | More clamp torque will repair damaged silicone |
| Factory plastic pipe is cracked or distorted | Use a correct-fit aluminum cold-side pipe | Removes the damaged rigid section | A new O-ring can seal a cracked pipe |
| Both hot and cold sides are aged on a tuned truck | Consider the matched hot-side plus cold-side variant | Refreshes boots, clamps, and rigid plumbing together | The kit creates a guaranteed horsepower gain |

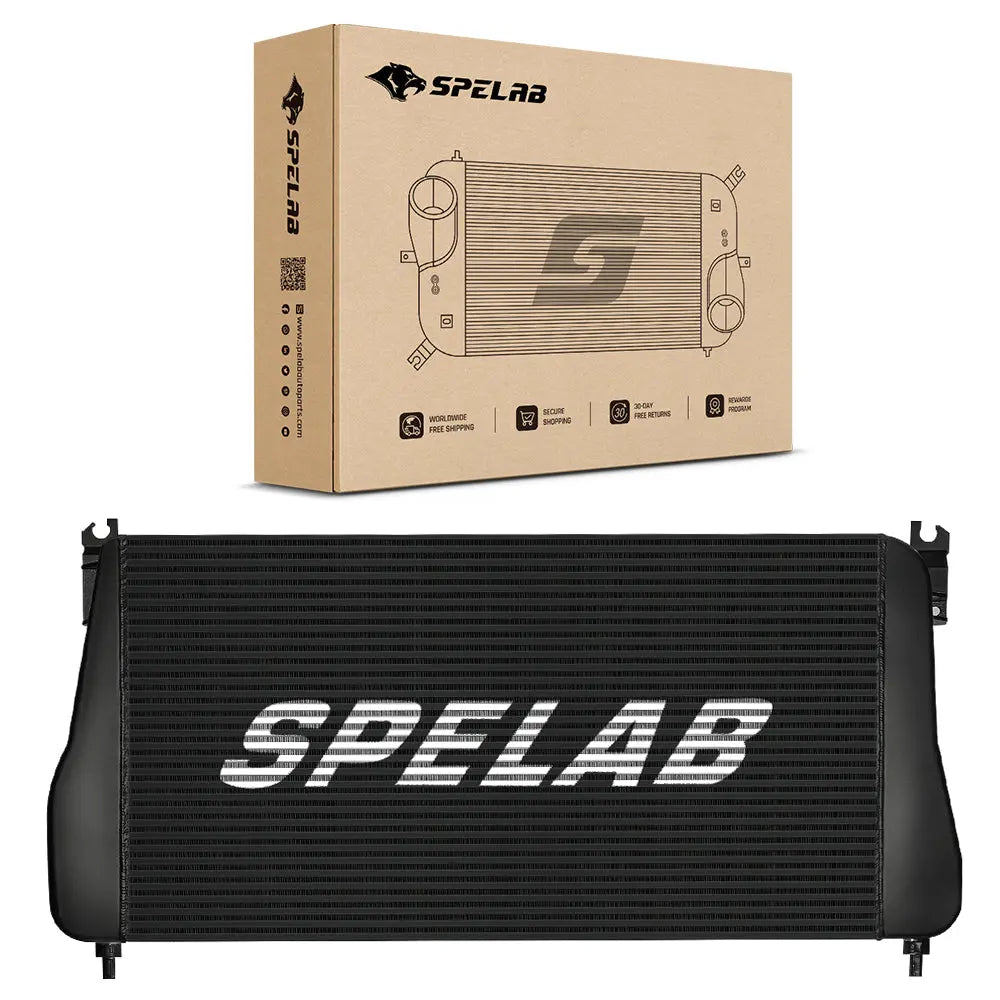

| Intercooler fails a pressure test | Repair or replace the intercooler core | The leak is outside the pipe assembly | Larger piping will seal the core |
| Oil returns rapidly with no joint leak | Check CCV/PCV flow, blow-by, and turbo condition | Targets the oil source instead of the exit point | A reroute repairs worn rings or turbo seals |
A failed factory cold-side section on the applicable platform can be replaced with a 2006–2010 LBZ/LMM cold-side intercooler pipe kit. A pressure-tight pipe should stay in service unless condition, Fitment, or repeated load-related movement justifies replacement.
Installation Lessons From the LBZ Video
Test-fit the larger plumbing before cutting, tightening, or reinstalling liners because a clean catalog fitment still has to clear the real truck in front of you.
The video installer removed a small bracket to gain cold-side access, seated lightly lubricated O-rings in their grooves, reused the factory retaining clips, and assembled the pipe sections before the road check. The video used clean engine oil, but the kit instructions and supplied O-ring material control the lubricant choice. Use clean engine oil only when the instructions permit it, and do not use petroleum jelly, chassis grease, brake cleaner, or another shop chemical without confirmed seal compatibility.
The same truck needed roughly one inch trimmed from each boot to clear the brake booster. The product listing describes a direct Bolt-on fit, so treat that trimming as a truck-specific field adjustment, not a standard step. Prior modifications, component position, boot insertion depth, and pipe orientation can change clearance. Contact product support before cutting a new boot if the test-fit does not sit naturally.
Keep the final clamping surfaces dry and oil-free. Seat the pipe fully, place each clamp behind the bead, check A/C lines and coolant components, reinstall the fender liner, and verify that engine roll cannot drive the pipe into the brake booster or bodywork.
How to Verify the Repair After Installation
A valid post-repair check repeats the same operating condition and confirms sealing, clearance, and boost tracking instead of relying on one hard pull.
| Measurement | Before Repair | After Repair | Control Needed |
|---|---|---|---|
| Commanded vs. actual boost | Save scan log | Repeat the same log | Same tune, gear, load, and safe road condition |
| Time to target boost | Record RPM and throttle | Compare the same range | Similar ambient temperature and Payload |
| Joint oil track | Photograph before cleaning | Inspect after fixed mileage | Same joint and camera angle |
| Boot and clamp movement | Mark positions | Check witness marks | Full heat cycle and cooldown |
| Charge-air leak test | Record leak location | Confirm repaired joint is sealed | Same regulated test method |
The video showed 29 psi after installation on tune three, described as roughly a 120-horsepower tune. No same-condition baseline was recorded, so the honest conclusion is that the truck pulled cleanly and built boost after the repair. As a parts manufacturer, we do not use that single reading as proof that pipe diameter added a fixed amount of boost or power.
Where This Failure Shows Up in Real Truck Use
High mileage, Towing load, tuned boost, Jobsite idle hours, rough Off-roading, and temperature swings expose different weak points in the same charge-air plumbing.
- High-mileage daily driver: Hardened O-rings, old plastic, and heat-cycled boots deserve attention before a performance Mod.
- Fifth-wheel or equipment trailer: Sustained cylinder load and boost can open a joint that stays quiet during unloaded commuting.
- Tuned street truck: Higher airflow and repeated pressure cycles demand good Fitment, clean sealing surfaces, and rigid pipe alignment.
- Jobsite truck: Long idle hours can increase oil-vapor accumulation even when odometer mileage looks moderate.
- Off-road truck: Chassis twist, vibration, dust, and contact with nearby hardware make clearance and clamp inspection more important.
- Cold-weather work truck: Hardened rubber, thick oil residue, and repeated hot-cold cycles can expose a marginal seal.
Will a PCV Reroute Stop the Cold-Side Leak?
A PCV reroute may reduce future oil vapor entering the intake, but it will not seal a damaged O-ring, cracked pipe, loose clip, failed boot, leaking intercooler core, worn engine, or bad turbo seal.
Repair the pressure leak first. Clean the system, establish how quickly oil returns, and check crankcase pressure and turbo condition before changing the vapor path. A reroute is an oil-control decision, not a substitute for diagnosis, and it should be evaluated only after the mechanical leak and oil source have been separated.
Fitment and Emissions Boundary
Intercooler piping can be a direct charge-air repair, but any separate change to factory crankcase ventilation or emissions equipment must be checked against the truck's model-year requirements and local law.
Keep factory sensors, emissions hardware, and vent monitoring intact unless the vehicle and application legally permit a different configuration. Street-driven owners should review current EPA air-enforcement guidance and confirm state rules before altering the PCV/CCV path.
Duramax Intercooler Pipe Leak FAQ
These answers cover the short questions owners ask before deciding whether to reseal, pressure-test, replace a pipe, or inspect the wider engine system.
Q: Is a little oil inside a Duramax intercooler pipe normal?
A: A light internal film can occur when a closed factory CCV/PCV system routes oil vapor through the turbo and charge-air system. Heavy pooling, rapid oil return, blue smoke, or oil outside a joint needs diagnosis.
Q: Can a cold-side pipe leak without making a hissing sound?
A: Yes. A small O-ring or joint leak may only open under boost and load, so it can stay quiet at idle and during light cruising.
Q: Can a failed cold-side O-ring cause P0299?
A: It can contribute if the seal leaks enough charge air to create an actual-versus-commanded boost gap. P0299 also has turbo-control, sensor, intake, exhaust, and intercooler causes, so pressure-test before ordering parts.
Q: Should I replace both hot-side and cold-side pipes?
A: Replace both when inspection shows both sides are aged, damaged, or poorly suited to the truck's load and tune. One failed cold-side O-ring does not automatically require a complete kit.
Q: Does a 3.5-inch intercooler pipe add horsepower?
A: A larger, smoother pipe can remove a damaged or restrictive section, but it does not guarantee a fixed horsepower gain. Prove any change with same-condition logs or a controlled dyno test.
Q: Can I keep towing with oil leaking from the cold-side connection?
A: Avoid heavy Towing until the source is identified. A weak connection can open farther under sustained boost, coat nearby parts with oil, or leave the truck underpowered during a pull.
Q: Do I need a tune after replacing LBZ/LMM intercooler pipes?
A: A direct-fit pipe replacement does not normally require tuning by itself. Existing tuning still affects boost targets and diagnostic interpretation, so compare data using the same calibration.
How We Separated Evidence From Opinion
Vehicle condition and installation observations came from the embedded @lmfscrew LBZ owner video; pipe dimensions, material, included parts, variants, and fitment came from the current SPELAB Shopify product record; performance claims were limited because no controlled before-and-after test was available.
The 29 psi pull, 200,000-mile condition, factory CCV status, failed cold-side O-ring, bracket removal, and boot trimming remain attributed to that one truck. The article does not turn those observations into a universal failure mileage, mandatory trimming instruction, or horsepower promise.
