What does a valve cover do, and when should it be replaced?

A valve cover protects the valvetrain, helps contain engine oil, and may also carry ports or baffles used by the crankcase ventilation system. Inspect it when fresh oil returns along the gasket line after cleaning, or when the cover has cracks, corrosion, damaged mounting points, warping, or a sealing rail that no longer sits flat. Before replacing it, rule out a misaligned gasket, incorrect fastener torque, nearby oil leaks, a restricted CCV path, and excessive engine blow-by.

Why choose an aluminum valve cover, and is billet better than cast?

Aluminum can provide a rigid sealing rail, corrosion resistance, serviceable breather options, and an engine-bay appearance upgrade. On engines with composite factory covers, repeated heat cycles can contribute to distortion; however, some Duramax applications already use factory aluminum rocker covers. Cast aluminum is generally the more budget-friendly option, while billet covers are CNC-machined from solid stock and may offer greater dimensional consistency, finish, or custom features. Neither construction guarantees that an oil leak or crankcase-pressure problem will be eliminated.

Which Cummins, Powerstroke, and Duramax engines are covered?

The current diesel range includes applications for 2003-2005 Dodge Ram 5.9L Cummins, 2006-2007 Dodge Ram 5.9L Cummins, 2007-2024 Dodge Ram 6.7L Cummins, 2004.5-2007 Ford 6.0L Powerstroke, 2008-2010 Ford 6.4L Powerstroke, and 2004.5-2010 GM 6.6L Duramax LLY, LBZ, and LMM engines. Fitment can change by engine code, model year, chassis, and installation configuration, so confirm the individual product page before ordering.

How does a valve cover affect the CCV system, and does a 6.7L Cummins need a catch can?

The crankcase ventilation system routes blow-by gases and pressure through baffling, filters, hoses, factory connections, or an external catch can. Some aftermarket covers retain the factory arrangement, while others require external vent-hose routing. On 6.7L Cummins applications, if the selected cover removes the factory filter housing, the engine needs a complete product-specific alternative ventilation route. A correctly sized and plumbed catch can may be part of that setup, but it is not a cure for excessive blow-by or a restricted ventilation path.

Does every SPELAB valve cover include a gasket, breather hose, CCV filter, and catch can?

No. Package contents vary by engine, product, and selected variant. A cover may include specific gaskets or mounting hardware without including a breather hose, CCV filter, catch can, or every fitting needed for the final installation. Check the "What's in the Box," specifications, variant name, and installation notes on the individual product page before checkout.

Can I install a valve cover myself, and what torque or sealant should I use?

Experienced DIY owners may be able to complete some installations, while tightly packaged Powerstroke or Duramax applications can require careful removal of wiring, brackets, fuel-system components, or ventilation lines. Torque values and tightening sequences vary, so use the selected product instructions and appropriate factory service information. Use RTV only at joints or stepped areas specifically identified by the engine or gasket manufacturer, not around the entire gasket. After the first complete heat cycle and full cooldown, inspect for seepage; recheck torque only when the instructions call for it.

Will an aluminum valve cover add power, require tuning, or cause a check-engine light?

A valve cover is not a power-adder and normally does not require ECU tuning by itself. It can be replaced on its own when the original cover or sealing system needs service, or when a different material, appearance, clearance, or breather arrangement is desired. The installation must preserve the correct wiring, sensors, module brackets, and PCV or CCV connections. A disconnected hose, damaged connector, or incorrect ventilation setup can cause drivability problems or warning lights.

Why can a new valve cover still leak oil after installation?

Common causes include a pinched or misaligned gasket, oil or debris on the mating surface, incorrect bolt order or torque, damaged cylinder-head threads, a warped sealing surface, restricted crankcase ventilation, or excessive blow-by. Use RTV only at joints, corners, or stepped casting areas specifically identified by the engine service procedure or gasket manufacturer. Do not coat the entire gasket or assume every Cummins, Powerstroke, or Duramax application requires sealant. Clean the area and identify where fresh oil first appears. If crankcase pressure remains high, diagnose the ventilation system and engine condition rather than repeatedly tightening the cover.

Valve Cover

Diesel Valve Cover Shopping Guide

An engine valve cover protects the valvetrain and helps seal oil inside the top of the engine. On many diesel applications, it also works with the crankcase ventilation system through built-in passages, breather ports, baffles, or connections for external hoses. The right replacement therefore depends on more than appearance: engine family, model year, material, sealing components, and the application-specific ventilation system all matter.

SPELAB's valve cover range is centered on Cummins, Powerstroke, and Duramax diesel engines used in Dodge Ram, Ford Super Duty, and Chevrolet/GMC HD trucks. Selected gasoline applications for Gen III HEMI and Big Block Chevy engines are also available, but diesel fitment remains the main focus of this collection.

What Does an Engine Valve Cover Do?

The valve cover sits above the cylinder head and shields components such as rocker arms, valve springs, and related valvetrain hardware from dirt and debris. A valve cover gasket seals the joint between the cover and cylinder head, while fasteners hold the cover evenly against the sealing surface.

On a diesel engine, the cover may also be part of the crankcase ventilation path. Combustion gases that pass the piston rings, commonly called blow-by, must leave the crankcase through the factory ventilation system or an application-specific breather setup. Depending on the engine and valve cover design, oil vapor may be managed through internal baffling, a CCV connection, an external catch can, or a vent hose.

Shop SPELAB Valve Covers by Diesel Engine

Engine and application	Available construction	Important selection notes
2003-2005 Dodge Ram 2500/3500 5.9L Cummins	CNC-machined billet aluminum	High-volume breather outlet. The kit does not include a universal breather hose, so plan the hose or catch-can route before installation.
2006-2007 Dodge Ram 5.9L and 2007-2024 6.7L Cummins	Cast or billet aluminum, depending on variant	Replacing the factory assembly changes the original CCV filter arrangement. Confirm the alternative ventilation route, sensor provisions, and included parts for the selected model year and variant.

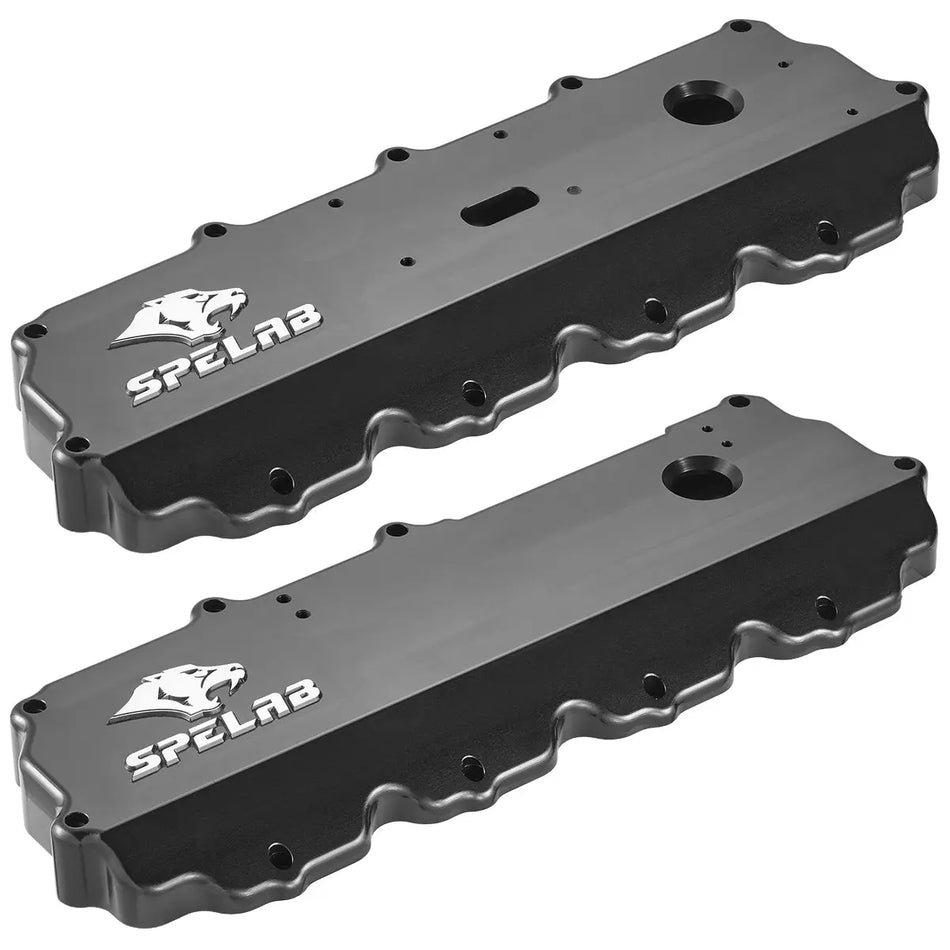

2004.5-2007 Ford F-250/F-350/F-450/F-550 6.0L Powerstroke	CNC-machined billet aluminum	Confirm the application-specific FICM/GPCM mounting brackets and wiring arrangement before installation.

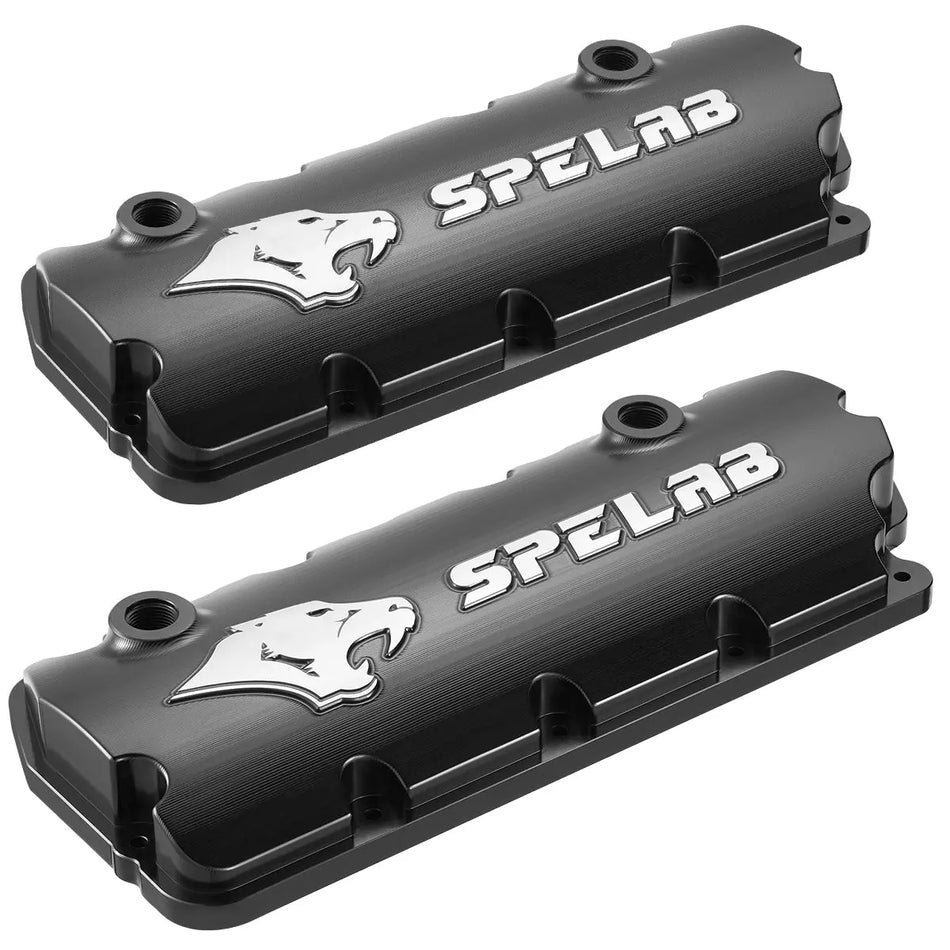

2008-2010 Ford F-250/F-350/F-450/F-550 6.4L Powerstroke	CNC-machined billet aluminum	Designed around an external breather or catch-can configuration. Review the glow-plug harness and installation notes carefully.
2004.5-2010 Chevrolet/GMC 2500HD/3500HD 6.6L Duramax LLY, LBZ, and LMM	CNC-machined billet aluminum	Confirm the LLY, LBZ, or LMM engine code, the dual PCV-port configuration, and the required gasket before ordering.

What Changes on a 6.7L Cummins CCV System?

On 6.7L Cummins applications, the factory valve-cover assembly works with the crankcase breather and filter system. Aftermarket covers that remove the factory filter housing require a complete alternative ventilation route. Depending on the selected cover and model year, that may involve a product-specified closed-return system, external catch can, or vent-hose arrangement. Confirm the required hose, fittings, sensor provisions, internal baffling, and oil-control strategy before ordering. An undersized or poorly routed setup can carry oil mist out of the breathers and should not be treated as a cure for excessive engine blow-by.

Billet or Cast Aluminum Valve Covers

Cast Aluminum

Cast aluminum covers are formed by pouring molten alloy into a mold, then machining important surfaces and openings. They are generally the more affordable choice and can suit daily-driven, stock, or mildly modified trucks when the selected design matches the engine and ventilation setup.

Billet Aluminum

Billet valve covers are CNC-machined from solid aluminum stock. Selected SPELAB billet models use 6061-T6 aluminum. CNC machining allows precise sealing surfaces, openings, and mounting features, which can be useful for modified engines, custom engine bays, towing or work-truck builds, and owners who place a higher value on finish and dimensional consistency. Billet construction normally costs more than casting and does not remove the need for correct gasket preparation and bolt torque.

Design Details That Matter

Sealing surface: The cover, gasket, fasteners, cylinder-head surface, tightening order, and torque must work together to control oil leaks.
Clearance: Check wiring, ignition coils, glow-plug harnesses, control-module brackets, head studs, intake parts, fuel-system components, and valvetrain height where applicable.
Heat-cycle stability: On engines equipped with composite factory covers, repeated heat cycles can contribute to distortion of the cover or sealing rail, making a gasket-only repair less effective. A rigid aluminum replacement can help maintain a flatter sealing surface. This reason does not apply equally to every platform: some Duramax applications already use aluminum factory rocker covers and may be upgraded for sealing design, rigidity, ventilation routing, clearance, or appearance instead.
Finish and customization: Selected products are available in silver, black, red, blue, anodized, or custom finishes. Color and logo options depend on the product and current variant availability.

How to Choose the Right Valve Cover

Confirm the engine and model year. "Cummins," "Powerstroke," or "Duramax" alone is not enough. Check displacement, engine code where applicable, model year, and truck model before ordering.
Identify why the cover is being replaced. A damaged cover, leaking gasket, engine-bay appearance upgrade, clearance requirement, and crankcase-ventilation change are different jobs and may require different parts.
Choose the construction for the build. Cast aluminum may be enough for a stock daily driver. Billet construction may make more sense when machining detail, custom routing, appearance, or a modified application justifies the additional cost.
Check the installation package and ventilation plan. Do not assume every cover includes the same gasket, hose, filter, bracket, fitting, or catch can. A towing truck, work truck, daily driver, and competition build may also use different CCV, PCV, vent-hose, or catch-can arrangements. Read the selected product and variant details before checkout.

Do Not Blame the Valve Cover Too Quickly

Fresh oil along the gasket line, visible cover damage, or a distorted sealing rail can point to a valve-cover problem. However, oil around the top of an engine can also travel from another source. Clean the area, inspect the gasket line after running the engine, and check nearby fittings, breather connections, and oil sources before ordering parts.

Excessive crankcase pressure deserves separate diagnosis. A restricted ventilation path, incorrect catch-can plumbing, worn piston rings, or high blow-by can continue to push oil past seals even after a new cover is installed. Milky residue can also be related to condensation or internal coolant contamination and should not automatically be blamed on the valve cover.

Installation and Support Resources

Installation difficulty varies widely across Cummins, Powerstroke, Duramax, HEMI, and Big Block Chevy applications. Always use the torque specifications and tightening sequence for the exact engine, model year, gasket, and fastener combination. Recheck the gasket area and breather connections after the first complete heat cycle, following the instructions supplied with the selected product.

For more detailed Cummins information, see the 6.7L Cummins valve cover gasket replacement guide, compare different 6.7L Cummins valve cover options, or review the SPELAB 6.7L Cummins selection guide. Product-specific manuals, installation videos, returns support, customer service, and membership benefits remain available through the corresponding product and support pages.

Other Performance Valve Cover Applications

Gasoline-engine products make up a smaller part of this collection. Options include Gen III HEMI 5.7L, 6.1L, and 6.4L valve covers in selected cast and billet variants, plus fabricated aluminum Big Block Chevy 396, 402, 427, and 454 valve covers. Confirm ignition-coil, valvetrain, gasket, and under-hood clearance requirements on the individual product page.
