Powerstroke Radiator

A Ford F-Series radiator is identified two ways in the aftermarket. Buyers searching by engine look for a Powerstroke radiator. Buyers searching by truck look for a Ford F-Series radiator. Both names point at the same hardware, and neither one tells you which of the three direct-fit cores the truck actually takes.

The spread across the F-Series radiator line is wider than the engine badge suggests. A first-generation 6.4L, a mid-generation 6.7L, and a later 6.7L each use a different core, and the differences show up in the numbers a buyer can actually check: core dimensions, hose fitting sizes, fitting sides, and whether an oil cooler is built into the tank. A fourth product grouped with these Powerstroke radiator options is not a radiator at all, but a three-part cooling refresh that shares the same work area.

Three Direct-Fit Cores, Three Sets of Numbers

Every Powerstroke radiator sold for these trucks is bolt-on. Reading the spec tables side by side is the only reliable way to pick one, because the label on the box carries the truck name but not the dimensions. A Ford F-Series radiator chosen by engine badge alone is a guess with three plausible answers.

Specification	First-gen 6.4L	Mid-gen 6.7L, primary	Mid-gen 6.7L, secondary	Later 6.7L
Core length	37in	38 3/8 in	39 3/8 in	38 3/8 in
Core width	27 1/16 in	27 1/16 in	20 11/16 in	27 1/16 in
Core thickness	2 11/16 in	1 5/8 in	1 5/8 in	1 5/8 in
Top hose fitting	1 13/16 in, left	2 1/4 in, left	1 1/4 in, right	2 in, left
Bottom hose fitting	1 13/16 in, right	2 1/4 in, right	1 in, left	2 1/4 in, right
Inlet and outlet size	2 7/16 x 3 3/16 in	2 3/8 x 2 3/16 in	2 1/8 x 2 1/8 in	2 3/8 x 2 3/16 in
Integrated oil cooler	12in plate type	Not listed	Not listed	None
Side tank material	Plastic	Plastic	Plastic	Plastic

Read the fitting side column before anything else. A top hose fitting on the left and one on the right are not interchangeable, and a Ford F-Series radiator with the wrong one will not seal against the existing hoses.

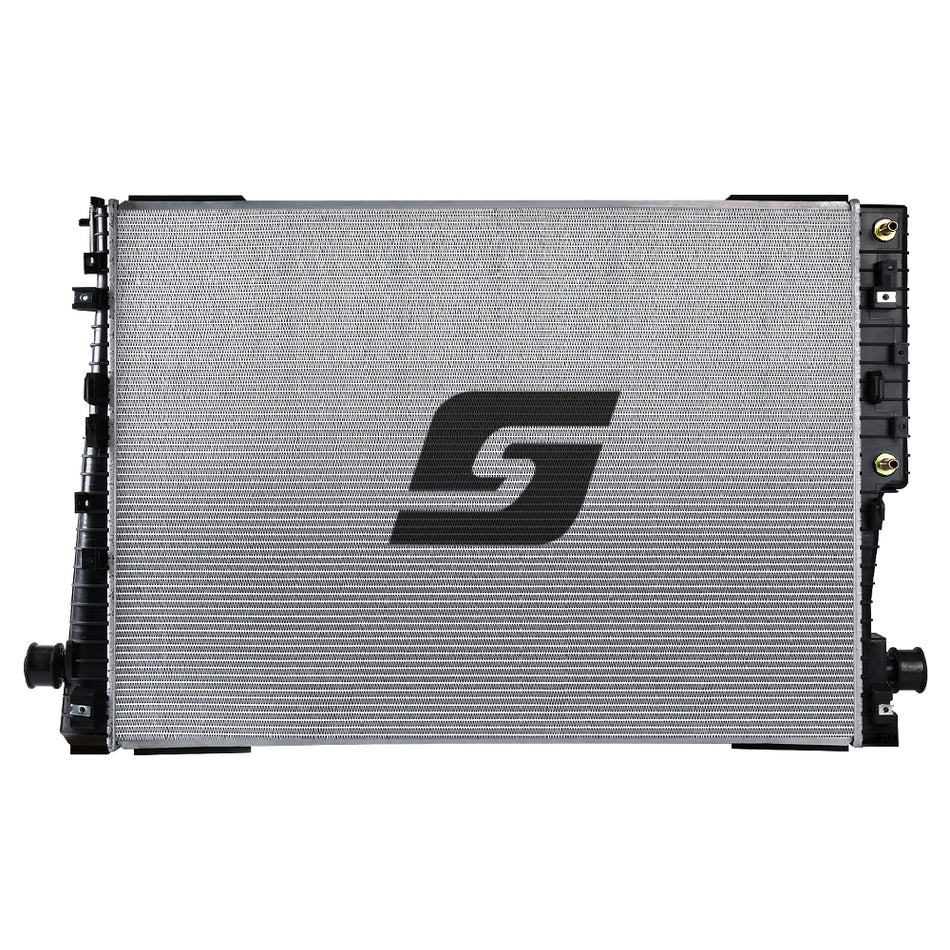

The 6.4L Radiator Carries Its Own Oil Cooler

The first-generation 6.4L core is built with a 12in high-efficiency plate-type oil cooler integrated into the tank. The later 6.7L core explicitly has no oil cooler, and the mid-generation 6.7L parts do not list one.

This changes what the replacement actually accomplishes. Fitting the 6.4L radiator puts a new transmission oil cooling surface into the truck at the same time as the new core. Fitting a later 6.7L radiator replaces heat rejection for engine coolant only, because oil cooling happens somewhere else on that truck.

For a truck that has already had its cooler problem addressed, that is not a reason to avoid the part. For a truck whose oil cooler has never been looked at, it is a reason to inspect it while the radiator is out. A Powerstroke radiator picked without that consideration replaces only half of what the original part did.

Why One Mid-Generation SKU Covers Two Interfaces

The mid-generation 6.7L radiator is listed under a single part number covering both F-250 and F-350, and that Powerstroke radiator carries two fitment branches. They differ in more than a label.

The primary branch uses 2 1/4in fittings on both the top and bottom hoses, with the top on the left. The secondary branch uses a 1 1/4in top fitting on the right and a 1in bottom fitting on the left. Core width follows the same split: 27 1/16in on the primary branch against 20 11/16in on the secondary, a difference of more than six inches of core face.

A truck ordered as mid-generation 6.7L F-250 can fall on either branch depending on how the cooling package was built. Ordering a Ford F-Series radiator by engine and model year alone leaves that undetermined, and the branch that arrives will either not reach the hoses or will not fit the core support. Measure the existing top hose fitting and the core width across the opening before ordering this part.

Aluminum Core, Plastic Tanks, and What That Combination Does

These radiators use an aluminum core with reinforced plastic side tanks, matching the layout the truck was built with. The core is the part that carries coolant to air. The tanks hold coolant, take pressure, and bolt to the mounting points.

Two design details address what ages on this layout. The internal tubes are reinforced at the outside corners, which is where a brazed core tends to fail first. The plastic mix carries fiber reinforcement, and the end tanks have added ribs at the weak points, plus strengthened integrated mounting points so a Powerstroke radiator sits where the factory unit sat. On the mid-generation part, the rubber gasket between the tank and the core is designed to allow expansion, contraction, and flex instead of acting as a rigid bond, which removes one of the common leak paths on this style of radiator.

There is no radiator cap supplied with any of these units. The cap and the coolant recovery connection come from the truck or from the reservoir in the refresh kit.

A Ford F-Series radiator built this way still cannot outrun a blocked grille or a slipping fan clutch. The core raises capacity on the coolant side only, and the air side has to deliver.

Why the Refresh Kit's Three Parts Land in One Work Session

The cooling system refresh kit for the mid-generation through later 6.7L contains an upper coolant tube, an aluminum radiator, and a coolant reservoir tank. These are not three separate upgrades that happen to be sold together. They share one coolant circuit, one fill point, and one drain.

The upper coolant tube crosses the top of the engine bay and connects the engine to the radiator. Pulling the radiator means working around that tube. When it is already out of the way, replacing it costs the same labor as having it out of the way, and the connection it makes is the one most often found degraded on a truck of this age. The reservoir feeds that same circuit and sits directly above the radiator, so it comes out during the same access.

The honest part: the reservoir tank is usually not the failed component. Most trucks arriving at this job have a radiator or an upper tube as the actual complaint, and the reservoir is included because the access is already open and the part is the only sensible place to reach in the same session. Nothing about the reservoir prevents the other two from being replaced on their own, and a Powerstroke radiator bought separately leaves the cooling system exactly as it was above the core.

Fitment runs across the mid-generation and later 6.7L trucks, which is a wider window than any single standalone Powerstroke radiator covers. Check the kit against the specific truck before treating it as a substitute for a radiator on its own.

F550 Coverage Stops at the Mid-Generation

The first-generation 6.4L radiator and the mid-generation 6.7L radiator both list F-550. The later 6.7L radiator lists F-250, F-350, and F-450 only.

F-550 is a commercial chassis with a different rear suspension and a dual rear wheel option, and it does not carry over to the later body style. If the truck is an F-550, the standalone radiator choice ends with the mid-generation part, and the later 6.7L core is not an option regardless of engine. A Ford F-Series radiator ordered for the later body style will not resolve into an F-550 fitment.

What to Have Ready Before Ordering a Ford F-Series Radiator

Four details decide the fit, and three of them are not visible from the outside of the truck.

Engine displacement and generation. The 6.4L and the two 6.7L generations use three different cores, and the mid-generation part covers two interfaces within itself.

Truck series and class. F-250 through F-450 share the radiator fit within a generation. F-550 coverage ends earlier.

Existing fitting sizes. The top hose fitting size and side identify the mid-generation branch and confirm the generation. Measuring takes a minute and prevents the most expensive mistake available to a buyer.

Coolant circuit contents. If the replacement is part of a larger cooling job, the upper coolant tube and reservoir may need to be on the same order, because those parts are only accessible with the radiator out.

Send those details with the order and expect the fit to be settled before the part ships. A radiator is a large, heavy component that travels one way.
