Transmission Pan

A Transmission Pan is the part every fluid change ends at, and on a pickup it is also one of the few places where a cheap component quietly limits what the drivetrain can take. The stamped steel original holds a set volume of fluid, drains it into a pan, and leaves the rest to the cooler and the fins on the case. An upgraded Transmission Pan changes three things: how much fluid there is, how much surface area that fluid can shed heat into, and how violently it moves inside the case.

What a Transmission Pan Changes on a Truck

Nothing about gearing, power or shift pattern comes from this part. What comes from it is thermal.

• Volume. More fluid in the case is more fluid available between heat-producing shifts, and the temperature spike that shows up on a gauge after every hard pull takes longer to arrive.
• Surface area. External fins on a Transmission Pan give the fluid somewhere to give up heat to the air under the truck.
• Movement. Internal baffles and channels decide whether the fluid sloshes toward the back of the case under acceleration or stays where the pump can draw it.

There is a fourth job that is not about performance at all. Every service ends here, so the Transmission Pan is where the pickup sits and where the debris ends up. That makes it the cheapest place to look when a transmission is behaving badly.

The Transmission Model Is the Only Key That Matters

Bolt pattern, pan depth, pickup location and drain fitting are all set by the transmission case. None of them is set by the engine badge on the side of the truck.

Transmission	Where it is used here	What it means for the pan
5R110	Ford Super Duty with the 6.0L and 6.4L Powerstroke	Its own pattern and depth, unrelated to the 6R140 pan
6R140	Ford Super Duty with the 6.7L Powerstroke	Deepest capacity increase of the three

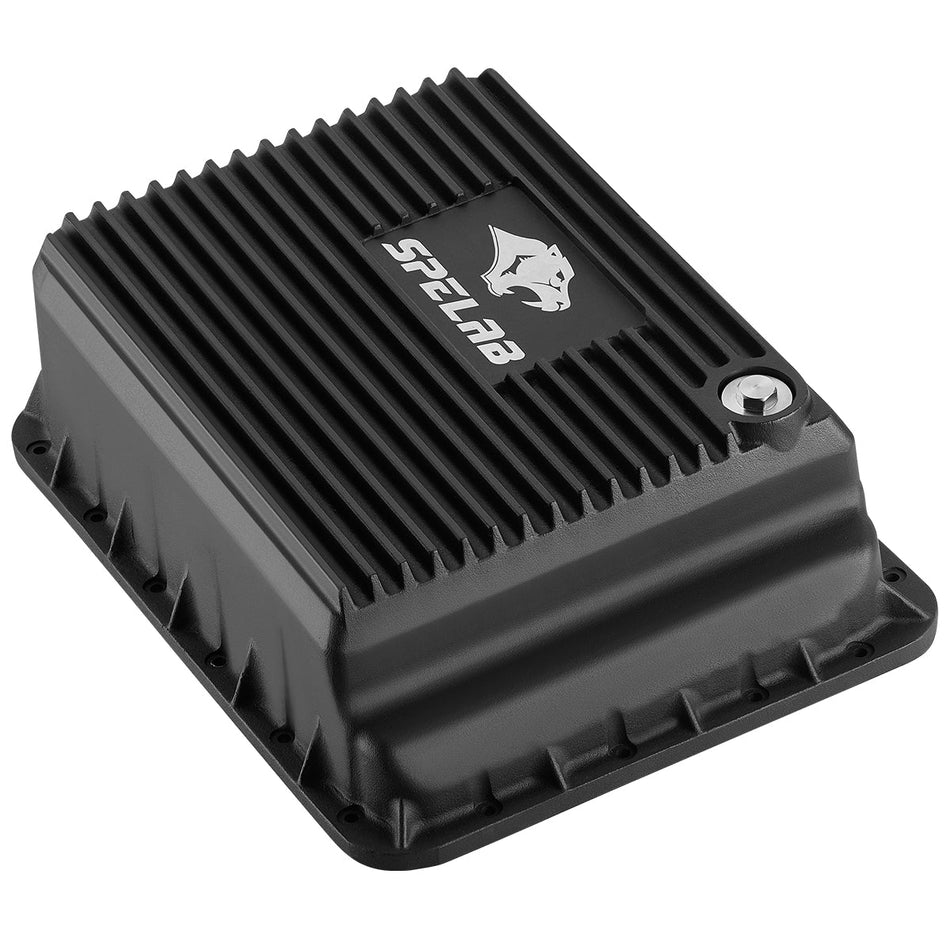

AS69RC	Dodge Ram with the 6.7L Cummins	A different case again; no Ford pan fits it

The trap is the badge. Two trucks can both wear a 6.7L label and take completely different Transmission Pans, and one Ram pan will never bolt to a Ford case. Engine displacement narrows nothing. The transmission code decides the whole question.

That code is on the transmission itself, stamped into the case, and it is repeated on the build sheet. If the truck has already been through a pan change, the replacement part number usually settles it faster. The code narrows the field down, but the coverage list still decides in the end, because the same transmission can sit under more than one model year.

Reading a Transmission Pan by Depth and Internal Design

Two pans that bolt to the same case can still be very different parts. These are the four things worth comparing.

• Depth. The straightest way to add capacity. The 6R140 pan here runs roughly 5.5 inches deep and adds about seven quarts over the original stamping; the AS69RC pan adds about four.
• External fins. More surface area exposed to moving air. On a truck they also collect road salt and mud, so they are a trade rather than a free gain.
• Internal baffles. A wall or a shelf that stops the fluid throwing itself at the back of the case when the truck accelerates hard or launches.
• Internal channels. Cast passages that pull fluid from the low corners back toward the pickup instead of letting it sit still.

Aluminium itself is only half the story. A thick, well-finished casting moves heat into the fins; a thin one with a large fin area does not. Bolt holes, the sealing face and the drain fitting on a Transmission Pan decide whether it seals, and that matters more than any finish.

What a Deeper Transmission Pan Costs You

Capacity is bought with room, and the room is not free.

• Clearance. Measure from the lowest point of the Transmission Pan to the ground, and separately to the driveshaft, the tunnel and any crossmember, with the suspension at full bump and back at full droop. A lifted truck runs out of the second one first.
• The oil level. More room does not mean more oil. A deep Transmission Pan still takes a set fill, and filling it near the top can push the level above the pump and pull air into the fluid, which shows up as foam, rising temperature and a change in shift quality under load.
• How the level is checked. A deeper pan moves the dipstick or the fill plug, so whatever measurement habit worked on the original no longer applies.
• Drain access. A pan that sits under a skid plate or a hitch mount can be slow to drain, and rushing it is how debris gets left behind.

Where a Transmission Pan Stops and a Cooler Begins

These two parts solve different halves of the same problem, and the half that is wrong does nothing at all.

A Transmission Pan works inside the case. It holds more fluid, gives that fluid somewhere to move, and adds a little surface area to the air under the truck. A cooler moves fluid out of the case entirely and dumps the heat into air or engine coolant, which is a far larger heat sink than anything under the truck.

The symptom tells you which half is short. Temperature that climbs under load and then comes back down points at volume and slosh control, which is pan territory. Temperature that sits high at a steady speed with nothing happening points at heat rejection, and a deeper Transmission Pan will not lower that peak. It buys time between spikes rather than a lower ceiling.

Single Pans and the Cooling Upgrade Bundle

Three products here are replacement Transmission Pans. The fourth is a Transmission Pan sold with the cooler kit and lines that match one transmission, and it is a different kind of purchase rather than a bigger version of the same one.

• A single Transmission Pan suits a healthy transmission on a truck that has never run hot. It replaces a rusted original and adds capacity in one part.
• The cooling bundle suits a truck that already runs warm, or one where a cooler line needs replacing at the same time the pan comes off. It shares the same fitment key, so it is still matched to the transmission code and not to the engine.

What a bundle does not do is restore a transmission that has already worn its clutches. A Transmission Pan on its own, or a Transmission Pan inside a bundle, buys the fluid the life it has left.

What Transmission Pan Work Does Not Fix

• Slipping or worn clutches. Pan capacity does not put friction material back.
• A blocked cooler core or a burst cooler line. That is the cooling side, and a Transmission Pan leaves it exactly where it is.
• Shift feel from a valve body or solenoid. A deeper pan will not change how a shift is commanded.
• A leak that is not the pan. Cooler lines, the cooler itself and front seals all fail more often than the pan.
• Rated capacity. Nothing here raises what the truck is rated to tow or carry.
