Exhaust Tips

What Are Exhaust Tips?

Exhaust tips are the visible finishing pieces at the end of a vehicle’s tailpipes. They primarily change the exhaust outlet’s appearance through different sizes, shapes and finishes, such as polished stainless steel or black coatings. For a compatible fit, match the tip’s inlet to the tailpipe’s outside diameter and check the mounting requirements and available clearance.

Choose Exhaust Tips by Inlet Size, Outlet Diameter and Length

The right exhaust tip starts with the connection to your existing tailpipe. Whether you are comparing black exhaust tips, stainless steel exhaust tips or a larger outlet for your truck, check the inlet size first. Then choose an outlet diameter and overall length that suit the available space and the look you want.

SPELAB truck exhaust tip options include 4-inch and 5-inch inlet configurations, with different outlet sizes and lengths available by product. Select the exact variant before ordering, and confirm its dimensions, finish, wall construction and mounting hardware.

4-Inch Inlet Exhaust Tips

A 4-inch inlet exhaust tip is intended for a compatible tailpipe connection of that size. Compare the available 5-inch, 6-inch and 7-inch outlet options after checking the actual outside diameter of your pipe and the product’s specified fitment. A 4-inch inlet with a 6-inch outlet still connects at the 4-inch end; the larger outlet does not make it fit a 6-inch pipe.

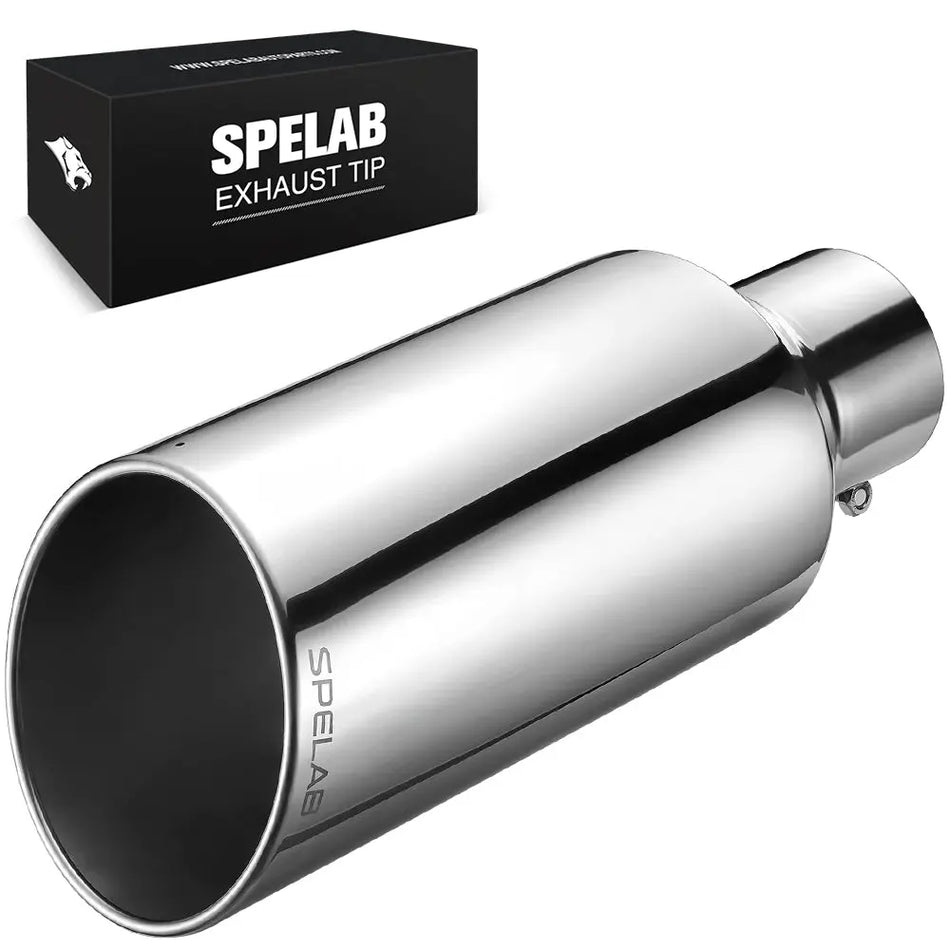

5-Inch Inlet Exhaust Tips

For a compatible 5-inch tailpipe, compare 5-inch inlet exhaust tips with the available 6-inch, 7-inch or 8-inch outlets. Check clearance around the bumper, hitch and bodywork before choosing a larger outlet. Engine size or truck model alone does not confirm fitment, especially if the exhaust system has already been replaced.

How to Measure Your Tailpipe for an Exhaust Tip

Measure the pipe where the new tip will attach, with the exhaust completely cool. Do not measure the visible outlet of an existing decorative tip and assume it is the same size as the pipe underneath.

1. Measure the tailpipe outside diameter: Use calipers where possible. Match the measurement to the tip’s specified pipe fitment and clamping range.
2. Check the usable straight section: The mounting area needs enough sound, straight pipe for the required installation overlap.
3. Measure the available outlet space: Allow for the complete tip body, surrounding trim and exhaust movement.
4. Check the installed position: Compare the overall length with how far the tip slides onto the pipe and where you want its outlet to sit.

“Universal exhaust tip” means the product is selected by its dimensions and mounting requirements rather than one specific vehicle application. It does not mean every tip fits every car or truck.

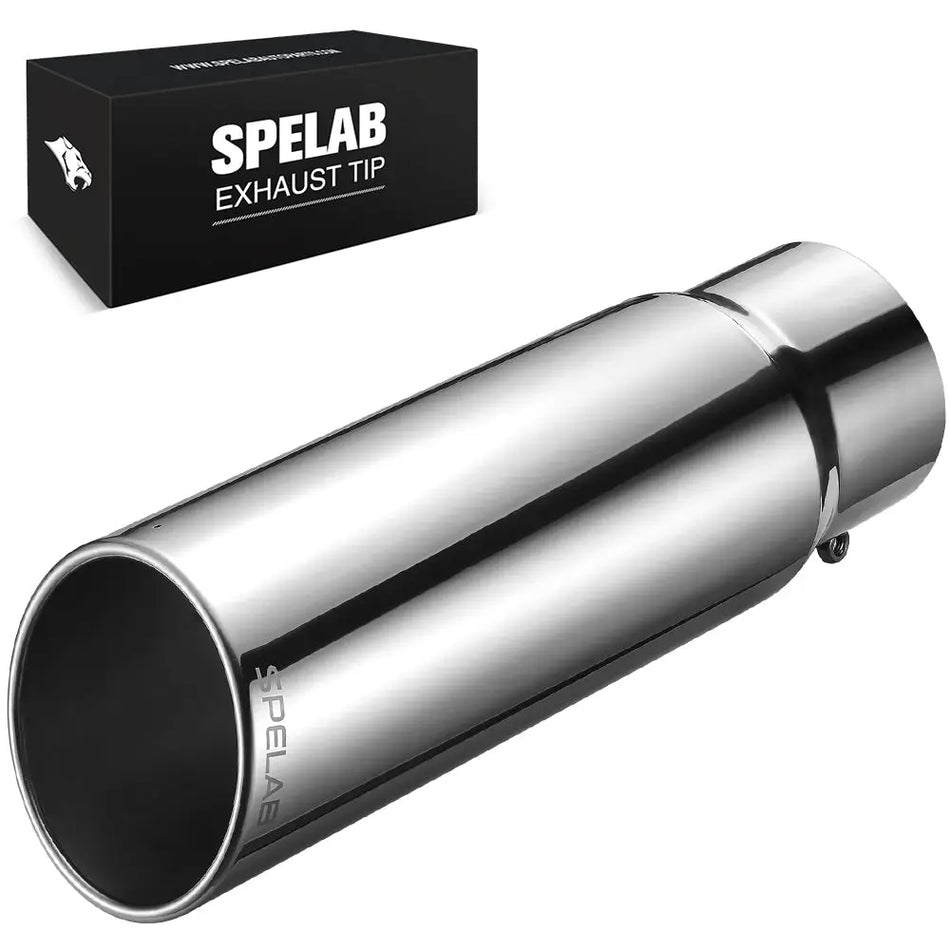

Choosing a 12-Inch or 18-Inch Exhaust Tip

Overall length affects the appearance and position of the finished outlet. A 12-inch exhaust tip may suit a more compact installation, while an 18-inch tip has a longer body that requires additional space. The amount visible after installation depends on the overlap with the existing pipe.

Before ordering, hold a tape measure alongside the tailpipe to compare both lengths. Check where the clamp will sit and whether the outlet clears nearby bodywork. A longer tip should not be used to cover a damaged pipe or compensate for an insecure mounting point.

Clamp-On vs. Weld-On Exhaust Tips

Clamp-on exhaust tips slide over a compatible pipe and secure with the specified mounting hardware. Many bolt-on exhaust tips use an integrated clamp, making them practical when you want an installation that can be adjusted or removed later.

No-weld installation still depends on the existing exhaust. A welded factory tip, curved pipe end, corrosion or insufficient straight pipe may require additional work. Weld-on tips use a different attachment method and should be installed by someone equipped to weld the relevant exhaust material.

Check what is included before purchasing separate hardware. If an additional connection component is required, compare exhaust clamps and connection hardware by joint type and size. A V-band assembly or general exhaust clamp is not automatically a substitute for the tip’s specified mounting hardware.

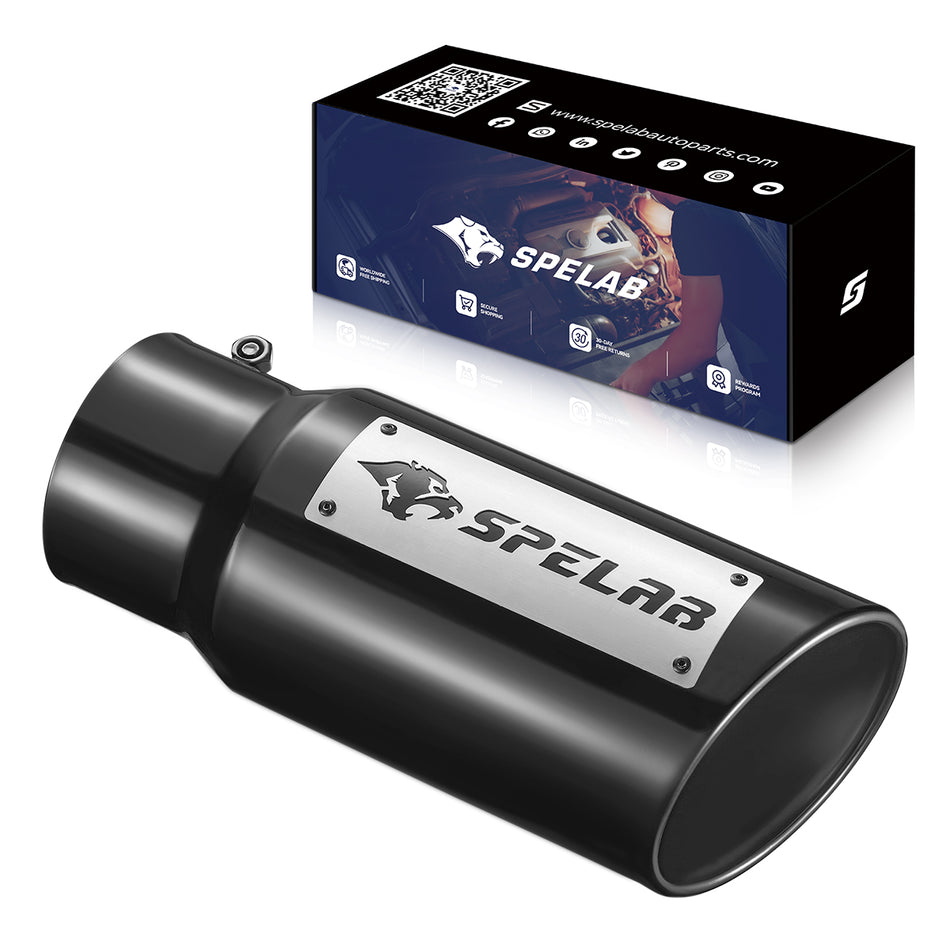

Stainless Steel, Black Finishes and Double-Wall Construction

Material, finish and wall construction describe different features. T304 stainless steel identifies the base material. A polished surface or black coating describes the finish. Double-wall construction describes how the tip body is built. Check each feature on the selected product rather than assuming all stainless steel or black exhaust tips share the same design.

Choose the finish around the appearance you want and its care requirements. For cleaning, let the exhaust cool and follow the product’s instructions. Do not use metal polish or abrasive pads on a coated surface unless the coating manufacturer specifically permits them.

Do Exhaust Tips Change Sound or Add Horsepower?

A conventional decorative exhaust tip is primarily an appearance upgrade. Do not expect a guaranteed increase in horsepower or a dramatic change in volume from outlet size alone. Sound changes depend on the tip’s internal design and the complete exhaust system; a purpose-built resonated tip is different from a plain outlet extension.

If changing exhaust tone is your main goal, compare the design and application of exhaust mufflers. If you need to replace a larger section of the exhaust, review compatible cat-back exhaust systems. These components serve different purposes from a standalone tailpipe tip.

Before Installing an Exhaust Tip on a Diesel Truck

On a DPF-equipped diesel truck, confirm that the selected tip is suitable for the vehicle’s exhaust temperatures and original outlet arrangement. Inlet diameter alone does not establish compatibility with regeneration conditions. Follow the vehicle and product instructions, including any requirements for preserving the factory outlet’s heat-management features.

Before tightening the hardware, check alignment and clearance. Follow the specified installation procedure, then inspect for movement or contact with nearby parts. If the tip will not clamp securely or sits against the bumper, resolve the fitment issue before driving.
