Powerstroke Transmission Pan

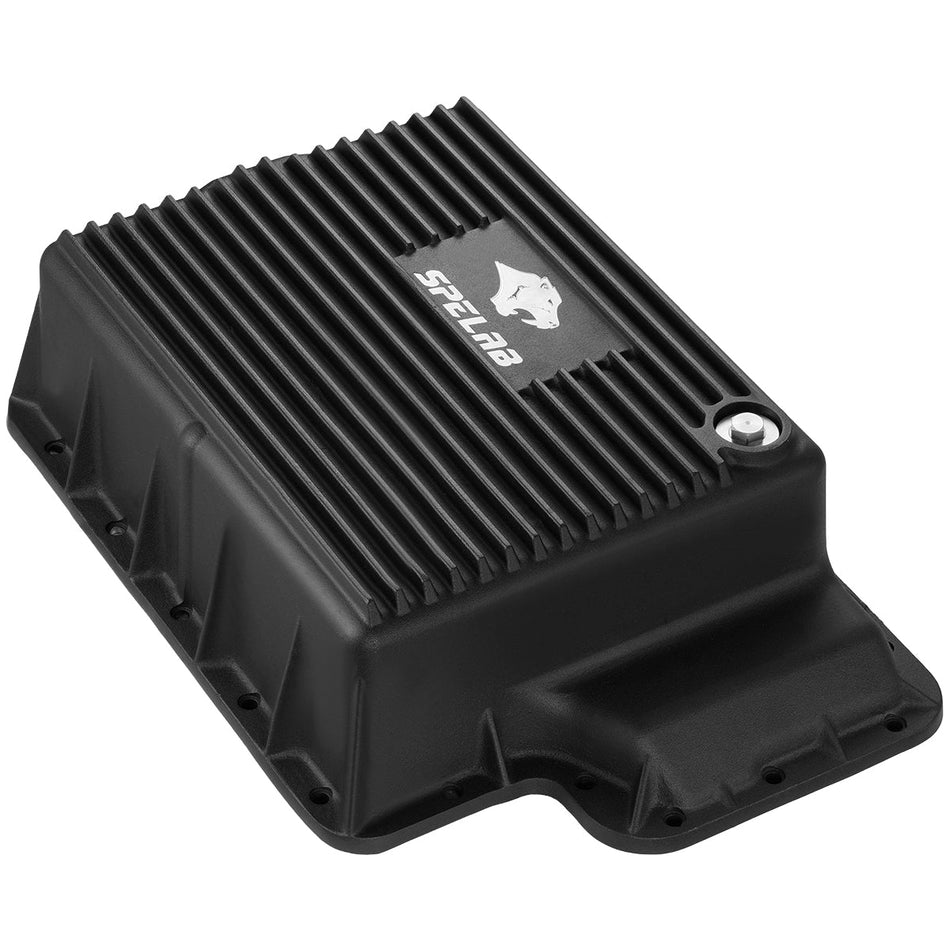

A Powerstroke Transmission Pan is the one part of the drivetrain that comes off at every service, and on a Ford Super Duty the work around it is more specific than the same job on any other truck. The two pans here fit different transmissions, take different filters, want different fluid and land on different bolt patterns. Getting the service right is mostly a matter of knowing which one is under the truck before the truck goes up on the lift.
Where the Work Actually Happens on a Powerstroke Transmission Pan
The pan unbolts from the bottom of the case, so the job runs from underneath with the exhaust and the driveshaft in the way. On a Super Duty the exhaust often has to be moved before the bolts are even visible.
- The sealing face. It has to come back clean. Residual sealant and grit on that surface are the usual reason a new Powerstroke Transmission Pan weeps at the joint a week later.
- The hardware. The 6R140 kit ships with nineteen M6 hex bolts, nineteen flat washers, nineteen spring washers and a paper gasket. The 5R110 kit ships with a new gasket and its mounting bolts.
- Whether to reuse the old bolts. Reusing hardware is the easiest way to turn a two-hour job into a comeback. Fresh bolts and washers are in the box for a reason.
- Access before patience. A Powerstroke Transmission Pan on a Super Duty sits behind the exhaust and, on some configurations, under the driveshaft. Rushing a pan that is still in the way is how the sealing face gets scarred.
The Filter Number Trap on the 5R110 Pan
Not every truck with the 5R110 takes the same transmission filter, and this is the single cheapest thing to check in the whole job.
The earlier design uses OEM filter 8C3Z7A098D, and that filter does not work against the deeper 5R110 pan here. The later part number, 3C3Z7A098AA, is the one that fits. Read the number off the old filter before ordering anything, because two trucks a few years apart can arrive with the same engine on the build sheet and a different filter in the case.
Everything else on the job is recoverable. A filter that will not fit means the pan comes back off.
A second filter question sits underneath the first one, and it is about aftermarket filters rather than the OEM part. The 6R140 pan is built to work with the factory filter and gasket. An extended or high-capacity filter is a different matter, because the deeper a 6.7L Powerstroke Transmission Pan goes, the less room there is between the filter and the bottom of the housing. That is a part worth checking against the filter itself rather than assuming.
Which ATF a Powerstroke Transmission Pan Takes
The pan does not change what the fluid has to be. The transmission does.
On these trucks the 6.0L and 6.4L with the 5R110 take Mercon V, and the 6.7L with the 6R140 takes Mercon LV. Pairing a deeper 6.7L Powerstroke Transmission Pan with the wrong specification is the most expensive mistake available in this job, and it announces itself later as a slip or a shift that will not settle rather than as a problem at the pan.
Fill to the level the transmission asks for. The extra room a 6.7L Powerstroke Transmission Pan provides is thermal headroom, not an invitation to top it off.
The specification is on the truck, not on the pan, and the two Super Duty diesel families here do not share it. A 5R110 pan fitted to the wrong truck still bolts up. The fluid is what tells the difference, and a transmission that has been running the wrong specification can be past the point where a pan change matters.
Magnetic Drain Plug and Pre-Tapped Sensor Ports
Both pans here come with a magnetic drain plug, and the reason is capture rather than strength. The plug comes out at every service, and what is on it is the cheapest reading a truck gives you about what the transmission has been doing.
It also solves a problem the factory stamping has. A pan with no drain fitting means draining means dropping the whole pan and catching what comes out. A removable plug turns a full drain into a plug and a hose.
The sensor ports are not the same between the two, which matters if a temperature sensor is the plan:
| 6R140 pan | 5R110 pan | |
|---|---|---|
| Sensor ports | One pre-tapped 1/8" NPT | Pre-tapped 1/8" and 1/4" NPT |
| Drain plug | 304 stainless, magnetic | Reinforced, magnetic |
| Capacity over stock | About 7 quarts | About 6 quarts |
| In the box | 19 M6 bolts, flat and spring washers, paper gasket | New gasket and mounting bolts |
What Comes in the Box and What Does Not
A single pan kit is a pan, a gasket and bolts. Fluid, sensors and a filter are not in it, and the 5R110 filter decision above sits on top of that.
A 6.7L Powerstroke Transmission Pan kit does arrive with more hardware than a 5R110 kit, which matters on a job where access is awkward and a missing washer means starting again.
The cooling bundle in this group adds a cooler, the lines and the fittings to the same pan. That changes the shape of the job rather than the parts on it, because the lines have to be routed away from the exhaust and the driveshaft, bled, and checked for leaks afterwards. That is the point where a service becomes an installation, and the reason it is worth doing in one visit is that the pan is already off.
Sand Casting Texture on the Pan Surface
A cast aluminum Powerstroke Transmission Pan comes out of a sand mould, and small surface pores are a normal result of that process. They are not cracks, they do not leak, and they do not affect how the pan holds heat.
The surfaces worth looking at are the machined ones. The sealing face has to be flat and clean, the bolt holes have to be true, and the drain plug threads have to run without stripping. Everything else on a casting is texture.
Texture on a Powerstroke Transmission Pan is also a useful reminder of what the part is. It is a casting that got machined where precision mattered, not a machined billet with a coating on it.
After the Change: What to Check on the First Drive
- The level, warm. A level checked cold is not a level. Re-check the Powerstroke Transmission Pan fill once the transmission is at operating temperature.
- The joint, after a full heat cycle. A weep that shows up hot and dries up is harder to find than one that shows up immediately.
- The magnet, next service. Keep what comes off the plug. Fine grey dust and coarse bright chips mean different things, and the plug only tells you if it is read.
- Shift quality. A 6.7L Powerstroke Transmission Pan change should not alter how the truck shifts. If it does, suspect the fluid level or the specification before suspecting the pan.
- One more look at the level. Fluid expands hot and contracts cold, so a Powerstroke Transmission Pan filled to spec cold can still be short when the truck is towing on a hot afternoon.
