Transmission Pan for 2003–2010 Ford F250 F350 F450 6.0L / 6.4L Powerstroke Super Duty | SPELAB

Description

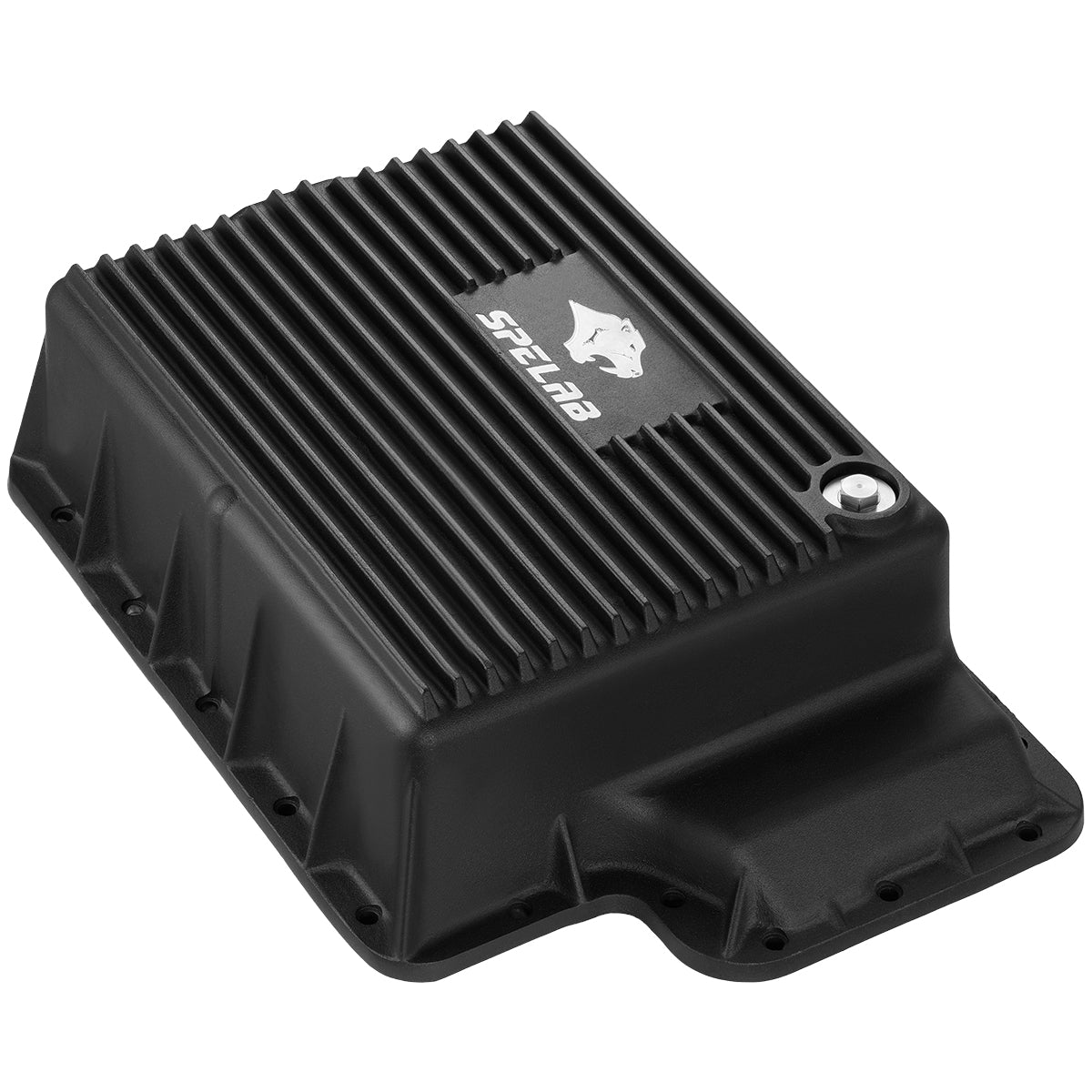

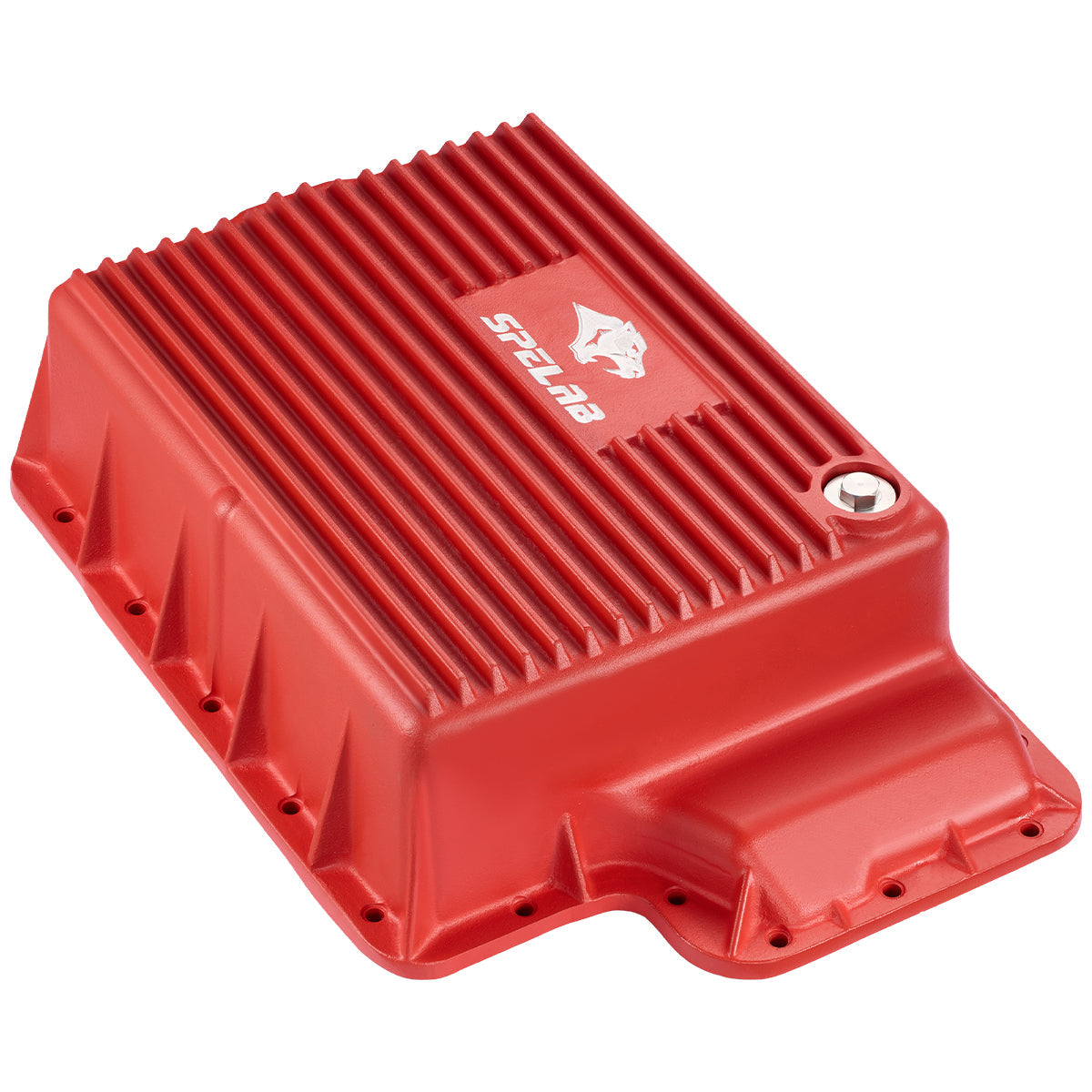

Upgrade your transmission system with this high-capacity, high-performance aluminum transmission pan. Specially engineered for 2003–2010 Ford Super Duty trucks with 6.0L and 6.4L Powerstroke engines, this cast aluminum pan provides enhanced cooling, expanded fluid capacity, and long-term durability. Designed for demanding applications like towing, off-road driving, and high-performance use, this pan helps extend transmission life and improve overall drivetrain reliability.

Fitment

• 2010–2008 Ford F-250 / F-350 / F-450 Super Duty – 6.4L Twin Turbo V8
• 2007–2003 Ford F-250 / F-350 Super Duty – 6.0L Turbo V8

Key Features

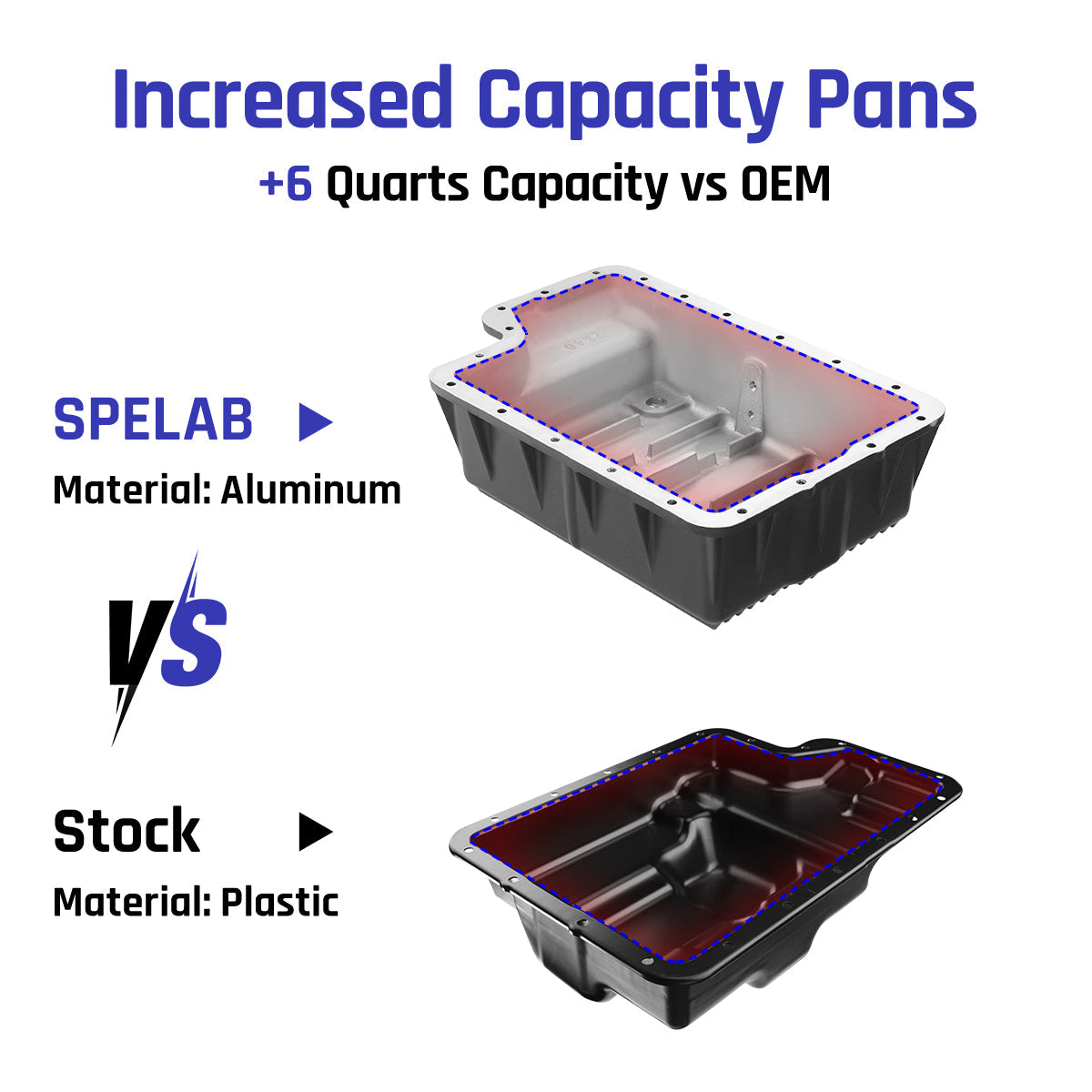

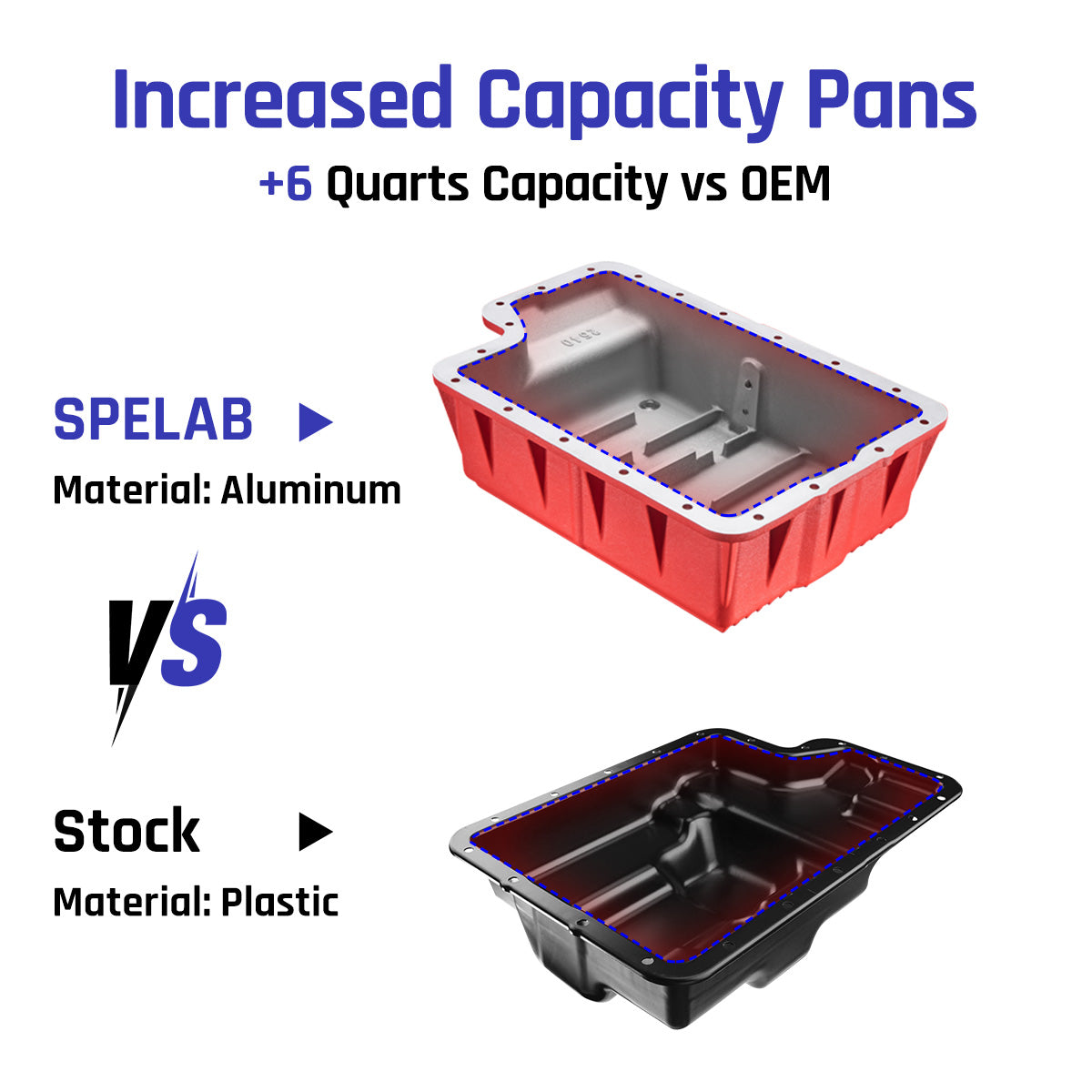

• +6 Quart Capacity Increase: Holds 6 quarts more fluid than stock to improve thermal stability and reduce wear during heavy-duty use.

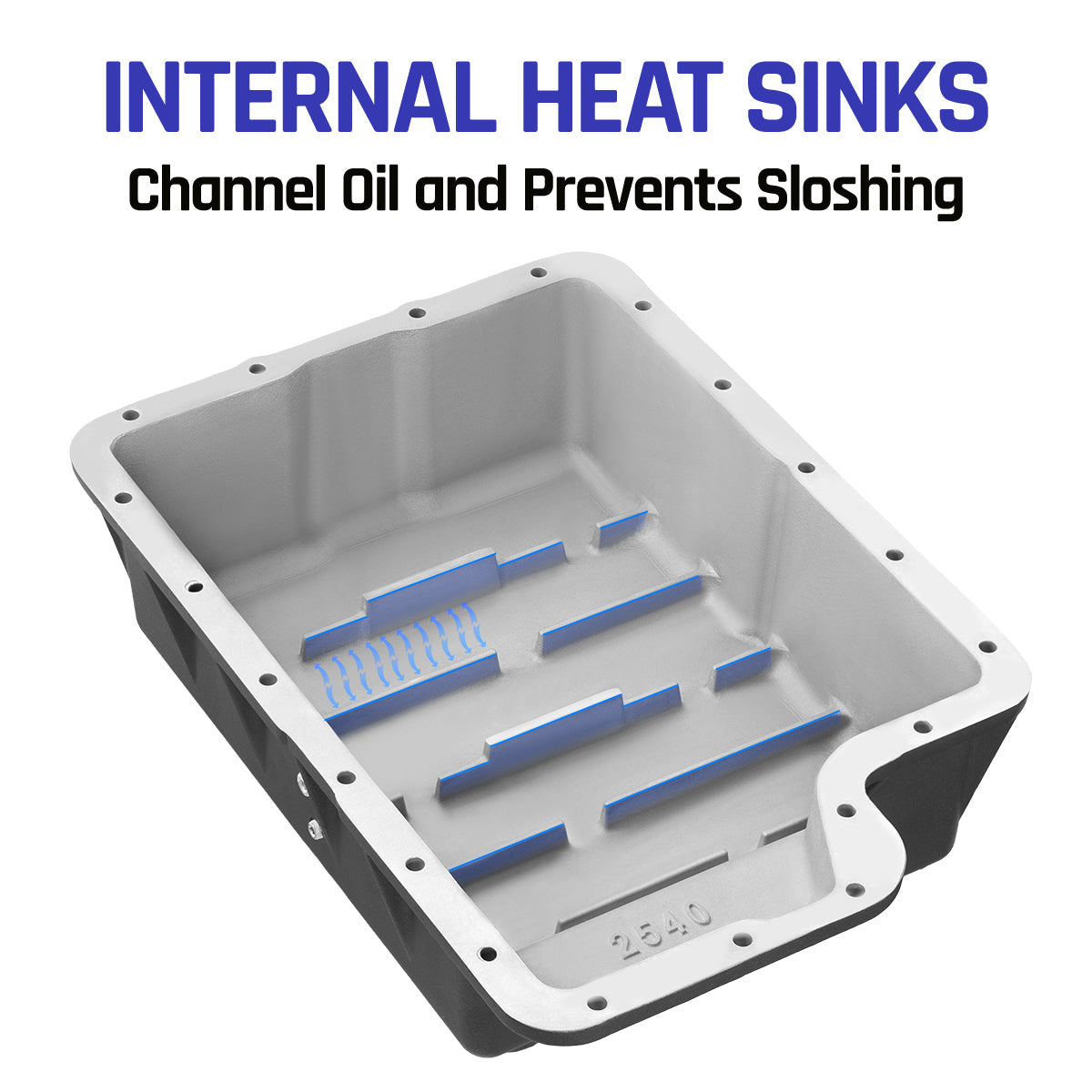

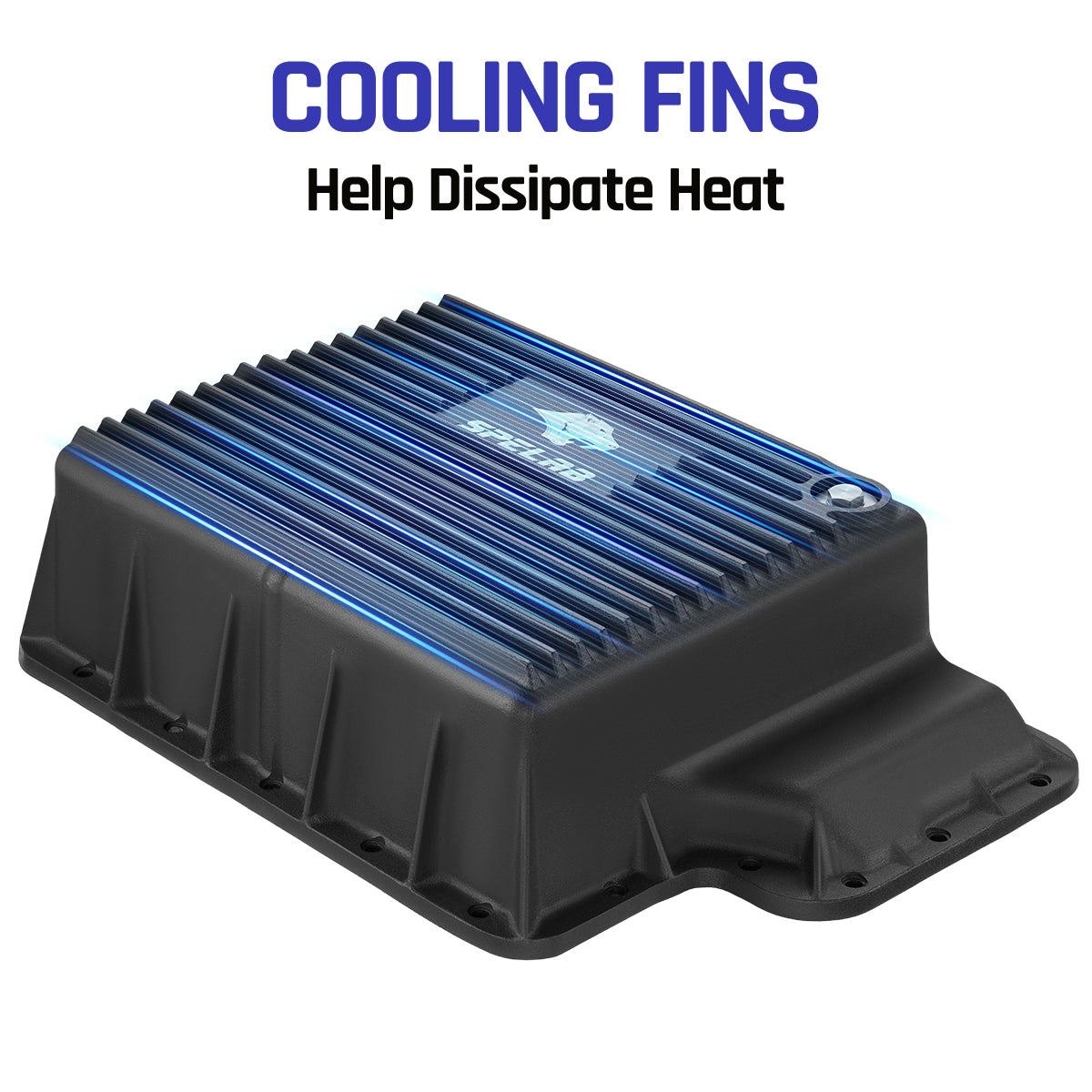

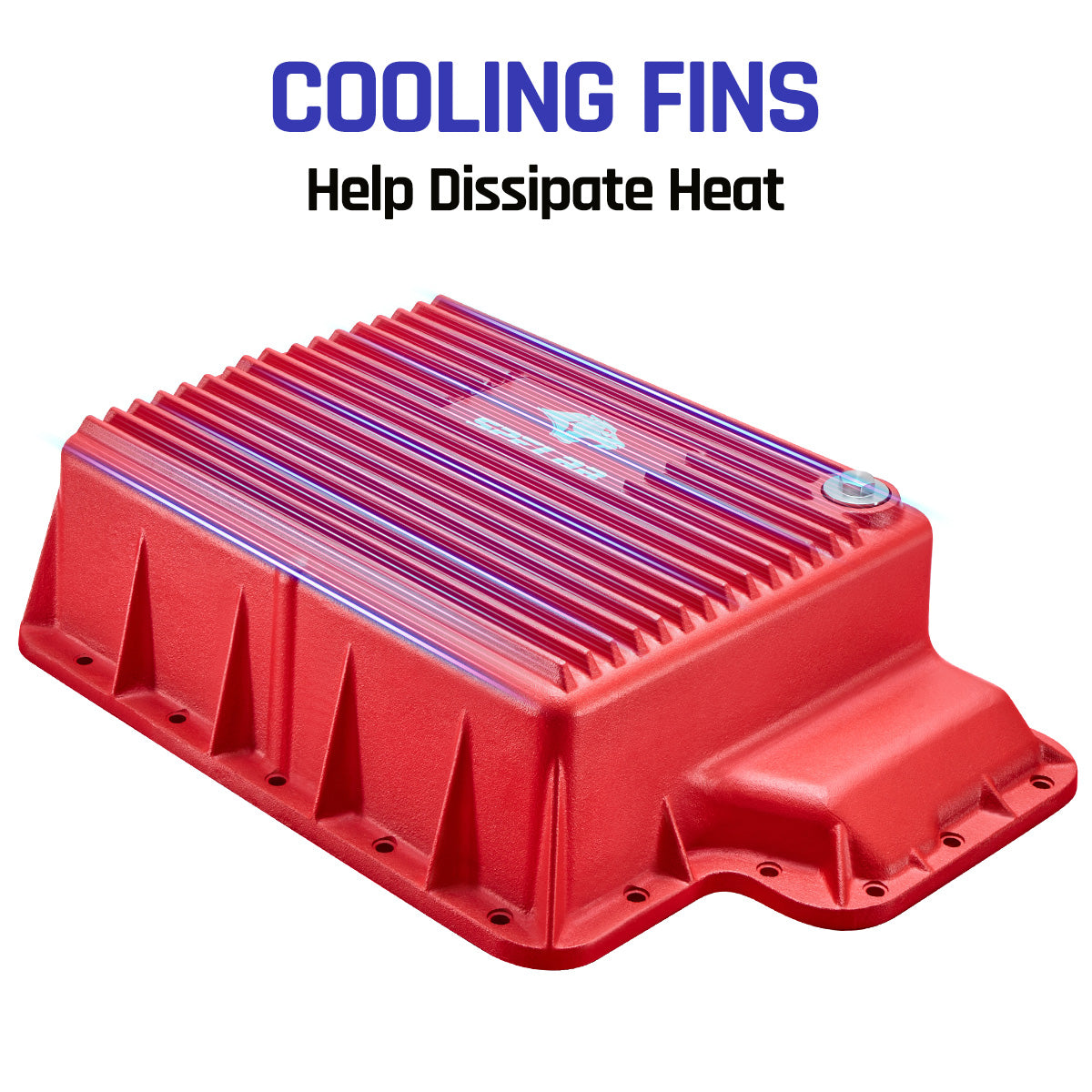

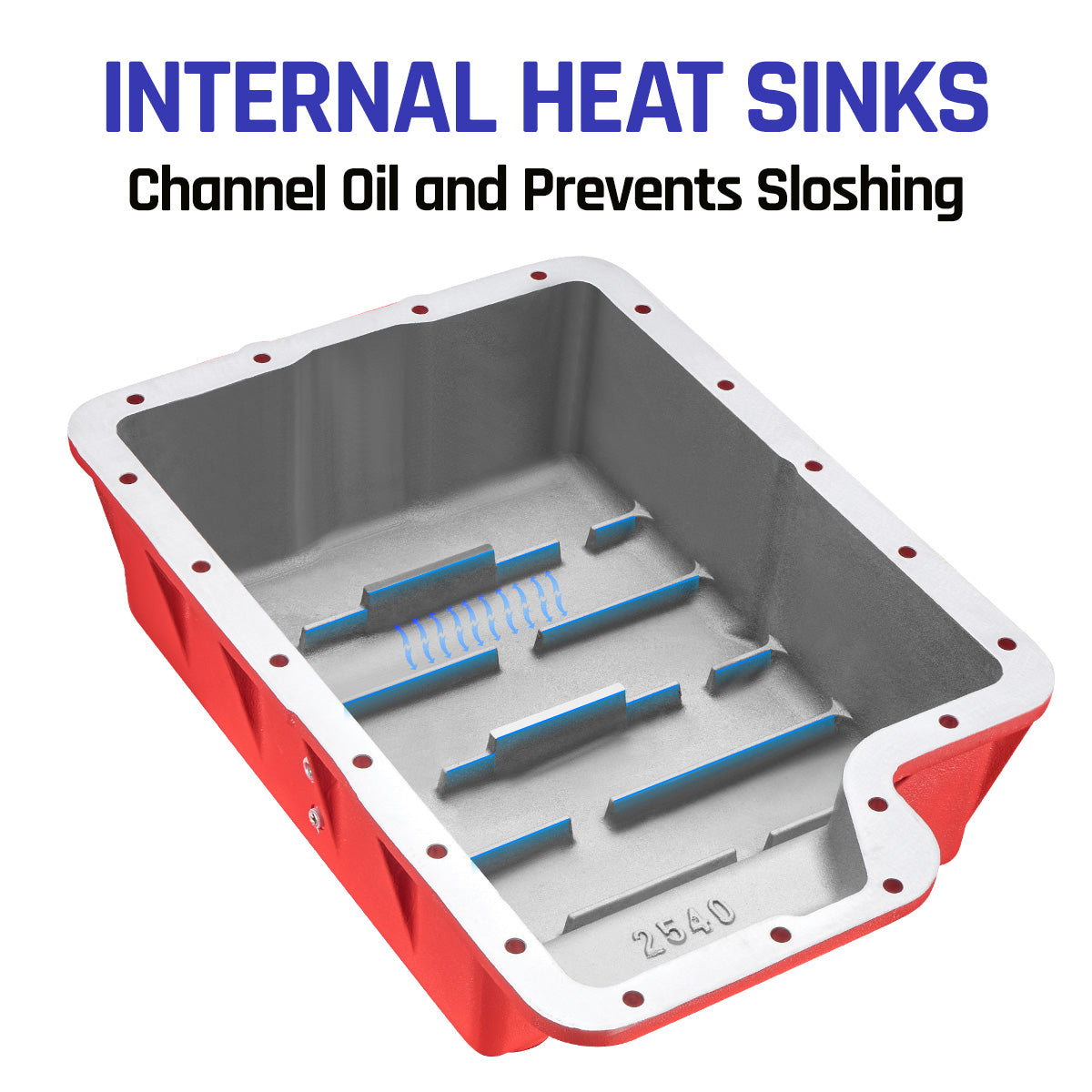

• Superior Heat Dissipation: Made from cast aluminum with built-in cooling fins to maximize surface area and promote faster heat dispersion—protecting the transmission from overheating in high-load or high-temperature environments.

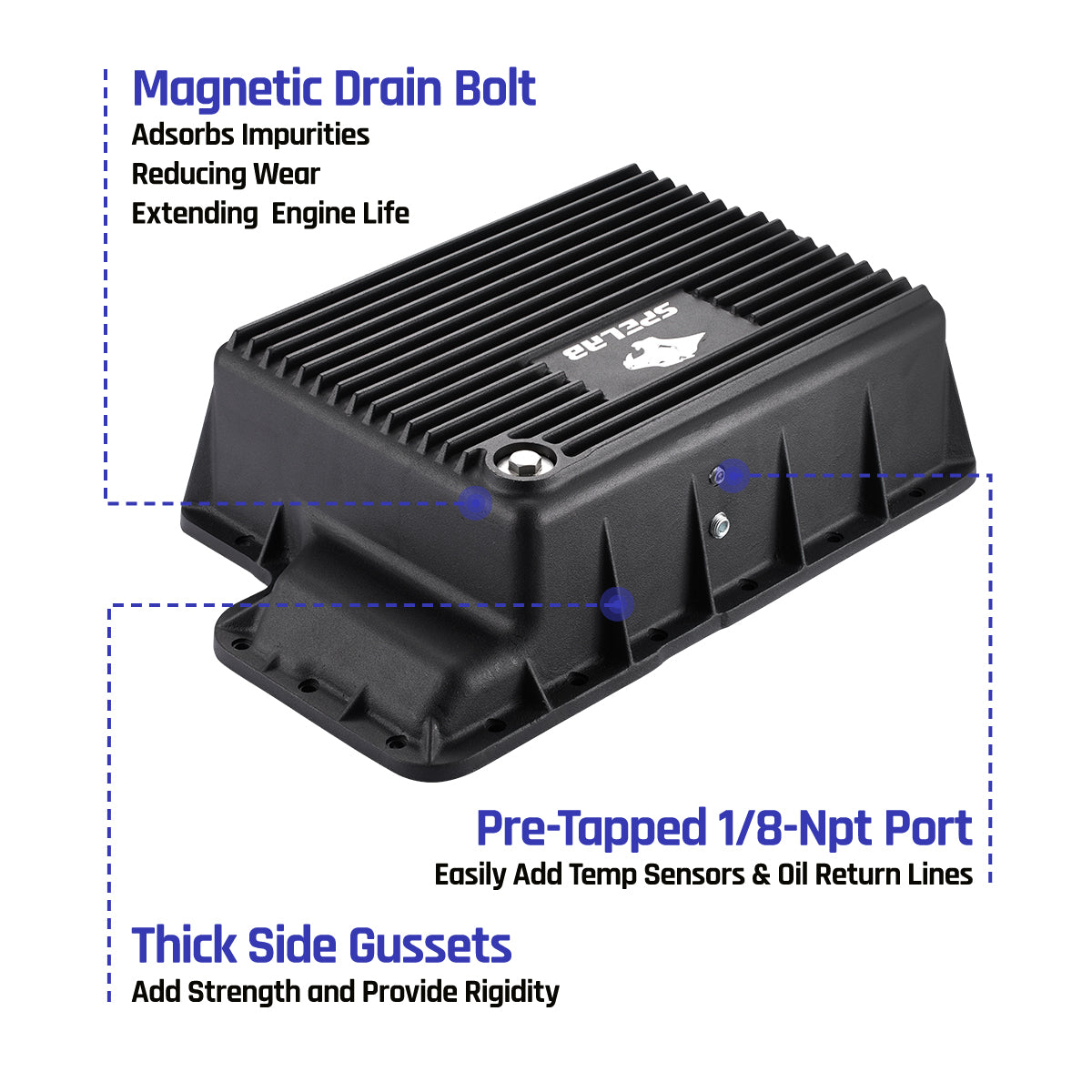

• Magnetic Drain Bolt: High-strength magnetic bolt captures metal shavings from circulating in the transmission fluid, reducing internal wear and improving longevity.

• Sensor Port Ready: Comes with pre-threaded 1/8" and 1/4" NPT ports—ideal for installing temperature sensors, pressure sensors, or other aftermarket accessories for real-time monitoring.

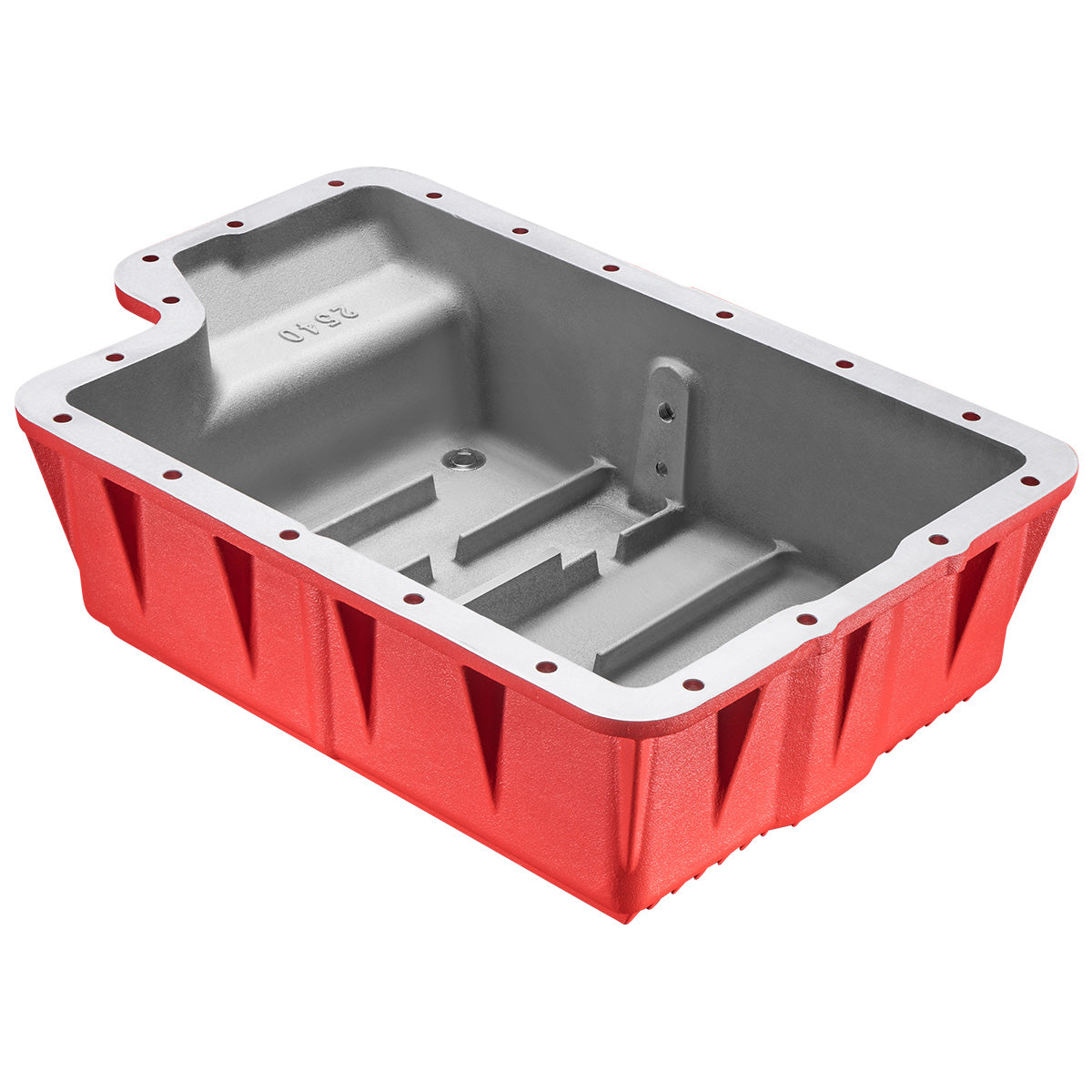

• Reinforced Structure: Includes side gussets and structural ribs for improved strength and impact resistance.

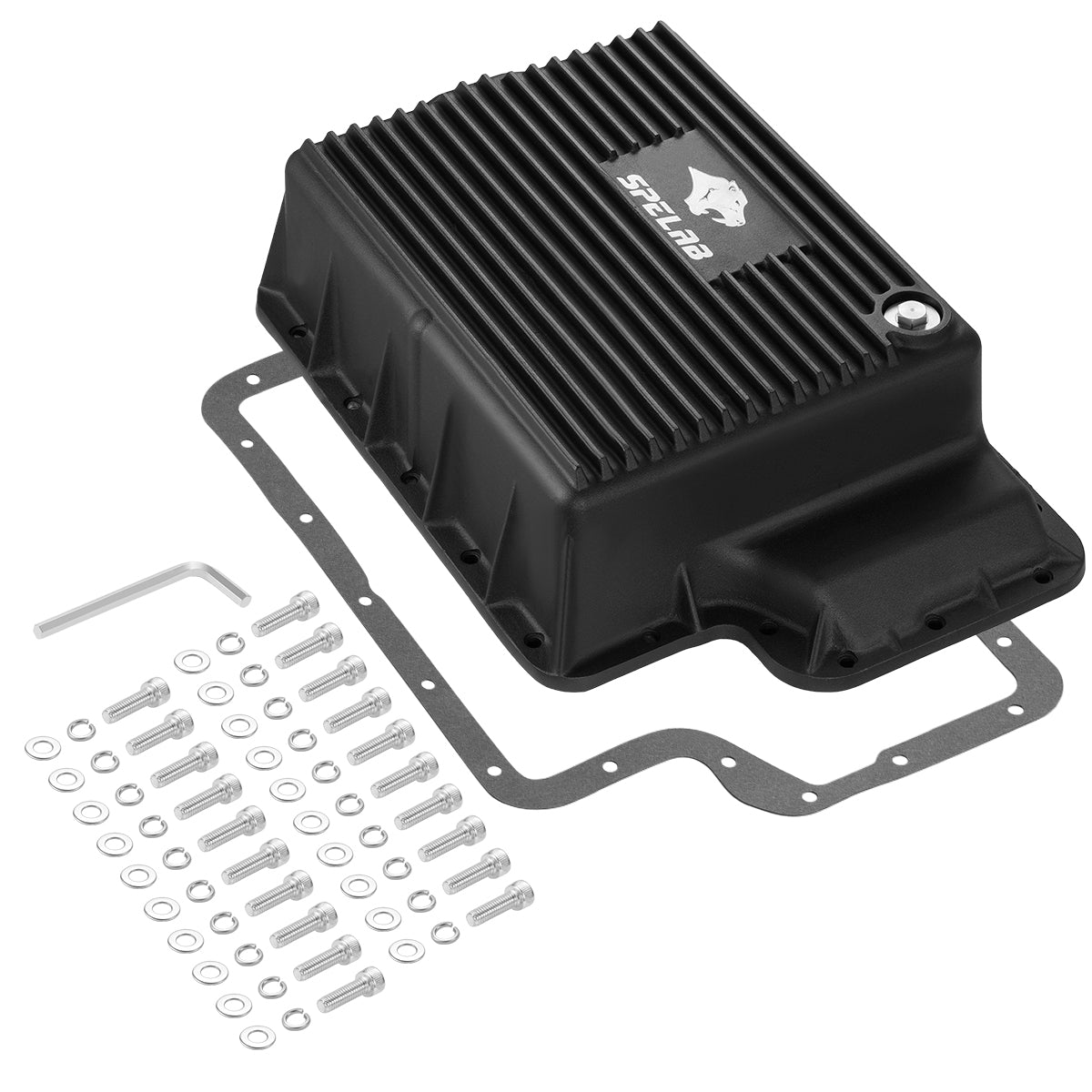

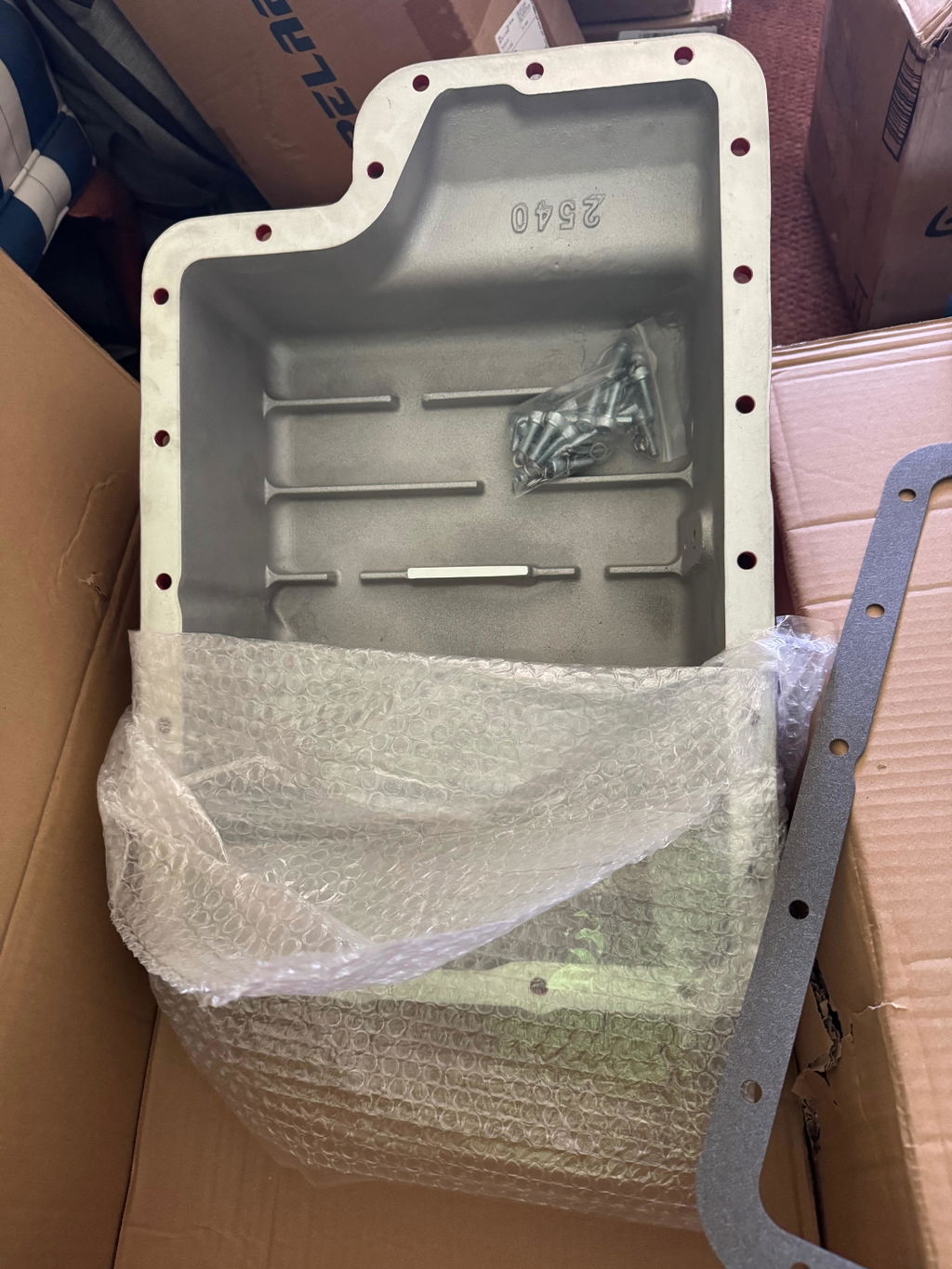

• Includes Gasket and Mounting Bolts: Complete installation kit includes a brand-new sealing gasket and all necessary bolts.

Specifications

Installation

SPELAB Transmission Pan Installation

Q: Will this transmission pan fit my 2003–2010 Ford Super Duty 6.0L/6.4L?
A: Yes, it is specifically designed to fit 2003–2010 Ford F-250, F-350, and F-450 Super Duty trucks equipped with 6.0L or 6.4L Powerstroke diesel engines. Please verify the transmission model before purchase.

Q: How much additional transmission fluid does it hold compared to stock?
A: This pan increases capacity by approximately 6 quarts over the factory unit, improving cooling performance and fluid longevity.

Q: Does this pan come with everything needed for installation?
A: Yes. It includes a new gasket and mounting bolts. However, transmission fluid and optional sensors are not included.

Q: Can I reuse my factory gasket?
A: We recommend using the included new gasket to ensure proper sealing and avoid leaks.

Q: Are temperature sensor ports available?
A: Yes, the pan includes both 1/8" and 1/4" NPT threaded ports for installing aftermarket temperature sensors or accessories.

Q: Is the pan’s magnetic drain plug included?
A: Yes, the pan includes a reinforced magnetic drain bolt to capture metal shavings and extend transmission life.

Q: What is the pan made from, and how does it improve performance?
A: It’s made from high-strength cast aluminum with cooling fins. This material provides superior heat dissipation, rust resistance, and structural rigidity compared to stamped steel pans.

Q: Is this pan compatible with aftermarket filters or filter extensions?
A: This pan is designed as a direct fit with the stock filter setup. If using an aftermarket or extended filter, please ensure compatibility with the deeper pan.

Q: Do I need professional installation?
A: While installation is straightforward, we recommend professional installation if you’re not experienced with transmission maintenance, to ensure correct torque, sealing, and fitment.

Q: Why does the surface have minor texture or pores?
A: This product is made using sand casting, which may leave minor surface pores. This is a normal characteristic of the casting process and does not affect performance or durability.
