Clamps

What Are Exhaust Clamps?

Exhaust clamps are the hardware that joins exhaust sections together and keeps each joint sealed under heat, vibration and pressure. Unlike a welded joint, a clamp lets you take the system apart again for service or future upgrades. The styles you will run into most often are butt joint band clamps, which wrap two pipe ends that meet flush; lap joint clamps, used where one pipe slips inside another; narrow band seal clamps, for tight-clearance spots; and V-band clamps, which pull two interlocking flanges together for a high-strength, quick-release connection.

Why the Right Exhaust Clamps Matter — The Problems They Solve

Clamps are cheap, but they are the part that decides whether the rest of your exhaust work actually holds up:

• Leaks at the joint. A poorly clamped joint ticks when cold, lets fumes into the cabin, and wastes the flow you just paid to improve.
• Crushed or distorted pipe. Basic U-bolt clamps squeeze from two sides and can oval thin-wall tubing, which creates the leak you were trying to fix.
• Clamps rusted solid. Mild steel clamps seize after a few winters of road salt, turning a muffler swap into a cutting job.
• Joints you cannot take apart. If you need access to the turbo, downpipe or mid-pipe later, the wrong clamp means cutting the system apart.
• Vibration loosening things over time. Exhaust cycles through extreme heat and constant movement; hardware that is not up to it works loose.

Choosing the Right Type of Exhaust Clamp

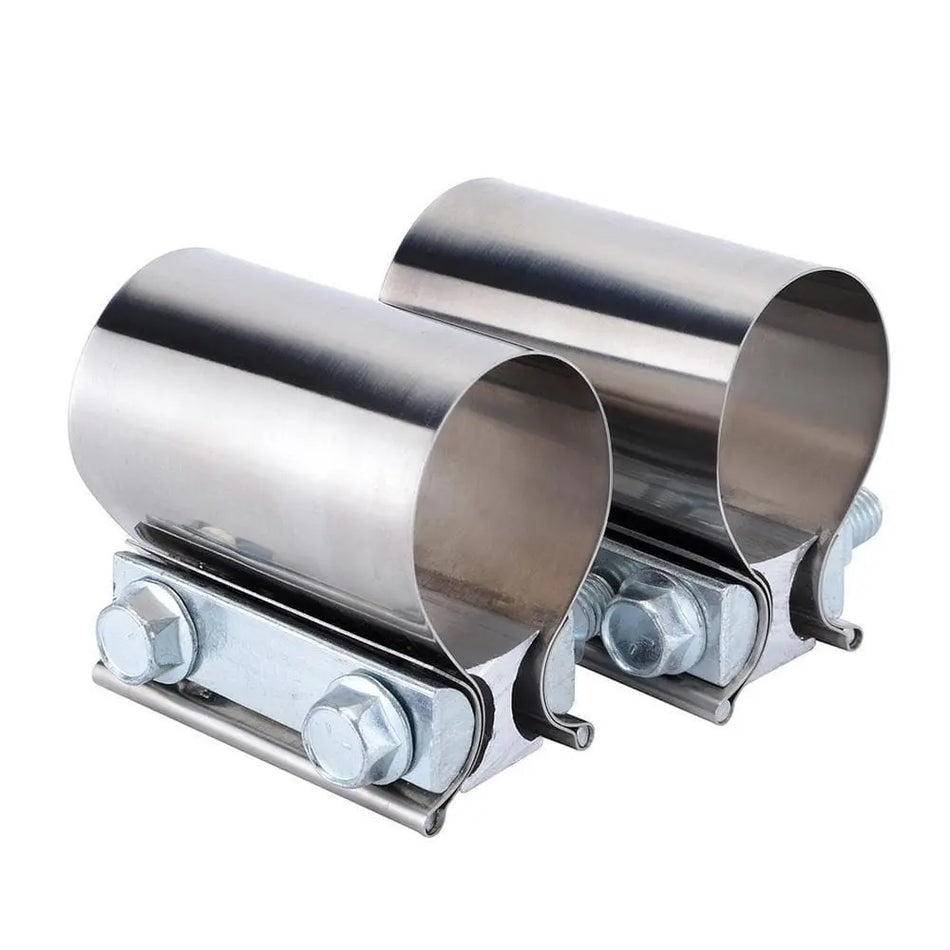

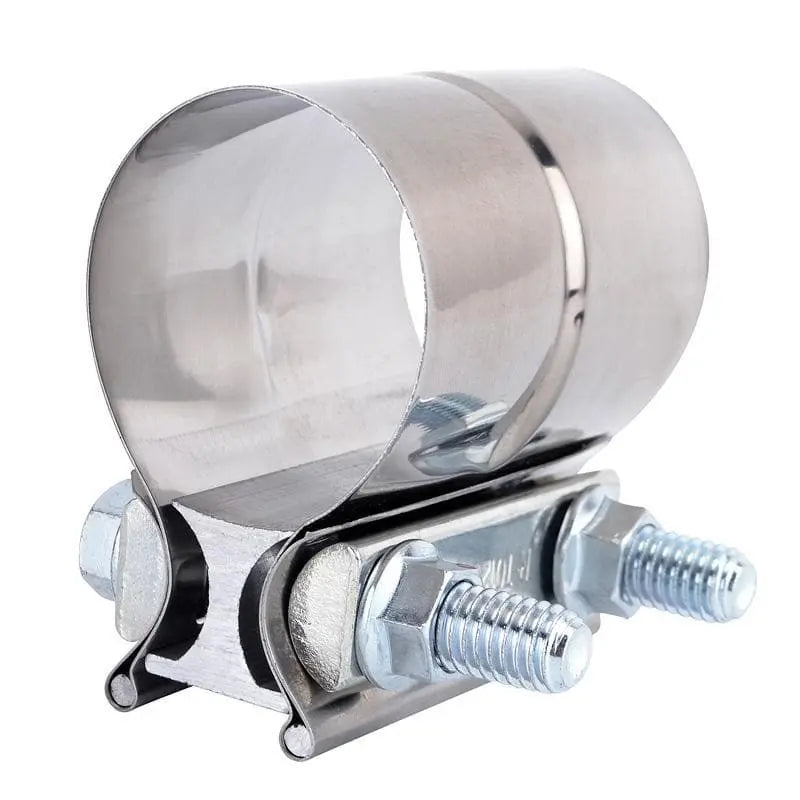

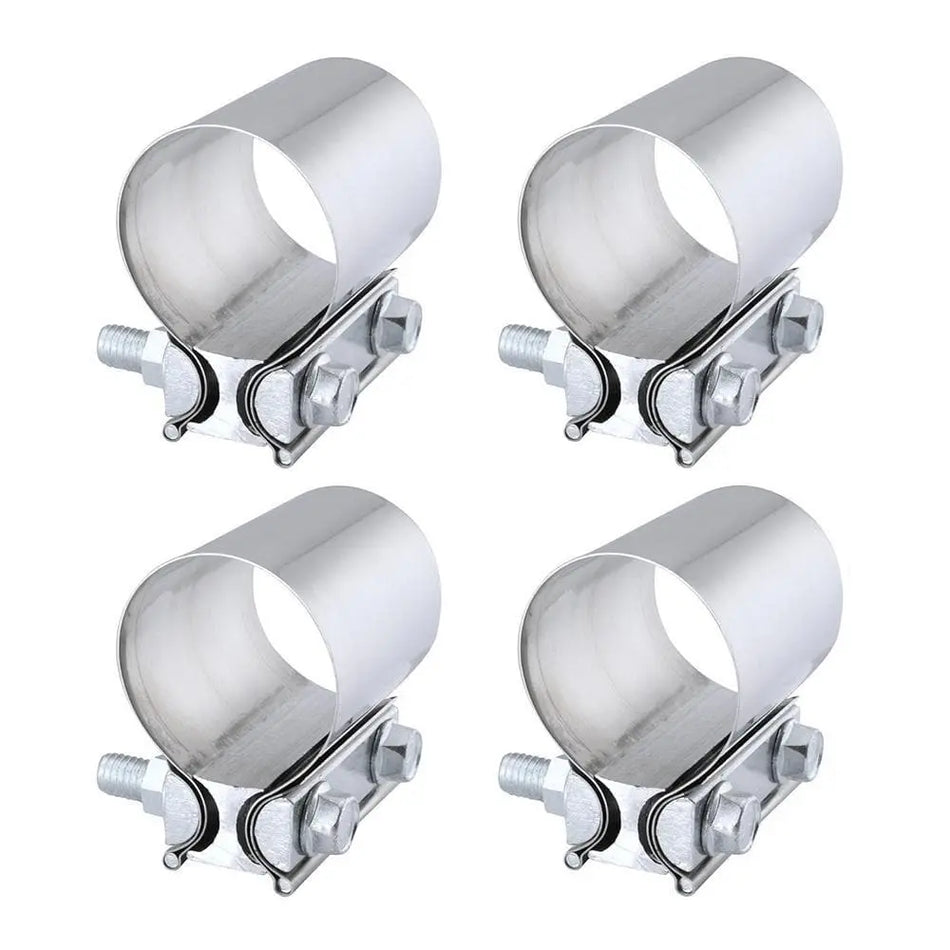

• Butt joint band clamps — the everyday choice. A wide band wraps the joint and compresses it with even radial pressure, sealing without distorting the pipe. Simple, affordable, and easy to remove later.
• Lap joint clamps — used where one pipe end slides inside the other. They clamp the overlap and are common in repair and slip-fit sections.
• Narrow band seal clamps — a slimmer band for joints where clearance around the pipe is tight, such as near crossmembers or heat shields.

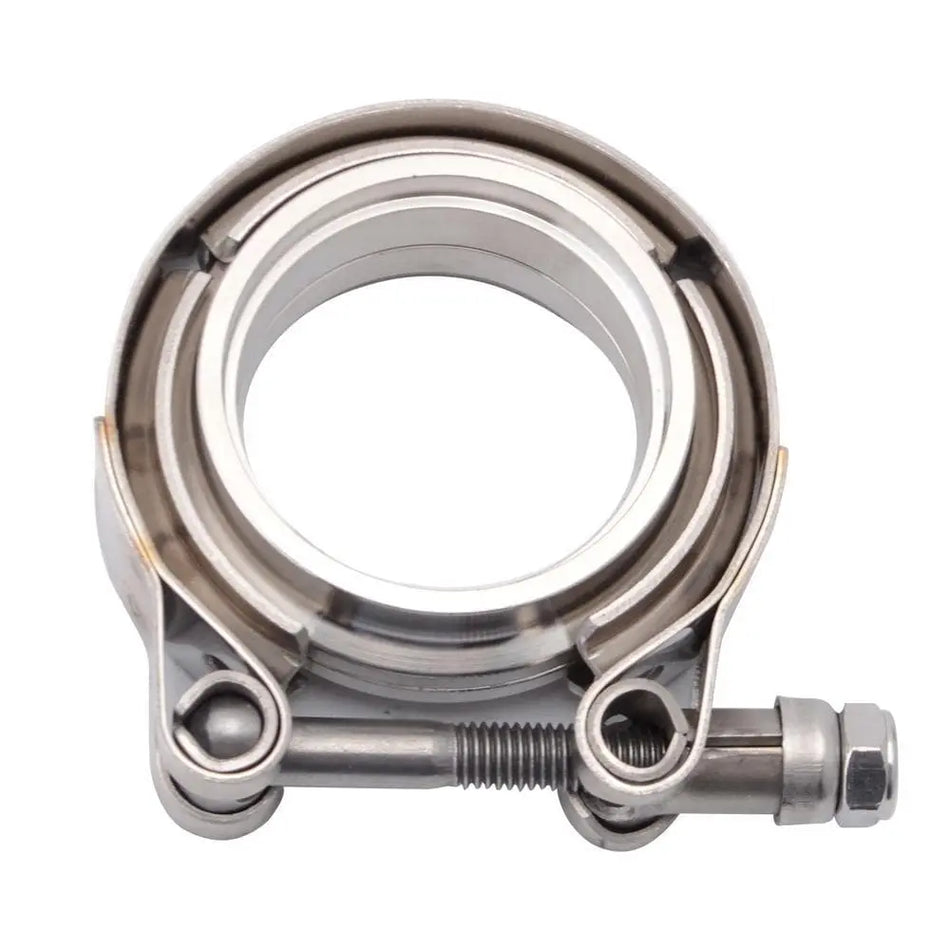

• V-band clamps — interlocking male and female flanges pulled together by a high-tensile band. They deliver far higher clamping force and come apart quickly without cutting, which is why they are standard at turbo outlets, downpipe junctions and any connection you expect to service.

Sizing Your Exhaust Clamps

Exhaust clamps are sized to the outside diameter (OD) of your exhaust tubing, not the inside, and not by vehicle. Measure the pipe with a caliper before ordering — guessing is the single most common reason a clamp arrives that will not seal. Common sizes are 2.0″, 2.25″, 2.5″ and 3.0″ OD, with 4.0″ options in narrow band styles. If you are between sizes, an exact fit matters more than rounding up.

Why Stainless Steel Exhaust Clamps

• Corrosion resistance. Stainless clamps shrug off moisture and road salt instead of seizing solid.
• Clamping force that lasts. They hold tension through repeated heat cycles rather than relaxing after the first few drives.
• Easier future service. A clamp that has not rusted in place comes off in minutes instead of needing a grinder.

Where a flange is involved, such as a V-band assembly, check whether the flanges are stainless or mild steel, because that determines how well the assembly survives winter roads.

Installing Exhaust Clamps for a Leak-Free Joint

1. Cut pipe ends square and deburr them so they seat flush against each other.
2. Slide the clamp onto the pipe before assembling the joint — it will not go on afterwards.
3. Center the band directly over the joint, not off to one side.
4. Tighten evenly until the band seats flat; do not over-torque, which distorts the band and thin-wall tubing.
5. Re-check tightness after the first heat cycle, since exhaust metal expands and settles.
6. Use fresh clamps on reassembly. A clamp that has already been compressed and heat-cycled has lost clamping force.

Compliance Note

Exhaust clamps are general-purpose hardware and are not emissions devices in themselves. However, exhaust work that removes or bypasses emissions-control equipment is regulated: such modifications are intended for off-road and competition use only and may violate the Clean Air Act and state or local law on vehicles operated on public roads. Confirm your local requirements before modifying emissions-related exhaust components.
