Dodge Ram Valve Cover

Which Dodge Ram Valve Cover Fits Your Truck?

Start here, because a Dodge Ram valve cover is not a one-part-fits-all purchase. Ram diesel trucks crossed two different Cummins engines and two different cover designs, and the versions in this collection do not interchange. Ordering by model year alone is the most common way to end up with the wrong part.

Engine	Model years	Version in this collection	Construction

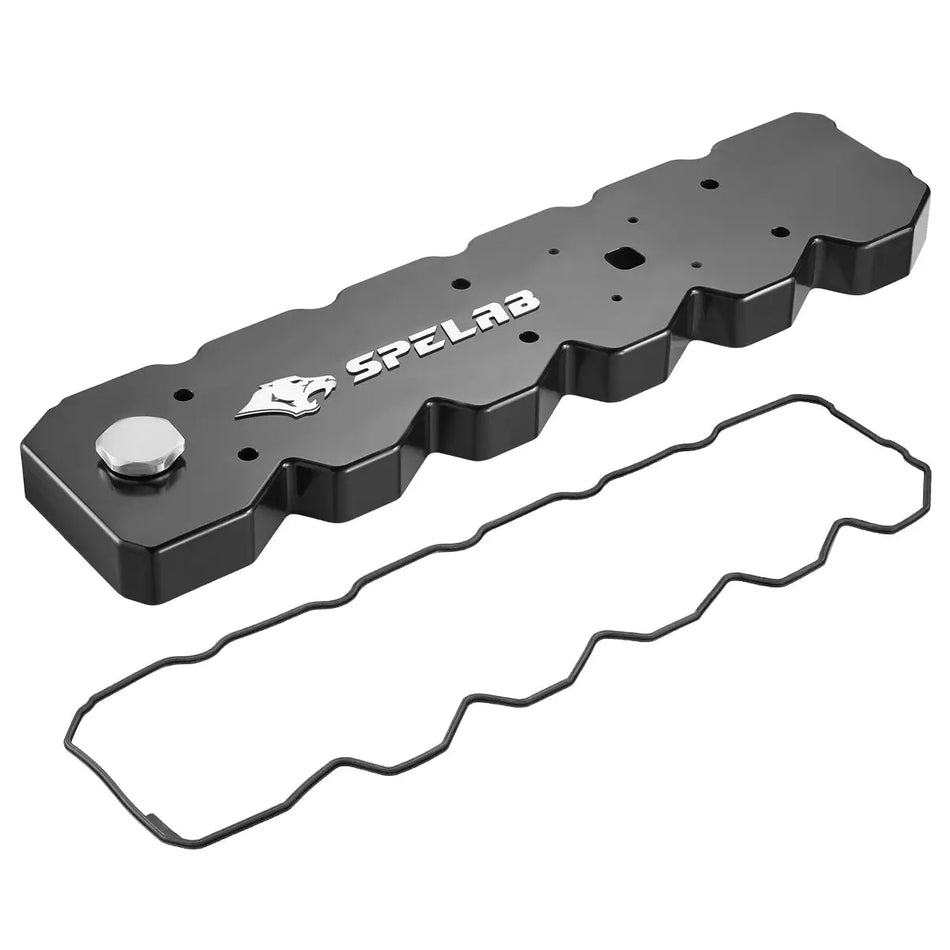

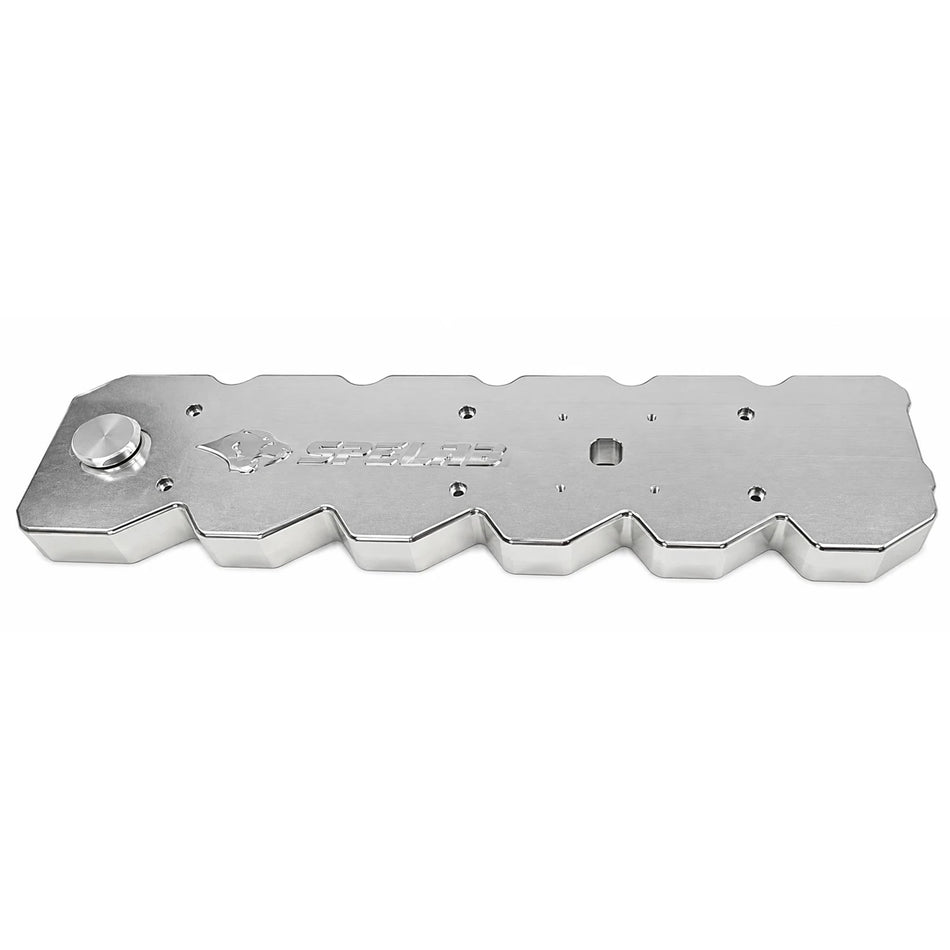

5.9L Cummins	2003, 2004, 2005	Billet-only cover	Solid 6061-T6 billet, top-mounted baffled breather box
5.9L Cummins	2006, early 2007	Billet/cast cover	Cast aluminum body with billet-machined features, dual CCV outlets
6.7L Cummins	Late 2007 - 2024	Billet/cast cover	Same as above - 2500 and 3500

The 5.9L appears on both sides of that line, which is why the year is not enough. If your truck is a 2005 or a 2006, or anywhere near the 2007 changeover, confirm the engine before you order a Dodge Ram valve cover.

Why 2007 Trips Up Dodge Ram Valve Cover Orders

Ford and GM owners are used to clean generational breaks. Ram is not one of them. The 5.9L ran into the 2007 model year, and the 6.7L began mid-year, so two trucks that both say "2007 Ram 2500" on the tailgate can need different parts. The thermostat housing, the emissions equipment and the valve cover all follow the engine, not the calendar.

The quick check is the engine itself: the 6.7L carries a different turbo and a different intake plenum layout, and the eighth digit of the VIN will settle it if the badge is gone. Once you know which engine you have, the choice of Dodge Ram valve cover is down to one of two part numbers.

What Goes Wrong With the Factory Dodge Ram Valve Cover

Twenty years of heat cycles is hard on anything bolted to the top of a diesel, and the factory Dodge Ram valve cover is no exception. On the Ram, the failures owners report tend to cluster in four places:

• The breather clogs. The factory CCV filter element sits inside the cover. On high-mileage engines it loads with oil and stops flowing, which pushes crankcase pressure somewhere else - usually past the gasket.
• The seal weeps. Aged gaskets compress and take a set. The oil does not pour out; it creeps onto the cylinder head and runs down the back of the block, which is why people misdiagnose it as a rear main seal.
• The finish lets go. Cast covers oxidise and peel, and the residue makes a genuine leak harder to spot.
• Oil mist coats everything. A single-baffle breather lets vapour past, so the intake tract, the intercooler piping and eventually the chassis pick up a film of oil.

None of these are sudden. They are the slow accumulation that makes an otherwise healthy 5.9L or 6.7L look neglected under the hood.

Billet vs Cast Dodge Ram Valve Cover: What the Price Buys

For 2006-2024 trucks the Dodge Ram valve cover comes in two constructions, and the difference is manufacturing method rather than function.

	Billet aluminum	Cast aluminum
How it is made	CNC machined from a solid 6061-T6 block	Cast aluminum body with billet-machined sealing and breather features
What you get	Maximum rigidity, sharpest machined finish, tightest flatness	Same sealing surface and breather design, lower cost
Fitment role	Only option for 2003-2005 5.9L	Common choice for 2006-2024 daily and tow trucks
Price	Higher	Lower

If the truck tows, works or drives daily, the cast version does the same job for less money. If the engine bay is part of the point - a show truck, a build that gets photographed - the billet finish is what you are paying for. Availability moves on these, so check what is in stock before you plan around one.

Where Your Dodge Ram Valve Cover Sends Crankcase Vapour

Ventilation design is the real reason people replace a Dodge Ram valve cover. The 2003-2005 cover carries a top-mounted baffled box: vapour enters a chamber with an internal plate, oil drops out and drains back, and the cleaner air continues on. The 2006-2024 cover takes a different route with dual CCV outlets that let you delete the internal filter element and plumb the vapour to an external catch can.

Either way, decide the routing before the cover is on the engine, so you run the hose once. A sealed catch can keeps oil out of the turbo and intercooler and keeps the system closed. An open breather or a hose aimed at the ground is not a ventilation solution - it is an emissions tamper, and it will also put oil mist back under the truck.

Torque and Sealing a Dodge Ram Valve Cover: The Numbers That Matter

The HEMI billet cover listed in this collection carries a published limit: 15 N·m (11 ft-lb / 133 in-lb), tightened evenly in a crisscross pattern. Over-torquing cracks a billet cover and voids the warranty. It is the single most expensive mistake you can make during this installation, and it happens because people tighten by feel.

The Cummins Dodge Ram valve cover uses a redesigned deep-channel gasket groove that holds the gasket seated and compressed under boost and heat, but the same rules apply: a calibrated torque wrench, a crisscross sequence, and a re-check after the first few heat cycles. Fit a fresh gasket rather than reusing one that has already been compressed - a new cover with a tired gasket is the fastest way to end up where you started.

Installing a Dodge Ram Valve Cover

1. Let the engine cool completely and clean the top of the head before anything comes off.
2. Remove anything mounted to the cover - breather lines, and on the HEMI the ignition coils - keeping fasteners in order.
3. Lift the old cover straight up. If it resists, it is sealed, not stuck; do not pry against the machined surface.
4. Compare the old cover to the new one before fitting. Flange shape, breather position and bolt count should match.
5. Seat the new gasket in the channel dry, unless the gasket maker says otherwise.
6. Torque in a crisscross pattern to the published figure, then re-check after the first heat cycle.

What a New Dodge Ram Valve Cover Will Not Fix

Worth being direct about, so the new cover is not blamed for something else:

• Oil at the back of the engine. A valve cover leak and a rear main seal leak look identical from underneath. Confirm the highest wet point before ordering.
• Real blow-by. If the rings are worn, pressure will find the weakest seal again. A better cover manages vapour; it does not repair cylinder sealing.
• A damaged head surface. A scratched or uneven flange area on the head will leak regardless of what is bolted to it.
• Horsepower. This is not a power part. What owners notice is a dry engine bay, cleaner intake piping and a cover that stops moving.

Also Listed Here: HEMI Gen III Covers

This collection also carries a cast/billet cover for the 5.7L, 6.1L and 6.4L HEMI Gen III gasoline engines. It is a separate family from the Cummins covers - taller than stock to clear aftermarket valvetrain, compatible with OEM ignition coils, and it does not fit a Cummins. The 2003-2005 5.7L trucks are conditional: they need 2006+ coil packs. The supercharged 6.2L is excluded because of its baffle design. Do not order it for a diesel.

Emissions and Warranty

Crankcase ventilation is part of the emissions system on a modern diesel. Keep it closed: route vapour to a sealed catch can rather than venting it, and keep the factory-style connections intact where your setup allows. If your truck is still under warranty or subject to local inspection, check with your dealer before deleting any factory emissions component. These covers are sold for the engines listed above; using them to defeat emissions equipment is not supported.
