Radiator - 2011-2016 6.7L Powerstroke Ford F250 F350 F450 F550 | SPELAB

Radiator - 2011 2012 2013 2014 2015 2016 6.7L Powerstroke Ford F250 F350 F450 F550 | SPELAB

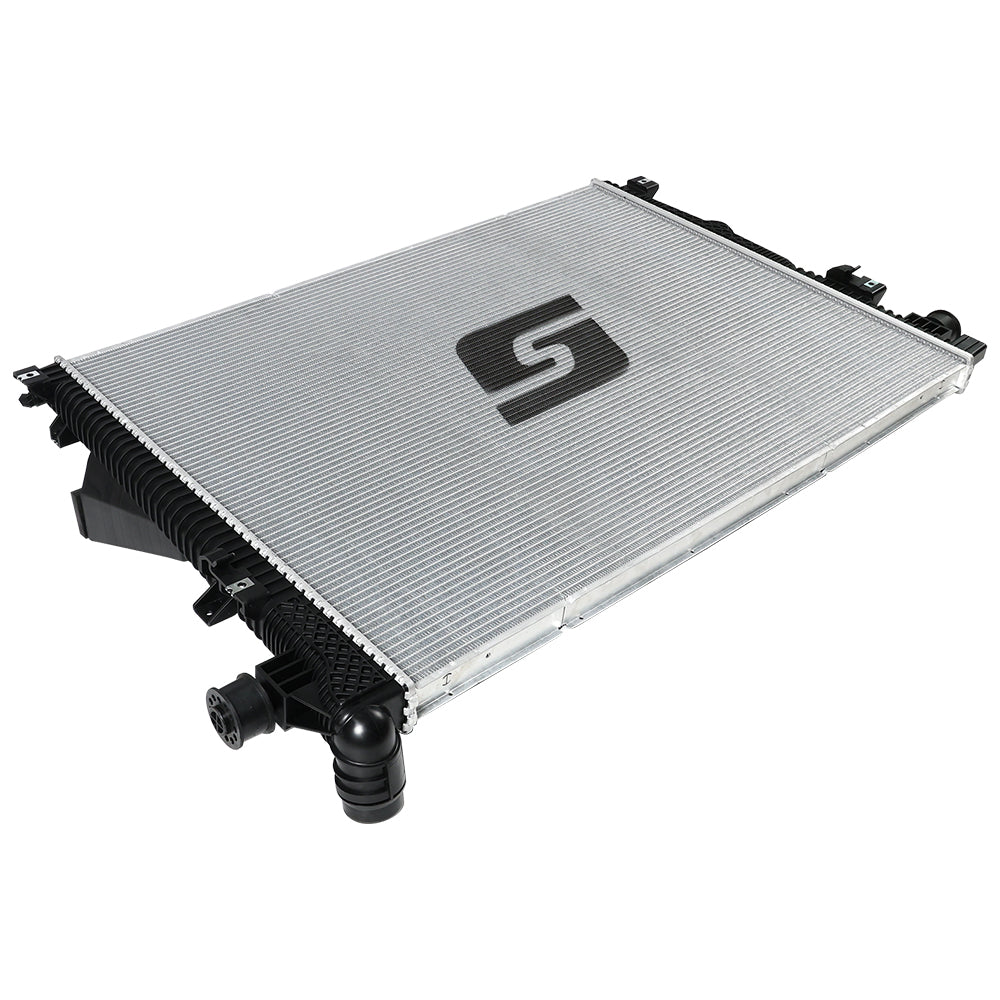

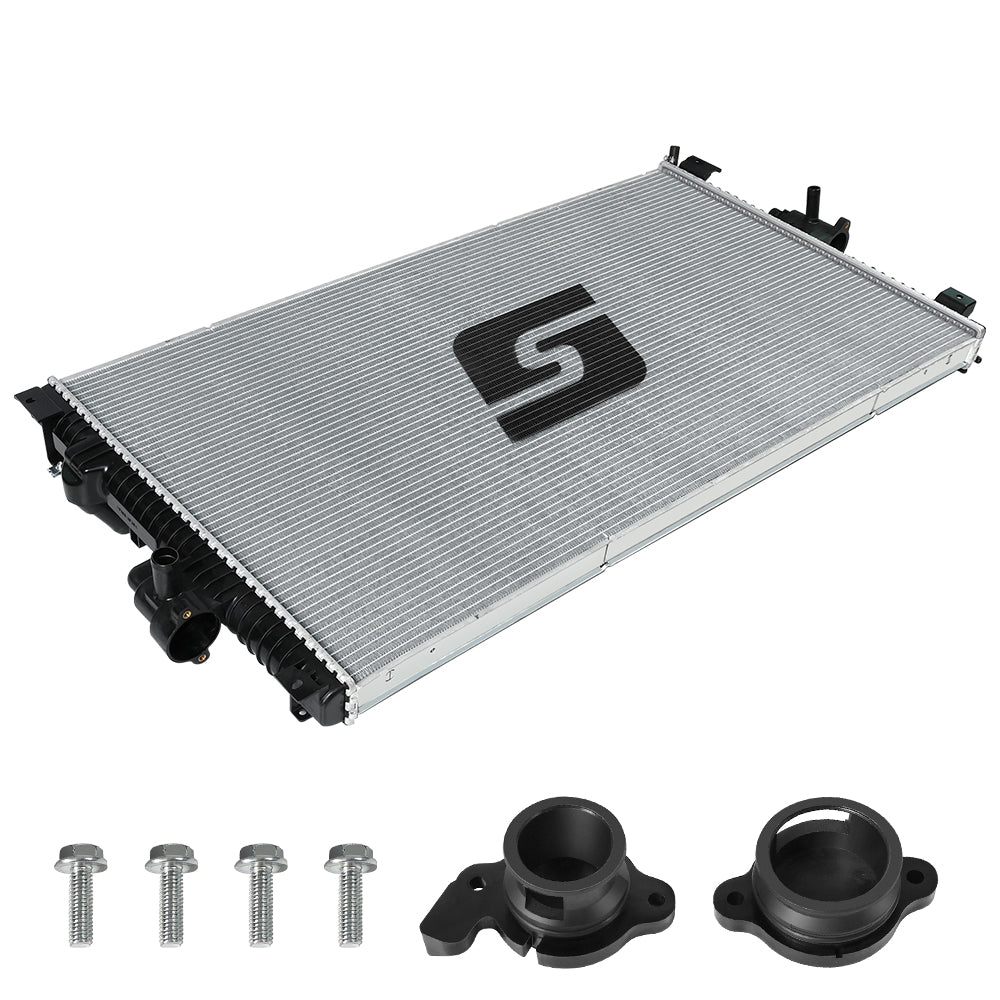

Don't just replace the failed radiator in your 2011-2016 6.7L Powerstroke Diesel with a stock replacement, upgrade it with the SPELAB Radiator #CS08091/#CS08092. Designed for a simple bolt-on installation, SPELAB's Radiators look like a factory replacement, but are upgraded to be stronger and better than the factory unit. The SPELAB Cool Radiators are built to give you a long-lasting direct-fit option to protect your engine and cooling system.

Details:

• Brand: SPELAB
• SKU: SPCS08091/SPCS08092
• Color: Black

• Type: Radiator for 2011 2012 2013 2014 2015 2016 Ford F-250 F-350 F-450 F-550 6.7L Powerstroke Diesel


TECH SPECS :

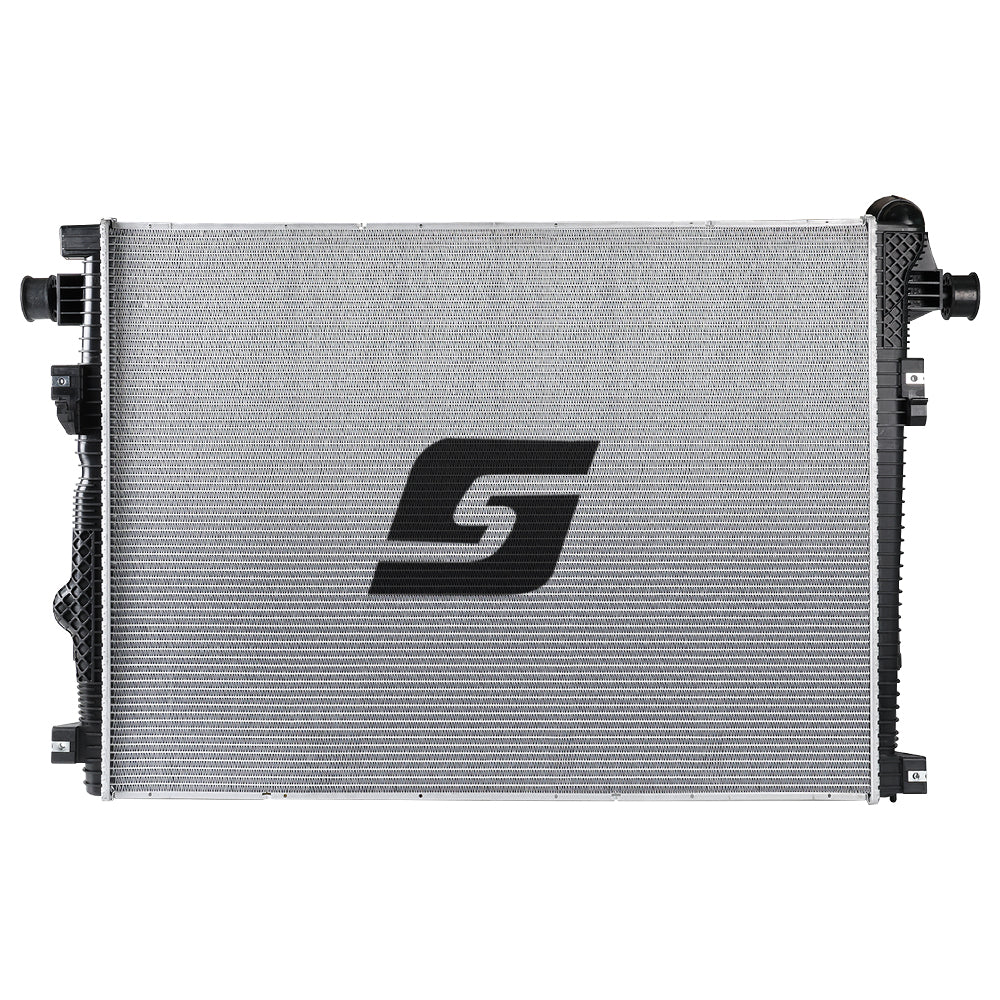

Primary 1:

• Bottom Hose Ftting (in): 2 1/4 Right
• Top Hose itting (in: 21/4 Left
• Core Length (in): 38 3/8
• Core Material: Aluminum
• Core Thickness (in): 1 5/8
• Core Width (in): 2711/16
• Cross-flow/ Down- flow: Cross Flow
• Hazardous Material: No
• Inlet Length (in): 28 3/8
• Inlet Width (in): 23/16
• No. Of Rows: 2
• Outlet Length (in): 28 3/8
• Outlet Width (in): 23/16
• Radiator Cap Supplied: No
• Tank Material: Plastic
• Tech Note: 0.E.M. style Plastic Tanks & Aluminum Core

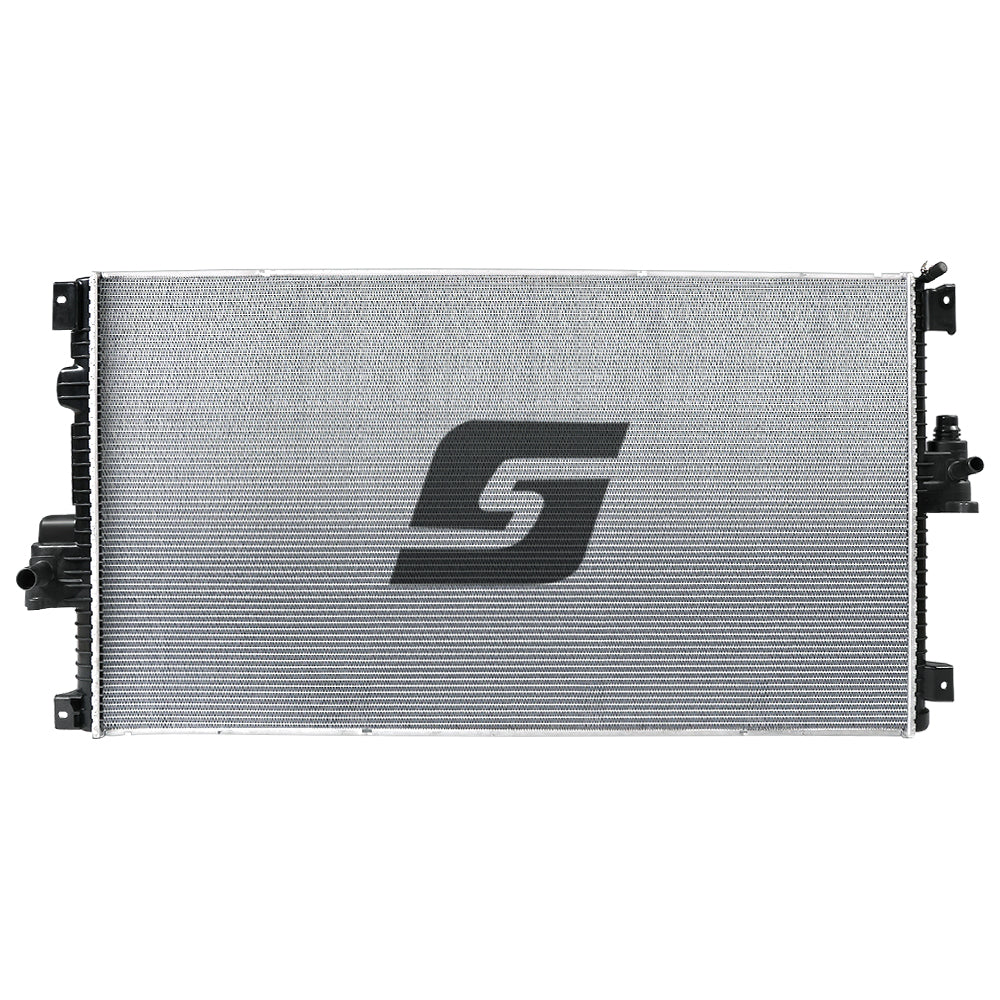

Secondary 2:

• Bottom Hose Ftting (in): 1 Left
• Top Hose Ftting (in): 1 1/4 Right
• Core Length (in): 39 3/8
• Core Material: Aluminum
• Core Thickness (in);: 1 5/8
• Core Width (in): 20 11/16
• Cross-flow/ Down-flow: Cross Flow
• Hazardous Material: No
• Inlet Length (in): 213/8
• Inlet Width (in): 21/8
• No. Of Rows: 2
• Outlet Length (in): 21 3/8
• Outlet Width (in): 21/8
• Radiator Cap Supplied: No
• Tank Material: Plastic
• Tech Note: 0.E.M. style Plastic Tanks & Aluminum Core

Features:

High Efficiency Core
The SPELAB Cool Radiator is built with a high-efficiency core that has more fins per inch, and heavy-duty tubes to maximize cooling potential.

Internal Reinforcements
Manufactured using special aluminum brazing techniques, the SPELAB Cool Radiator Features internally reinforced end tubes that have additional strength at the outside corners where the core is most vulnerable.

Gasket Design
Using a proprietary rubber gasket to allow for expansion, contraction, and flex is one more reason the SPELAB Cool Radiators are built to last. The gasket is a common failure point in many OE radiator designs.

Revised End Tanks
For added strength and durability the SPELAB Cool Radiators feature revised end tanks. With reinforcement ribs added to weak points, the plastic mix includes a fiber reinforcement that is added during construction to increase longevity and help eliminate another failure point.

Upgraded Mounting Points
To make sure the SPELAB Cool Radiator is securely mounted in the same location as your stock radiator, the integrated mounting points have been strengthened to add durability.

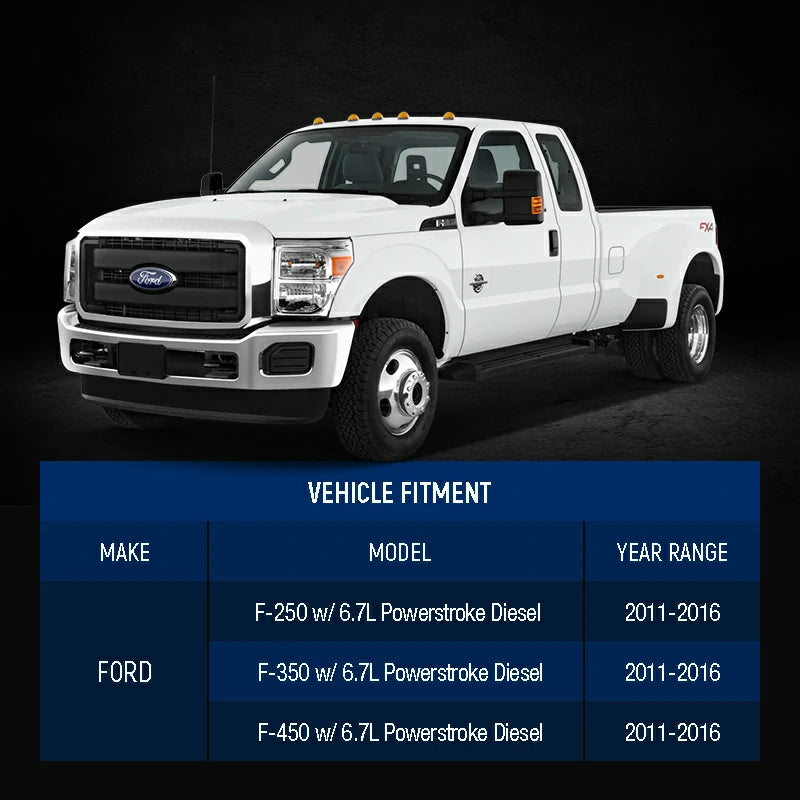

• 2011-2016 Ford F-250 w/ 6.7L Powerstroke Diesel
• 2011-2016 Ford F-350 w/ 6.7L Powerstroke Diesel
• 2011-2016 Ford F-450 w/ 6.7L Powerstroke Diesel
• 2011-2016 Ford F-550 w/ 6.7L Powerstroke Diesel

Q: Which Ford models does this radiator fit?

A: This radiator is compatible with 2011-2016 Ford F-250, F-350, F-450, and F-550 Super Duty trucks equipped with the 6.7L Powerstroke Diesel engine.

Q: Is this a Primary or Secondary radiator?

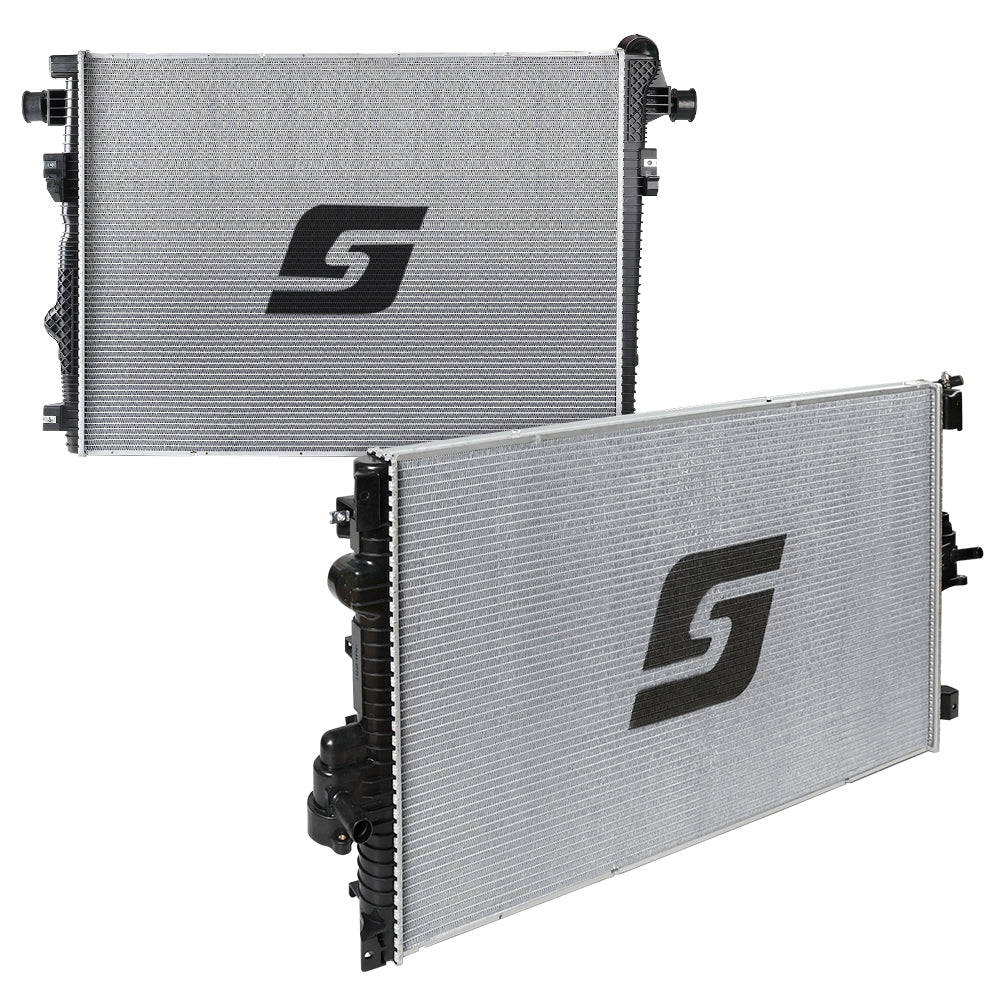

A: The SKU lists SPCS08091/SPCS08092, and the Tech Specs show details for both "Primary 1" and "Secondary 2". Please ensure you are selecting the correct unit for your needs, or if the package includes both, it replaces the entire cooling stack.

Q: What improvements does this have over the stock Ford radiator?

A: This SPELAB radiator uses internally reinforced end tubes and fiber-reinforced plastic tanks. These upgrades help withstand the high pressures and heat of the 6.7L Powerstroke.

Q: Is it difficult to install?

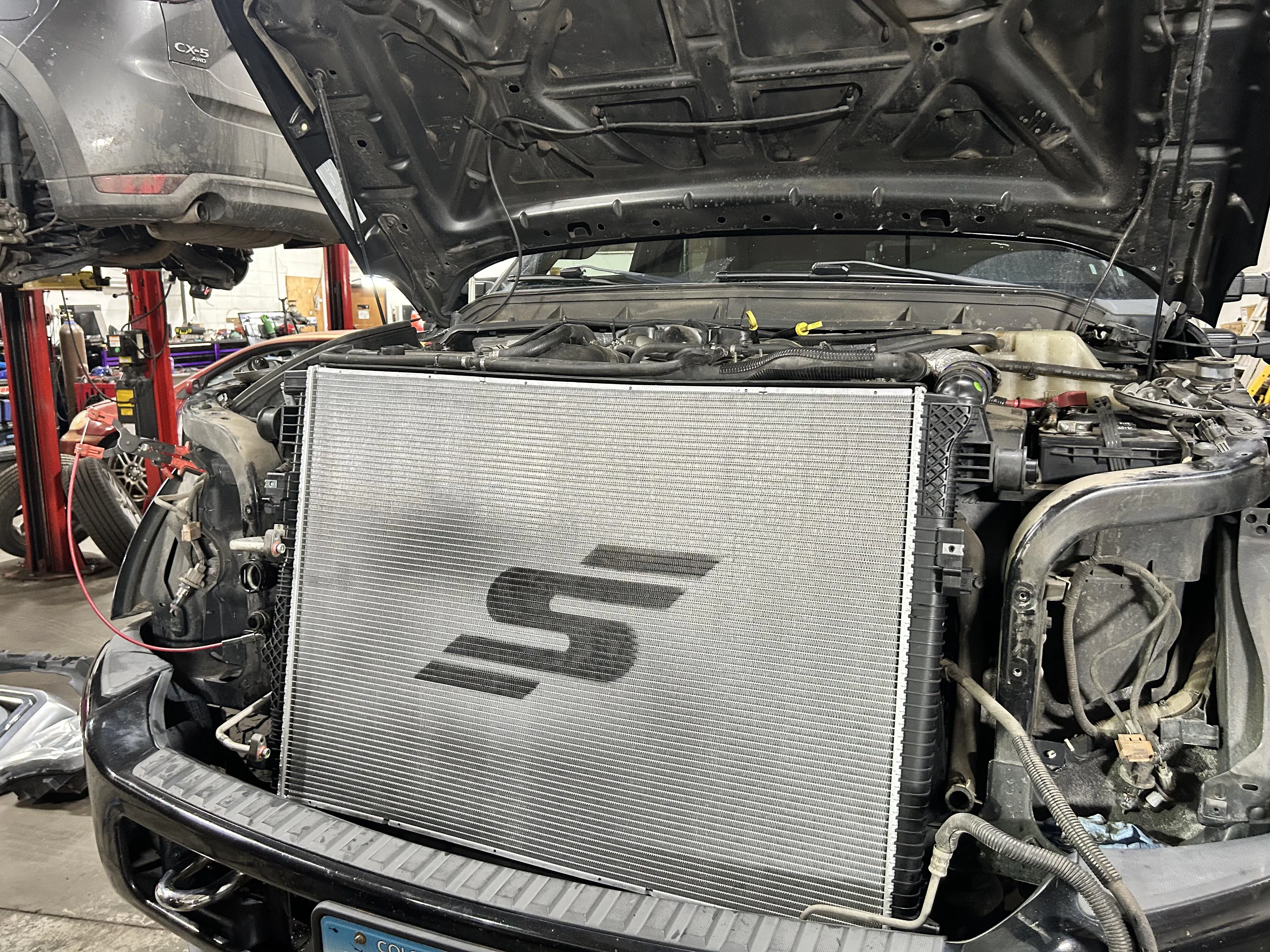

A: This is designed as a direct-fit replacement (OEM style). While the Ford 6.7L cooling system is complex, this radiator bolts into the factory location without the need for custom fabrication.

Q: Does it include a radiator cap?

A: No, the radiator cap is not supplied. You should reuse your existing cap or purchase a new OEM-spec cap to ensure proper system pressure.
