How to seal intercooler pipes

How to seal intercooler pipes

Author: SPELAB Mechanical Engineer (focusing on car modification for 10 years)

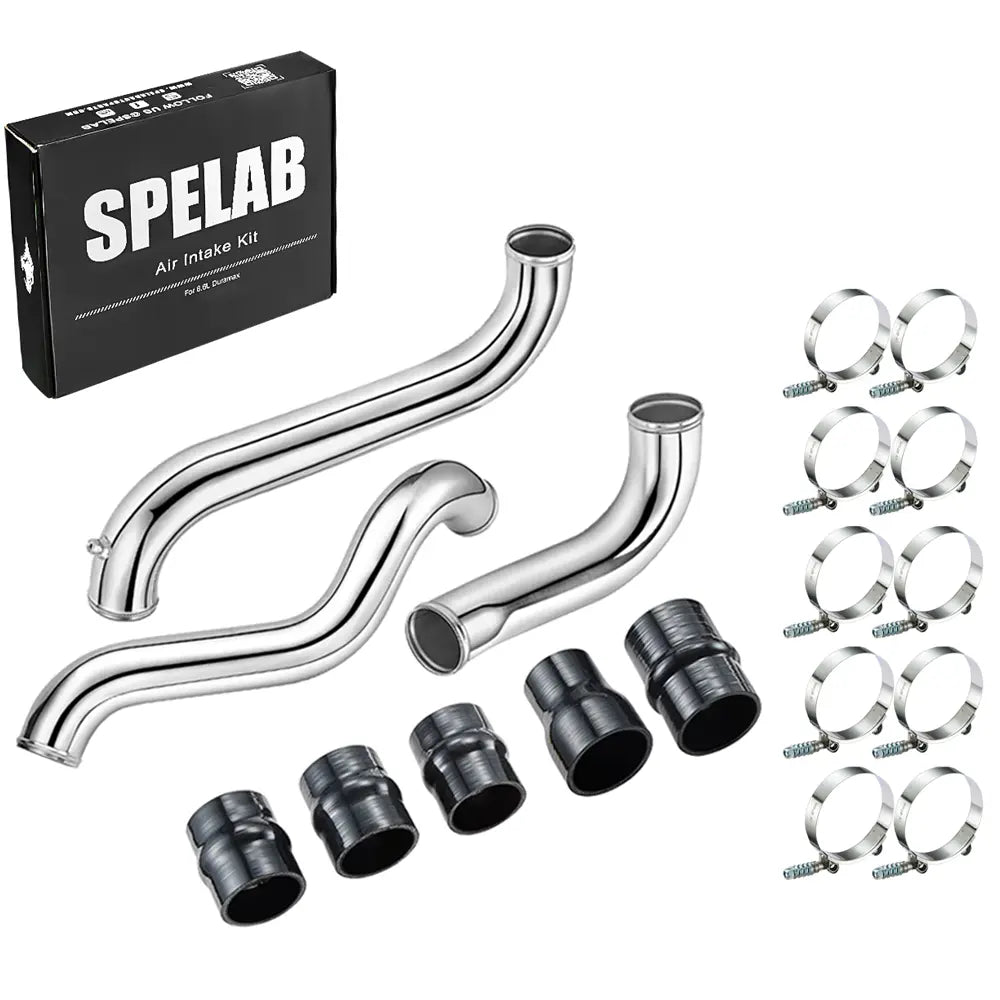

 The pipes for the intercooler are constructed of 304 stainless steel and have a lovely brushed finish. The pipes for the intercooler are noticeably different. Based on the turbo model year, there are six or seven silicone hoses and clamps. The bulge in the hump hose allows for increased flexibility due to the engine's torque. Slide the silicone hoses onto the pipes, turbo, and intake with soapy water to make installation easier. In order to safeguard the silicone hoses, we only recommend liner-type clamps that won't damage the silicone surfaces or compromise the hoses' structural integrity.

How to seal intercooler pipes

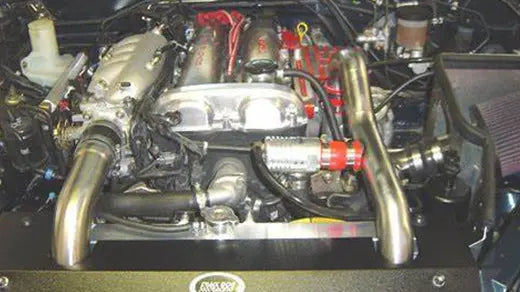

1. Installing the FM System Intake Side Intercooler Pipes

The intake pipe, turbo inlet pipe, and turbo output pipe are all included in the FM turbo intercooler system. The air box and FM air filter are still present.

To make it easier to fit the silicone hoses to the components, spray some soapy water onto the hose connection before installation. When the soapy water dries, it also serves as a sealant.

  • Mount the clamps with the tightening screw on the front side to make the silicone hose installation and removal on the intercooler easier. You will have extra room with a nut driver (recommended for increased torque) or screwdriver. Thanks to this.
  • Using the lower-size hose clamps, attach the hump hoses to the intercooler. Move the hose such that the top of the Intercooler pipe is where the bottom of the hump is. In order to allow for flexibility between them, the upper intercooler pipe should ideally install just above the hump. Securely tighten the bottom clamp. Another clamp should be added to the silicone hose's top.
  • Connect the hose, then insert the intake pipe. Next, take the 2 1/2" silicone hose and attach it to the top of the intercooler pipe.
  • Screw the tightening screws of two bigger clamps into the inside of the pipe. Rotate the intercooler pipe in the direction of the throttle body while holding the unit, then align it.
  • The hose connector and flange of the throttle body should be cleaned with a modest amount of soapy water. Over the flange of the throttle body, slide the hose connector.
  • Lightly tighten all of the hose clamps, but wait to secure them until both of the intercooler pipes have been placed because you must line up the intercooler pipes with the radiator shield.
CAUTION: For optimal flexibility, you need to leave between 1/4" and 3/8" between the pipes and the attached components. Engine torque has the potential to harm the intercooler.



2. Installing the turbo side intercooler pipes for the FM system.

  • Attach the turbo inlet pipe and a 2 1/2" silicone hose to the turbo, securing the clamp on the turbo side.
  • Attach the valve cover vent hose's 3/8" barb fitting to the turbo inlet pipe.
  • Install and secure the MFS unit using the 2 1/2" to 2 3/4" transition tubing.
  • Measure the length necessary to hold the BOV to the turbo outlet pipe, which is typically approximately 1 3/4" long, then cut the rubber hose on the short length of the elbow. Make careful to fit the unit to the pipes before cutting.
  • Use the smaller pipe clamps towards the front to attach the hump hose to the intercooler. Slide the hose to the Intercooler pipe's top, where the bottom of the hump is located. In order to allow for flexibility between them, the upper intercooler pipe should ideally install just above the hump. Securely tighten the bottom clamp. Another clamp should be added to the silicone hose's top.
  • Attach two clamps, securing the bottom clamp only, then install the 2" silicone hose onto the turbo outflow pipe.
  • Insert the turbo outlet pipe into the bottom connector and the turbo outlet. The alignment can be helped by adding a little soapy water. Clamps should be tightened, but not tightly, until the final alignment.
  • Attach the BOV hose to the turbo output pipe and tighten the clamps, but wait until the last alignment before doing so.
  • Include a 1/8 "Connect a vacuum hose to the BOV and the turbo outlet pipe or fitting. A 1/8 "If the brass barb fitting is not utilized, a plug is also provided.

Upgrading to a top-mount intercooler is a fantastic way to give your flat-four a cool blast of air! A cool, dense charge of air can boost power and enable more aggressive tweaking. The Mishimoto Subaru WRX and STI TMIC Kit can upgrade your charge air system. Unlike the stock Y-pipe system, this top-mount intercooler assembly has a single entry inlet.

How to seal intercooler pipes



6.0 Powerstroke intercooler pipes

Any mechanical device, usually a heat exchanger that eliminates waste heat in a gas compressor that cools a fluid, either liquids or gases, in between stages of a multi-stage compression process is known as an intercooler. It is used in automobiles as an air-to-air or air-to-liquid cooler for forced induction (turbocharged or supercharged) internal combustion engines to increase intake air charge density through almost isobaric (constant pressure) cooling, hence improving their volumetric efficiency.

What does the intercooler pipe 6.0 Powerstroke do?

Before the compressed air reaches the intake manifold as it leaves the turbocharger, the intercooler works to remove heat from it. Denser, cooler air gives the combustion process more oxygen since it is cooler. Colder temperatures on the exhaust side result from cooler air on the intake side.

6.7 powerstroke intercooler pipe

H&S Motorsports produces the Intercooler Pipe Upgrade Kit for the 6.7 Powerstroke from 2017 to 2022. With the help of this kit, you can improve the original plastic/rubber intercooler hose assembly. A CNC-machined billet aluminum adapter (Patent Pending) that has facilities for reinserting the factory charge-air temperature sensor replaces the plastic hose adapter from the factory. The conventional rubber intercooler pipe is replaced with an improved 5-ply stainless reinforced silicone intercooler tube that has been demonstrated to withstand substantial usage.

Ford 6.7 intercooler pipe failure

Several of the 6.7 PowerStroke's prevalent issues include:
  • EGT Sensor Failure
  • EGR Cooler Clogging
  • Injection Pump Failure
  • Radiator Coolant Leaks
  • Turbocharger Problems

The list of potential problems provided here is not all-inclusive. It's also vital to keep in mind that not every 6.7L PowerStroke will experience the issues listed here just because they are there. Nevertheless, the Ford 6.7L diesel V8 has a few typical weaknesses.

How to seal intercooler pipes



6.4 Powerstroke intercooler pipes

Your Ford Super Duty will last longer if you use the Mishimoto Intercooler Pipe and Boot Kit for the 2008-2010 Ford 6.4L Powerstroke. To provide the significant torque you require, these workhorse turbodiesels generate mountains of boost pressure. The piping in the intercooling system, in particular, suffers as a result of this overuse. The Mishimoto pipe and boot kit swaps out the standard system for two robust, mandrel-bent aluminum pipes for the hot and cold sides of the intercooler for optimal durability. Mishimoto Silicone Boots with DuraCore technology are included in this kit. All Mishimoto Silicone Diesel Boots include an interior layer made of a synthetic material called Mishimoto DuraCore technology. DuraCore offers greater heat, pressure, fuel, and oil resilience than regular silicone.
