Vacuum Exhaust Cutout

What a Vacuum Exhaust Cutout Is

A vacuum exhaust cutout moves its valve plate with vacuum instead of putting an electric motor on the pipe. That is the whole distinction. The plate, the branch and the flow path behave exactly as they do on any other cutout: shut, gas stays on the muffled path; open, part of it turns out of the branch before the muffler can damp it.

The control side is what changes. A vacuum exhaust cutout sends the signal electrically and does the work pneumatically — a remote or switch powers a solenoid, the solenoid decides whether vacuum reaches the actuator, and the actuator does the pulling. The part sitting next to the hot pipe has no motor and no windings in it.

The Vacuum Circuit, Part by Part

Part	What it does	What it needs
Vacuum source	Supplies negative pressure	A source that still pulls under load — intake manifold on a throttled engine, a dedicated pump on a turbo diesel
Solenoid	Opens or closes the vacuum path when the remote is pressed	A clean power feed, a sound ground, and a dry mounting spot
Vacuum line	Carries vacuum from the solenoid to the actuator	Heat-rated hose, clipped away from the exhaust
Check valve	Holds vacuum when source pressure rises	Correct direction and no cracks
Actuator	Turns vacuum into movement at the plate	A linkage that swings without binding
Valve plate	Sits in the gas path and decides the route	Full travel and a clean seating surface

Six pieces where a motor-driven kit has two. A vacuum exhaust cutout trades that extra plumbing for keeping the motor off the hot pipe, and every joint in the list is somewhere vacuum can leave.

How a Vacuum Exhaust Cutout Opens and Closes

A vacuum exhaust cutout works by pulling against a spring. Vacuum reaches the actuator, the actuator works against the spring, and the plate swings open. Take the vacuum away and that spring pushes the plate back to its rest position.

The rest position is mechanical, which is where this design differs from a motor-driven valve. Lose vacuum through a split hose, a dead pump or an engine that is switched off, and the plate returns to shut instead of staying where you left it. A vacuum exhaust cutout fails closed, not where it was.

Where the Vacuum Comes From

A throttled gasoline engine makes vacuum in the intake manifold, and makes the most of it at idle and closed throttle. Open the throttle hard and manifold vacuum drops, which is the moment a vacuum exhaust cutout has the least help on hand.

A turbo diesel is a different case. There is no throttle plate to pull against, so manifold vacuum is weak, and the realistic source is the vacuum pump those engines already carry for the brake booster. Any source that can see positive boost wants a check valve in front of it, so pressure does not push back into the line when the turbo lights.

Routing Vacuum Line Away From Heat

Every vacuum exhaust cutout needs a hose run that survives heat, and the hose is the part most often underestimated.

• Heat-rated hose — ordinary vacuum hose hardens and cracks near exhaust; silicone or braided line lasts longer.
• Distance from the pipe — keep the run off the exhaust and clear of the turbo, then clip it so it cannot sag onto hot metal.
• No kinks — a flattened bend slows the plate or stops it part way.
• Short runs — the longer the line, the longer the actuator takes to fill.
• Supported ends — vibration walks hose off barbed fittings, so tie both ends down.

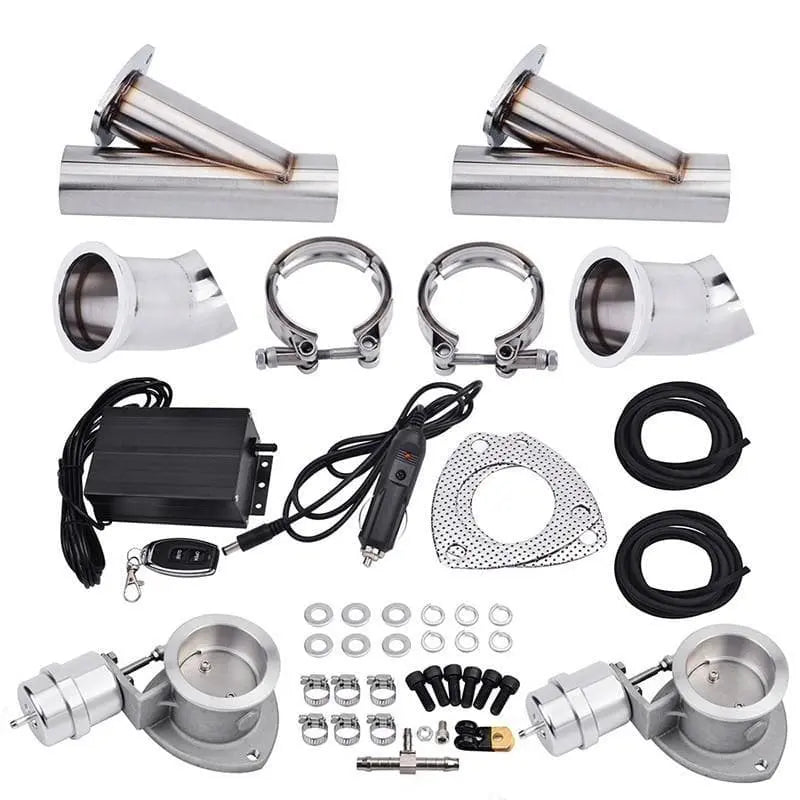

Two Valves on One Vacuum Circuit

A dual vacuum exhaust cutout branches one solenoid out to two actuators. Both plates are meant to move together, and they do — within the limits of the plumbing. A branch that runs longer than its twin fills later, so one side opens a moment behind the other and the note arrives slightly staggered.

A dual vacuum exhaust cutout with equal branch lengths moves evenly. Matching the two runs costs nothing and is worth doing before suspecting the actuator.

When a Vacuum Exhaust Cutout Stops Moving

A vacuum exhaust cutout that stops moving is usually a plumbing problem, so work from the source toward the plate.

Symptom	Look here first
Nothing moves at all	Remote battery and pairing, then solenoid power and ground, then vacuum at the source
Closes but will not open	Vacuum level at the source, split or pulled-off hose, check valve fitted backwards
Opens slowly or stops part way	Kinked or undersized hose, long run, weak source
One valve moves, the other does not	That branch line, from the tee to its actuator
Plate drifts after shutdown	Check valve no longer holding
Hiss with the valve shut	Plate seating or carbon buildup, not the vacuum side

Most no-movement complaints on a vacuum exhaust cutout end at a hose or a power feed rather than at the actuator itself.

Care: Line, Check Valve and Cycling

A vacuum exhaust cutout asks for four checks, and none of them take long.

• Cycle it — a plate that sits for months collects soot and starts to bind, so work it through full travel on a regular schedule.
• Inspect the hose — look for hardening, cracks at the barb, and any spot that has touched hot metal.
• Test the check valve — it holds vacuum in one direction only, and a failed one turns up as drift.
• Keep the electrics dry — the solenoid and its connector are the only parts here that mind water.

Noise Rules for an Open Vacuum Exhaust Cutout

An open branch releases gas ahead of the muffler, and loud is the point. Noise limits on public roads are set by state, county and city, and they apply no matter how quiet the rest of the exhaust is. Shut, the vehicle stays on its muffled path; open on the street, it does not. Open-valve running belongs on private property and off-road.

A vacuum exhaust cutout adds a branch rather than taking emissions hardware off the vehicle, so the rest of the system stays as it was. On a public road the question is noise.
