Intake System Kit for 2007-2018 Dodge Ram 2500/3500 6.7L Diesel | SPELAB

Intake System Kit for 2007.5-2018 6.7L Cummins Pickups

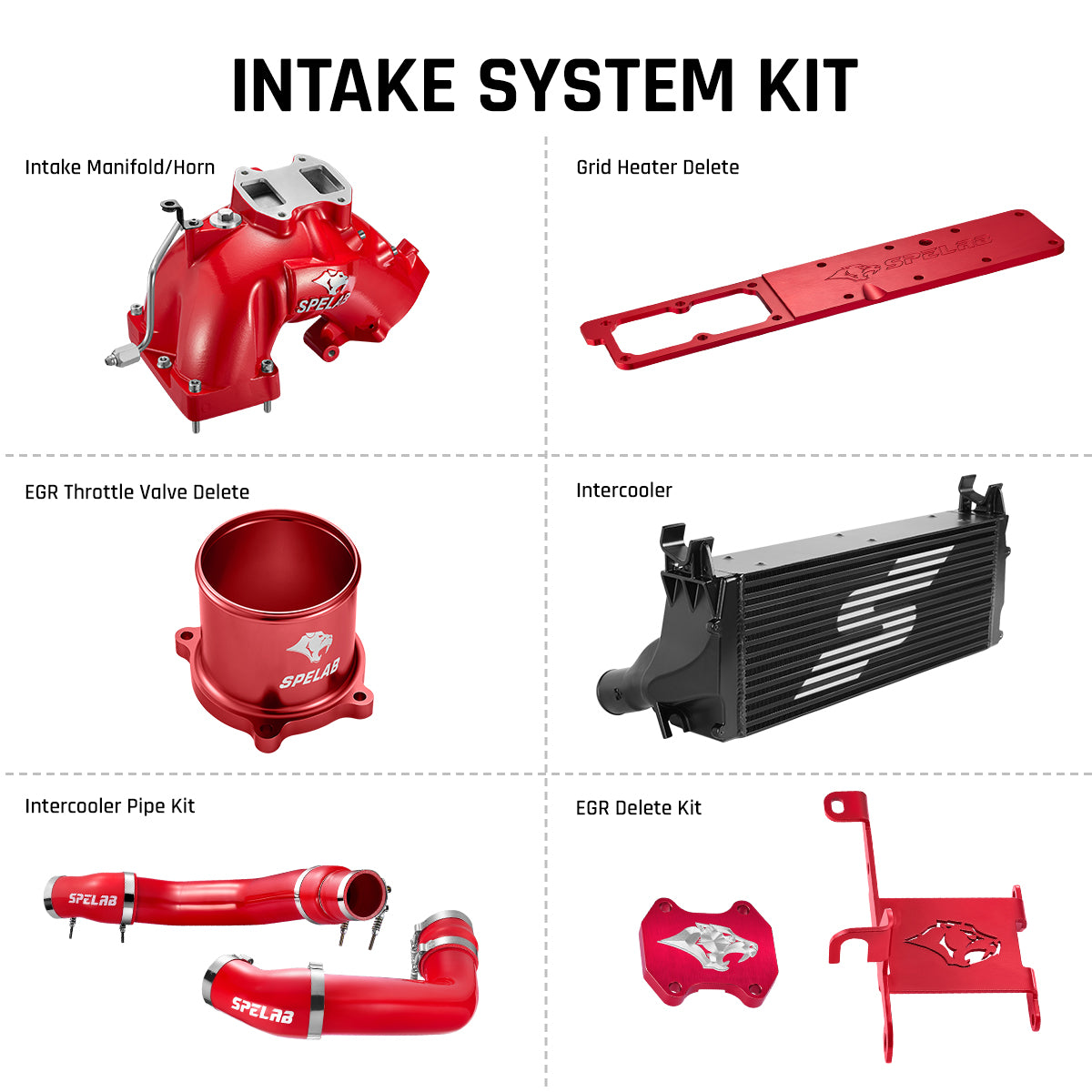

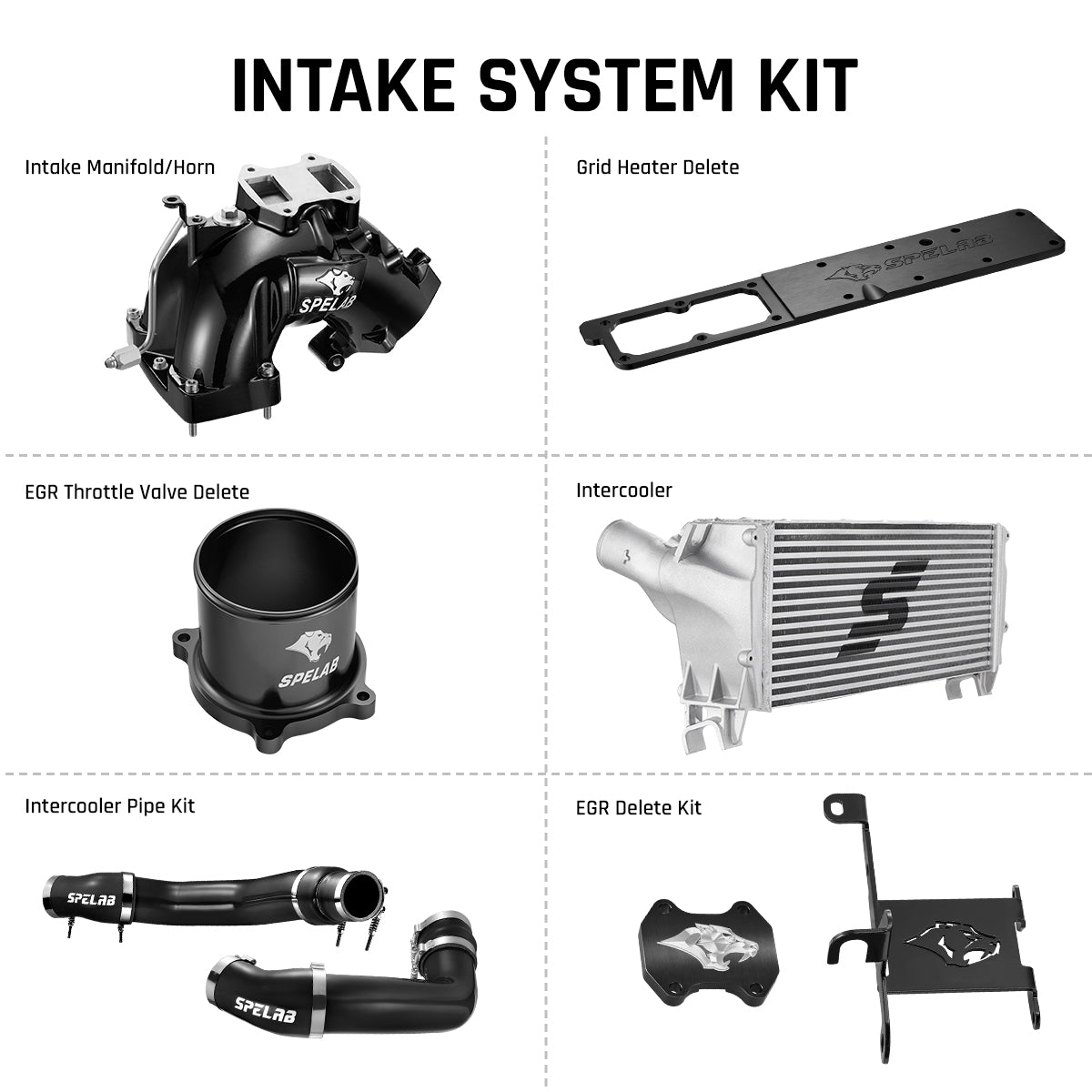

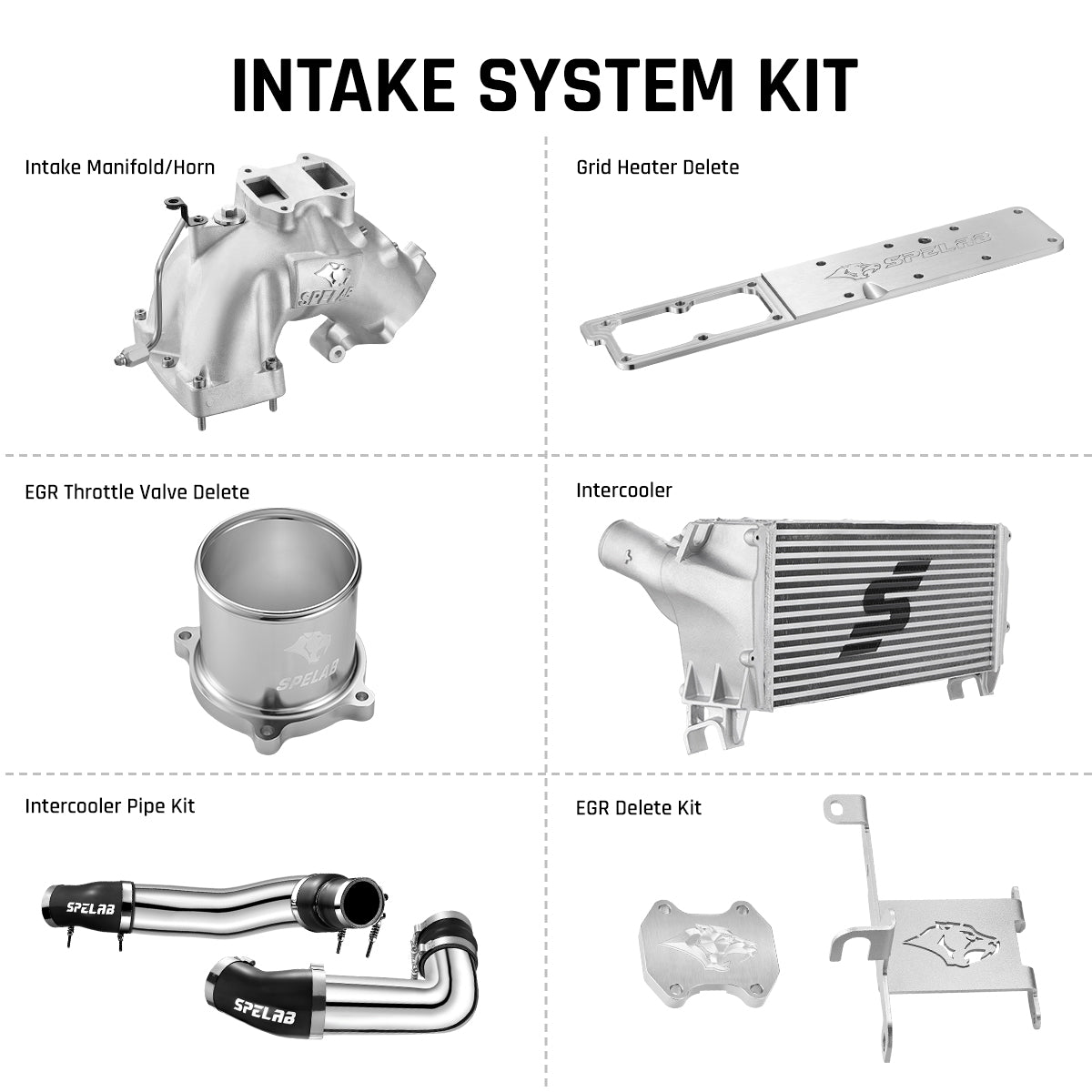

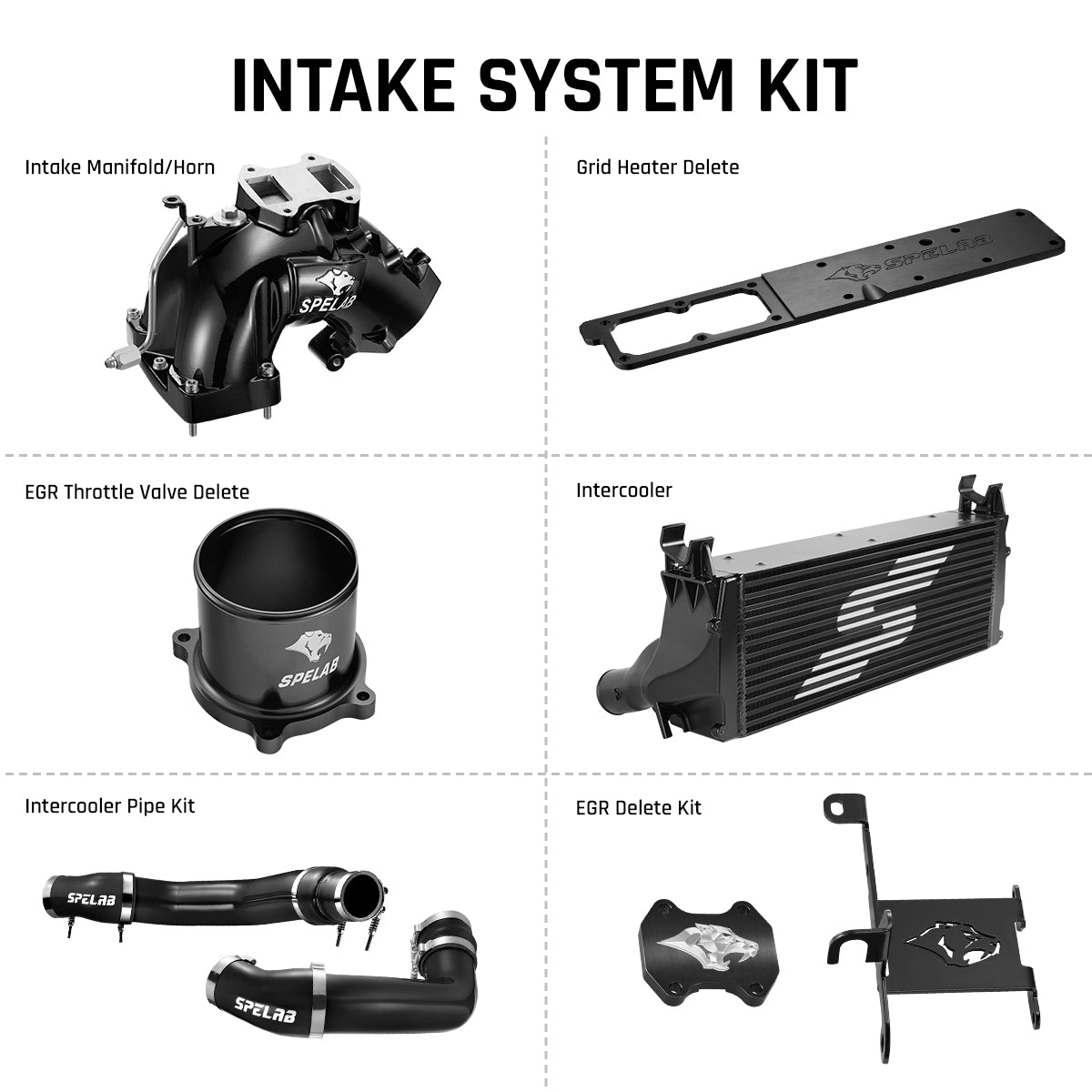

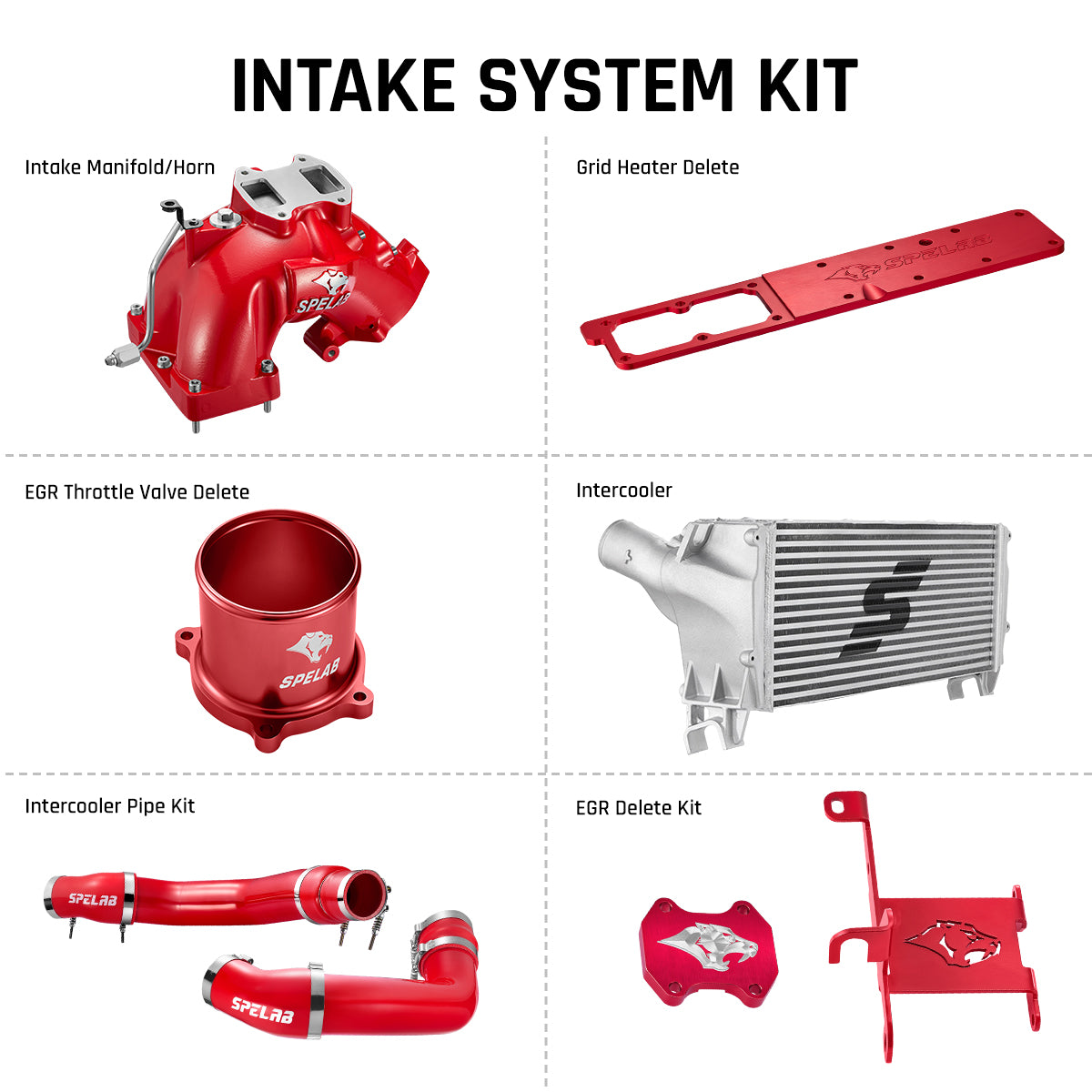

This SPELAB intake system kit brings together the intake manifold or horn, grid heater delete components, a tube-fin intercooler, year-specific intercooler piping, and the applicable EGR components for 2007.5-2018 Dodge/Ram 2500 and 3500 pickups equipped with the 6.7L Cummins diesel engine.

The matched components are designed to reduce restrictions across the intake and charge-air path, support quicker turbo response, and provide a coordinated alternative to purchasing the parts separately. Package contents differ by model-year group, so select the correct year and color before ordering.

Choose Your Year-Specific Kit & What Kit Include

Year selection note: The storefront option labeled 2007-2009 applies only to trucks equipped with the 6.7L Cummins, commonly identified as 2007.5-2009. It does not fit a 2007 truck with the 5.9L Cummins.

Color selection note: Black, Red and Silver variants are available. The finish of individual components varies by year group; use the selected variant image and the table above to confirm the included finishes.

Fitment

• 2007.5-2010 Dodge Ram 2500/3500 pickup with the 6.7L Cummins diesel engine.
• 2011-2018 Ram 2500/3500 pickup with the 6.7L Cummins diesel engine.
• Does not fit 2007 5.9L Cummins applications.
• Does not fit Ram 4500/5500 or cab-and-chassis applications.

Verify before ordering: Match the truck to the 2007.5-2009, 2010-2012 or 2013-2018 option. The included intercooler, piping and EGR-related parts are year-specific.

Before You Order

• Confirm the complete vehicle: Verify model year, 2500/3500 pickup configuration and 6.7L Cummins engine. Do not order by engine displacement alone.
• Review EGR-related requirements: This package contains components that remove or replace parts of the factory EGR system. Confirm hardware compatibility, ECU calibration requirements and the laws that apply to the vehicle before purchase or installation.
• Plan for grid-heater changes: The kit includes a grid heater delete component. Cold-start behavior depends on ambient temperature and the final heating configuration.
• Check the IAT connection: An IAT Sensor Extension Harness is offered as an add-on. Confirm whether it is required for the intake manifold, delete plate and sensor position used on the selected year group.
• Confirm component finishes: The intercooler is shown in a silver finish. Intake, piping and delete-component finishes vary by the selected year and color option.

Product Highlights

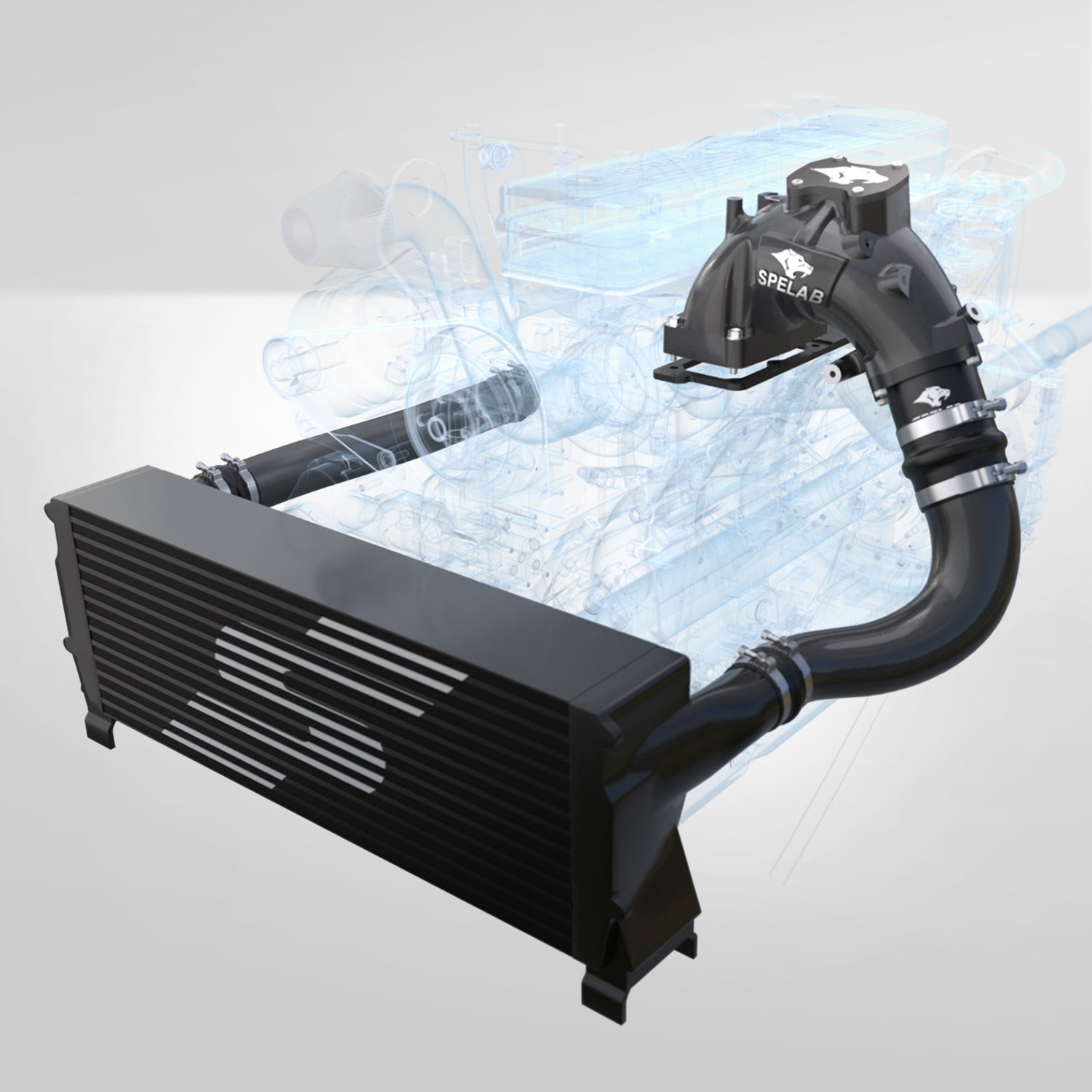

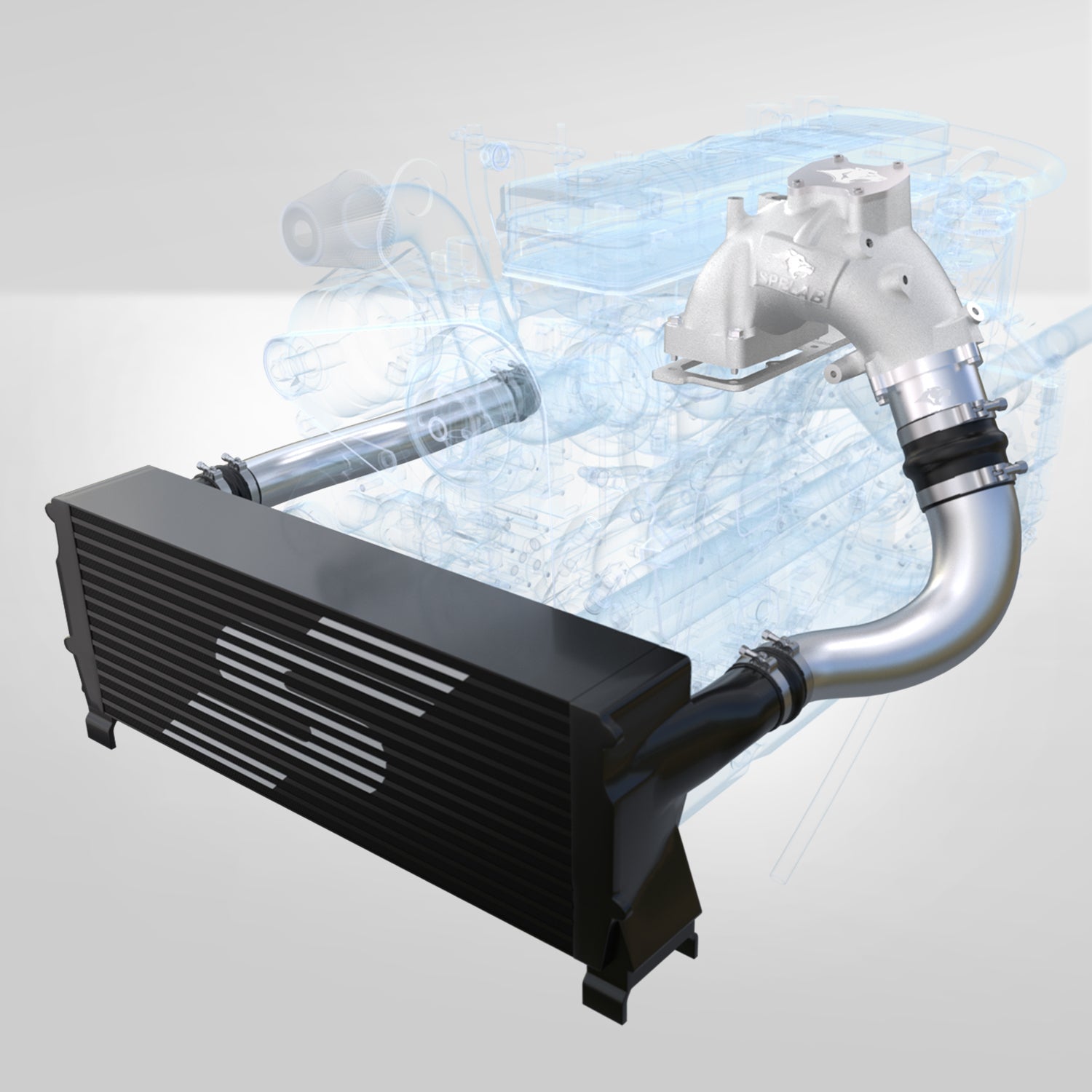

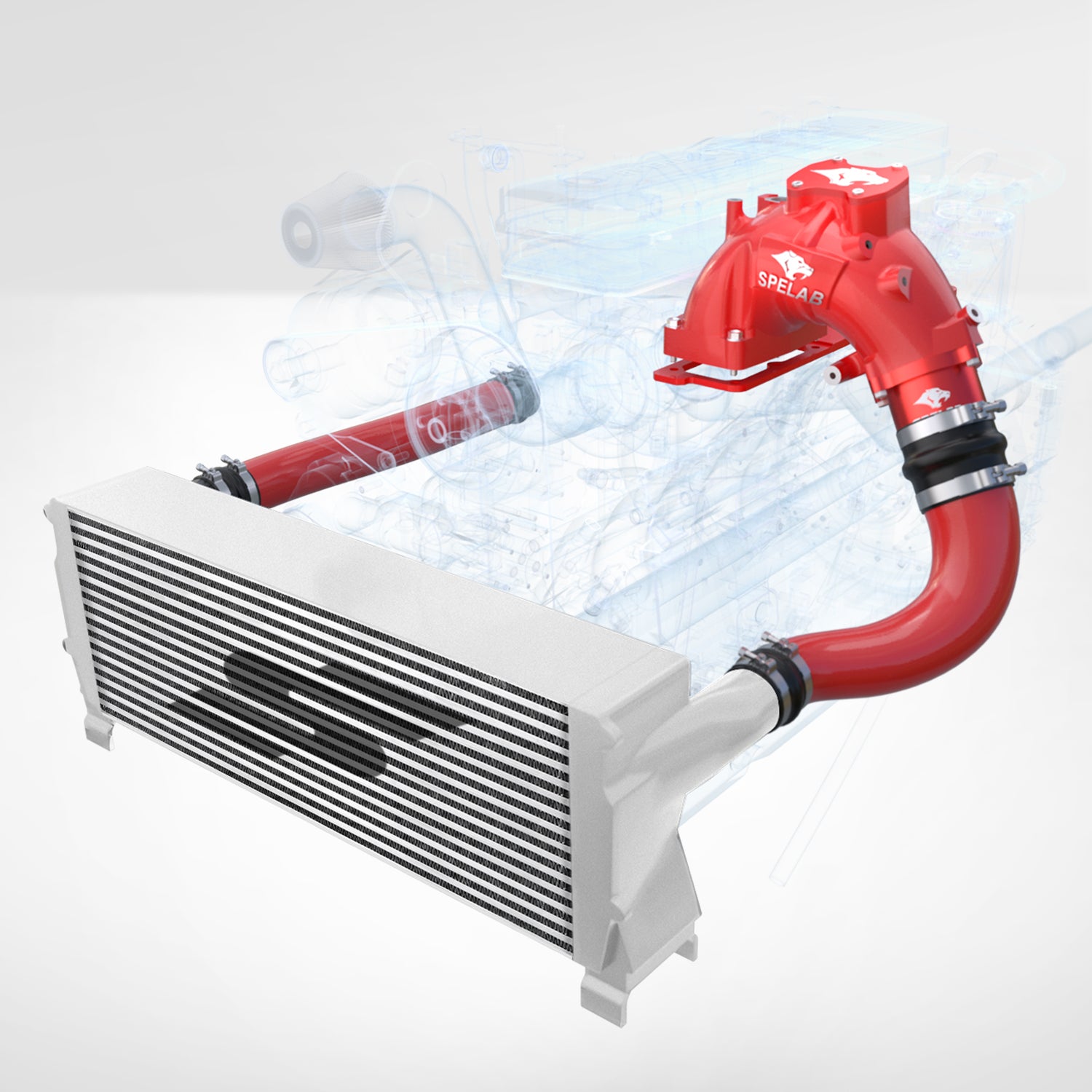

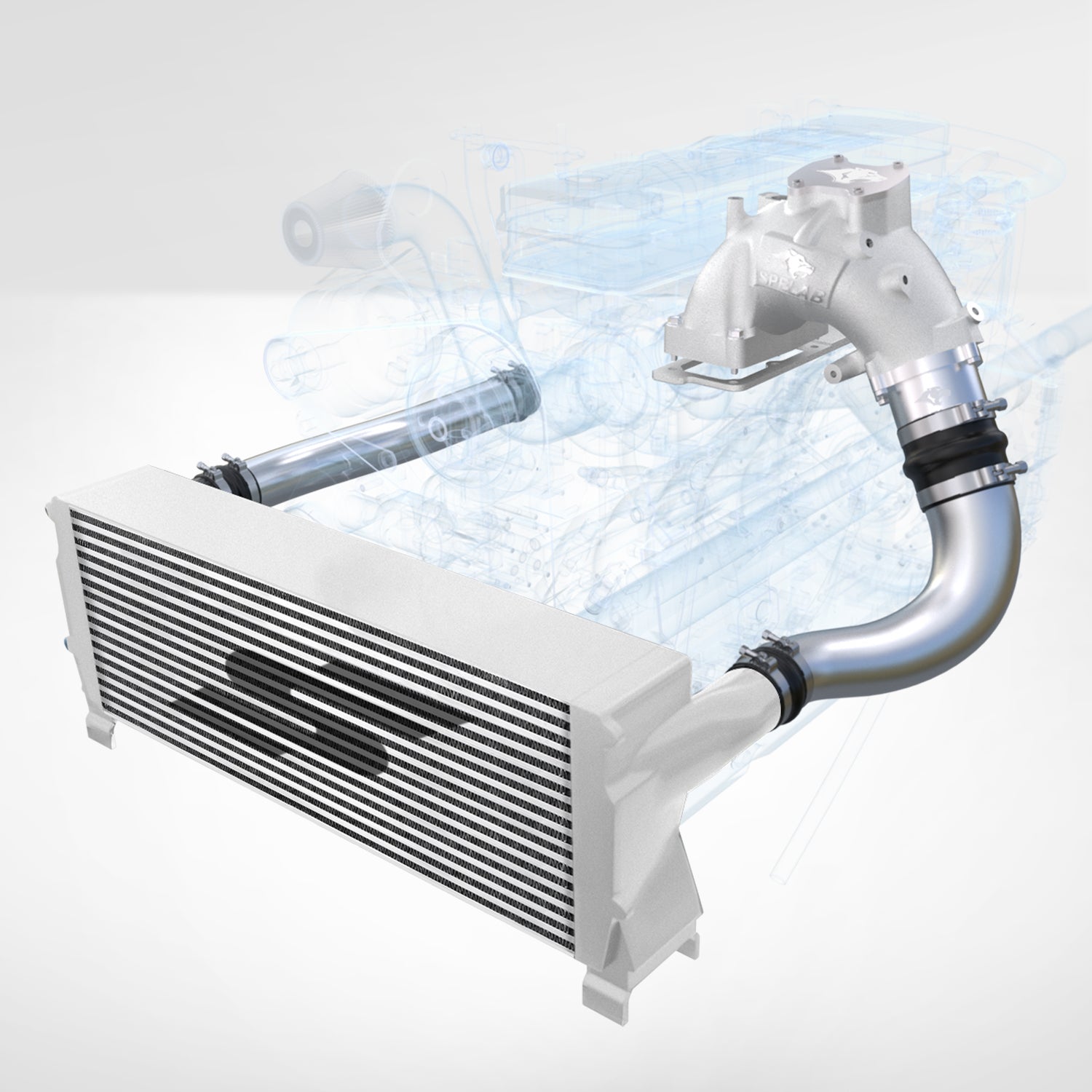

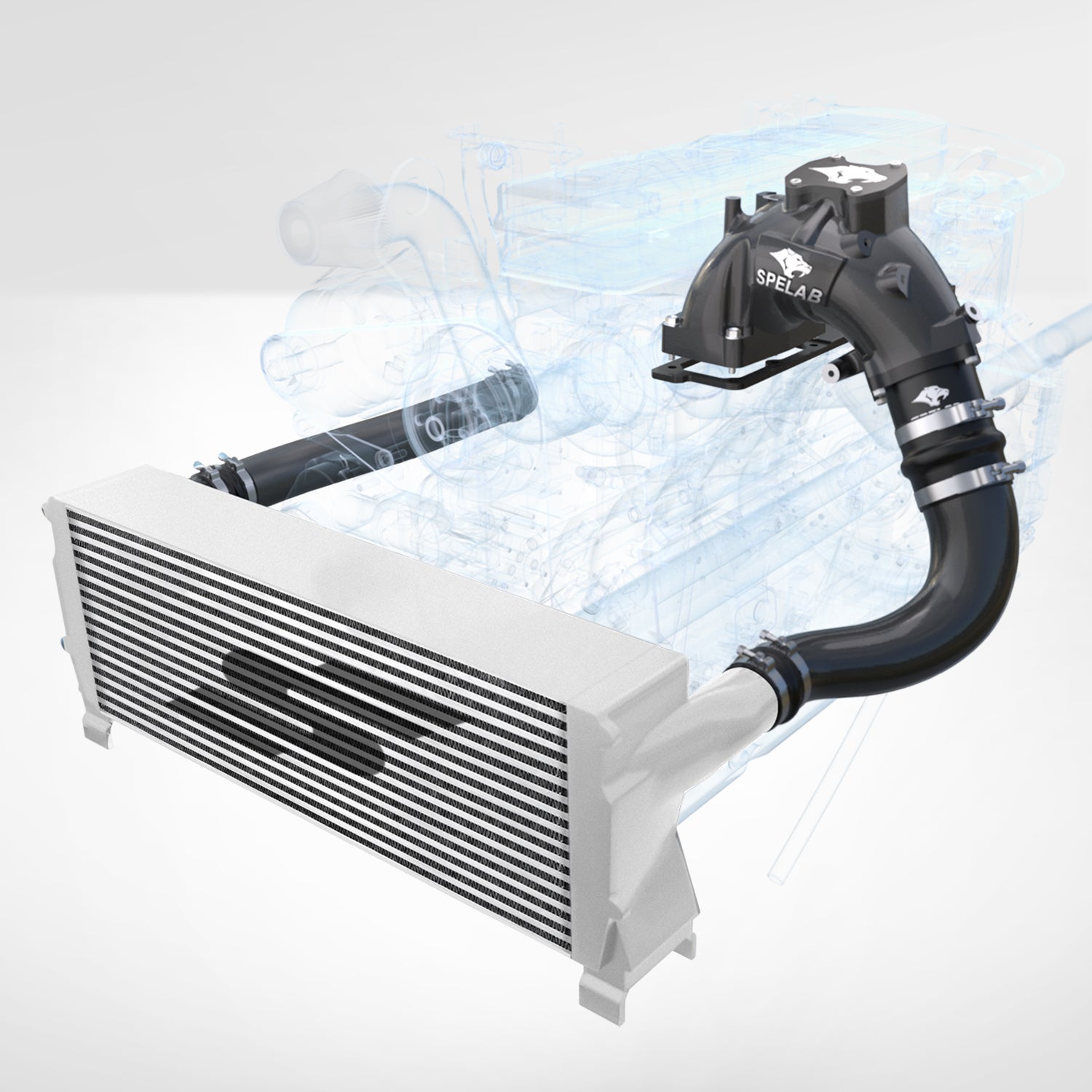

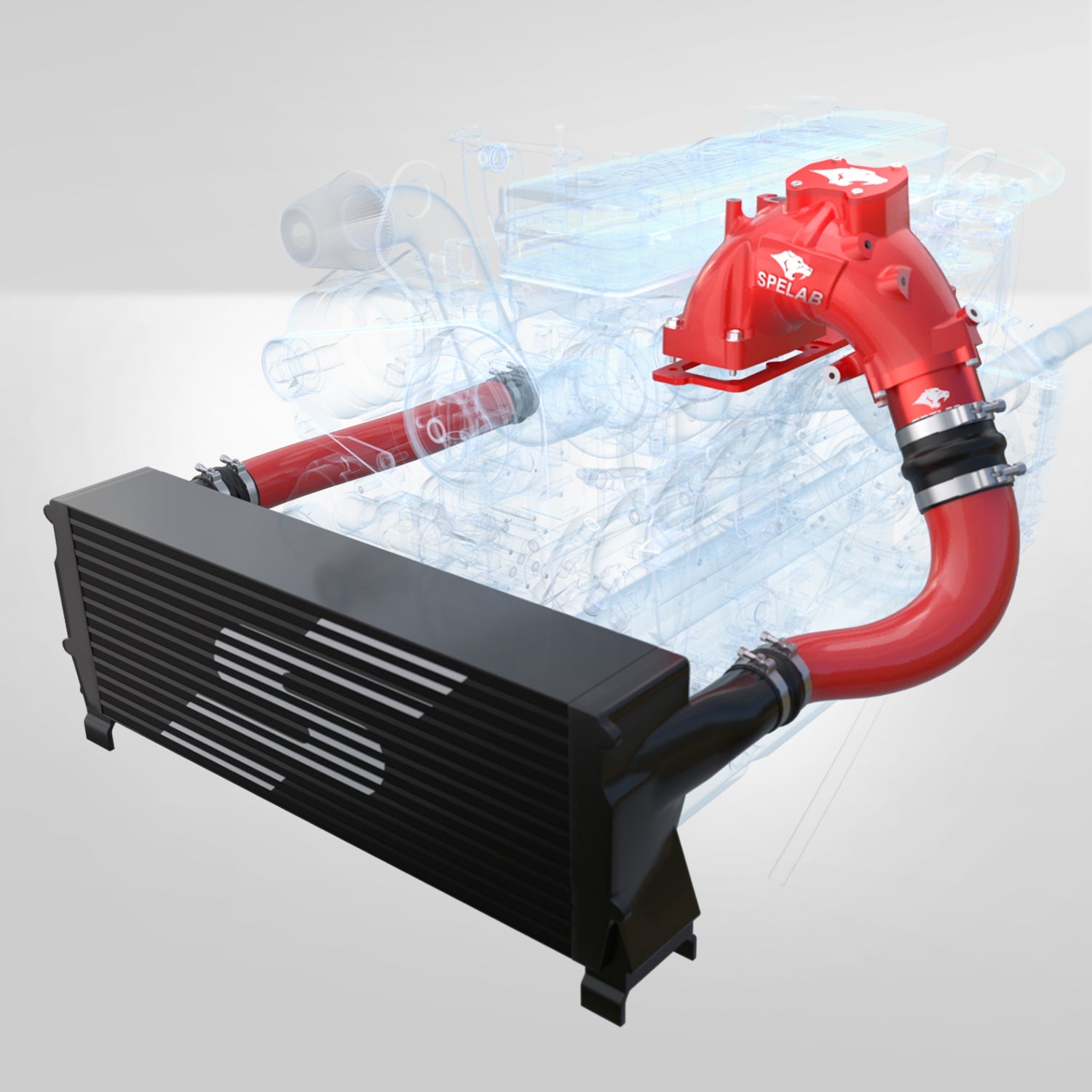

Coordinated Intake and Charge-Air Package

The intake manifold, intercooler and year-specific piping are supplied as one matched package to reduce the need to source the main intake-system components separately.

Designed to Reduce Intake Restriction

The optimized manifold and intercooler-pipe layout is designed to support increased airflow, quicker turbo response and stronger throttle response. Actual results depend on the truck's condition, calibration and supporting modifications.

Grid Heater and EGR System Changes

The included grid heater and EGR-related components address common restriction and carbon-buildup concerns in the factory intake path. The final configuration must be matched to the vehicle, climate and calibration.

Durable Multi-Material Construction

Components use materials currently described on the page as cast aluminum, aluminum alloy, carbon steel or stainless steel, together with multi-layer silicone couplers and high-strength clamps.

Year-Specific Fitment

Separate 2007.5-2009, 2010-2012 and 2013-2018 packages account for changes in the intercooler, charge piping and EGR-related hardware across the supported model years.

Who This Kit Is Best For

This package is best suited to owners building a coordinated intake and charge-air system on a supported 2007.5-2018 Ram 2500 or 3500 pickup, especially when the project already calls for an intake manifold, grid heater delete, intercooler, charge pipes and the applicable EGR hardware.

It is not intended for a 2007 5.9L truck, Ram 4500/5500, or cab-and-chassis application. Buyers who need only one component should compare the linked individual products before selecting the complete kit.

Kit Specifications

Expected Performance

The current product information describes increased airflow, quicker turbo spool, lower exhaust gas temperatures, improved throttle response, reduced intake carbon buildup and potential fuel-economy benefits. The amount of change varies with vehicle condition, calibration, supporting modifications, load and driving conditions; no specific horsepower, airflow or fuel-economy gain is guaranteed.

Available Installation Resources

SPELAB Intake Manifold For 2007-2018 Dodge Ram 6.7L

SPELAB Intercooler Pipe Kit 2013-2018 Dodge Ram 6.7L

SPELAB EGR Delete Kit For 2009-2024 Dodge Ram 6.7L

FAQ

Q: Which vehicles does this intake system kit fit?

A: It fits 2007.5-2010 Dodge Ram 2500/3500 pickups and 2011-2018 Ram 2500/3500 pickups equipped with the 6.7L Cummins diesel engine. It excludes Ram 4500/5500 and cab-and-chassis models.

Q: Does it fit a 2007 truck with the 5.9L Cummins?

A: No. The 2007-2009 storefront option is for 6.7L Cummins applications introduced during the 2007 model year, commonly identified as 2007.5.

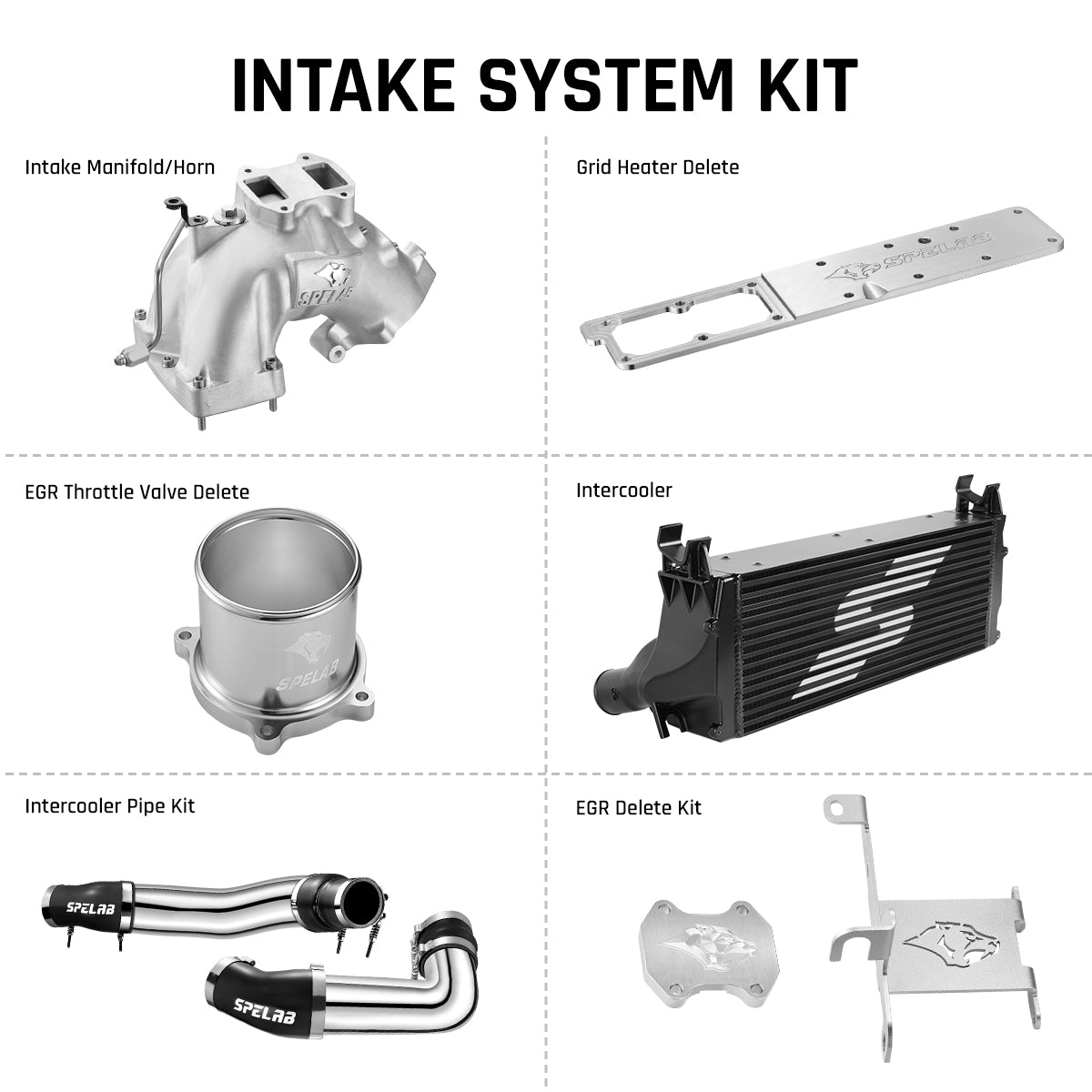

Q: What is included with the 2007.5-2009 version?

A: It includes an intake manifold or horn, grid heater delete, EGR delete kit with throttle valve, tube-fin intercooler and the listed silver intercooler pipe.

Q: What is included with the 2010-2012 and 2013-2018 versions?

A: Each version includes an intake manifold or horn, grid heater delete, EGR delete kit, tube-fin intercooler, year-specific intercooler pipe kit and EGR throttle valve delete. The component part numbers differ by year group.

Q: What does the Black, Red or Silver option control?

A: The selected finish applies to the color-configurable intake, piping and delete components shown for that variant. The intercooler is shown in a silver finish. Confirm the selected variant image and year-specific contents before checkout.

Q: Do I need ECU tuning or calibration changes?

A: The intake manifold by itself may not require custom tuning, but this complete package includes EGR-related components. Confirm calibration, diagnostic and hardware requirements for the selected vehicle before installation.

Q: Is this kit compatible with a completely stock emissions system?

A: The intake and intercooler components are designed around the listed vehicle applications, but the complete kit includes parts that remove or replace factory EGR and grid-heater components. It should not be described as an unchanged stock-emissions configuration.

Q: How much horsepower or airflow will the kit add?

A: Results depend on vehicle condition, calibration and supporting modifications. The system is designed to reduce intake restriction and support airflow and turbo response, but a specific horsepower or airflow increase is not guaranteed.

Q: Will this kit improve fuel economy or lower EGTs?

A: It may support more efficient airflow and combustion, but fuel economy and exhaust gas temperature changes vary with calibration, load, driving conditions and the rest of the vehicle setup.

Q: How does the grid heater delete address the factory fastener concern?

A: The delete configuration removes the original grid-heater hardware from the intake path. Confirm the final heating and sensor arrangement before installation.

Q: What should I consider for cold-weather operation?

A: Removing the factory grid heater can affect cold starts. Confirm the planned heating solution and local winter conditions before choosing the final configuration.

Q: Is an IAT Sensor Extension Harness required?

A: The harness is offered as an add-on. Confirm whether the selected intake manifold, delete plate and sensor location require it for the chosen model year.

Q: What materials are used in the kit?

A: The current product information lists cast aluminum, aluminum alloy, carbon steel and stainless steel components, along with multi-layer silicone couplers and high-strength clamps. Material varies by component.

Q: Can I install the complete kit myself?

A: The package combines intake, charge-air, fuel-adjacent, electrical and EGR-related work. Experienced owners may use the supplied guides, but professional installation is recommended if you are not familiar with these systems.

Q: What is the purpose of the DDC bracket described for the EGR kit?

A: The integrated DDC base-pipe bracket is described as eliminating the need for exhaust studs and helping provide a secure installation for the applicable EGR kit.

Q: Do the included components work together?

A: The year-specific packages are assembled so the intake manifold, grid heater delete, intercooler, piping and applicable EGR components can be used as a coordinated system. Always select the correct model-year group.

Video

Easy Install: SPELAB EGR Delete for Dodge Ram 6.7L

Follow this comprehensive guide to easily install the SPELAB EGR delete kit on 2010-2024 Dodge Ram 6.7L trucks.

Installation Guide

Upgrade Your Ram: SPELAB Intercooler Pipe Kit Install & Review

Watch Manny install and review the SPELAB intercooler charge pipes on his 2016 Ram 2500 diesel.

Installation Guide Review

See the Installation: SPELAB Intake Horn & Grid Heater Delete

Watch the detailed process of installing an SPELAB intake horn and grid heater delete on a 6.7 Dodge Ram, including a product review.

Installation Guide Review Performance Upgrade

Installation

Available Installation Resources

SPELAB Intake Manifold For 2007-2018 Dodge Ram 6.7L

SPELAB Intercooler Pipe Kit 2013-2018 Dodge Ram 6.7L

SPELAB EGR Delete Kit For 2009-2024 Dodge Ram 6.7L

Guide coverage: The links above cover the intake manifold, the 2013-2018 intercooler pipe kit and the applicable EGR kit. Confirm that you also have instructions for the selected intercooler, grid heater delete, throttle-valve delete and earlier-year piping before beginning the complete installation.

Before Installation

• Verify the truck's model year, 2500/3500 pickup body, 6.7L Cummins engine and selected kit version.
• Compare all received components with the year-specific contents table before disassembly.
• Confirm calibration requirements and the planned grid-heater, IAT-sensor and EGR configuration.
• Allow the engine to cool, disconnect the batteries and clean the work areas around the intake, charge-air and EGR systems.
• Keep caps or clean covers available to protect open intake, coolant and exhaust passages during the work.

Basic Installation Sequence

1. Remove the factory intake and charge-air components needed to access the work areas.
2. Install the year-specific intercooler according to its supplied instructions.
3. Install the matching intercooler pipes, silicone couplers and clamps without fully tightening every connection.
4. Install the intake manifold or horn and the selected grid-heater configuration.
5. Install the applicable EGR and throttle-valve components according to the year-specific instructions.
6. Connect the IAT sensor and extension harness when required by the final sensor location.
7. Align the piping for clearance from hot, sharp and moving components, then tighten connections to the applicable specifications.
8. Reconnect the batteries and complete any required calibration before starting the engine.

After Installation

• Check for boost, exhaust, coolant or intake leaks and confirm that no warning lights are present.
• Verify that pipes, couplers, wiring and brackets remain clear of hot and moving components.
• Recheck accessible clamps and fasteners after the first heat cycle.

Installation note: Follow the torque values, fluid procedures and electrical instructions supplied with each component or specified by the vehicle manufacturer. Professional installation is recommended for the complete kit.
