Updated on August 03, 2026.
The right 6.7 Cummins intake horn depends on model year, pickup versus chassis cab, factory heater and emissions hardware, actual pressure loss, supporting Mods, winter starting, and how the truck works. A stock daily driver, a tuned tow rig, and a loaded 5500 service truck need different answers.
Which 6.7 Cummins Intake Horn Should You Choose?
| Truck and use | Best starting point | Reason | Main check |
|---|---|---|---|
| Stock daily driver in a cold climate | Keep the OEM horn and heater | Factory cold-start, sensor, emissions, and calibration behavior remain intact | Inspect the heater connection and clean soot only when diagnosis supports it |
| 2007.5-2018 pickup with a cost-controlled airflow build | Published 3.5-inch stainless option | Rigid welded construction, two NPT ports, and a low part price | Confirm the exact EGR, heater, throttle, sensor, fuel-line, and charge-pipe provisions |
| 2007.5-2024 pickup needing model-group choices | Configurable aluminum manifold | Separate year groups, four 1/8-inch NPT ports, and multiple heater configurations | Select the correct year, engine output, transmission, alternator, and retained factory hardware |
| 3500/4500/5500 chassis cab or commercial build | Dedicated chassis-cab configuration | Commercial packaging and duty cycle can differ from a 2500/3500 pickup | Verify chassis, dual-alternator clearance, heater control, wiring, and fuel-line routing |
| Larger-turbo competition build | Measured high-flow system | Higher mass flow can expose a restriction that a stock truck never reaches | Compare pressure drop at the same airflow and comply with the rules for the vehicle and venue |
The 6.7L Cummins intake manifold collection shows the available year groups and hardware paths. Treat the collection as a shortlist, then verify the individual product configuration against the truck.
What an Intake Horn Changes
The intake horn carries compressed air from the cold-side charge pipe into the cylinder-head plenum. Minimum internal area, bend radius, transition shape, surface condition, sensor placement, and the final entry into the plenum can affect local pressure loss. A larger, smoother path may reduce restriction when airflow demand is high.
The horn is only one part of the air path. The filter, turbocharger, charge pipes, intercooler, boots, head, exhaust aftertreatment, fuel system, and calibration still control the result. Diagnose those systems before assigning low power or high EGT to the horn.
It also cannot clean deposits already inside the intake. Carbon on an EGR-equipped 6.7L is commonly a mixture of soot and crankcase oil mist, made worse by long idle time and low-load operation. If inspection finds heavy buildup, remove and clean serviceable parts while protecting every open intake port. Do not wash loose debris or solvent toward an open intake valve.
Fitment Is More Than the Model Year
The 6.7L appeared during the 2007 model year, so an early 2007 registration can still be a 5.9L truck. Start with the VIN, under-hood emissions label, engine, chassis, and the hardware actually installed. A previous owner may already have changed the charge pipe, fuel lines, heater plate, intake throttle, sensors, or calibration.
| Application group | Fitment items to verify | Common mistake |
|---|---|---|
| 2007.5-2012 Ram 2500/3500 | Early intake and EGR layout, heater strategy, sensors, fuel-line routing, alternator, and cold-side connection | Ordering a 2013-2018 configuration because both trucks have a 6.7L |
| 2013-2018 Ram 2500/3500 | Pickup-specific intake, sensor angle, heater plate, stock or modified charge pipe, and 68RFE or Aisin packaging | Assuming every product titled 2007-2018 uses the same manifold and included hardware |
| 2019-2024 Ram 2500/3500 | Newer fuel-rail, sensor, harness, heater, hood-clearance, emissions, standard-output, and high-output details | Installing a product whose actual listing stops at 2018 |
| Ram 3500/4500/5500 chassis cab | Dedicated chassis-cab hardware, commercial accessories, dual alternators where equipped, wiring, and fuel-line clearance | Using pickup photos or instructions as proof of medium-duty Fitment |
Before ordering, photograph the factory horn, grid-heater connection, sensors, fuel-line route, EGR and throttle area, cold-side connection, alternators, and emissions label. Match those details to the instructions. “Bolt-on” should not require welding, improvised wiring, stressed fuel lines, or unsupported sensor relocation.
Grid Heater Risk: Inspect Before You Delete
The factory grid heater deserves inspection, but calling every 6.7L a ticking time bomb is not diagnosis. Owners and diesel shops have reported damaged or loosened heater connections, and hardware entering the intake can cause expensive engine damage. The correct response is to inspect the electrical stud, insulator, fastener security, surrounding plate, wiring, and any evidence of heat damage using the VIN-specific service procedure.
A heater-system code by itself does not prove that hardware is loose. P2609 or a related intake-heater fault can also point toward battery voltage, relays, wiring, connections, control logic, or the heater element. Check both batteries first, scan all modules, save freeze-frame data, and test voltage drop or current only with the proper high-current procedure. Disconnect both negative battery cables before mechanical inspection. Never energize a removed heater or use ether in the intake.
Keeping heat matters on a working truck. Ram states that the Wait To Start lamp remains active when manifold air temperature is below 66°F (19°C), and the intake heater can continue a post-heat cycle after startup. Below 0°F (-18°C), Ram describes a possible second preheat cycle and warns that a missing cycle can cause white smoke and poor performance. Review the official Ram intake-heater starting procedure before removing factory heat from a northern tow rig or Jobsite truck.
A heater-delete plate, an aftermarket heating element, and an OEM-style heater are not automatically equivalent. Compare heating capacity, relay and fuse protection, wire gauge, grounds, control strategy, diagnostic behavior, service access, and cold-soak test results. A ceramic element sold as one component is not a complete cold-start system by itself.
Do 3.5 Inches and a 45-Degree Bend Prove More Power?
No. If 3.5 inches is the true internal diameter, its circular area is about 9.62 square inches. An advertised size may instead be tube outside diameter, a connection size, or a nominal value. Wall thickness, weld intrusion, flattened bends, adapters, the smallest neck, and the plenum transition decide the usable minimum area.
A broad-radius 45-degree route can create less localized loss than a tight 90-degree turn of the same diameter, but a boosted diesel intake is not turned into laminar flow by the label on one bend. Flow through the horn is turbulent. Radius-to-diameter ratio, surface condition, flow separation, velocity, and downstream geometry matter. The honest engineering question is how much pressure the complete part loses at the same mass flow.
For a component test, use the same fixture, inlet adapter, outlet plate, sensors, temperature, test pressure, and correction method. For a truck test, place calibrated pressure sensors immediately upstream and downstream of the horn, then compare:
Horn pressure drop = upstream absolute pressure - downstream absolute pressure
Run the same rpm, gear, load, fuel, tune, ambient conditions, and mass airflow before and after the Mod. One MAP reading or one peak-boost number cannot isolate the horn. A flowbench CFM value also cannot be converted directly into wheel horsepower, MPG, turbo-spool time, or EGT reduction.
Three Current Intake Paths Compared
| Option | Published hardware | Best use | Verification still required |
|---|---|---|---|
| 3.5-inch stainless manifold | 2007-2018 pickup listing, one 3.5-inch inlet, twin 3-inch mandrel-bent tubes, two NPT ports, polished stainless steel | Budget-oriented custom or performance build where its simple layout matches the truck | The listing does not document every OEM heater, EGR, throttle, sensor, fuel-line, or chassis-cab provision |
| 3.5-inch all-in-one kit | Older 2007-2018 and newer 2013-2018 manifold choices paired with a listed 2007-2024 grid-heater-delete plate | Owner who has already established a legal, climate-appropriate heater and emissions plan | Product copy contains overlapping year statements; verify exact manifold, plate, included seals, and street-use requirements in writing |
| Configurable aluminum manifold | 2007-2012, 2013-2018, and 2019-plus variants; four 1/8-inch NPT ports; 3-3/8-inch published inlet; pickup and chassis-cab choices | Build needing more configuration choices, sensor ports, heater provisions, or commercial-truck packaging | Choose the exact year, chassis, heater, color, fuel-line, and alternator arrangement; title alone is not Fitment proof |

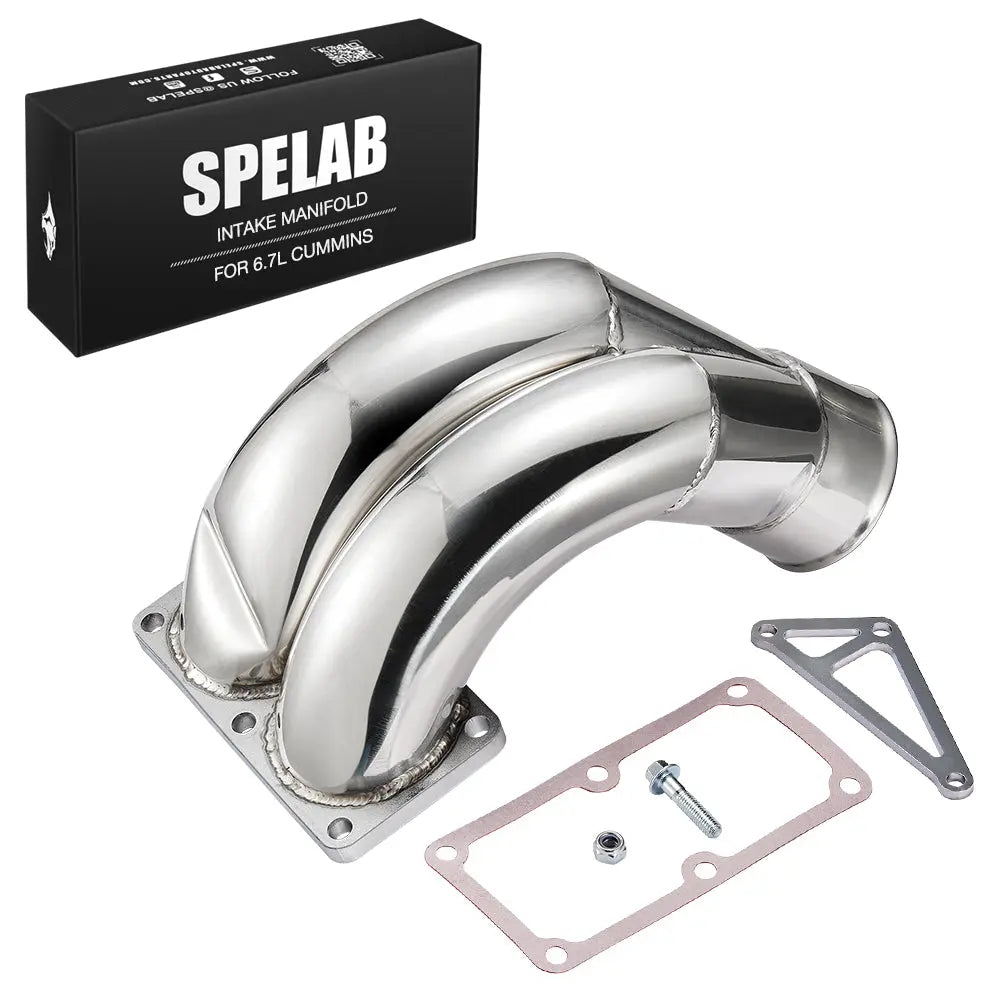

The raw stainless 3.5-inch intake manifold was listed at $99 when reviewed. Its cleanest selling point is simple welded construction at a low hardware cost.
The combined intake-manifold kit was listed from $249 to $617 depending on the old or new manifold choice. The 2013-2018 “new” option costs substantially more than the older design, so compare the actual castings, included hardware, and heater plan rather than treating both as one product.
The configurable aluminum intake horn had manifold-only variants at $539, manifold-plus-delete variants at $617, and dedicated chassis-cab kits at $749 when reviewed. Published details include four 1/8-inch NPT ports and a 3-3/8-inch inlet, useful when the build needs that port count and configuration choice.
Diagnose the Truck Before Buying Airflow Parts
- Save a baseline scan. Record current and pending DTCs, freeze-frame data, MAP, IAT, commanded and actual boost, rail pressure, battery voltage, intake-throttle data, EGR data, and regeneration history supported by the scan tool.
- Inspect the complete charge-air system. Look for a restricted filter, oil mist at leaking boots, loose clamps, cracked pipes, rubbed intercooler tanks, damaged sensor wiring, soot-blocked pressure passages, and exhaust leaks that affect turbo response.
- Pressure-test with a regulator. Use secure block-off adapters and begin around 5 psi to find a large leak. Increase pressure only within the vehicle, hose, boot, cap, and tester limits. Never stand in front of a pressurized cap.
- Check the heater circuit and hardware. Test both batteries, connections, relays, wiring, current behavior, and voltage drop using service information for the VIN. Inspect mechanical security only with the system de-energized.
- Run a repeatable loaded test. Use the same road, grade, gear, speed, trailer or Payload, ambient range, and starting coolant temperature. A free-rev in Park does not reproduce towing airflow.
- Change one system at a time. If the horn, charge pipe, tune, turbo, injectors, and exhaust all change together, the driver cannot credit one part for the result.
| Symptom | Likely directions | Next check |
|---|---|---|
| P0299, hiss, black smoke, or oil mist at a joint | Charge-air leak, loose clamp, damaged boot, pipe crack, turbo-control issue, or exhaust leak | Regulated pressure test and commanded-versus-actual boost log |
| High EGT only under towing load | Gear choice, excess fueling, boost leak, restricted air or exhaust path, turbo condition, or calibration | Compare pre- or post-turbo probe location, boost, fuel rate, speed, grade, and the truck's known baseline |
| P2609, dimming lights, or slow cold start | Normal post-heat cycling, weak batteries, connection resistance, relay or wiring fault, heater fault, or incomplete aftermarket strategy | Use Ram operation information and the correct high-current circuit test |
| New whistle, underboost, or rough running after installation | Pinched gasket, open NPT port, sensor leak, pipe preload, loose boot, swapped connector, or debris | Stop the loaded test, inspect assembly, scan, and pressure-test again |
| Fuel odor or wetness after manifold work | Disturbed high-pressure line, damaged seal, misalignment, or side-loaded fitting | Shut the engine off and obtain proper high-pressure diesel service; never search for a running leak by hand |
Material and Workmanship Matter More Than Finish Color
Stainless steel and aluminum can both work in a Heavy-duty intake assembly. Stainless offers rigidity and corrosion resistance, while aluminum makes complex cast shapes and machined ports practical. Material alone does not lower intake temperature or create power. Under sustained boost, the charge-air cooler, compressor efficiency, ambient air, engine-bay heat, and residence time dominate the temperature entering the engine.
Inspect the part before installation:
- Lay a straightedge across the sealing flange and inspect for shipping damage.
- Check weld penetration, casting porosity, burrs, grinding debris, and coating inside the air path.
- Thread sensors and plugs by hand. NPT fittings seal by taper and can crack an aluminum boss when overtightened.
- Measure the charge-pipe connection and confirm the boot sits fully behind a retaining bead.
- Verify that every harness, bracket, dipstick tube, fuel line, and coolant hose sits without tension or rubbing.
- Confirm that supplied gaskets, O-rings, bolts, plugs, and adapters match the written parts list.
Installation and Post-Install Checks
This job can involve high-current wiring, coolant connections, EGR hardware, sensors, and high-pressure fuel components. On configurations where the injector lines obstruct manifold fasteners, the applicable service procedure may require one or more lines to be loosened or removed. Do not assume that every year uses the same line-removal sequence.
Shop Tip: A common-rail fitting must be capped with clean, purpose-made caps as soon as it is opened. One piece of dirt can damage an injector, and a poorly seated or incorrectly tightened line can leak fuel at dangerous pressure. Keep hands away from a running leak; high-pressure diesel can penetrate skin. Follow current VIN-specific Ram or Cummins service information for line replacement rules, tightening sequence, torque, and leak inspection. A generic internet torque value is not acceptable.
- Save the baseline scan and loaded data before disassembly.
- Disconnect both negative battery cables and clean loose dirt from the work area.
- Relieve or isolate systems only through the correct service procedure. If a high-pressure injector line blocks access, clean the area before opening it, remove only the lines specified for that configuration, and never loosen a running common-rail connection.
- Install clean fuel-system caps and plugs immediately. Cover the intake opening with a secure, lint-free barrier and account for every washer, nut, tool, cap, plug, and shop towel.
- Soften and lift the old gasket without gouging the flange. Keep a shop vacuum at the work edge so gasket fragments cannot enter the plenum; do not push a rag into an opening where it can be forgotten. Remove the protective barrier only after the surface and surrounding area are clean.
- Replace disturbed seals and any high-pressure fuel line or one-time-use hardware required by the service procedure. Route each line without twist or side load and tighten it in the specified sequence.
- Install the manifold, sensors, heater components, lines, brackets, and charge pipe without forcing alignment.
- Reconnect batteries, prime any opened fuel circuit correctly, scan for faults, and inspect for fuel, coolant, air, and electrical problems.
- Pressure-test the charge-air path, heat-cycle the engine, recheck accessible joints, then repeat the baseline loaded run.
A shop estimate should separate hardware from labor and supporting repairs. At a planning rate of $150-$220 per hour, three to six billed hours equals roughly $450-$1,320 before parts, tax, coolant, seals, fuel lines, wiring, or diagnosis. A simple compatible manifold may be near the low side. A chassis-cab heater conversion or a job involving seized hardware and fuel-line replacement can exceed the range. Get a written quote after VIN and under-hood inspection.
How Real Truck Use Changes the Decision
Towing and Payload
A fifth-wheel or loaded gooseneck exposes heat and airflow problems that a short empty drive will hide. Prioritize sealed boots, clean cooling stacks, correct gear choice, healthy VGT operation, and repeatable EGT data. Probe location matters: pre-turbo and post-turbo temperatures are not interchangeable. Follow the engine, calibration, and gauge supplier's limits rather than copying one universal EGT ceiling.
Jobsite and Fleet Duty
Long idle time can accelerate intake deposits, while dust punishes poor filtration and loose clamps. Service access and dependable cold starts may be worth more than a peak-flow claim. A fleet manager should also care about replacement-part availability, written Fitment, diagnostic behavior, and whether another technician can service the Mod two years later.
Off-Roading
Washboards and frame twist test brackets, wiring, fuel-line clearance, and pipe support. After the first hard trail day, inspect for polished rub marks, loose NPT plugs, shifted boots, and harness contact. A Rigid manifold still needs flexible connections and properly supported adjacent hardware.
Extreme Cold
At subzero temperatures, battery reserve, winter fuel, block-heater use, intake heat, oil viscosity, and post-heat operation work together. Deleting intake heat without a tested replacement can trade an uncommon mechanical concern for a daily starting problem. Cold-soak the finished truck overnight and verify Wait To Start behavior, cranking speed, white smoke, idle quality, charging voltage, and stored codes before depending on it for work.
Street-Legal and Emissions Check
An intake horn that retains all required EGR, throttle, sensors, OBD functions, and calibration is a different legal proposition from a kit that removes or disables emissions hardware. Do not assume that “off-road,” “no tune required,” or a product title establishes federal or state compliance. The EPA says aftermarket parts cannot bypass, tamper with, or remove emissions controls, while documented compliant repair and certified aftermarket paths remain available. Check the current EPA repair and aftermarket guidance, then confirm state rules and product documentation for the exact part number.
Final Buying Checklist
- VIN, engine year, pickup or chassis cab, standard-output or high-output, transmission, and alternator arrangement confirmed
- Exact manifold variant and minimum internal dimension confirmed
- Cold-side pipe and boot connection measured
- MAP/IAT ports, NPT ports, plugs, and sensor angles matched
- Fuel-line, dipstick, harness, coolant-hose, and hood clearances checked
- Grid-heater retention or replacement plan tested for the local climate
- EGR, intake-throttle, OBD, and emissions requirements documented
- Baseline scan, pressure test, and loaded log completed
- Gaskets, one-time-use hardware, coolant, labor, and supporting repairs included in the budget
- Return terms and written Fitment confirmation saved before installation
Frequently Asked Questions
Q: Does a 6.7 Cummins intake horn add horsepower?
A: It can reduce a measured restriction on a high-airflow build, but there is no defensible universal horsepower gain. A healthy stock truck may show little change. Require same-day chassis-dyno or loaded road data with the tune, weather, correction, gear, and baseline disclosed.
Q: Will a larger intake horn lower EGT?
A: Not by a guaranteed number. EGT responds to fueling, air mass, boost leaks, turbo efficiency, timing, exhaust restriction, gear, speed, grade, and Payload. Compare the same probe location and repeatable loaded route before and after installation.
Q: Is a 45-degree intake horn always better than a 90-degree horn?
A: No. A smoother radius can reduce local loss, but minimum area, transition shape, bend quality, downstream entry, and the complete system decide pressure drop. “45-degree” does not prove laminar flow or power.
Q: Should every 6.7 Cummins owner delete the grid heater?
A: No. Inspect the connection and diagnose faults first. Ram uses intake heat below 66°F (19°C) and during post-heat operation, so cold-climate, towing, Jobsite, and fleet trucks need a dependable heater strategy. Any change must also preserve required emissions and diagnostic functions.
Q: Do I need a tune after installing an intake horn?
A: A horn that retains factory sensors, heater strategy, emissions hardware, and airflow modeling may not require calibration, but that is configuration-specific. Removing monitored hardware or changing emissions systems is a different job and can create DTC, drivability, inspection, and legal problems.
Q: Will a 2007-2018 intake manifold fit a 2019-2024 truck?
A: Do not assume it will. The newer trucks can differ in intake layout, fuel lines, sensors, harnesses, heater hardware, engine-output configuration, and packaging. Buy only a variant that explicitly covers the VIN and chassis.
Q: How can I tell whether the stock intake horn is actually restrictive?
A: First repair charge-air leaks, sensor faults, turbo-control problems, filtration issues, and exhaust restrictions. Then measure pressure immediately before and after the horn at the same mass flow and load. A repeatable pressure drop is evidence; a seat-of-the-pants impression is not.
