What Fuel Line Do You Need to run with E85 and Ethanol, or Methanol Fuel?

Key Takeaways

• Choose hose by fuel chemistry, system pressure, pump volume, line length, fitting type, and routing, not by AN size alone.
• PTFE hose with matched fittings is often the cleaner long-term choice for E85, ethanol, and methanol than generic rubber hose.
• Black goo or black sludge can come from old tank varnish, incompatible hose liner, moisture, and loosened deposits, so filter inspection matters after a fuel switch.
• Clean cutting and assembly are part of the fuel system; PTFE shavings, braid debris, or dirt can plug a filter or injector basket.
• Pressure-test the system before driving, then recheck every fitting after the first heat cycles and fuel soak.

Why Alcohol Fuel Changes the Hose Choice

Alcohol fuels can expose weak hose, poor seals, dirty tanks, and marginal fittings because ethanol and methanol interact with moisture, old deposits, rubber compounds, and unprotected metals differently than straight gasoline.

E85 is popular because it can support high-power EFI combinations when the fuel system is sized correctly. It can also demand more fuel volume depending on the combination, stoich target, power level, pressure, and flow capacity, so the pump, injectors, regulator, filters, rails, and lines all need to work as a system.

The problem I see in the shop is simple: a builder upgrades the turbo, adds injectors, or changes fuel, then leaves old hose in place because it looks fine. After a few heat cycles, the garage smells like fuel, the braid is wet near a fitting, or the truck leans out under load. That is not a place to guess.

If you are planning the whole setup, start with verified fuel system parts, then match every hose, fitting, filter, and rail to the fuel you actually run.

Fuel Line Material Comparison for E85, Ethanol, and Methanol

For most performance alcohol-fuel builds, the material decision comes down to chemical compatibility, pressure rating, bend radius, fitting style, abrasion protection, heat exposure, and budget.

A simple rule works in the real world: if the hose label or spec sheet does not clearly support E85, ethanol, methanol, and your operating pressure, do not put it on a hot fuel system and hope for the best.

Black Goo, Sludge, and Contamination Risk

Black goo in an E85 fuel system is not automatic, but it is a real warning sign that the fuel path is cleaning, reacting, or shedding material somewhere.

Ethanol can absorb moisture and can loosen old tank varnish or deposits left from years of gasoline use. Incompatible rubber hose liners, old seals, and dirty tanks can add black gel-like material or dark sludge that ends up in the filter, injector basket, regulator screen, or rail. I would not blame one additive or one fuel station without testing, but I would stop leaning on the throttle until the contamination source is found.

If the vehicle recently switched fuels, cut open the old filter if practical, inspect the tank pickup, check injector baskets, and watch pressure under load. A clogged filter can look like a weak pump, and a dirty injector basket can make one cylinder act lean while the rail pressure still looks acceptable.

AN Size, Fuel Volume, and System Demand

AN size should be selected by fuel demand and system layout, not by what looks tough under the hood.

A -6AN line may be enough for some mild EFI combinations. A -8AN feed becomes common as fuel volume and power goals rise. A -10AN feed may make sense on larger builds, but oversizing without checking pump, regulator, injector, rail, and return capacity can create packaging, heat, and tuning headaches.

For deeper fitting and hose size context, use hose sizing basics before ordering parts. That small homework step saves a lot of cut-once, swear-twice moments.

Fittings and Clean Assembly Matter

Alcohol-compatible fittings, clean assembly, and debris control matter as much as the hose material itself.

Hard-anodized aluminum fittings can be a smart choice in many alcohol-fuel builds because the surface finish adds protection and wear resistance. That does not mean every raw aluminum part instantly fails, but it does mean fittings should be selected for the fuel, pressure, environment, and service life you expect.

Cutting PTFE hose is where a lot of backyard jobs go sideways. Use the hose manufacturer's recommended cutting method, keep the cut square, and do not leave PTFE shavings, wire braid debris, or dirt inside the line. After cutting, clean the hose according to the manufacturer's guidance and use clean compressed air where appropriate so loose material does not travel into the fuel filters or injector baskets.

• Use hose ends designed for PTFE hose, not regular rubber AN hose ends.
• Confirm the ferrule or olive seats correctly before final tightening.
• Keep fittings square during assembly so the liner is not pinched.
• Cap open hose ends during routing so shop dust and metal chips stay out.
• Pressure-test with the pump running before startup, then inspect dry fittings with a light.

Do Not Blame the Hose First

If an E85 or methanol setup has low pressure, fuel smell, hard starting, or lean spikes, inspect the full fuel path before calling the hose the failure point.

• Check fuel pump voltage, ground, relay behavior, and flow before blaming line size.
• Look for a clogged or alcohol-incompatible filter, especially after switching an older tank to E85.
• Verify regulator reference, return restriction, and base pressure with a real gauge.
• Inspect injector data, fuel trims, and ethanol content if the tune depends on blend percentage.
• Pressure-test every hose end, adapter, rail port, and bulkhead fitting before road testing.

When the symptom points beyond the hose, delivery-side diagnosis is the better next step. If pressure swings are the issue, compare the regulator behavior against pressure-control symptoms before changing parts.

Installation and Routing Checklist

A good fuel line can still leak if it is assembled with the wrong fitting, routed against heat, left unsupported, or allowed to rub under the vehicle.

• Keep line away from exhaust, turbo hot sides, sharp frame edges, steering shafts, and driveshaft travel.
• Use clamps, grommets, and abrasion sleeves where the line passes through brackets or sheet metal.
• Do not let stainless braid saw into wiring, painted panels, aluminum intake parts, or softer hose.
• Leave enough service loop for engine movement without letting the hose sag or kink.
• After the first drive and several heat cycles, recheck every fitting for dampness or fuel odor.

If the system has been converted from gasoline to E85, inspect the first filter service early. That first filter tells you a lot about tank condition, hose compatibility, and whether the setup is staying clean.

Build the Fuel System Around the Whole Path

The right parts path starts with line diameter, fuel chemistry, pump volume, rail layout, return or returnless strategy, tank pickup, filter location, and pressure testing before any single part gets blamed or praised.

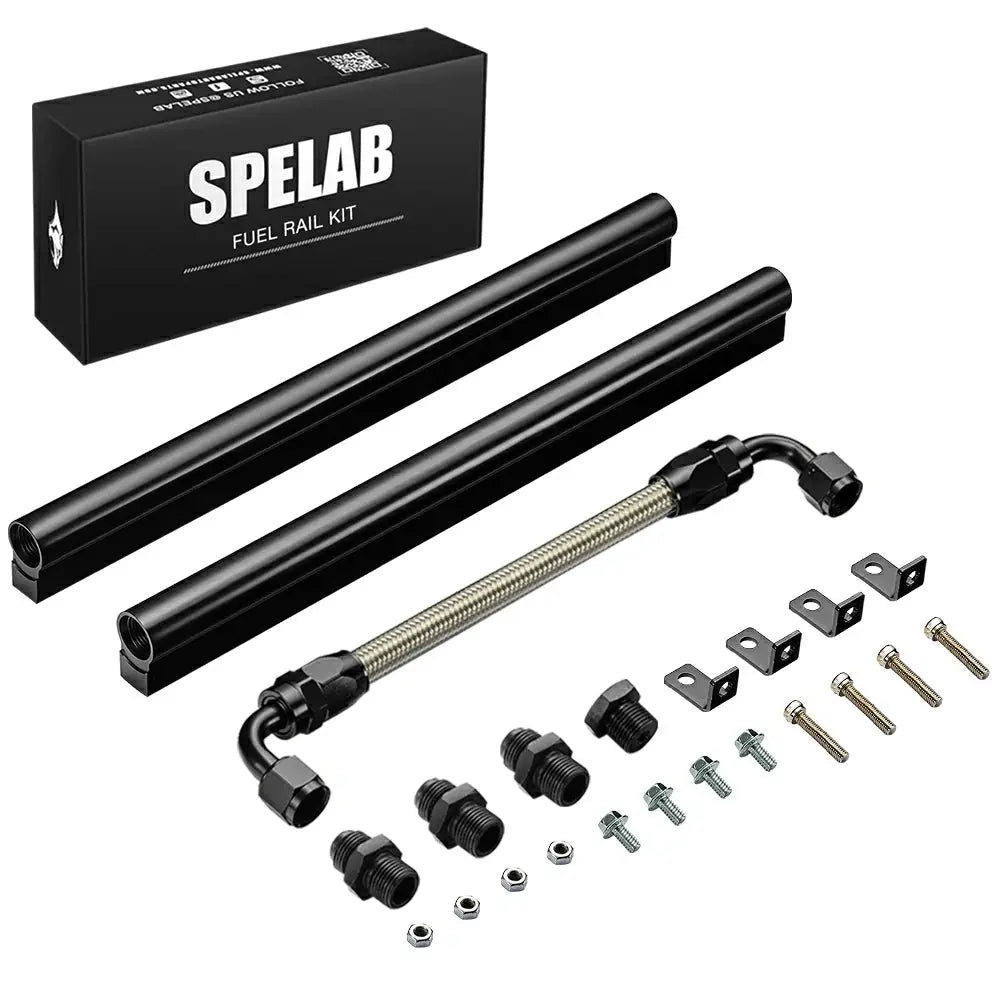

For an LS-based EFI build, the rail decision comes after injector size, regulator location, feed direction, and return plumbing are mapped out. That is where an LS3/L92 fuel rail package or LS1/LS2 fuel rail package may fit the plan instead of being an impulse add-on. For trucks or swaps that uncover pickup trouble during launches, low fuel, or steep grades, a fuel tank sump is something to evaluate with the tank design, fuel compatibility, and intended use in mind.

Use product pages as a fitment and specification check, not as a shortcut around measuring the vehicle. Hose length, fitting angle, pump location, regulator mounting, service access, and heat routing decide whether the job feels clean or turns into a knuckle-busting reroute.
