Upgraded 3.5" T304 Stainless Steel Intake Manifold with Heating Element for 2007-2024 Dodge Ram 2500/3500 6.7L Diesel | SPELAB

Upgraded 3.5" T304 Intake Manifold with Integrated Heating Element

If you drive a 6.7L Cummins, you know the factory grid heater is a ticking time bomb. The retaining bolt is notorious for breaking off and dropping directly into cylinder #6, causing catastrophic engine damage that costs thousands to repair. While standard "grid heater deletes" remove this threat, they leave you with brutal cold-weather starts, thick white smoke, and a sluggish engine on winter mornings.

The ALL-NEW Upgraded SPELAB 3.5" Intake Manifold is the Ultimate Solution.
We took our best-selling intake manifold and made two massive engineering upgrades based on driver feedback:

Premium Material Upgrade

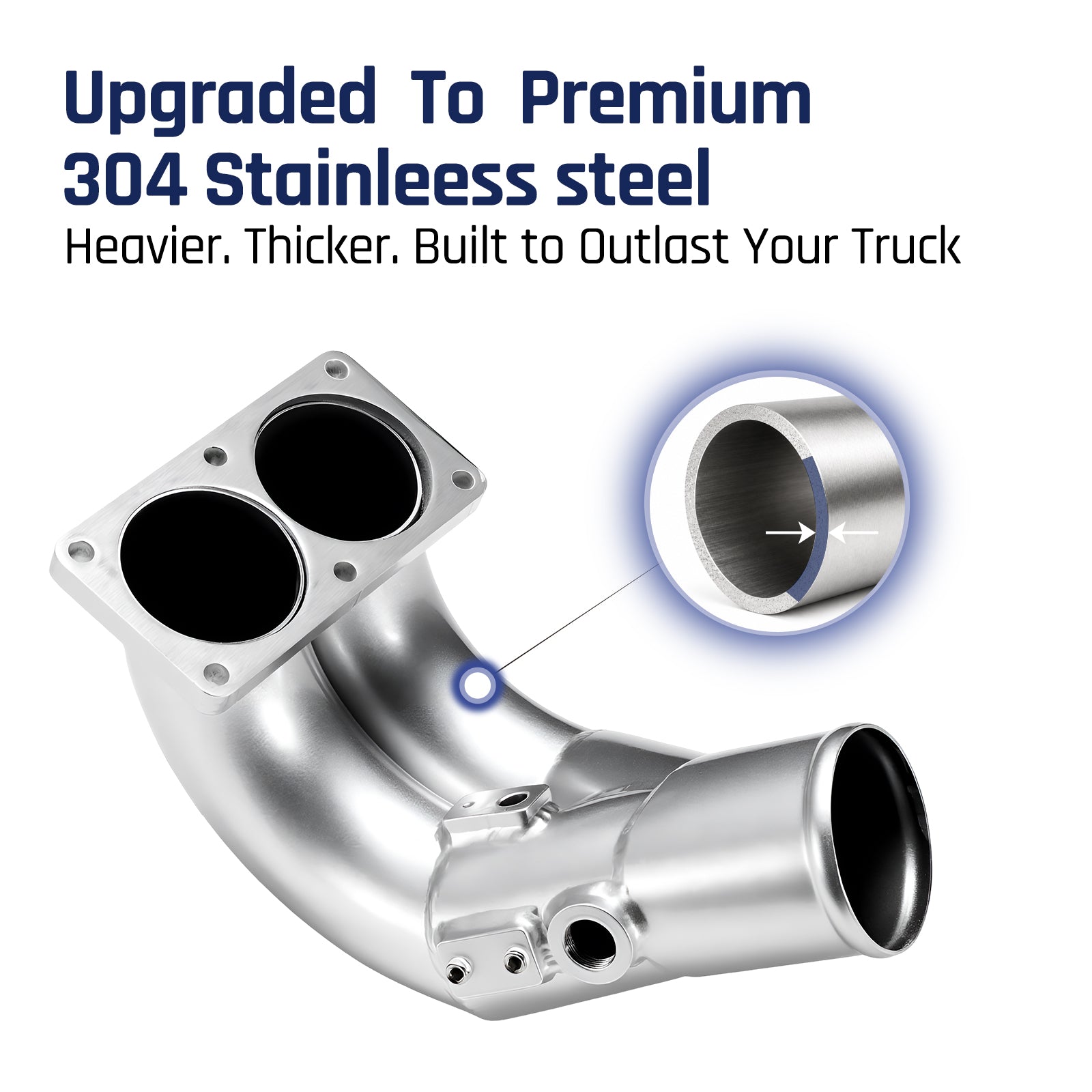

We upgraded the construction from 201 to premium T-304 Stainless Steel, maximizing corrosion resistance and structural strength under extreme heat and boost.

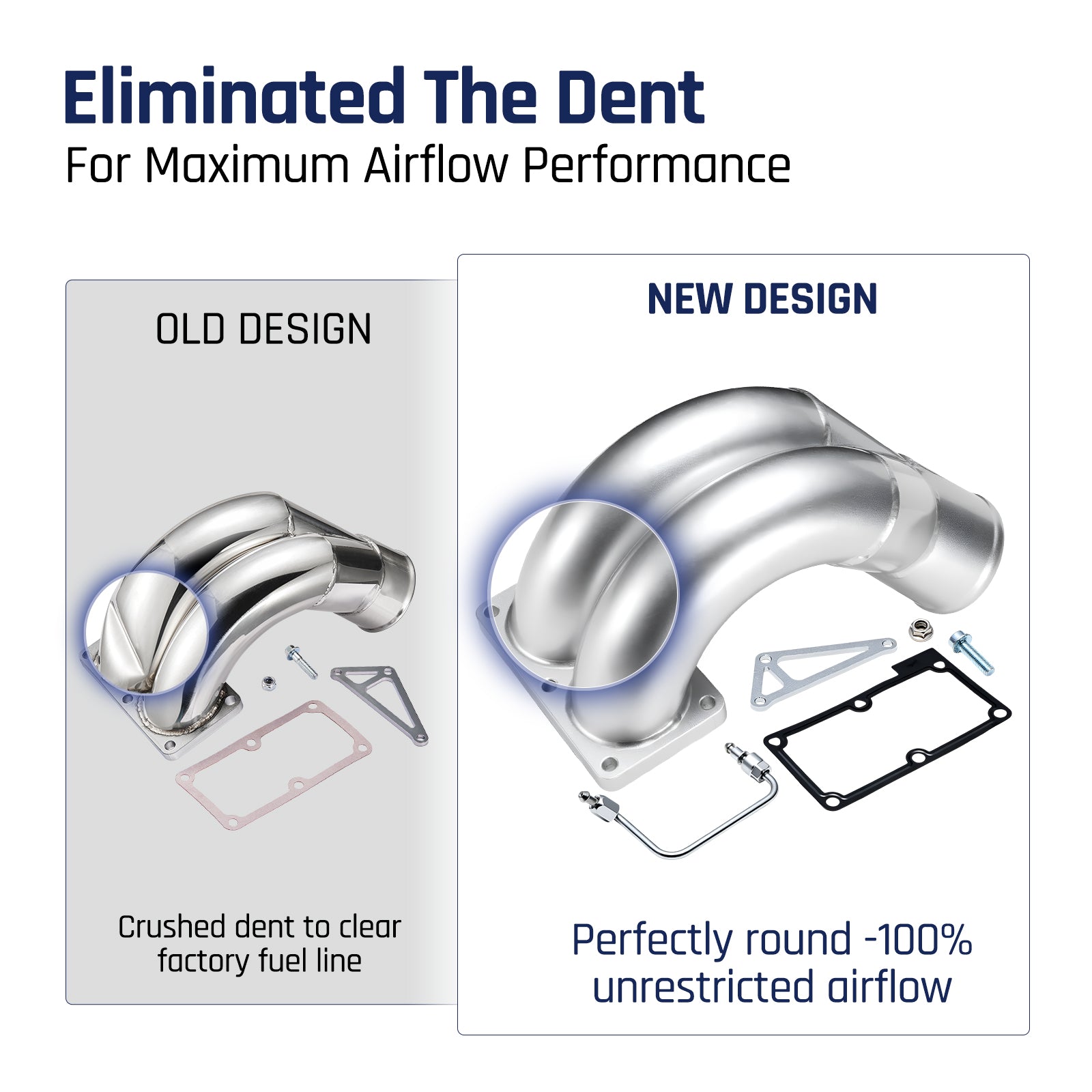

True "Dent-Free" Airflow

Older designs (and competitor models) feature a crushed "dent" in the pipe to clear the factory fuel line. We eliminated that dent. Our new manifold is perfectly round for 100% unrestricted airflow.

By integrating a high-wattage heating coil directly into this massive, perfectly smooth 3.5" manifold, you get the ultimate trifecta: zero risk of a dropped bolt, immediate cold-weather starts, and a massive rush of unrestricted airflow for faster turbo spooling and lower EGTs.

Note: If installing this manifold with a Grid Heater Delete Plate, an IAT Sensor Extension Harness is required. The factory wiring is too short for the new sensor position. Ensure a perfect, plug-and-play fit by adding the harness to your order.

Fitment

• 2007.5-2010 Dodge Ram 2500/3500 equipped with the 6.7L Cummins diesel engine.
• 2011-2024 Ram 2500/3500 equipped with the 6.7L Cummins diesel engine.
• Does not fit 2007 5.9L Cummins applications.
• Does not fit Ram 4500/5500 or cab-and-chassis models.

2007 model-year note: This product is for 6.7L Cummins applications introduced during the 2007 model year, commonly identified as 2007.5. Verify the engine before ordering.

Select the Correct Year Version

• 2007.5-2018 trucks: Select the current 2007-2018 option.
• 2019-2024 trucks: Select the current 2019+ option.

Before You Order

• EGR configuration: The current product comparison identifies this T304 manifold as requiring an EGR-delete configuration. Confirm that the truck's hardware and calibration are compatible before installation.

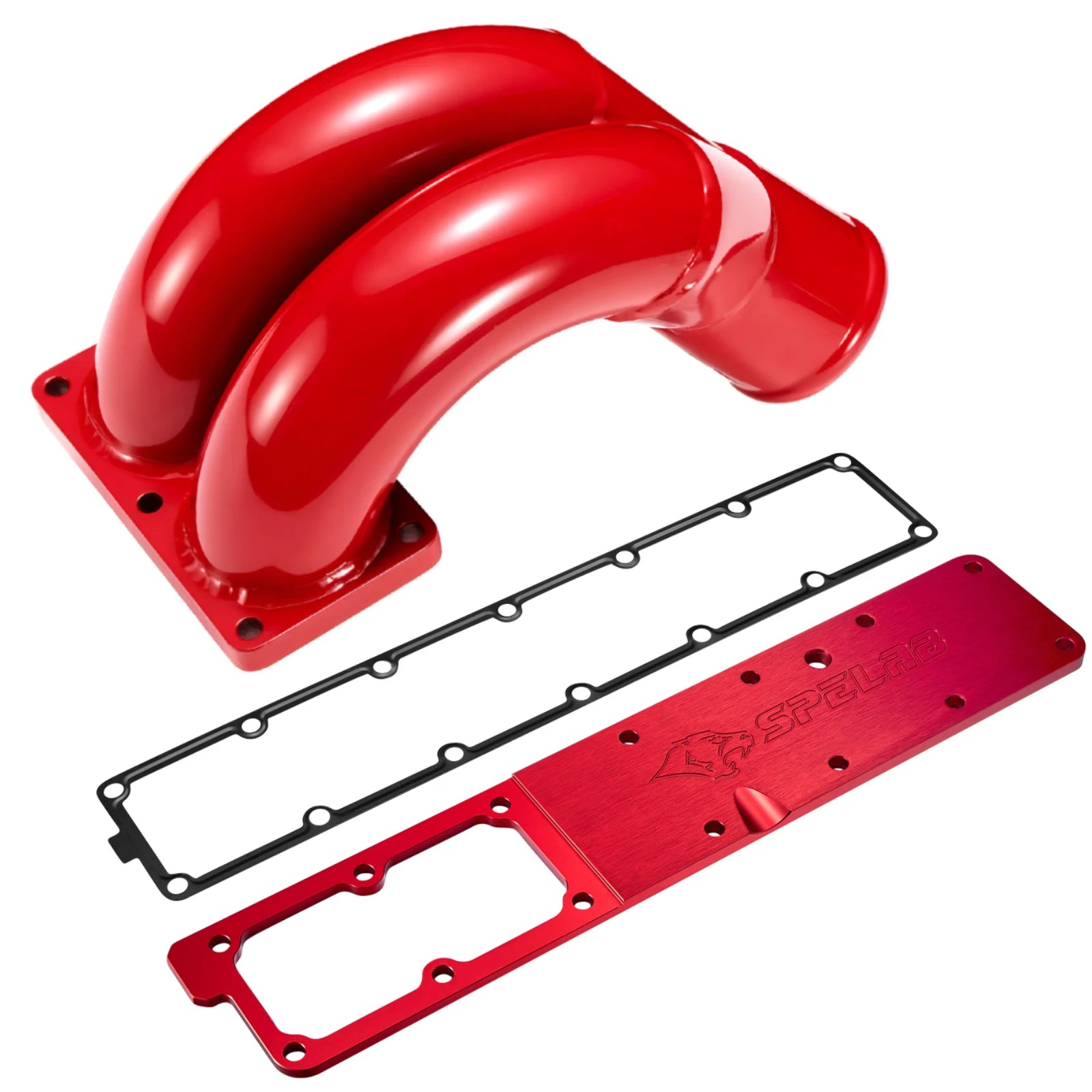

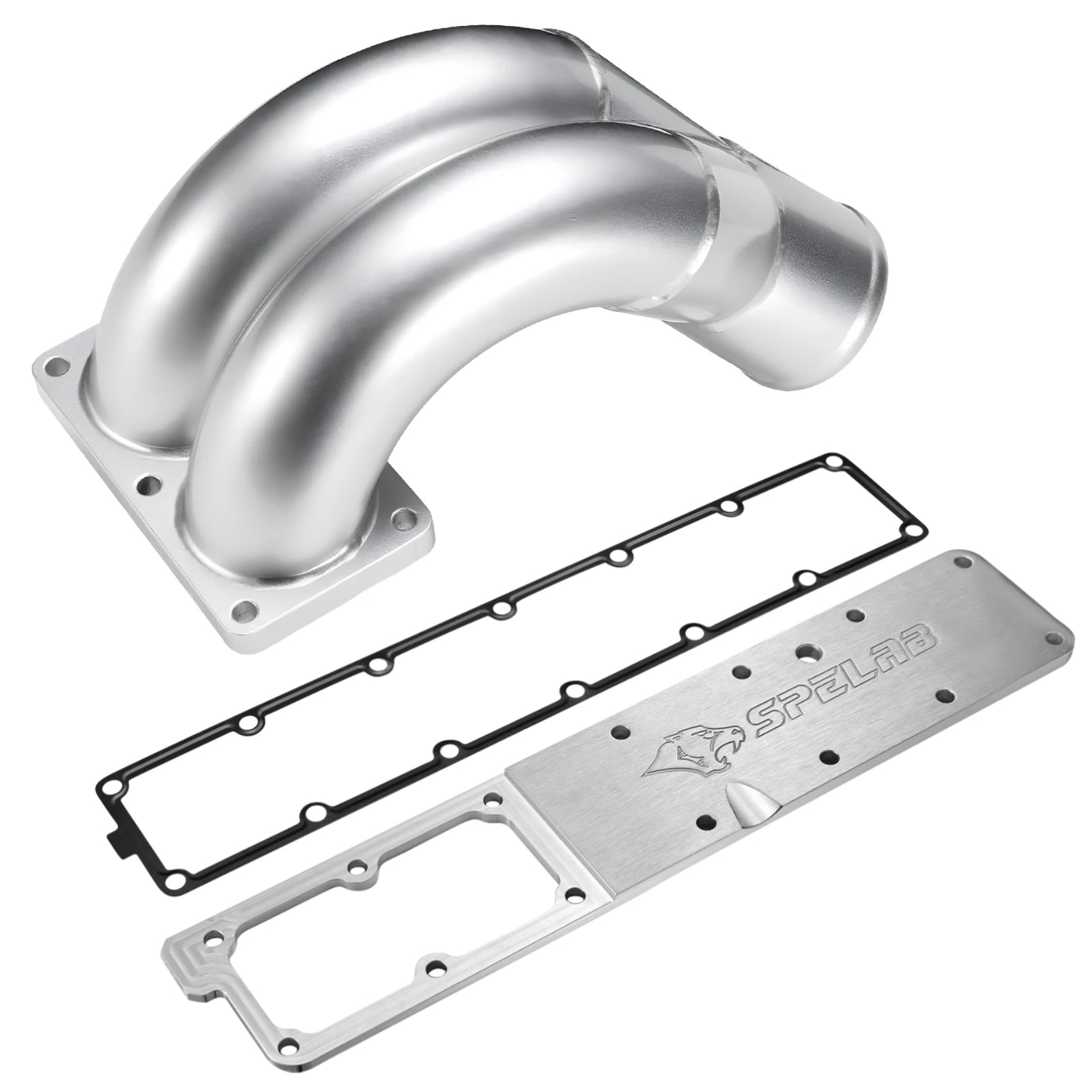

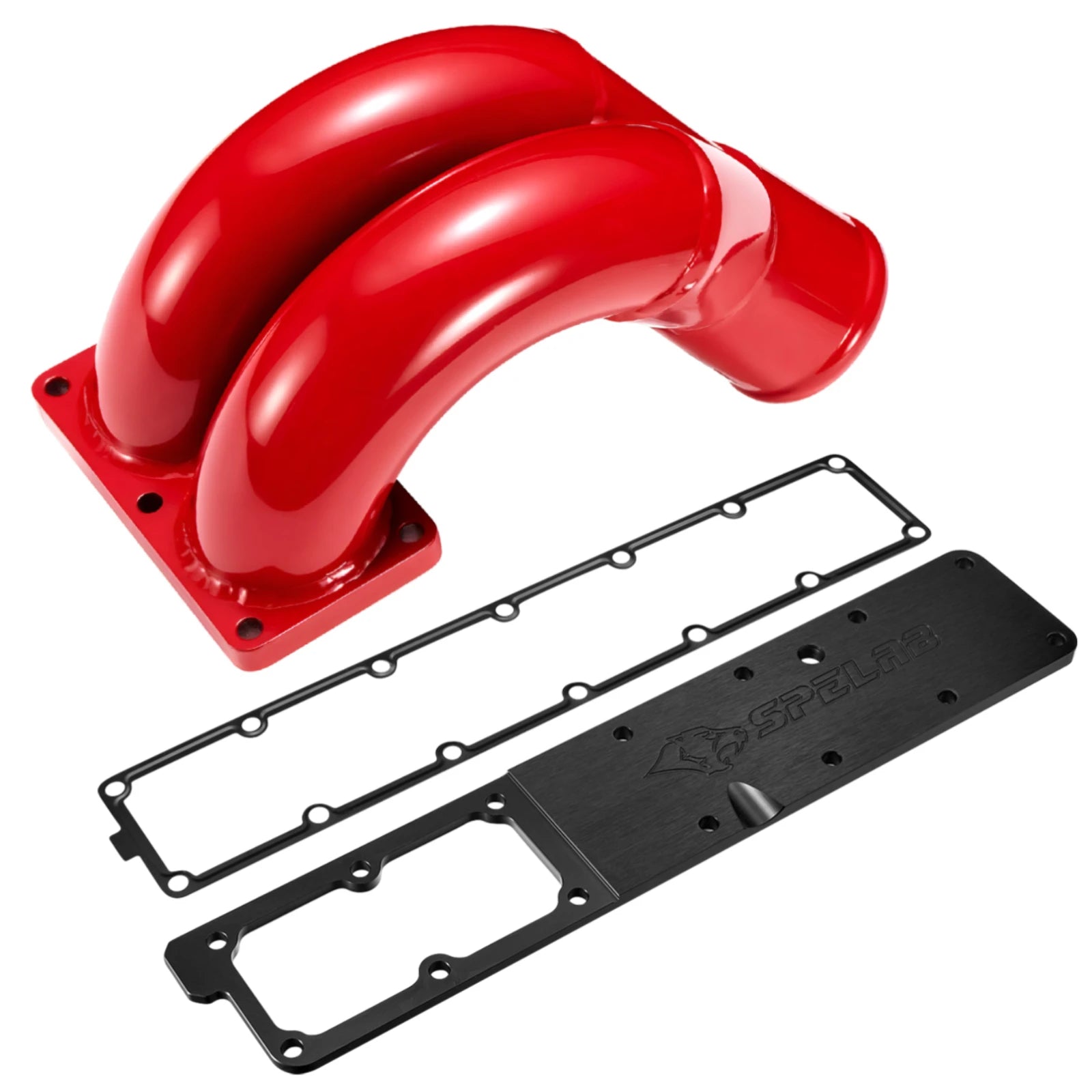

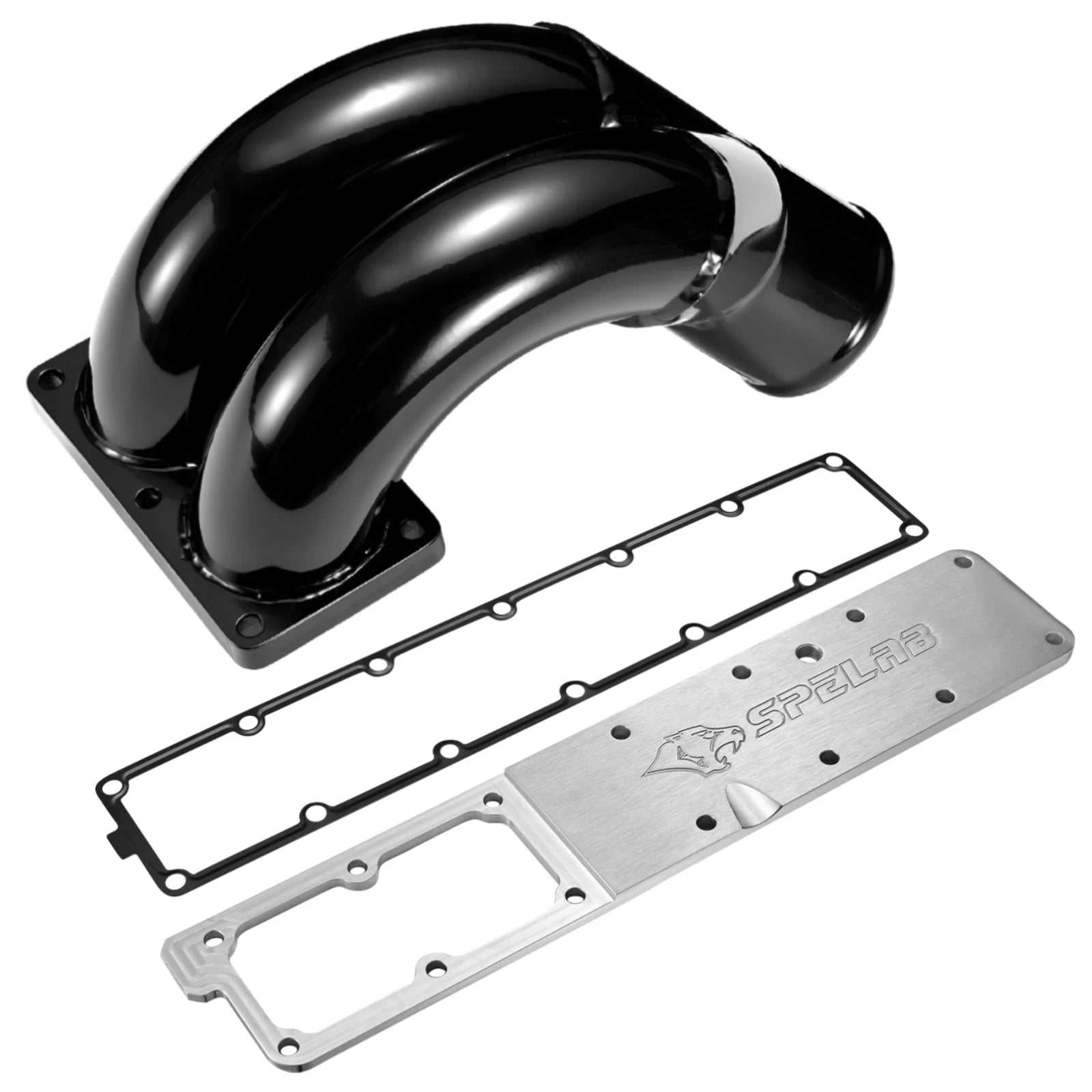

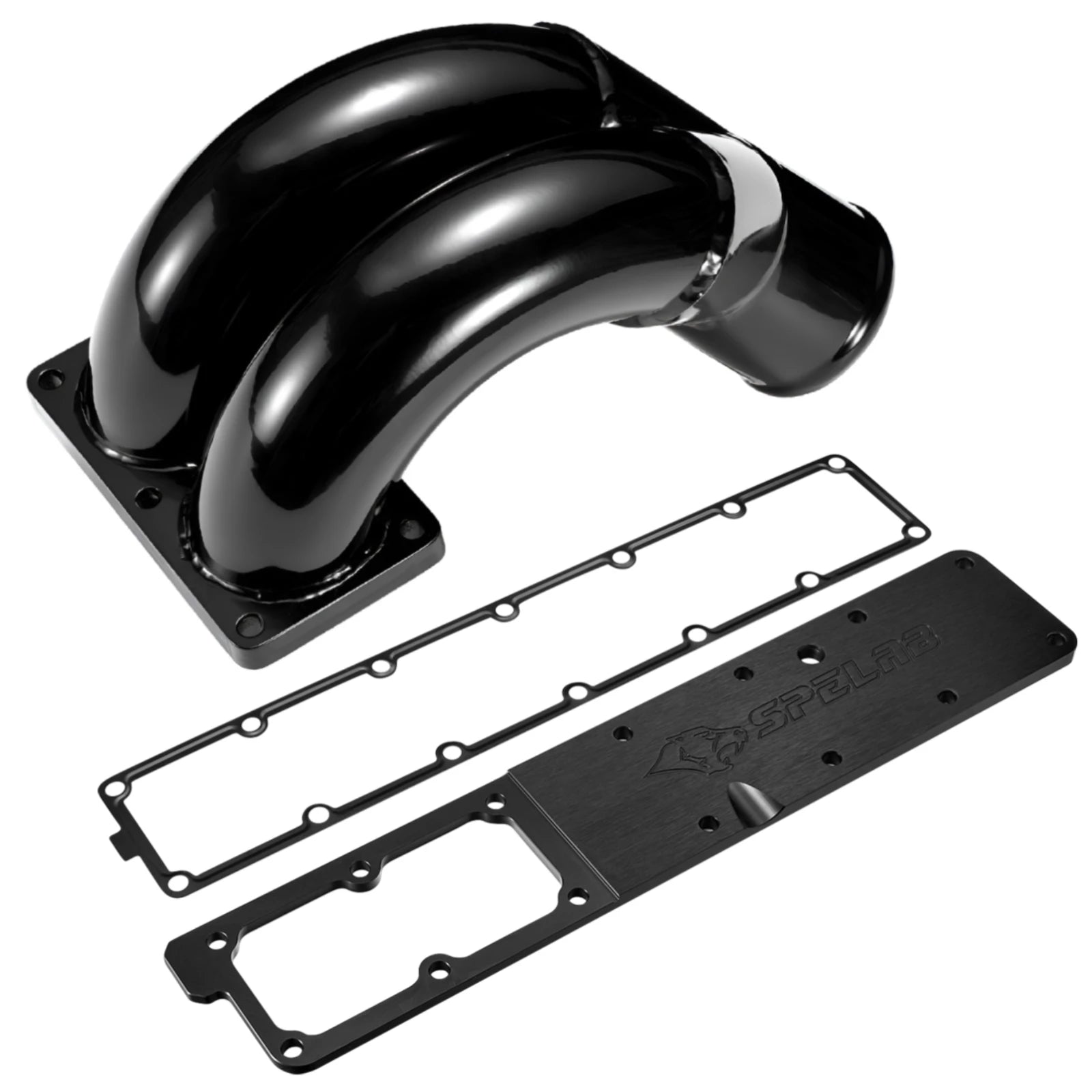

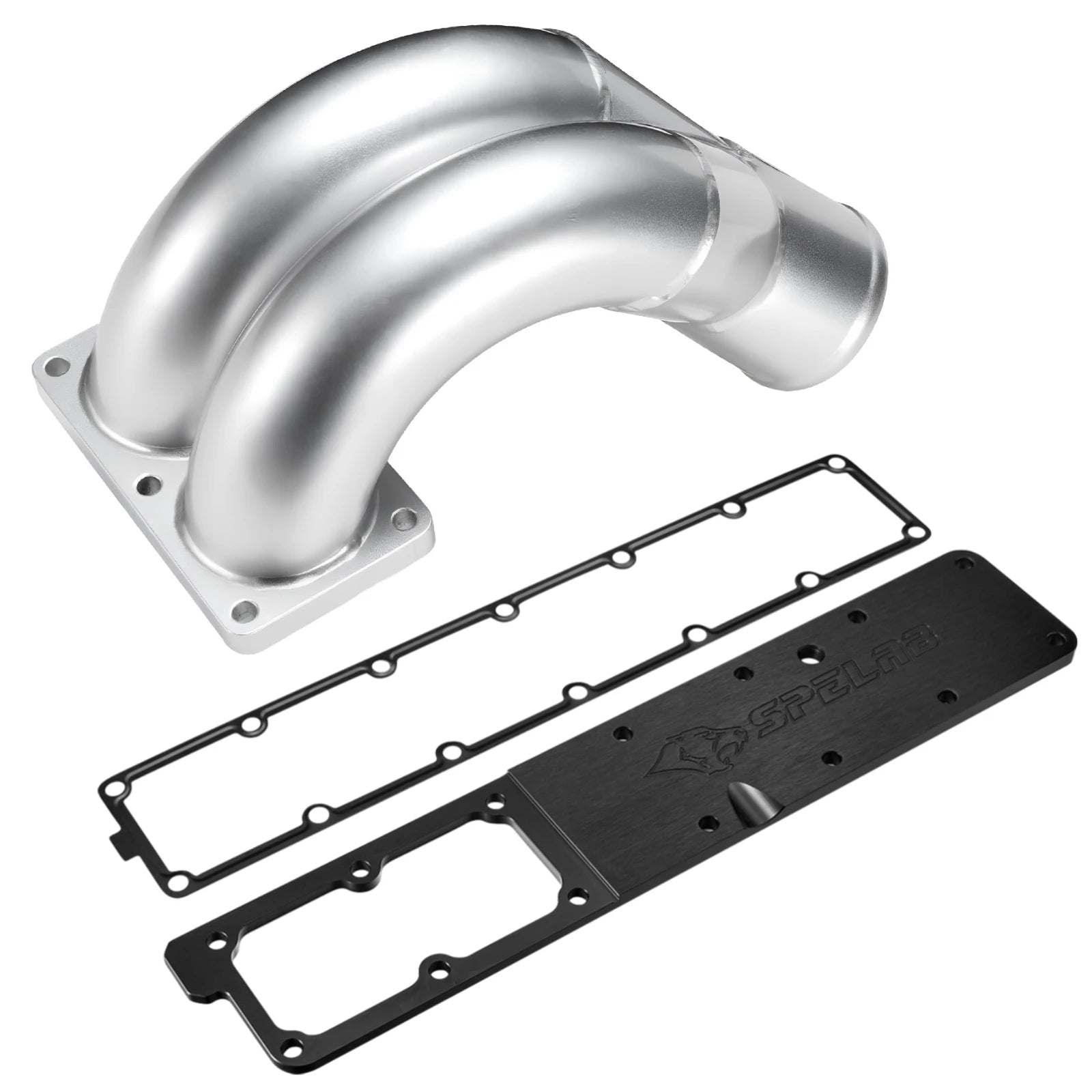

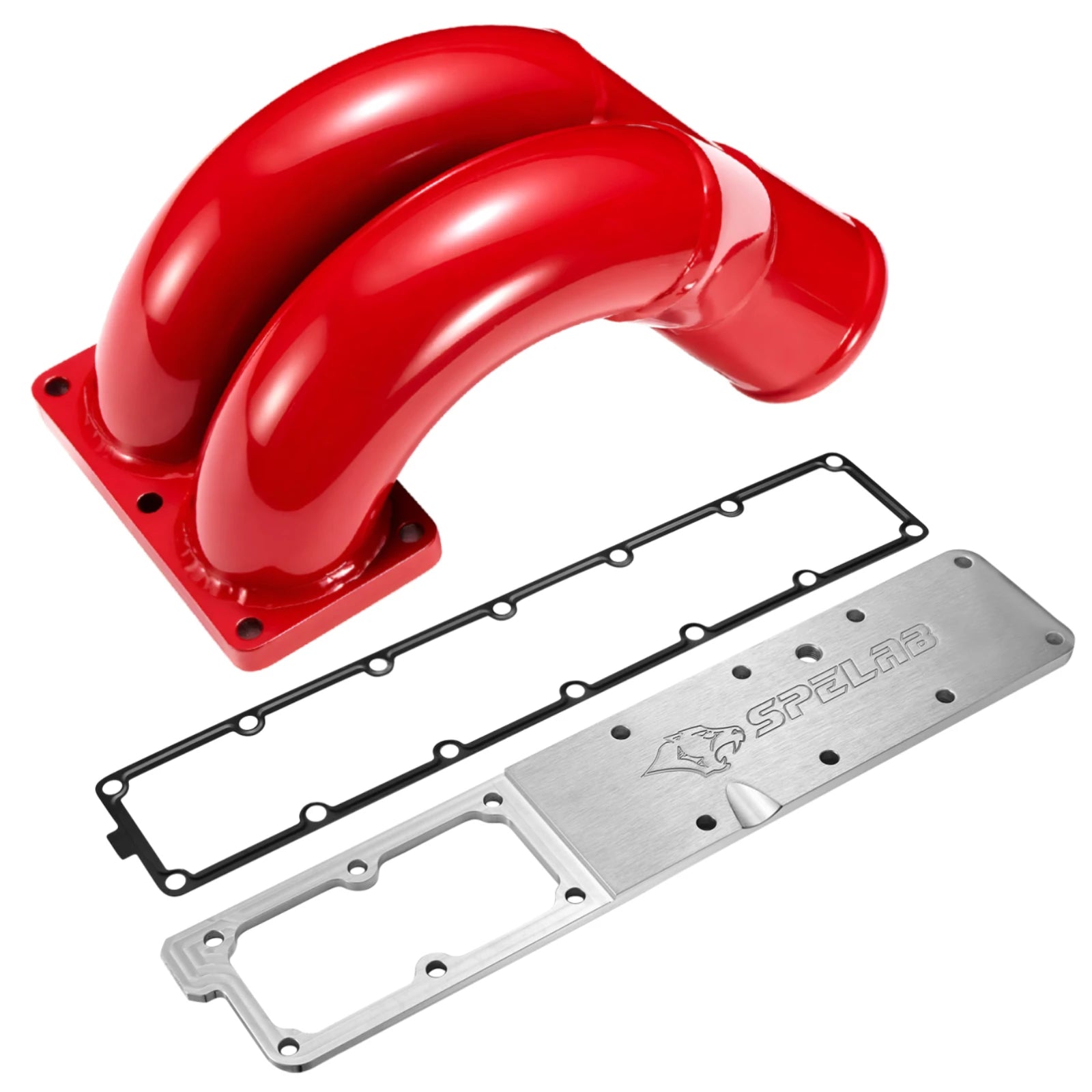

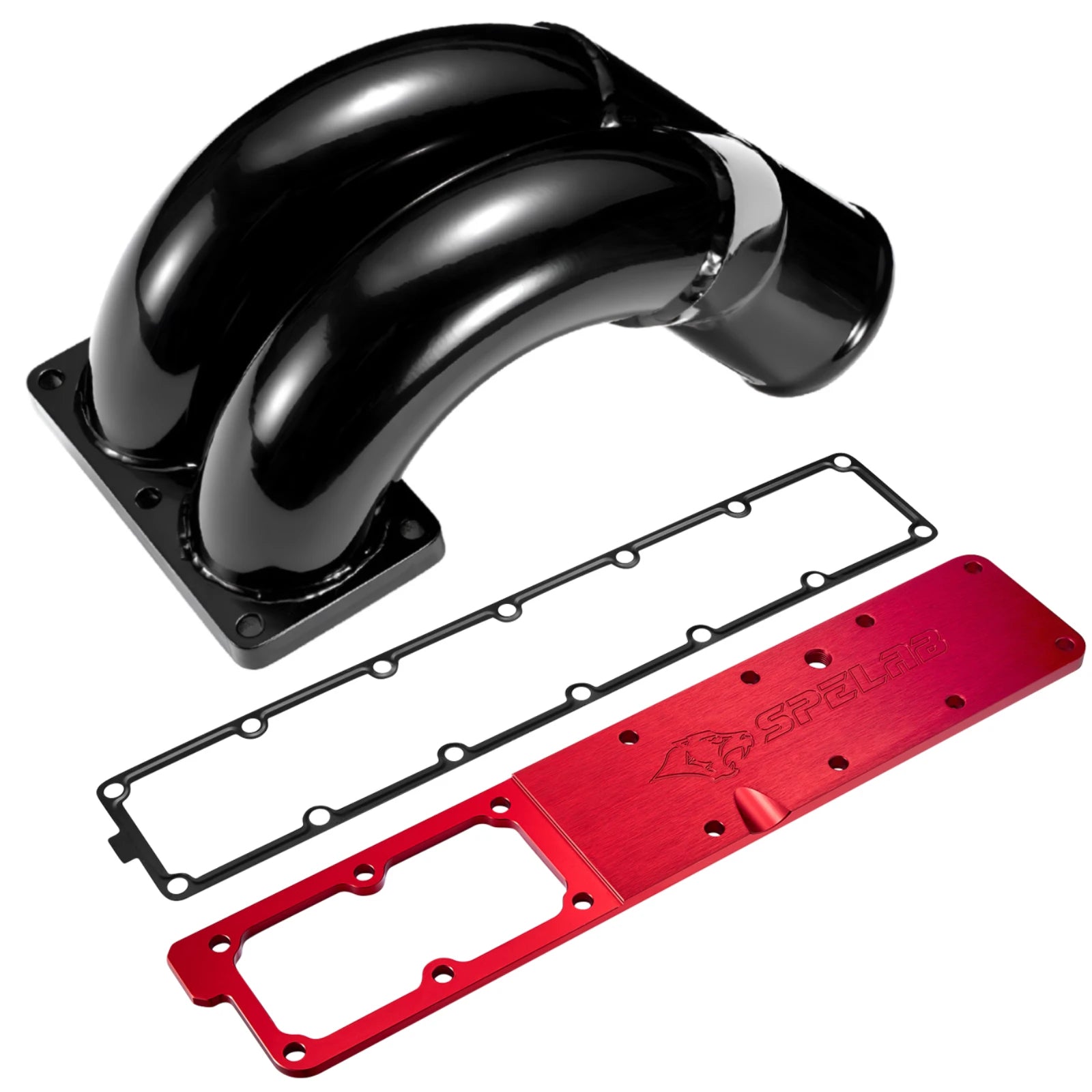

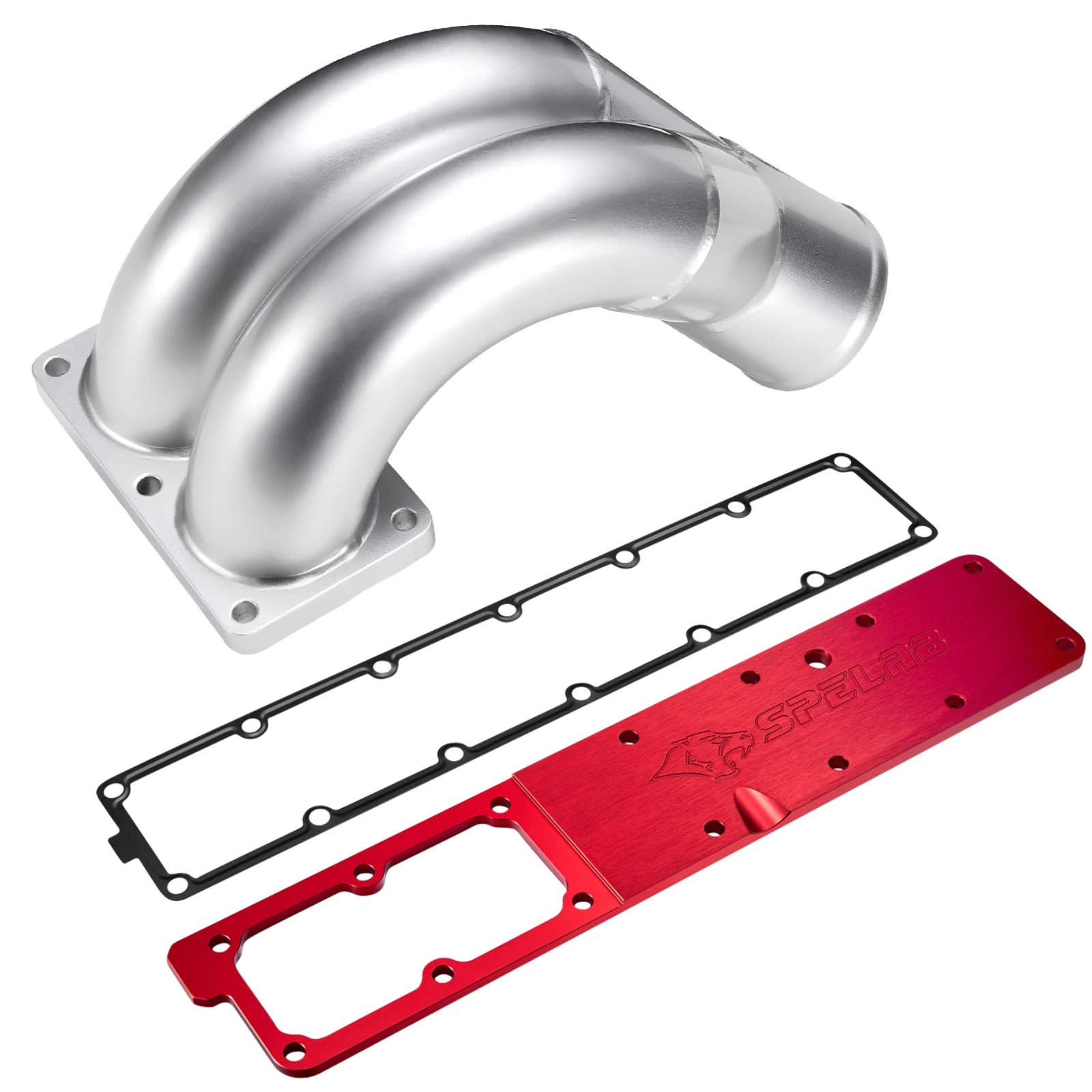

• Grid heater delete plate: The delete plate is an optional configuration selected separately from the manifold color and year version. Confirm the chosen variant before checkout.
• Two different systems: An EGR delete and a grid heater delete plate are separate modifications; one does not automatically include the other.
• IAT sensor wiring: When the manifold is installed with a grid heater delete plate, the IAT Sensor Extension Harness is required because the factory wiring is too short for the new sensor position.
• Road-use requirements: Check the emissions and inspection rules that apply to the vehicle and location before modifying emissions-related equipment.

Product Highlights

• Integrated High-Efficiency Heating Element
  Provides reliable, fast startups in cold climates, reducing engine wear and eliminating the excessive white smoke associated with cold diesel engines. Say goodbye to the performance compromise of a grid heater delete.
• Massive 3.5" High-Flow Design
  Mandrel-bent T-304 stainless steel construction dramatically increases airflow compared to the restrictive stock manifold. This results in quicker turbo spool, lower EGTs (Exhaust Gas Temperatures), and significant gains in horsepower and torque.

• Superior Durability & Construction
  Fabricated from premium T-304 stainless steel for exceptional strength, corrosion resistance, and heat dissipation. Precision TIG welding ensures a leak-proof seal and long-lasting performance under the most demanding conditions.

• Direct Bolt-On Installation

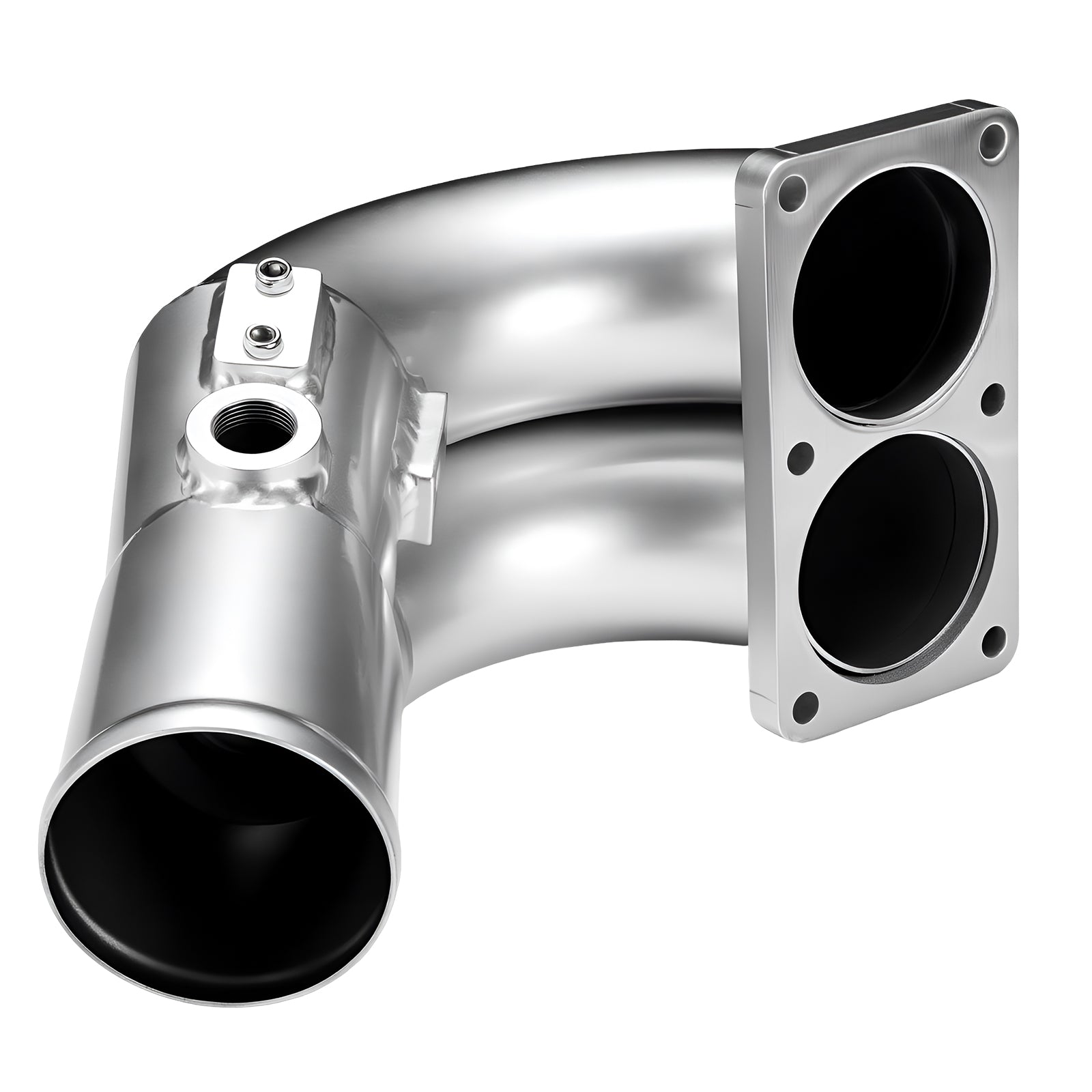

  Engineered to utilize factory mounting points for a straightforward installation. The kit includes multiple NPT ports for easy connection of boost gauges, sensors, or water-methanol injection systems.

Prevent the Notorious Grid Heater Bolt Failure

The factory grid heater design on the 6.7L Dodge Ram engine poses a significant, well-documented risk. The retaining bolt and nut for the heating element are known to eventually fail, break off, and drop directly into the intake, leading to catastrophic and costly internal engine damage. Our performance manifold completely eliminates this factory weak point. By integrating a robust, bolt-free heating coil, we provide a permanent solution that protects your investment and delivers total peace of mind.

Modern, High-Efficiency Heating Solution

Say goodbye to the restrictive and failure-prone factory grid heater. Our manifold features a state-of-the-art, integrated heating coil that delivers fast, reliable, and efficient heating for smooth cold starts in any climate. This advanced design not only ensures your engine fires up effortlessly in frigid conditions but also removes a major source of airflow obstruction, paving the way for significant performance gains that the stock setup could never achieve.

Ensure Balanced, Uniform Cylinder Airflow

The stock intake manifold suffers from a flawed design that causes uneven air distribution, starving some cylinders while over-feeding others. This imbalance compromises efficiency and robs your engine of power. Our manifold is engineered with superior fluid dynamics, featuring a high-flow plenum that guarantees uniform and pressurized airflow is delivered equally to every cylinder. This optimized distribution unlocks smoother engine operation, a broader powerband, and maximum combustion efficiency.

Stop Performance-Robbing Carbon Deposits

The stock intake is a magnet for performance-killing carbon buildup from the EGR system, which clogs passages and chokes your engine over time. This leads to a gradual loss of power, poor throttle response, and decreased fuel economy. Our smooth-wall, high-flow stainless steel manifold is designed to minimize carbon accumulation. Its streamlined interior surface resists deposit formation, ensuring your engine breathes clean and maintains peak performance for years to come.

Who This Intake Manifold Is Best For

This manifold is best suited to 2007.5-2024 Ram 2500/3500 owners with a 6.7L Cummins who want a 3.5-inch round intake path, T304 stainless steel construction, an integrated heating element for cold-start support, and two 1/8-inch NPT ports for compatible accessories. It is also a practical choice for owners who want the supplied replacement fuel line to provide clearance around the larger intake tube.

It is not intended for 2007 5.9L trucks, Ram 4500/5500 models, or cab-and-chassis applications.

3.5" Intake Manifold Specifications

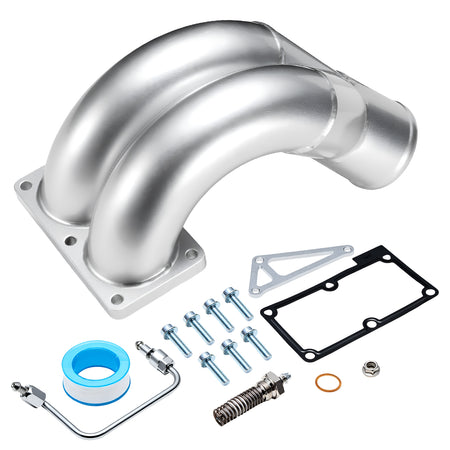

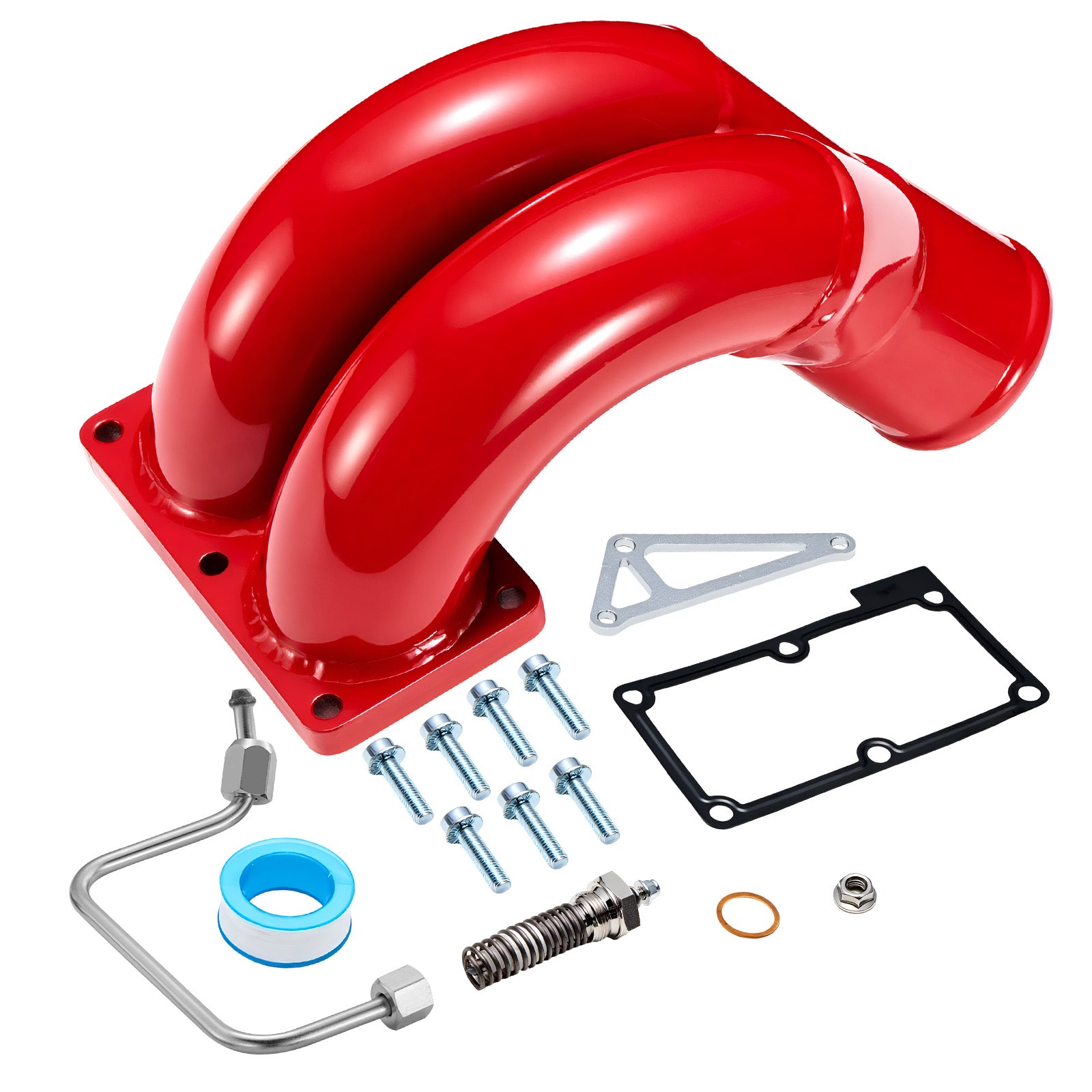

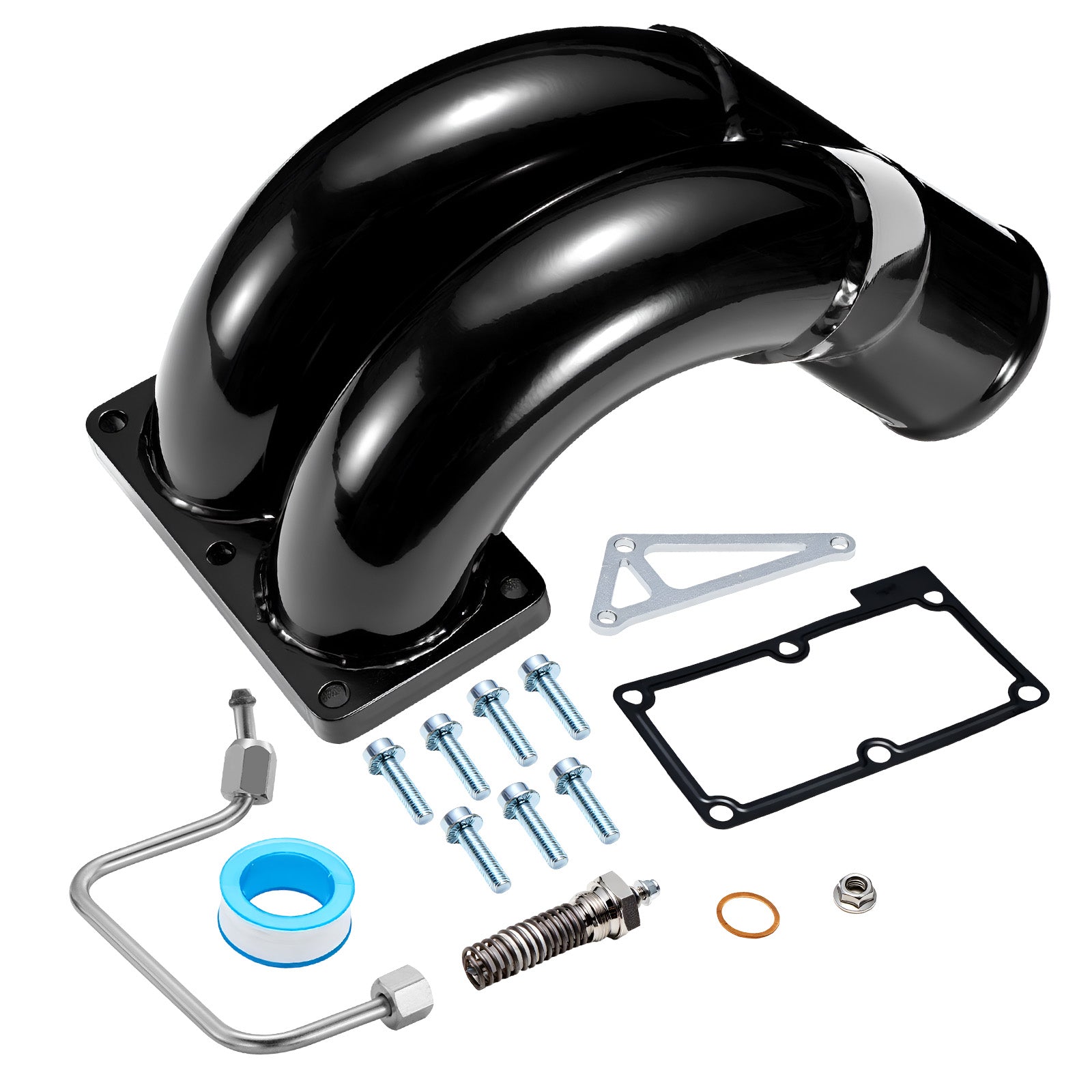

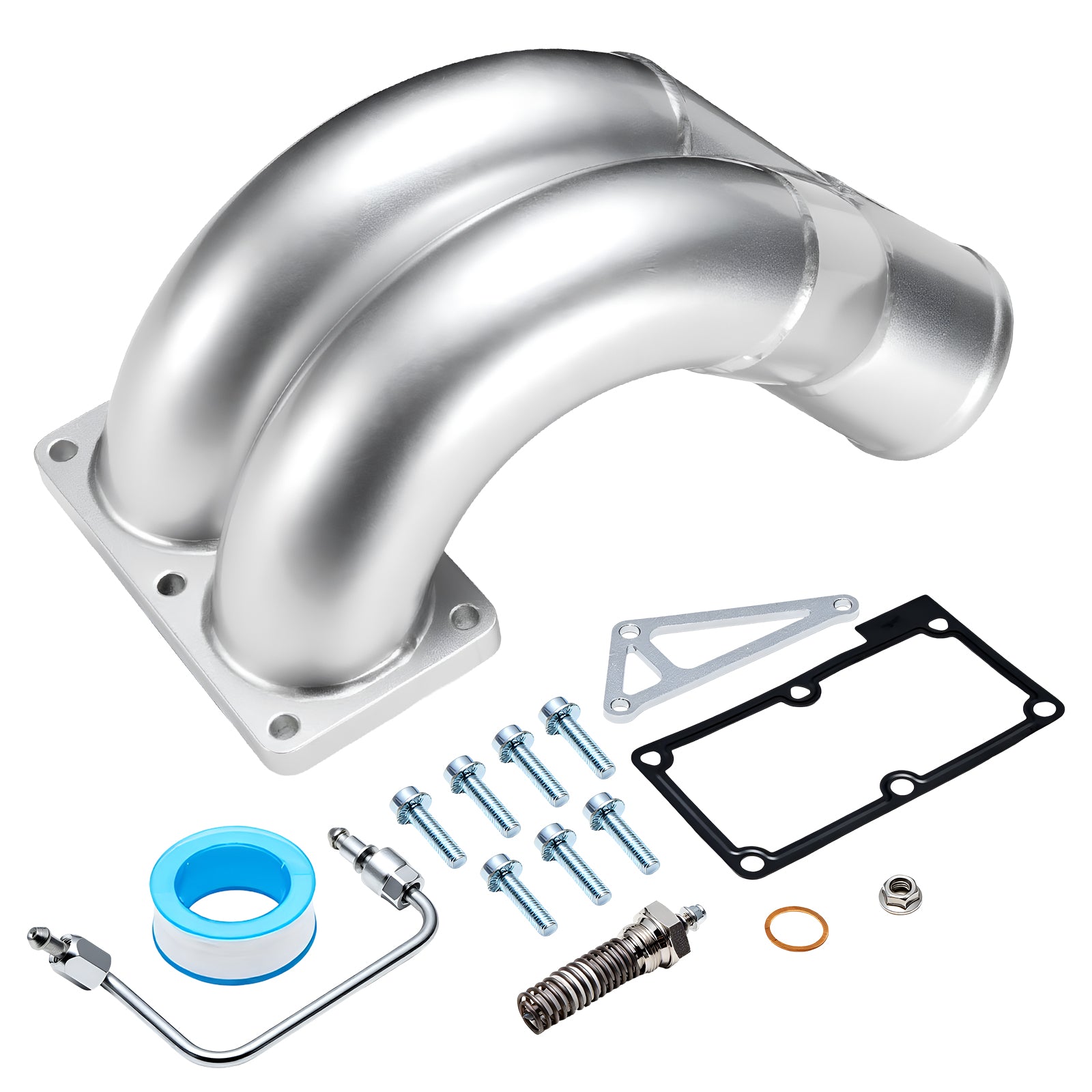

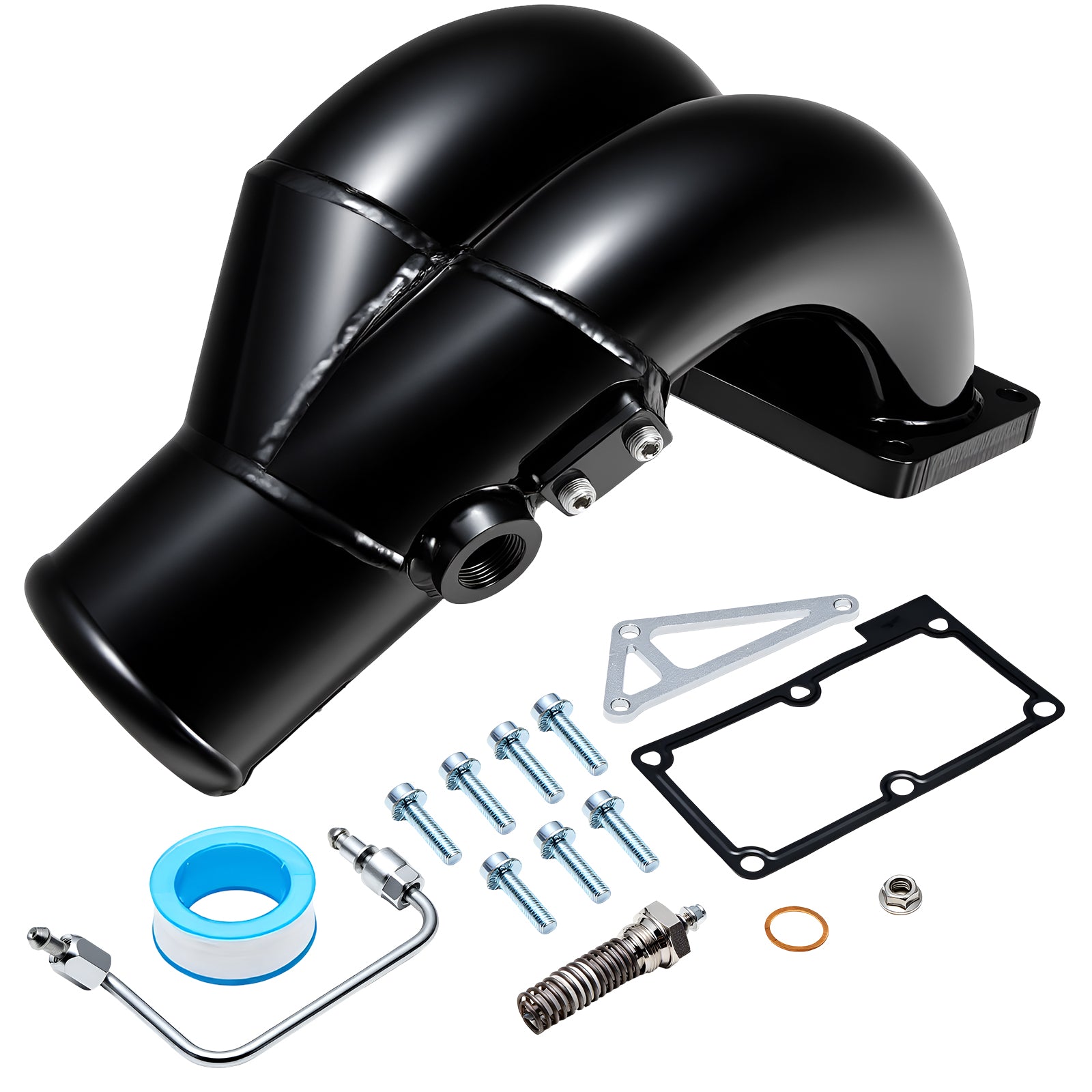

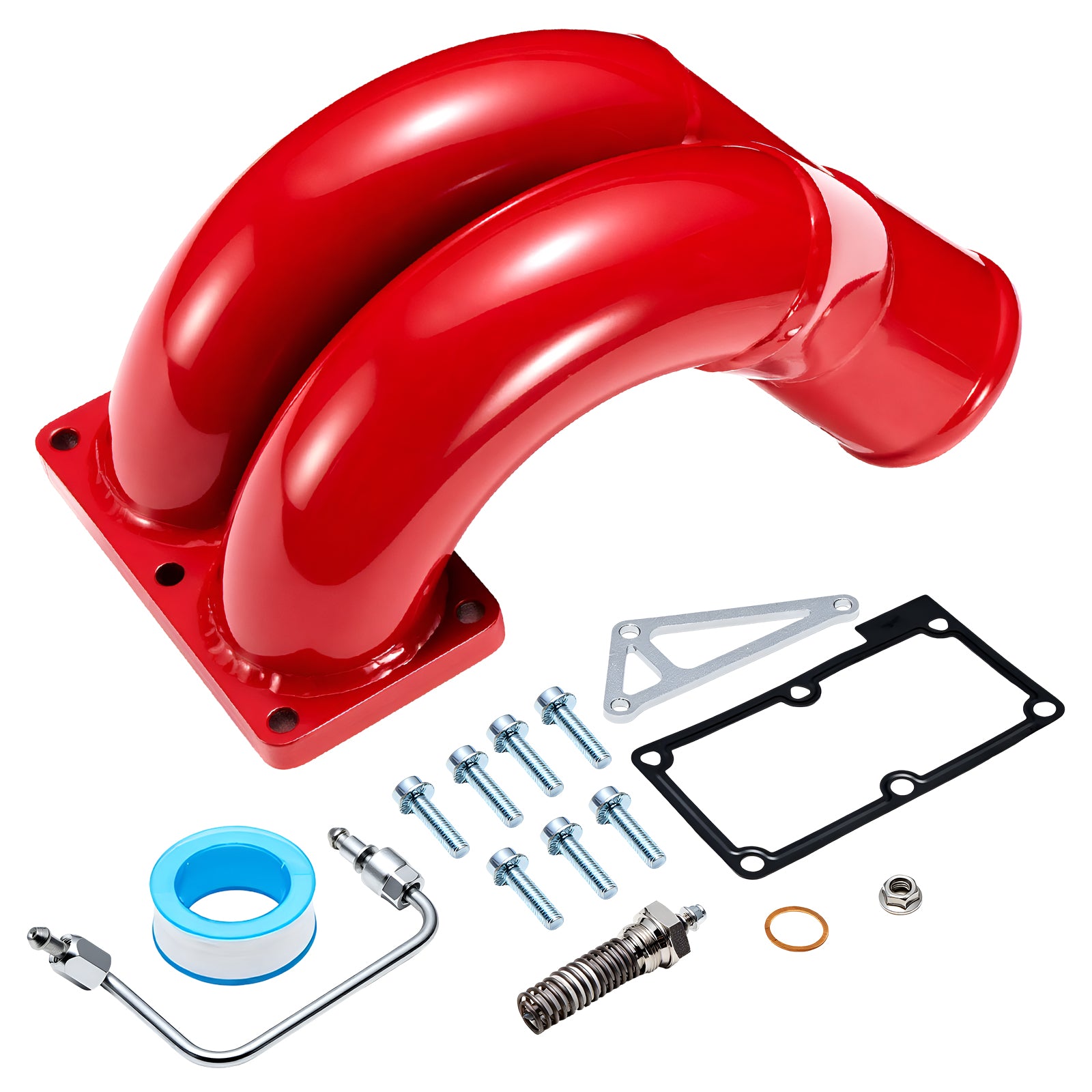

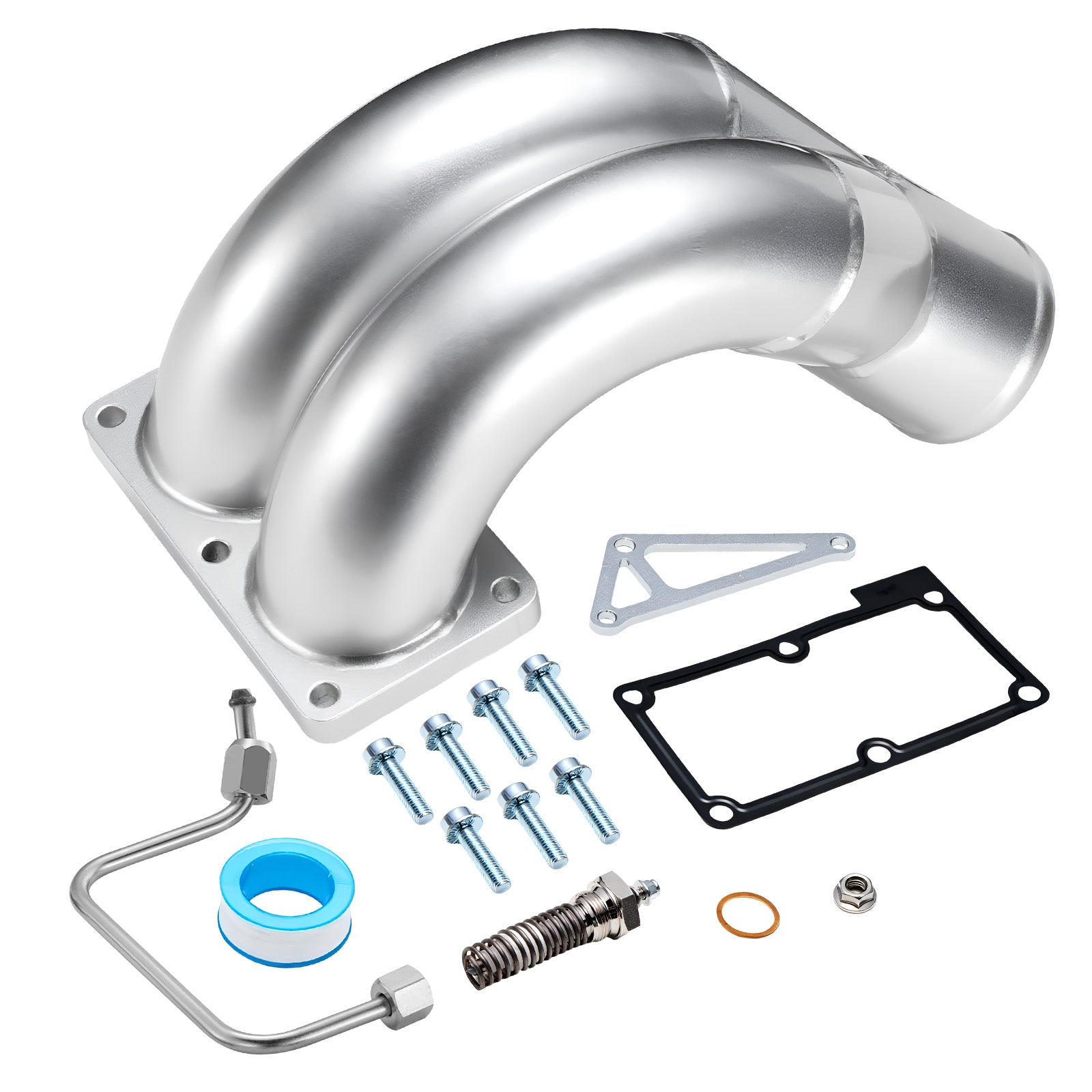

What's in the Box

• 1x Upgraded T-304 Stainless Steel Intake Manifold
• 1x Integrated Heating Element Assembly
• 1x Specialized Replacement Fuel Line
• 1x OEM-Quality Mounting Gasket
• 1x Complete Hardware Kit & NPT Port Plugs

Package note: The grid heater delete plate and IAT Sensor Extension Harness are configuration-dependent accessories. Check the selected variant and cart contents before ordering.

Which 6.7L Dodge Ram Intake Manifold Is Right for You?

Compare all four SPELAB intake manifolds side by side to find the best match for your Dodge Ram build.

	High-Flow Cast Aluminum	3.5" Performance SS	3.5" T-201 w/ Heater	Upgraded 3.5" T-304 w/ Heater
Base Price	$539	$99	$199	$299
Delete Plate Compatible	✓	✓	✓	✓
Heating Element	Optional	None	Integrated	Integrated
Material	Cast Aluminum	201 Stainless Steel	201 Stainless Steel	T-304 Stainless Steel
Inlet Diameter	3-3/8"	3.5"	3.5"	3.5"
1/8" NPT Ports	4 ports	2 ports	2 ports	2 ports
EGR System	EGR Optional	EGR Delete Required	EGR Delete Required	EGR Delete Required
Fitment	2007–2024 Ram 2500/3500/4500/5500	2007–2018 Ram 2500/3500	2007–2024 Ram 2500/3500	2007–2024 Ram 2500/3500

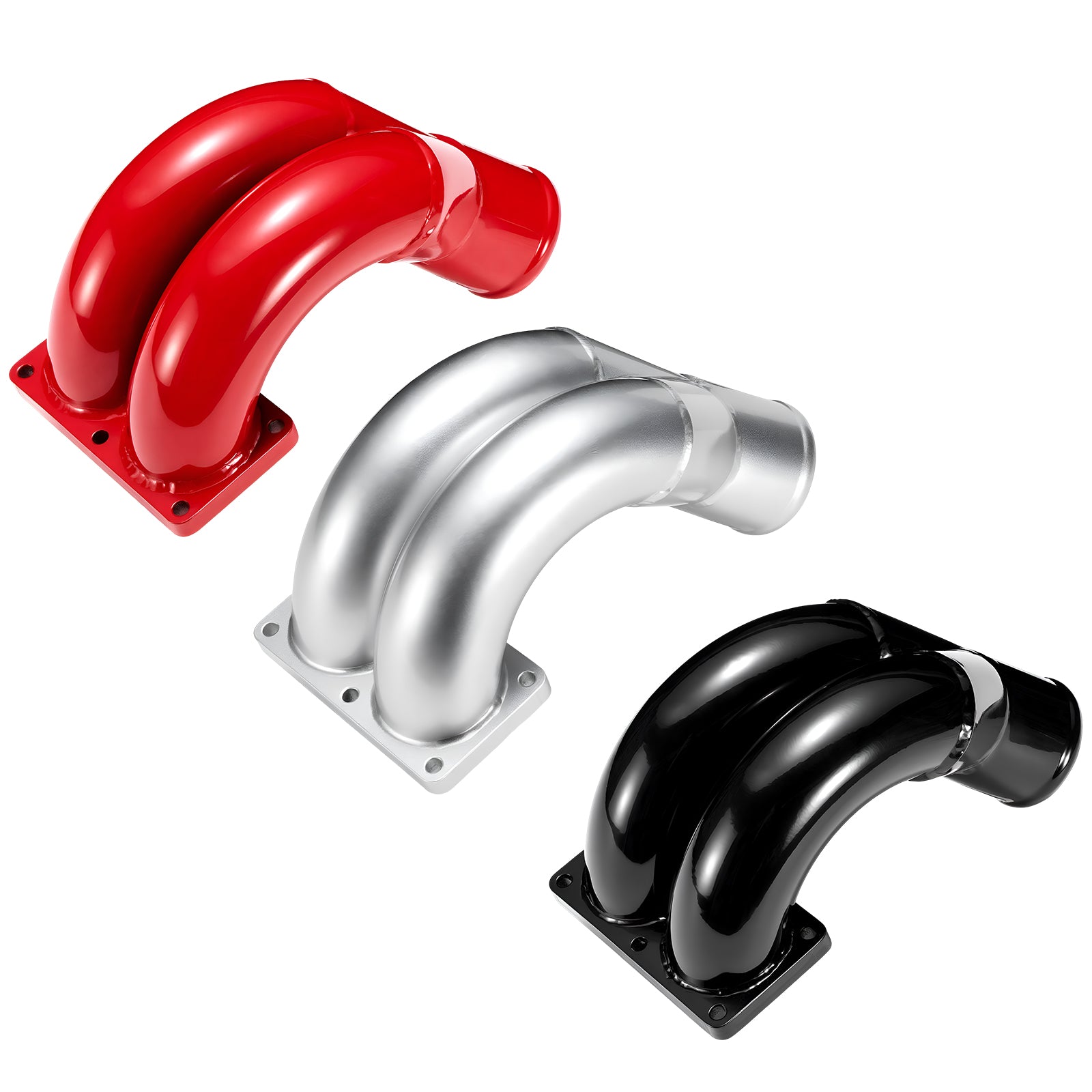

Color Options	Black / Red / Silver	Raw Stainless	Black / Red / Raw	Black / Red / Raw

FAQ

Q: What is the difference between this upgraded version and the previous model?

A: This version changes the construction from 201 stainless steel to T304 stainless steel and replaces the previously dented clearance area with a round 3.5-inch tube. A specialized replacement fuel line is included to provide clearance for the larger round tube.

Q: Does this manifold address the factory grid-heater fastener concern?

A: The manifold replaces the factory intake and grid-heater arrangement with an integrated heating element, removing the original grid-heater fastener from that intake path.

Q: Will the integrated heating element restrict airflow like the stock grid heater?

A: The integrated ceramic heating coil is designed with a small profile inside the 3.5-inch intake path to support cold starts while maintaining a larger, round airflow passage.

Q: Do I need a custom ECU tune to use this manifold?

A: The manifold itself is described as not requiring a custom tune. However, the current product comparison identifies the T304 version as requiring an EGR-delete configuration. Confirm the truck's hardware, calibration and applicable rules before installation.

Q: Is it difficult to install the replacement fuel line on 2019-2024 models?

A: The supplied fuel line is designed to route around the larger 3.5-inch manifold. Installation requires standard hand tools and appropriate diesel-engine service knowledge.

Q: Does this fit a 2007 Ram with the 5.9L Cummins?

A: No. For the 2007 model year, this product is for trucks equipped with the 6.7L Cummins, commonly identified as 2007.5 applications.

Q: Which year option should I select?

A: For a 2007.5-2018 truck, select the current 2007-2018 option. For a 2019-2024 truck, select the current 2019+ option.

Q: Does it fit Ram 4500/5500 or cab-and-chassis trucks?

A: No. The listed fitment is limited to Ram 2500/3500 pickup applications and excludes cab-and-chassis models.

Q: Is the grid heater delete plate included?

A: The delete plate is offered as a selectable option. Confirm the selected year, manifold color and delete-plate option before checkout.

Q: When is the IAT Sensor Extension Harness required?

A: It is required when this manifold is installed with a grid heater delete plate because the factory IAT wiring is too short for the relocated sensor position. The harness is sold separately.

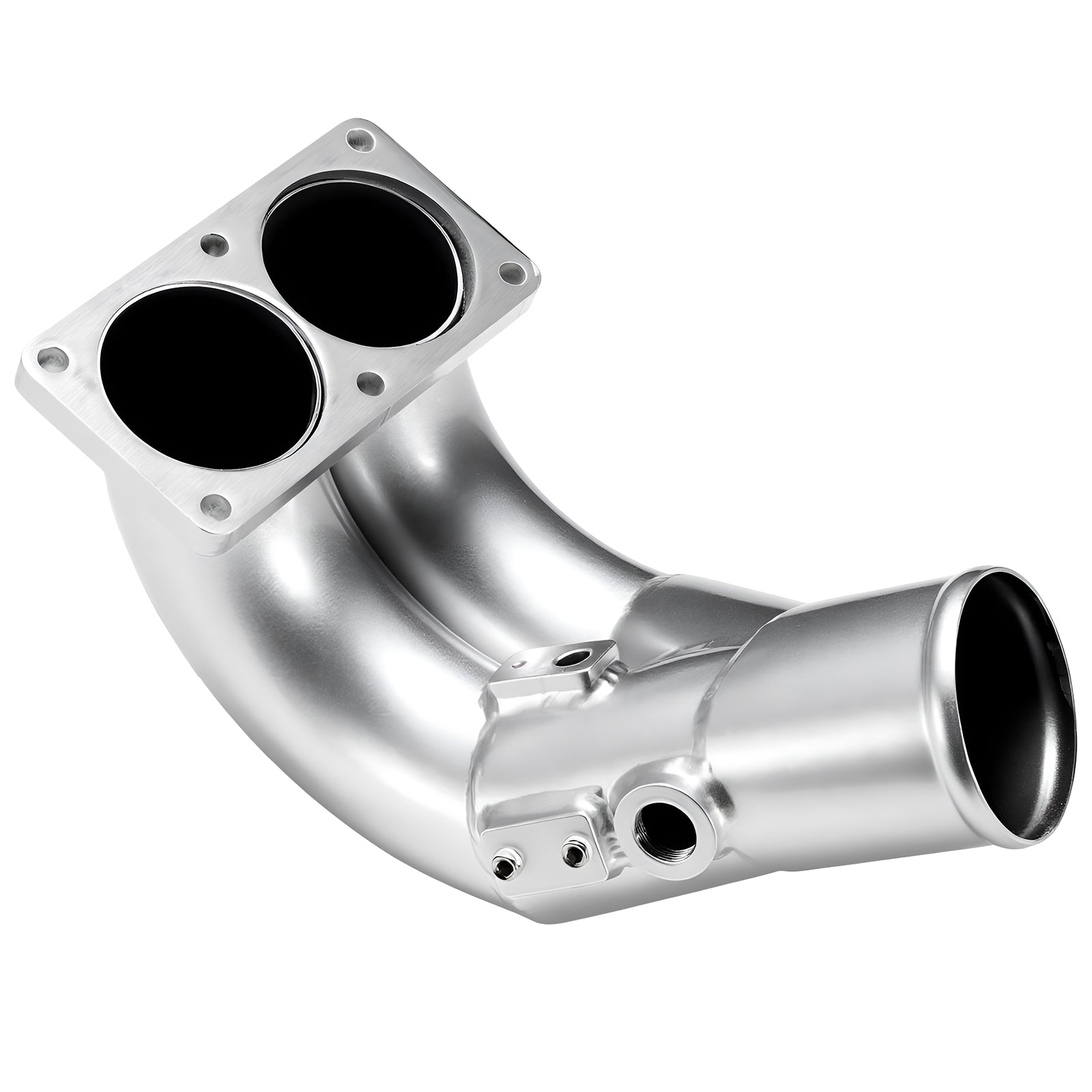

Q: How many auxiliary ports does the manifold have?

A: It has two 1/8-inch NPT ports for compatible gauges, sensors or other accessories.

Q: What comes in the standard package?

A: The standard package contains the T304 stainless steel intake manifold, integrated heating element assembly, specialized replacement fuel line, mounting gasket, hardware kit and NPT port plugs. Configuration-dependent accessories should be confirmed separately.

Q: Does installation require EGR modification?

A: Yes. The current comparison table lists EGR Delete Required for this model. Confirm compatibility, calibration needs and applicable emissions requirements before ordering or installation.

Installation

Before Installation

• Confirm the truck is a supported 2007.5-2024 Ram 2500/3500 pickup with a 6.7L Cummins.
• Confirm the correct 2007.5-2018 or 2019-2024 version, manifold finish and optional delete-plate configuration.
• Allow the engine to cool, disconnect the batteries and clean the work area around the intake system.
• Have the supplied manifold, gasket, replacement fuel line, hardware and NPT plugs ready. If using a grid heater delete plate, obtain the required IAT Sensor Extension Harness.
• Review the supplied instructions and verify the truck's EGR hardware and calibration before disassembly.

Basic Installation Steps

1. Remove the intake components required to access the factory intake manifold and grid-heater assembly.
2. Disconnect the related electrical connectors and fuel-line components as directed for the selected model year.
3. Remove the factory intake assembly and clean the sealing surface without allowing debris to enter the engine.
4. Install the supplied gasket and position the SPELAB intake manifold on the factory mounting points.
5. Install the supplied replacement fuel line so it clears the round 3.5-inch intake tube.
6. Install the NPT plugs or compatible accessories in the two 1/8-inch NPT ports, using an appropriate thread-sealing method for the application.
7. Connect the integrated heating element according to the supplied electrical instructions. If using a grid heater delete plate, install the IAT Sensor Extension Harness.
8. Reinstall the remaining intake components, reconnect the batteries and check all connections before starting the engine.

After Installation

• Start the engine and inspect for air, fuel or electrical issues.
• Verify that hoses, wiring and the replacement fuel line do not contact hot or moving components.
• Recheck accessible fasteners and connections after the first heat cycle.

Installation note: Use the torque values and electrical procedures supplied with the product or specified by the vehicle manufacturer. Professional installation is recommended if you are not experienced with diesel intake, fuel-line and electrical work.
