Intercooler Pipe Kit For 2011-2025 6.7 Powerstroke Diesel Ford F250 F350 F450 | SPELAB
Frequently bought together
Secure and trusted checkout with
Product Information +
- Brand: SPELAB
- SKU: SPIS08836
- Availability: Many in stock
- Product Type: Intercooler Pipe
-
PLEASE NOTE!
For compatible 2011-2025 Ford 6.7L Powerstroke trucks, this intercooler pipe kit replaces failure-prone plastic tubing with aluminum pipes and reinforced silicone couplers for dependable boost-air routing.
Powerstroke Intercooler Pipe Kit Fitment
- 2011-2025 Ford F250 F350 F450 6.7L PowerStroke V8 Diesel
| Variant Title | Fitment |
| Upgraded Cold Side (2017+) | 2017-2024 Ford F250 F350 F450 6.7L PowerStroke |
| Standard Cold Side (2017-2019) | 2017-2019 Ford F250 F350 F450 6.7L PowerStroke |
| Cold Side (2011-2016) | 2011-2016 Ford F250 F350 F450 6.7L PowerStroke |
| Hot Side (2011-2016) | 2011-2016 Ford F250 F350 F450 6.7L PowerStroke |
| Upgraded Hot Side Standard Output (2011-2025) |
2011-2022: Ford F-250/F-350/F-450/F-550 (All Models) |
| Upgraded Hot Side High Output (2023-2025) | 2023-2025 Ford F-250/F-350/F-450/F-550 (High Output Engine ONLY) |
| Hot+Cold Side Kit (2011-2016) | 2011-2016 Ford F250 F350 F450 6.7L PowerStroke |
FITMENT & COMPATIBILITY NOTICE: This charge pipe kit is engineered strictly to match factory-spec (OEM) intercooler connection diameters and locations.
Aluminum Intercooler Pipe Key Features
-
Heavy-Duty Aluminum Construction
Replaces failure-prone plastic OEM pipes with mandrel-bent, polished aluminum for increased durability and better heat tolerance. -
Triple-Layer Reinforced Silicone Couplers
High-temp, pressure-resistant couplers reduce vibration, absorb engine movement, and maintain seal integrity during hard acceleration or shifting. -
Improved Boost Pressure Handling
Withstands extreme heat and pressure from the turbo system without deforming or bursting. -
Quick-Connect CNC Flange
Precision-machined 6061 aluminum flange ensures OEM compatibility and quick installation using the stock emissions setup.
Product Specifications
| Weight | 2.02 kg |
| Material | Mandrel-Bent Aluminum (Pipes), Reinforced Silicone (Couplers) |
| Pipe Diameter | Lower Pipe: 3" Upper Pipe: 3.5" |
| Silicone Tube One | 3" Diameter |
| Silicone Tube Two | 3" to 3.5" Tapered |
| CNC Flange Material | 6061-T6 Aluminum, Quick-Disconnect Design |
| Clamps | 4x Heavy-Duty T-Bolt Clamps |
| Surface Finish | Polished Aluminum with Black Silicone |
| Installation | Direct Fit – No Tuning Required |

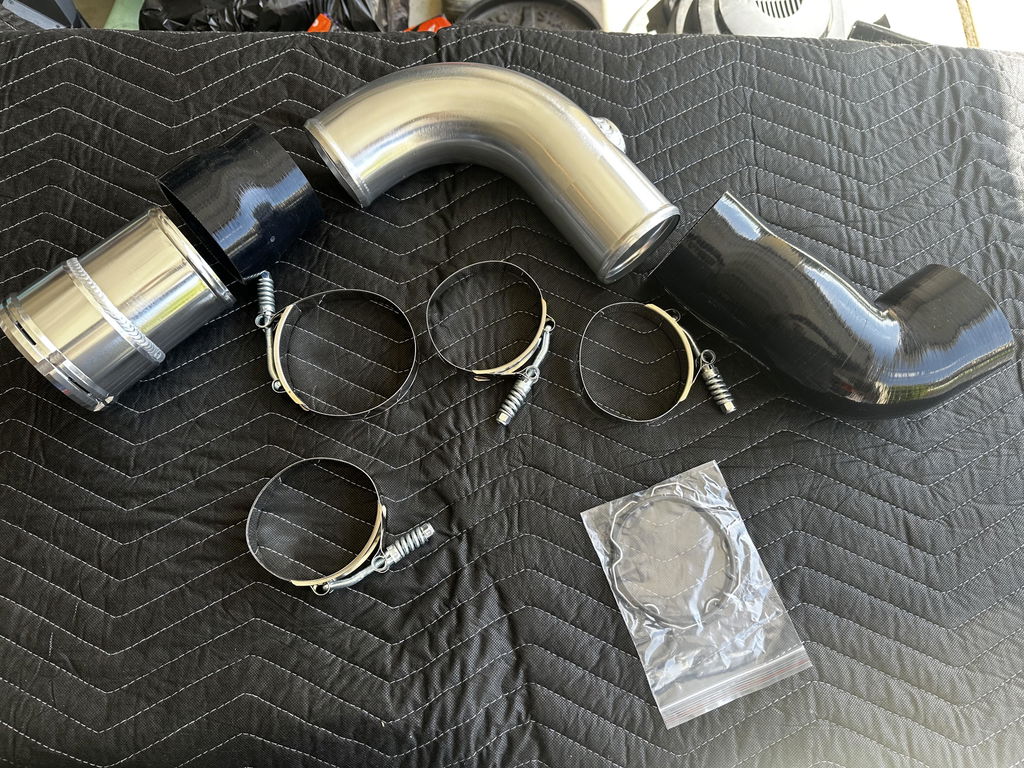

What's Included in the Kit
|
1X Silicone Intercooler Pipe w/ CNC Quick-Disconnect Flange |
| 1X Silicone Intercooler Pipe |
| 2X Silicone Tubes |
| 4X T-Bolt Clamps |
Good fit easy to install. Looks great. Only took about 20 min to install.
Thanks for the pictures, they are really cool!
It’s a pain to install it without lube but once I lubed it up it slipped in it’s position just fine.I’ve only had it in for a few weeks. The clamp was too small for the smaller hose inlet so I had to use the old one.
Giving this 4 stars. Pipes are great, fit and finish damn near perfect. Way better than the plastic factory junk. Install is pretty straightforward.
Two reasons it's not 5.
The kit didn't come with the O-ring for the hot side pipe. I thought I dropped it during install, tore the garage apart looking for it. Nope. Just not in the box. Had to order from RockAuto and wait. It's included on the Cold-side pipe. I didn't see an obvious note about this on the product page. Put a note on the page at least. Also the air charge temp sensor bung. The pipe routes it right against the inter-cooler coolant line. Not chafing yet but it's close. I got it spaced out for now but I'm gonna keep an eye on it. Vibration could work through it over time. Different clocking on the bung would've made it a non-issue.
Overall I'd buy it again. Runs great, good quality. Just grab an O-ring ahead of time and watch that sensor clearance. Minor stuff.
Intercooler Pipe Kit For 2011-2025 6.7 Powerstroke Diesel Ford F250 F350 F450 | SPELAB
Intercooler Pipe Kit For 2011-2025 6.7 Powerstroke Diesel Ford F250 F350 F450 | SPELAB
The replacement clamps could be of better quality. I would buy future products from this company.
I would have give this 5 stars but the clamps were tough to work. Got 3 of the 4 to work but the bottom on was not possible and had to use a standard hose clamp. The over lap of the clamps is hard to align. Plus it is difficult to even access.
Intercooler Pipe Kit For 2011-2024 6.7 Powerstroke Diesel Ford F250 F350 F450 | SPELAB
Easy to install even though I’m not a mechanic. Noticed a difference in response and acceleration. Give the engine bay a nice sleek look. Definitely worth it!!!
A little tough getting in because it’s not as flexible as the original, but it was plenty doable. Works great.
We have been upgrading the factory CAC pipe prone to failure with these kits for quite some time, ensuring a more reliable experience for the customer.
Good fitment. Good quality
To many parts with no instructions
Everything was as listed. The aluminum section of the pipe was about three inches too long and extended through the upper collar but doesn’t seem to be a problem so far. Definitely better than the stock pipe that blew apart on me. I recommend.
The fit and finish on this product was very good no problems installing it. I think the polished aluminum pieces need a little taller lip or roughed up on the last couple inches where the silicone boots are clamped, mine kept blowing off at full boost. I finally found some clamps that would hold after breaking one supplied by tightening too tight. SPELAB made it good by refunding what I spent on the clamp. Very happy with the outcome.
Intercooler Pipe Kit For 2011-2024 6.7 Powerstroke Diesel Ford F250 F350 F450 | SPELAB
I got this to replace the plastic intake on my 67. It went on nice and easy didn't have any problems.
Only comes with cold side o ring which is ridiculous. Only response to this is that they will sell a kit that offers it in the end of October.
awesome as always good price and great fit
Intercooler pipe kit
Good product, threw it on and drove 6 ½ hours the next day with it. Only issue was the sensor port was wrong.had to file it out some to get mine to fit.
Definitely better than stock and it did improve performance and drivability the only complaint is the sensor inlet as I put the sensor in place it seemed slightly off alignment but not anything that would work but still treated me well
Thanks for the review and I look forward to receiving pictures of your installation feedback!
Overall a nice upgrade over the stock rubber pipe. Obviously well made components. However it would have been nice to have some directions included with the kit just to point out things like having to move the power steering reservoir. Also, the band for the outlet side of the Intercooler needs a slightly longer bolt so that it can expand appropriately. I ended up using the old clamp instead. Otherwise great kit overall. It held up on 3500 miles of towing so far!
Thank you for your comment! We'll get back to our developers with your suggestions! We will keep improving our instructions in the future! Thanks!
SPELAB 3.5" Cold Side Intercooler Pipe Kit For 2011-2024 6.7 Powerstroke Diesel Ford F250 F350 F450
Had to use my stock band clamps because the ones that come with it would not hold up under pressure
great product well-made and fitment is excellent.
Thanks for the review and look forward to receiving pictures of your install!
The fit on my 2013 Ford F 450 wasn't the best but it did work.
I liked the parts, seems to be good quality, came without any instructions though.No videos of installation on your website either.
SPELAB 3.5" Cold Side Intercooler Pipe Kit For 2011-2019 6.7 Powerstroke Diesel Ford F250 F350 F450
