A Truck LED Tail Light Assembly is a complete lamp. Housing, lens, and LED elements ship as one unit, sold as a matched driver-side and passenger-side pair. It bolts into the factory mounting points at the rear corner of the bed and connects to the truck's existing lamp sockets. It is not a bulb, not a wiring harness, and not a lens overlay. Each of those is a different part with a different outcome, and picking the wrong one decides whether the lamp fits at all.
Four vehicle families are covered here: Ford F-150, Ford Super Duty, Dodge Ram, and Chevrolet Silverado with GMC Sierra. Within them, fitment runs by year segment and lamp design rather than by model name alone, and the available colors differ from one year segment to the next. A Truck LED Tail Light Assembly chosen from the vehicle badge on the box is a guess with several plausible answers.
An Assembly Is Not a Bulb Swap
Three different products get described as a tail light upgrade, and they are not interchangeable.
A bulb swap replaces the incandescent or halogen element inside the factory housing. The housing, lens, and mounting stay as they were. This is the cheapest option and the least visible, because the lamp still looks like the one that came off the truck. Swapping in LED bulbs does not change the appearance, and for most trucks it does not change the connector or the housing either.
A Truck LED Tail Light Assembly replaces the whole lamp. The housing, the lens, and the light source all come together, which is what produces the modern LED light signature and the darkened or color-finished appearance. These LED tail lights are the part that changes how the truck looks from behind, not just how it lights up. Because the whole unit is new, the mounting points, the socket, and the connector have to line up with the truck.
A lens overlay is a film or cover that goes over an existing lamp. It changes how the lamp looks without touching the lighting inside it, and it has nothing to do with LED elements.
The distinction matters because a Truck LED Tail Light Assembly has to match the truck's body shape at the mounting holes. The bulb it does not have to match is the connector, and the connector alone is not enough to identify the right lamp.
Four Vehicle Families, Four Sets of Year Segments
The four families listed here do not share a fitment logic, so the year segments have to be read per vehicle. The generation names below describe the body and lamp design, not the engine.
| Vehicle |
Year segment |
Generation or platform |
Colors offered |
| Ford F-150 |
1997-2003 |
11th generation F-150 |
Smoked |
| Ford F-150 |
2009-2014 |
13th generation F-150 |
Smoked |
| Ford F-150 |
2015-2017 |
14th generation F-150 |
Red |
| Ford F-150 |
2018-2020 |
14th generation F-150 |
Red |
| Ford F-150 |
2021-2023 |
15th generation F-150 |
Red |
| Ford Super Duty |
1999-2007 |
1st generation Super Duty |
Smoked |
| Ford Super Duty |
2008-2016 |
2nd generation Super Duty |
Black |
| Dodge Ram |
2002-2006 |
2nd generation Ram |
Smoked |
| Dodge Ram |
2007-2008 |
3rd generation Ram |
Black |
| Dodge Ram |
2009-2018 |
4th generation Ram |
Black, Red |
| Chevy Silverado / GMC Sierra |
1999-2002 |
GMT800 |
Upgrade, Black, Red |
| Chevy Silverado / GMC Sierra |
2003-2007 |
GMT900 |
Upgrade, Black, Red |
A Ford F-150 LED tail light assembly and a Ford Super Duty LED tail light assembly come from different product lines with different year segments, even though both trucks share the F-Series nameplate. A Dodge Ram LED tail light assembly is matched to the Ram body of that generation, and a Silverado and GMC Sierra LED tail light assembly is matched to a GM platform code rather than to a diesel engine. Truck LED Tail Light Assembly fitment runs across four families here, and each one resolves its year segments on its own terms.
Year Segments Reflect Lamp Design, Not Labeling
Some segments in the table split a single generation in two, which is where a year range looks arbitrary until the lamp shape is compared.

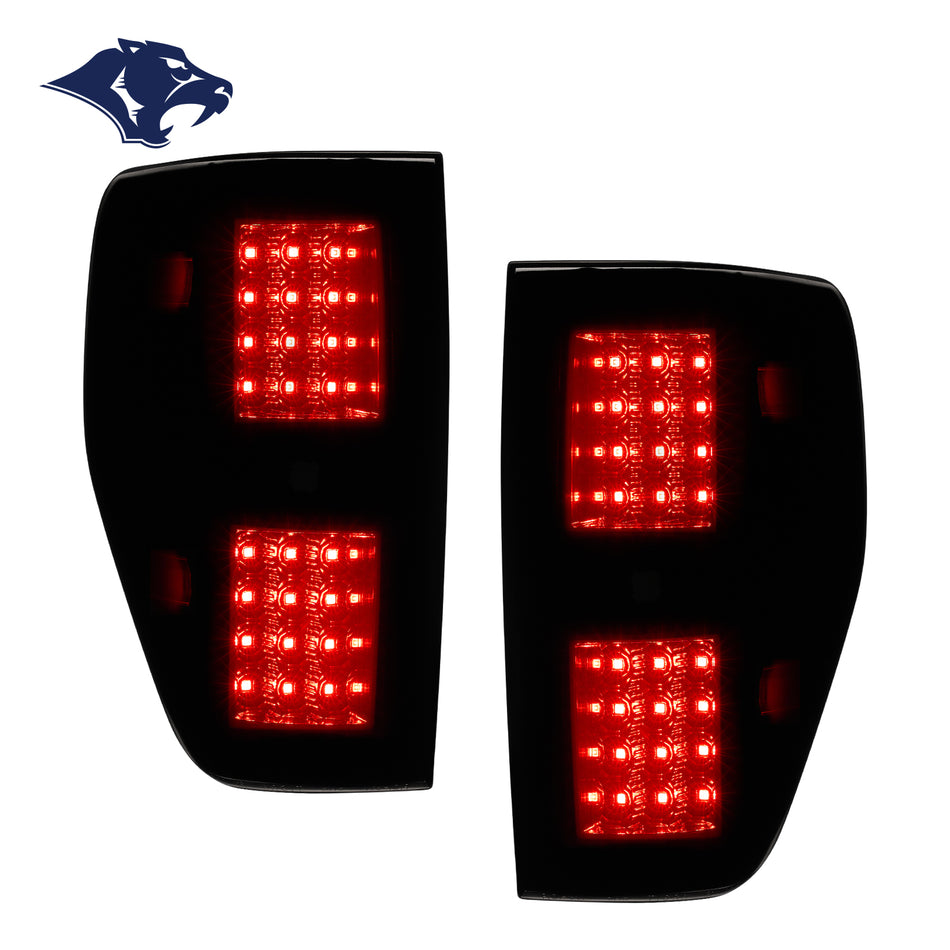

The 2015-2017 and 2018-2020 F-150 segments are both 14th generation. The body is the same generation, but the tail lamp design was revised partway through it, so the lamp on a 2016 and the lamp on a 2019 are not the same part. Same generation, different lamp.
The 2009-2014 segment is a full generation on its own, 13th generation, and the 2021-2023 segment is the 15th. Where a generation boundary and a lamp revision happen to line up, the segment covers both at once. Where they do not, the segment covers the lamp.

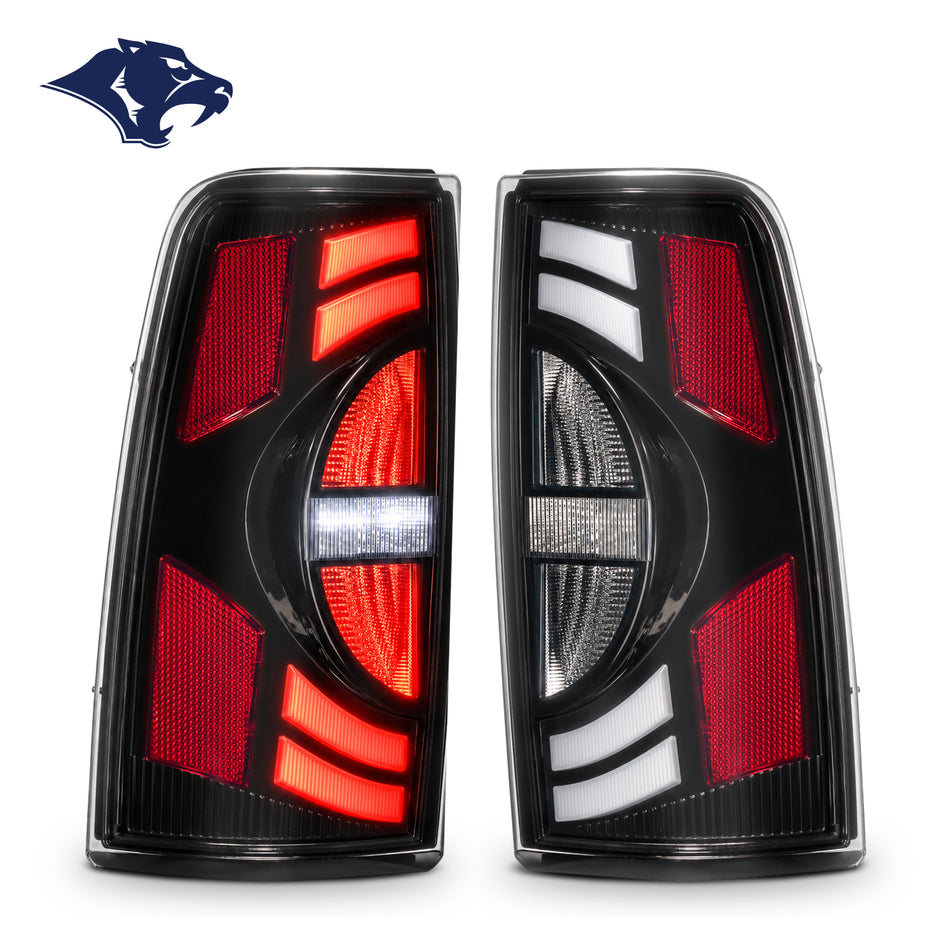

GM trucks are split by platform code instead. The 1999-2002 Silverado and Sierra share the GMT800 body, and the 2003-2007 models move to GMT900 with a different bedside and a different lamp housing. The Chevrolet Silverado LED tail light assembly for the 1999-2002 range and the one for 2003-2007 are not the same unit, and the split holds whether the truck is a 1500, a 2500 HD, or a 3500.

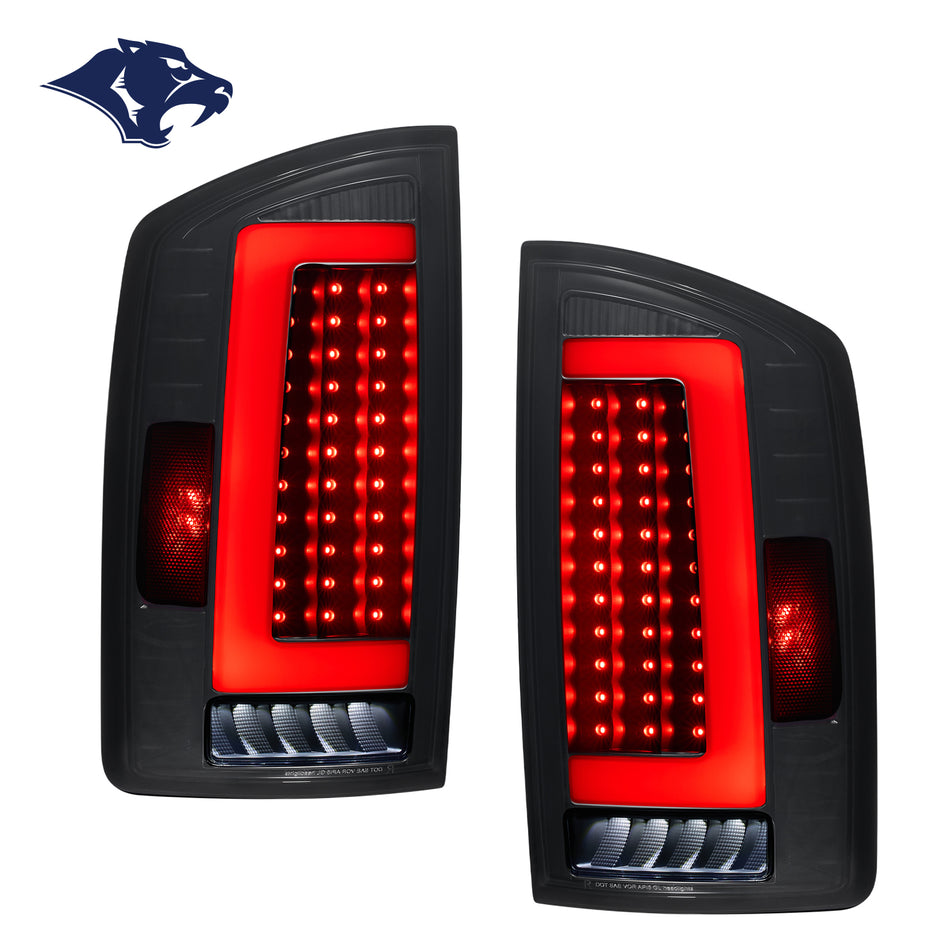

Dodge Ram LED tail light assemblies split across three body generations. The 2007-2008 Ram lamps sit in their own segment between the 2002-2006 and 2009-2018 lamps, and the 2009-2018 range covers the generation that introduced the 6.7L engine. The body shape and the lamp changed together at that boundary, so the engine and the lamp segment line up here by coincidence rather than by rule.
Color Availability Changes From One Segment to the Next
Finishes are not spread evenly across the year segments, and this is the single most common reason a correct fitment still cannot be ordered in the wanted color. The color choice is made once, at the segment level, and it does not carry over to the next segment.

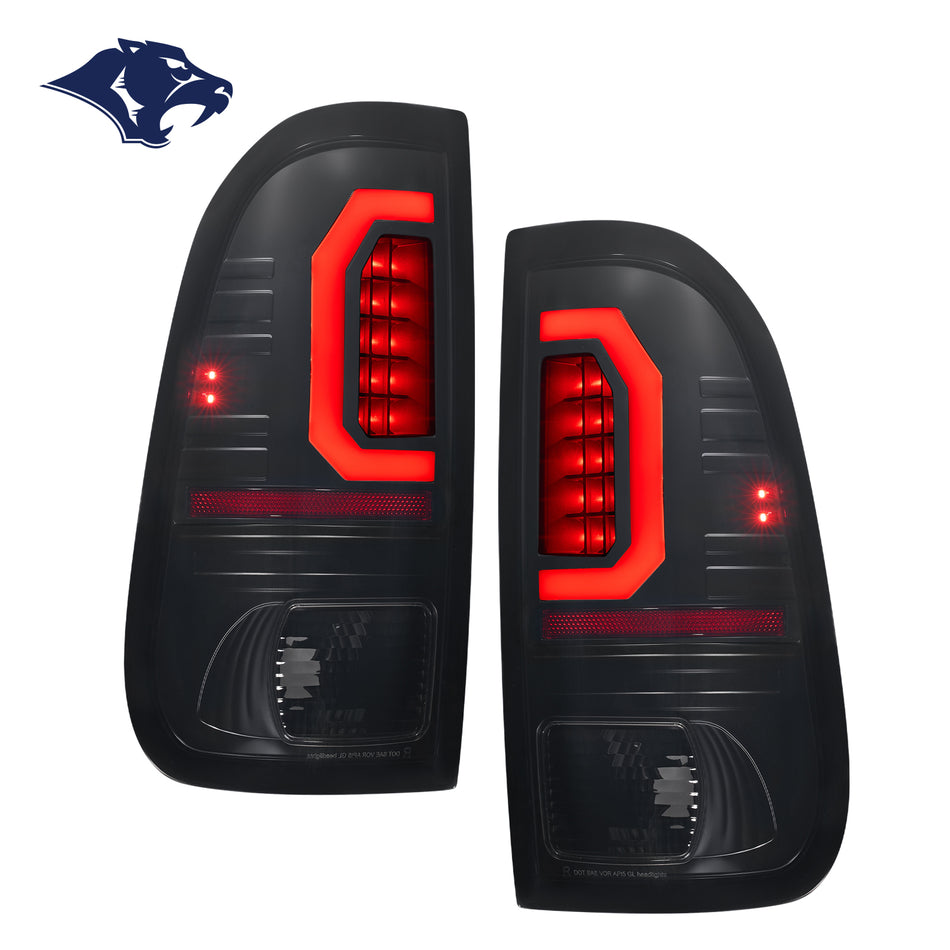

Smoked is available for the 1997-2003 F-150, the 2009-2014 F-150, the 1999-2007 Super Duty, and the 2002-2006 Ram. Black is available for the 2008-2016 Super Duty, the 2007-2008 Ram, and the 2009-2018 Ram. Red is available for the 2015-2017, 2018-2020, and 2021-2023 F-150, the 2009-2018 Ram, and both Silverado and Sierra ranges. The Silverado and GMC Sierra LED tail light assembly is also offered in an Upgrade finish across both of its platform ranges.
Two gaps follow from that list. A smoked F-150 LED tail light assembly is not available past 2014, because the 2015-2023 F-150 segments are finished in red only. A smoked Super Duty LED tail light assembly stops at 2007, because the 2008-2016 segments are finished in black only. Smoked and black together cover the middle years of the Ram line without overlapping. For buyers set on one finish across a range of model years, the LED tail lights offered in black and red cover the broadest stretch of any option here.
Red is the only finish that spans both the F-150 and the Ram families at the same time. The Dodge Ram LED tail light assembly for the 2009-2018 generation is the single place where a red Truck LED Tail Light Assembly covers the most model years of any segment on the page, and it is the widest red coverage available for LED tail lights across the four families.
Year and Lamp Shape Decide Fitment, Not the Engine
Diesel engine badges are the most common search terms for truck parts, and they are the least reliable input for a tail light. The engine badge says what is under the hood. The lamp has to match the sheet metal at the rear corner of the bed, the socket geometry, and the connector.
A 6.7L Cummins Dodge Ram LED tail light assembly covers the 2009-2018 Ram body. A 6.6L Duramax Chevy Silverado LED tail light assembly covers a GM platform code. Neither engine badge narrows the choice further than the body already does, and neither one tells you which of the four segments on the table applies. What the engine badge tells you is which fuel the truck burns and roughly how long it has been on the road, which is useful for judging the condition of the factory lamp you are replacing.
The same logic applies on the Ford side. A Ford F-150 LED tail light assembly for the 2009-2014 segment fits a gasoline or diesel F-150 alike, because the truck's engine has no bearing on the shape of the lamp behind it.
What Plug and Play Covers, and Where It Stops
These assemblies are built to install at the factory mounting locations and connect to the factory wiring, with no drilling, no cutting, and no custom body work on the applications they are designed for. On a truck with a standard factory lighting setup, the job is removing the original lamp, moving the socket over, and bolting the new unit into the same holes.
Several factory options and electronic features sit outside that. Trucks built with factory LED tail lighting, with blind-spot monitoring, or with a camera or sensor arrangement in the bumper may require additional components to be transferred, extra wiring or load resistors, or a vehicle programming step to clear a bulb-out or communication fault after the swap. A Truck LED Tail Light Assembly on such a truck is still the right part, and the extra step is what makes the installation a full job rather than a quick one.
Connector and bulb configuration also vary between year segments of the same generation. Confirming which variant applies before the lamp is ordered is what keeps that step predictable.
Six Things to Confirm Before Ordering
Assembled from the fitment data on these assemblies, the checks that decide whether a lamp arrives usable are all visual or written down on the truck itself. None of them requires removing anything.
| Check |
Where to look |
Why it decides the part |
| Model year |
Build sticker on the door jamb or the registration |
Sets which year segment applies |
| Make and model |
Tailgate badge |
Separates F-150 from Super Duty, and Silverado from Sierra |
| Body style |
Fleetside or Stepside, single or dual rear wheel |
Changes the bedside and the lamp opening |
| Lamp shape |
The factory lamp, compared against the product images |
The most direct check of whether the housing matches |
| Connector and bulb configuration |
The socket behind the factory lamp |
Decides whether extra wiring or a resistor is needed |
| Factory lighting configuration |
Window sticker, or the equipment list on the build sheet |
Identifies factory LED, blind-spot and camera equipment |
Each Truck LED Tail Light Assembly is sold as a driver-side and passenger-side pair with the installation hardware specified for the selected variant. Since the left and right lamps differ on every truck, replacing one side alone means a mismatched pair on a vehicle with the LED light signature. A pair of LED tail lights ordered together keeps both sides on the same generation and the same finish.
LED lighting sold for road use is subject to the lighting rules in the state or country of registration. Checking that the assembly carries the certification marking required locally is worth doing before the lamp is fitted.
