LED Tail Light Assembly Pair For 2002-2018 Dodge Ram 1500/2500/3500 | SPELAB

Product Overview

Dodge Ram 1500/2500/3500 LED Tail Light Assembly Pair replaces cracked, faded or mismatched rear lamps on compatible trucks with matching driver-side and passenger-side assemblies. Choose smoked, black or red styling for your truck's model year to update its rear lighting and appearance, with housings designed around compatible factory mounting points and electrical connections.

The early smoked lamps are listed for 2002–2006 Ram 1500 and 2003–2006 Ram 2500/3500. For later trucks, choose the matching black or red lamps and check the original tail light system as well as the model year. The 2007–2008 black option is listed separately and needs its own fitment check.

These are complete replacement lamp assemblies, not bulbs for your existing housings. The LED sections and reverse-bulb arrangement differ between lamps; the later black pair is for factory incandescent/halogen tail light systems and does not include reverse bulbs.

Key Features

• Both rear lamps in one set. Each selection supplies a driver-side and passenger-side assembly so the lens finish and lamp design match across the truck.

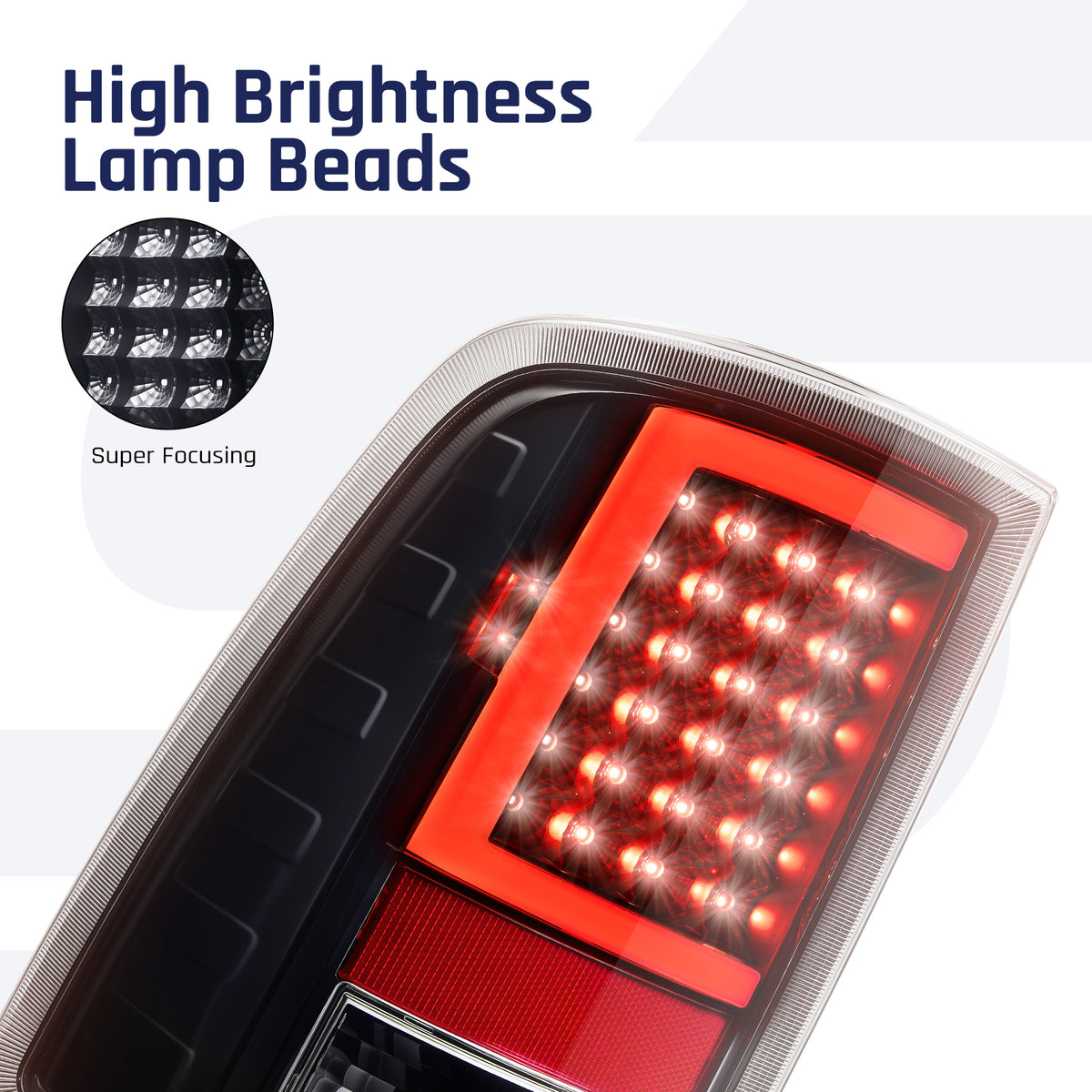

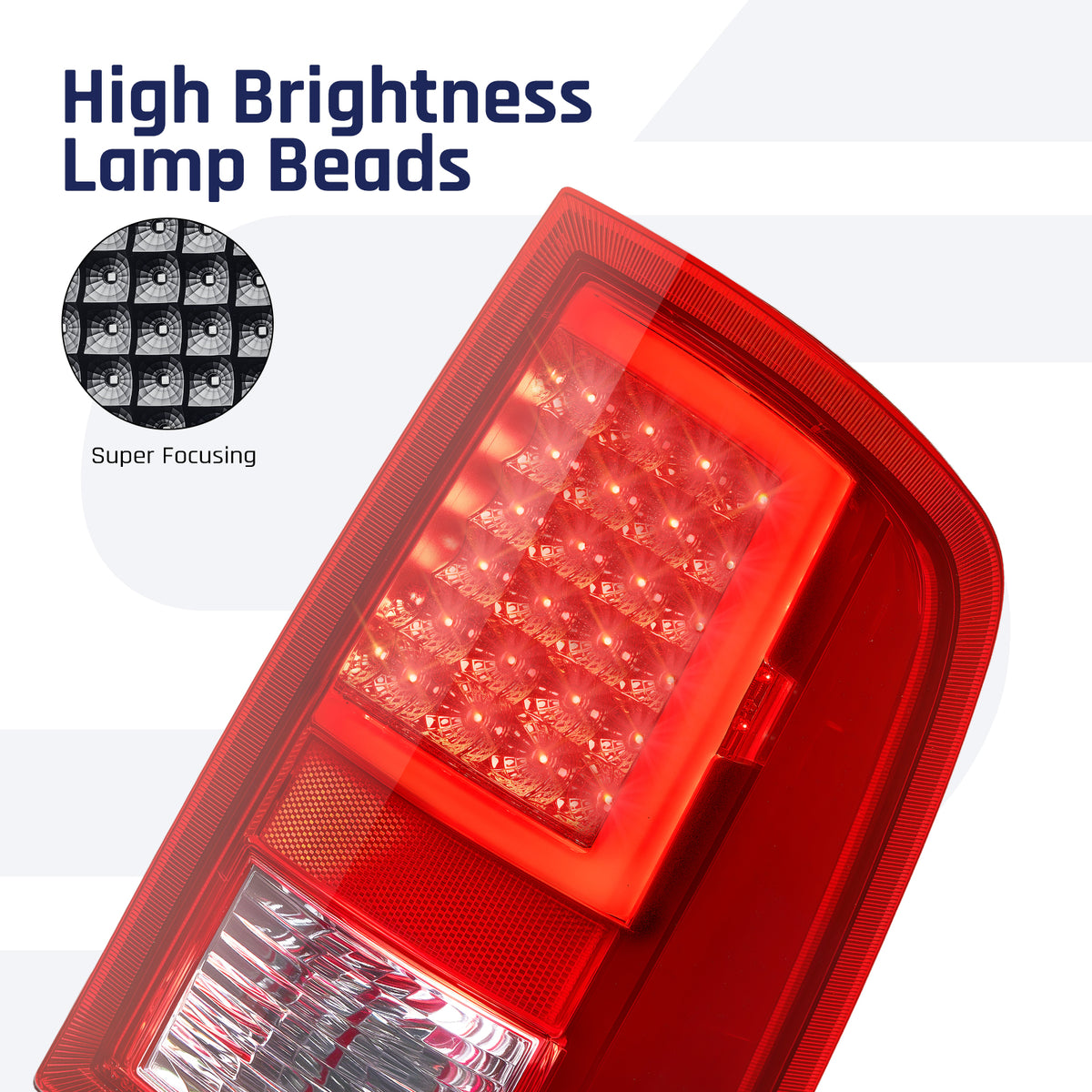

• LED rear-light design. The LED sections change the illuminated appearance of the lamps while retaining the rear-light functions required by the matching truck. Check running, brake, turn and reverse functions after fitting.

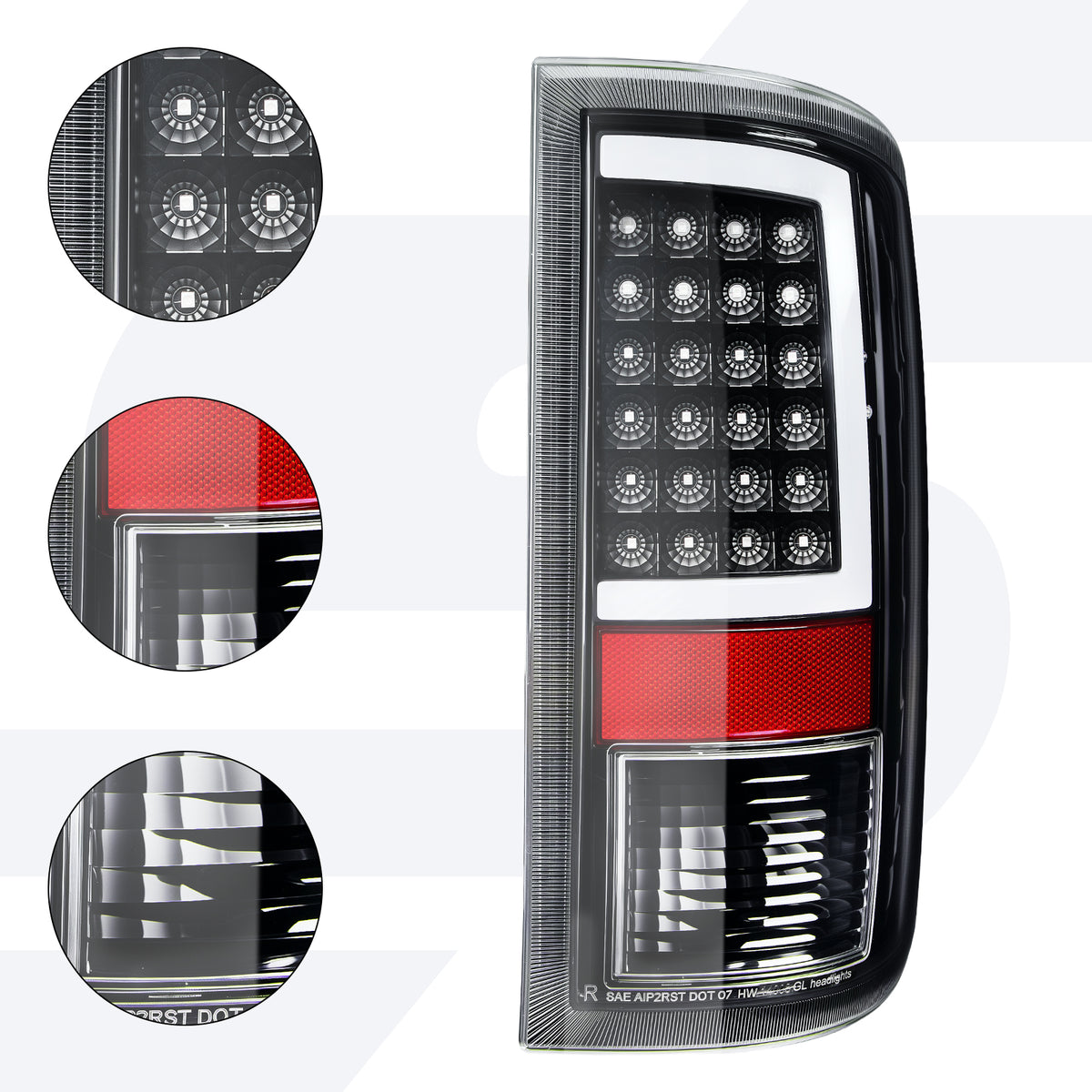

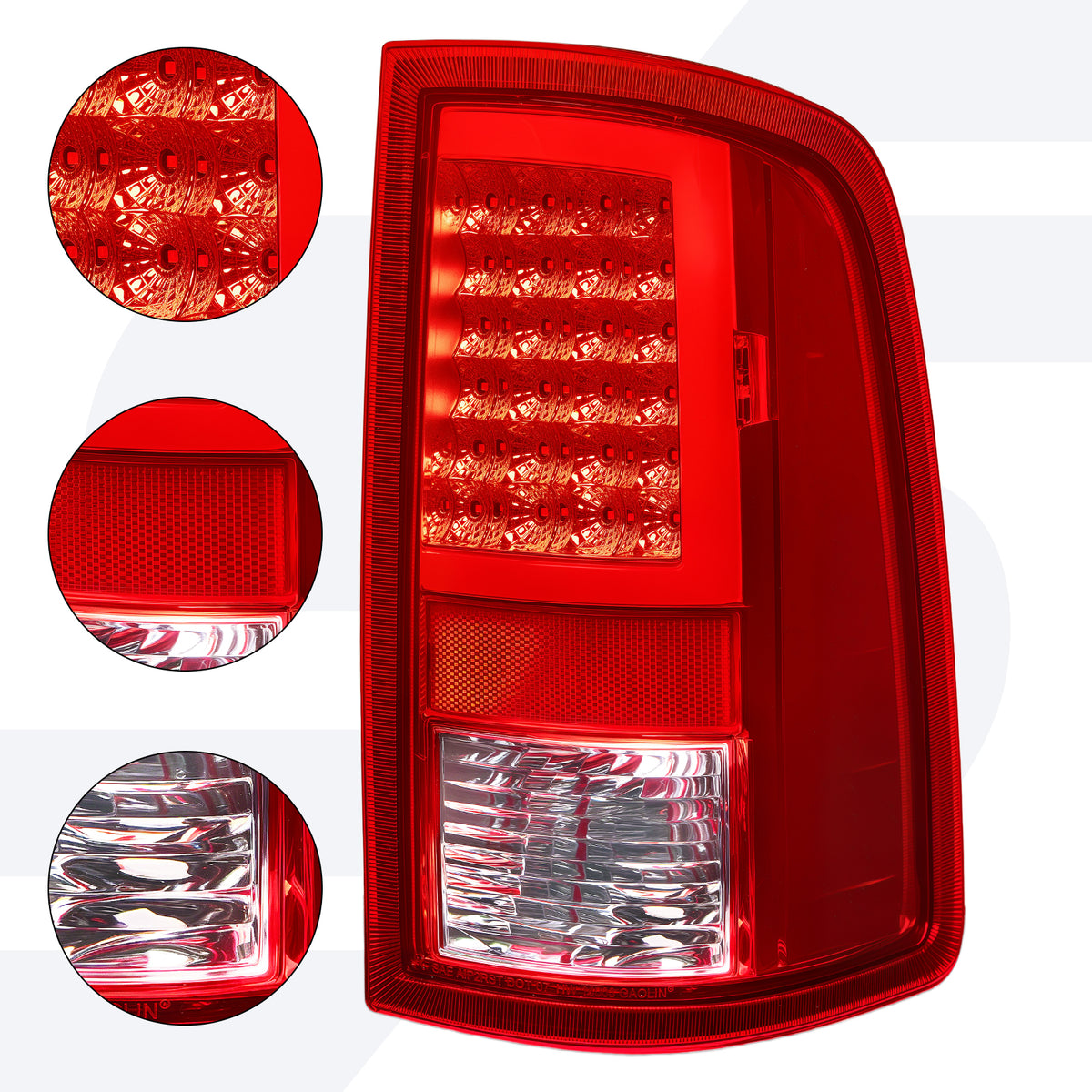

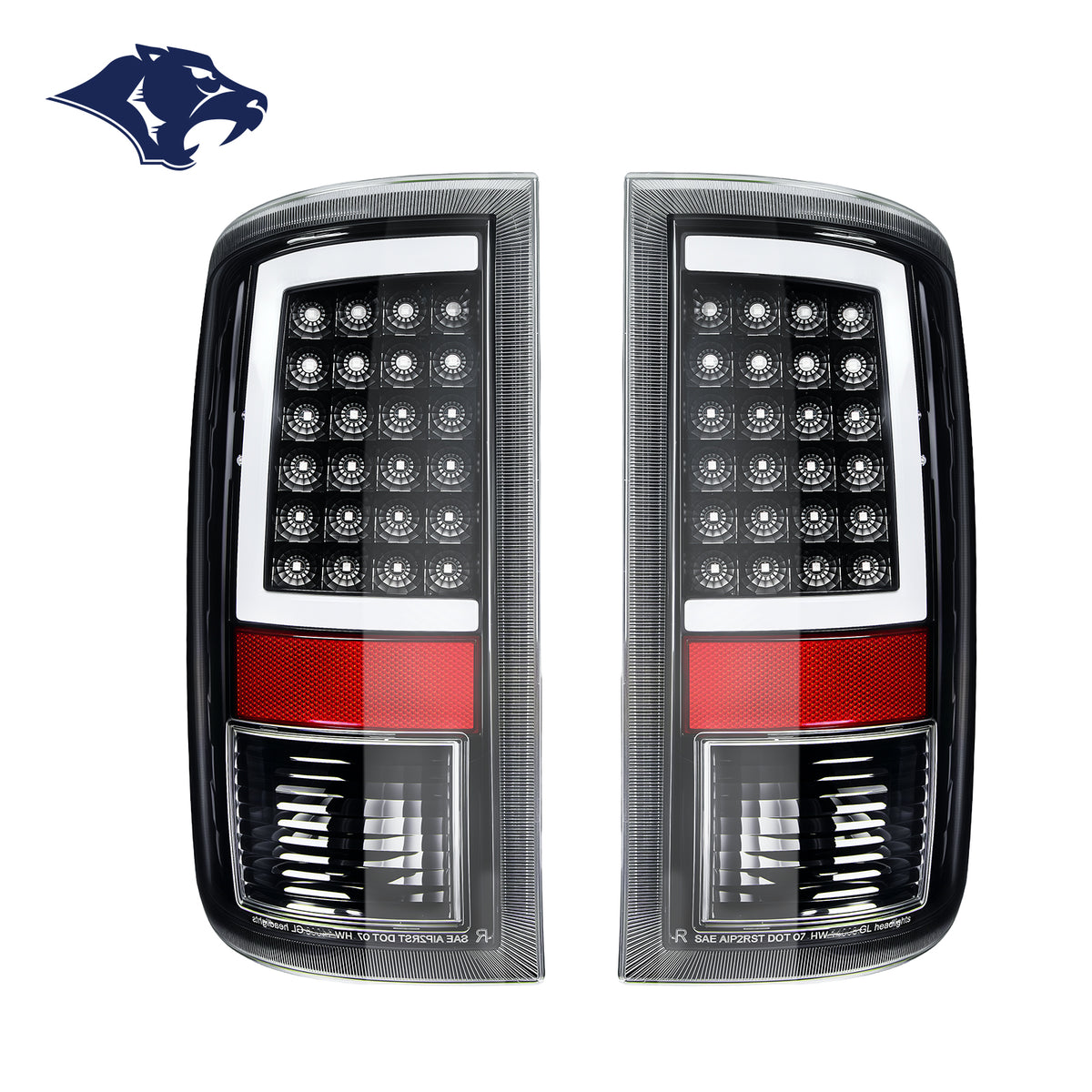

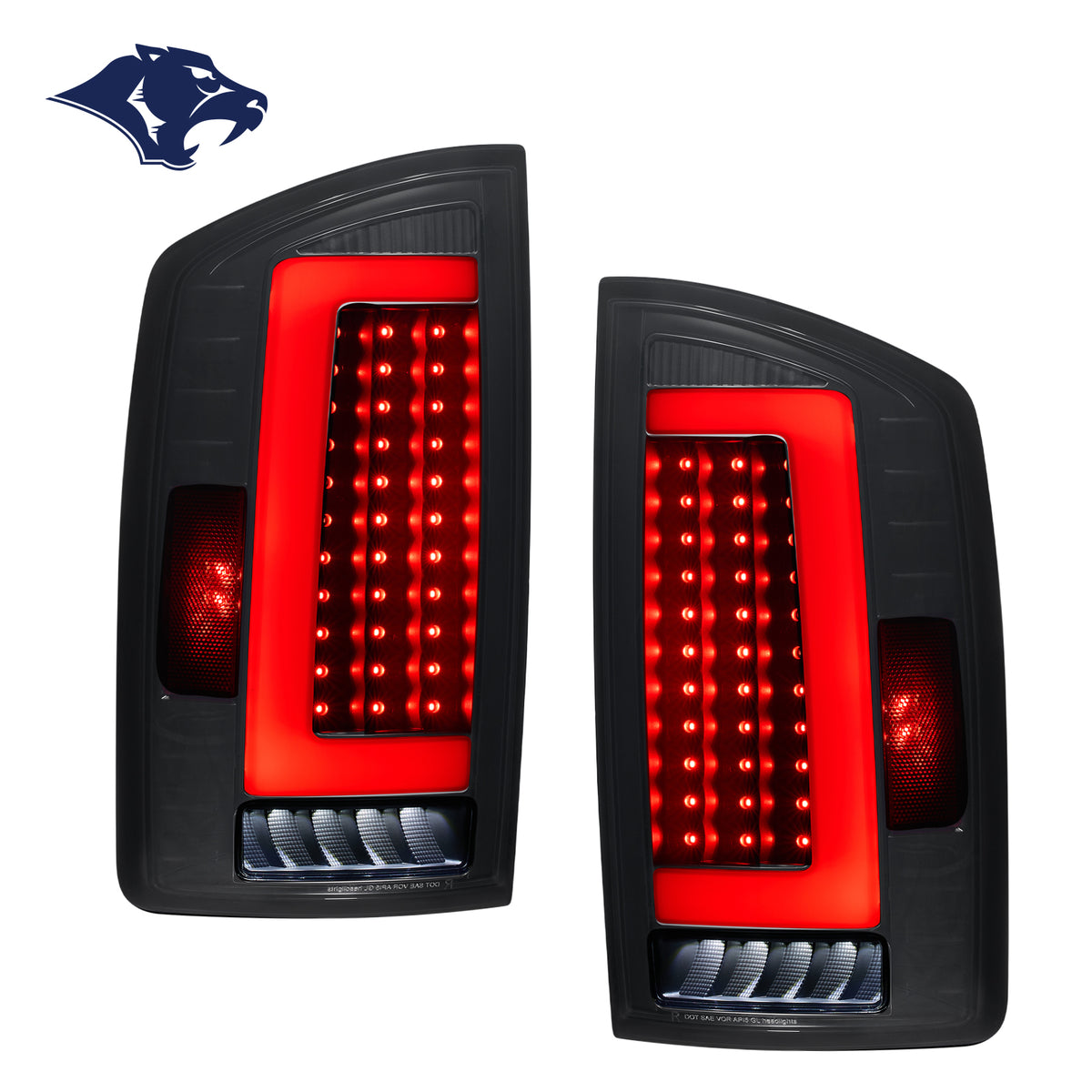

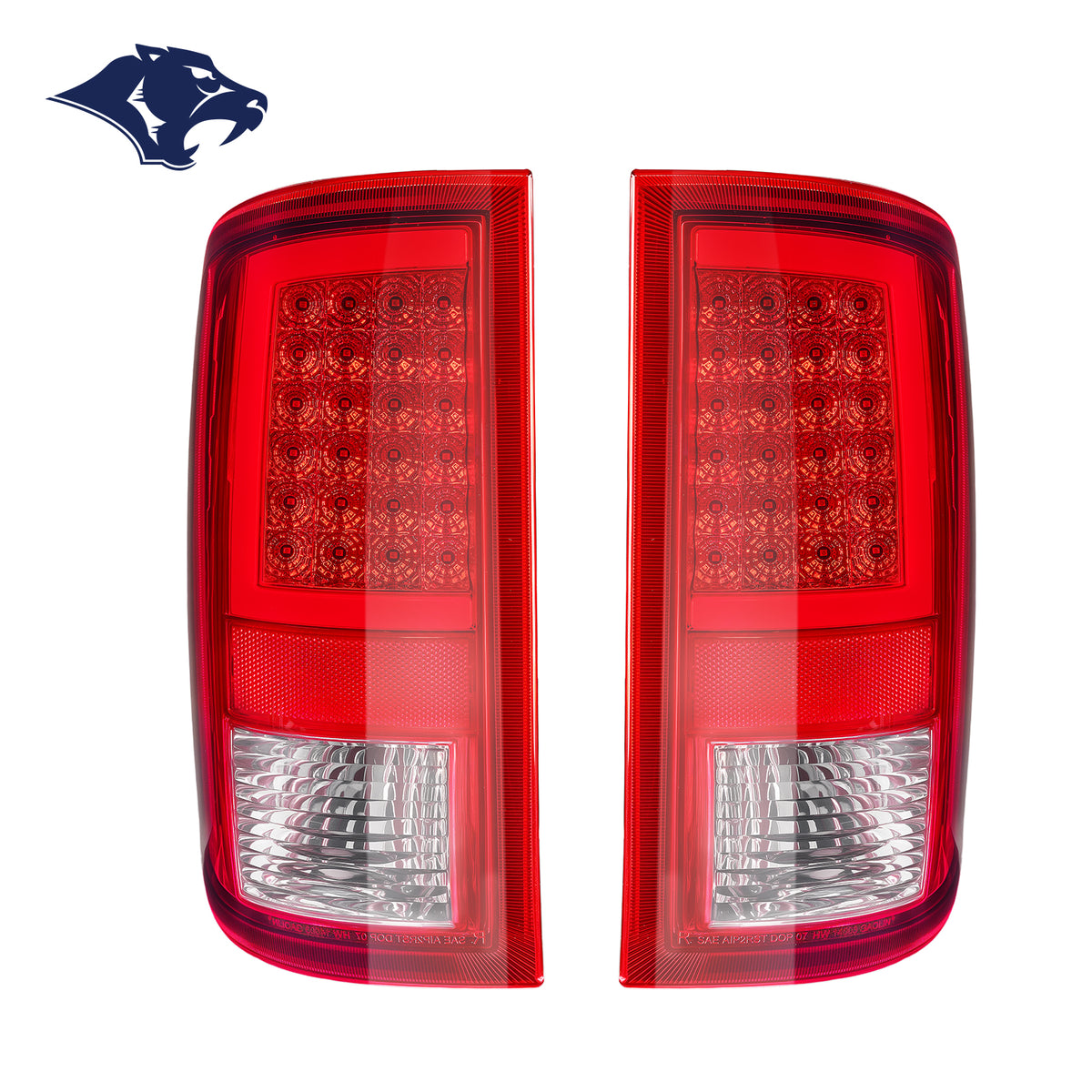

• Smoked, black or red styling. Choose the finish offered for your model year. The early smoked lamps give a darker unlit appearance, while later black and red choices offer different finishes for the corresponding lamp design.
• Original mounting locations on compatible trucks. Match the housing, mounting points and plugs to replace the original assemblies without cutting new openings in the truck body.
• Clear separation of original lamp systems. The later black lamps replace factory incandescent/halogen tail lights. An LED replacement assembly for a bulb-equipped truck is not automatically compatible with a truck that came with factory LED lamps.
• Replaceable reverse-bulb section on the later black lamps. Reverse bulbs are not supplied with that pair, allowing you to reuse the correct serviceable bulbs or fit matching replacements.

Best For

• Replacing damaged or weathered housings: owners dealing with cracked lenses, broken mounting points or aging rear lamps.
• Updating both sides together: trucks with mismatched lamp finishes or an older lamp on one side and a newer replacement on the other.
• Older Ram restoration: 2002–2006 Ram 1500 and 2003–2006 Ram 2500/3500 owners choosing the matching smoked pair.
• Later trucks with factory bulb-type tail lights: owners choosing the matching black LED assemblies while retaining the correct reverse bulbs and sockets.

If only a serviceable bulb has failed, check the bulb, socket and wiring first. Replacing the housing alone will not repair a corroded connector, damaged vehicle wiring or an existing electrical fault.

Lighting Functions and Bulbs

The replacement housing brings the rear-light sections together, but an LED lamp assembly can still use a separate bulb for reverse lighting. Do not assume that every light source is integrated LED or included in the package.

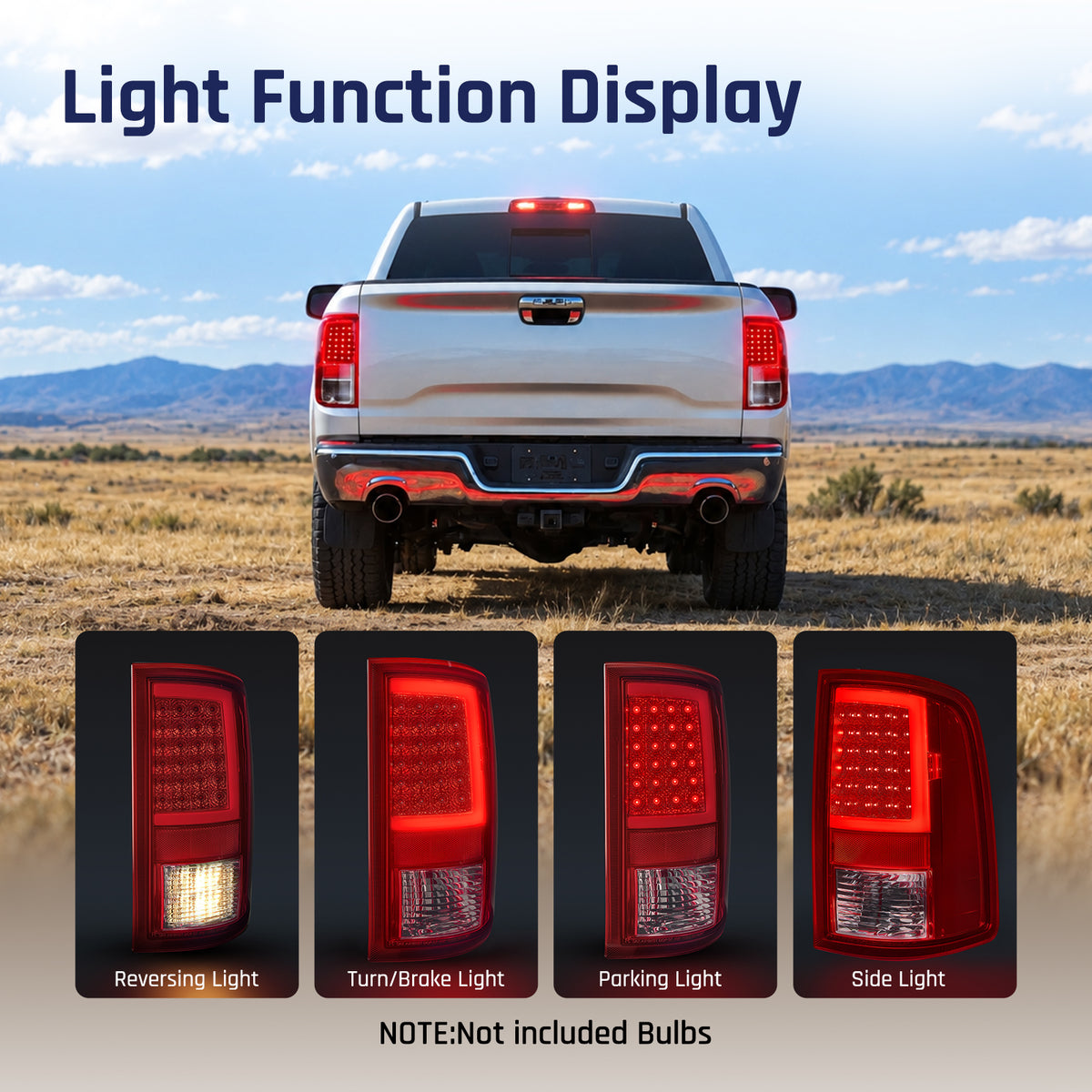

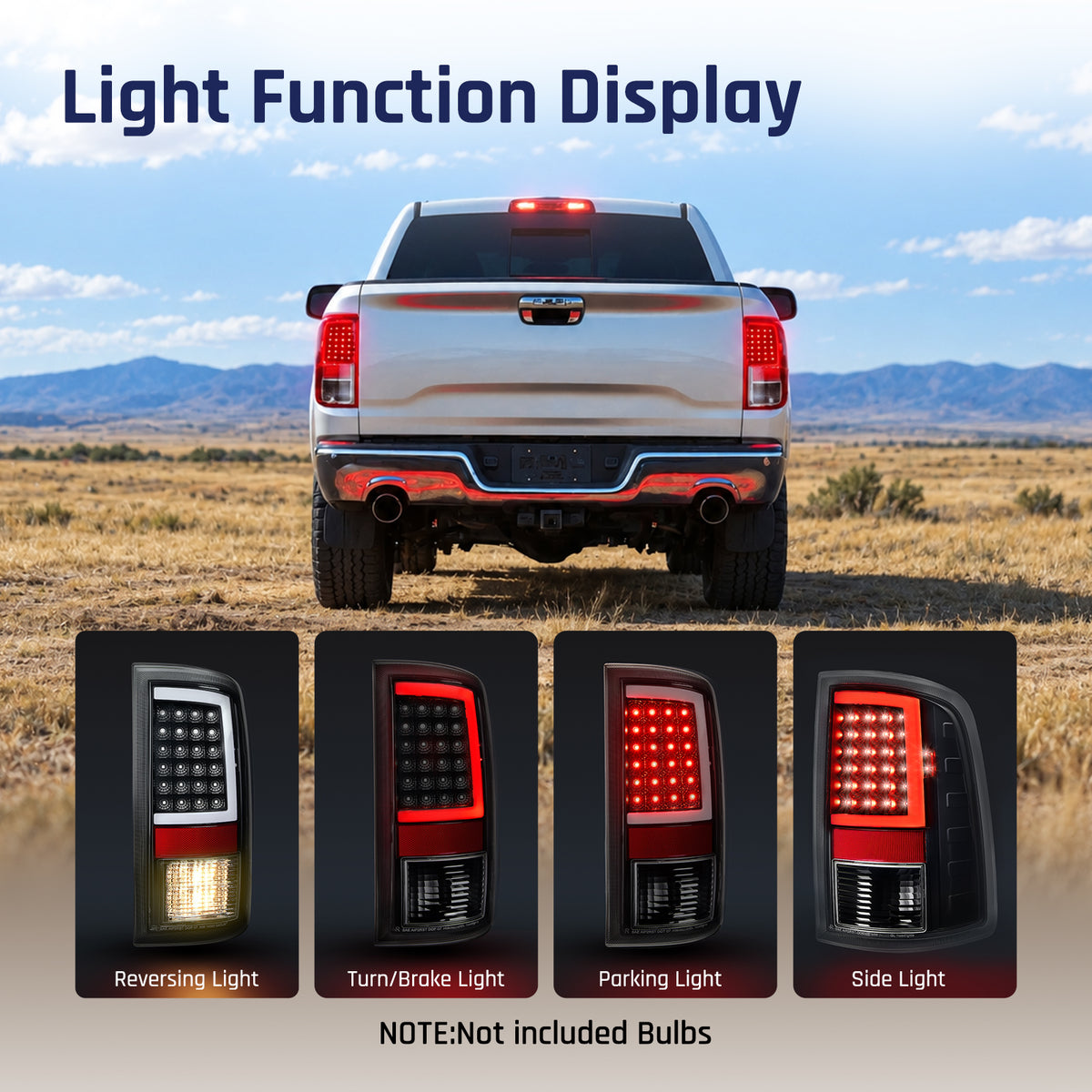

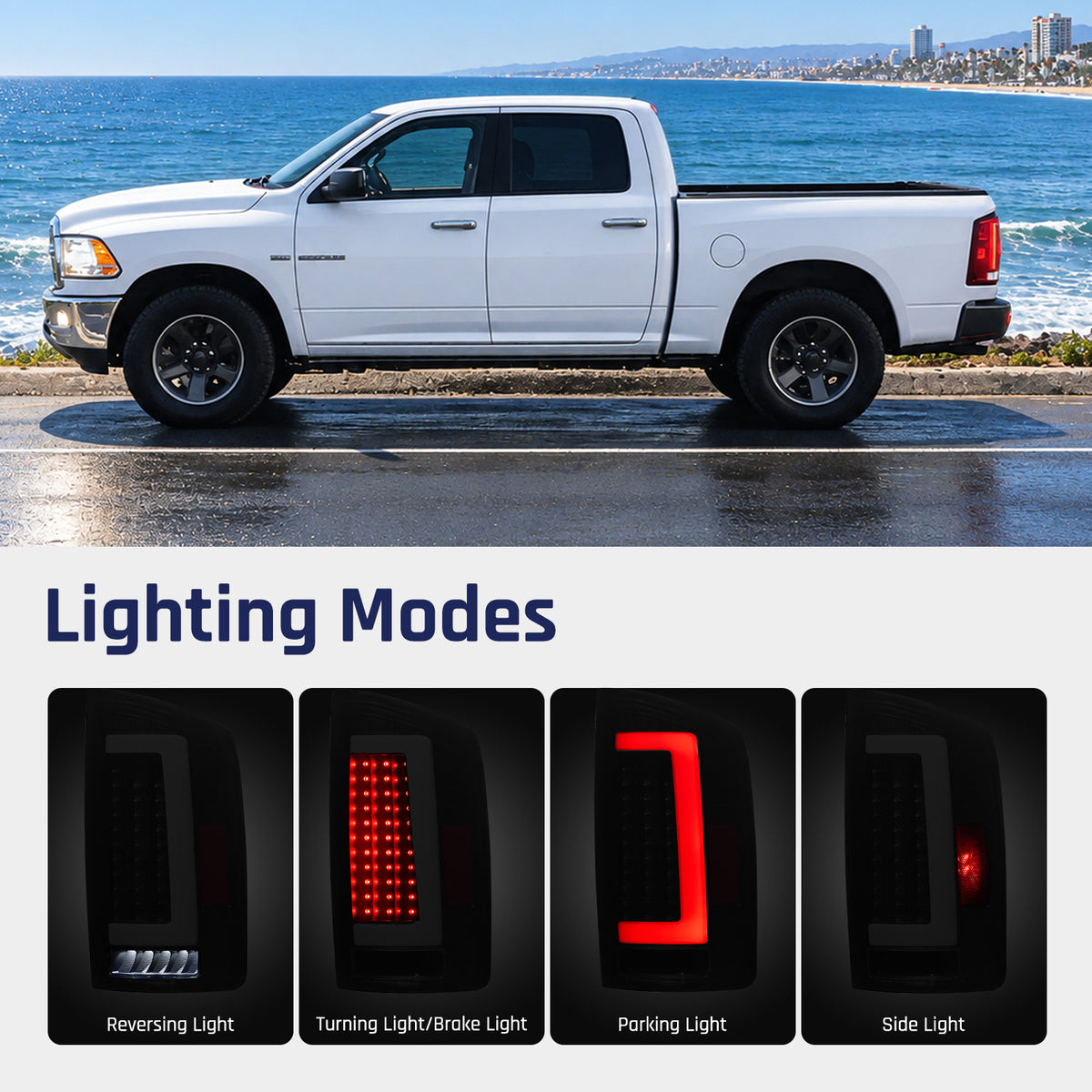

The illustration shows the lamp sections. Bulb supply and the exact illuminated pattern depend on the selected lamps; check the package and instructions for your truck.

What's Included

Additional harnesses, resistors, replaceable bulbs and mounting hardware are included only where specified for the selected lamps. Check all parts before starting so you know which original components to reuse.

Installation Steps

Use the instructions for the selected lamps and your truck's service procedure. The sequence below explains the general process; fasteners, sockets and connectors differ between generations.

1. Compare the new lamps with the originals. Match the truck model, year, housing shape, mounting points, plugs and original LED or incandescent system. Complete the checks under Fitment before changing any wiring.
2. Prepare the truck. Park on level ground, apply the parking brake and switch off the ignition and lights. Follow the vehicle service procedure for electrical isolation where required.
3. Remove the old assemblies. Open the tailgate, remove the applicable fasteners and release each lamp as directed. Disconnect the plugs by their locking tabs, without pulling on the wires.
4. Transfer the required parts. Fit the correct serviceable bulbs, sockets and mounting pieces where required. Check socket seals and replace damaged components rather than forcing them into the new housing.

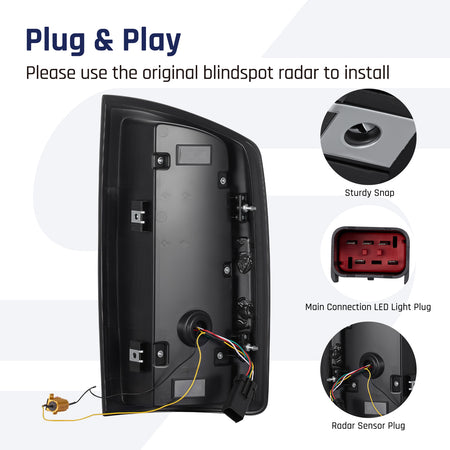

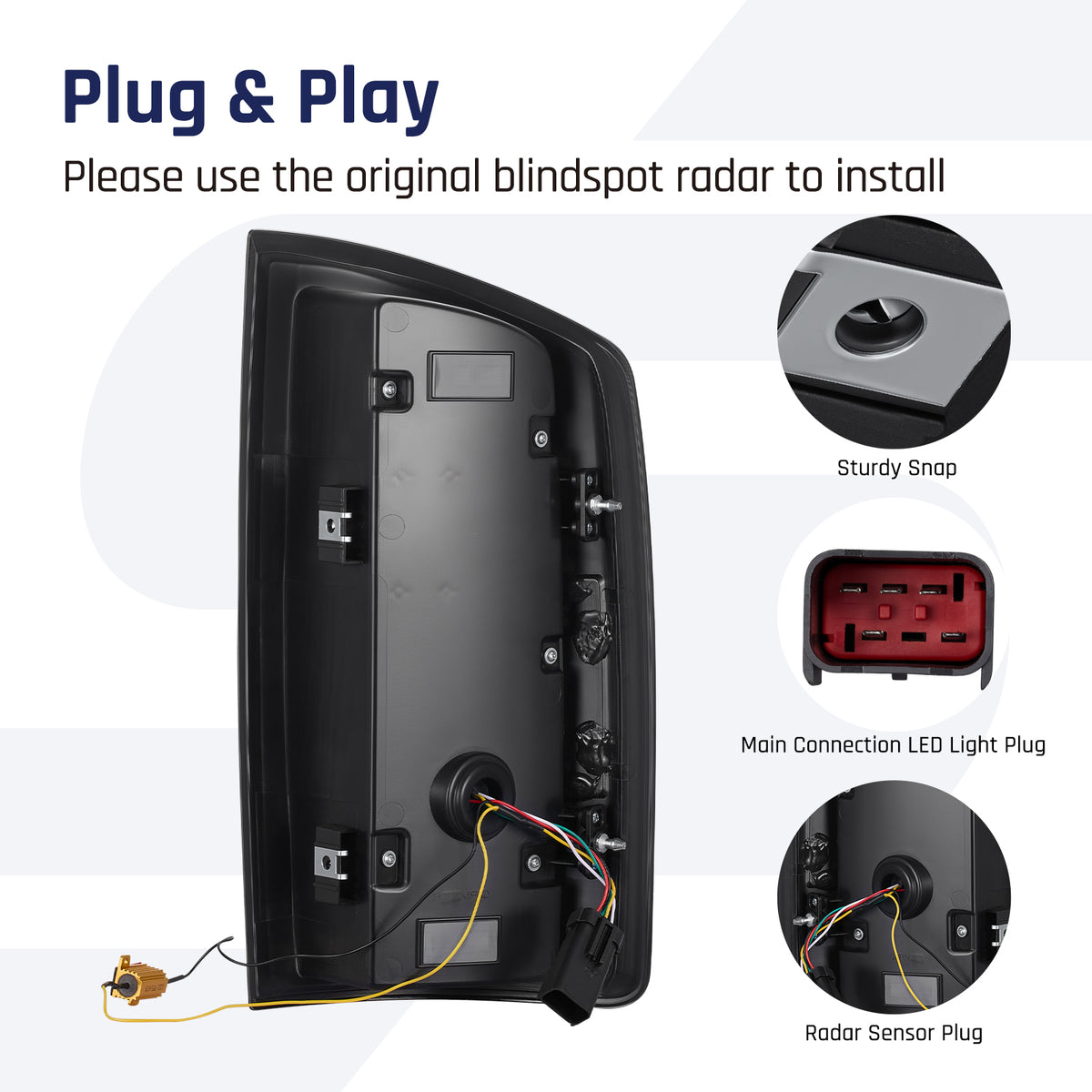

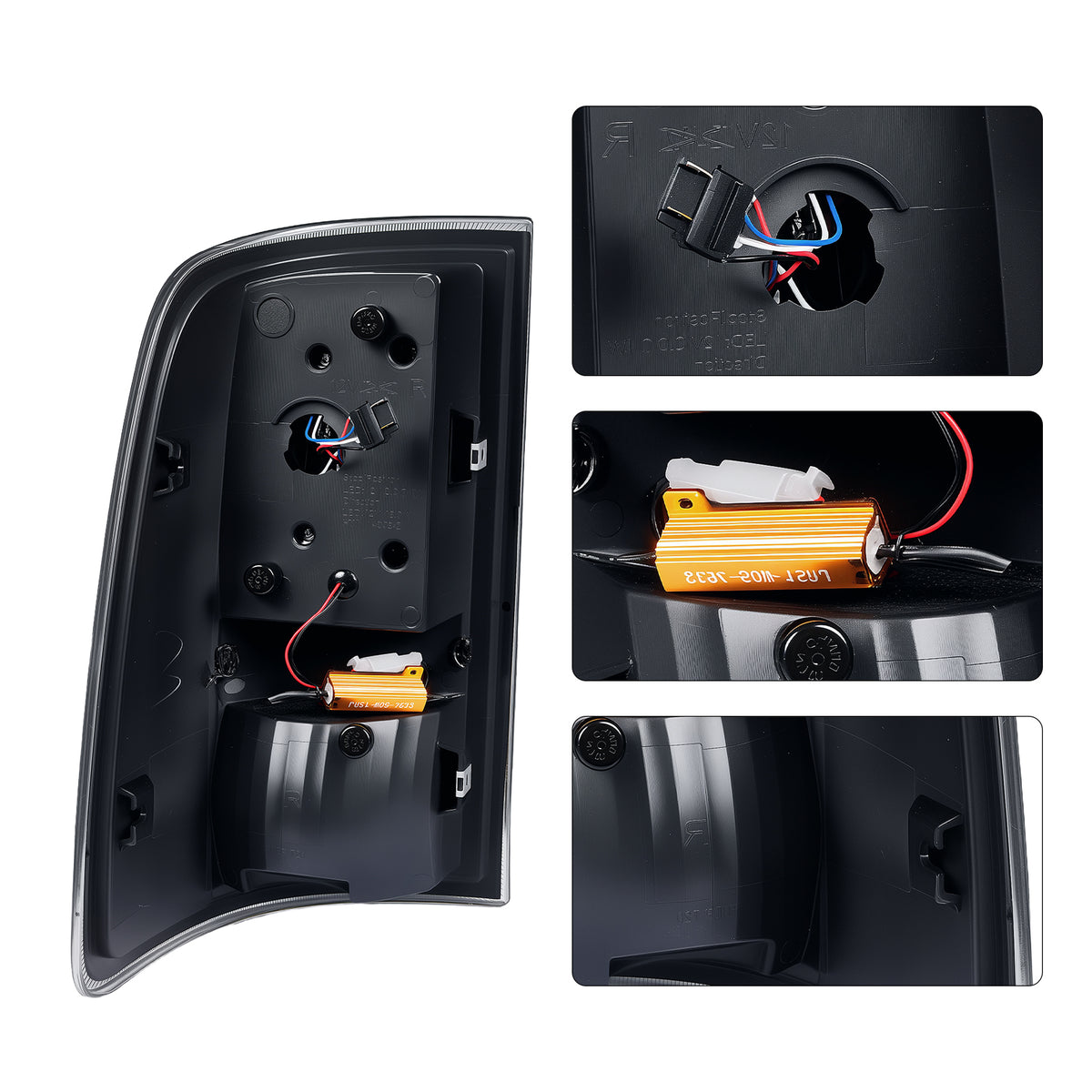

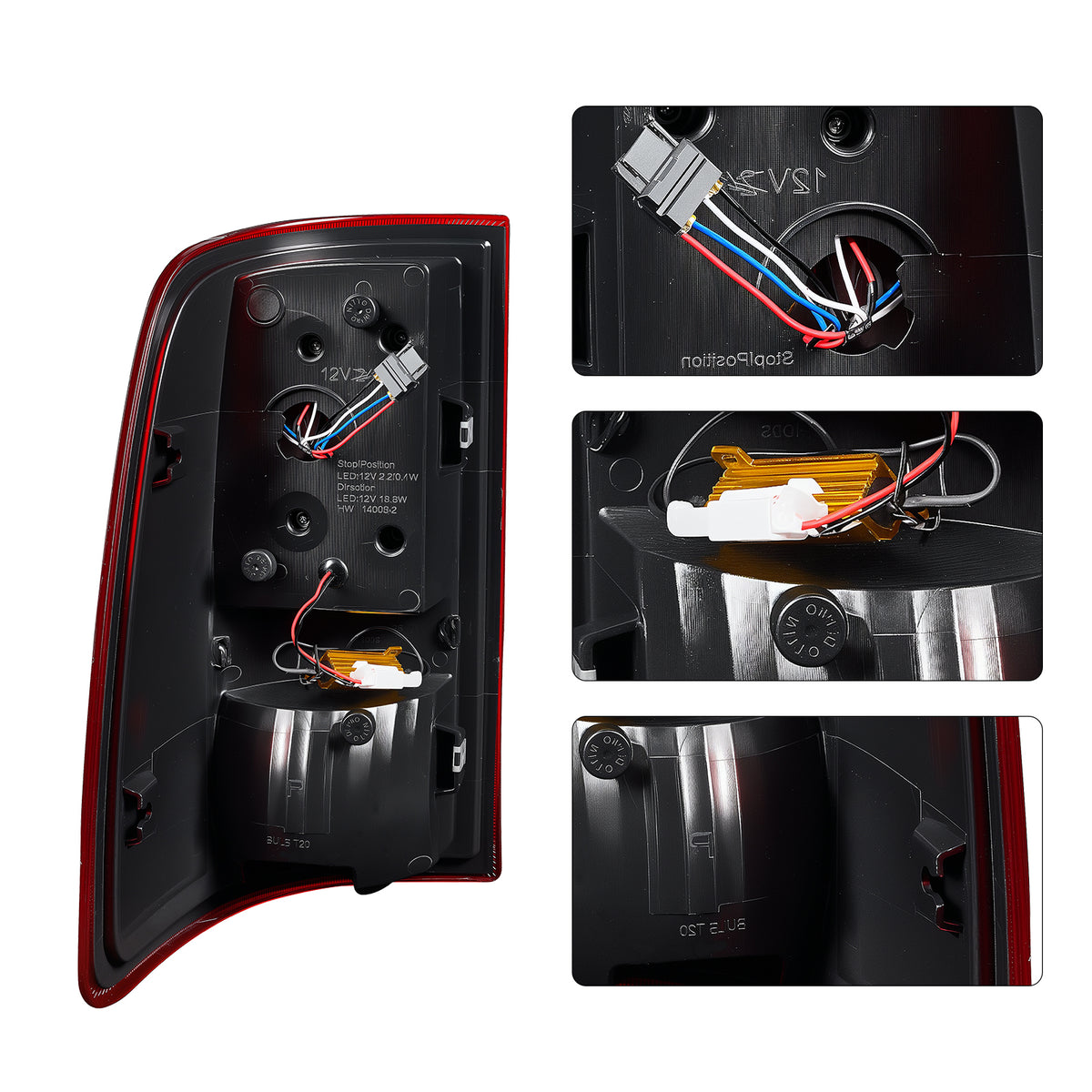

5. Connect the replacement lamps. Seat the matching plugs fully and follow the instructions for any supplied harness or resistor. Keep resistor heat away from plastic parts and wiring.
6. Secure the housings. Check that the mounting tabs engage, the lamps sit correctly and no wiring is trapped behind them. Refit the fasteners according to the applicable instructions.
7. Test every function. Check running lights, brakes, both turn signals, hazards and reverse lights. Resolve any rapid flashing, warning message or missing light function before driving.

If a plug or mounting point differs, stop and check the selected lamps. Do not cut the body or splice wires to force an incorrectly matched assembly to fit.

Warranty & Returns

One-year limited warranty from delivery: covers failures caused by material or workmanship defects during normal use. Coverage is non-transferable, applies to the original purchaser and requires proof of purchase.

Not covered: normal wear or cosmetic damage; improper installation or modification; accident, misuse, abuse, negligence or natural-disaster damage; consumable parts; and removal or installation labor.

Claim process: email service@spelabautoparts.com with your order number, issue description and clear photos or video. Inspection may be required. For an approved claim, SPELAB chooses repair, replacement or replacement parts.

30-day returns: request a return or exchange within 30 days of delivery. Non-quality returns require original undamaged condition and complete packaging, accessories, manuals and gifts; customers pay return postage and original shipping charges are non-refundable. SPELAB covers return postage for eligible damaged, incorrect or manufacturing-defect returns. Obtain authorization before returning items.

See the full Warranty & Return Policy for reporting deadlines and processing details.

Will These Tail Lights Fit Your Ram?

Match the truck model and year first, then the original lamp type and connector. Ram 1500, 2500 and 3500 did not all change lamp designs in the same model year.

Before You Order

• Check the original lamp system: a truck with factory LED tail lights may have different connectors or electrical requirements from one fitted with ordinary bulbs.
• Check generation-change years: the early 2500/3500 application starts in 2003. For the later black lamps, 2009 HD fitment needs confirmation; do not rely on the broad 2009–2018 selection label.
• For 2007–2008 and the red pair: confirm the exact model, lamp type, sockets, included parts and any electrical setup before ordering.
• For modified trucks: aftermarket lamps, altered wiring, custom rear bodies or changed mounting points need an individual check.

Send SPELAB the truck model, year and photos of the original lamps and plugs if you need help identifying the correct pair. A Cummins engine badge alone does not determine tail light compatibility.

Frequently Asked Questions

Are these complete tail lights or replacement LED bulbs?

They are complete driver-side and passenger-side lamp assemblies that replace the original housings. They are not a set of LED bulbs for the existing lamps.

Is the price for one lamp or a pair?

A pair: one driver-side assembly and one passenger-side assembly for the selection you choose.

Will the early smoked lamps fit a 2002 Ram 2500 or 3500?

The specified early application is 2002–2006 Ram 1500 and 2003–2006 Ram 2500/3500. Do not assume a 2002 HD truck fits because the selection starts at 2002.

Can I order the 2007–2008 black option?

The option is listed, but its exact application must be confirmed first. Provide the truck model, year and photos of the original lamps and connectors; do not substitute the early smoked or later black pair based on appearance alone.

Does the later black pair work with factory LED tail lights?

No. SPJN-EP09-00049000 is specified for trucks with factory incandescent/halogen tail lights. It is not presented as a replacement for a factory LED lamp system.

Do the later lamps fit a 2009 Ram 2500 or 3500?

Confirm 2009 HD trucks separately. The later black pair is listed here for 2009–2018 Ram 1500 and 2010–2018 Ram 2500/3500 with the matching factory bulb-type lamps.

Does having a 5.9L or 6.7L Cummins engine confirm fitment?

No. Tail lights are selected by model year, truck model, rear-body design, lamp type and connectors. An engine name does not confirm the lamp housing or electrical connection.

Are all lighting functions LED?

Not necessarily. These assemblies use an LED rear-light design, but separate replaceable bulbs may still be needed. The later black pair has a reverse-bulb section and does not include reverse bulbs.

Are reverse bulbs included?

They are not included with SPJN-EP09-00049000, the later black pair. Reuse the correct serviceable bulbs or obtain matching replacements. Confirm the early smoked, red and 2007–2008 selections individually.

Do these lamps have sequential turn signals?

Sequential turn signals are not specified for these products. A light bar or LED outline does not by itself indicate sequential operation.

Will I need resistors or programming?

Follow the instructions for the selected lamps and original truck lighting system. The presence of an LED light source does not establish whether a resistor, adapter or programming is required. Do not add parts or change vehicle settings based only on another truck's installation.

What should I check if I get a lamp-out message or rapid flashing?

Check that the selected lamps match the original system, the plugs are seated, the bulbs and grounds are sound, and any supplied adapters are installed correctly. Record the affected function and whether the warning occurs on one or both sides before contacting support.

Will a lift kit affect tail light fitment?

A suspension lift does not normally change the factory lamp opening. Changed rear bodywork, custom lamps, modified mounting points or altered wiring can affect installation and need a separate check.

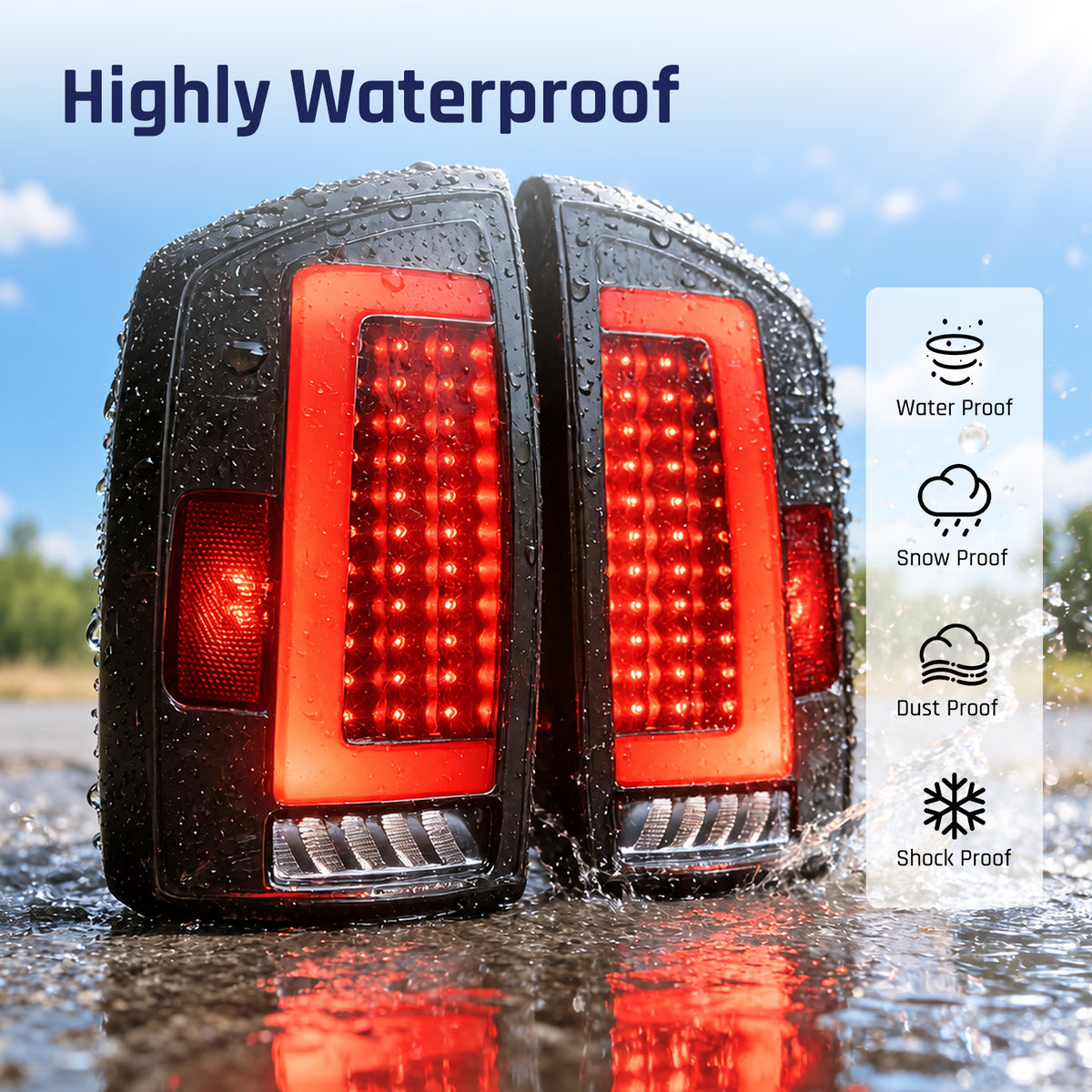

What should I do if water stays inside a lamp?

Photograph the moisture and check accessible sockets, seals and connections against the instructions. Persistent droplets, standing water or a lighting fault needs inspection. Contact support before drilling the housing or applying additional sealant.
