Updated on July 17, 2026.
Clean a truck valve cover when the cover is sound and only dirty, paint it when the exterior coating has failed but the part still seals, and replace it when cracks, warpage, damaged fastener points, failed ports, or repeat leaks make it mechanically unfit. Appearance comes last; gasket condition, crankcase ventilation, material, and fitment decide the job.
Key Takeaways
The right choice starts with leak diagnosis and material identification, not color.
- Clean: choose this for exterior grime, light oil mist, salt film, or a faded but intact finish.
- Paint: choose this for sound metal with chipped, stained, oxidized, or peeling coating.
- Reseal: use a gasket repair when the cover is straight and undamaged but the sealing joint leaks.
- Replace: retire a cracked, warped, stripped, or port-damaged cover after confirming the real leak source.
- Prep and cure: mask every sealing and ventilation surface, then follow the coating maker's instructions for the actual substrate.
Clean, Paint, Reseal, or Replace?
Match the repair to the defect: dirt needs cleaning, coating failure needs refinishing, joint leakage needs diagnosis and resealing, and structural damage needs replacement.
| What You Find | Best Starting Point | Check Before Work | Wrong Move |
|---|---|---|---|
| Dust, light oil film, mud, or salt residue; no active leak | Clean | Oil cap, breather area, connectors, and finish compatibility | Pressure-washing hot parts or open ports |
| Peeling coating, oxidation, stains, or a cosmetic build goal | Paint | Substrate, old coating condition, sealing rail, and cure instructions | Painting over oil, silicone dressing, rust, or loose coating |
| Fresh oil follows the gasket joint; cover checks straight and intact | Reseal | Gasket, grommets, fasteners, groove, sealing surface, and torque procedure | Adding paint or overtightening bolts to stop the leak |
| Crack, distorted rail, damaged insert, stripped hole, or broken port | Replace | Engine code, chassis, CCV layout, connectors, bolt pattern, and clearance | Using sealer or coating as a structural repair |
| Oil returns after a new cover or gasket | Diagnose first | Leak source, gasket position, fastener loading, cover condition, and nearby oil paths | Buying another cover before finding the cause |
Find the Leak Before Cleaning or Painting
Remove old residue, run the engine through a controlled check, and trace the first fresh oil before calling it a valve cover oil leak.
Start with a cool engine. Inspect the oil-fill cap and seal, gasket perimeter, bolt grommets, harness pass-throughs, sensor seals, rear corners, and any oil source above or beside the cover. Airflow can spread a small leak across the head and firewall, especially on a highway-driven diesel.
On a 6.7L Cummins, the top-cover assembly works with the factory CCV filter and breather path. A loaded filter, kinked or restricted hose, or another ventilation fault can raise crankcase pressure and contribute to renewed gasket seepage. Check filter service history, hose routing, fittings, and the factory blow-by diagnostic procedure before blaming the new gasket or cover. This check identifies a possible contributor; it does not prove that every leak starts in the CCV system.
A pinched gasket, dirty groove, uneven fastener loading, distorted rail, or damaged grommet can also cause repeat seepage. Follow the engine maker's diagnostic and torque procedure; more bolt torque is not a leak test.
Use the oil pattern and installation history to work through why a fresh installation can still seep before replacing a second part.
What a Proper Refresh Can Change
A sound cover can look factory-clean or custom-finished after correct prep, but refinishing does not improve a damaged gasket rail or ventilation port.
When Cleaning Is Enough
Keep the factory finish when the cover is dry, straight, intact, and carrying only removable grime or light surface oxidation.
Daily work trucks often need cleaning more than paint. Jobsite dust sticks to oil mist, salt-belt residue collects around fasteners, and off-road mud packs into ribs and bolt pockets. Cleaning first shows whether the surface is cosmetic or actively wet.
Use a cleaner compatible with the cover material and existing finish. Work on a cool engine, protect connectors and open ports, use soft brushes around lettering and recesses, and avoid flooding the harness valley. Removed covers are easier to clean thoroughly, but keep debris and solvent away from the exposed valvetrain.
Cast and billet aluminum can discolor under harsh alkaline cleaners or aggressive abrasion. Composite covers may react to solvents that are harmless to metal. Test a small hidden area and use a complete cleaning workflow when the finish and contamination need more than a wipe-down.
When Painting Makes Sense
Paint a valve cover only when the substrate and sealing features are sound and the selected coating system is approved for that material and operating environment.
Remove the cover for a full refinish. Strip loose coating and corrosion, remove oil from casting pores and recesses, scuff the exterior to the coating maker's specified profile, and let the part dry completely. Use a compatible primer when the coating system calls for one.
Mask the gasket rail and groove, internal surfaces, bolt threads, fastener seats, oil-fill sealing face, breather and CCV ports, sensor openings, hose barbs, identification marks needed for service, and any electrical ground contact. Paint thickness in those areas can create leaks, poor fit, contamination, or bad electrical contact.
Spray light, even coats within the product's temperature, humidity, flash-time, and recoat window. Dry-to-touch is not the same as cured. Follow the exact technical instructions for air cure or heat cure, and never use a metal-part bake schedule on composite plastic unless the material and coating makers explicitly approve it.
Use the full preparation and spray sequence before choosing wrinkle, satin, gloss, or a two-tone finish.
Match the Process to the Cover Material
Steel, cast aluminum, billet aluminum, and composite covers need different inspection and coating decisions.
| Material | Common Inspection Points | Refinishing Approach |
|---|---|---|
| Stamped steel | Rust, dents, pulled bolt holes, distorted flange, and old coating | Remove corrosion and loose finish; use a metal-compatible primer and topcoat when the flange remains straight. |
| Cast aluminum | Oxidation, porous oil contamination, cracks, damaged threads, and sealing-face condition | Degrease thoroughly and use an aluminum-compatible coating system without sanding critical sealing features. |
| Billet aluminum | Flatness, machined grooves, anodized or coated finish, port threads, and scratches | Confirm coating compatibility with the existing finish; protect every machined interface. |
| Composite plastic | Heat-cycle cracks, warped rails, damaged inserts, brittle ports, and chemical compatibility | Use only products approved for that plastic and avoid unverified solvent or oven-cure procedures. |
When Replacement Is the Better Repair
Replace the cover when it cannot hold gasket load, maintain flat sealing contact, retain its fasteners, or support its breather and service connections.
Cracks, a visibly distorted rail, stripped threads, loose molded inserts, broken hose ports, damaged oil-fill necks, and a recurring valve cover oil leak after a verified installation move the job beyond cosmetics. A gasket alone cannot correct a cover that no longer locates or clamps correctly.
As a parts manufacturer, we find that bench appearance is the easy check. Port location, sealing-groove dimensions, fastener alignment, harness clearance, oil-fill access, and the complete ventilation route decide whether the part works on the truck.
Diesel Truck Fitment Checks Before Ordering
Order by engine code, model year, chassis, cover configuration, and ventilation layout rather than by truck badge alone.
Ram Cummins, Ford Powerstroke, and GM Duramax covers can change across engine generations and chassis packages. Verify the VIN or engine code, pickup versus chassis-cab layout, gasket and bolt pattern, CCV or PCV connections, sensor and harness routing, oil-fill location, and clearance around intake and fuel-system hardware.
- 2006-2007 5.9L and 2007-2024 6.7L Ram aluminum valve cover options: treat these as separate engine-year ranges, then verify the chassis, exact cover configuration, ventilation routing, selected style, and product-page fitment before ordering.
- 2008-2010 6.4L Powerstroke billet valve cover: confirm F-250 through F-550 chassis details, side-specific requirements, connections, and clearance.

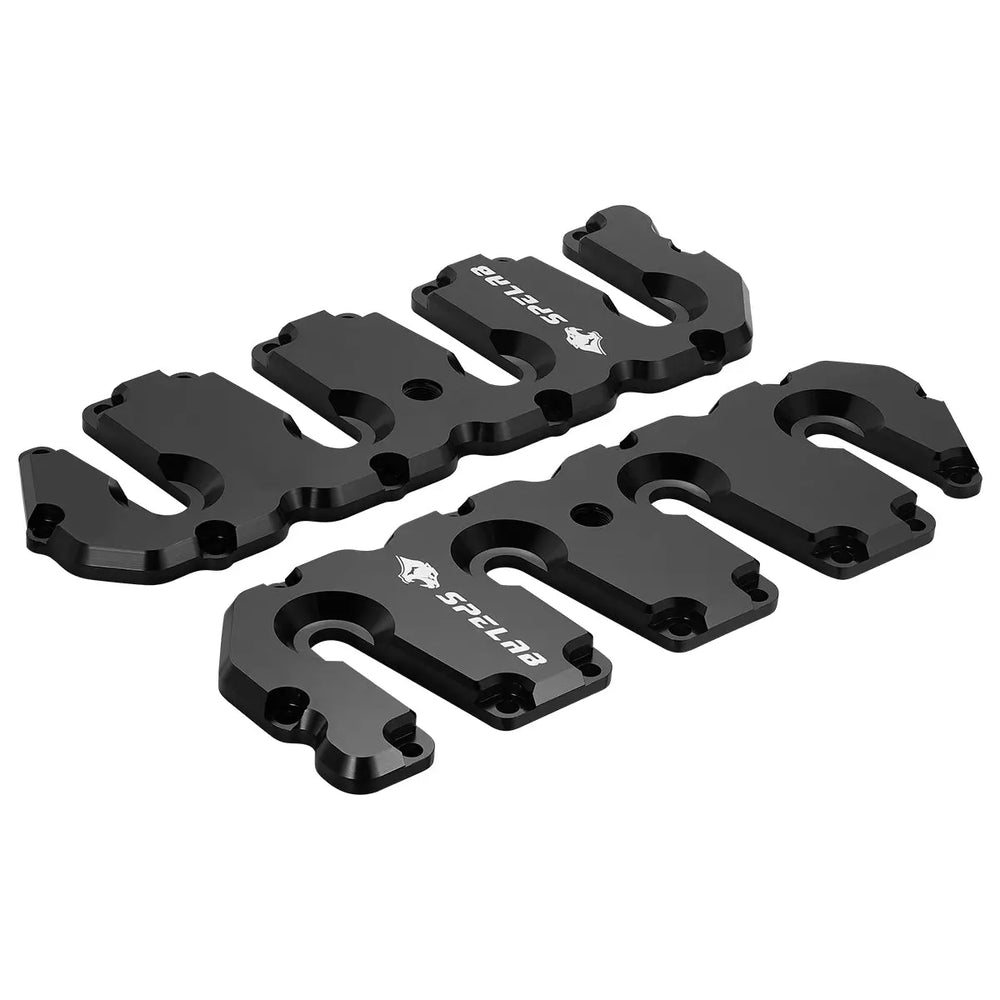

- 2004.5-2010 Duramax billet valve cover: verify LLY, LBZ, or LMM engine code, side, PCV routing, harness, and physical clearance.
Use the diesel-truck valve cover collection to compare supported platforms, then confirm every fitment note on the individual page before purchase.
Practical Work Sequence
Inspect, document, remove, clean, repair or refinish, cure, reinstall, and leak-check in that order.
- Cool and identify the engine. Record the engine code, chassis, cover material, and connections.
- Document routing. Photograph hoses, harness clips, brackets, and fasteners before disassembly.
- Follow the service procedure. Remove interfering hardware in the specified order and protect the open valvetrain immediately.
- Inspect on the bench. Check the rail, gasket groove, holes, inserts, ports, baffles, and oil residue pattern.
- Choose the repair. Clean, reseal, paint, or replace based on the defect and material.
- Keep coating off functional surfaces. Mask before primer or color and clear every threaded or fluid passage afterward.
- Respect cure time. Reinstall only after the coating system reaches the stage specified for handling and engine heat.
- Use the correct gasket procedure. Replace one-time-use or damaged seals and apply RTV only where the service instructions call for it.
- Torque by sequence and specification. Do not use extra torque to flatten the cover or stop seepage.
- Verify the repair. Inspect at idle, after a heat cycle, and again after the next drive or loaded work cycle.
What Makes Sense for Your Truck?
Use the truck's workload and downtime tolerance to choose the finish, but never let a cosmetic schedule override a mechanical repair.
- Daily work truck: clean the cover, fix active leaks, and keep an easy-to-inspect finish.
- Long-distance tow rig: prioritize gasket integrity, ventilation connections, harness clearance, and post-heat-cycle inspection.
- Salt-belt truck: remove salt and corrosion, then inspect steel flanges and fastener pockets before refinishing.
- Off-road or jobsite truck: choose a finish that can be cleaned easily and keep mud away from breather connections.
- Show-oriented build: paint can carry the visual theme, but mask service points so the next repair does not become a scraping job.
John Lee's Shop Note
A straight, properly vented factory cover with a healthy gasket beats a beautiful part installed over an unresolved pressure or sealing problem.
John Lee focuses on diesel-truck fitment, sealing, and service decisions. The shop rule is simple: prove the leak path, protect the functional surfaces, and verify the truck after a full heat cycle.
Valve Cover Cleaning and Painting FAQ
These answers separate exterior refinishing from gasket, ventilation, fitment, and structural repairs.
Q: Should I clean or paint my valve cover?
A: Clean it when the existing finish is sound and the problem is removable grime. Paint it when the exterior coating has failed but the cover remains straight, sealed, and undamaged.
Q: Can I paint a valve cover without removing it?
A: Small touch-ups may be possible, but a complete job should be removed so oil can be cleaned out, the substrate inspected, and sealing surfaces and ports masked correctly.
Q: Can an aluminum valve cover be painted?
A: Yes, when the existing finish and aluminum are prepared with a compatible coating system. Do not sand or coat machined gasket rails, grooves, threads, ports, or ground contacts.
Q: Do I need a new gasket after removing the cover?
A: Follow the engine maker's procedure. Replace one-time-use, hardened, flattened, cut, swollen, or leaking seals, and inspect reusable designs before installation.
Q: How long should valve cover paint cure?
A: Use the coating maker's technical instructions for temperature, humidity, film build, recoat window, handling, and final cure. Dry-to-touch does not mean ready for installation or an engine heat cycle.
Q: Why does the valve cover still leak after replacement?
A: Check the leak source, gasket placement, clean groove, fastener sequence, cover flatness, and the CCV/crankcase-pressure diagnosis before buying another cover.
Q: When should I replace rather than repaint the valve cover?
A: Replace it when cracks, warpage, stripped holes, loose inserts, broken ports, or verified repeat sealing failure make the cover mechanically unreliable.
