Mini Maxx V1 Freezing After Install / Black Screen / No Boost? The Most Complete Troubleshooting Guide Online

In the diesel performance aftermarket, the Mini Maxx V1 diesel tuner remains a widely-used entry-level tuning solution. Although it’s an earlier generation product, it continues to serve as a reliable and straightforward tool for owners looking to transform their trucks into capable tuner trucks. It’s particularly well-suited for vehicles built between 2008 and 2016, such as the Ford Powerstroke, Dodge Ram 2500/3500 with the 6.7L Cummins, and early GM Duramax LMM models.

For budget-conscious owners with older models, and for those aiming to remove emissions systems and gain modest performance improvements, the Mini Maxx V1 is still a viable and dependable option—provided the tuner is correctly installed and matched to a supported vehicle.

Mini Maxx V1 Common Issues Overview

While the SPELAB Mini Maxx V1 diesel tuner remains a popular choice in the entry-level tuning market, many users report recurring technical issues during installation and operation. Based on real customer support data from SPELAB, the most frequently reported problems fall into the following categories:

1. Device freezing or locking during install – Often stuck on the “TURN KEY TO RUN” screen with no further progress.

2. Black screen or complete non-response – Typically caused by power supply failure, HDMI cable issues, or internal hardware faults.

3. SD card read errors, especially error codes 399 or 327 – Usually related to using high-capacity SD cards or incorrect formatting (FAT32 required).

4. Vehicle or ECU not recognized by the tuner – May indicate an unsupported vehicle year, a mismatched tune file, or prior tuning by another device.

5. No boost or horsepower increase after tuning – Often a result of incorrect vehicle configuration or corrupted tune files.

6. Feature malfunctions – Inability to switch tune levels, cruise control failure, or incorrect gauge readings.

These issues can lead to the vehicle entering limp mode, displaying DTC (diagnostic trouble codes), or becoming unresponsive entirely. While most problems can be solved by verifying power connections, reformatting SD cards, or reinstalling tune files, some cases involve hardware damage or compatibility limitations that require tuner replacement or an upgrade to a newer model.

Issue Categories and Step-by-Step Troubleshooting (Full Diesel Tuner Breakdown)

To help users efficiently diagnose and resolve problems with the Mini Maxx V1 Diesel Tuner, we’ve categorized the most frequent issues into five core areas, each with targeted troubleshooting recommendations:

1. Power and Interface Issues

Symptoms include failure to power on, freezing at startup, or a black screen. Common causes are:

• Loose or damaged OBD-II connector;

• Low battery voltage (especially on RAM and Ford trucks);

• Damaged or improperly seated HDMI cable;

• Compatibility issues with OBD splitter setups.

Fix: Use the original supplied cables, clean and inspect the OBD-II port, and ensure the vehicle is keyed on before connecting the tuner.

2. SD Card / File Structure Problems

Error codes like 399 and 327 or “Insert SD Card” messages typically result from:

• SD card capacities over 8GB (16GB+ commonly fail);

• Incorrect file placement (not in root directory);

• Incomplete or corrupted download;

• Wrong file format (exFAT instead of FAT32).

Fix: Use a 2–8GB name-brand SD card (e.g., SanDisk), reformat it to FAT32, and reload the correct tune files.

3. Firmware and Software Conflicts

If the tuner freezes after an update, fails to recognize the vehicle, or loses tune options, it’s likely due to:

• Flashing Mini Maxx V1 with V2 firmware;

• Incomplete firmware uploads;

• Power interruption during updates.

Fix: Reinstall a verified firmware version or contact the supplier for recovery files. Always ensure a stable power supply during file operations.

4. Vehicle Compatibility Limitations

Mini Maxx V1 officially supports models between 2008 and 2016. Issues arise when used on 2019+ RAM Cummins or newer 6.7L Powerstroke trucks:

• ECU not recognized;

• Tuner enters recovery mode;

• “Unrecognized Part Number” error.

Fix: Verify PCM compatibility; Ford owners can often bypass file checks by renaming tune files to match expected part numbers.

5. Functional Failures

Lack of power gains, zero boost readings, or cruise control malfunction often stem from:

• Tune not fully installed on ECU;

• Tuner not reading sensor data;

• Incorrect or corrupted tune files.

Fix: Go to Menu > Settings > Tune Status to verify if the tune is installed. If status shows “Not Installed,” re-flash the tune following official instructions.

Real-World Case Studies – Top 10 Mini Maxx V1 Problem Scenarios

To help users better understand how Mini Maxx V1 issues appear in real-world situations, we’ve compiled 10 frequent support cases from SPELAB’s customer service records. These represent the most common failures, including install freezes, SD card errors, tuning mismatches, and sensor issues.

Case 1: Repeated Error Code 399

• Problem: Error 399 during tuning; even switching to new SD cards didn’t help.

• Cause: Large capacity cards (e.g., 64GB) or improper formatting.

• Fix: Use a 2–8GB FAT32-formatted SD card with correct file structure.

Case 2: Device Goes Black During Installation

• Problem: Tuner screen turns black and does not respond.

• Cause: Power issues, bad HDMI cable, or internal board fault.

• Fix: Confirm vehicle voltage, use original cables, request a replacement if needed.

Case 3: Stuck on “Turn Key to Run” Prompt

• Problem: Tuner freezes at the ignition step.

• Cause: ECU communication not established.

• Fix: Reboot the system and retry from OBD-II port reconnection.

Case 4: No Noticeable Power After Tune

• Problem: Tuning completes, but no HP or torque gains.

• Cause: Tune not installed or wrong file used.

• Fix: Verify “Tune Status” menu and re-install if needed.

Case 5: Boost Always Reads Zero

• Problem: Boost gauge shows 0 PSI even under load.

• Cause: MAP/MAF sensors not being read correctly.

• Fix: Check sensor connectors and update to latest tune version.

Case 6: Cruise Control Disabled After Install

• Problem: Cruise stops working and throttle feels delayed.

• Cause: Defuel settings or tuning parameters interfering with ECU control.

• Fix: Adjust tune settings or request updated calibration.

Case 7: Intermittent Limp Mode

• Problem: Truck enters reduced power mode days after tuning.

• Cause: Tune file instability or ECU mismatch.

• Fix: Uninstall tune, clear DTCs, re-install or request revised files.

Case 8: “Unrecognized Part Number” Error

• Problem: Ford ECM/TCM not recognized by tuner.

• Cause: Factory calibration newer than tuner database.

• Fix: Rename tune files on SD card to match ECU code format.

Case 9: System Malfunctions After HDMI Connection

• Problem: Infotainment system or A/C controls become unresponsive.

• Cause: Signal interference via CAN bus.

• Fix: Use OBD splitter to isolate power path; verify cable shielding.

Case 10: DTC Codes Persist After Tuning

• Problem: CCV/EGR codes still appear after install.

• Cause: Tune lacks full delete logic for emissions systems.

• Fix: Request advanced delete file or use DTC filter functions.

Mini Maxx V1 Usage Tips and Best Practices (Prevent Common Issues)

To ensure stable operation of the Mini Maxx V1 Diesel Tuner, users should follow proven maintenance routines and best practices. These guidelines can help avoid frequent errors such as black screens, error code 399, and failed tune installations—while also extending the life of your tuner.

1. Use Recommended SD Cards and Formats

The V1 has strict requirements for SD card compatibility:

• Use 2GB–8GB SanDisk or Kingston cards only;

• Must be formatted in FAT32 (not exFAT);

• Avoid using cards larger than 8GB;

• Tune files must be placed in the root directory of the card.

2. Proper Firmware Update Process

To prevent failed updates or bricking the tuner:

• Keep the truck battery charged (use a charger if needed);

• Only download firmware from official sources (never flash V2 files to V1);

• Insert SD card and follow screen prompts;

• Do not remove power or SD card during the update process.

3. Pre-Tune Vehicle Checklist

Before applying the tune, make sure:

• EGR, DPF, and DEF systems are physically removed or disconnected;

• ECU has not been modified by a previous tuner;

• Battery voltage is stable at 12.5V+ to prevent voltage drops during flashing.

4. Avoid Excessive Tune Switching

Although V1 supports multiple power levels, excessive switching may confuse the ECU. Choose a setting and drive normally before switching again.

5. Use OBD Splitters to Isolate Interference

If you experience issues with your stereo, A/C, or infotainment after plugging in the tuner, try using an OBD splitter to isolate power and data signals, reducing CAN bus interference.

6. How to Verify Tune Installation

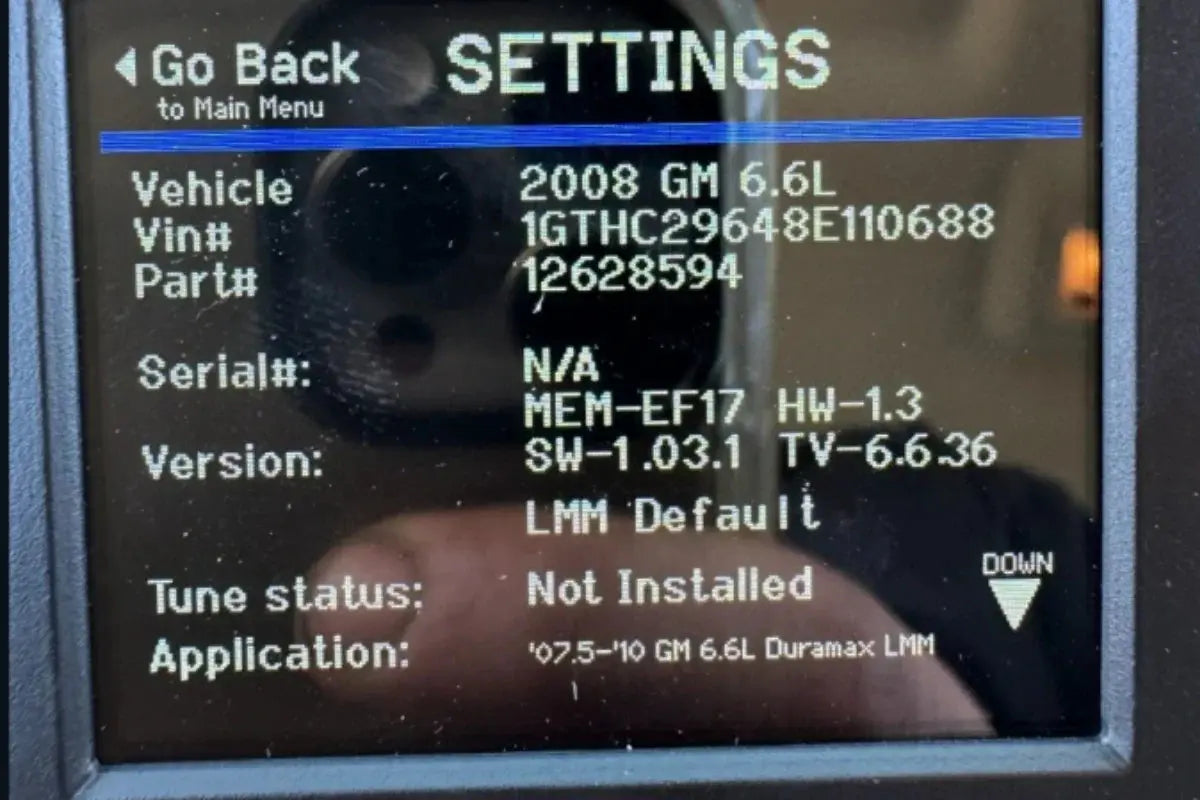

Navigate to: Menu > Settings > Tune Status

• If it shows “Installed,” the tune is active.

• If it shows “Not Installed,” reinstall the tune file properly.

When Should You Upgrade from Mini Maxx V1 to V2 or an Alternative Tuner?

While the Mini Maxx V1 Diesel Tuner remains a solid option for older diesel trucks, there are several scenarios where upgrading to a Mini Maxx V2 or another modern tuning platform is not only recommended—but necessary.

1. Your Truck Is a 2019+ RAM or 2020+ Ford Powerstroke

If your vehicle is a newer model, you may experience:

• "Unrecognized Part Number" messages;

• Tune install errors or recovery mode loops;

• Persistent emissions-related DTCs even after a delete.

Mini Maxx V2 is designed to support newer platforms, including 2019–2021 RAM Cummins and 2020+ Powerstroke.

2. You Require Advanced Feature

Mini Maxx V1 does not support:

• Shift-on-the-Fly (SOTF) tuning;

• Live data logging or monitoring;

• USB or wireless remote diagnostics and tune updates.

If these features matter to you, consider upgrading to:

• Mini Maxx V2

• EZ Lynk Auto Agent

• HP Tuners MPVI3 + RTD

3. You're Experiencing Persistent Hardware Failures

If your Mini Maxx V1 keeps failing despite:

• New SD cards;

• Reflashing firmware;

• Repeated factory resets—

Then it’s likely your tuner’s internal components are failing. It’s more cost-effective to replace the unit than continue investing time in a failing one.

4. You're Running Commercial or Heavy-Duty Applications

For users who rely on their trucks for towing, construction, or full-time operation, stability and data visibility are essential. Platforms like Mini Maxx V2 and EZ Lynk offer:

• Frequent software updates;

• Cloud-based tune management;

• OBD-compatible remote diagnostics.
