Updated on August 9, 2026.
A black downpipe-back exhaust should be chosen by verified truck fitment, base metal, coating type, pipe diameter, and legal use - not by color alone. For most diesel tow rigs and work trucks, a well-routed 4-inch system offers useful clearance and manageable sound. A 5-inch system has 56.25% more cross-sectional area, but that does not mean 56.25% more flow or power.
The practical job is to confirm what the kit actually replaces, whether it matches the cab and bed configuration, and whether the coating can survive the truck's heat, road salt, mud, and Jobsite abuse. A black finish can look clean, but it cannot correct poor Fitment, thin material, loose clamps, or an exhaust pipe that contacts the frame under Payload.
Quick Decision: What Should You Check First?
| Decision | What to verify | Garage recommendation |
|---|---|---|
| System type | Exact start and end points, plus every factory component removed or retained | Do not trust the product name alone; compare the pipe map with the truck |
| Fitment | Model year, engine, cab, bed, wheelbase, 2WD/4WD, and pickup versus cab-and-chassis | Match the full configuration before ordering |
| Material | T409, T304, aluminized steel, wall thickness, weld quality, and clamp design | Choose for climate and duty cycle, not the brightest marketing label |
| Diameter | 4-inch or 5-inch tubing, available clearance, expected sound, and engine setup | Use the smallest pipe that meets the real flow requirement without contact or excessive drone |
| Black finish | Coating chemistry, service-temperature rating, surface preparation, and warranty | Treat the finish as a wear layer, not permanent rust protection |
| Legal use | Whether the system removes or disables DPF, DOC, SCR, sensors, or other emissions equipment | Confirm federal, state, inspection, registration, and local requirements before installation |
Downpipe-Back, DPF-Back, and Turbo-Back Are Not the Same
Exhaust names are used inconsistently across the aftermarket. One seller's "downpipe-back" kit may retain emissions equipment, while another kit with the same label may replace the DPF, DOC, SCR, or sensor locations. Open the installation diagram and identify every connection point before you buy.
| Common name | Typical layout | Main buying risk |
|---|---|---|
| DPF-back | Starts after the factory diesel particulate filter or aftertreatment assembly | The tail section still has to match the wheelbase, hangers, spare tire, and hitch clearance |
| Downpipe-back | Starts at or near the downpipe connection and continues rearward | The name does not reveal which emissions devices are retained; inspect the included-parts diagram |
| Turbo-back | Replaces most or all exhaust tubing after the turbocharger outlet | Modern diesel applications can involve emissions, tuning, sensor, warranty, and inspection consequences |
| Cat-back | Starts after the catalytic converter on many gasoline applications | It is not automatically equivalent to a diesel DPF-back layout |
For a broader terminology check, use this cat-back exhaust system overview. The useful habit is simple: name every component the kit keeps and every component it replaces.
T409 vs T304 vs Aluminized Steel
On the three product examples in this guide, the black color is not the base metal. The documented construction is T409 stainless-steel tubing with an exterior high-temperature black powder coating. A separate black titanium-style heat wrap is installed only on the front pipe section. These are three different layers with different jobs: T409 provides the pipe structure, the powder coating protects and colors the exposed surface, and the localized wrap manages radiant heat near the front section.
The base metal still determines how the pipe behaves after stone chips, clamp movement, heat cycling, and coating damage. A coated T409 pipe does not become T304, and the black finish does not change the tube wall thickness or weld quality.
| Material | What it does well | What to watch | Best use |
|---|---|---|---|
| T409 stainless steel | Good heat-cycle durability and a practical balance of cost and service life | Surface rust and brown staining can appear, especially where coating is damaged; cosmetic oxidation does not automatically mean the pipe has failed | Daily-driven diesel trucks, tow rigs, and work builds where value matters |
| T304 stainless steel | Higher general corrosion resistance and cleaner long-term appearance | Higher price; the grade claim should be verified rather than assumed from a polished finish | Long ownership, wet climates, coastal exposure, or a premium build |
| Aluminized steel | Low initial cost with an aluminum-silicon protective layer over carbon steel | Cut edges, scratches, welds, and salt exposure can become corrosion starting points | Budget builds in dry climates with regular inspection |
| Unspecified "stainless" | May be serviceable if the manufacturer documents it | No grade, thickness, or process means the buyer cannot compare durability | Do not choose until the seller identifies the material |
A magnet is not a complete alloy test. T409 is normally magnetic, while T304 is usually much less magnetic, but forming and cold work can change the response. A material certificate or clear manufacturer specification is more useful than a quick magnet check.
Black Powder Coating: Construction, Benefits, and Limits
The product pages identify the finish as a high-temperature black powder coating. They do not disclose the resin chemistry, pigment system, coating thickness, surface-preparation process, curing specification, or a tested temperature limit for the coating. That means a buyer should not assume the finish is ceramic, epoxy, polyester, silicone-based, or rated to a specific temperature without a manufacturer data sheet.
| Construction layer | Verified product information | Benefit to the truck owner | Important limit |
|---|---|---|---|
| Pipe structure | T409 stainless steel | Provides the Rigid exhaust tube, heat-cycle durability, and practical corrosion resistance | T409 can still develop brown surface oxidation, especially after coating damage |
| Exterior black layer | High-temperature black powder coating | Adds a barrier between the T409 surface and moisture, road salt, mud, and debris while creating a matte black appearance | No coating is permanent armor; chips, abrasion, poor preparation, and heat cycling can cause peeling or expose the base metal |
| Localized front-pipe layer | Black titanium-style heat wrap | Reduces radiant heat toward nearby wiring, hoses, fuel lines, and the floor in the wrapped area | The listed 1000°C (1832°F) claim belongs to the wrap, not the powder coating |
What Does the Black Coating Do for a Diesel Truck Owner?
- Road-salt protection: When intact, the coating creates an additional barrier between T409 and winter brine. This can slow cosmetic oxidation, but the owner still needs to wash salt from clamps, slip joints, hangers, and chipped areas.
- Mud and Jobsite contamination: The coated surface helps isolate the base metal from wet mud and debris. It does not eliminate corrosion where packed dirt holds moisture around a clamp or welded hanger.
- Heat-cycle appearance: A high-temperature finish is intended to resist discoloration and surface degradation better than ordinary decorative paint. The pages do not provide a coating temperature rating or thermal-cycle test, so this is not a guarantee against fading, chalking, or blistering.
- Off-roading durability: The coating adds surface protection against normal contamination, but it cannot make tubing impact-proof. Gravel, rocks, brush, and recovery gear can chip or scrape it.
- Cleaner underbody appearance: The matte black finish gives a less reflective, more uniform look and can match other black suspension or chassis Mods.
- Potential ownership value: Keeping the coating clean and touching up approved damaged areas may preserve appearance and delay exposed-surface oxidation. It does not guarantee longer structural life because alloy grade, tube thickness, welds, drainage, and climate still control failure.
What the Black Coating Does Not Do
- It does not add horsepower, torque, Payload, or towing capacity.
- It does not replace a heat shield or the localized exhaust wrap.
- It does not make T409 rust-proof or turn it into T304 stainless steel.
- It does not prove the pipe can withstand 1000°C (1832°F); that number is listed for the wrap.
- It does not repair poor Fitment, a leaking joint, a cracked weld, or contact with the frame, hitch, spare tire, or body.
Is "Titanium Heat Wrap" Made of Titanium?
Usually, "titanium" describes the wrap's color or product family, not a sheet of titanium metal. The product pages do not disclose the exact fiber composition. Ask for the material data sheet and continuous-temperature rating instead of treating the name as a metallurgy specification.
Wrap can reduce radiant heat near a floor, wiring loom, hose, or fuel line, but it also changes how the pipe sheds heat. If it holds water, salt, oil, or mud against the tube, it can hide corrosion, coating damage, or a developing crack. Use wrap only where there is a measured heat-management need, keep it clear of leaks and moving parts, and inspect beneath it on a service schedule.
4-Inch vs 5-Inch Exhaust: Use the Math, Then Check the Truck
A 4-inch round pipe has about 12.57 square inches of cross-sectional area. A 5-inch pipe has about 19.63 square inches. That is 56.25% more area, but it is not a promise of 56.25% more airflow, torque, or horsepower. Actual exhaust behavior depends on bends, transitions, muffler design, turbine restriction, aftertreatment, gas temperature, engine output, and pressure drop across the full system.
| Use case | 4-inch system | 5-inch system |
|---|---|---|
| Daily driving and Towing | Usually easier to route, with more underbody clearance and often less cabin drone | May provide a deeper sound but can add clearance and noise challenges |
| High-output off-road build | Can still support substantial flow when the system is well designed | Worth considering when measured backpressure, engine output, and packaging justify it |
| Heavy-duty Jobsite truck | Often the more practical choice around tanks, crossmembers, PTO hardware, and hitches | Verify ground clearance and contact through full suspension and drivetrain movement |
| Sound priority | Typically tighter and less booming, depending on muffler and tailpipe layout | Typically deeper and more aggressive, with greater drone risk |
See the detailed 4-inch versus 5-inch diesel pipe comparison before deciding.
How Loud Is a Black Downpipe-Back Exhaust?
The three product pages in this guide do not publish controlled exterior or in-cab decibel measurements, so there is no verified basis for claiming that one is a specific number of dB louder than stock. A phone video is not a substitute for a matched test. Microphone distance, engine load, rpm, cab insulation, tailpipe exit, muffler or resonator layout, wind, pavement, and automatic gain control can change the result.
| Sound condition | What changes the result | What the buyer should request |
|---|---|---|
| Cold start and idle | Ambient temperature, idle speed, turbo vane position, tailpipe exit, and nearby walls | A recording from the same truck platform at a stated distance and rpm |
| Highway cruise | Axle ratio, tire size, transmission gear, road grade, cab style, and cruise rpm | In-cab audio at the truck's actual highway rpm with windows and HVAC settings identified |
| Towing under load | Trailer weight, grade, throttle position, exhaust temperature, and transmission downshifts | A loaded comparison, because empty-truck rev clips cannot predict tow-grade drone |
| 4-inch versus 5-inch | Diameter affects tone, but bends, pipe length, wall thickness, muffler, resonator, and exit location also matter | A same-truck, same-route comparison instead of videos from different builds |
If cabin drone matters, record the truck's normal cruise rpm before ordering and ask whether the exact configuration has a muffler, resonator, or alternate tailpipe option. For a family tow rig, work truck, or long-haul build, low-fatigue highway sound is usually more valuable than the loudest cold-start clip.
Fitment by Diesel Platform and Model Year
Year and engine are only the first pass. Cab-and-chassis trucks often use a different frame, wheelbase, tank layout, and exhaust routing than pickup models. Crew cab, Mega Cab, short-bed, long-bed, 2WD, 4WD, aftermarket hitches, air springs, transfer tanks, and suspension travel can all affect clearance.
| Platform example | Verified listed fitment | Critical exclusion or check |
|---|---|---|
| Ford 6.7L Power Stroke | 2011-2024 F-250, F-350, and F-450 Super Duty pickup applications | Listed system does not fit cab-and-chassis; select the exact year option |
| Ram 6.7L Cummins | 2019-2025 Ram 2500/3500 Crew Cab and Mega Cab pickup applications | Listed system excludes cab-and-chassis models; verify short- or long-bed configuration |
| GM 6.6L L5P Duramax | 2020-2025 Chevrolet Silverado and GMC Sierra 2500HD/3500HD Crew Cab pickups | Listed system does not fit 3500/4500/5500 cab-and-chassis trucks |
Never stretch a hanger, force a slip joint, or preload the downpipe connection to make a near-match fit. Exhaust systems move as the engine torques over, the chassis twists, and the suspension compresses. A pipe with only static garage clearance can hit the frame, spare tire, shock, hitch, or body when the truck is loaded.
Three Black 4-Inch Fitment Examples

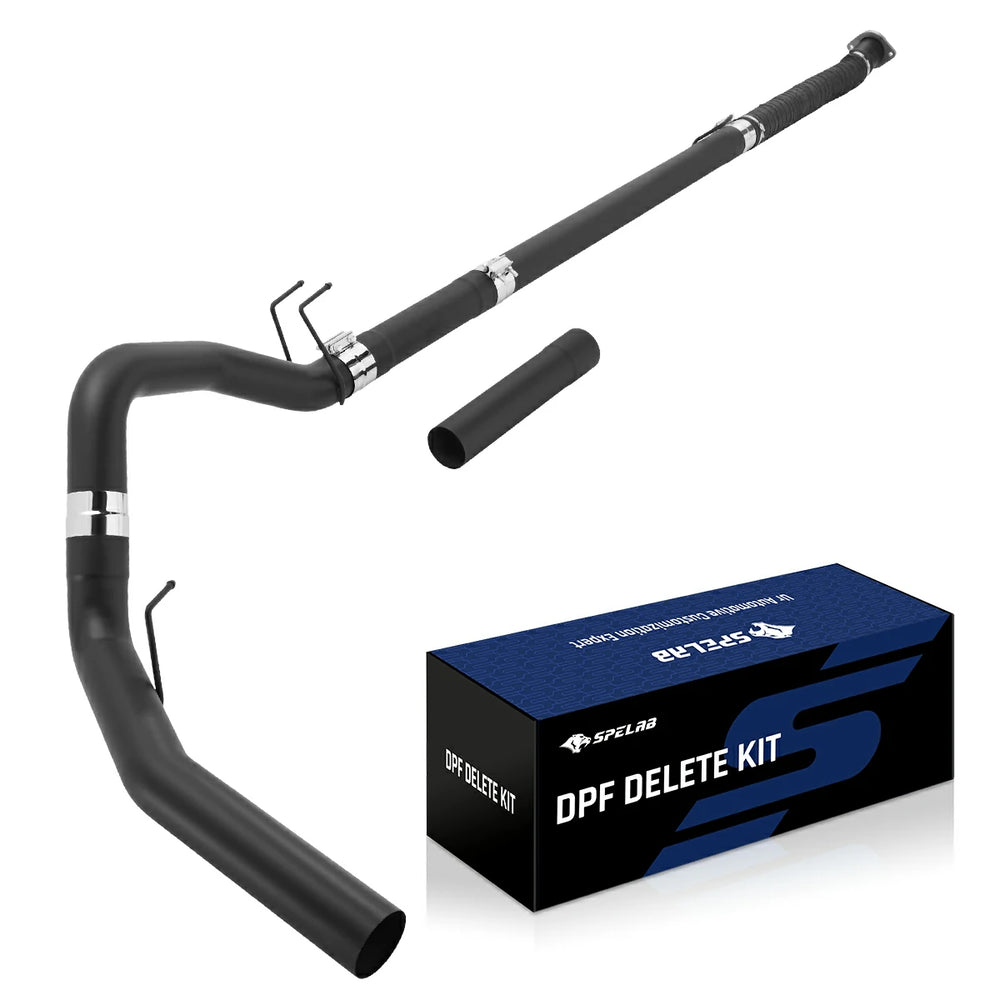

2011-2024 Ford 6.7L Power Stroke
The Ford 6.7L Power Stroke black downpipe-back system is listed for 2011-2024 F-250, F-350, and F-450 pickups, not cab-and-chassis trucks. The listing specifies T409 stainless steel, a black coating, and a wrapped front section. Buyers should still verify the selected year option, included hardware, wheelbase instructions, and the legal status of the intended configuration.

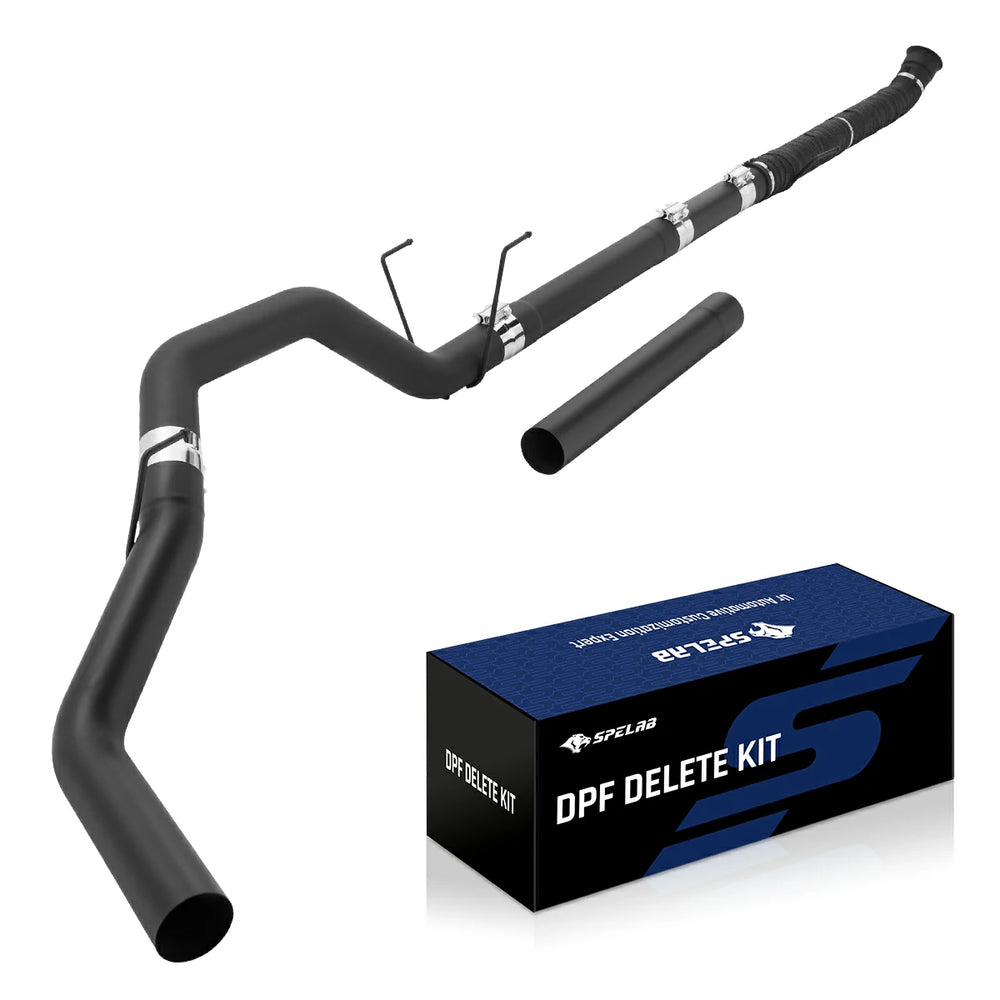

2019-2025 Ram 6.7L Cummins
The 2019-2025 Ram 6.7L diesel black exhaust kit is listed for Crew Cab and Mega Cab pickup configurations and excludes cab-and-chassis trucks. Check bed length, wheelbase, hitch clearance, spare tire clearance, and any auxiliary tank or suspension hardware before cutting a section.

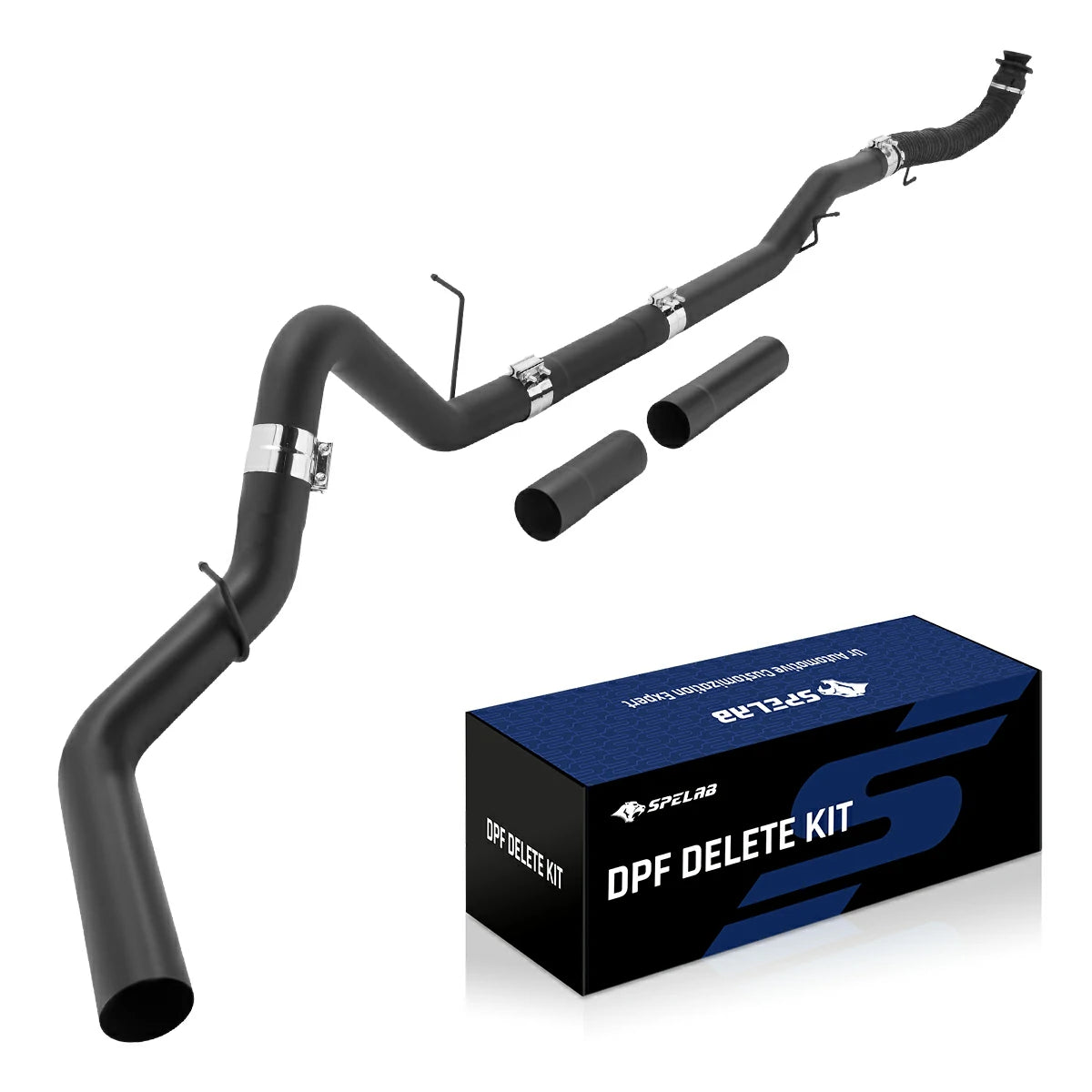

2020-2025 GM 6.6L L5P Duramax
The 2020-2025 L5P Duramax black downpipe-back system is listed for Chevrolet Silverado and GMC Sierra 2500HD/3500HD Crew Cab pickups. It does not fit the listed 3500/4500/5500 cab-and-chassis configurations. Confirm whether your specific truck is a pickup or commercial chassis by VIN and build information, not by badge alone.
For other verified applications, browse the Black Downpipe-Back exhaust collection and match the complete configuration before ordering.
Choose by Real Truck Use
| Scenario | What matters most | Common wrong assumption |
|---|---|---|
| Towing | Drone at cruise rpm, measured exhaust temperature, hanger load, hitch clearance, and heat near the bed floor | A larger pipe automatically lowers every temperature or adds towing power |
| Payload and slide-in camper | Suspension compression, tailpipe-to-body clearance, spare tire, and air-spring plumbing | Clearance measured with an empty truck will remain unchanged at GVWR |
| Off-roading | Departure angle, rocks, frame twist, clamp position, and a tailpipe that will not pack with mud | Black coating makes thin tubing impact-proof |
| Jobsite | Idle time, dust, short trips, vibration, and inspection access around hangers and joints | An exhaust mod can replace maintenance or diagnose an active fault |
| Road salt and extreme cold | Base alloy, wash schedule, trapped brine, cold rubber hangers, and coating chips | A black surface means the pipe cannot rust |
| Hot weather and long grades | Real scan data, airflow through the cooling stack, heat shielding, and nearby wiring or hoses | Every high-temperature event is caused by the exhaust diameter |
Diagnose Noise, Soot, and Heat Before Buying Parts
A louder truck does not automatically need a complete exhaust. Soot tracks, a loose V-band, a cracked bellows, failed hanger rubber, body contact, a loose heat shield, or a leaking slip joint can each change sound. An exhaust leak ahead of or near the cab also deserves immediate attention because exhaust gases can enter the passenger area.
| Symptom | Likely checks | Do not assume |
|---|---|---|
| Tick or puff under load | Flanges, bellows, V-bands, manifold area, soot marks, and cracked welds | A larger tailpipe will repair an upstream leak |
| Metallic rattle | Heat shields, clamps, hanger rods, spare tire, hitch, and frame contact | The muffler has failed without a hands-on inspection |
| New cabin drone | Pipe diameter, muffler location, tailpipe exit, cab mount condition, and cruise rpm | Drone always means an exhaust leak |
| Black coating blister or peel | Surface contamination, cure failure, local heat, fluid leaks, and abrasion | The base tube has perforated |
| High EGT or reduced power | Scan codes, boost leaks, charge-air system, fuel delivery, turbo control, aftertreatment restriction, and sensor data | Pipe color or diameter identifies the root cause |
- Inspect cold. Check soot trails, cracks, loose clamps, hanger condition, coating damage, and contact marks from front to rear.
- Scan before disassembly. Record active, pending, and permanent codes plus relevant exhaust pressure, temperature, and aftertreatment data.
- Leak-test safely. Use a controlled low-pressure smoke test or the vehicle manufacturer's diagnostic method. Do not crawl under a running truck without proper support and ventilation.
- Measure the configuration. Record wheelbase, cab, bed, frame type, pipe connection diameter, and clearance around the hitch, spare, shocks, brake lines, fuel lines, and wiring.
- Identify the failed part. Repair a bad clamp, hanger, flange, bellows, or shield when that is the actual fault instead of replacing the full system by guesswork.
This exhaust leak diagnosis walkthrough gives additional inspection steps. Do not use your hand to search for a leak on hot or moving components.
Installation Checks That Prevent Comebacks
The three product listings estimate about one hour of installation with basic hand tools and say the work can be performed on the ground, with a lift making access faster. Treat that as a clean-truck seller estimate, not a guaranteed shop time. Rusted factory hardware, limited ground clearance, seized clamps, aftermarket tanks or hitches, and wheelbase adjustments can extend the job.
| Installation item | What the listings state | What to verify before starting |
|---|---|---|
| Estimated time | About one hour with basic hand tools; faster with an automotive lift | Condition of the factory joints, safe lifting access, and whether a second person is needed for long sections |
| Cutting | May be required for shorter wheelbase or cab-and-bed configurations | Exact wheelbase, cut location, required slip-joint insertion depth, and whether cutting affects returns |
| Included parts | Clamps, hangers, and hardware are listed as included | Inventory every part before removing the original system |
| Factory hardware | Some original hardware may need to be reused | Inspect reusable fasteners, isolators, flange surfaces, and seals before the truck is disabled |
- Inventory the kit. Lay out every pipe, clamp, hanger, adapter, and fastener against the parts diagram.
- Dry-fit from the fixed connection. Keep slip joints loose enough to rotate and center the system before final tightening.
- Set Rigid clearance where it counts. Check the frame, driveshaft, shocks, axle, brake hoses, fuel tank, wiring, body, spare tire, and hitch through expected movement.
- Do not preload the system. Hangers should support the exhaust without pulling the engine-side connection sideways.
- Use the specified clamp torque. There is no universal torque for every band clamp, U-bolt clamp, V-band, or flange. Follow the kit and clamp manufacturer's values.
- Heat-cycle and recheck. After the first full warm-up and cool-down, inspect alignment, witness marks, leaks, and clamp seating. Recheck again after the first towing trip or rough-road use.
A Bolt-on label does not guarantee a no-cut installation on every wheelbase. If a pipe must be shortened, measure twice, deburr the cut, preserve enough insertion depth at the slip joint, and protect the exposed edge according to the material and coating instructions.
FAQ
Q: Is T409 stainless steel rust-proof?
A: No. T409 resists heat cycling and corrosion better than ordinary carbon steel, but it can develop surface oxidation, especially after coating damage or road-salt exposure. Inspect for deep scaling, thinning, cracked welds, and perforation rather than judging only by color.
Q: Does a black exhaust run cooler than a bare stainless exhaust?
A: Not automatically. Surface color and coating can change heat radiation, but underbody temperature depends on gas temperature, pipe location, airflow, shielding, load, and coating properties. Measure the problem before adding wrap or shielding.
Q: Does a 5-inch exhaust make more power than a 4-inch exhaust?
A: Not by diameter alone. A 5-inch tube has 56.25% more cross-sectional area, but power depends on the entire engine and exhaust combination. Many daily-driven tow and work trucks do not need the packaging and drone tradeoffs of a 5-inch system.
Q: Will a downpipe-back exhaust fit a cab-and-chassis truck?
A: Only if the listing specifically includes that chassis. The three product examples above exclude listed cab-and-chassis configurations. Commercial frames, tanks, wheelbases, and exhaust routing often differ from pickup models.
Q: Is titanium heat wrap made from titanium metal?
A: Usually not. The term commonly describes a color or product line. Verify the actual fiber material, temperature rating, contamination limits, and inspection requirements from the wrap manufacturer.
Q: Can I install an exhaust kit to fix high EGT, low power, or a check-engine light?
A: Diagnose first. Scan data, boost leaks, fuel delivery, turbo control, aftertreatment restriction, exhaust leaks, and faulty sensors can create similar symptoms. A pipe is not a substitute for root-cause testing.
Q: Does "off-road use only" make a DPF-removal exhaust legal on my registered truck?
A: No. The label alone is not a legal exemption. Federal, state, inspection, registration, warranty, and insurance requirements can still apply. Confirm the specific vehicle, part, and intended use before installation.
