Updated on August 03, 2026.
To find an exhaust leak safely, start with the engine cold and the truck parked outdoors. Look for soot, cracked tubing, loose joints, broken studs, displaced clamps, and heat-damaged parts before making a brief cold-start check. Use lifting and test equipment rated for the vehicle because carbon monoxide, hot metal, and improvised backpressure tests can turn a small leak into a serious hazard.
When an Exhaust Leak Is a Stop-Drive Problem
Carbon monoxide has no color or odor. Exhaust smell may warn you that combustion gases are present, but your nose cannot tell you the carbon monoxide level. The CDC carbon monoxide guidance lists headache, dizziness, weakness, upset stomach, vomiting, chest pain, and confusion among common poisoning symptoms.
If anyone develops those symptoms in or around the truck, shut the engine off if that can be done safely, move everyone to fresh air, and seek emergency medical help. Do not drive with exhaust entering the cab. Never idle or test a truck in an attached garage, even with the door open.
Also park the truck until it is inspected when a leak is blowing directly onto a fuel line, brake hose, wiring harness, starter cable, transmission line, cab insulation, or composite body part. A broken pipe dragging near the road, a loose aftertreatment assembly, or a red-hot component is not a drive-it-until-Friday repair.
Where Exhaust Leaks Usually Occur
| Leak zone | Typical evidence | What it can affect | Common look-alikes |
|---|---|---|---|
| Exhaust manifold, gasket, and studs | Cold-start tick, black soot at a port, burned gasket edge, snapped end bolt or stud, or warped flange | Cabin odor, nearby heat damage, oxygen-sensor readings on gasoline engines, and turbo response on a turbocharged engine | Injector noise, valvetrain tick, spark leakage, or a loose heat shield |
| Pre-turbo up-pipe, bellows, crossover, and V-band | Dry soot trail, chirp or tick under load, slow spool, underboost, or elevated EGT for the same work | Turbine energy, towing response, thermal load, and nearby wiring or insulation | Charge-air leak, sticking VGT mechanism, sensor error, air restriction, or fuel-delivery problem |
| Turbo outlet and downpipe connection | Soot around a clamp, witness marks, misaligned tubing, exhaust odor, or rattling contact | Noise, heat, aftertreatment flow, and cab isolation | Turbo oil leak, loose bracket, failed mount, or driveline contact |
| DOC, catalytic converter, DPF, SCR, and sensor bosses | Soot at a flange or bung, damaged flex joint, sensor code, failed monitor, or regeneration concern | Emissions monitoring, dosing, regeneration, inspection readiness, and underbody temperature | Failed sensor, damaged harness, restricted substrate, injector or fueling issue, or calibration fault |
| Flex section and mid-pipe under the cab | Frayed braid, split bellows, rust scale, vibration noise, soot, or odor near the floor | Cabin air quality, noise, floor heat, and exhaust support | Loose shield, worn engine mount, body contact, or road debris damage |
| Muffler, slip joints, hangers, and tailpipe | Perforation, wet rust streak, loose clamp, sagging pipe, or exhaust exiting under the bed | Noise, fumes around an open rear window or camper, and snow or mud blockage | Condensation drain, bed vibration, spare-tire contact, or an aftermarket exhaust cutout that does not seal |
Replacement flanges and exhaust clamp and V-band options are useful only after the joint type, tube outside diameter, flange profile, alignment, and available welding access have been confirmed.
What Exhaust Leak Symptoms Mean
A Tick That Fades as the Engine Warms
A manifold gasket, cracked manifold, loose stud, or split up-pipe bellows can tick hardest during a cold start and quiet down as the metal expands. On many Heavy-duty diesel layouts, the end fasteners absorb substantial thermal movement. Use a flashlight and inspection mirror to verify that the rearmost manifold bolt or stud is still present and has not snapped flush with the cylinder head. That pattern narrows the search, but it is not proof. Injector clatter, valvetrain clearance, spark leakage, and thin heat shields can make a similar rhythm.
A Hiss or Chirp Under Towing Load
On a turbo-diesel, a pre-turbo leak may be nearly silent at idle and obvious only when the truck is pulling a grade. Escaping exhaust reduces the energy reaching the turbine. The driver may see slower boost response, more throttle for the same road speed, an underboost code, or higher EGT at the same Payload and grade.
Do not assume the up-pipe is guilty from P0299 alone. A torn intercooler boot, leaking charge-air cooler, restricted air filter, VGT control problem, MAP sensor fault, or fuel limitation can produce the same complaint. Compare commanded and actual boost with rpm, load, barometric pressure, intake temperature, and EGT from the same repeatable run.
Exhaust Odor Inside the Cab
Odor can enter through HVAC fresh-air intake, floor plugs, a sliding rear window, a camper pass-through, or a damaged cab seal. A short tailpipe ending under the bed can recirculate fumes at low speed. Treat this as a safety complaint, not a reason to keep driving while searching for a louder sound.
P0420, P0430, or Oxygen-Sensor Codes
P0420 and P0430 indicate that the powertrain control module sees catalyst efficiency below its expected threshold. They do not prove the converter is bad and they do not prove an exhaust leak. A leak ahead of a gasoline engine's upstream or downstream oxygen sensor can pull outside oxygen into the pipe and disturb the sensor pattern. Sensor aging, wiring faults, misfire, fuel-control problems, oil consumption, coolant contamination, or a damaged catalyst also belong on the diagnostic list.
A response code such as P0133 is not a leak detector either. Save codes and freeze-frame data before clearing anything. After a verified mechanical repair, clear codes only when appropriate and complete the manufacturer-defined readiness drive cycle; an oxygen sensor does not need a made-up "recalibration" procedure simply because a clamp was replaced.
How to Find an Exhaust Leak in 7 Safe Steps
- Work outdoors and let the system cool completely. Park on a level surface, set the parking brake, chock the wheels, and follow the truck's lifting points. Use properly rated stands or a lift. Never put any part of your body under a vehicle held only by a hydraulic jack.
- Scan before touching parts. Record stored, pending, and permanent codes plus freeze-frame data. On a diesel, review commanded and actual boost, exhaust pressure where equipped, differential pressure, EGT sensors, regeneration history, and dosing faults. On a gasoline engine, review fuel trims and oxygen or air-fuel sensor behavior.

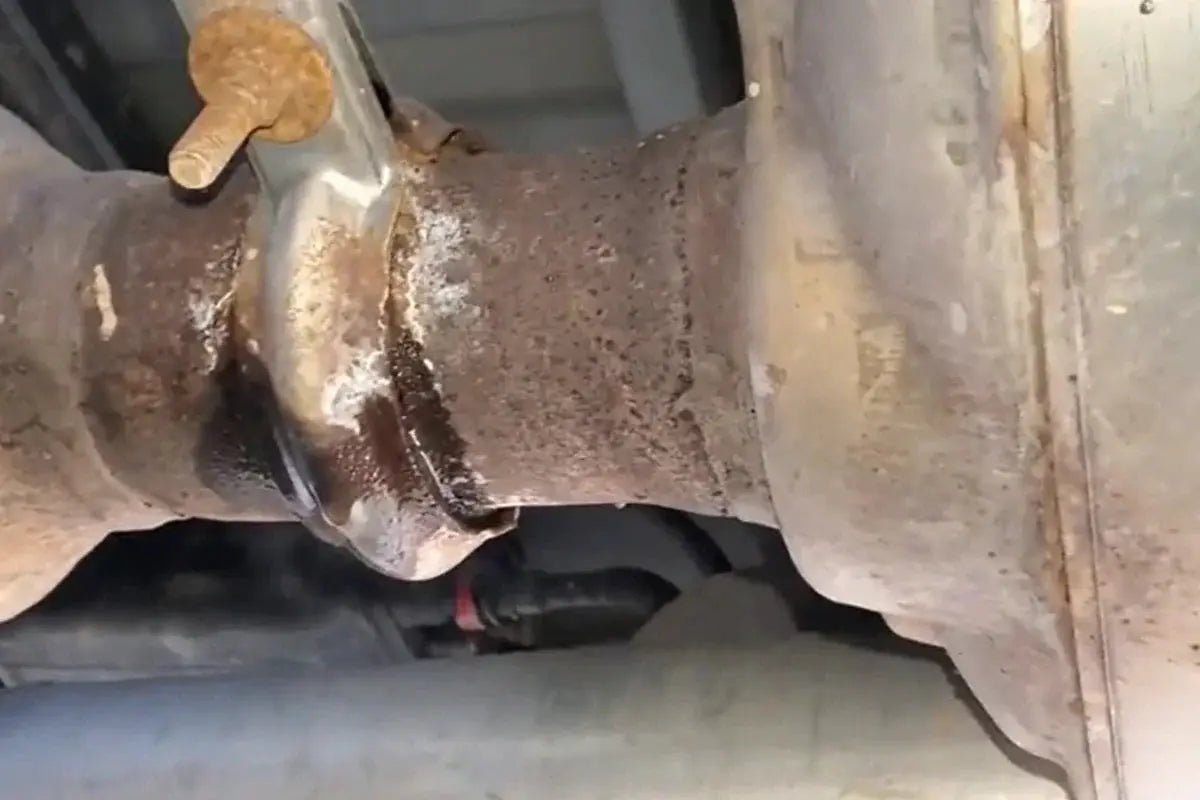

- Inspect every zone while cold. Use a bright light and mirror. Look for a dry black soot fan, clean tracks through old soot, cracked weld toes, broken studs, loose brackets, polished contact marks, melted loom, displaced V-bands, and flex-braid damage. Old soot can remain after a repair, so clean the area and recheck.
- Make only a brief cold-start observation outdoors. Stand clear of belts, fans, hot surfaces, and the underside of the truck. Listen from safe access points around the open hood and sides of the vehicle. Shut it down before reaching into the engine bay or underbody. Never block a running tailpipe with a rag, tennis ball, plug, or your hand.
- Use a regulated automotive smoke test with the engine off. Follow the smoke-machine maker's procedure and the vehicle manufacturer's pressure limit. Use the correct exhaust adapter and isolate openings only as the procedure directs. Do not use a Shop Vac, mattress inflator, compressed shop air without regulation, Sea Foam through a vacuum line, or a homemade oil-burning smoke can. Renting or borrowing a purpose-built unit with a regulator and gauge is the safer budget option; otherwise, pay a shop for this test.
- Use bubble solution only on a cold exterior joint. During a low-pressure, engine-off test, a service-approved leak-detection solution can reveal bubbles around an accessible flange, weld, clamp, or bung. Keep liquid out of sensors and electrical connectors, clean the residue, and dry the area before starting the truck.
- Escalate the test when the leak appears only under load. A qualified shop can use chassis ears, a lift, data logging, an exhaust gas analyzer, a cabin carbon monoxide meter, or pressure measurements without putting a person near a hot moving driveline. Do not try to reproduce a towing-load leak while someone rides under or leans over the truck.
How Leak Location Changes the Repair
| Confirmed fault | Correct repair direction | Do not do this | Verification after repair |
|---|---|---|---|
| Loose or failed manifold joint | Check flange flatness, broken studs, threads, gasket design, heat damage, and the service-manual torque sequence | Install a new gasket over warped faces or tighten one fastener until the flange bends | Cold-start inspection, smoke test if approved, heat cycle, and accessible fastener check per service guidance |
| Cracked manifold or up-pipe bellows | Replace or professionally repair the failed rigid section while restoring neutral alignment and support | Smear generic sealant over a hot fatigue crack | No fresh soot, no contact at mounts, stable boost response, and no heat damage |
| Leaking V-band | Inspect both flange profiles, roundness, clamp condition, seating, and pipe alignment; replace damaged parts | Use the clamp to pull misaligned pipes together or apply sealant to a dry metal sealing face unless the manufacturer specifies it | Even flange engagement and leak-free cold and hot checks |
| Leaking slip joint | Measure actual tube OD and overlap, correct distortion, select the proper band or saddle clamp, and support the pipe | Order by nominal marketing size without measuring the mating tubes | Joint remains aligned after a heat cycle and does not rotate or leak |
| Failed flex section | Replace it with the correct ID, length, liner style, temperature rating, and weld process after checking mounts and hangers | Replace the flex alone while a failed engine mount keeps stretching it | Normal movement without braid tension, rubbing, or soot |
| Leak at DOC, DPF, SCR, catalyst, or sensor boss | Use application-specific parts and service information; inspect sensors, harnesses, substrates, dosing hardware, and shields | Weld blindly near a substrate, remove required equipment, or tune out the code | Leak-free joint, valid sensor data, completed monitor or regeneration checks, and no new thermal fault |
| Perforated tailpipe or muffler | Replace the damaged section and restore the factory exit location and hanger load | Terminate the exhaust under the cab, camper, or a body opening | Correct clearance, no rattle, no cabin odor, and unobstructed outlet |
V-Band Fitment and Fabrication Details
A V-band is a Rigid, compact connection, but it is not a universal clamp-on patch. The male and female flange profiles must match, the tube must fit the flange bore, and both flanges must meet squarely without using clamp tension to force the exhaust into position.

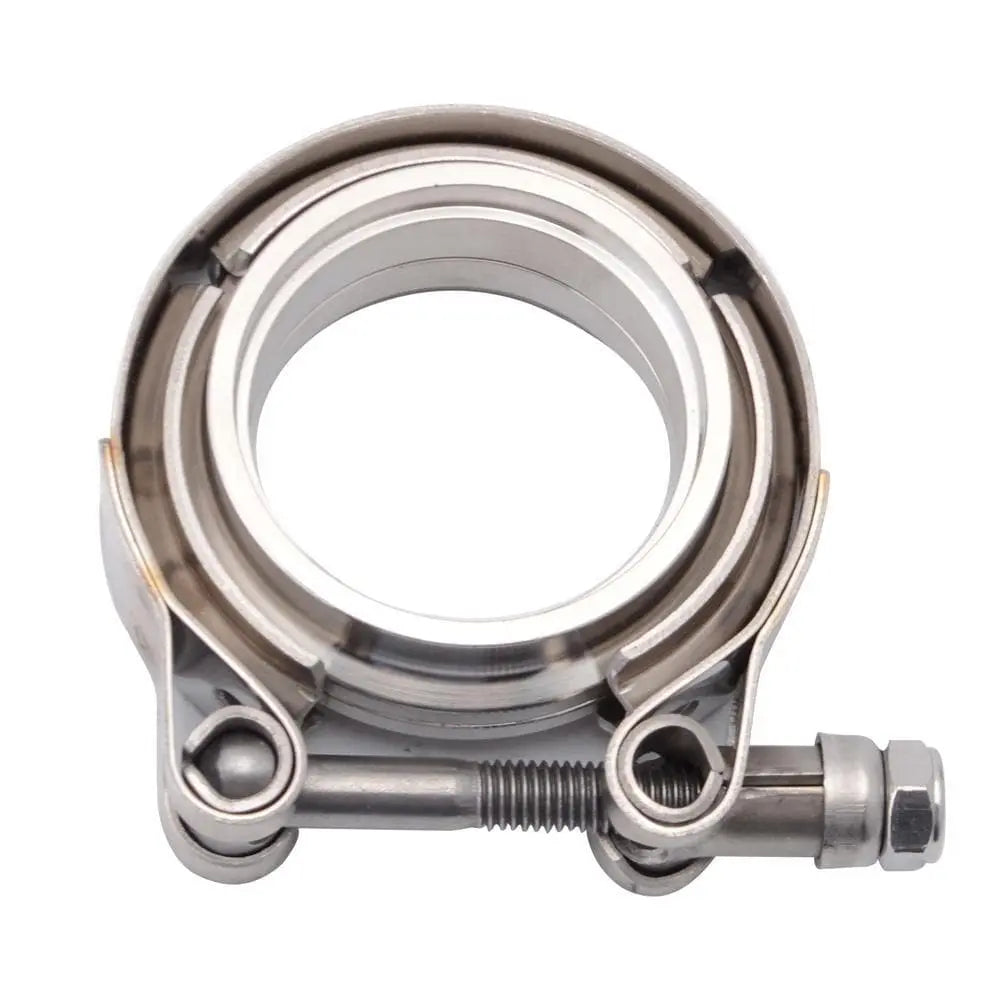

For a fabricated repair, the SPELAB stainless interlocking V-band flange set is one option in listed 2.0-, 2.25-, and 2.5-inch configurations. Measure the real tube OD and confirm current variant availability before ordering. The flanges require full, suitable welding; the assembly is not a substitute for repairing a cracked manifold, bellows, catalyst shell, or DPF body.
- Mock up at neutral load: support the complete exhaust before tack welding so the connection is not carrying engine or frame movement.
- Control welding distortion: use a process and filler compatible with the tube and flange alloys. A flange that pulls out of plane may leak even with a new clamp.
- Keep faces clean and dry: remove weld spatter, burrs, carbon, and old sealant. Do not grind away the interlocking profile.
- Use the supplied specification: clamp torque is not universal. Lubrication, fastener size, clamp design, and temperature all matter.
Exhaust Material and Workmanship Matter
| Material or feature | Practical behavior | Inspection point |
|---|---|---|
| 409 stainless steel | Common in OE exhaust work and may develop brown surface oxidation while remaining structurally serviceable | Judge wall loss, scaling, seams, and perforation rather than color alone |
| 304 stainless steel | Generally offers stronger cosmetic and corrosion resistance but still depends on grade, thickness, weld quality, and road-salt exposure | Check weld heat tint, contamination, cracking, and mixed-metal contact |
| Aluminized steel | Can be a sensible stock-style repair, but cut edges, scrapes, and weld zones lose coating protection first | Inspect seams, low points, hangers, and areas that trap salty water |
| Cast iron manifold | Heavy-duty and thermally stable when the casting, flange machining, fasteners, and support are correct | Check flatness, cracks, port alignment, bolt access, and expansion clearance |
| Flex bellows and braid | Absorb movement but fail quickly when installed in tension, twisted, overheated, or forced to compensate for bad mounts | Look for fraying, dark soot, axial stretch, rubbing, and broken internal liner |
Wall thickness, alloy grade, flange flatness, bend quality, and weld penetration are core physical parameters. A shiny part with thin material or a pulled flange can leak sooner than a plain stock replacement. Material grade also cannot be proved from color or magnet response alone; use the supplier's documented specification when it matters.
Verify Fitment Before Ordering an Exhaust Part
| Vehicle detail | Why it changes the part | What to record |
|---|---|---|
| Model year and engine code | Manifold ports, turbo location, sensor strategy, catalysts, and tube routing can change inside one body generation | VIN, emissions label, displacement, engine family, and production date |
| Pickup or chassis cab | Commercial frames, cab-to-axle dimensions, PTO packaging, and aftertreatment routing may differ | GVWR class, cab style, wheelbase, bed or upfit, and factory exhaust layout |
| 2WD or 4WD | Front driveline, suspension, crossmember, and steering clearance can change manifold or downpipe fit | Drivetrain and clear photos of the installed route |
| Turbo and flange configuration | Outlet diameter, V-band profile, up-pipe arrangement, and bellows location must match | Turbo model, flange style, tube OD, and clocking |
| Emissions and sensor equipment | EGR connections, oxygen sensors, EGT probes, pressure taps, DOC, DPF, DEF dosing, and SCR are configuration-specific | All installed equipment, connector locations, bung threads, and local road-use requirements |
| Existing Mods or collision repair | Lift components, custom exhaust, engine mounts, skid plates, and previous welds can move the connection | Actual measurements and photos rather than another truck's parts list |
Two Platform-Specific Parts to Consider After Diagnosis

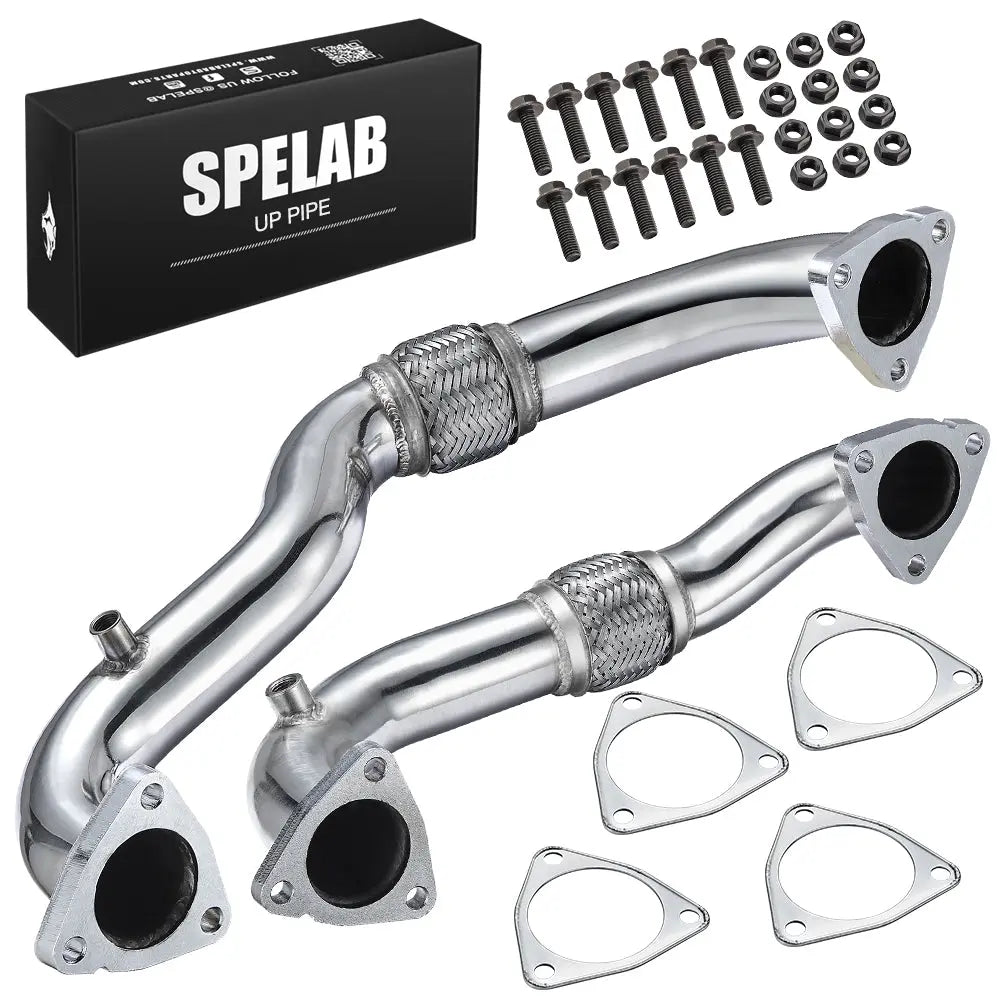

2008-2010 Ford 6.4L Power Stroke Up-Pipe
If smoke testing confirms a leaking up-pipe, bellows, or related pre-turbo joint on a 2008-2010 Ford 6.4L Power Stroke, this 6.4L Power Stroke heavy-duty up-pipe assembly is a year-specific option. Confirm the truck's factory manifold configuration and choose the EGR-compatible version required by the vehicle. Do not order a no-EGR configuration for a street truck that must retain its emissions system.
- Listed for 2008-2010 Ford trucks with the 6.4L Power Stroke, subject to the product's configuration notes.
- Requires confirmation of manifold, turbo, bellows, EGR connection, hardware, and gasket layout.
- Replacement makes sense after a verified pre-turbo leak, not as a first response to P0299.
- Access can be labor-heavy; inspect nearby wiring, heat shields, turbo hardware, and mounts while open.

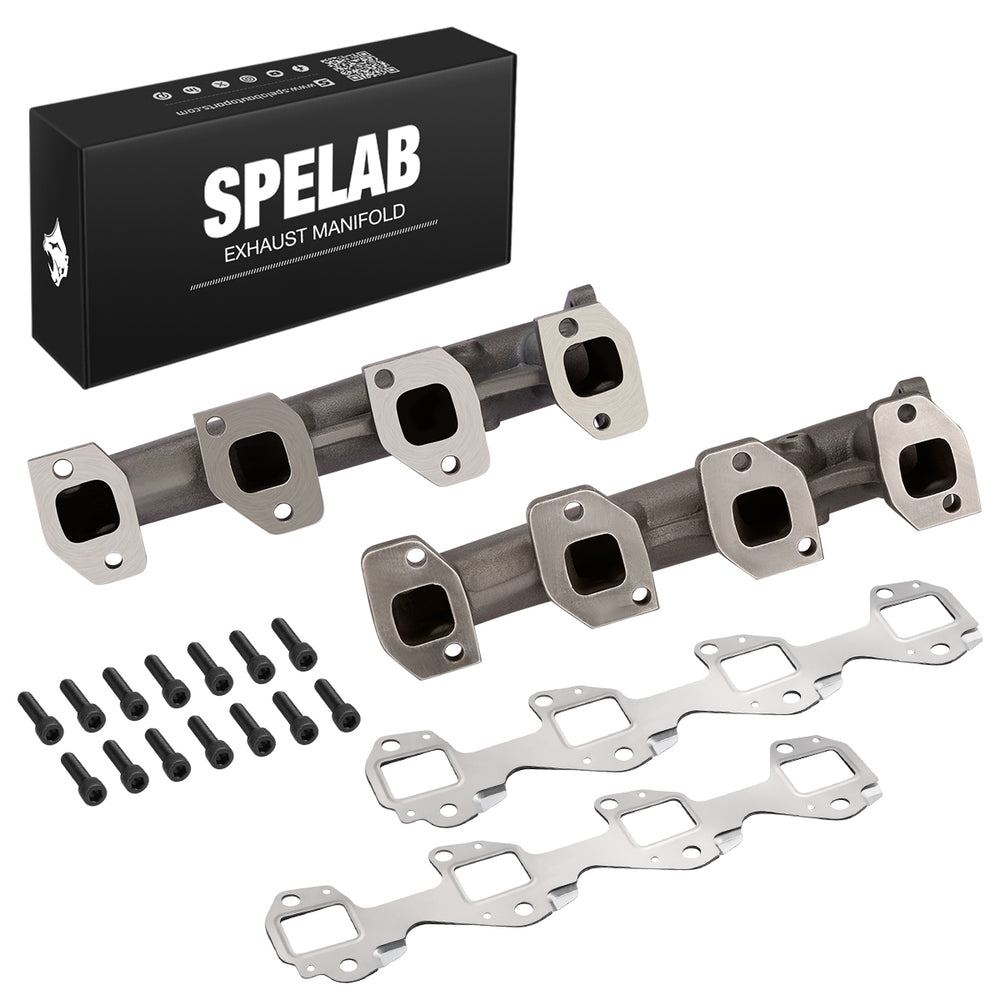

2001-2016 GM 6.6L Duramax 2WD Exhaust Manifold
When inspection finds a cracked or warped factory manifold on a compatible two-wheel-drive Duramax, the SPELAB cast-iron Duramax exhaust manifold covers listed 2001-2016 LB7, LLY, LBZ, LMM, and LML applications. The current listing specifies 2WD, so it should not be extended to 4WD by title alone. Confirm EGR connections, up-pipe routing, steering and frame clearance, port alignment, and road-use compliance for the exact truck.
- Cast-iron construction with a heat-resistant coating.
- Platform-specific replacement for a confirmed manifold fault.
- Broken studs, damaged threads, warped mating faces, and old up-pipe hardware can expand the job.
- A 4WD truck or retained-emissions layout needs written Fitment proof before purchase.
Plan the Repair Around Access, Not Part Price Alone
An exposed tailpipe clamp can be a short Bolt-on job. A rear manifold bolt, turbo up-pipe, seized oxygen sensor, or corroded DPF flange can turn into a full-day repair. Ask the shop to separate diagnosis, part cost, broken-fastener exposure, welding, sensors, gaskets, one-time-use hardware, and post-repair verification.
| Repair level | Typical scope | What can add downtime |
|---|---|---|
| Accessible joint | Band clamp, V-band clamp, gasket, hanger, or short tail section | Distorted tube, wrong nominal size, poor overlap, or unavailable hardware |
| Fabricated section | Flex pipe, flange, cracked weld, sensor bung, or custom routing | Material mismatch, welding access, alignment, nearby fuel or electrical parts, and corrosion |
| Engine-side repair | Manifold, studs, crossover, turbo connection, or up-pipe | Broken fasteners, thread repair, heat shields, cab or turbo access, and warped surfaces |
| Aftertreatment repair | DOC, DPF, SCR, catalyst, sensors, dosing hardware, and shields | Substrate damage, seized sensors, calibration checks, regeneration diagnosis, and legal part requirements |
How Truck Use Changes the Inspection
Towing and Heavy Payload
A small pre-turbo leak can show itself only when drive pressure and exhaust mass flow rise on a grade. Record boost response, EGT, engine load, gear, road speed, and ambient temperature on a repeatable route. If the truck suddenly needs more throttle or produces a new chirp under the same trailer, inspect before the next long pull.
Jobsite and Fleet Duty
Long idle hours, short moves, dust, and repeated cold starts create a different failure pattern from highway mileage. Inspect heat shields, flex sections, hangers, sensor wiring, and soot around aftertreatment joints during scheduled underbody service. Downtime from a broken stud costs more than a planned cold repair.
Off-Roading
Frame twist and impact can shift a Rigid exhaust, crush a tube, or load a V-band sideways. After rocks, deep ruts, or washboard roads, check skid-plate clearance, polished contact marks, hanger stretch, dented aftertreatment shells, and wiring pulled tight across a bracket.
Road Salt and Extreme Weather
Salt attacks weld zones, clamps, and low spots first. A brown 409 stainless surface is not automatically failed, but scaling, thinning, a wet seam, or a pinhole is real damage. In snow country, clear the tailpipe before starting the truck; a blocked outlet can push exhaust under the body or into the cab.
Emissions and Road-Use Check
Repairing a leak does not require removing the catalytic converter, DOC, DPF, SCR system, EGR connection, sensors, or OBD monitoring. Use a direct replacement or documented compliant configuration for the specific vehicle and location. Current EPA vehicle-repair guidance supports access to repair information while retaining the prohibition on bypassing, tampering with, or removing required emissions controls.
Frequently Asked Questions
Q: What is the safest way to find an exhaust leak at home?
A: Start outdoors with a completely cold system. Scan for codes, inspect for soot and damaged hardware, and make only a brief cold-start observation from safe access points. If the leak remains hidden, use a regulated automotive smoke machine with the engine off and follow its pressure limit.
Q: How much pressure should I use for an exhaust smoke test?
A: There is no universal safe pressure for every gasoline or diesel exhaust system. Use the vehicle manufacturer's limit and the automotive smoke-machine instructions, with a regulator and gauge. Do not assume an inflator is safe because its advertised pressure sounds low.
Q: Does black soot prove the exhaust is leaking there?
A: Fresh soot is strong location evidence, especially when it forms a fan from a flange or crack, but old soot can remain after repair. Clean the area, inspect the metal and gasket, perform a controlled test, and recheck after a heat cycle.
Q: Can an exhaust leak cause P0299 underboost on a diesel?
A: A pre-turbo manifold, up-pipe, bellows, or V-band leak can reduce turbine energy and contribute to slow spool or underboost. P0299 is not proof, so also test charge-air plumbing, turbo controls, sensors, intake restriction, and fuel delivery.
Q: Can an exhaust leak cause P0420 or P0430?
A: A leak near an oxygen sensor can disturb readings and contribute to a catalyst-efficiency diagnosis, but those codes can also come from sensor, wiring, fuel-control, misfire, contamination, or catalyst faults. Review freeze-frame and live data before replacing the converter.
Q: Can high-temperature sealant permanently fix an exhaust leak?
A: Sealant is not a universal repair for a cracked manifold, separated flex pipe, warped flange, failed bellows, or damaged aftertreatment shell. Use it only where the vehicle or component manufacturer explicitly specifies a sensor-safe product and application.
Q: Is an electric exhaust cutout useful for diagnosing a leak?
A: No. Opening a cutout changes noise and flow but does not identify the failed joint. The cutout valve, welds, flange, or clamp can also become another leak source. Diagnose the original exhaust in zones with inspection, data, and controlled testing.
