Exhaust Shorty Header for 2009-2018 Hemi 5.7L Dodge Ram 1500 Manifold | SPELAB
Secure and trusted checkout with
Product Information +
- Brand: SPELAB
- SKU: SPES08294
- Availability: Many in stock
- Product Type: Exhaust Header
-
PLEASE NOTE!
Short or Long Headers for the Matching 2WD Ram 5.7L
The SPELAB 304 stainless header options are intended for compatible Dodge / Ram 1500 5.7L HEMI V8 2WD configurations: Short 09-17 for 2009–2017, or Long 09-18 for 2009–2018. The short option uses compact runners and nominal 2.5-inch collectors; the long option uses extended runners and nominal 3-inch outlets. Each selected style includes its own bank-header pair, head gaskets and mounting hardware.
Best For
- Replacing a diagnosed manifold leak: the Ram headers require the actual leak source, head threads and retained connections to be inspected before replacement.

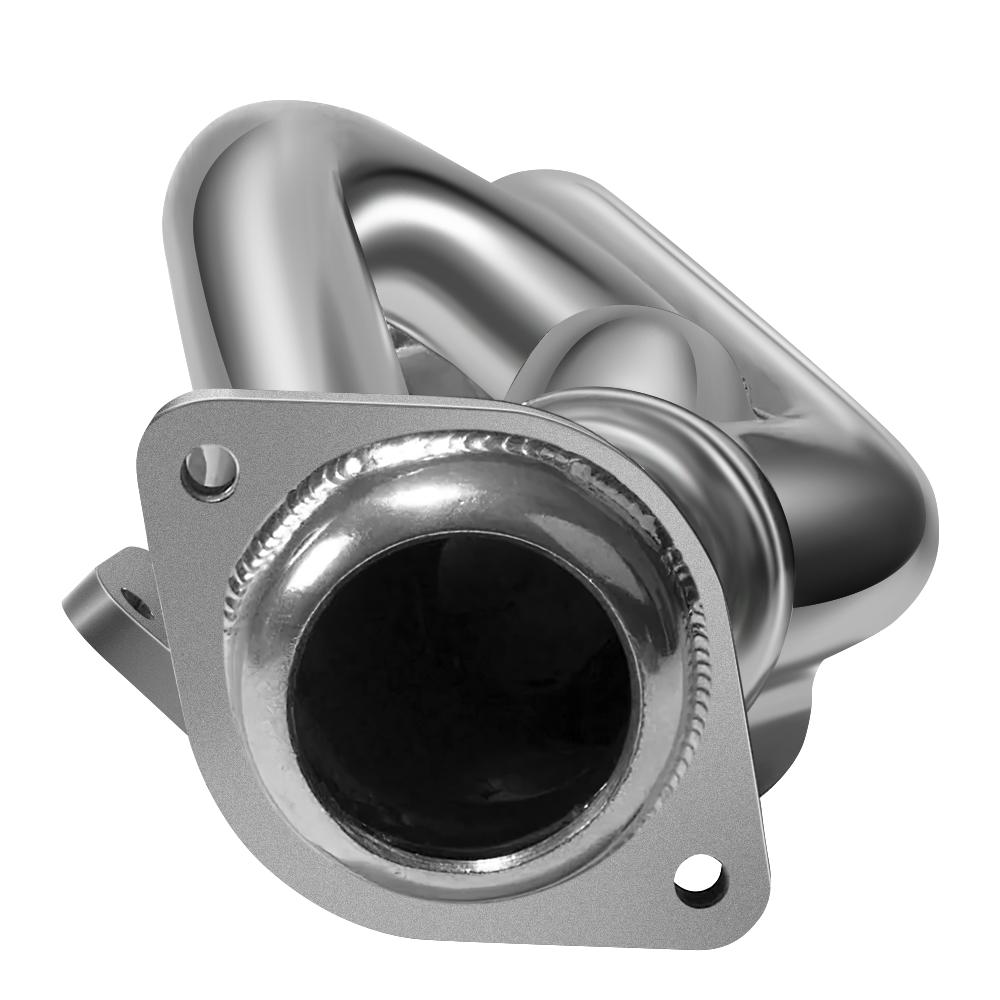

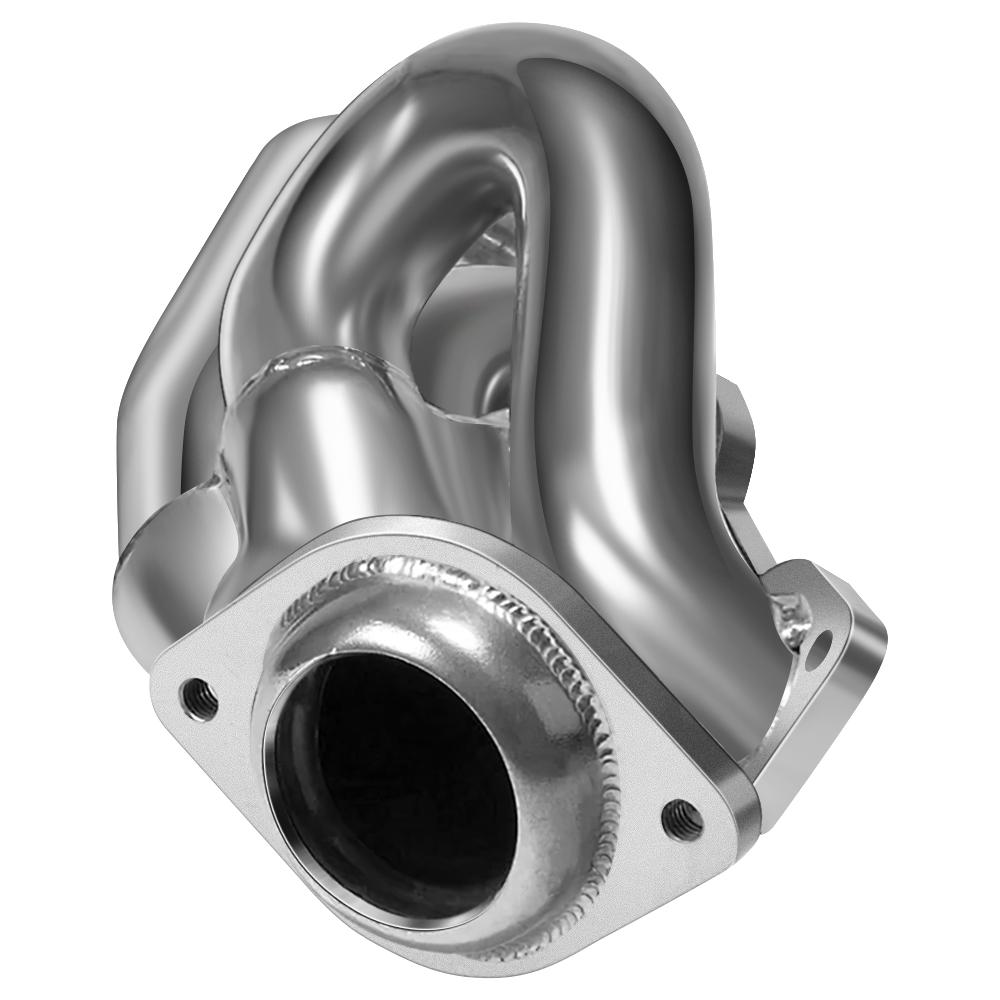

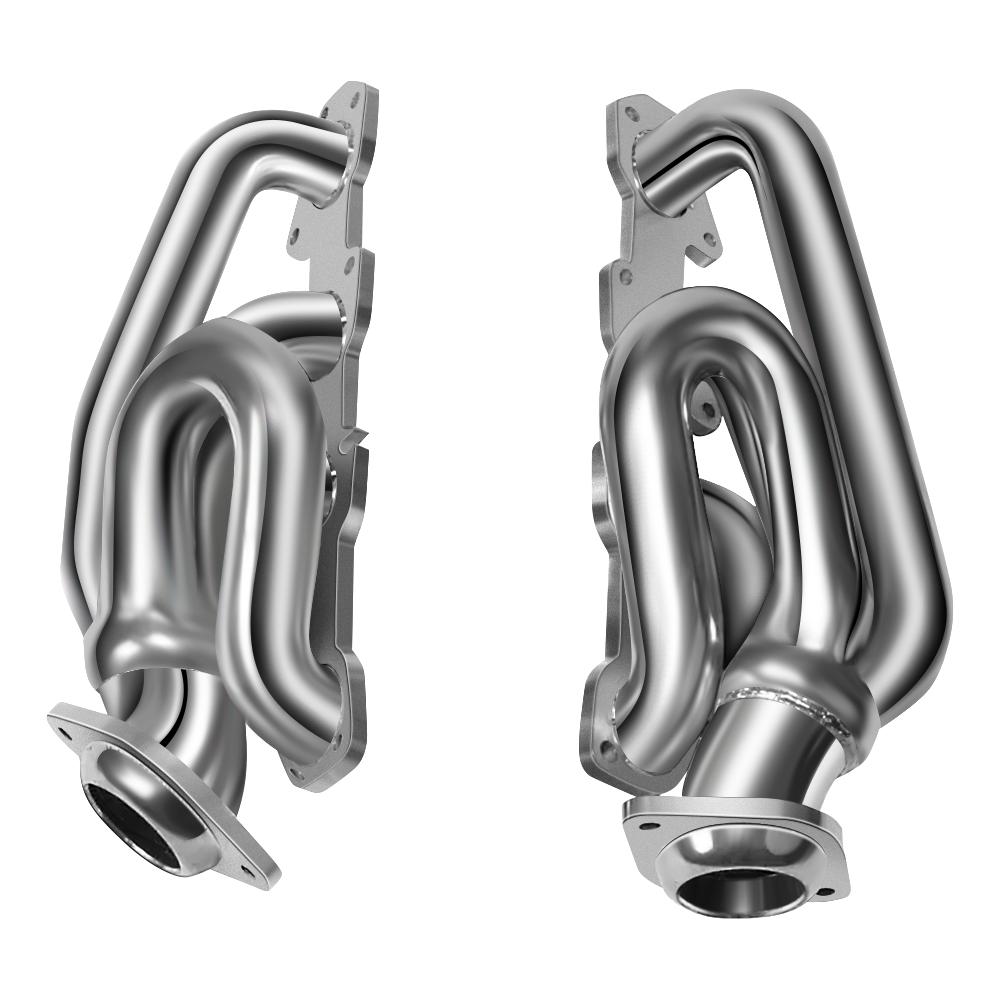

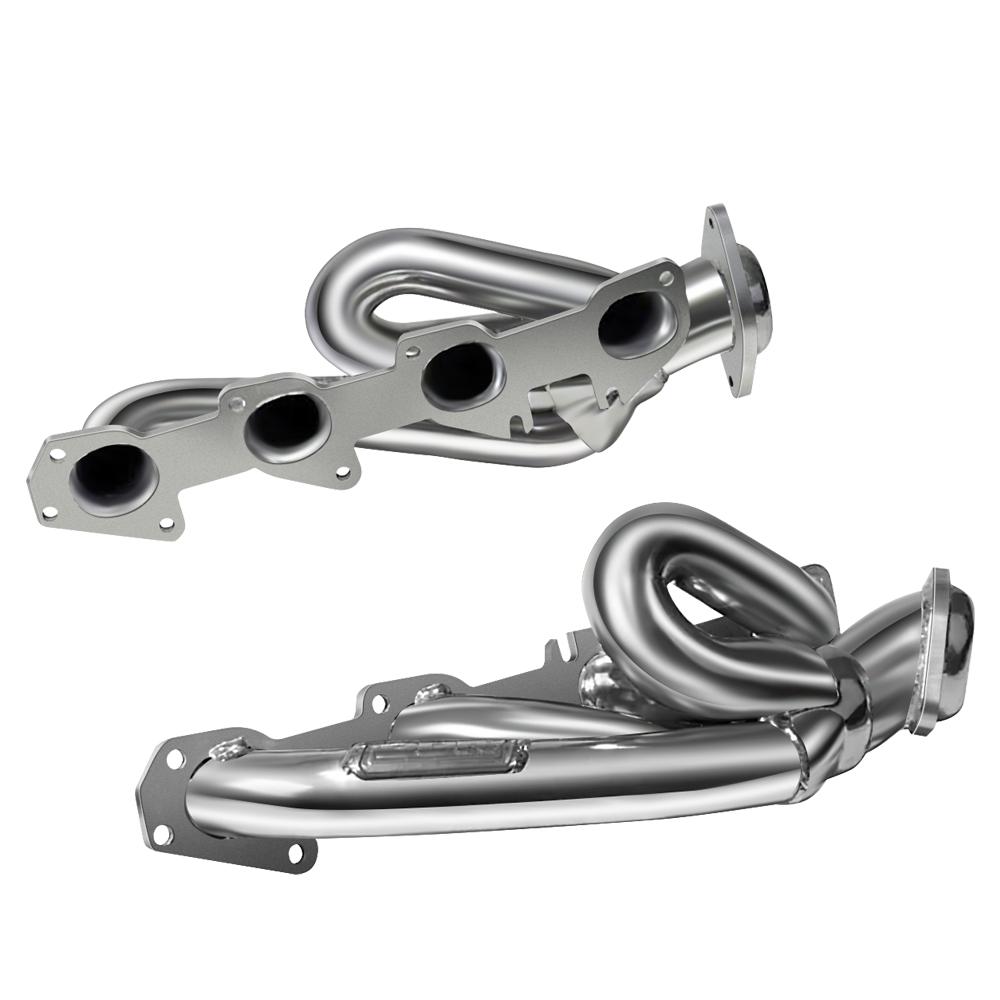

- Planning compact front-exhaust packaging: Short 09-17 must be matched to the actual retained pipe route and two-bolt collector joints.

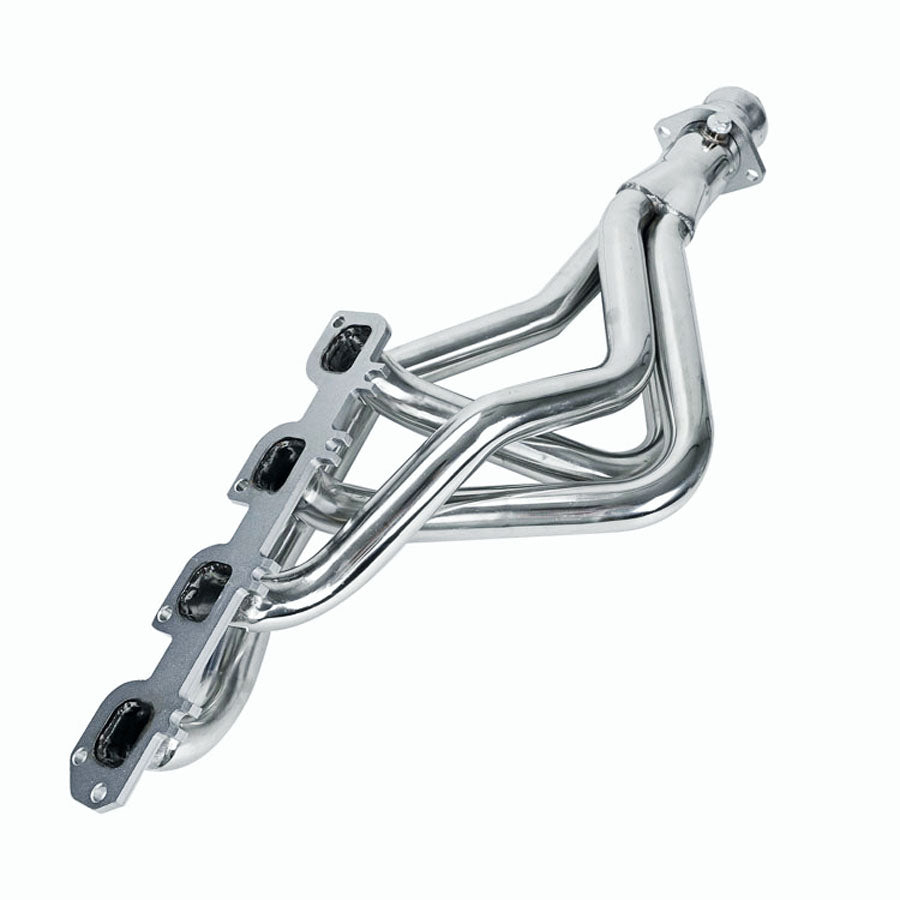

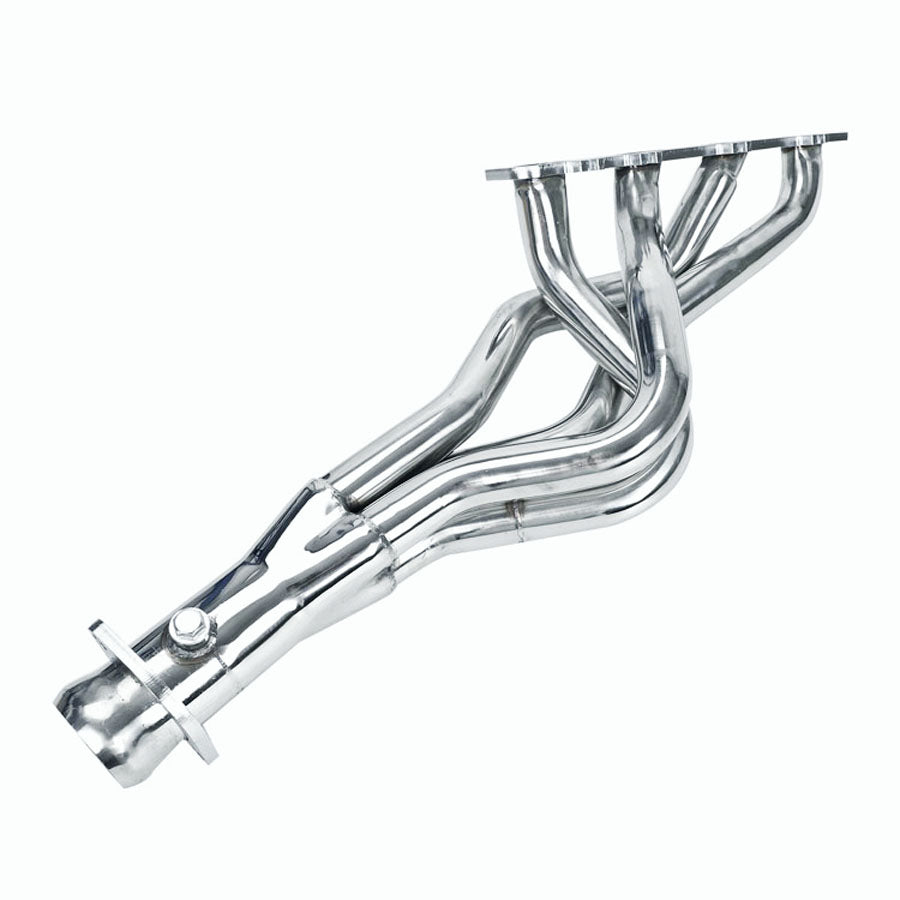

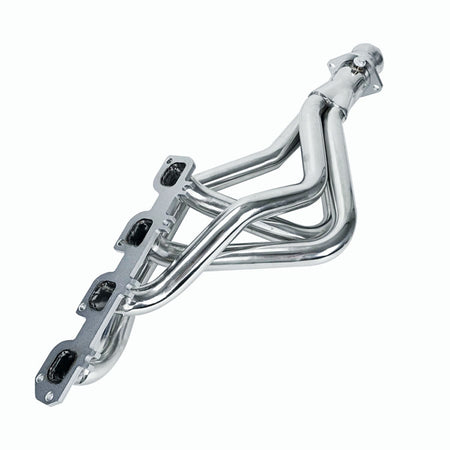

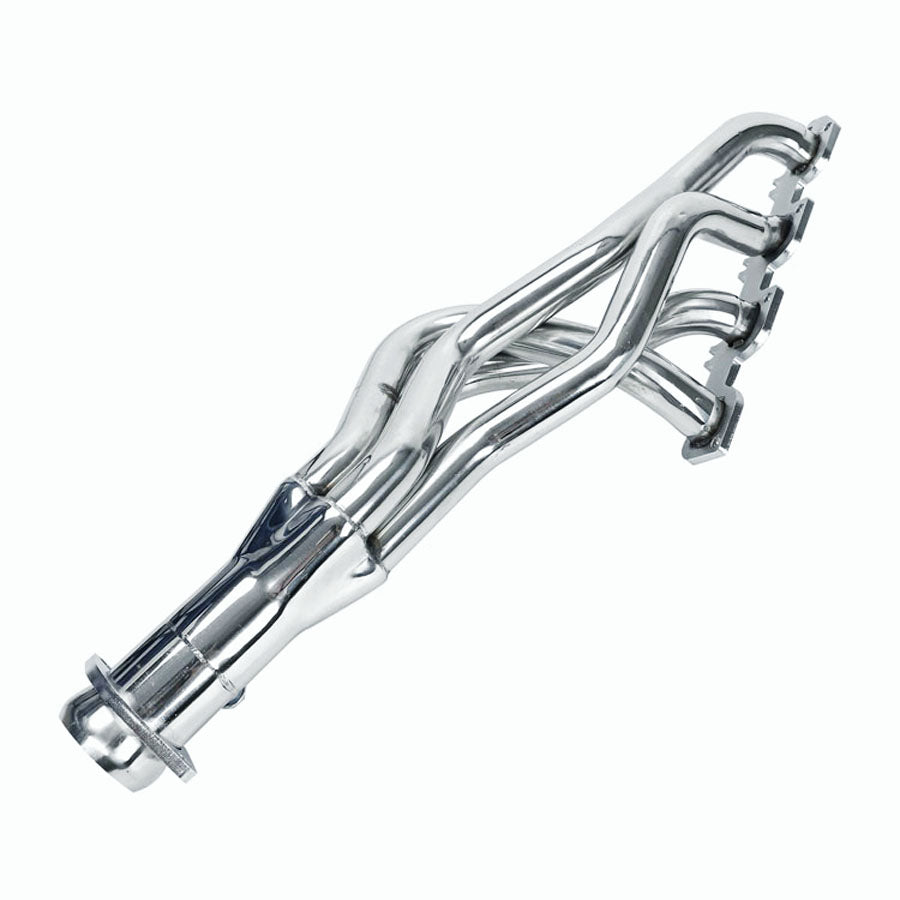

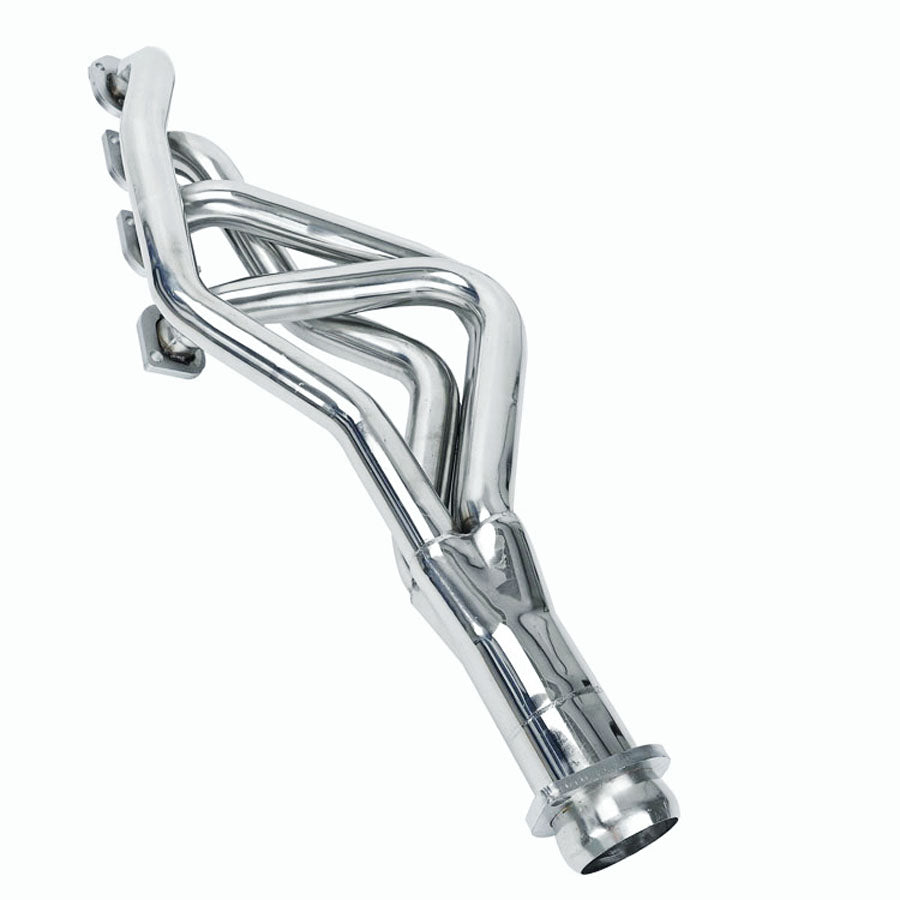

- Building an extended-runner system: Long 09-18 requires its own complete collector, front-pipe and required-equipment plan.
Match the Style Before Planning the Pipes
The Ram short and long styles both use four-into-one bank assemblies, but their runner routes and collector sizes are not interchangeable. Selecting the correct pair requires the actual year, drivetrain and complete front-exhaust configuration.
No measured power gain, guaranteed sound or permanent prevention of broken manifold bolts is established for these Ram headers. A diagnosed manifold leak can justify replacement, while broken bolts, damaged head threads and other sources of ticking need their own repair.
Specs
| Specification | Detail |
|---|---|
| Material, both styles | 304 stainless steel |
| Short 09-17 primary / collector | 1-5/8 / 2-1/2 inches nominal |
| Short head flange | 3/8 inch nominal |
| Short tube wall | 16 gauge; 1.5 mm stated |

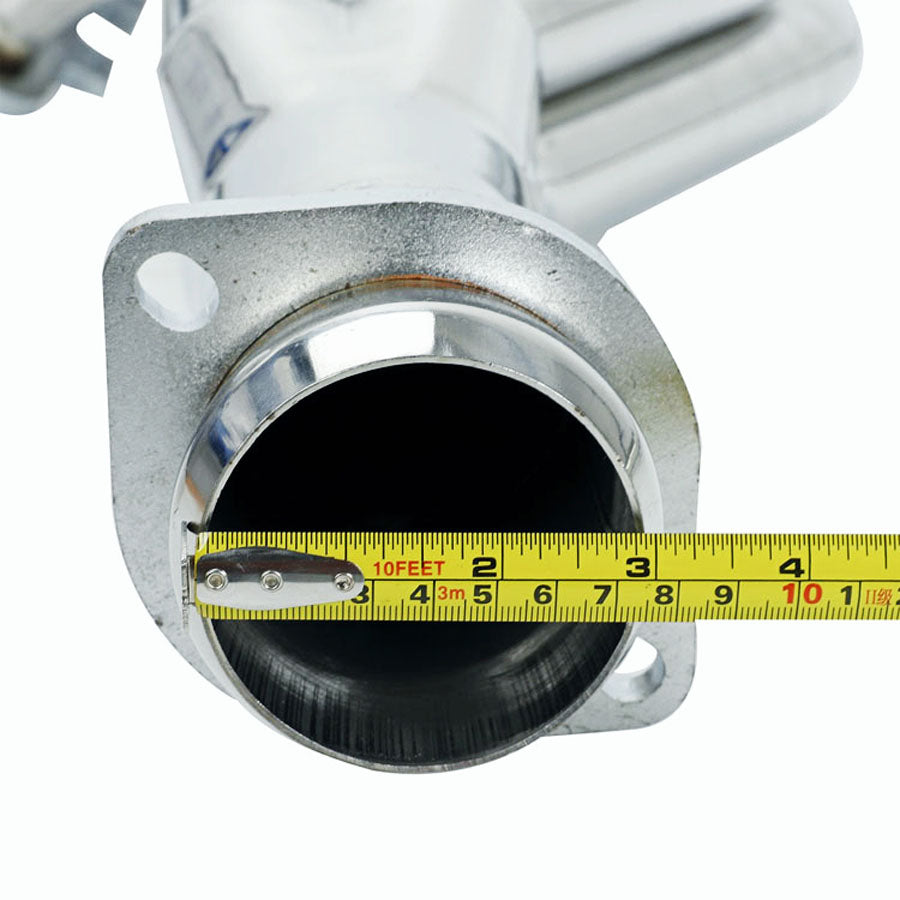

| Long 09-18 primary / outlet | 1.75 / 3.00 inches nominal |

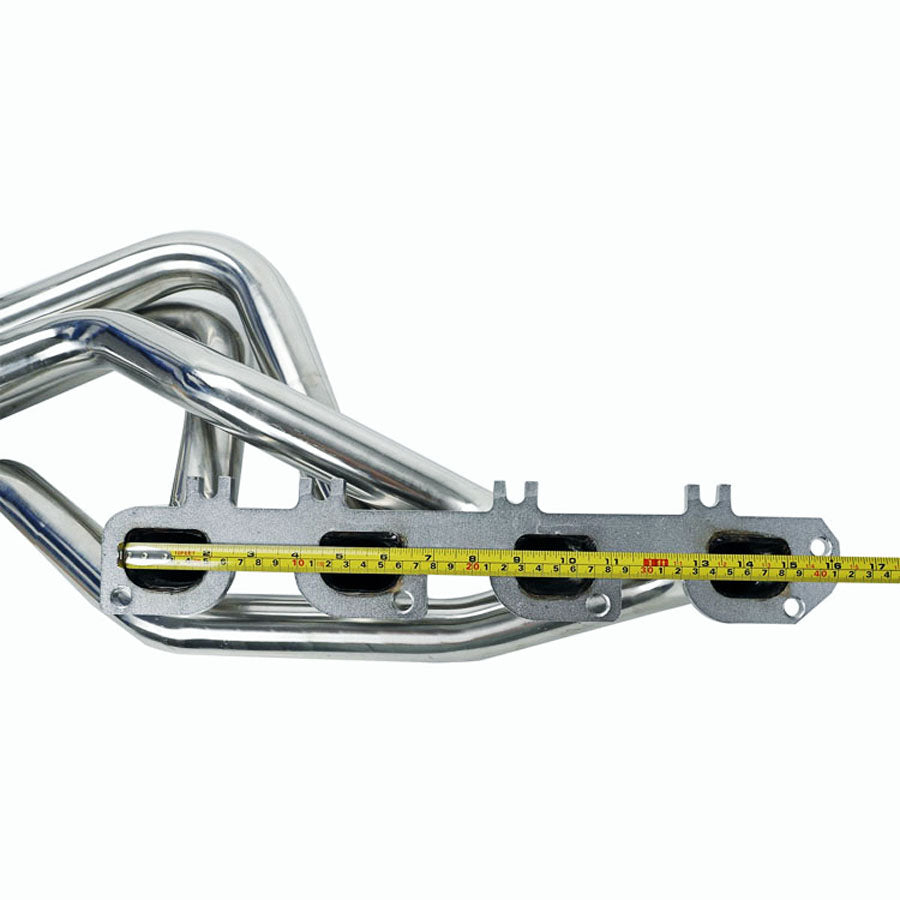

| Long head / outlet flange | 7/16 / 3/8 inch nominal |
| Long construction / finish | CNC-machined flanges; TIG and MIG welded; three-stage polish |
| Drivetrain | 2WD only; 4WD excluded |
What’s Included
| Component | Description |
|---|---|

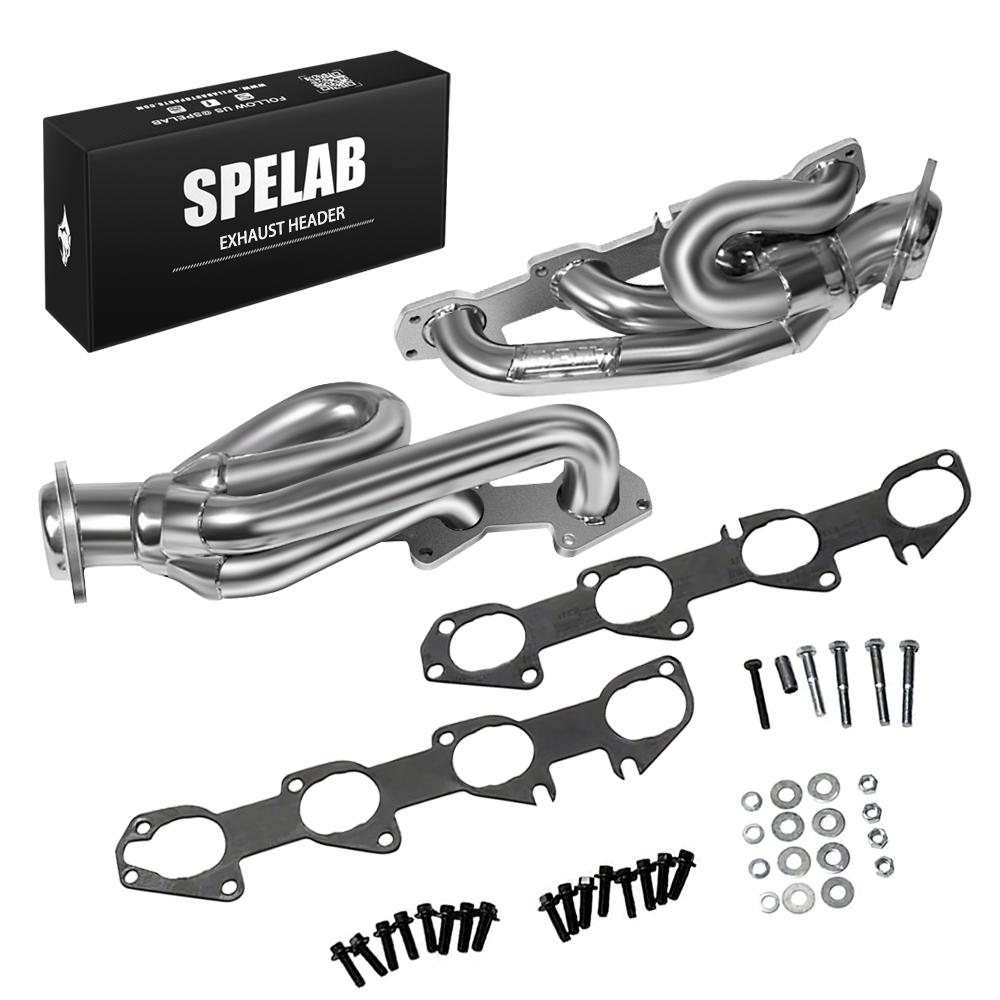

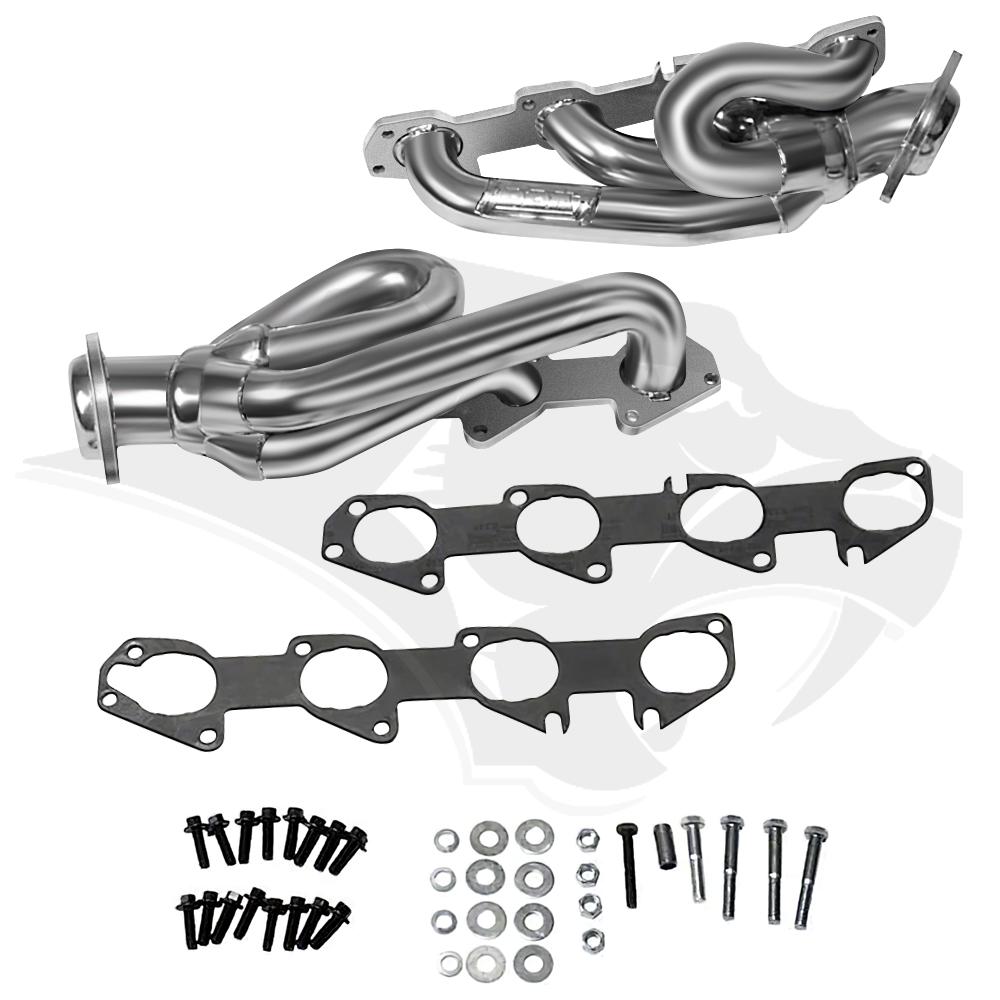

| Short 09-17 | Two compact headers with two head gaskets and mounting / connection hardware |

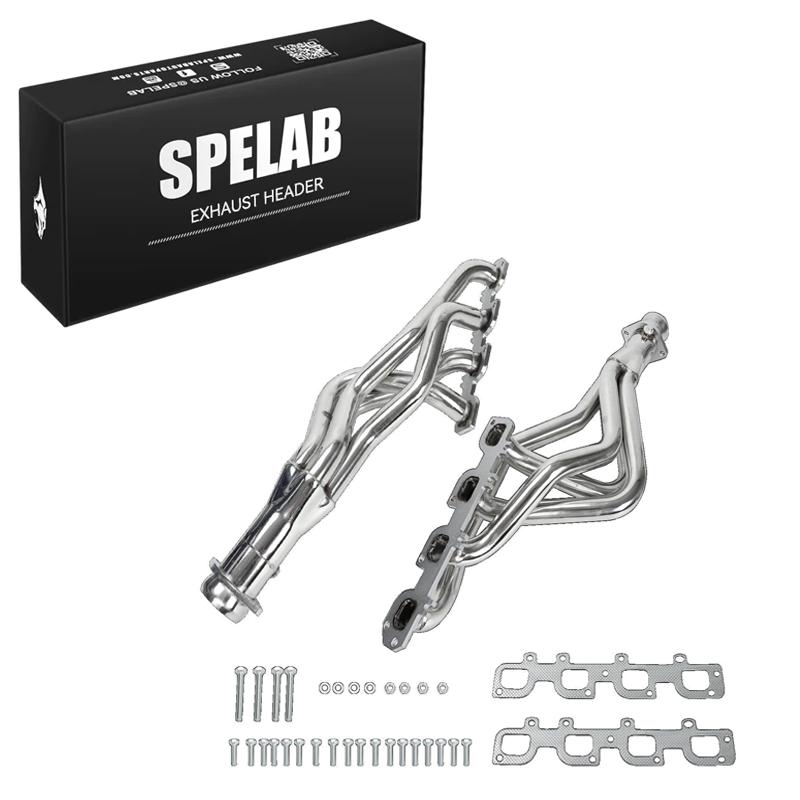

| Long 09-18 | Two extended-runner headers with two head gaskets and mounting / connection hardware |
| Vehicle-side joints | Confirm collector seals, retained head fasteners and supports for the actual selected-style installation |
Check the Installation section for vehicle-side seals, fasteners and connections that may need to be retained or renewed.
