EGR Delete Kit For 2008-2010 Ford 6.4L Powerstroke Turbo Diesel | SPELAB

The 2008–2010 Ford F-250/F-350/F-450 6.4L Powerstroke EGR Delete Kit by SPELAB removes the listed EGR valve and cooler hardware, closes the associated coolant connections and replaces the intake elbow to stop exhaust recirculation into the intake, improving engine efficiency and longevity.

Key Features

• Enhanced Performance – Restores lost power and throttle response.
• Improved Fuel Economy – Up to 20% better mileage by reducing soot buildup.
• Reduced Engine Heat – Prevents overheating from clogged EGR coolers.
• DPF Protection – Lowers risk of costly diesel particulate filter failures.
• Longer Engine Life – Minimizes carbon deposits for cleaner, smoother operation.
• Cost Savings – Avoids expensive EGR system repairs and replacements.
• Intake Elbow Included: The base EGR kit includes the replacement intake elbow and its sealing and mounting hardware.
• Coolant Closure and Hose Routing: Two coolant plugs with O-rings, a barbed hose connection and routing clips support the coolant connections described in the instructions.
• Color and Package Choices: Select black, red or silver hardware, with EGR-only, DPF-pipe, Downpipe-Back or Up-Pipe combinations as listed.

The performance, temperature, DPF and longevity benefits above depend on engine condition, calibration and the selected configuration. The base EGR kit does not remove or repair the DPF, and it is not a remedy for every overheating or coolant-loss fault.

Specifications

What's in the Box

• Intake elbow, exhaust block-off plate and gasket.
• Two coolant plugs, O-rings, hose connector and routing clips.
• Mounting hardware, spacer and installation instructions.
• Additional exhaust or up-pipe components only with the selected combination.

Installation

08-10 Ford 6.4 EGR delete kit instruction

Benefits & Function

On the 6.4L Powerstroke, this kit removes the listed EGR valve and cooler components and closes their coolant connections with the supplied plugs and seals. The included elbow replaces the intake connection, stopping exhaust from returning through the EGR path and reducing that source of intake deposits and heat input. These changes address the EGR-related contamination and recurring cooler/valve maintenance described in the existing product information.

Potential benefits include improved response, more consistent power, lower temperatures, longer engine life and reduced EGR repair costs. The stated fuel-economy improvement is up to 20%; results vary with condition, calibration, load and use. Cleaner intake airflow does not mean lower overall emissions. A DPF-pipe or exhaust combination changes additional hardware only when selected, and the EGR kit alone does not eliminate regeneration or repair a damaged DPF or turbocharger.

Fitment

• 2008 Ford F-250 / F-350 / F-450 Super Duty — 6.4L Powerstroke V8 Diesel
• 2009 Ford F-250 / F-350 / F-450 Super Duty — 6.4L Powerstroke V8 Diesel
• 2010 Ford F-250 / F-350 / F-450 Super Duty — 6.4L Powerstroke V8 Diesel

View More : SPELAB 2008-2010 6.4L Powerstroke Diesel Applicable Products

More Powerstroke Parts: Powerstroke EGR Delete ,DPF Pipe ,CCV Reroute ,Air Intake ,Intercooler Pipe

View Full Range of EGR Delete Kits

Best For

• Confirmed 2008–2010 F-250/F-350/F-450 6.4L projects addressing EGR-derived intake soot and valve/cooler maintenance.
• Installers replacing the EGR components and intake elbow together.
• Owners choosing an EGR-only package or a matching exhaust/up-pipe combination.

FAQ

Is this kit designed for the 2008–2010 6.4L Powerstroke?

Yes. The stated fitment is 2008, 2009 and 2010 Ford F-250, F-350 and F-450 trucks with the 6.4L Powerstroke V8 diesel. Confirm the model and engine rather than assuming it fits every Super Duty configuration.

What components are included?

The base kit includes the intake elbow, exhaust block-off plate, coolant plugs, seals, gasket, hose connector, routing clips and mounting hardware. Additional DPF-pipe, Downpipe-Back or Up-Pipe components are included only with the corresponding selected combination.

Do I need a tuner or ECU calibration?

Yes. The product information requires compatible tuning or custom ECU calibration for the hardware configuration. Without suitable calibration, check-engine lights, limp mode or drivability problems can occur. A tuner or calibration is not listed as included in these hardware options.

Will the kit improve engine performance?

The product describes reduced EGR-fed intake soot, improved combustion efficiency, lower exhaust temperatures and more consistent power delivery. Results depend on engine condition, calibration and use; the kit does not remove existing deposits or resolve unrelated engine faults.

Is this kit street-legal?

No. It is marketed for off-road or competition use and is not for public-road emissions-controlled vehicles. An off-road label does not by itself create an emissions-law exemption. Check applicable requirements before installation.

Can I install it myself?

Installation requires moderate to advanced mechanical skills and appropriate tools. A qualified diesel technician is recommended if you are unfamiliar with diesel disassembly, cooling-system service or configuration requirements. Use the packaged instructions for the full procedure; no universal installation time is stated.

Will it affect the cooling system or cause leaks?

The kit replaces the listed EGR coolant connections with plugs and seals and reconnects the specified hose path. Correct seating, undamaged seals and proper fastener installation are essential. Follow the vehicle service procedure for refill and pressure testing, and investigate leaks rather than assuming any installation is automatically leak-free.

What changes when combined with DPF hardware and tuning?

The selected DPF/exhaust combination changes hardware beyond the EGR system. The original FAQ describes potential power, response, fuel-consumption and maintenance benefits with compatible calibration. Those results depend on the complete configuration; the base EGR kit alone does not remove the DPF or its regeneration system.

What finishes and materials are offered?

Black, red and silver hardware finishes are listed. The existing product information describes high-grade materials with heat resistance, corrosion protection and durability, but does not specify a single alloy grade for every component. Color applies to selected hardware, not the entire package.

Will the kit help turbocharger reliability?

The original product information associates reduced EGR-related soot and restriction with improved turbocharger reliability. Actual turbo condition also depends on maintenance, lubrication, operating conditions and the complete configuration; this kit does not repair worn or damaged turbochargers.

How do the listed combinations differ?

Each color is available as the base EGR kit, with a 4-inch DPF delete pipe, with a 4-inch Downpipe-Back system, with a 5-inch Downpipe-Back system, or with Up-Pipe components. Choose the package by its option name and confirm the additional exhaust fitment before ordering.

Will every truck gain 20% in fuel economy?

No. Up to 20% is the stated maximum improvement, not a guaranteed result. Engine condition, calibration, load, route and driving conditions affect actual fuel economy.

What should be checked at the intake elbow connection?

Check the elbow seating, flange seal, charge-air boot alignment and clamps against the instructions. A boot that is folded, strained or poorly seated needs attention before operation. Confirm compatibility with any existing charge-air piping rather than forcing the connection.

Emissions and Use Notice

Removing or disabling emissions controls can violate applicable law. Review EPA emissions-tampering guidance and applicable local requirements before purchase or installation.

Installation Overview

For the detailed installation procedure, please refer to the installation instructions included in the package.

1. Prepare the truck and parts. Allow the engine to cool, disconnect both batteries and drain/capture coolant as instructed. Compare the received components with the selected package and packing list.
2. Access the EGR coolers. Follow the manual for the battery tray, degas bottle, coolant lines and charge-air connection. Keep the factory hose and other parts identified for reuse, and protect open connections.
3. Remove the specified EGR hardware. Follow the complete sequence for the upper and lower cooler, mounts and EGR valve. Use the manual's steering-shaft precautions wherever that access step is required.
4. Fit the closure hardware. Install the exhaust block-off plate, gasket and coolant plugs with their seals and specified hardware. Restore the supports and retained factory components according to the instructions.

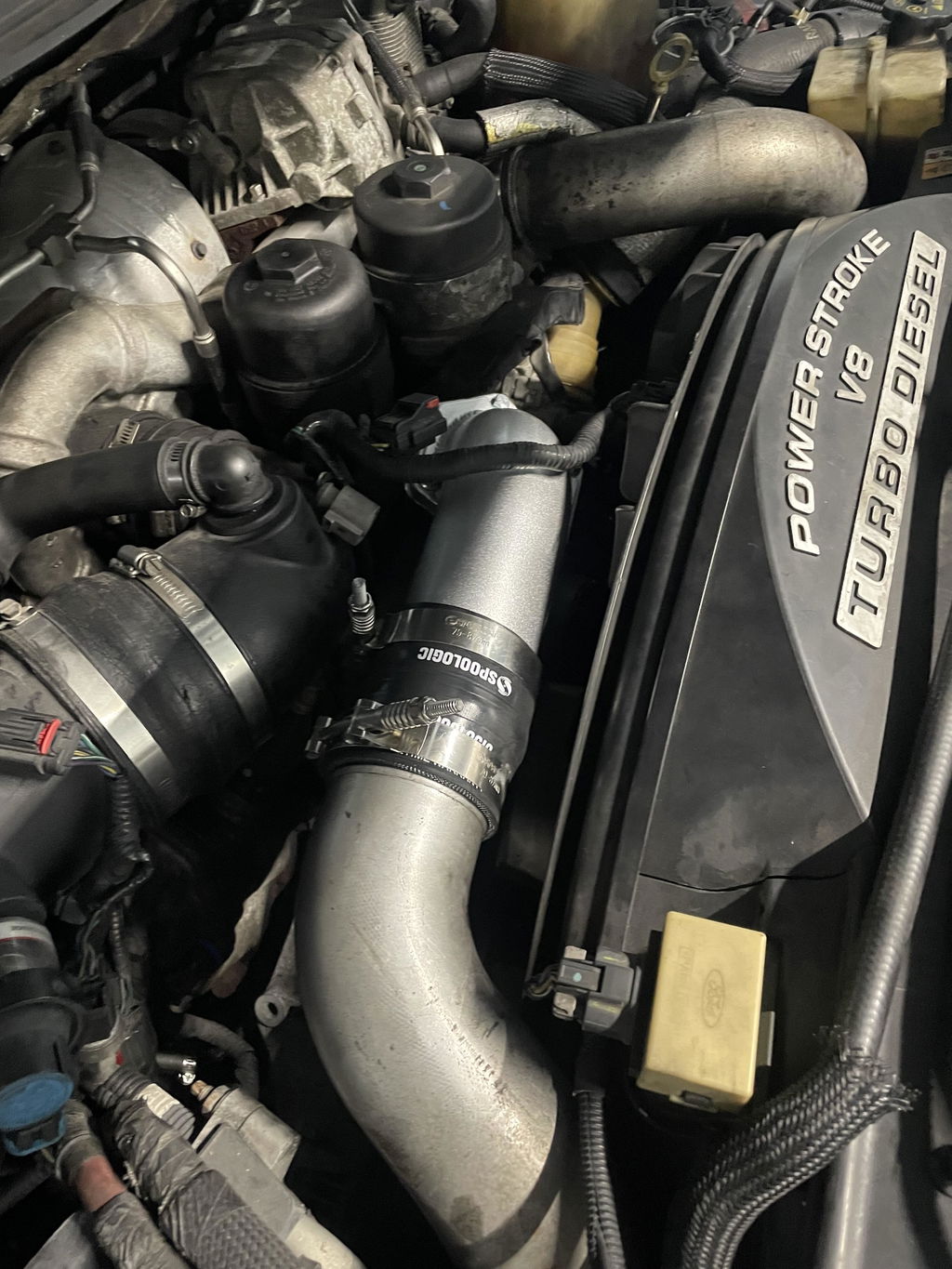

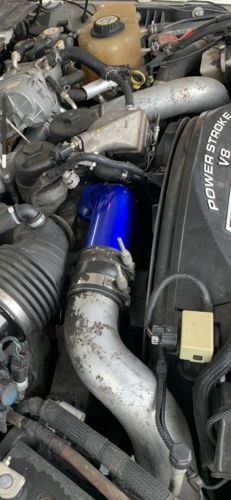

5. Install the intake elbow and route the hose. Seat the elbow in the charge-air boot and attach it to the intake manifold. Complete the instructed degas-hose connection and secure the hose with the routing clips; check boot alignment and clamps.
6. Refill, reassemble and check. Restore coolant to factory specifications, recheck disturbed connections and inspect for coolant or charge-air leaks during testing. Resolve warning lights and calibration issues before use.

See the 2008–2010 6.4L Powerstroke installation instructions. Additional exhaust and up-pipe work depends on the selected combination.
