SPELAB 2004-2005 6.6L Duramax LLY EGR Delete Kit With High Flow Intake

LLY Duramax EGR Delete Kit Overview

LLY EGR delete improves fuel economy (up to 20%), reduces DPF failure risk, and extends engine life by preventing soot buildup. It lowers engine temperatures, restores power, and avoids costly EGR repairs. The engine runs cleaner and more efficiently without recirculating exhaust gases.

Key Features

• 100% Brand New, Aftermarket Product
• Direct replacement. No installation instruction. No Glue
• High-Temperature Applications: Formulated for high-temperature applications, or heavy-duty use (such as towing, etc.).
• Formed-in-Place Gaskets: Replaces almost any cut gasket by making reliable, formed-in-place gaskets that resist cracking, shrinking and migrating caused by thermal cycling.
• Gasket Coating and Temperature Range: Coats pre-cut gaskets to increase reliability. Temperature range -65u00b0F to 650u00b0F (-54u00b0C to 343u00b0C) intermittent; resists auto and shop fluids.
• LLY-Specific Kit Fitment: The EGR kit configurations are designed for the listed 2004–2005 Silverado and Sierra 6.6L LLY applications.

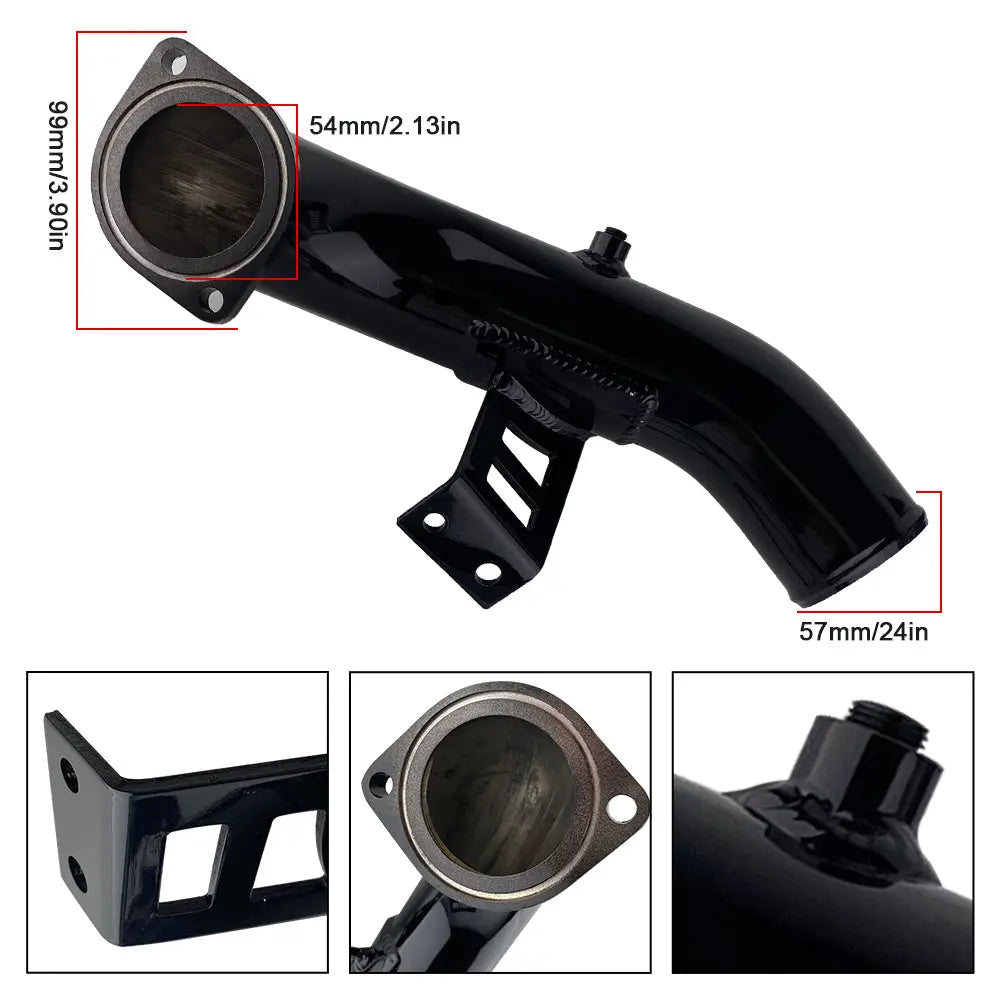

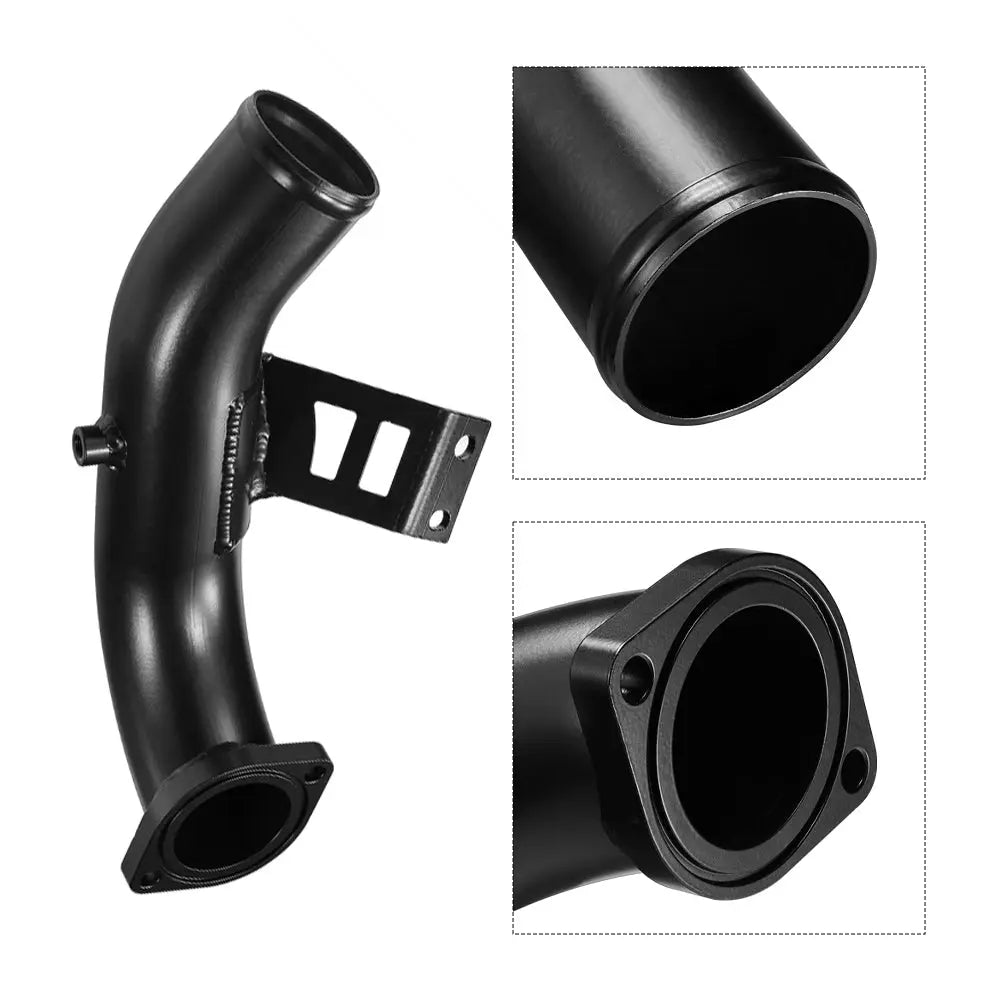

• High-Flow Intake Option: With Intake selections include the black high-flow intake tube; Without Intake selections do not include that tube.
• Coolant Connection Hardware: The two base EGR kit configurations include a hose and clamps, with the plate and mounting hardware arrangement varying by configuration.

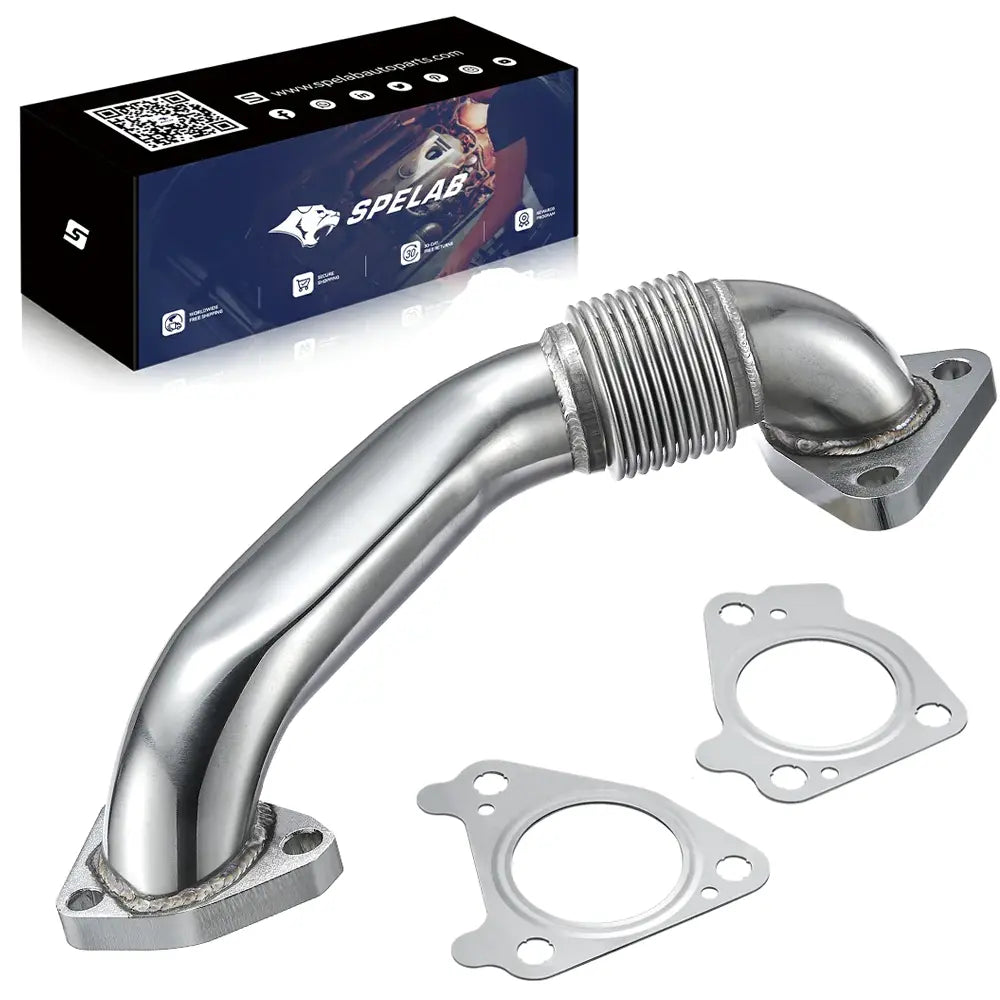

• Optional Passenger-Side Up-Pipe: Choose the corresponding up-pipe bundle when the project also calls for the matching passenger-side exhaust up-pipe.

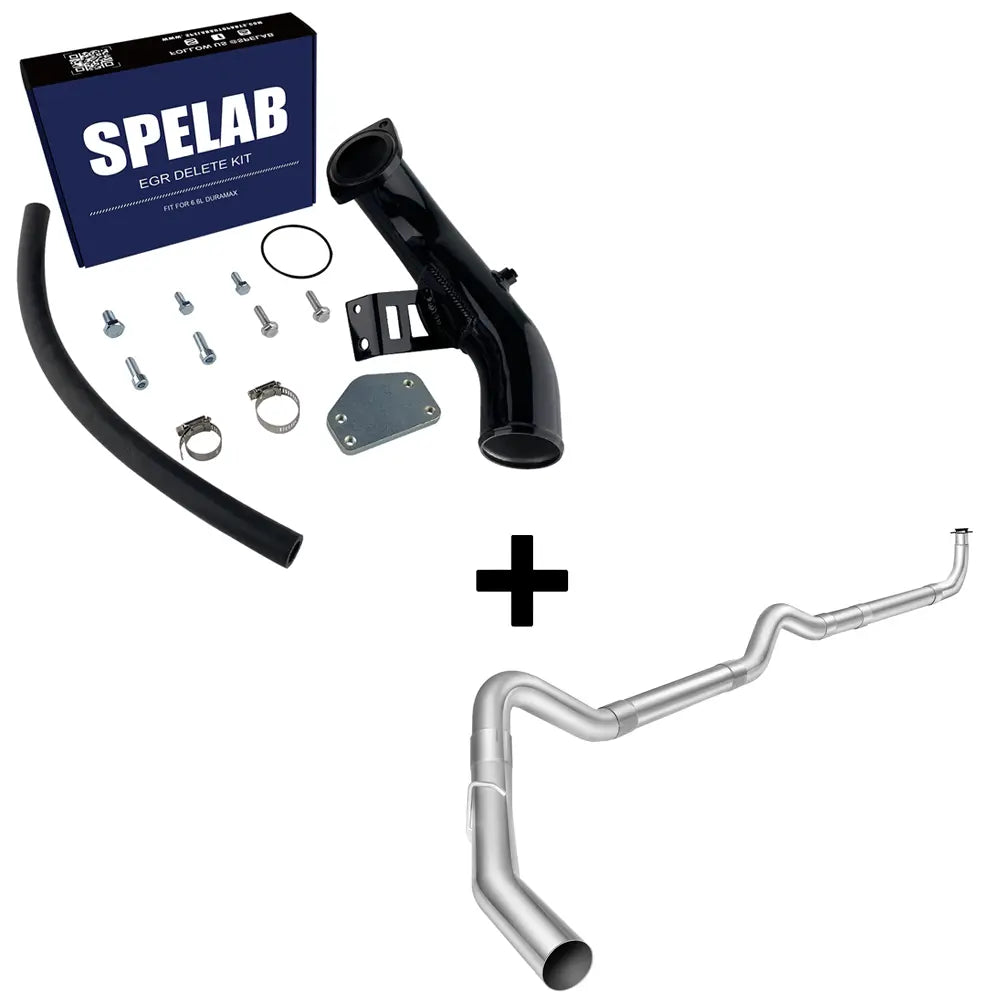

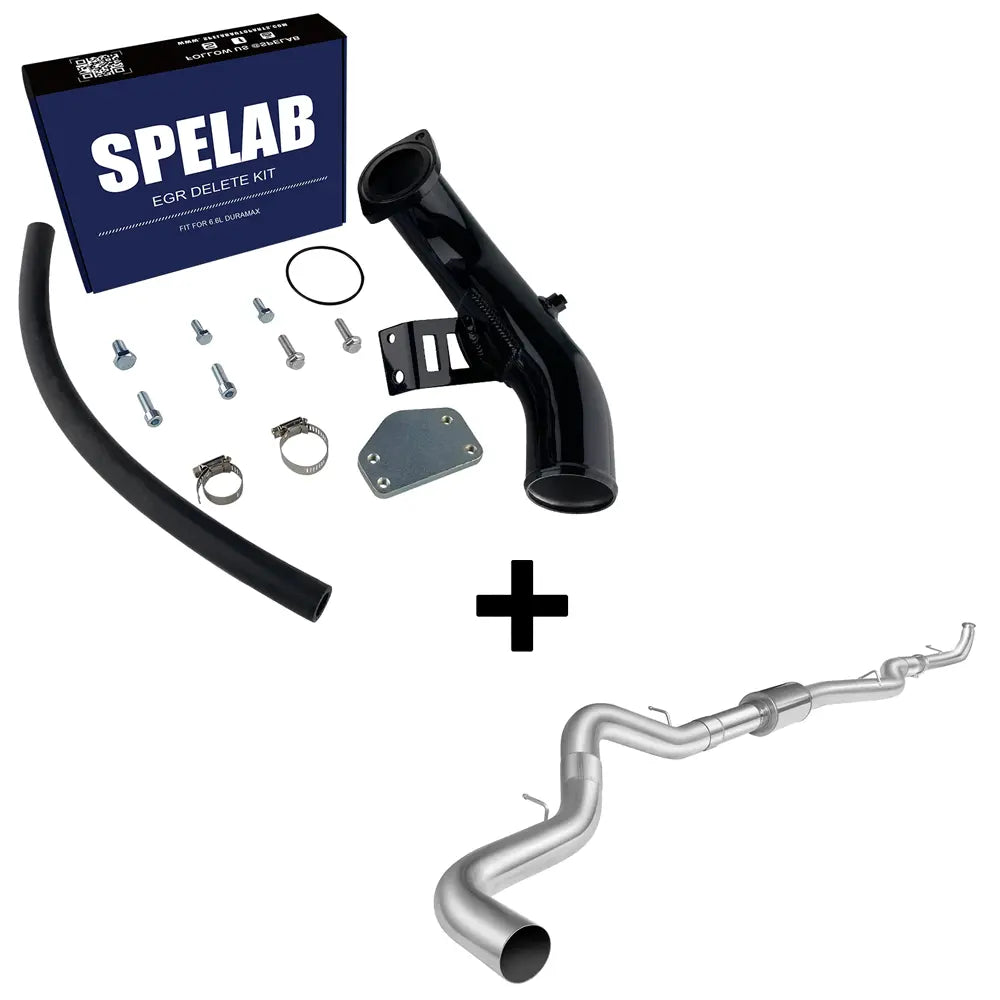

• Optional Downpipe-Back Exhaust: Selected With Intake bundles add a 4-inch downpipe-back exhaust or a 5-inch downpipe-back exhaust with muffler.
• Separate Up-Pipe Selection: The 2001–2016 Duramax Up pipe option is an individual accessory, not a full EGR kit or an intake bundle.

Specifications

What's in the Box

Contents vary by selected option:

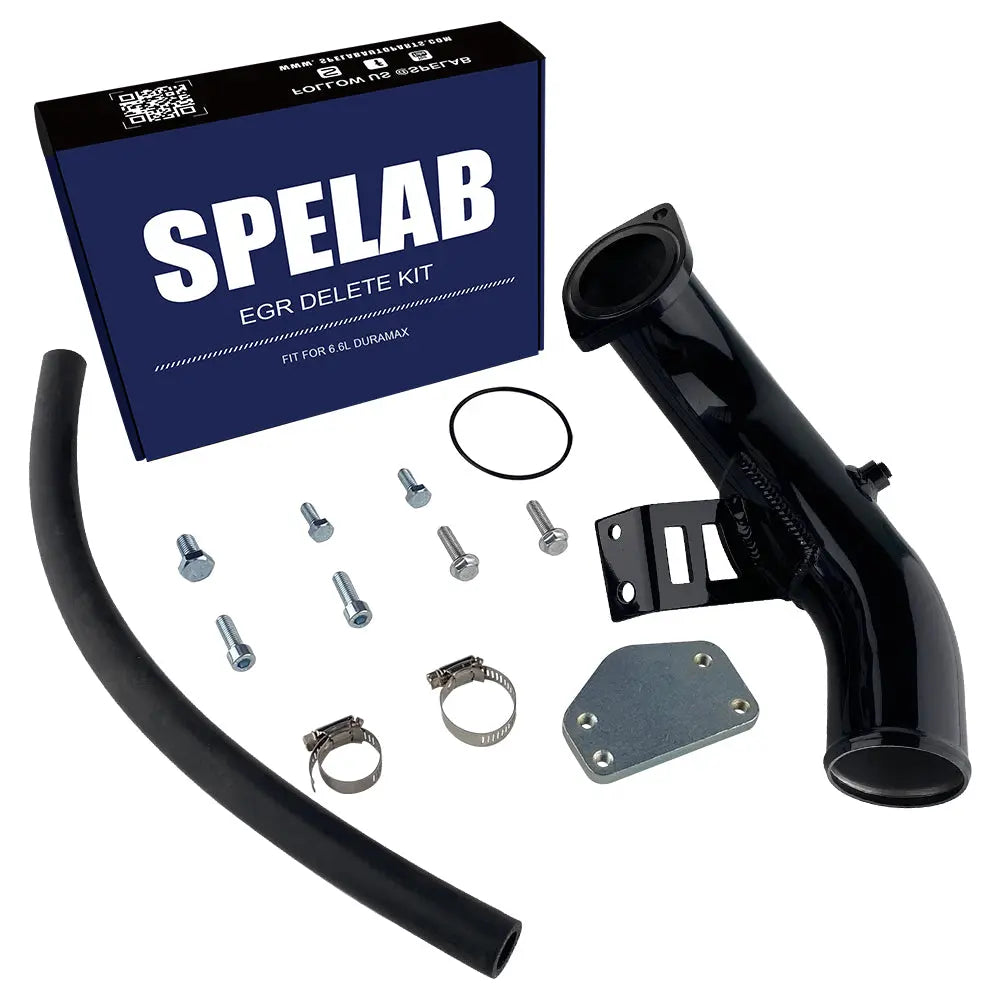

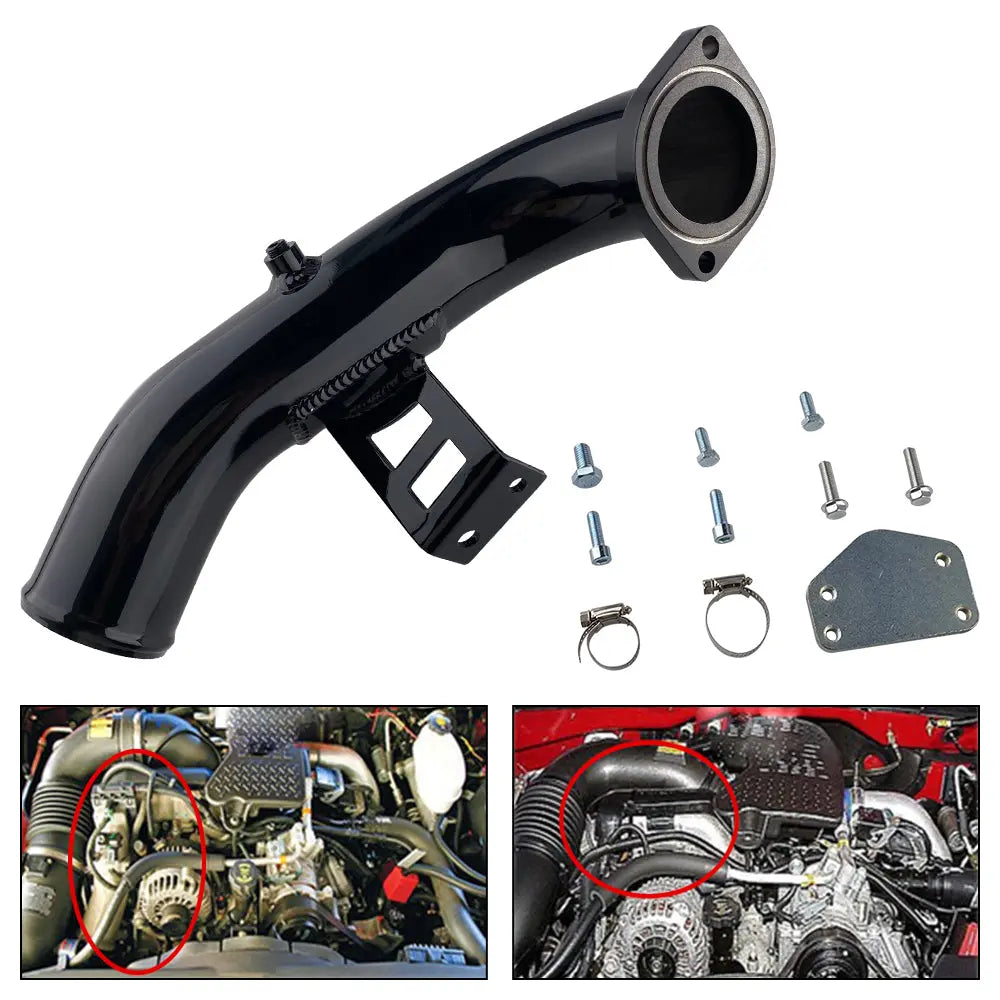

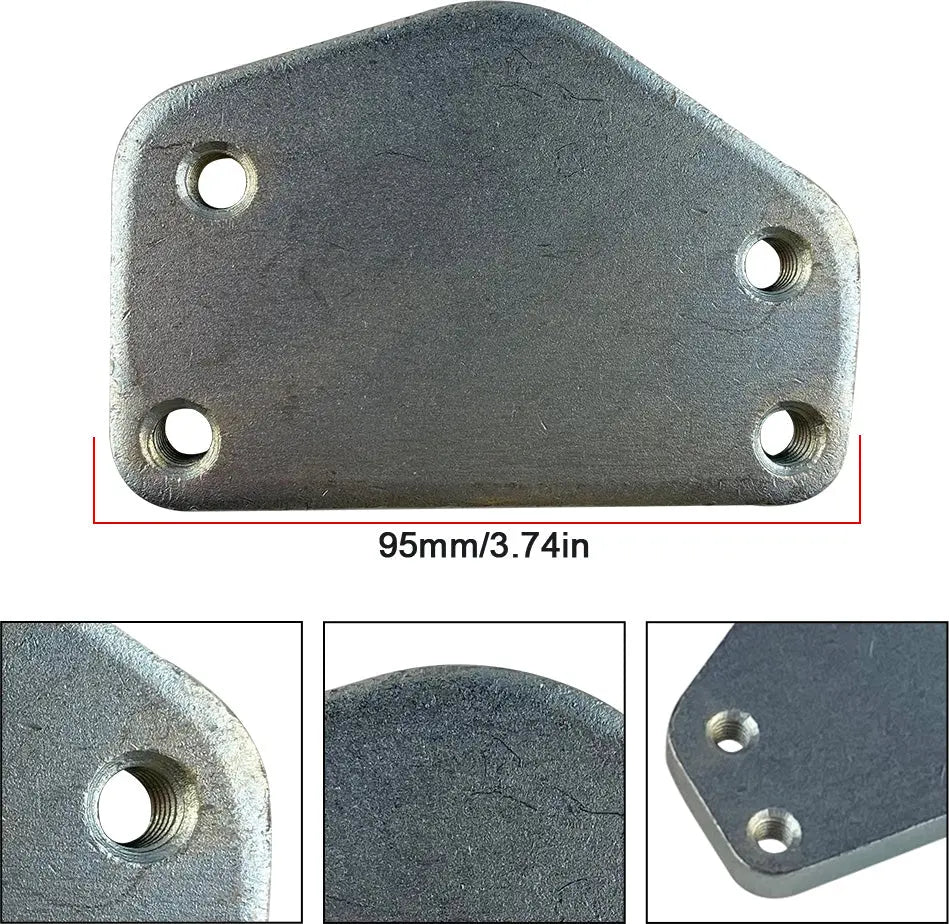

• With Intake: Intake tube with bracket, block-off plate, hose, two clamps, O-ring and fasteners.

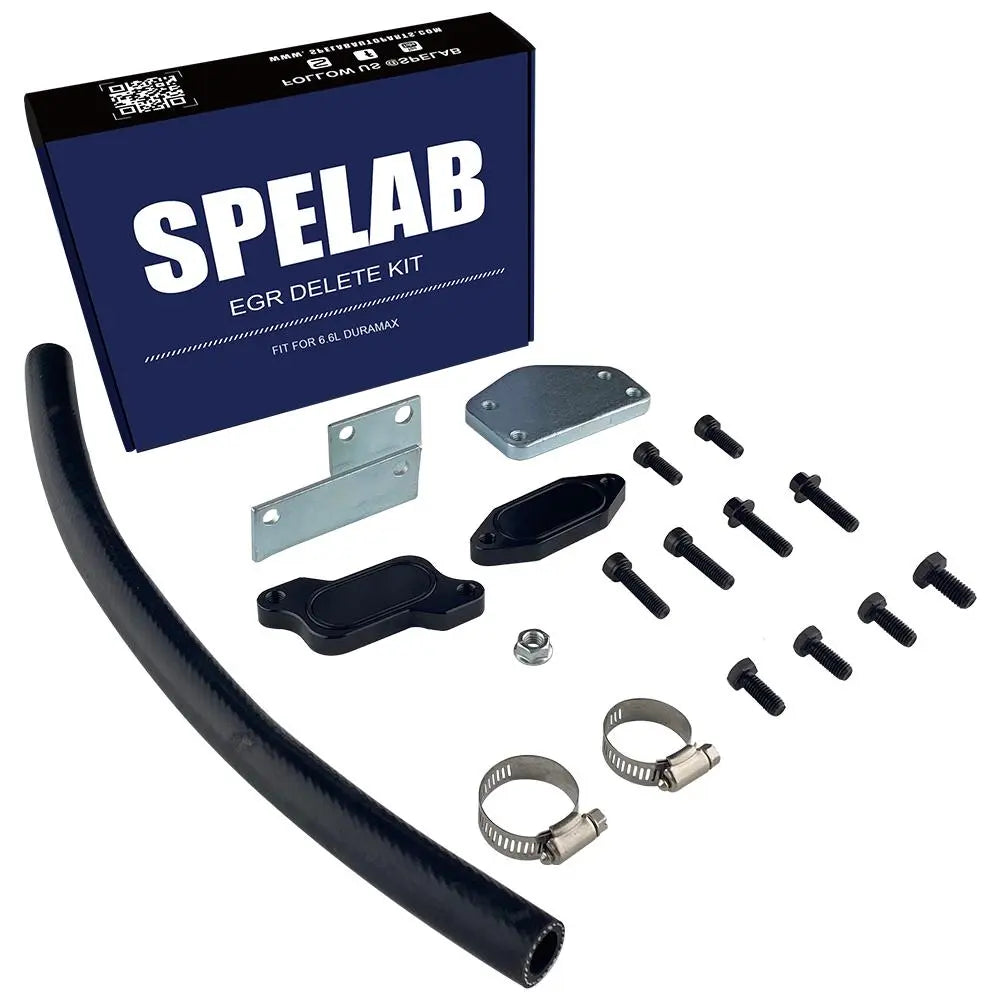

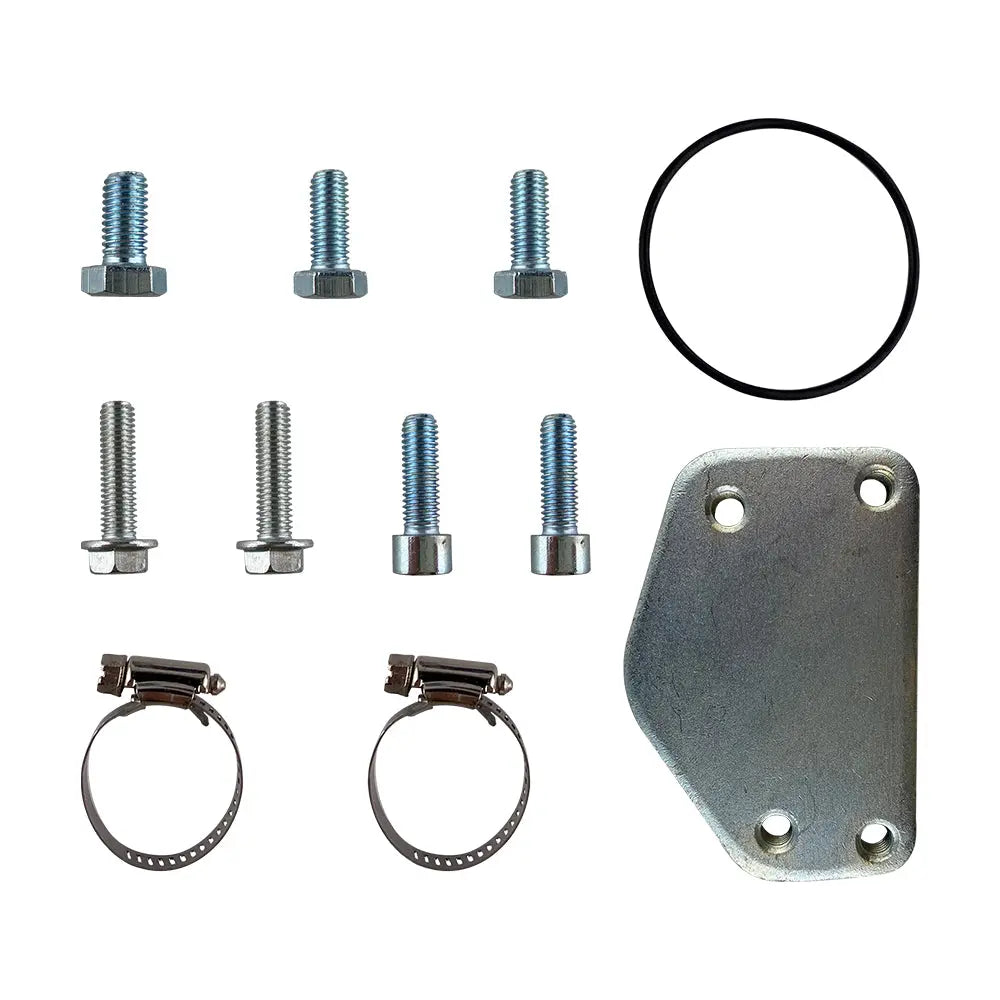

• Without Intake: Block-off plates, bracket, hose, two clamps and fasteners.

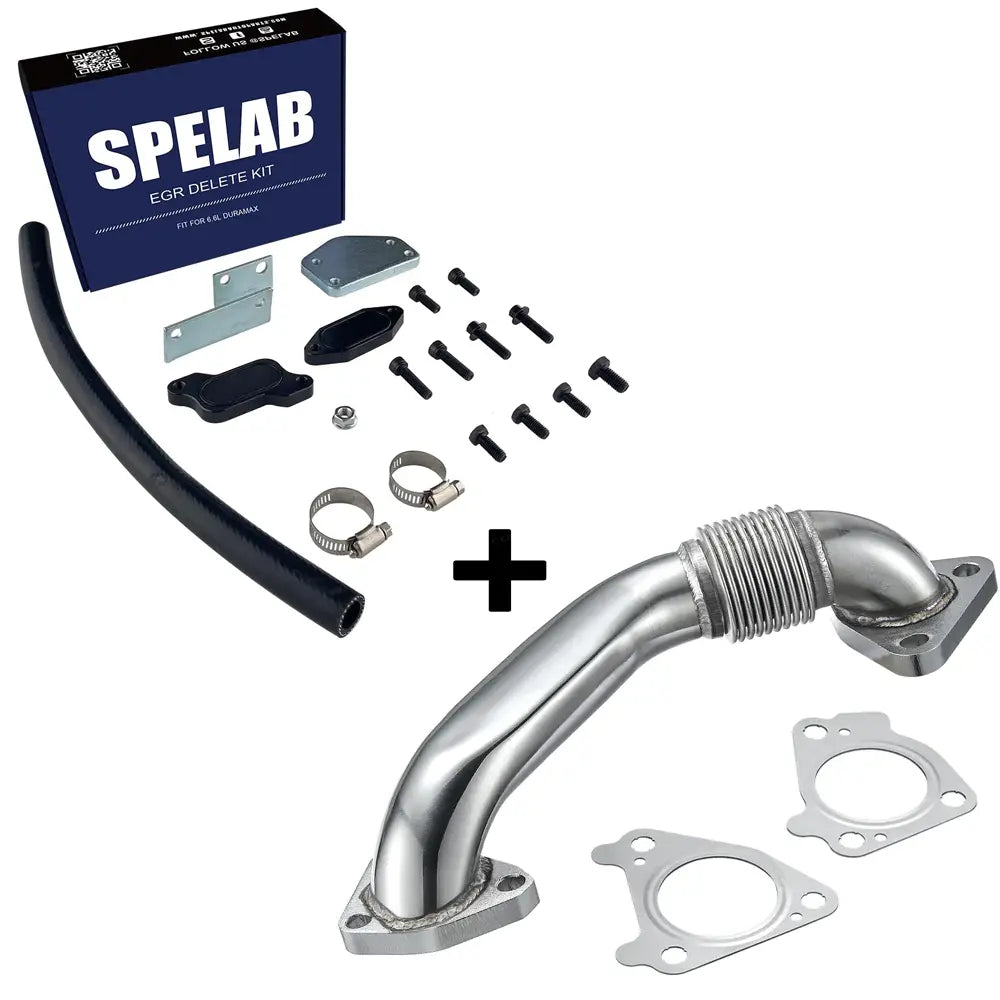

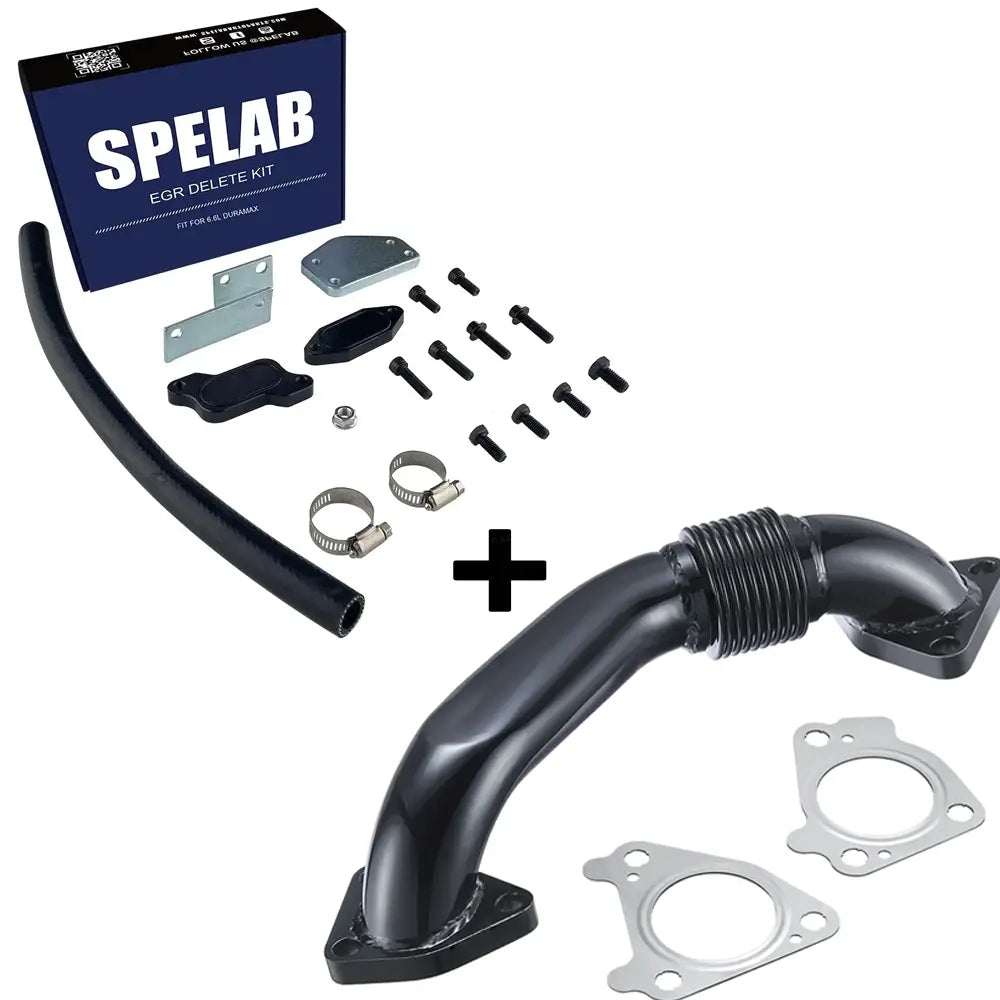

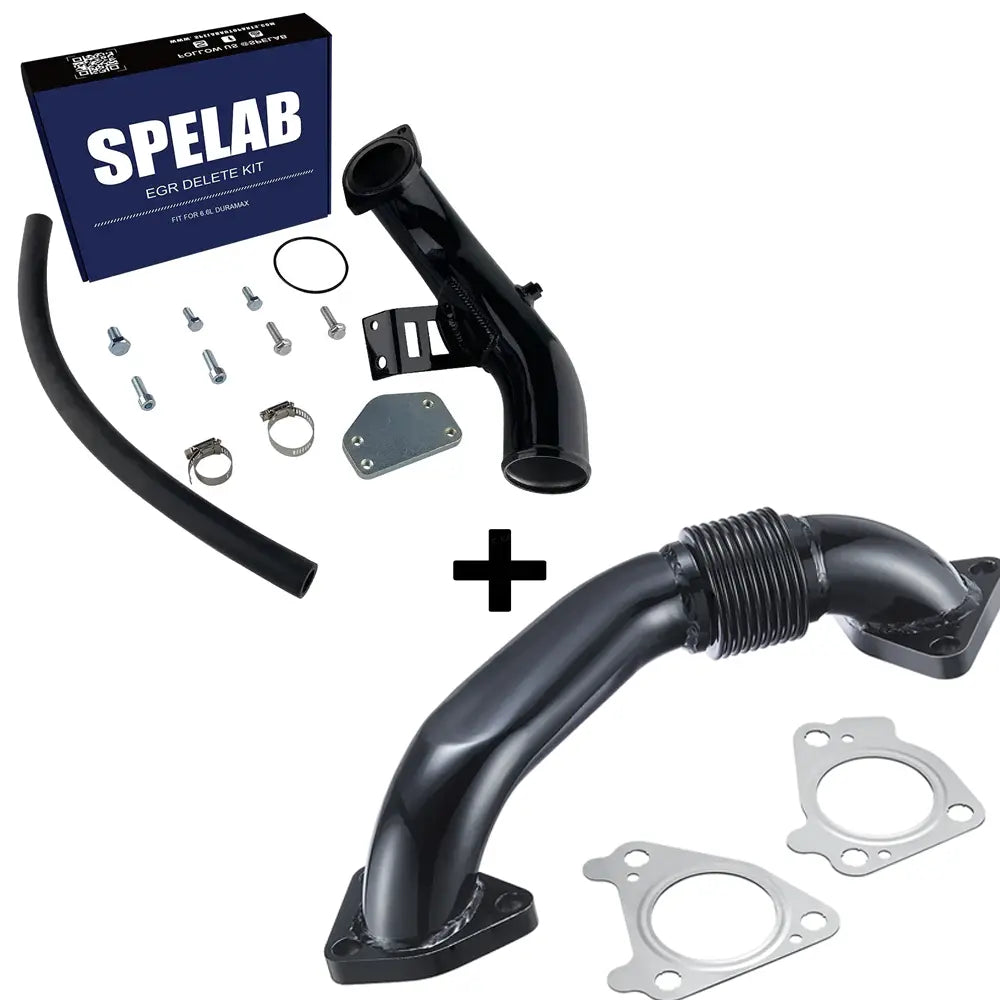

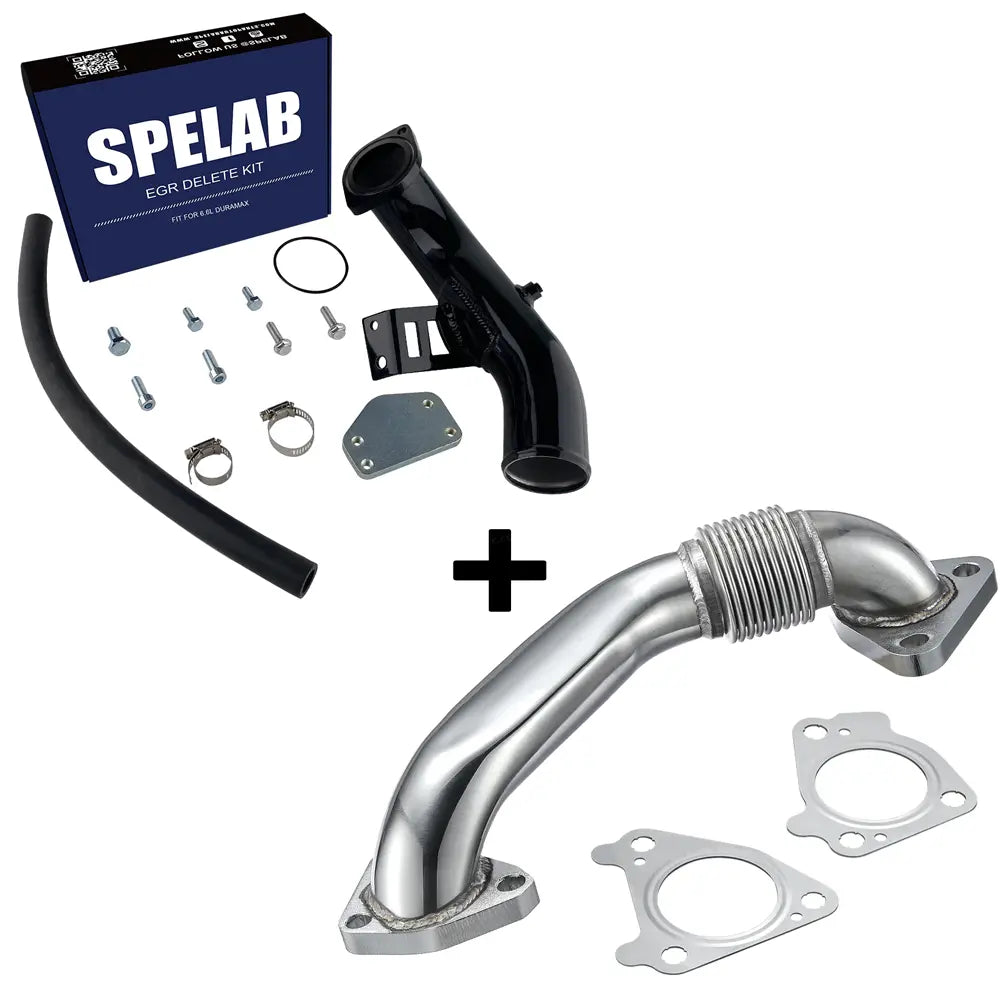

• Bundles: Selected base kit plus the named up-pipe and gaskets, or downpipe-back exhaust. The 5-inch w/Muffler option includes a muffler.
• Up-Pipe Only: Passenger-side up-pipe and gaskets; no EGR kit or intake tube.

Installation instructions are included.

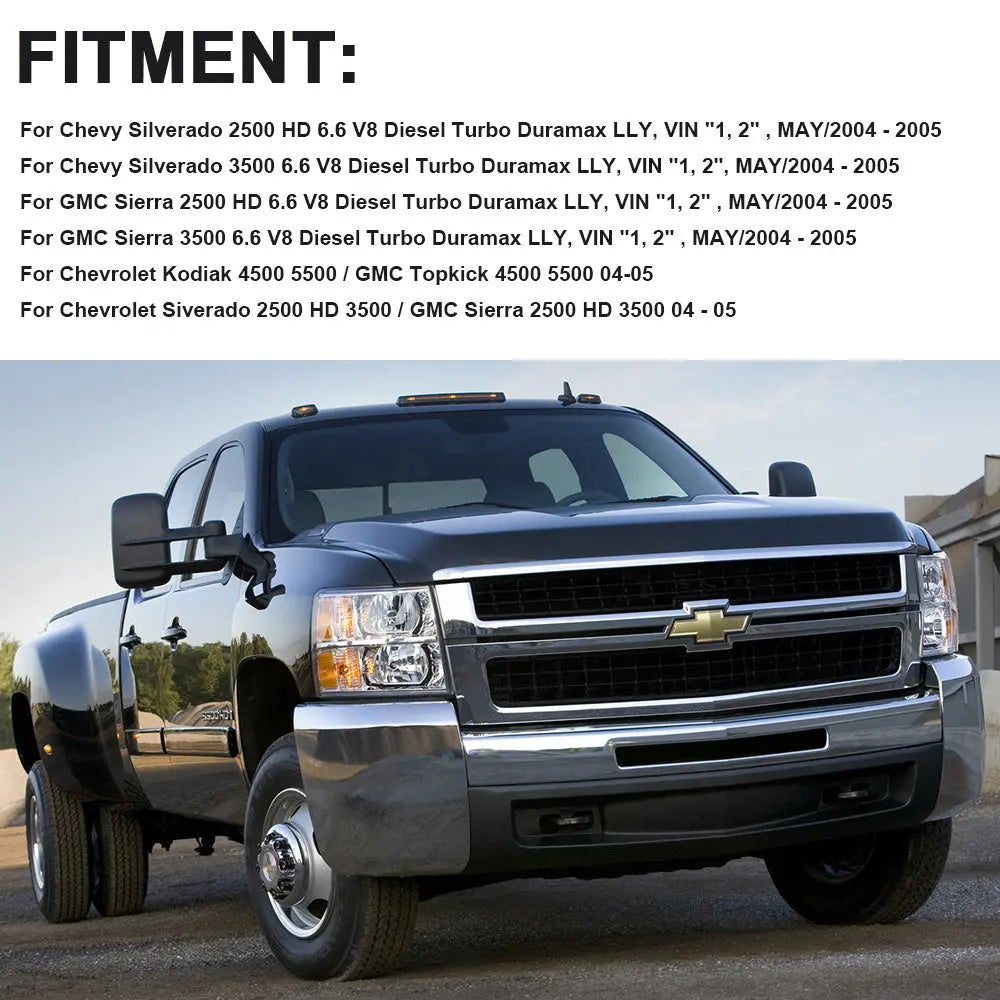

Fitment: 2004–2005 6.6L Duramax LLY

The following fitment applies to the LLY EGR kit configurations. For a 2004 truck, verify the LLY engine designation rather than relying on model year alone; this application is commonly described as 2004.5–2005 LLY.

Note: make sure that the size and shape of the product match your car. Due to actual measurement by hand, there may be a 1-2cm error.

The separate 2001–2016 Duramax Up pipe selection has its own component-specific application range. It does not extend the LLY EGR kit's fitment to all 2001–2016 trucks.

For the 4-inch exhaust bundle, the associated downpipe-back component is not compatible with long-bed models.

For later Duramax models, check out our LMM EGR delete kit (2007.5–2010) and LML EGR delete kit for 2011–2016 trucks.

Installation

For the detailed installation procedure, please refer to the installation instructions included in the package. The following is a brief overview for the LLY EGR kit configurations; accessory-only and exhaust options require their corresponding procedures.

1. Prepare the LLY Truck: Confirm the 2004–2005 6.6L LLY application and selected kit. Let the engine cool, disconnect both batteries and drain coolant as directed in the supplied instructions.
2. Access the EGR Assembly: Remove the intake access components required by the instructions. Identify hoses and electrical connectors before moving them, and protect open intake connections from debris.
3. Remove the Specified EGR Components: Follow the kit instructions for removing the affected valve, cooler and connections. Work carefully around heat-cycled fasteners and the exhaust up-pipe area.
4. Install the Selected Kit: Prepare the sealing surfaces and fit the appropriate block-off hardware and coolant hose. For With Intake versions, install the supplied tube with its specified seals and bracket support. Follow the supplied fastener and torque guidance.
5. Restore Coolant and Connections: Refill the cooling system as directed. Check hose routing, clamps, wiring clearance and intake alignment before startup.
6. Check for Leaks and Faults: Inspect coolant, exhaust and charge-air connections, monitor engine temperature and scan for faults. Recheck after the engine cools; do not operate with leaks, overheating or unresolved faults.

Benefits & Function

On 2004–2005 Chevrolet Silverado and GMC Sierra trucks with the 6.6L LLY Duramax, recirculated exhaust soot can collect in the intake and contribute to restriction. For permitted EGR-delete applications, this kit removes that recirculation path to reduce further EGR-related intake deposits; existing buildup still needs to be inspected and cleaned.

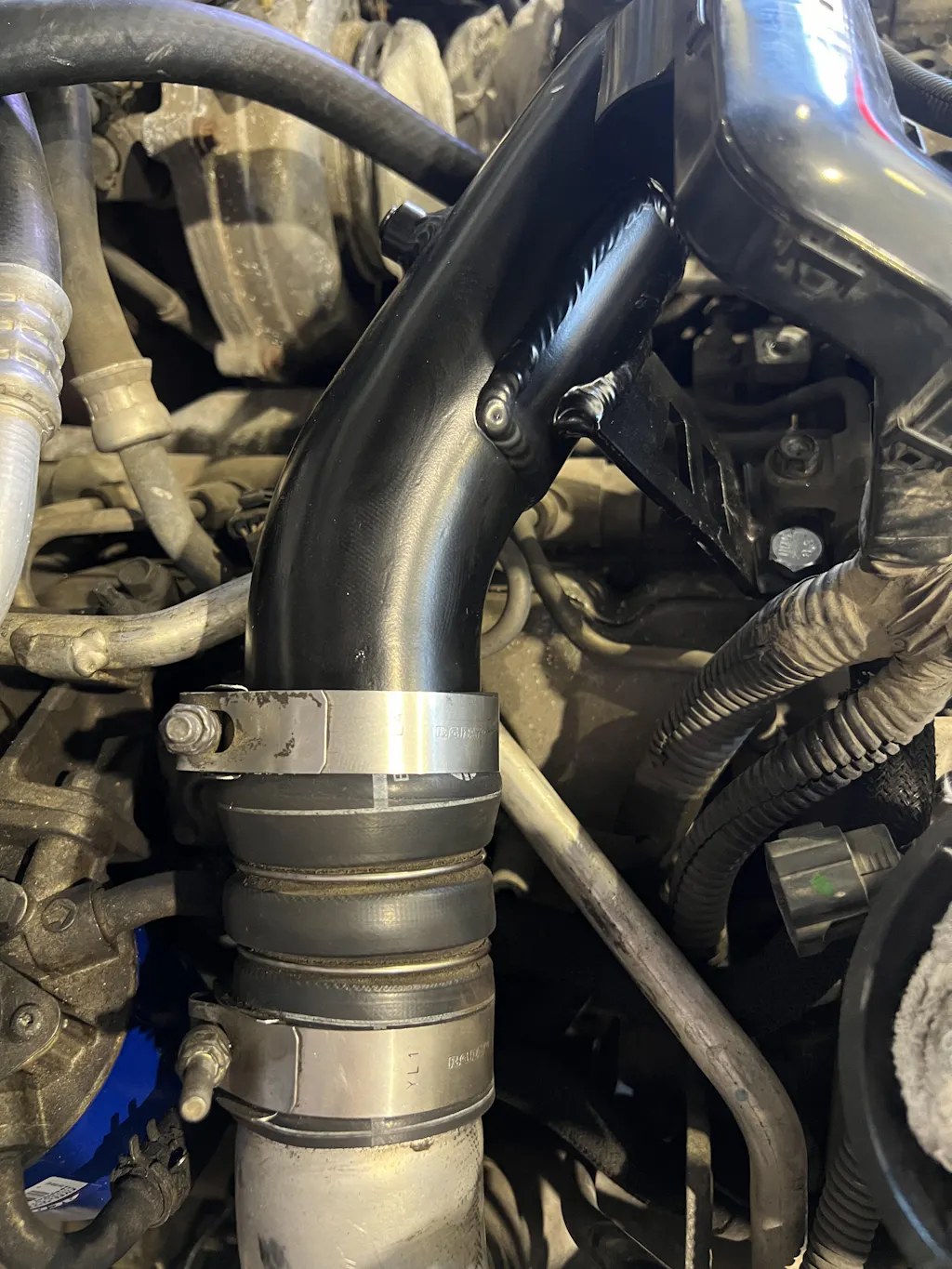

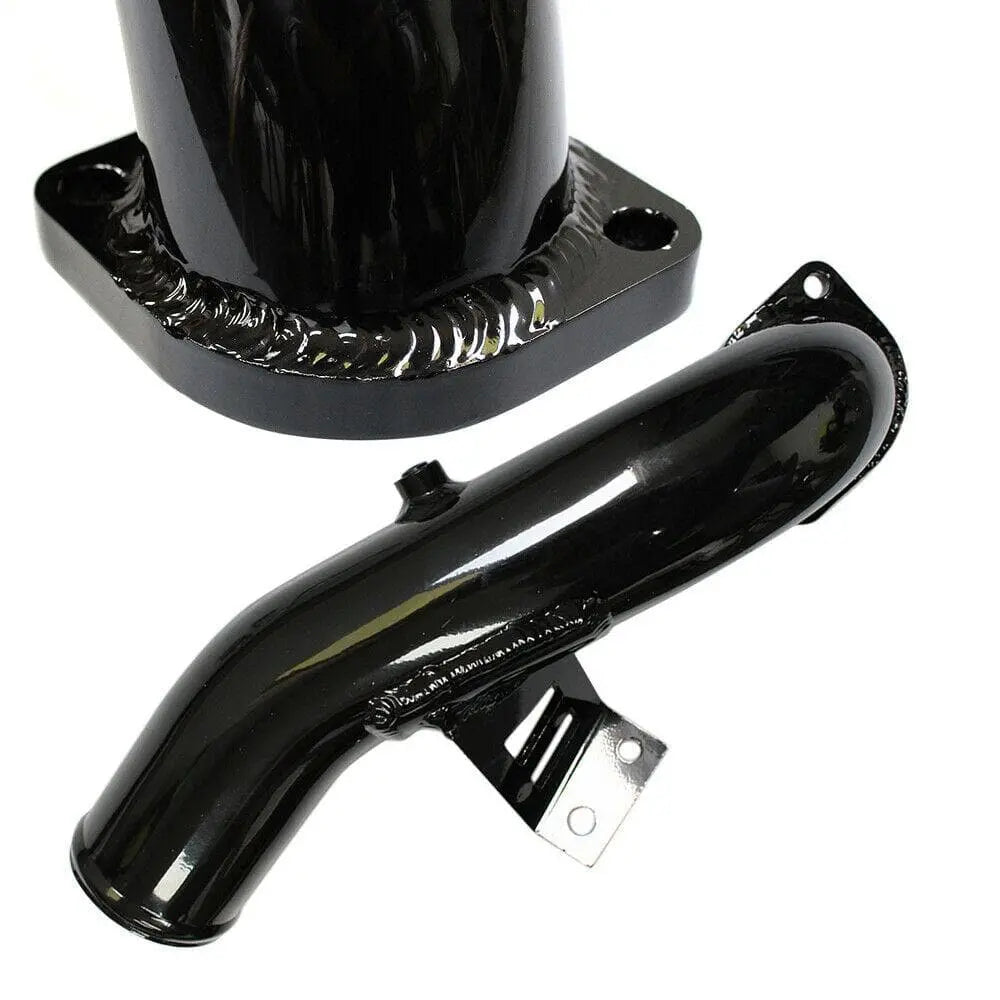

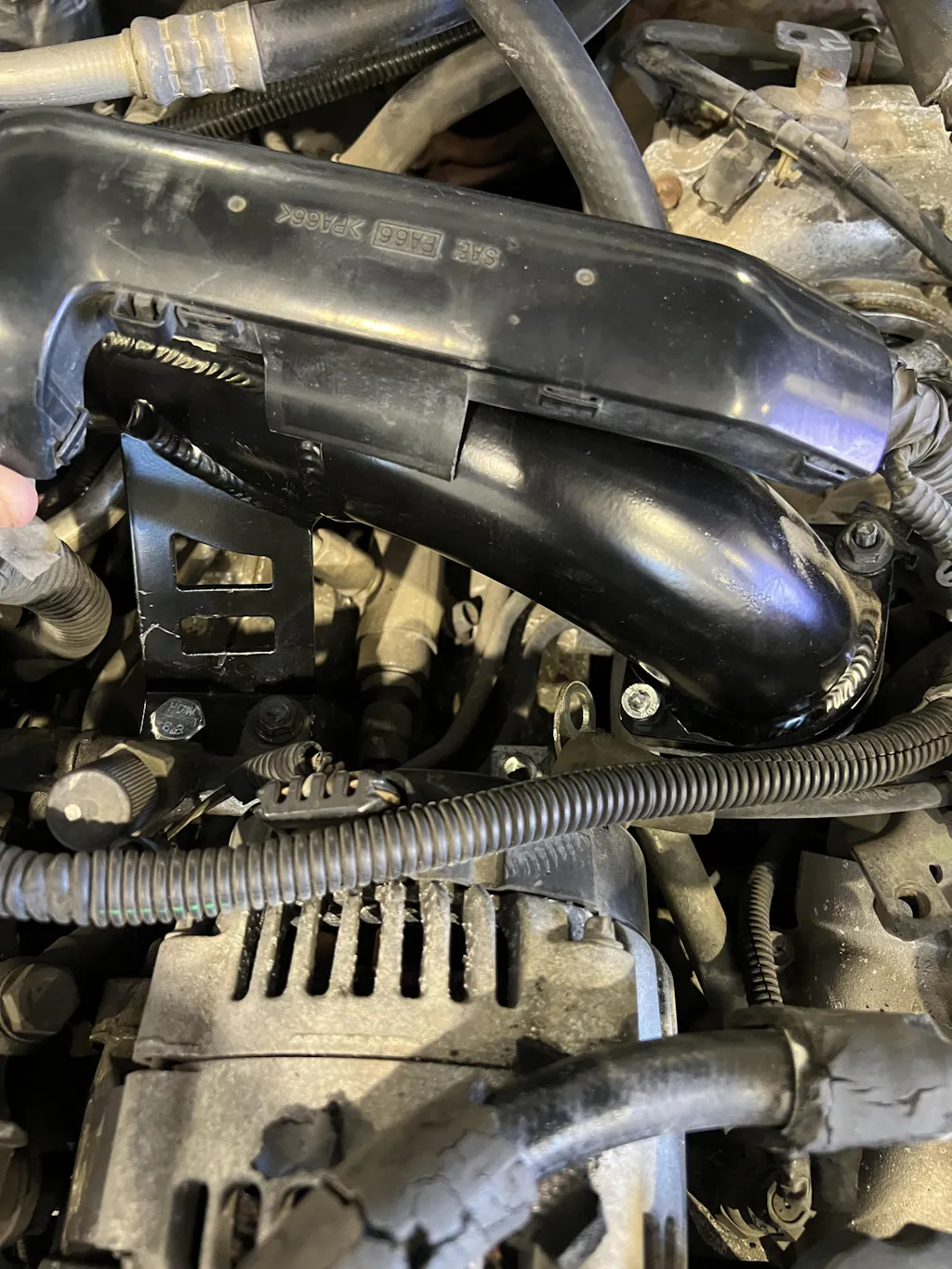

With Intake versions add the high-flow tube for LLY builds replacing the corresponding intake section. Match the tube, seals and bracket support to the truck's existing intake arrangement to avoid misalignment and charge-air leaks. The kit does not replace diagnosis of LLY overheating or unrelated cooling-system faults.

FAQ

Will this LLY EGR delete kit affect engine reliability?

The LLY EGR kit removes hot exhaust gas recirculation to reduce intake carbon buildup and intake heat, supporting long-term engine reliability and the longevity of the turbocharger, intake manifold and related engine components. Overall reliability also depends on the engine's condition, correct installation, cooling system and calibration. The kit does not repair unrelated mechanical faults.

Will I get a check engine light after installation?

Without proper ECU calibration, installing the LLY EGR delete kit may trigger engine codes, limp mode or drivability problems. Have a qualified diesel technician review EGR-related diagnostics and the calibration needed for smooth operation. EFI Live, HP Tuners or similar software may be considered where supported by the truck's control system and permitted by applicable law. The hardware kit does not include tuning software or guarantee warning-free operation on its own.

Does every option include the high-flow intake tube?

No. Only With Intake selections include the high-flow intake tube, which is designed to improve airflow and support combustion efficiency in tuned or performance-modified LLY Duramax builds. Without Intake selections and the separate 2001–2016 Duramax Up pipe accessory do not include that tube.

Can I install this kit myself?

The base LLY EGR kit is a bolt-on solution with its mounting hardware included and is suitable for experienced DIY owners with basic mechanical skills. Typical base-kit installation takes about 2–3 hours, depending on access and vehicle condition. Added up-pipe or exhaust work, corrosion and previous modifications can increase the time required. Read the instructions included in the package before starting, and use an installation video only when it matches the kit and engine. Seek professional assistance if coolant handling, intake connections or exhaust work are beyond your experience.

Is this kit legal for public-road use?

No. This LLY EGR delete kit removes or bypasses factory emissions-related components and is not an emissions-compliant public-road modification, including in California. It is marketed for off-road, race or non-highway applications only where permitted by law. Those labels do not create an exemption from U.S. federal emissions tampering prohibitions. Check applicable federal, state and local requirements before purchase or installation.

Does the 2001–2016 Duramax Up pipe option include an EGR kit?

No. That selection is the passenger-side up-pipe accessory with gaskets. It does not include the LLY EGR kit or high-flow intake tube, and its component-specific year range does not expand the base kit's fitment.

What is the difference between an up-pipe and downpipe-back exhaust?

The up-pipe connects the exhaust manifold to the turbocharger. A downpipe-back exhaust is downstream of the downpipe. They serve different locations and are included only when named in the selected option.

Will the 4-inch downpipe-back bundle fit a long-bed truck?

No. The associated 4-inch downpipe-back exhaust is listed as not compatible with long-bed models. This limitation applies to that exhaust component, not automatically to every EGR kit configuration.

Will an EGR delete automatically solve LLY overheating?

No. Radiator condition, fan operation, coolant condition, intake routing, charge-air leaks, load and calibration can also affect temperature. Diagnose the cooling and airflow systems before treating the EGR hardware as the only cause.

Are intake supports and seals important during installation?

Yes. Check intake alignment, bracket support, seal seating and hose-clamp position using the instructions for the selected kit. Do not force misaligned connections or return the truck to use with a charge-air or coolant leak.

Does the advertised fuel-economy improvement apply to every option?

The up-to-20% fuel-economy figure concerns the configured EGR-delete setup. It is not a fixed result for every truck or a performance specification for the up-pipe-only accessory. Results depend on vehicle condition, configuration, calibration and use.
