Intake Manifold 1958-1976 Ford FE Big-Block V8 Fits Stock Heads | SPELAB

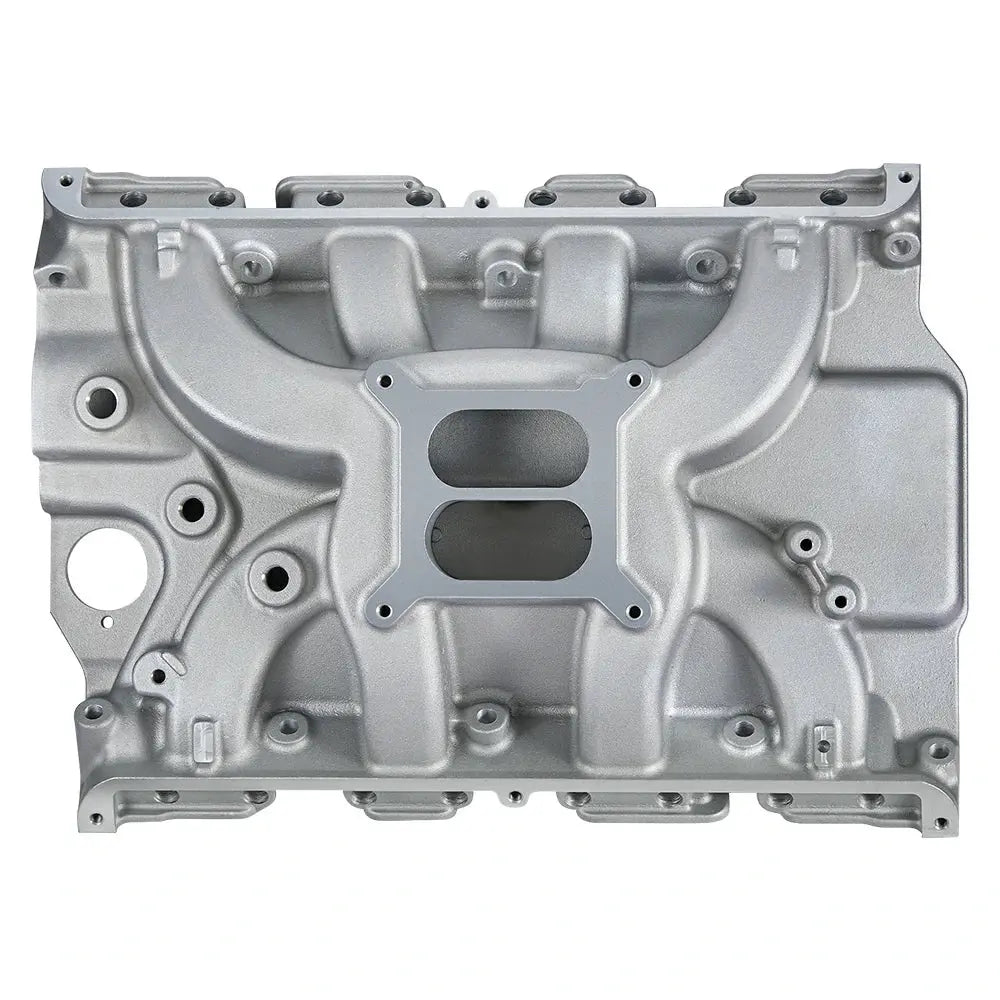

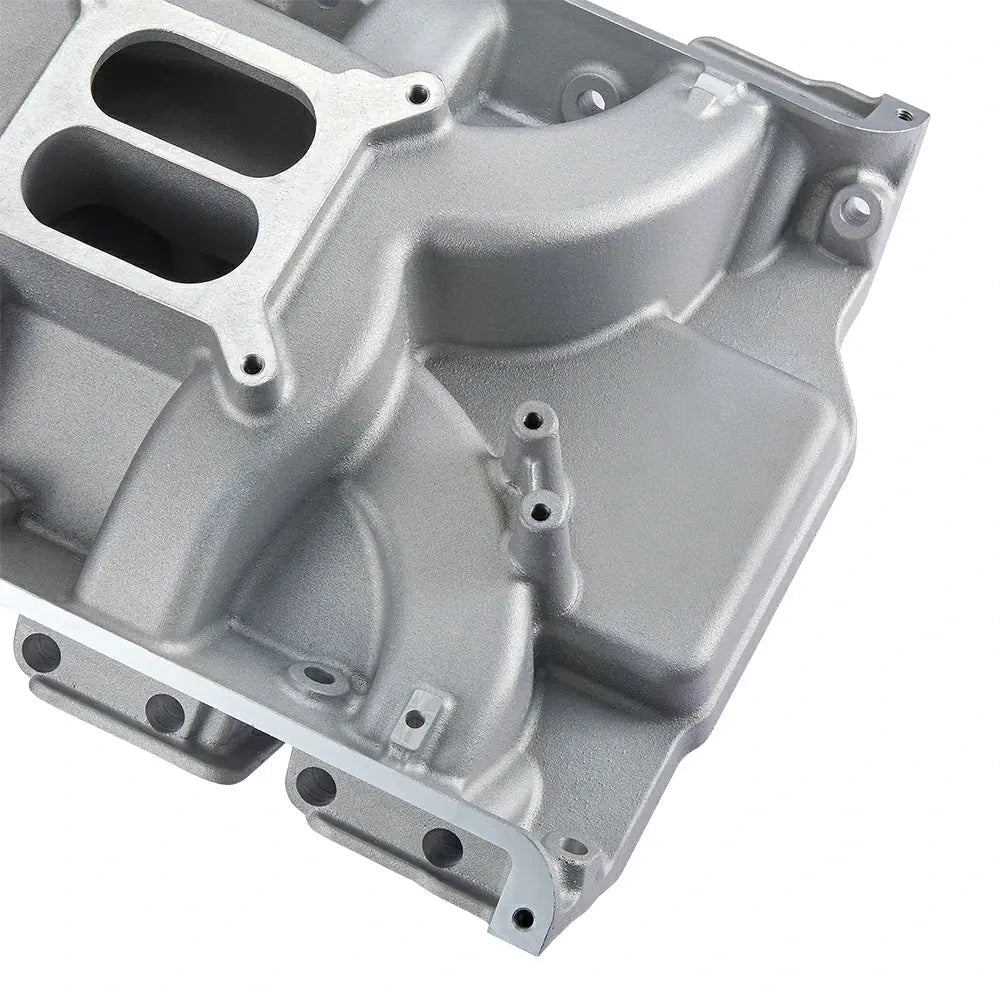

This cast aluminum dual-plane intake manifold is designed for street-oriented Ford FE V8 applications that need usable performance across an idle-to-5,500 RPM operating range. It supports one compatible four-barrel square-bore carburetor and is intended for stock low-rise or medium-rise cylinder heads.

Before ordering, confirm your engine family, displacement, cylinder-head configuration, carburetor mounting pattern, EGR requirements and available hood clearance. Compatibility should be determined by the complete engine configuration rather than vehicle year alone.

Product Highlights

• Ford FE engine compatibility: Designed for compatible 332, 352, 360, 390, 406, 410, 427 and 428 cubic-inch FE V8 engines.
• Dual-plane design: Intended for street-oriented engine combinations operating from idle to 5,500 RPM.
• Four-barrel carburetor mounting: Accepts one compatible square-bore four-barrel carburetor.
• Cast aluminum construction: Provides a durable replacement or performance-oriented intake manifold in a natural aluminum finish.
• Stock-deck application: Designed for compatible stock/OEM standard-deck FE engine configurations.
• Non-EGR configuration: Does not include provisions for a factory EGR system.

Specifications

What’s Included

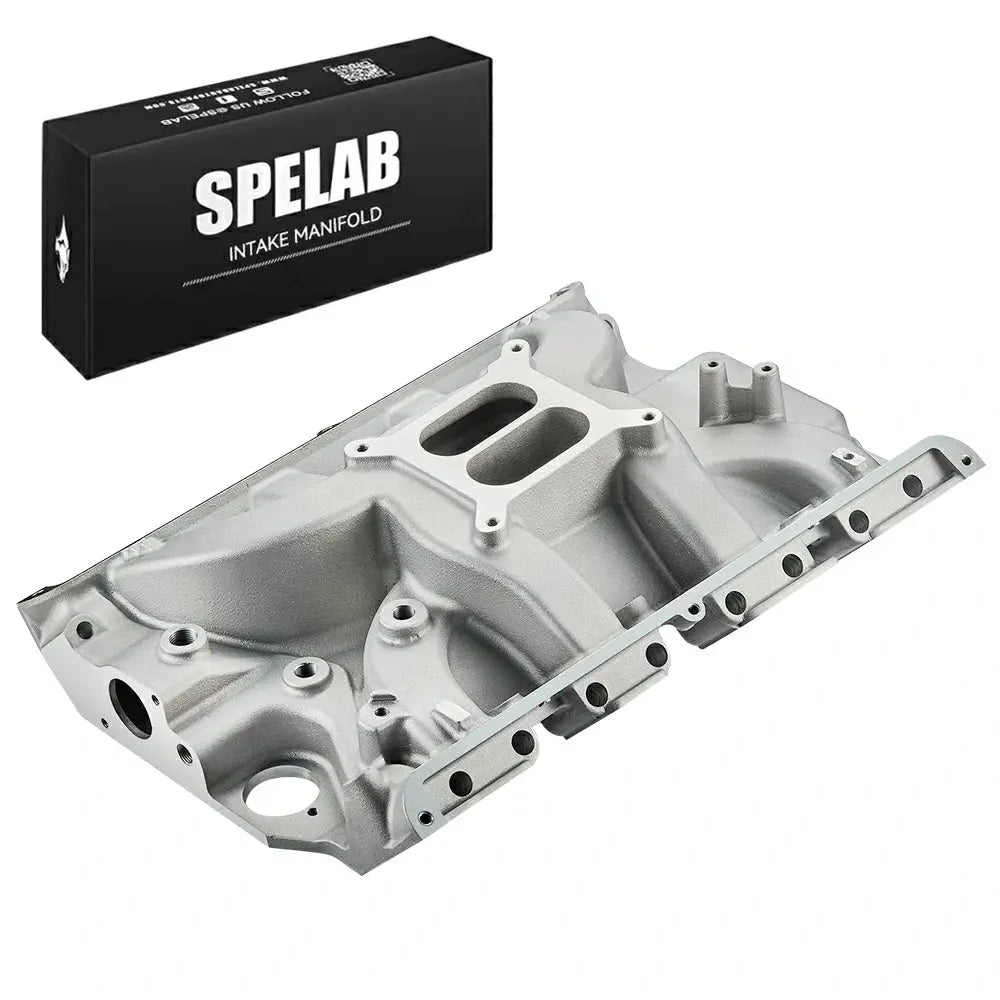

• 1 × Ford FE dual-plane intake manifold

Intake gaskets, carburetor gasket, mounting hardware, sealant and application-specific installation components are not listed as included. Confirm the package contents before beginning installation.

Fitment

Compatible engine family: Ford FE big-block V8

Compatible engine displacements:

• 332 cubic inches / 5.4L
• 352 cubic inches / 5.8L
• 360 cubic inches / 5.9L
• 390 cubic inches / 6.4L
• 406 cubic inches / 6.6L
• 410 cubic inches / 6.7L
• 427 cubic inches / 7.0L
• 428 cubic inches / 7.0L

This manifold is designed for compatible stock low-rise or medium-rise FE cylinder heads. Vehicle year alone is not sufficient to confirm fitment because Ford used different FE engines, cylinder heads, carburetor configurations and emissions equipment across different models and production years.

Important Compatibility Notes

• Does not fit Ford 361ci or 391ci heavy-duty FT truck engines.
• Does not accept the stock Motorcraft spread-bore carburetor.
• Designed for a compatible four-barrel square-bore carburetor mounting pattern.
• Not designed for applications that require the factory EGR system.
• Compatibility with high-riser, tunnel-port, aftermarket or extensively modified cylinder heads is not confirmed.
• Carburetor linkage, fuel line, throttle cable, vacuum fittings, air cleaner, distributor and hood clearance must be checked for the individual vehicle.
• Port dimensions should be compared with the cylinder heads and intake gaskets before installation.

Carburetor Compatibility

The manifold is designed for one compatible four-barrel square-bore carburetor. Carburetors in the 600–800 CFM range may be used depending on engine displacement, camshaft, cylinder heads, compression ratio, vehicle weight and intended RPM range.

CFM rating alone does not confirm compatibility. Verify the mounting pattern, throttle linkage, choke system, fuel inlet location, vacuum connections and air-cleaner clearance before installation. The stock Motorcraft spread-bore carburetor is not directly compatible.

Best For

This intake manifold is best suited to Ford FE owners who are rebuilding, restoring or updating a street-driven engine and need a dual-plane intake designed for usable performance from idle to 5,500 RPM.

Choose This Manifold If You Are:

• Rebuilding a Ford FE engine: Suitable for compatible 332, 352, 360, 390, 406, 410, 427 and 428 FE V8 engine builds using stock low-rise or medium-rise cylinder heads.
• Replacing an aged or damaged intake manifold: A practical option when the existing manifold has damaged sealing surfaces, corrosion, cracks or other conditions that make reliable sealing difficult.
• Updating a street-driven FE combination: The dual-plane design and idle-to-5,500 RPM operating range suit vehicles that spend most of their time at street and moderate engine speeds.
• Building a classic Ford restoration or restomod: Suitable for projects that retain a compatible Ford FE engine while using a four-barrel square-bore carburetor configuration.
• Changing to a compatible aluminum intake manifold: Appropriate for owners who want a cast aluminum manifold with a natural finish in place of an older factory-style intake.
• Updating a square-bore carburetor setup: Designed for one compatible four-barrel square-bore carburetor when the existing manifold has the wrong mounting pattern or no longer suits the planned carburetor configuration.
• Completing an FE engine swap or custom build: May be used in custom applications when the cylinder heads, intake ports, carburetor pattern, cooling connections and available clearance have all been verified.

Common Problems This Manifold Can Help Address

• An existing intake manifold that is cracked, corroded, damaged or difficult to seal.
• A previous manifold that does not match the intended four-barrel square-bore carburetor.
• An engine build that needs a street-oriented dual-plane manifold instead of a high-RPM race-style intake.
• An incomplete Ford FE rebuild that still needs a compatible intake manifold.
• A restoration or restomod project where the original manifold is missing or unsuitable for the new engine combination.
• A mismatched intake setup caused by selecting parts according to vehicle year without checking the actual FE engine, cylinder heads and carburetor flange.

This Product May Not Be Right for You If:

• Your engine is a Ford 361ci or 391ci heavy-duty FT truck engine.
• Your engine uses high-riser, tunnel-port or other cylinder heads that have not been confirmed compatible.
• You plan to retain a stock Motorcraft spread-bore carburetor without an appropriate conversion solution.
• Your application requires the original EGR system to remain operational.
• Your engine is primarily intended to operate above 5,500 RPM.
• You have not confirmed intake-port alignment, carburetor mounting pattern, linkage compatibility or hood clearance.

Before ordering: Identify the engine displacement and cylinder-head configuration, then verify the carburetor mounting pattern, intake-port dimensions, EGR requirements and available hood clearance. Vehicle make and year alone are not sufficient to confirm fitment.

Emissions and Legal Notice

This is a non-EGR intake manifold. It must not be used to remove, bypass or disable emissions-control equipment required for a vehicle’s certified configuration. It is intended for uncontrolled or non-emissions-controlled vehicles, or closed-course competition applications, unless its use on the specific vehicle has been verified as compliant with applicable federal, state and local regulations.

Confirm the emissions requirements that apply to your vehicle and location before ordering or installing this product.

Frequently Asked Questions

Q: Which engines are compatible with this intake manifold?

A: It is designed for compatible Ford FE 332, 352, 360, 390, 406, 410, 427 and 428 V8 engines with stock low-rise or medium-rise cylinder heads. The complete engine configuration must be checked before ordering.

Q: Does it fit every 1958–1976 Ford vehicle with a V8?

A: No. Vehicle year alone does not confirm fitment. The vehicle must have a compatible Ford FE engine, cylinder-head configuration, square-bore carburetor setup and non-EGR application.

Q: Does it fit Ford 361 or 391 truck engines?

A: No. It is not designed for the heavy-duty Ford 361ci or 391ci FT truck engines.

Q: What cylinder heads can be used with this manifold?

A: It is intended for compatible stock low-rise or medium-rise Ford FE cylinder heads. Fitment with high-riser, tunnel-port or aftermarket heads must be verified separately.

Q: What type of carburetor does it accept?

A: It accepts one compatible four-barrel square-bore carburetor. Carburetor linkage, fuel inlet, choke system, vacuum ports and air-cleaner clearance must also be checked.

Q: Will it accept a stock Motorcraft spread-bore carburetor?

A: No. The stock Motorcraft spread-bore carburetor does not directly fit this manifold.

Q: What is the operating RPM range?

A: The stated operating range is from idle to 5,500 RPM, making it suitable for compatible street-oriented FE engine combinations.

Q: Does this manifold support EGR?

A: No. This manifold does not include an EGR provision and should not be installed where doing so would remove or disable required emissions equipment.

Q: Are the intake gaskets and mounting hardware included?

A: The current product information only confirms one intake manifold. Gaskets, sealant, mounting hardware and other application-specific parts should be obtained separately unless confirmed as included with your order.

Q: Should I check hood clearance before installation?

A: Yes. The carburetor pad height is 4.92 inches. The final height also depends on the carburetor, spacer, gasket and air-cleaner assembly, so hood clearance should be measured before installation.

Installation

Before Installation

• Confirm the engine is a compatible Ford FE 332–428 V8.
• Verify that the cylinder heads use a compatible low-rise or medium-rise intake-port configuration.

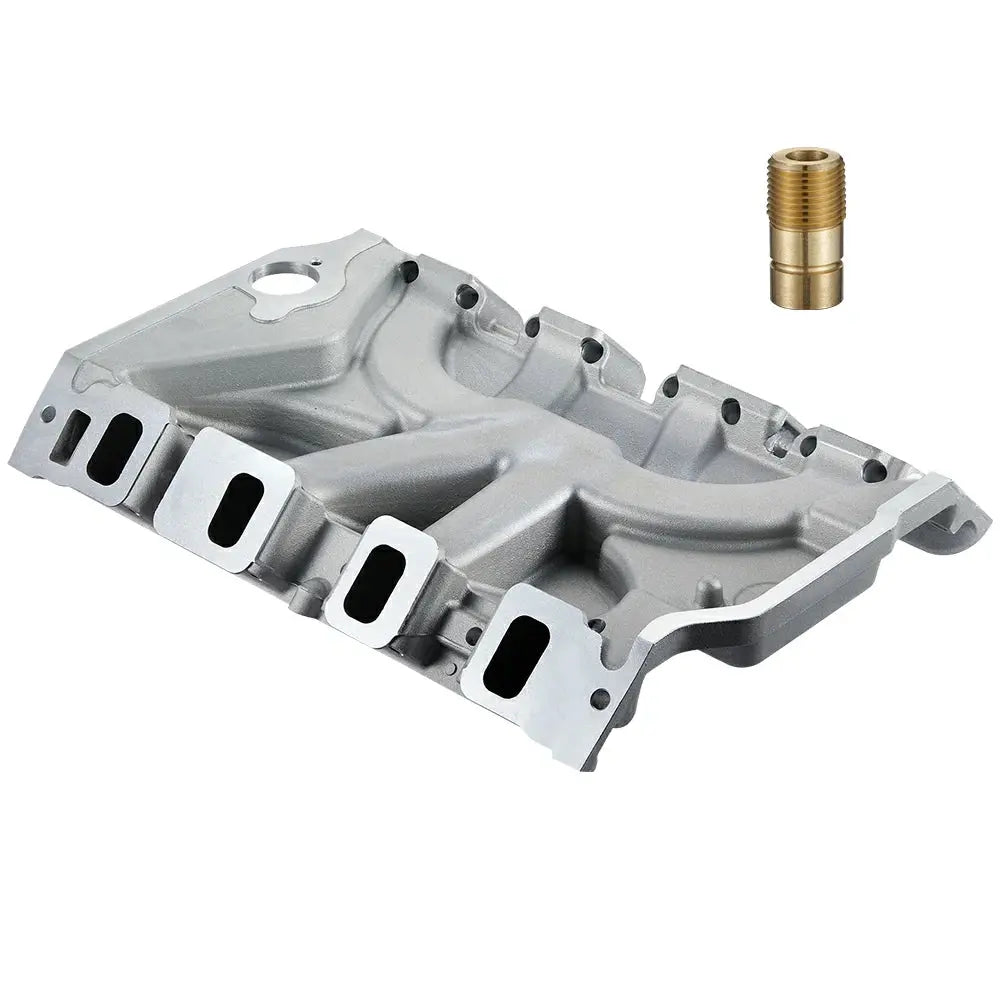

• Compare the 1.06 × 1.75-inch manifold port exits with the cylinder-head ports and intake gaskets.
• Confirm that the carburetor uses a compatible four-barrel square-bore mounting pattern.
• Check carburetor, spacer, air-cleaner and hood clearance.
• Obtain the correct intake gaskets, carburetor gasket, sealant and application-specific mounting hardware.
• Review the vehicle or engine service manual for the required fastener sequence and torque specifications.
• Allow the engine to cool completely before beginning work.

Basic Installation Steps

1. Disconnect the negative battery cable and drain the coolant to the level required for intake-manifold removal.
2. Remove the air cleaner, carburetor, fuel connection, throttle linkage, vacuum lines and other components that prevent access to the existing manifold.
3. Label hoses, wiring and ignition components before disconnecting them.
4. If distributor removal is required, mark its position and engine timing reference before removal.
5. Remove the existing intake manifold and prevent gasket debris from entering the intake ports or engine valley.
6. Clean and inspect the cylinder-head mating surfaces. Do not install the new manifold over damaged, dirty or uneven sealing surfaces.
7. Test-fit the intake gaskets and manifold to confirm port alignment, bolt-hole alignment and clearance.
8. Install the gaskets and sealant according to the gasket manufacturer’s instructions.
9. Lower the manifold into position without shifting the gaskets.
10. Install the fasteners finger-tight, then tighten them gradually in the correct sequence and to the specifications provided for the engine and fasteners being used.
11. Reinstall the carburetor, distributor if removed, throttle linkage, fuel connection, vacuum lines, coolant connections and air-cleaner assembly.
12. Refill the cooling system, reconnect the battery and check for fuel, coolant and vacuum leaks.
13. Verify full throttle movement, stable idle, ignition timing and adequate hood clearance before driving the vehicle.

Professional installation is recommended if you are not familiar with Ford FE intake-manifold replacement, ignition timing, carburetor setup or cooling-system service.
