LS Swap Muscle Car GM LS1 LS3 LSA LSX Oil Pan
Fit 1955-1995 RWD V8 GM Car Or Truck | SPELAB
Overview

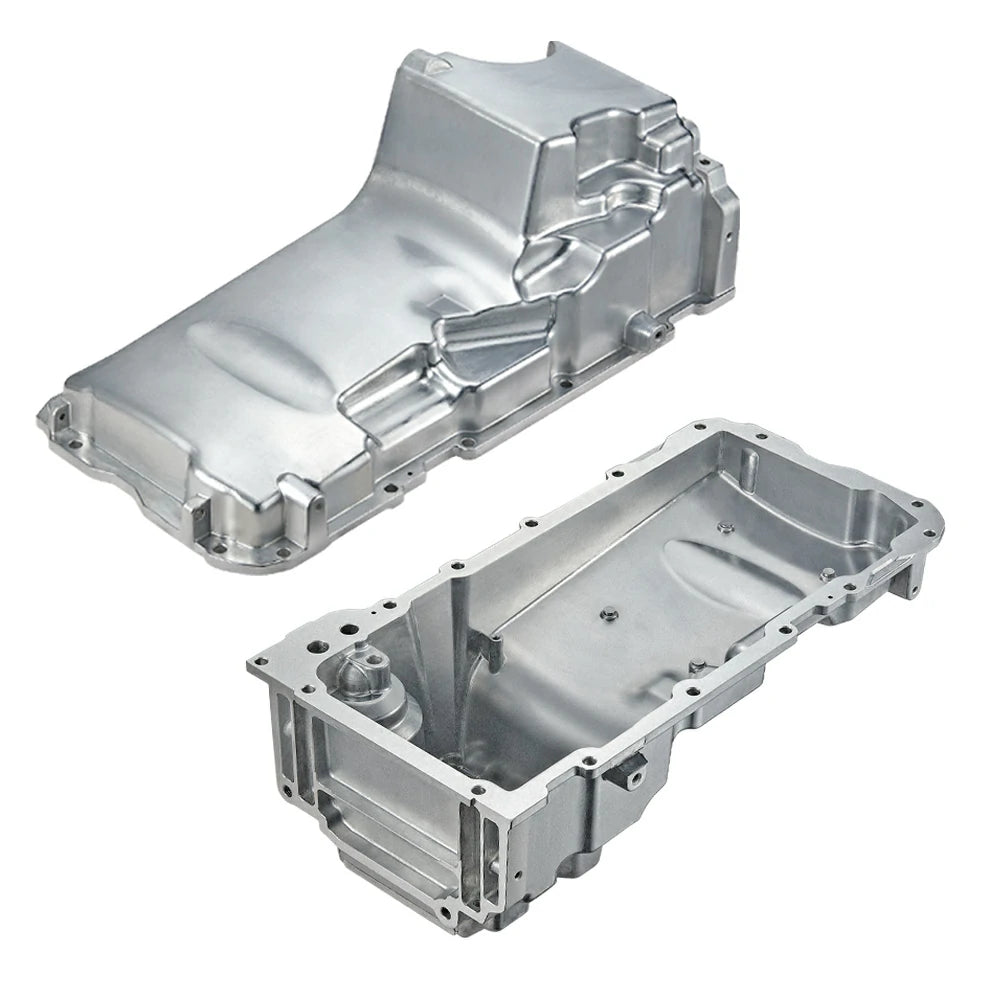

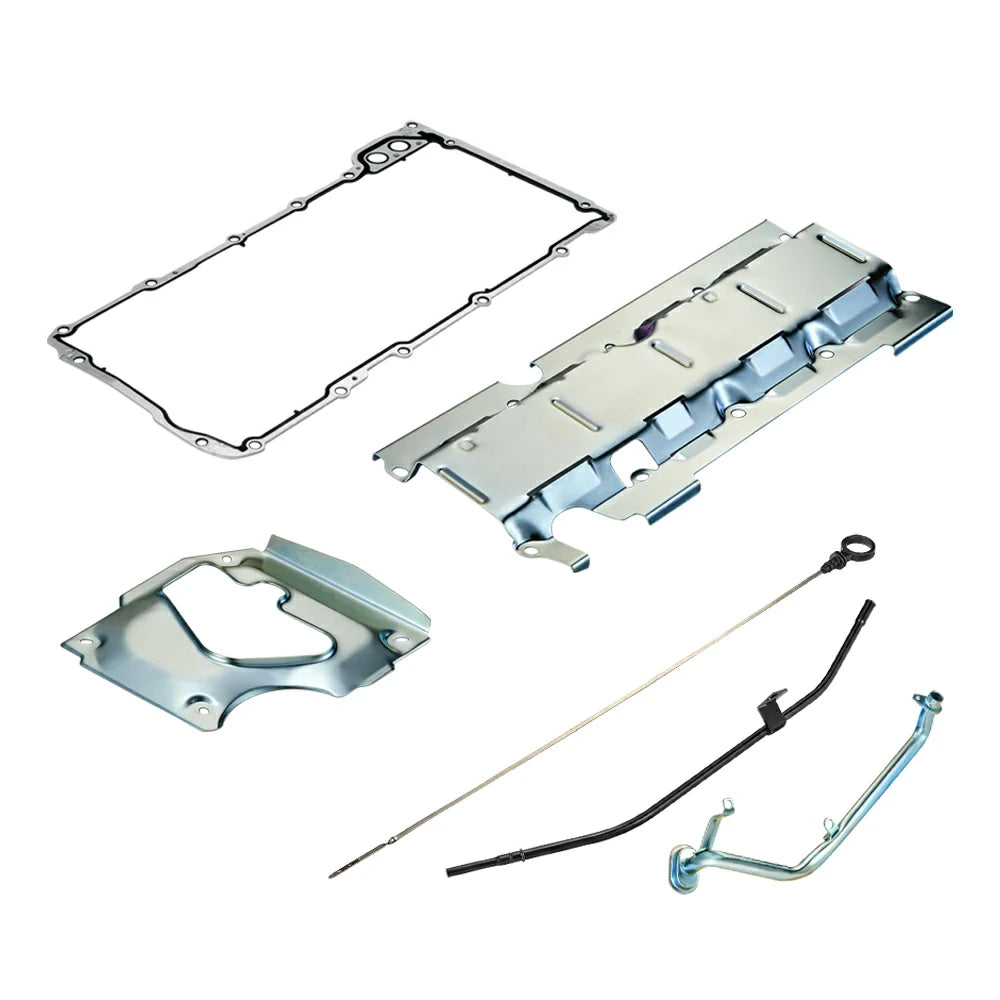

Chevrolet Performance LS Swap Oil Pan Kits are manufactured for front engine 1955-95 RWD V8 GM cars or trucks with a traditional rear wet sump oil pan arrangement. Designed around the LS Muscle Car oil pan, these kits include most necessary parts for installation, including oil pan, dipstick and tube, bolts, gaskets, pickup tube, and windage tray. The oil pan holds up to 5 quarts of oil and features an M22 X 1.5 oil filter thread.
Fitment
For LS1 / LS3 / LSA / LSX Engines
(Will not work with dry sump LS7 / LS9 engines)
Fits most 1955-1995 GM V8 RWD Muscle Cars
Product Details
| Manufacturer Part Number | 19212593 |
|---|---|
| Liquid Measurement | 5 quarts |
| Material Type | Aluminum |
| Depth | 8" |
| Finish | Natural |
| Has Dipstick Provision | Yes |
| Dipstick Location | Passenger Side |
| Baffled | No |
| Crank Scraper Included | No |
| Windage Tray Included | Yes |
| Dipstick Included | Yes |
| Stroker Clearanced | No |
| Kicked Out | No |
| Oil Pump Included | No |

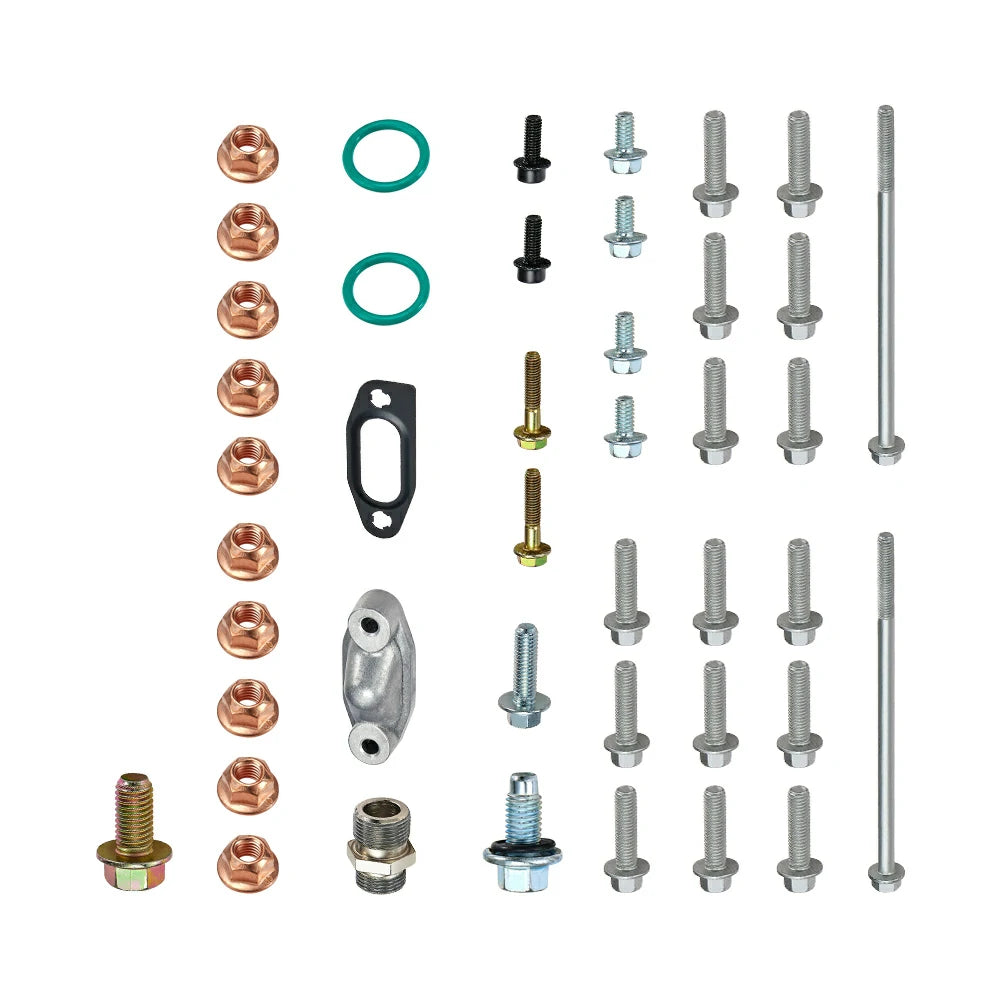

| Hardware Included | Yes |
| Pickup Included | Yes |
| Notes | Fits most 1955-95 GM front engine, RWD V8 cars. |
| Sold in Quantity | Each |
General
- Universal Fit, Wet Sump Style, Rear Sump Location
- Designed to fit 1955-1995 RWD V8 GM car or truck with a traditional rear wet sump oil pan arrangement

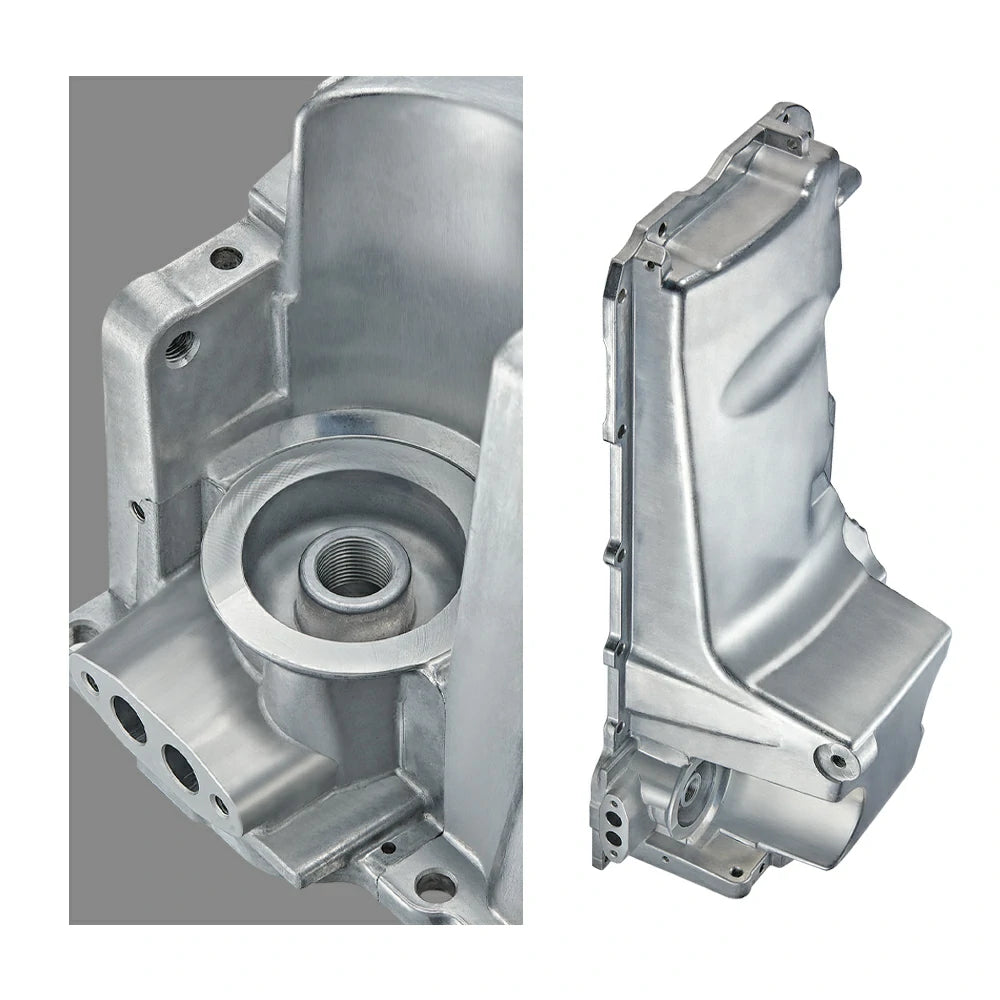

- Oil pan has M22 X 1.5 oil filter thread
- Designed to hold up to 5 quarts of oil
- Made from lightweight aluminum and features a depth of 8"
- Dipstick and windage tray are included
