Exhaust Header for VW Golf II III Mk2 Mk3 8V | SPELAB
Secure and trusted checkout with
Product Information +
- Brand: SPELAB
- SKU: SPES08039
- Availability: Many in stock
- Product Type: Exhaust Header
-
PLEASE NOTE!

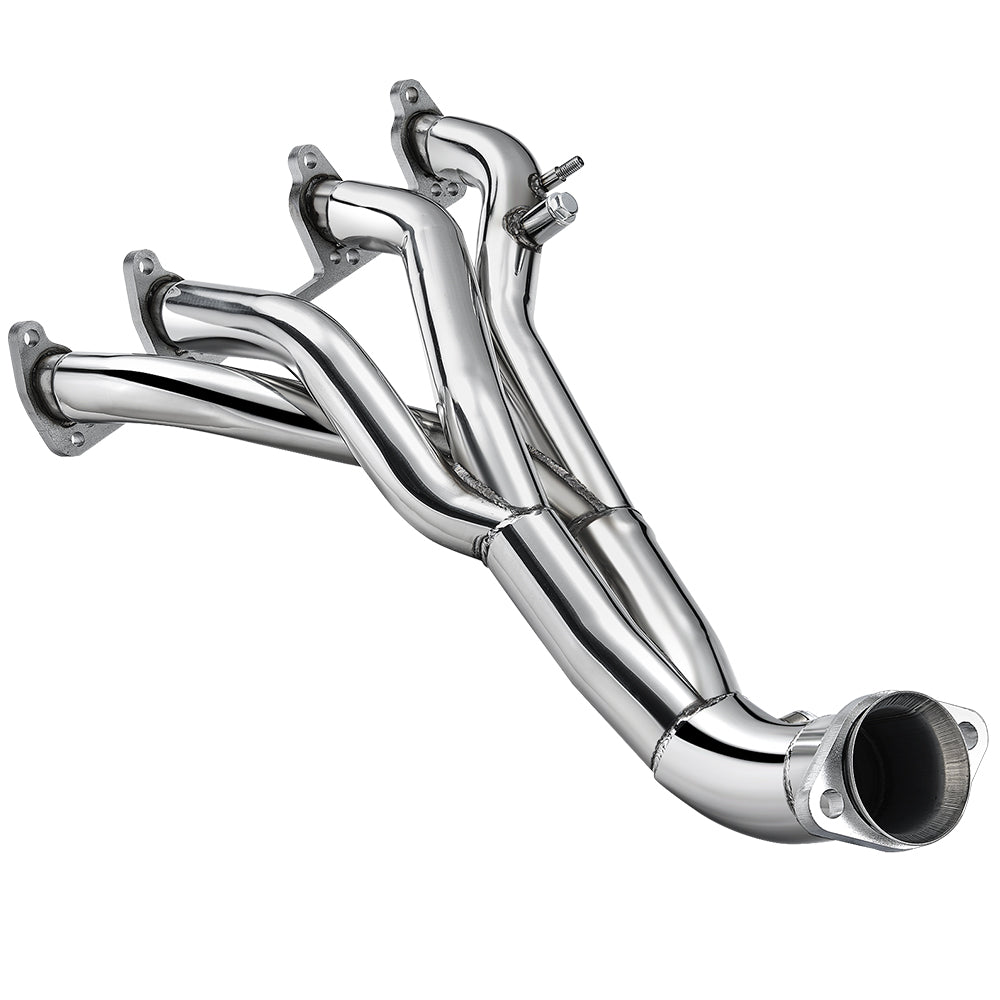

Stainless 4-2-1 Header for a Matching Golf Mk2 / Mk3 8V
The SPELAB stainless 4-2-1 header is intended for a compatible Volkswagen Golf II / Mk2 or Golf III / Mk3 8-valve engine configuration, with the head flange, steering-side clearance and downstream connection checked before ordering. The mirror-polished Golf header uses nominal 1.50-inch primary tubes and a 2.5-inch outlet. The Golf header package includes a head gasket, outlet connection pieces and fastening hardware for the matching installation.
Best For
- Replacing an aging manifold: the Golf 8V header is a replacement option only after leaks or damage are diagnosed and the complete replacement route is checked.
- Planning a Mk2 / Mk3 8V exhaust refresh: the Golf header requires a matching engine code, steering arrangement and retained exhaust, not just an 8V designation.
- Building a coordinated exhaust system: the Golf header collector joint and required equipment must be checked before compatible downstream pipes are selected.

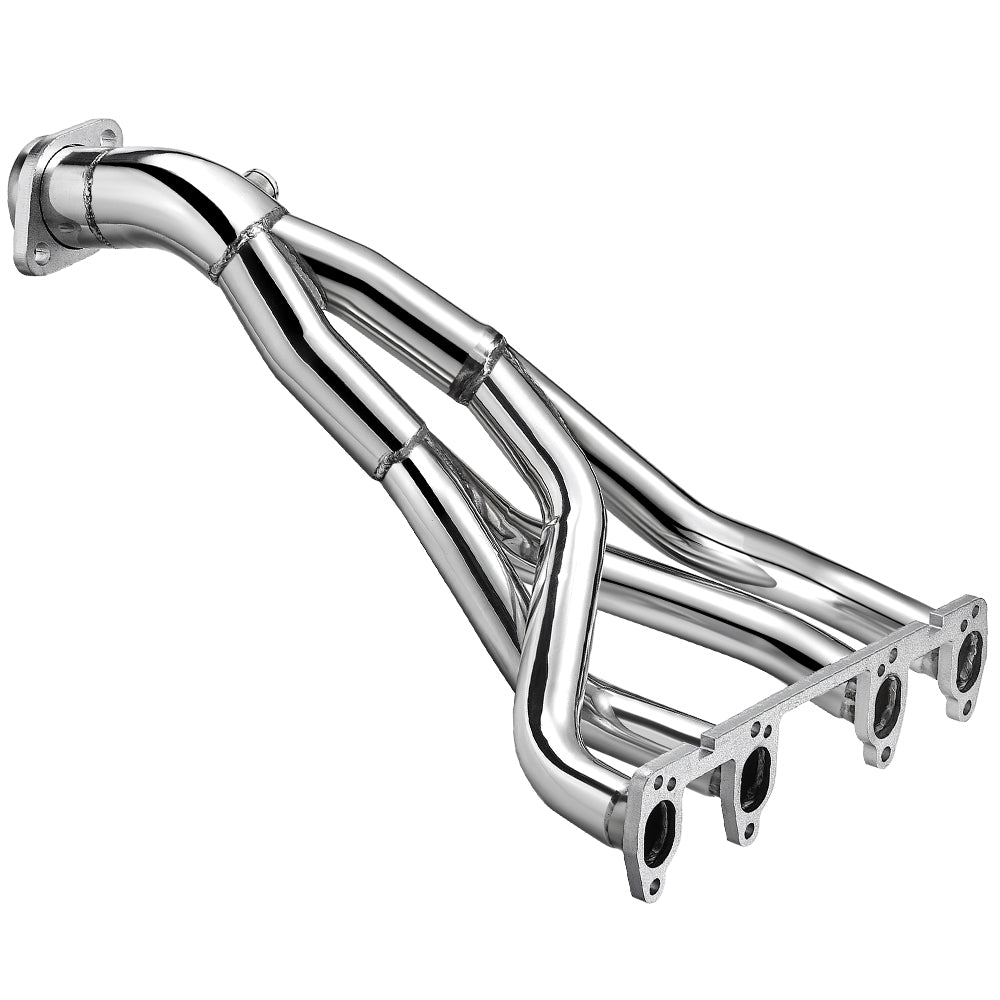

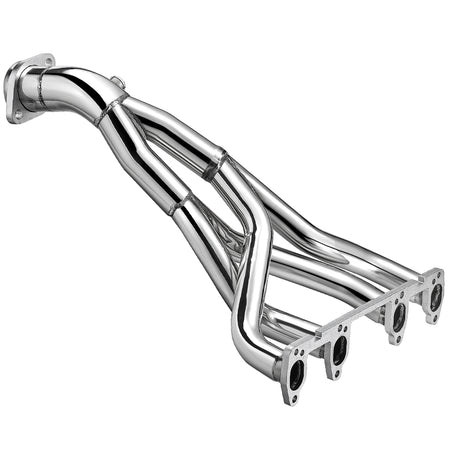

Four Runners, Two Intermediate Branches, One Outlet
The Golf Mk2 / Mk3 8V header routes four exhaust ports through two intermediate branches to a single collector. The 4-2-1 assembly provides an alternative to the factory manifold route only when the actual engine and complete exhaust are compatible.
Sound and performance from the Golf 8V header depend on the engine, intake, calibration and downstream system. No product-specific test establishes a guaranteed horsepower increase or unrestricted no-modification fit for this header.
Specs
| Specification | Detail |
|---|---|
| Material | Stainless steel |
| Finish | Mirror polished |
| Layout | Four-into-two-into-one |
| Primary tube size | 1.50 inches nominal; inner / outer diameter basis not specified |
| Outlet size | 2.5 inches nominal; mating dimensions require comparison |
| Application scope | Matching Golf Mk2 / Mk3 8V configuration; exact years and engine codes require confirmation |

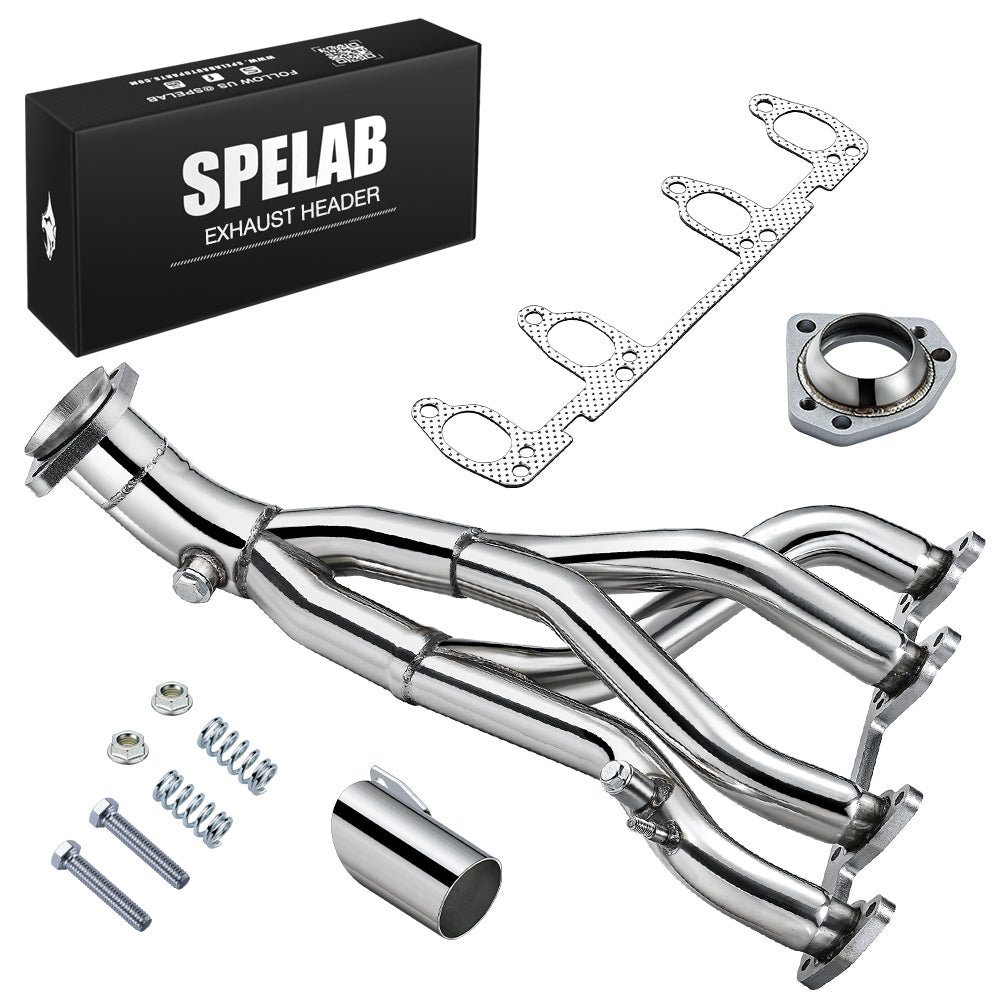

What’s Included
| Component | Description |
|---|---|
| Header | Polished four-into-two-into-one assembly |

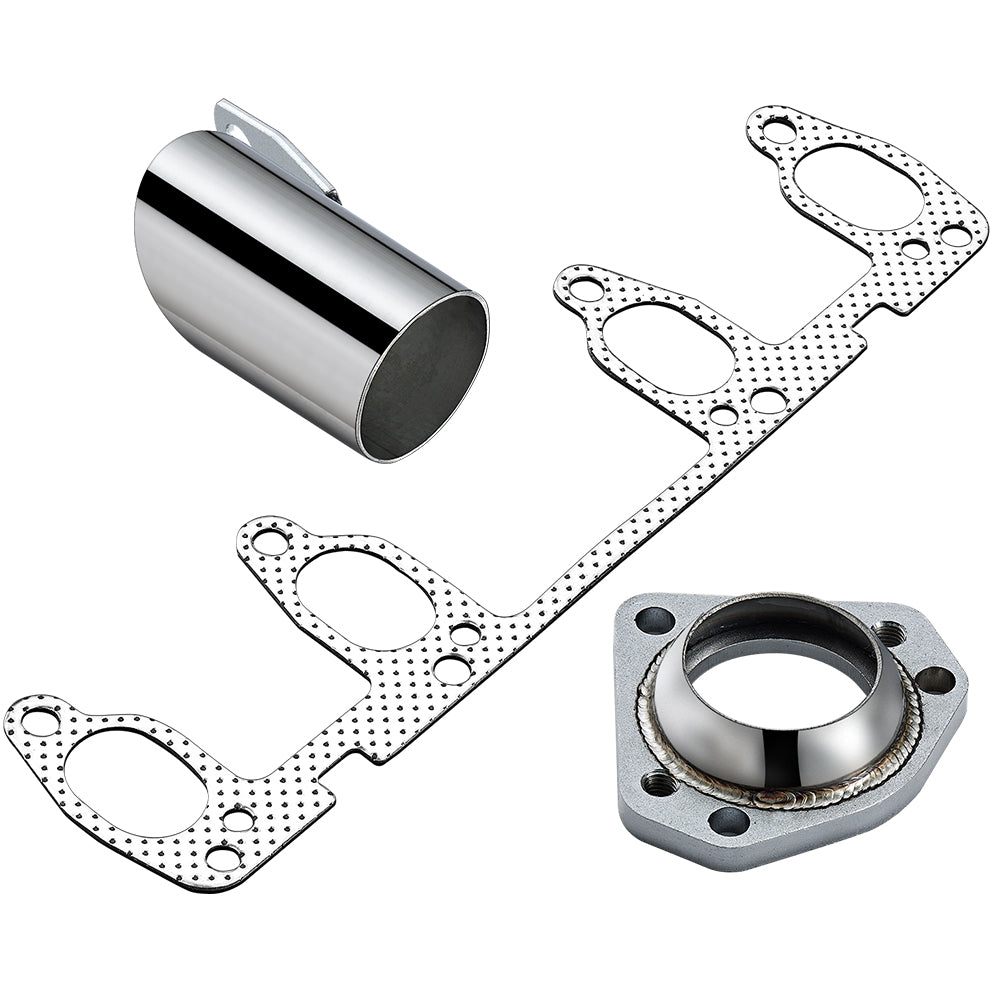

| Sealing and outlet pieces | Four-port head gasket, flanged outlet connection piece and short guide tube |

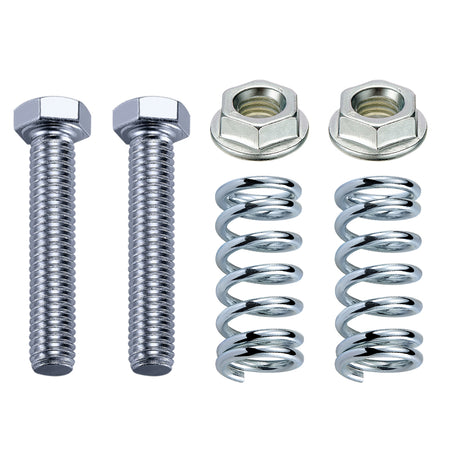

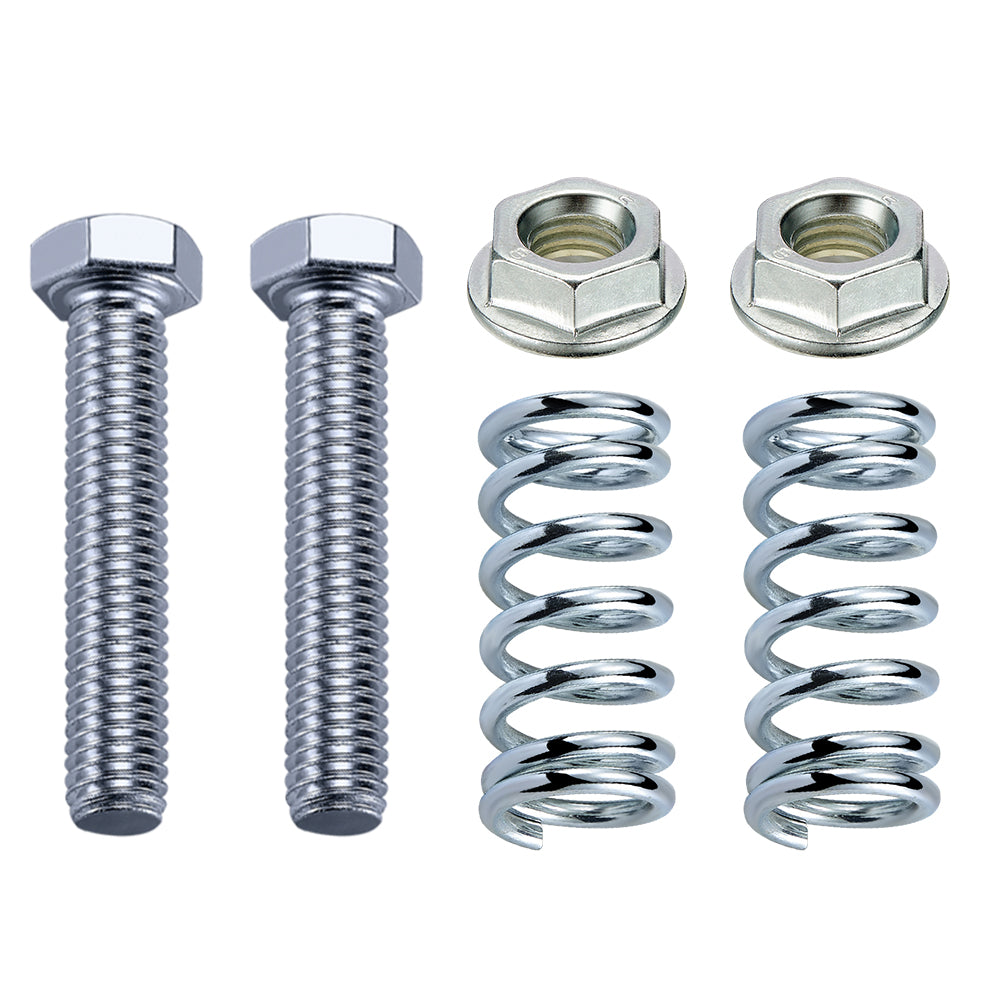

| Connection hardware | Bolts, nuts and springs; confirm the hardware needed at each vehicle-side joint |
Check the Installation section for vehicle-side seals, fasteners and connections that may need to be retained or renewed.
