Exhaust Header for Ford Mercury Mustang Cougar 260/289/302

Stainless Four-Into-One Headers for a Matching Small-Block Ford Project

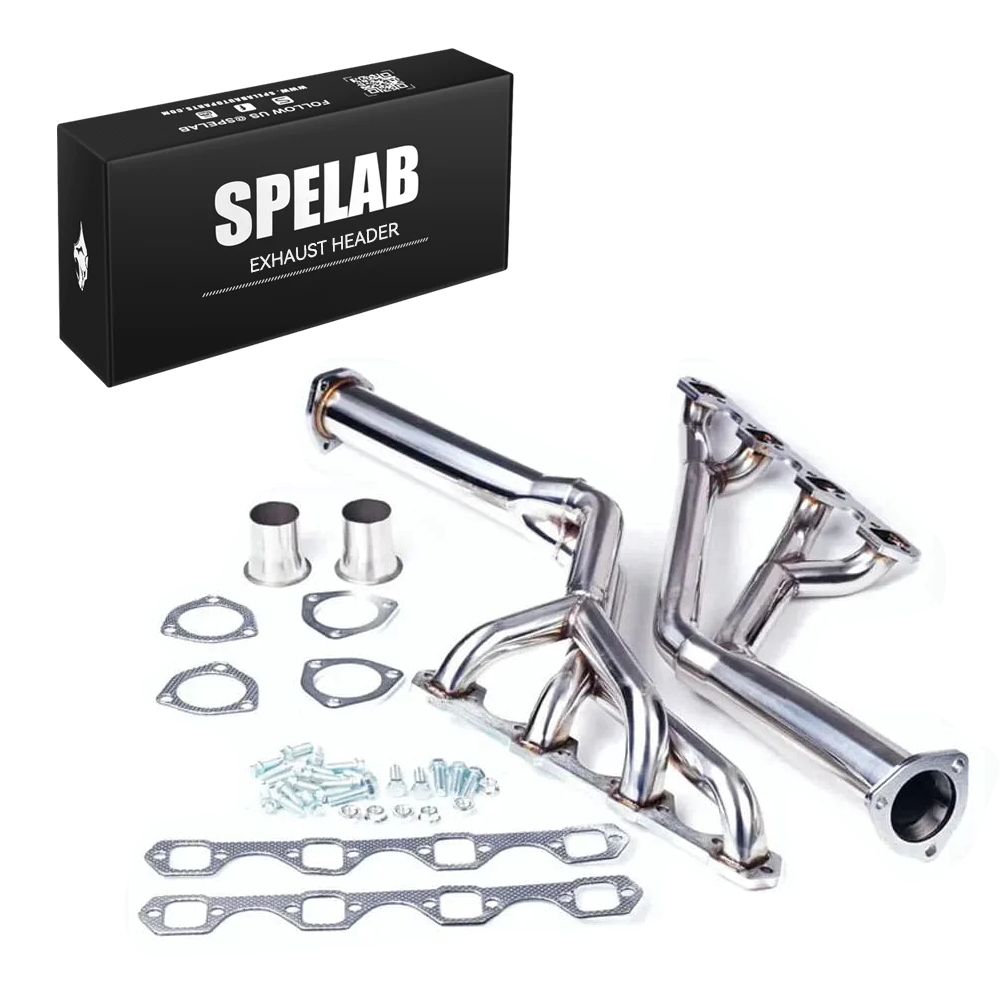

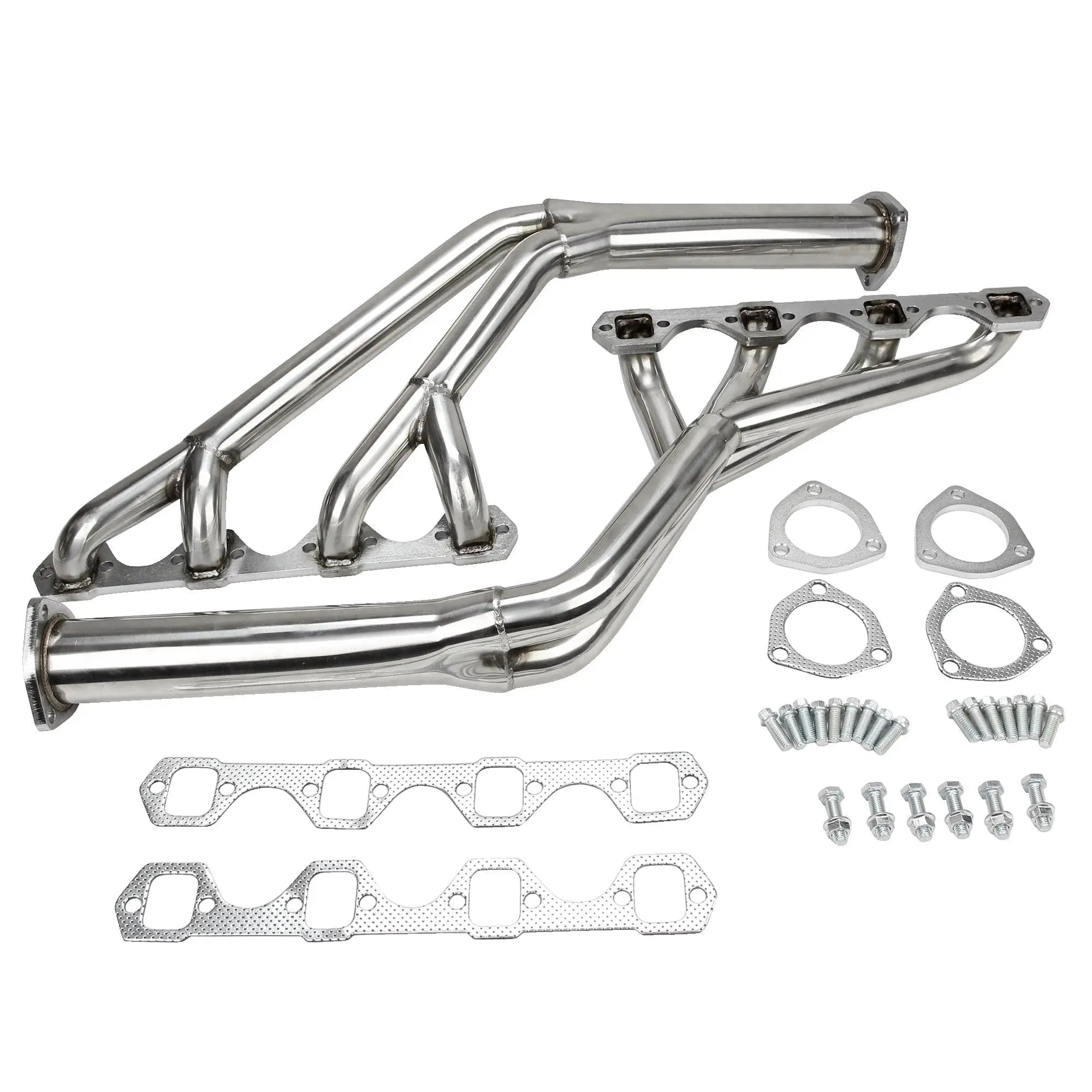

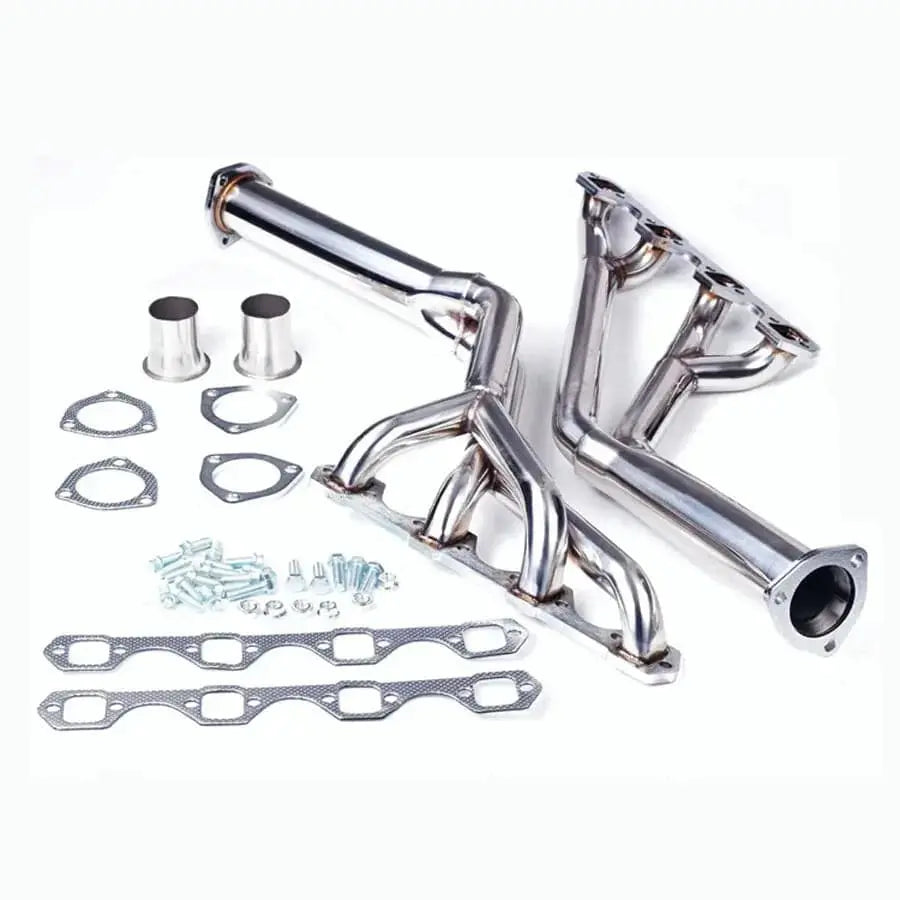

The SPELAB stainless header pair is intended for a compatible Ford Mustang or Mercury Cougar project using the listed traditional 260, 289 or 302 small-block Ford engine family and matching head flanges. The mirror-polished SBF pair combines four-into-one bank assemblies with flanged outlet adapters, gaskets and mounting hardware. Fitment of the Mustang / Cougar header pair depends on the actual chassis, steering, transmission and engine position.

Best For

• Replacing a diagnosed manifold fault: the Mustang / Cougar header pair requires assessment against the actual engine and chassis before manifold replacement.
• Planning a classic small-block Ford exhaust: the SBF header collectors and outlet adapters must be coordinated with supported downstream pipes.
• Working around retained controls: the Mustang / Cougar header route must preserve the required steering and clutch-linkage travel.

Four Runners Into Each Collector

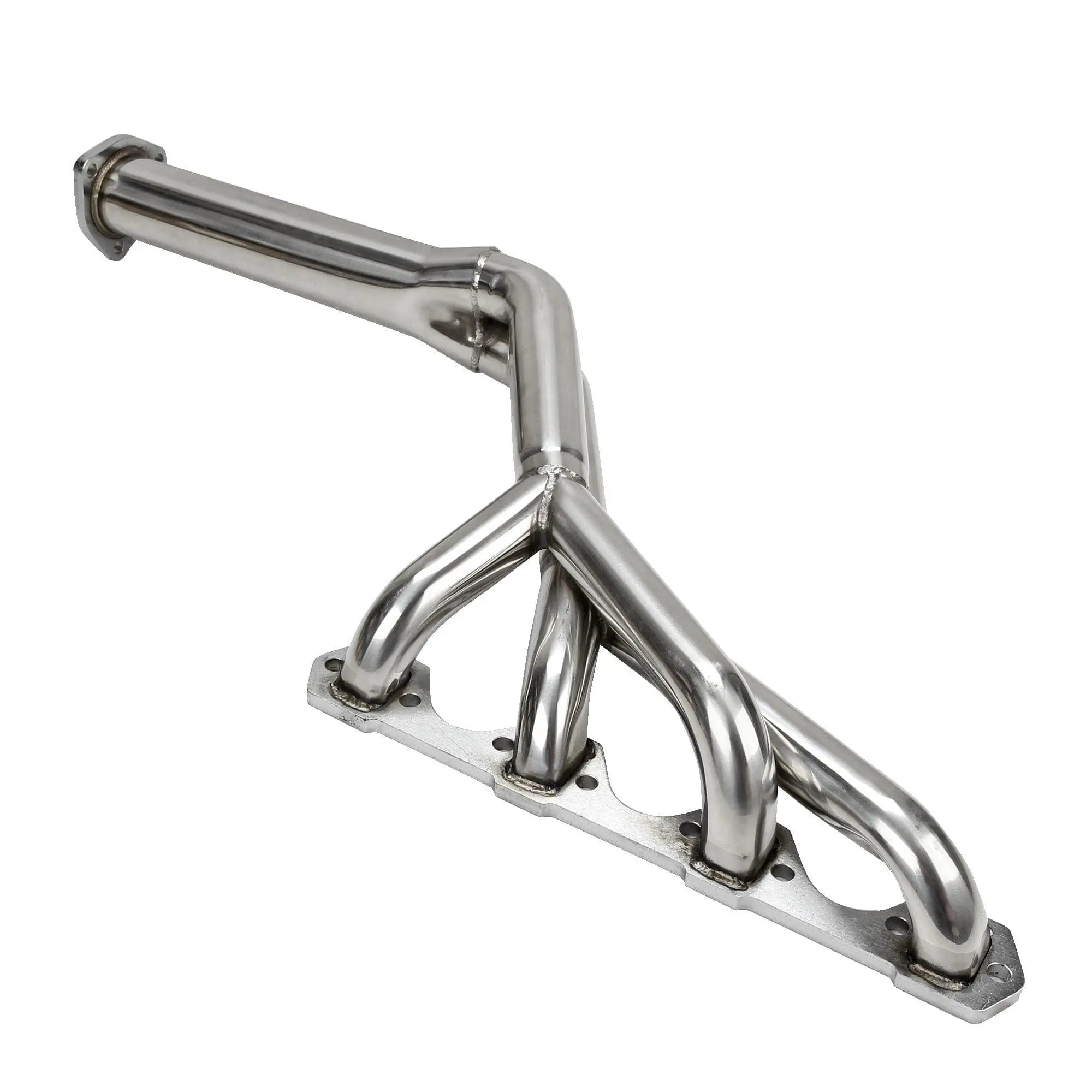

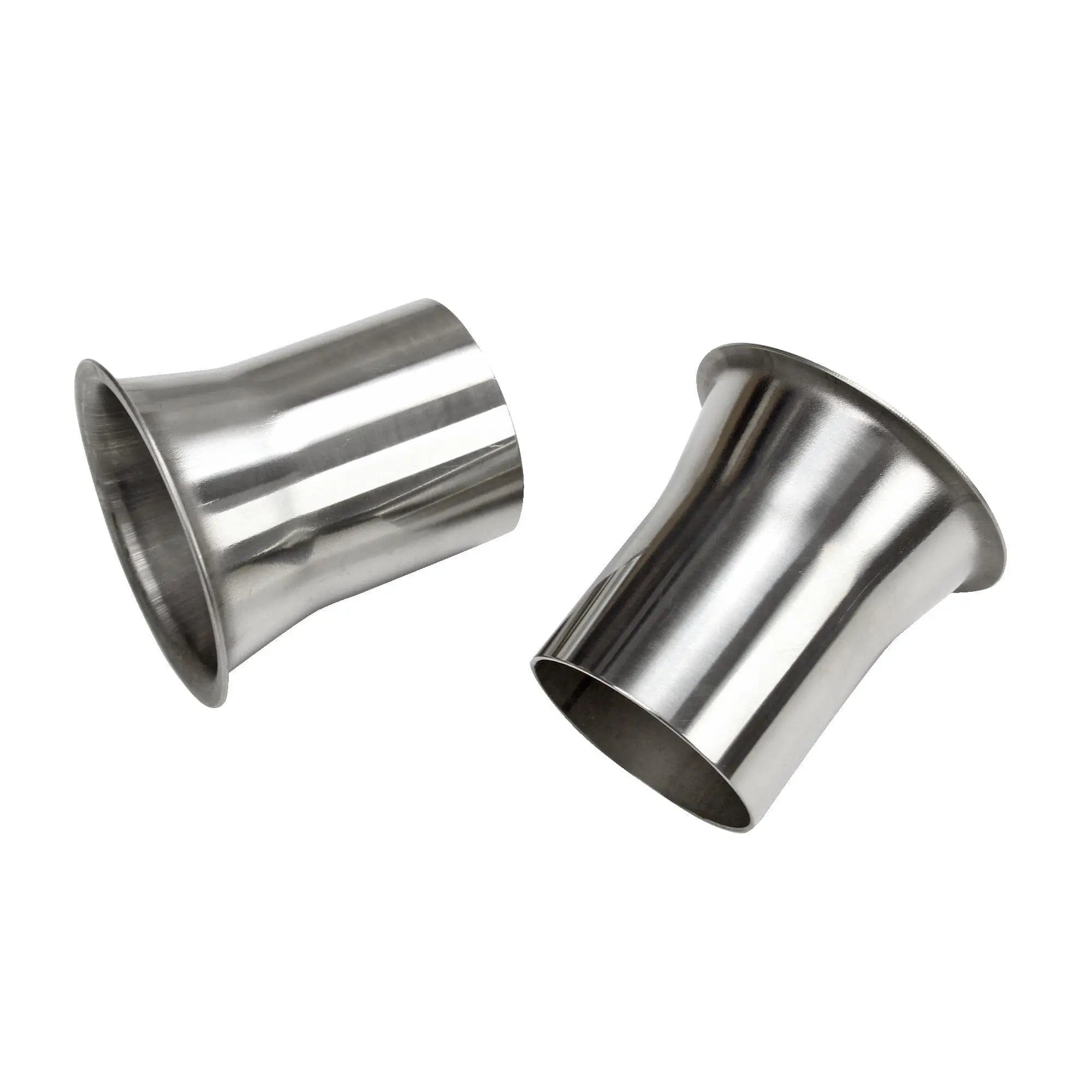

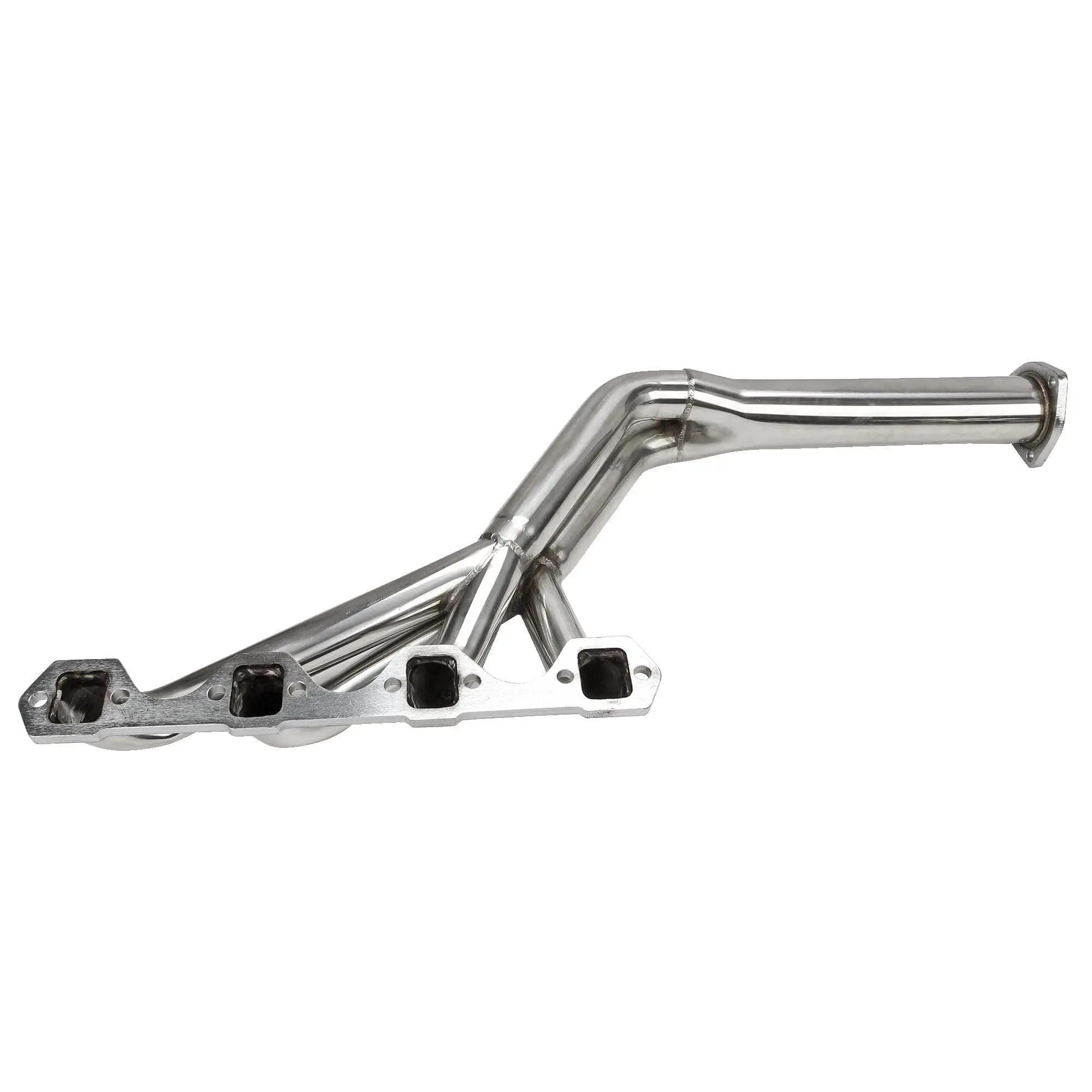

Each Mustang / Cougar SBF header combines four tubes into a flanged collector. The pair’s supplied outlet adapters provide starting connections for compatible downstream pipes, while complete pipe routing and support require a vehicle-specific plan.

The Mustang / Cougar SBF header pair has no established model-year fitment list, exact tube dimensions or product-specific power increase. Similar engine displacement does not establish identical header clearance across different chassis or aftermarket cylinder heads.

Specs

What’s Included

Check the Installation section for vehicle-side seals, fasteners and connections that may need to be retained or renewed.

Vehicle & Engine Fitment

The Mustang / Cougar header pair’s 260 / 289 / 302 references identify engine-family scope, not factory availability of every displacement in both models. No specific chassis-year range is confirmed for the pair. Its stated scope does not extend to 351 Windsor, Cleveland, FE, Modular or Coyote engines, and does not establish unchanged clearance with aftermarket heads or engine swaps.

Before You Order & Install

• Head and engine position: the SBF header pair must match the installed heads’ port shape, bolt pattern and dimensions at the actual engine-mount position. Spark-plug boots and access must be checked against the headers with those heads installed.
• Steering: the Mustang / Cougar header route must clear the actual manual or power-steering arrangement, box or rack, shaft and any hydraulic ram or hoses through full travel. A generic steering drop bracket does not establish compatibility for this header pair.
• Clutch and shifting: the SBF header installation must preserve full movement of the actual Z-bar, bellcrank, clutch cable or hydraulic lines and shift/lockout linkages. Header clearance with a transmission conversion requires separate checks.
• Collector routing: the SBF header adapters must match the intended downstream connection in dimensions, sealing and outlet angle while clearing the starter, frame and floor. The supported downstream route and any professional fabrication must be planned before the original exhaust is removed.

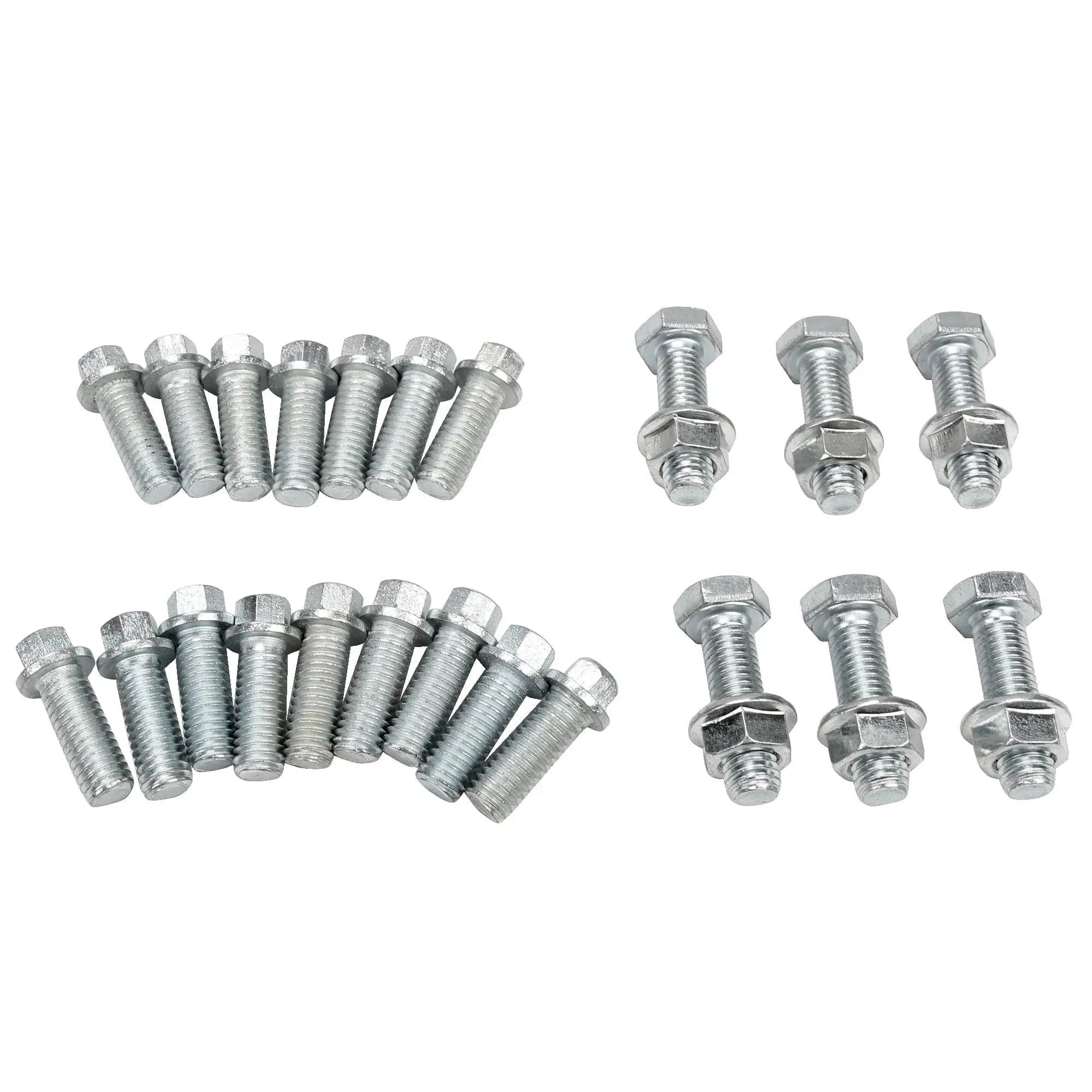

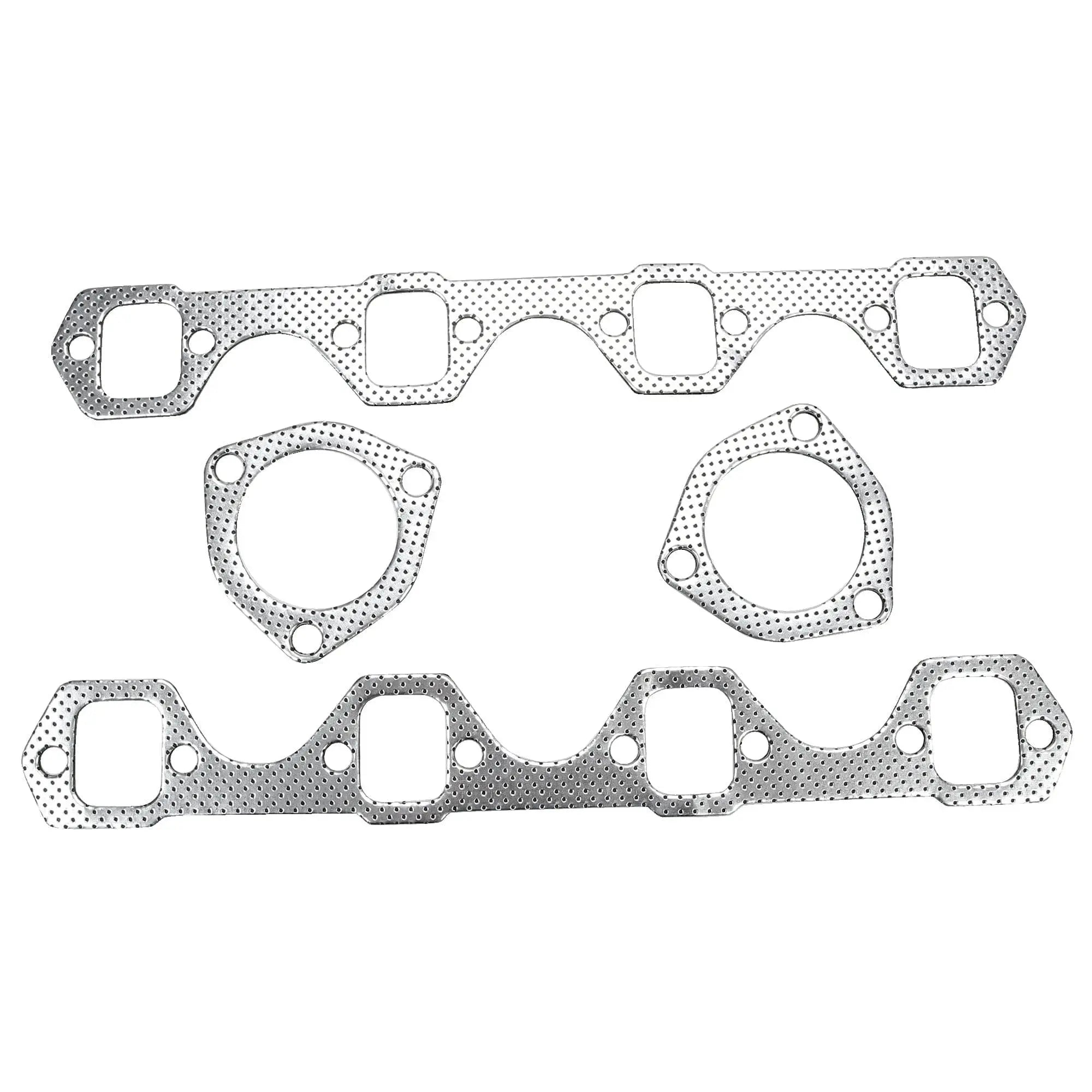

• Hardware and equipment: the SBF header installation requires inspection of head studs or bolts, matching of each gasket to its flange and identification of every required sensor or auxiliary connection. The header package does not establish every vehicle-side replacement part needed.
• Intended use: the Mustang / Cougar header installation must retain all required catalysts, sensors and auxiliary equipment and meet applicable noise and emissions requirements. The product name does not establish road-use certification or inspection compliance for this pair.

Will the ECU Need Tuning?

Tuning assessment for the Mustang / Cougar SBF header pair depends on the actual induction and ignition system after the exhaust is correctly aligned and sealed. A qualified technician should assess carburetor and ignition needs on a carbureted build, or the ECU and sensors on a fuel-injection conversion. No universal tuning requirement or measured power result is established for this pair, and calibration cannot correct incompatible joints or inadequate clearance.

Installation Overview

This is a general installation overview. Follow the service procedure for the actual vehicle and complete the configuration and connection checks above. Professional installation is recommended.

1. Confirm the configuration and parts. Identify the actual small-block Ford head and chassis. Lay out both headers, adapters, gaskets and hardware and compare engine position and control-linkage routes.
2. Cool and support the vehicle. Allow the engine and exhaust to cool completely. Use the correct lifting procedure with a suitable lift or rated stands on a firm level surface; never work beneath a vehicle supported only by a jack.
3. Record connections and remove the original assembly. Record plug wires, steering hoses, linkages and exhaust supports. Support the retained exhaust and remove the original manifolds using the appropriate engine and chassis procedure.
4. Prepare the joints. Inspect threads, mating surfaces, supports and retained pipes. Address damaged fasteners and clean sealing faces carefully. Match the appropriate seal and hardware to every joint.
5. Trial-fit the complete route. Fit both bank assemblies and adapters loosely. Check steering and clutch travel, shift linkages, starter, plug boots and frame/floor clearance with the downstream pipes supported.
6. Secure and restore connections. Tighten each joint with applicable engine and component requirements. Restore controls, required equipment, supports and heat protection, keeping hoses and wires clear of the headers.
7. Check sealing and operation. Run the engine in a well-ventilated area and inspect for leaks, contact, abnormal sound and warning lights. Investigate faults before use and recheck the cooled assembly as required by the applicable service procedure.

Frequently Asked Questions

Which Mustang or Cougar model years are confirmed?

The Mustang / Cougar SBF header pair has no established model-year fitment range. The actual engine, head flange, chassis and steering/transmission configuration must match the pair before purchase.

Will the same set clear every manual-transmission Z-bar?

Universal manual-transmission Z-bar clearance is not established for the Mustang / Cougar header pair. The actual bellcrank and clutch linkage must clear the headers through full travel at the installed engine position.

Is a power-steering drop bracket always required?

A power-steering drop bracket is not established as universally required for the Mustang / Cougar header pair. Clearance and any supporting parts depend on the specific chassis and steering arrangement, not an assumed standard bracket.

Does the 260 / 289 / 302 reference approve a 351 engine?

The Mustang / Cougar header pair’s 260 / 289 / 302 scope does not establish a 351 engine application. Engine-family similarity alone does not confirm compatible head mounting or chassis clearance.

Are downstream pipes included?

The Mustang / Cougar SBF package confirms the header pair and flanged outlet adapters as its main parts. A complete vehicle-specific downstream exhaust is not confirmed as included with the package.

Warranty & Customer Support

A one-year limited warranty from delivery covers qualifying material and workmanship defects under normal use for the original purchaser. Proof of purchase is required. Improper installation, alteration and modification are excluded, as are installation and removal labor costs.

Returns within 30 days are subject to product condition and the applicable shipping terms. Read the Warranty & Return Policy for eligibility and claim procedures.

For fitment questions or an order issue, email service@spelabautoparts.com or call +1 888 301 8666. Hours: Monday–Friday, 9:00 AM–6:00 PM EDT. Share your vehicle year, model, engine, chosen style and relevant photos; include the order number for an existing purchase.
