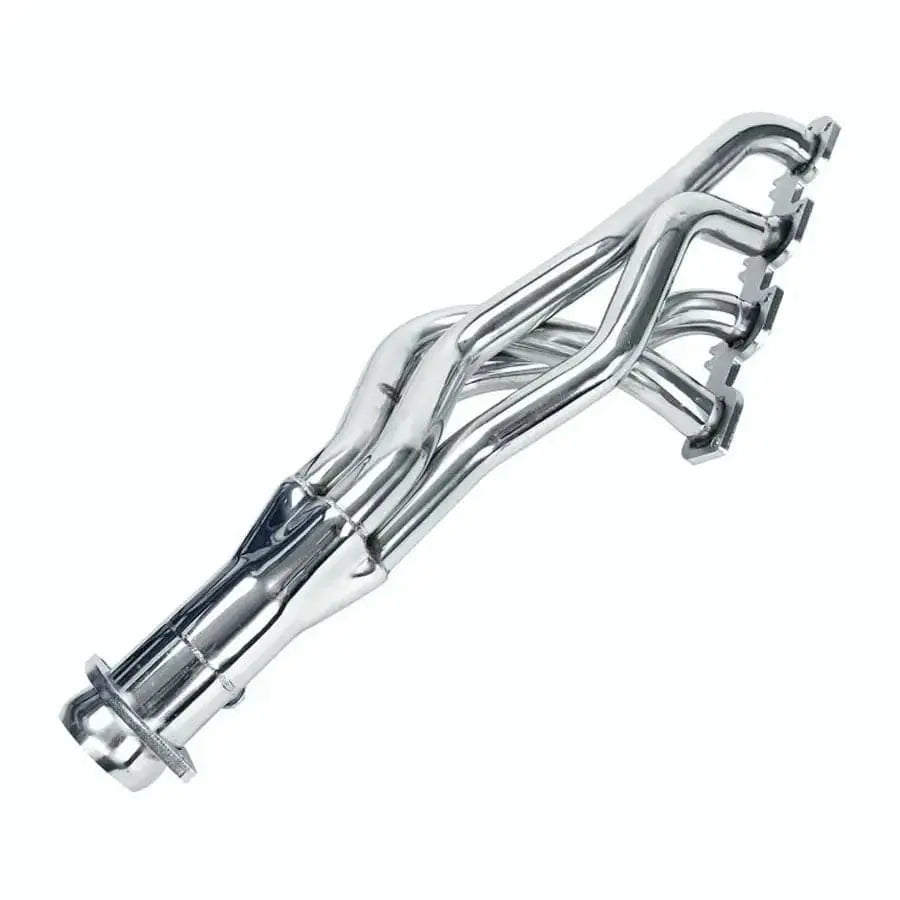

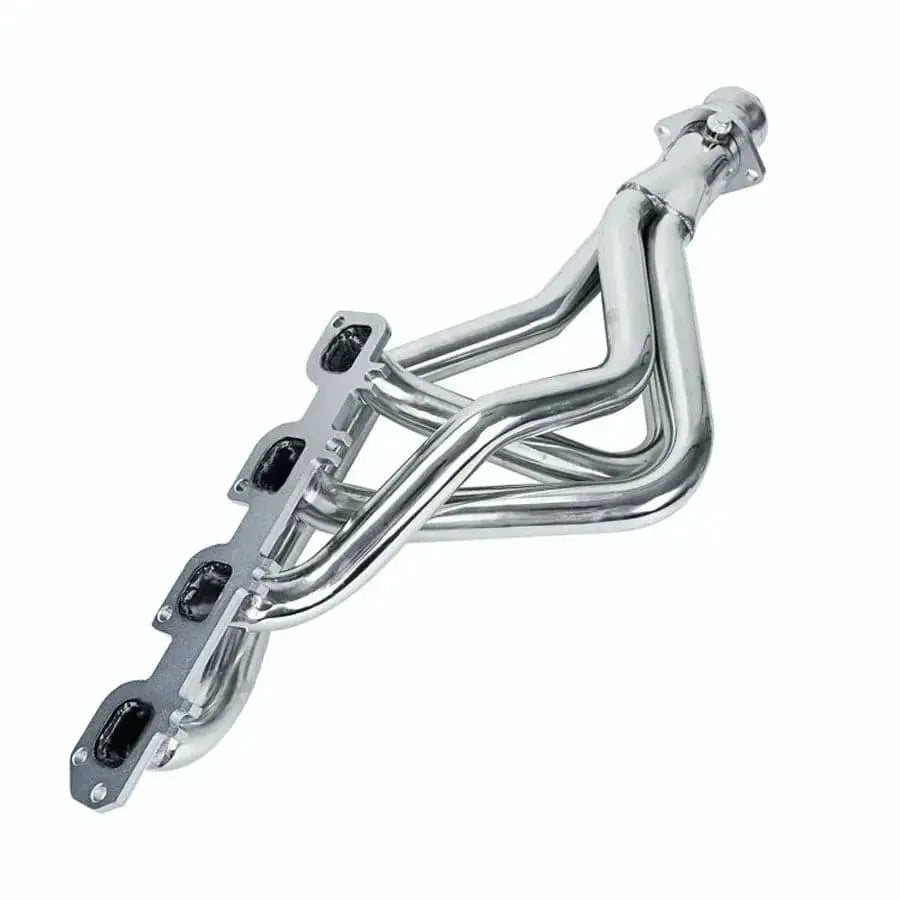

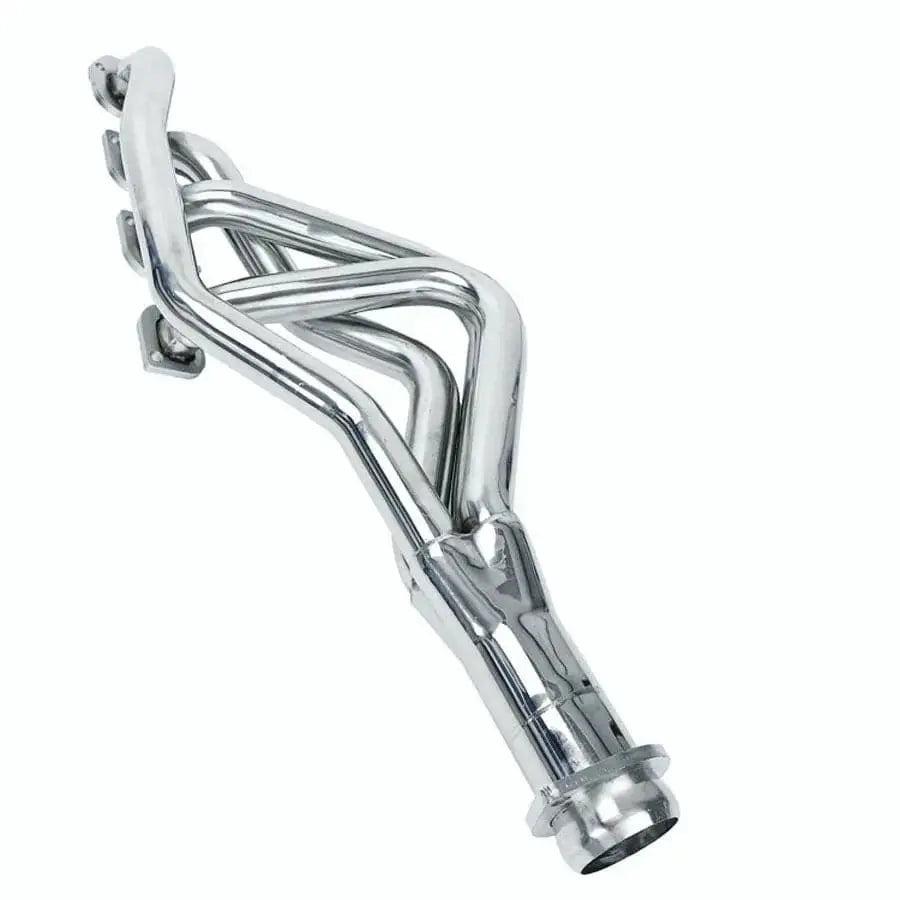

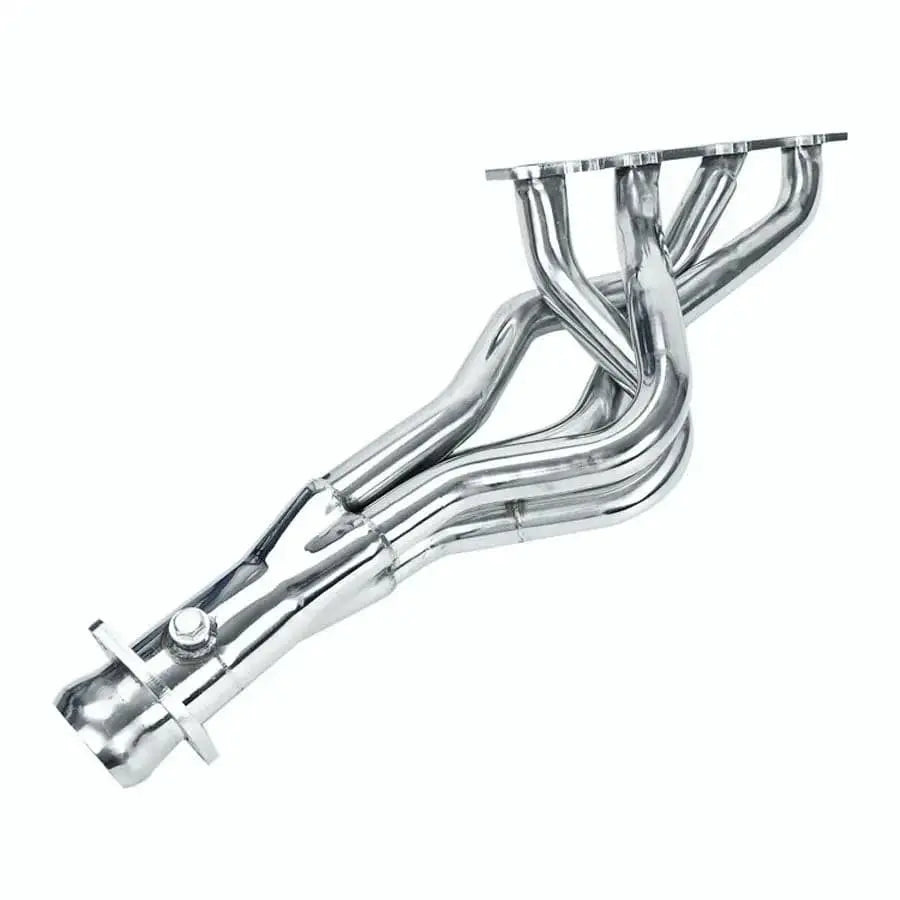

Exhaust Long Header for 2009-2018 Hemi 5.7L Dodge Ram 1500 Manifold | SPELAB
Secure and trusted checkout with
Product Information +
- Brand: SPELAB
- SKU: SPES08237
- Availability: Many in stock
- Product Type: Exhaust Header
-
PLEASE NOTE!
Long and Short Header Options for a Matching 2WD Ram 5.7L
The SPELAB 304 stainless header options are intended for compatible 2009–2017 Dodge / Ram 1500 5.7L HEMI V8 two-wheel-drive configurations; a 2018 truck requires separate confirmation for the selected style. The Long 09-17 option uses extended runners and nominal 3-inch outlets, while Short 09-18 uses a compact layout and nominal 2.5-inch collectors. Each option supplies its own header pair, head gaskets and mounting hardware.
Best For
- Replacing a diagnosed manifold fault: the Ram header pair requires inspection of head fasteners and the actual exhaust fault before replacement.
- Planning an extended-runner exhaust: Long 09-17 requires a complete collector, front-pipe and required-equipment plan.
- Choosing compact packaging: Short 09-18 requires its own vehicle-side connection and clearance checks rather than the long-header pipe route.
Choose the Runner Route and Collector Together
Both Ram styles use four-into-one bank assemblies, but the long and short layouts place their collectors differently. The selected headers and downstream exhaust must be assessed as a complete supported route.
No measured horsepower gain, exact sound or guaranteed cure for a HEMI ticking noise is established for these headers. A diagnosed exhaust leak, broken fastener, internal engine noise and an incompatible pipe connection require different remedies.
Specs
| Specification | Detail |
|---|---|
| Material, both styles | 304 stainless steel |

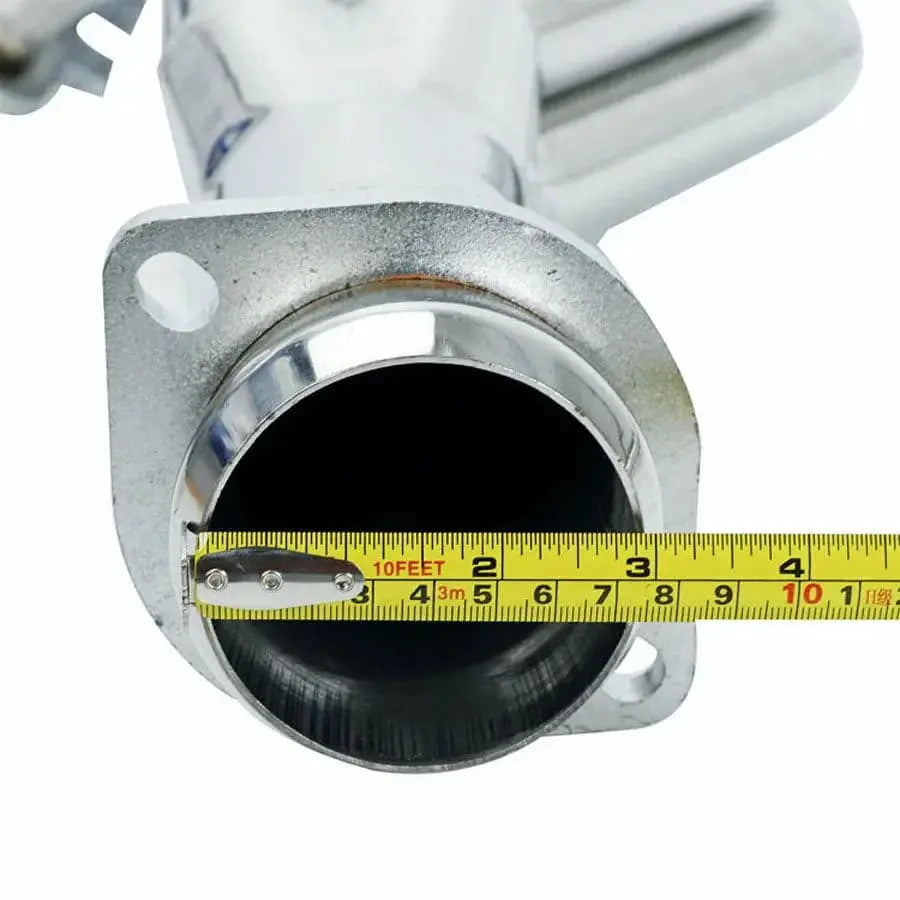

| Long 09-17 primary / outlet | 1.75 / 3.00 inches nominal |

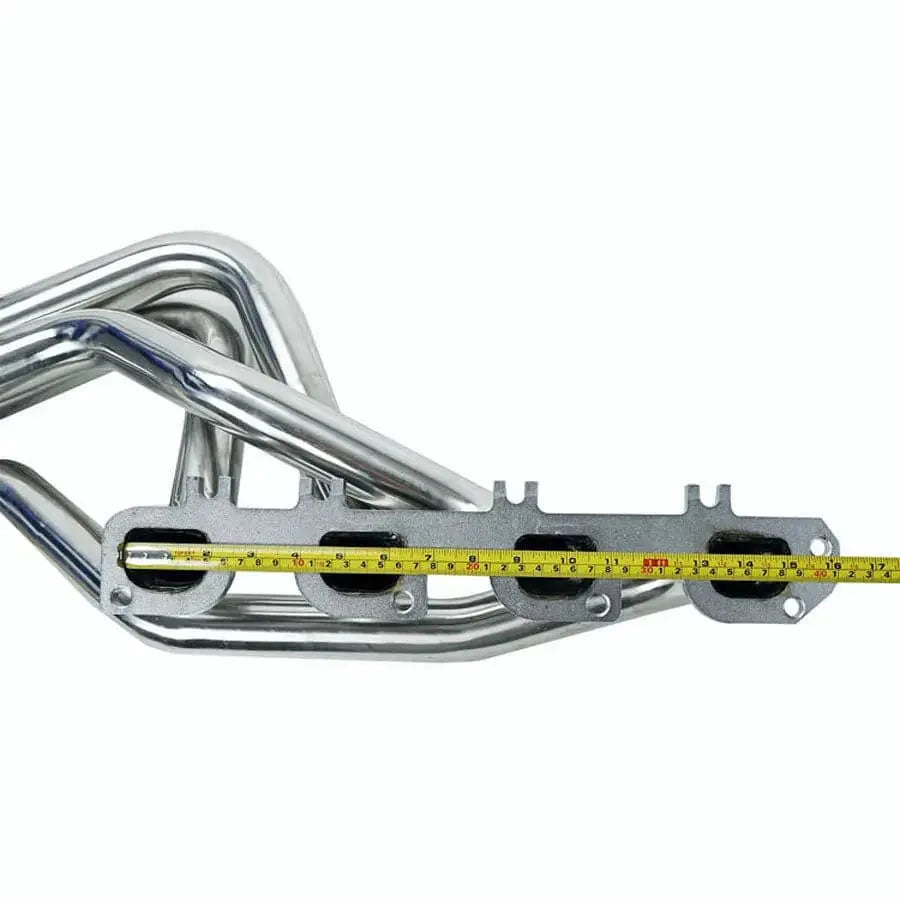

| Long head / outlet flange thickness | 7/16 / 3/8 inch nominal |
| Long construction / finish | CNC-machined flanges; TIG and MIG welded construction; three-stage polish |
| Short 09-18 primary / collector | 1-5/8 / 2-1/2 inches nominal |
| Short head flange / tube wall | 3/8 inch nominal flange; 16-gauge (1.5 mm stated) tube wall |
| Drivetrain boundary | 2WD only; 4WD excluded |

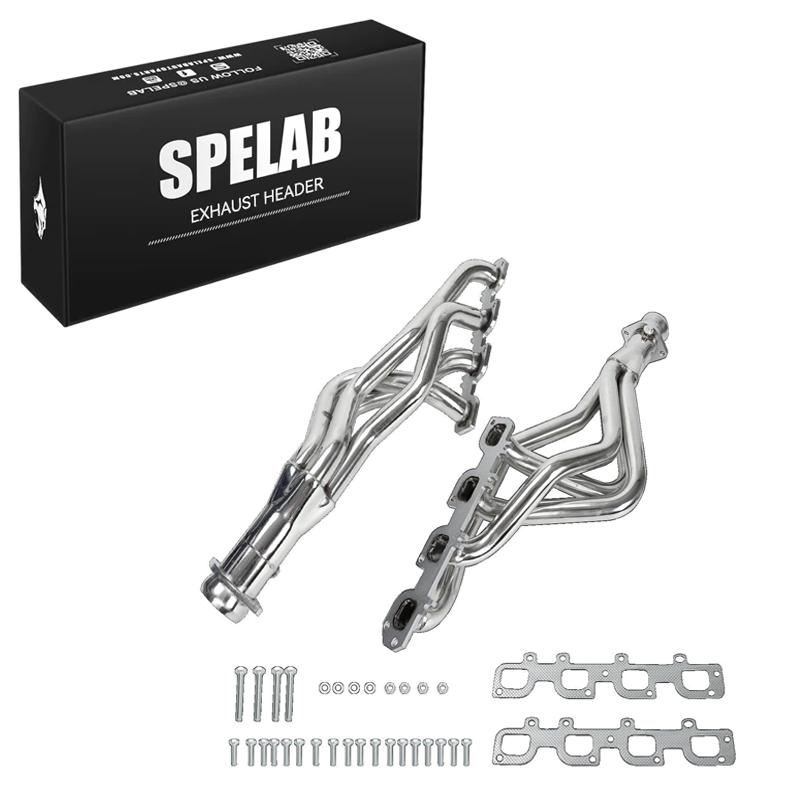

What’s Included
| Component | Description |
|---|---|
| Long 09-17 | Left/right long headers with two head gaskets and mounting hardware; verify each collector seal separately |
| Short 09-18 | Left/right short headers with two head gaskets and mounting hardware |
| Additional system parts | Confirm the actual front pipes, collector seals, supports and required equipment for the selected layout |
Check the Installation section for vehicle-side seals, fasteners and connections that may need to be retained or renewed.
