SPELAB Exhaust Header for 1997-2003 Ford F150 4.6L

Stainless Header Pair for Matching 1997–2003 F-150 4.6L Configurations

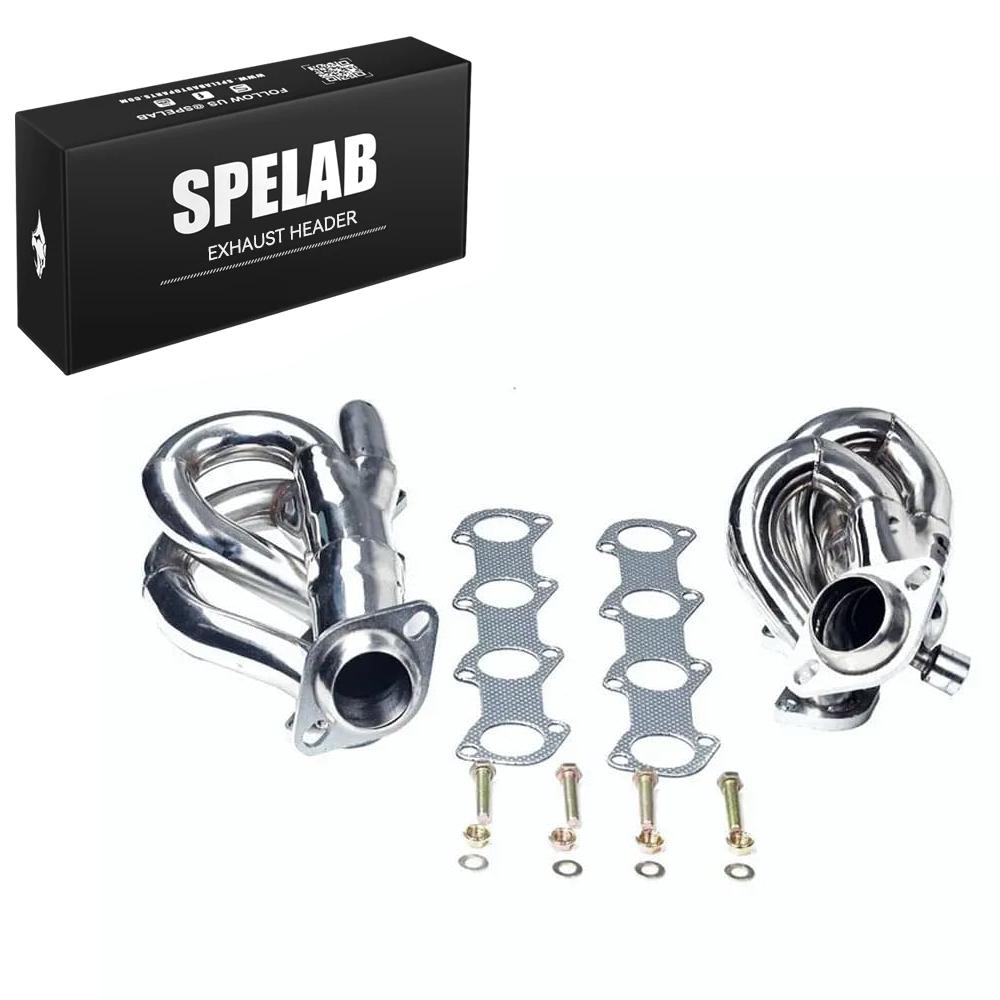

The SPELAB polished stainless pair is offered for 1997–2003 Ford F-150 configurations with a matching 4.6L SOHC two-valve Modular V8. Compact four-into-one runner banks end in two-bolt flanged outlets with rounded seats. Two head gaskets and four connection bolt / nut / washer sets are shown; actual head fasteners, auxiliary connections and retained front pipes require confirmation.

Best For

• Repairing a diagnosed F-150 exhaust fault: inspect the original joints, studs and auxiliary pipes first.
• Refreshing a matched 4.6L truck exhaust: compare both collector joints and supported downstream pipes.
• Maintaining service access: check steering, starter, nearby lines and required equipment as a complete installation.

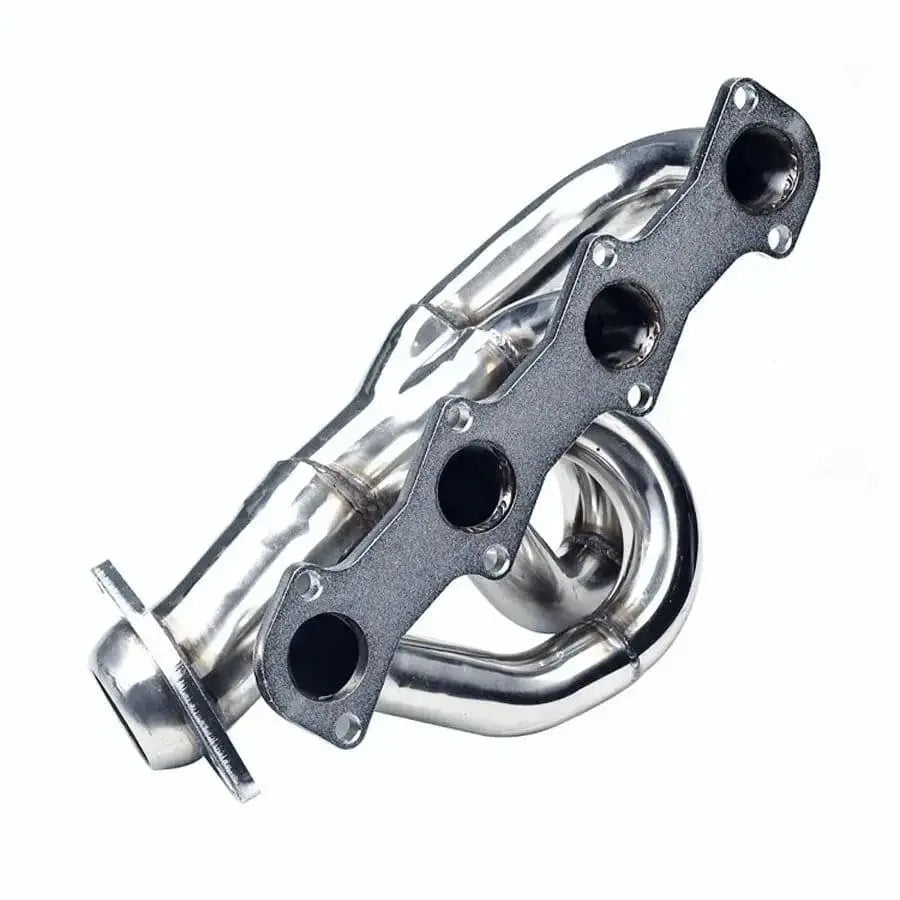

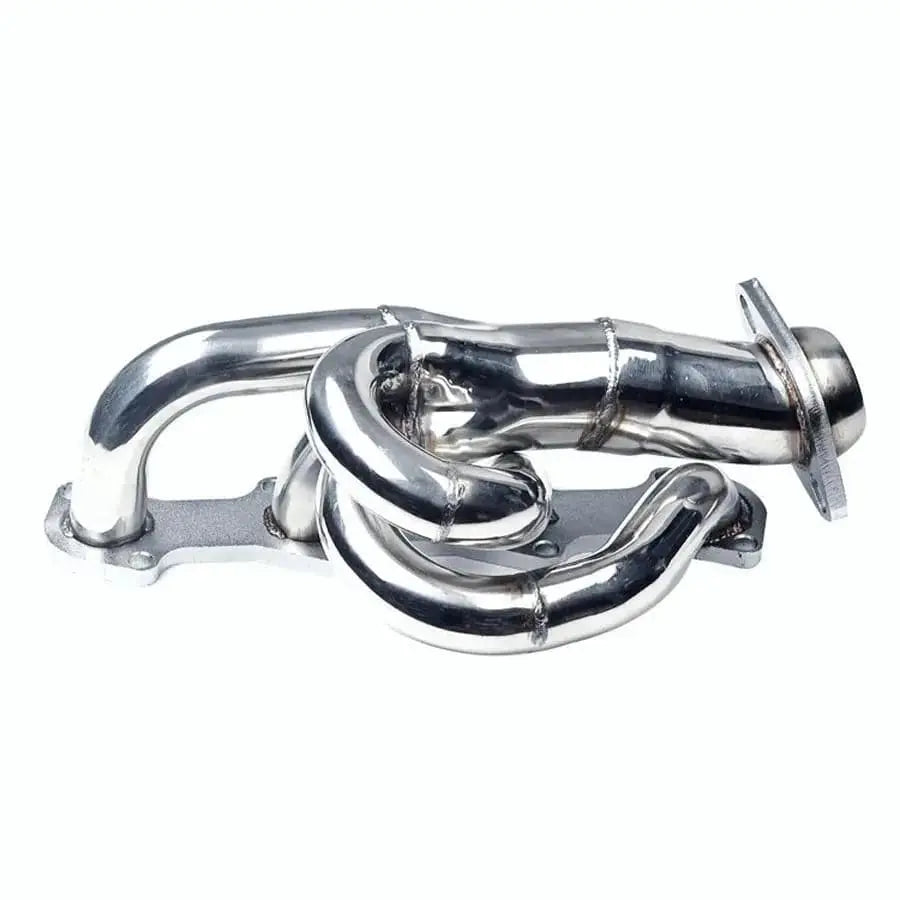

Compact Runner Banks and Rounded Collector Joints

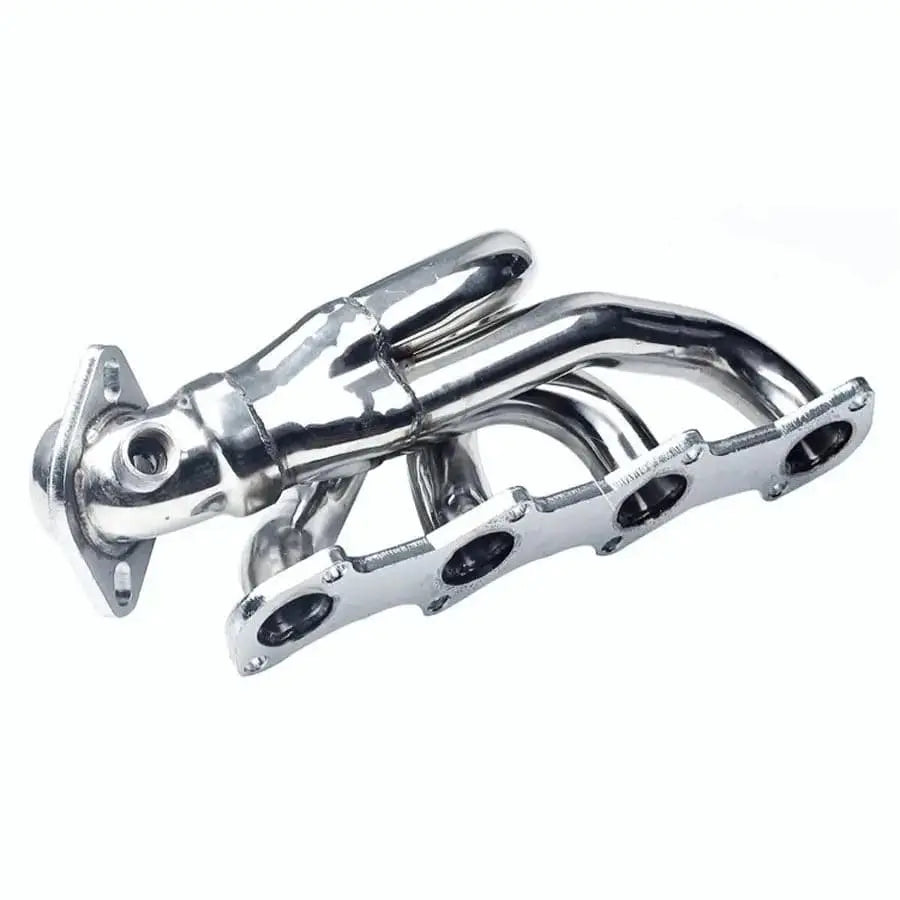

The F-150 pair uses four-into-one runners with two-bolt rounded-seat collector outlets. A threaded auxiliary provision is shown, but the actual connection function, thread and pipe alignment must match the truck.

No product-specific test establishes a fixed power, towing or fuel-economy improvement for this F-150 pair. Engine condition, fuel control and the complete exhaust affect the result.

Specs

What’s Included

Check the Installation section for vehicle-side seals, fasteners and connections that may need to be retained or renewed.

Vehicle & Engine Fitment

The F-150 scope does not establish 5.4L, 4.2L V6, earlier Windsor V8, later three-valve, Mustang or other-body fitment. Shared Modular-engine terminology does not confirm the pipe route or collector joints.

Confirm exact chassis, drivetrain, steering side, transmission, installed heads and EGR / sensor arrangement before purchase. The 1997–2003 range does not establish a 2004 Heritage or every 2WD / 4WD configuration.

Before You Order & Install

• Engine and heads: verify the actual F-150 4.6L two-valve engine, head ports, bolt pattern and gasket. Inspect existing studs / nuts and arrange suitable repair of damaged threads before fitting the headers.
• Collector joints: match both rounded outlet seats, two-bolt flange spacing, retained front pipes and required seals. Confirm independent pipe support and alignment without pulling on the head flanges.
• Auxiliary connections: identify the threaded provision and compare the actual EGR pipe, sensors and all other required connections. Retain required catalysts, monitoring equipment and heat protection.
• Chassis and movement: trial-fit around steering, starter, mounts, suspension / control-arm brackets, transmission, controls and front-driveline movement where applicable. Check full movement and ground clearance.

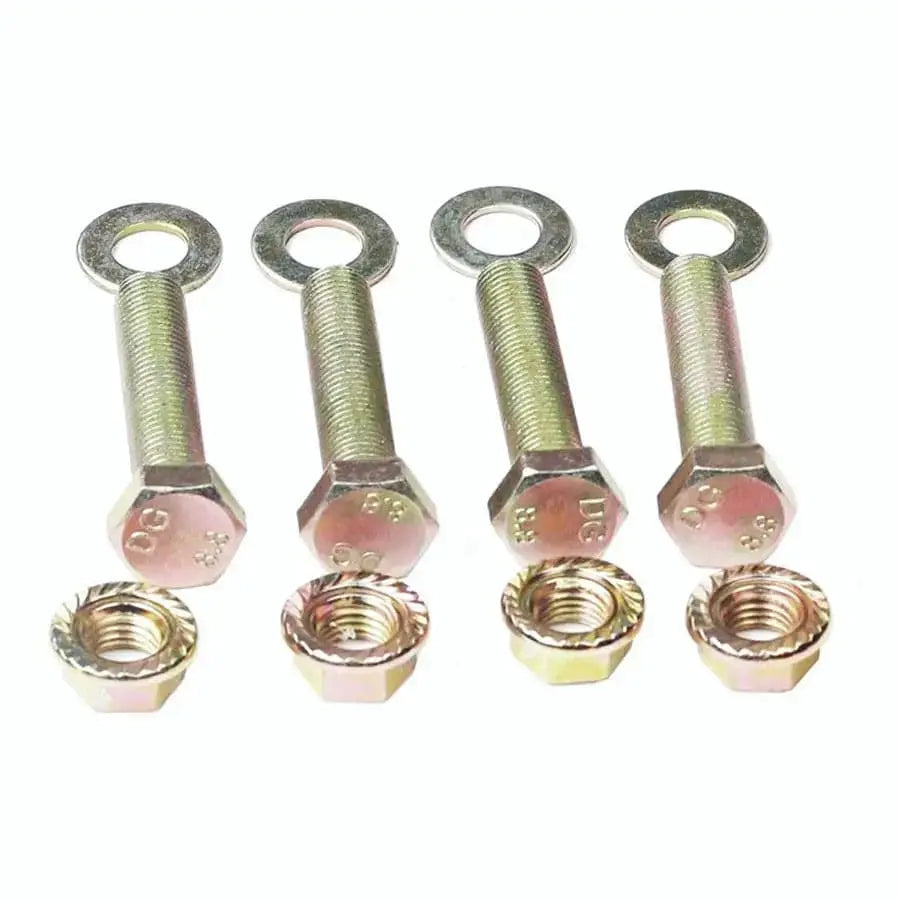

• Hardware and heat: the four pictured connection sets do not establish a complete head-fastener kit. Verify all threads and engagement, protect wiring and fuel / brake lines, and restore suitable supports and heat protection.

Will the ECU Need Tuning?

Calibration assessment for the F-150 4.6L pair depends on the actual controller, sensors and complete exhaust. Diagnose head / collector leaks, damaged EGR connections and running faults before evaluating calibration. Tuning cannot repair broken studs, resolve chassis contact or substitute for required equipment.

Installation Overview

This is a general installation overview. Follow the service procedure for the actual vehicle and complete the configuration and connection checks above. Professional installation is recommended.

1. Confirm the configuration and parts. Confirm the 1997–2003 F-150 4.6L two-valve configuration, actual heads, chassis and drivetrain. Match both collector joints, head fasteners and all required-equipment interfaces.
2. Cool and support the vehicle. Allow the engine and exhaust to cool completely. Use the correct lifting procedure with a suitable lift or rated stands on a firm level surface; never work beneath a vehicle supported only by a jack.
3. Record connections and remove the original assembly. Record sensors, EGR / auxiliary pipes, controls, wiring, heat protection and supports. Support retained exhaust and follow the actual Ford removal procedure.
4. Prepare the joints. Inspect threads, mating surfaces, supports and retained pipes. Address damaged fasteners and clean sealing faces carefully. Match the appropriate seal and hardware to every joint.
5. Trial-fit the complete route. Loosely fit both F-150 headers and supported front pipes. Check rounded-seat alignment, steering, starter, mounts, suspension brackets, transmission, controls, drivetrain movement and ground clearance.
6. Secure and restore connections. Secure compatible head and collector joints to applicable engine and component requirements. Restore all required sensors, auxiliary pipes, controls, supports and heat protection without stressing the flanges.
7. Check sealing and operation. Run the engine in a well-ventilated area and inspect for leaks, contact, abnormal sound and warning lights. Investigate faults before use and recheck the cooled assembly as required by the applicable service procedure.

Frequently Asked Questions

Will these headers fit a 5.4L F-150?

The SPELAB pair is offered for matching 1997–2003 F-150 4.6L two-valve configurations. A 5.4L engine or another body / engine combination is not established as compatible.

Are four bolts enough for the head joints?

The F-150 package shows four connection bolt / nut / washer sets, not a complete head-fastener kit. Confirm suitable retained or replacement head studs / nuts and all actual joint requirements separately.

Will the threaded fitting accept every EGR pipe?

The F-150 pair’s threaded provision requires identification of its actual function, thread and pipe alignment. Confirm the truck’s required EGR and sensor arrangement before ordering rather than assuming interchangeability.

Does a ticking noise mean the manifold itself is broken?

Ticking alone does not diagnose a failed F-150 manifold. Inspect head and collector joints, broken studs, gaskets and auxiliary pipes before selecting replacement headers.

Does the title confirm a 2004 Heritage or every drivetrain?

The F-150 pair’s stated scope ends in 2003. A 2004 Heritage or universal 2WD / 4WD installation is not established and needs separate chassis, equipment and route confirmation.
