SPELAB Exhaust Header for 1997-2001 Chevy Blazer GMC Jimmy 4.3L V6

Stainless Header Pair for Matching 2WD Blazer and Jimmy 4.3L V6 Configurations

The SPELAB polished stainless pair is offered for individually matched 1997–2001 Chevrolet Blazer and GMC Jimmy 4.3L V6 two-wheel-drive configurations. Three runners per bank feed flanged collector outlets with rounded seats. Four-wheel-drive fitment is not confirmed, and this pair should not be selected as a no-fabrication 4WD solution.

Best For

• Refreshing a diagnosed 2WD V6 exhaust fault: match the actual heads and retained pipe joints first.
• Maintaining a complete compact-SUV exhaust: preserve required sensors, auxiliary equipment and service access.
• Planning front-pipe connections: compare collector seat geometry, alignment and supported pipes together.

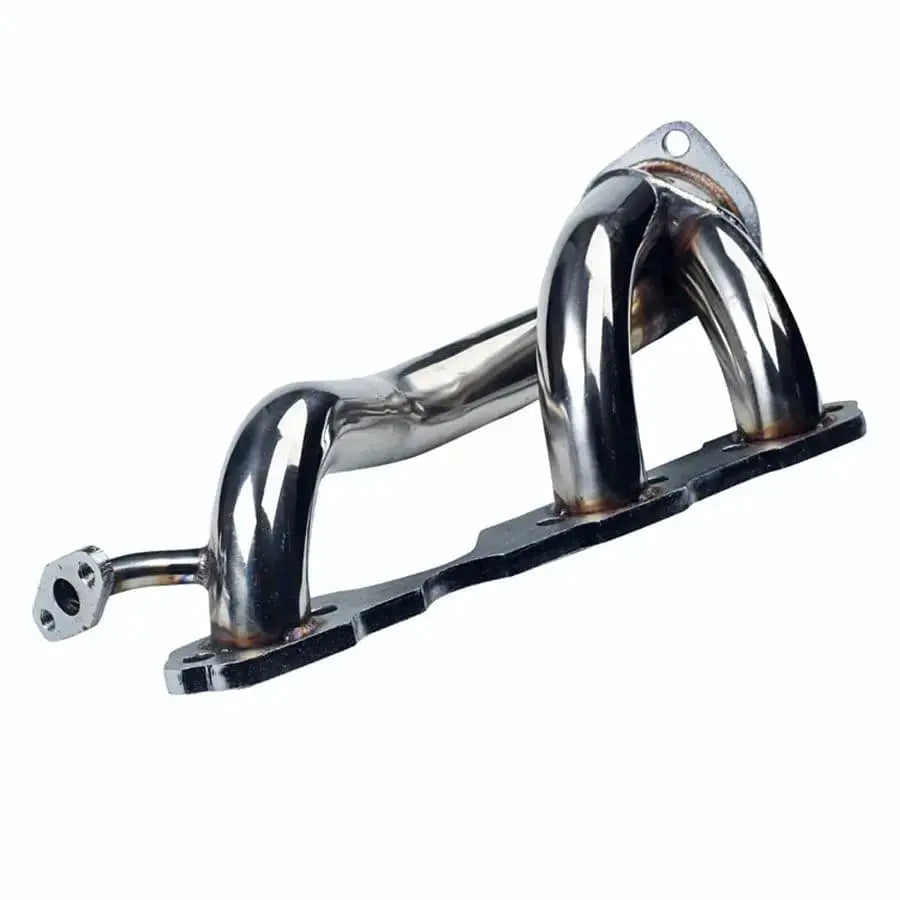

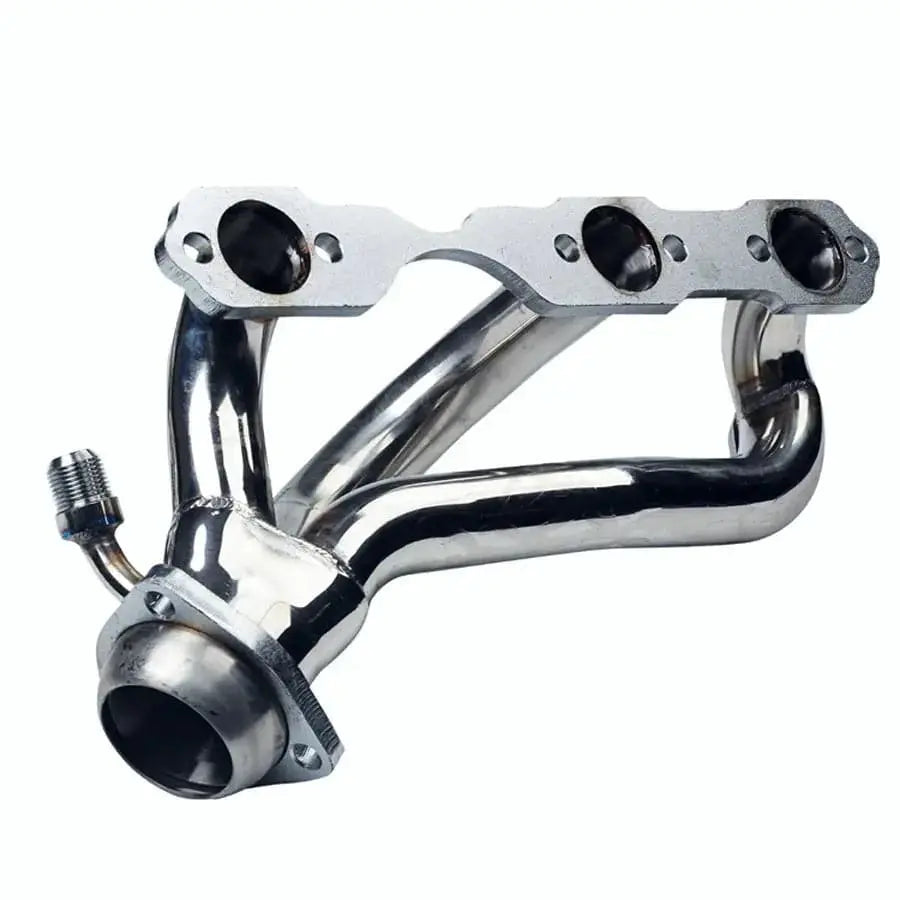

Three-into-One Banks with Rounded Collector Seats

The Blazer / Jimmy pair uses one three-into-one runner assembly per bank with flanged rounded-seat outlets. Threaded and small flanged provisions are shown, but their actual functions and compatibility must be established for the vehicle.

No product-specific test establishes a fixed power gain or particular exhaust sound for this V6 pair. Engine condition, fuel control, required equipment and the complete exhaust affect the result.

Specs

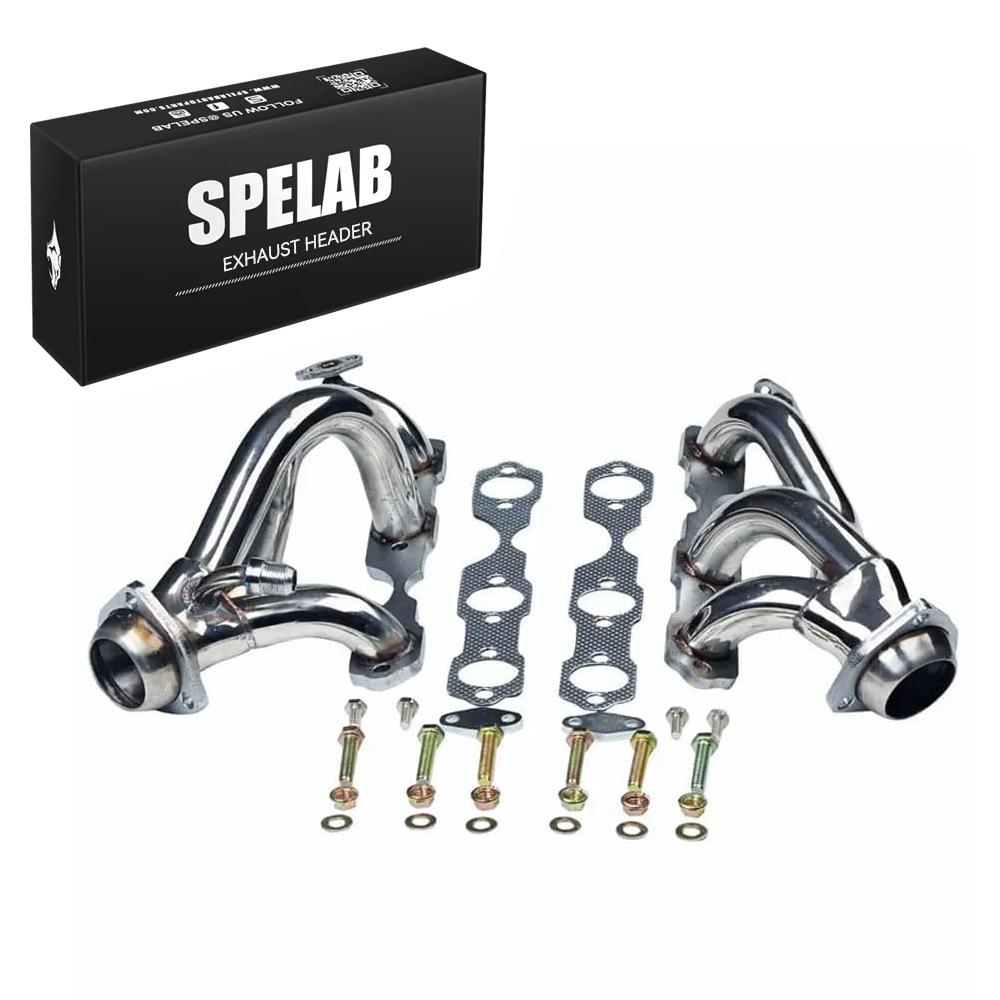

What’s Included

Check the Installation section for vehicle-side seals, fasteners and connections that may need to be retained or renewed.

Vehicle & Engine Fitment

Four-wheel-drive compatibility requires a resolved, configuration-specific confirmation before purchase. Do not treat the pair as a confirmed bolt-on 4WD product or infer that fabrication is unnecessary.

The Blazer / Jimmy 4.3L scope does not establish full-size Tahoe / Yukon, S-10 / Sonoma pickup, other engine generations or V8-swap fitment. Confirm the actual heads, engine code, steering side, transmission and auxiliary equipment separately.

Before You Order & Install

• Drivetrain boundary: confirm the actual Blazer / Jimmy 2WD chassis. Do not select this pair for 4WD until configuration-specific compatibility and the complete route are resolved.
• Engine and heads: identify the actual 4.3L V6, ports, bolt pattern, gasket and plug positions. Check engine-code differences and exchanged heads separately.
• Collector and pipes: match rounded outlet seats, flanges, bolt spacing and retained front pipes. Confirm appropriate seals, fasteners and independent support without forcing alignment.
• Auxiliary equipment: identify every threaded / flanged provision and match all required EGR, air-injection, sensor and catalyst connections. Small supplied plates do not authorize bypassing required equipment.
• Clearance, hardware and heat: trial-fit around steering, starter, mounts, transmission, controls, lines and ground clearance. Confirm retained head fasteners, protect wiring and restore suitable heat protection.

Will the ECU Need Tuning?

Calibration assessment for the Blazer / Jimmy pair depends on the actual 4.3L controller, sensors, engine code and complete exhaust. Diagnose leaks and EGR / sensor faults before evaluating calibration. Tuning cannot establish 4WD clearance, correct incompatible joints or substitute for required equipment.

Installation Overview

This is a general installation overview. Follow the service procedure for the actual vehicle and complete the configuration and connection checks above. Professional installation is recommended.

1. Confirm the configuration and parts. Confirm the 1997–2001 compact Blazer / Jimmy 2WD, actual 4.3L heads and complete collector / required-equipment arrangement. Resolve any non-2WD application before dismantling.
2. Cool and support the vehicle. Allow the engine and exhaust to cool completely. Use the correct lifting procedure with a suitable lift or rated stands on a firm level surface; never work beneath a vehicle supported only by a jack.
3. Record connections and remove the original assembly. Record sensors, auxiliary pipes, controls, wiring, heat protection and supports. Support retained exhaust and follow the actual vehicle and engine removal procedures.
4. Prepare the joints. Inspect threads, mating surfaces, supports and retained pipes. Address damaged fasteners and clean sealing faces carefully. Match the appropriate seal and hardware to every joint.
5. Trial-fit the complete route. Loosely fit both V6 headers and supported front pipes. Check rounded-seat sealing, flange alignment, steering and controls, starter, mounts, transmission, lines and ground clearance.
6. Secure and restore connections. Secure compatible head and collector joints to applicable engine and component requirements. Restore all required sensors, auxiliary connections, catalysts, controls, supports and heat protection without loading the head flanges.
7. Check sealing and operation. Run the engine in a well-ventilated area and inspect for leaks, contact, abnormal sound and warning lights. Investigate faults before use and recheck the cooled assembly as required by the applicable service procedure.

Frequently Asked Questions

Will these headers fit 4WD without fabrication?

No-fabrication 4WD fitment is not confirmed for the SPELAB Blazer / Jimmy pair. Use the matching 2WD application boundary and obtain resolved, configuration-specific confirmation before selecting the pair for 4WD.

Does the 4.3L name confirm every V6 head?

The Blazer / Jimmy pair requires an actual comparison of the installed 4.3L engine, head ports, bolt pattern and gasket. Shared displacement does not establish every engine-code or exchanged-head configuration.

Are the six bolts a complete set of head bolts?

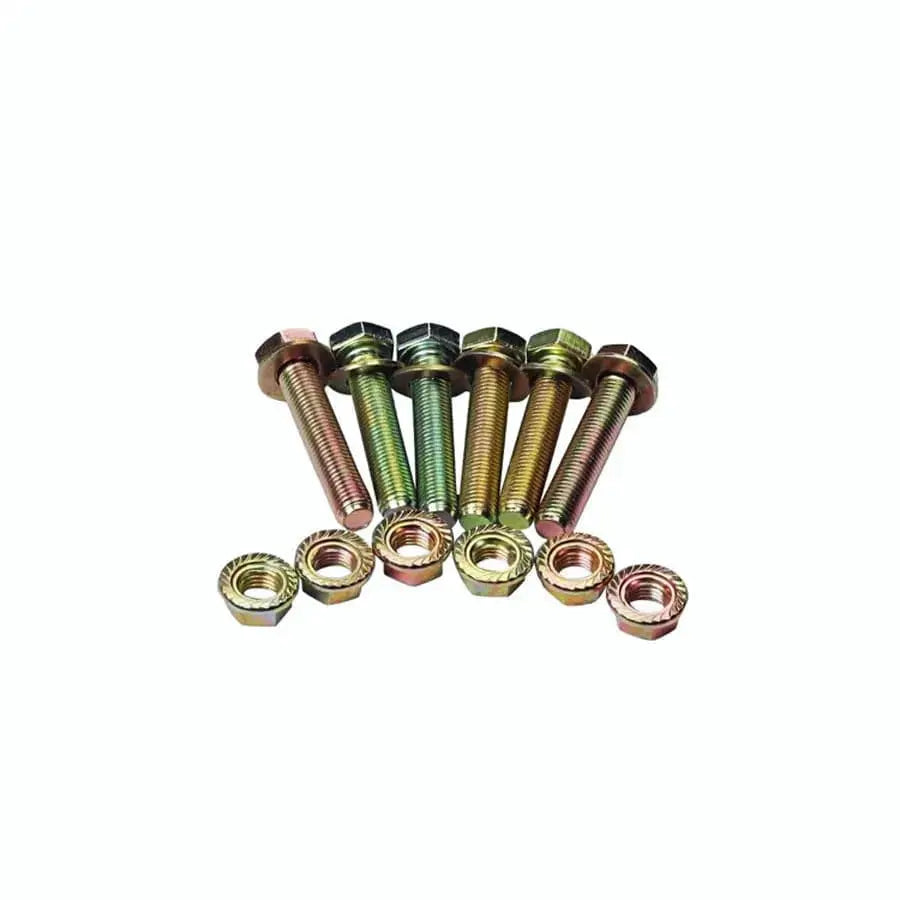

The Blazer / Jimmy package shows six connection bolt / nut assemblies, not an established complete head-fastener set. Confirm retained head bolts / studs, threads and all actual joint requirements separately.

Can the small plates replace required equipment connections?

The small plates shown with the Blazer / Jimmy pair do not establish permission to bypass required equipment. Confirm the intended parts and retain all required sensor and auxiliary functions.

Will a flat collector gasket fit the rounded outlets?

The Blazer / Jimmy outlets require matching seat geometry and the correct seal for the actual front pipes. A generic flat collector gasket is not established as a universal substitute.
