SPELAB Exhaust Header for 1997-2004 Chevy Corvette 5.7 Long Tube 1-7/8
Secure and trusted checkout with
Product Information +
- Brand: SPELAB
- SKU: SPES08201
- Availability: Many in stock
- Product Type: Exhaust Header
-
PLEASE NOTE!
Long-Tube Headers for a Matched C5 Exhaust System
The SPELAB long-tube header assembly serves 1997–2004 Chevrolet Corvette C5 5.7L V8 exhaust projects with matched downstream connections. The 201 stainless steel headers use 1-7/8-inch primary tubes and 3-inch collectors. Confirm the two-bolt ball-flange joints, X-pipe outlet size and year-specific air-injection and oxygen-sensor connections before ordering.
Best For
- C5 owners planning the headers and intermediate exhaust as one matched assembly.
- 5.7L Corvette builds with verified 3-inch ball-flange connections.
- Owners replacing aging header components after checking sensors, seals and chassis clearance.
Flow, Sound and Connection Size
The C5 long-tube layout routes each cylinder through a separate primary before the collector. Changes in flow and exhaust tone depend on the complete exhaust, engine condition and calibration.
The 1-7/8-inch primary dimension is not the collector size. No product-specific dyno result establishes a fixed horsepower gain, and these headers are not a universal replacement for every factory intermediate pipe.
Specs
| Specification | Detail |
|---|---|
| Material | 201 stainless steel |
| Finish | Mirror polish |
| Primary / collector OD | 1-7/8 inches / 3 inches |
| Header connection | 3-inch, two-bolt ball-flange arrangement |
| X-pipe dimensions | 3-inch piping; 3-inch inlet ID and 2.25-inch outlet ID |
| Configuration | Paired long-tube headers with X-pipe components |

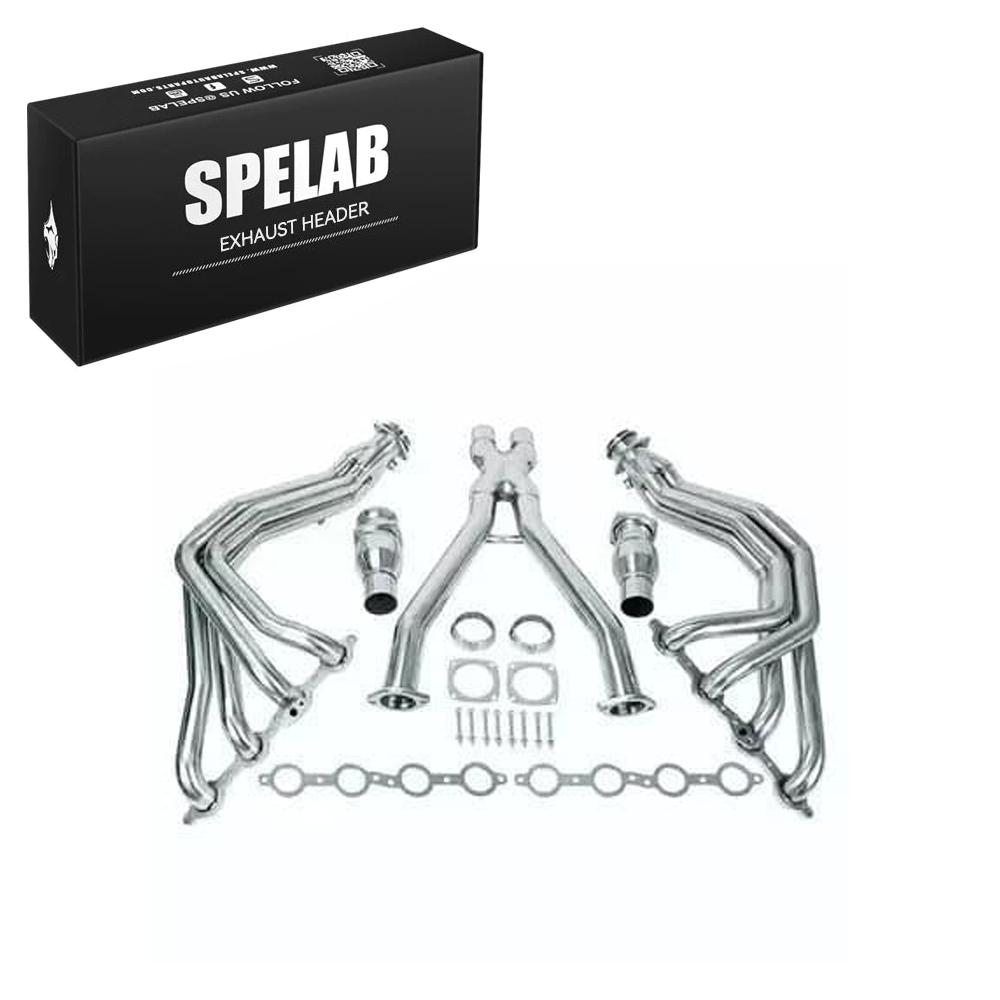

What’s Included
| Component | Description |
|---|---|
| Headers | Two four-primary header banks |
| Intermediate components | X-pipe assembly and two canister-shaped connecting sections; catalyst substrate and certification require confirmation |
| Connection accessories | Metal gaskets, two ring seals and connection bolts; confirm quantities and joint compatibility |
Check the Installation section for vehicle-side seals, fasteners and connections that may need to be retained or renewed.
