Exhaust Header for 1992-2004 5.2L 5.9L Dodge Dakota Ram 1500 2500 3500 Pickup

Stainless Steel Headers for Dodge Magnum V8 Applications

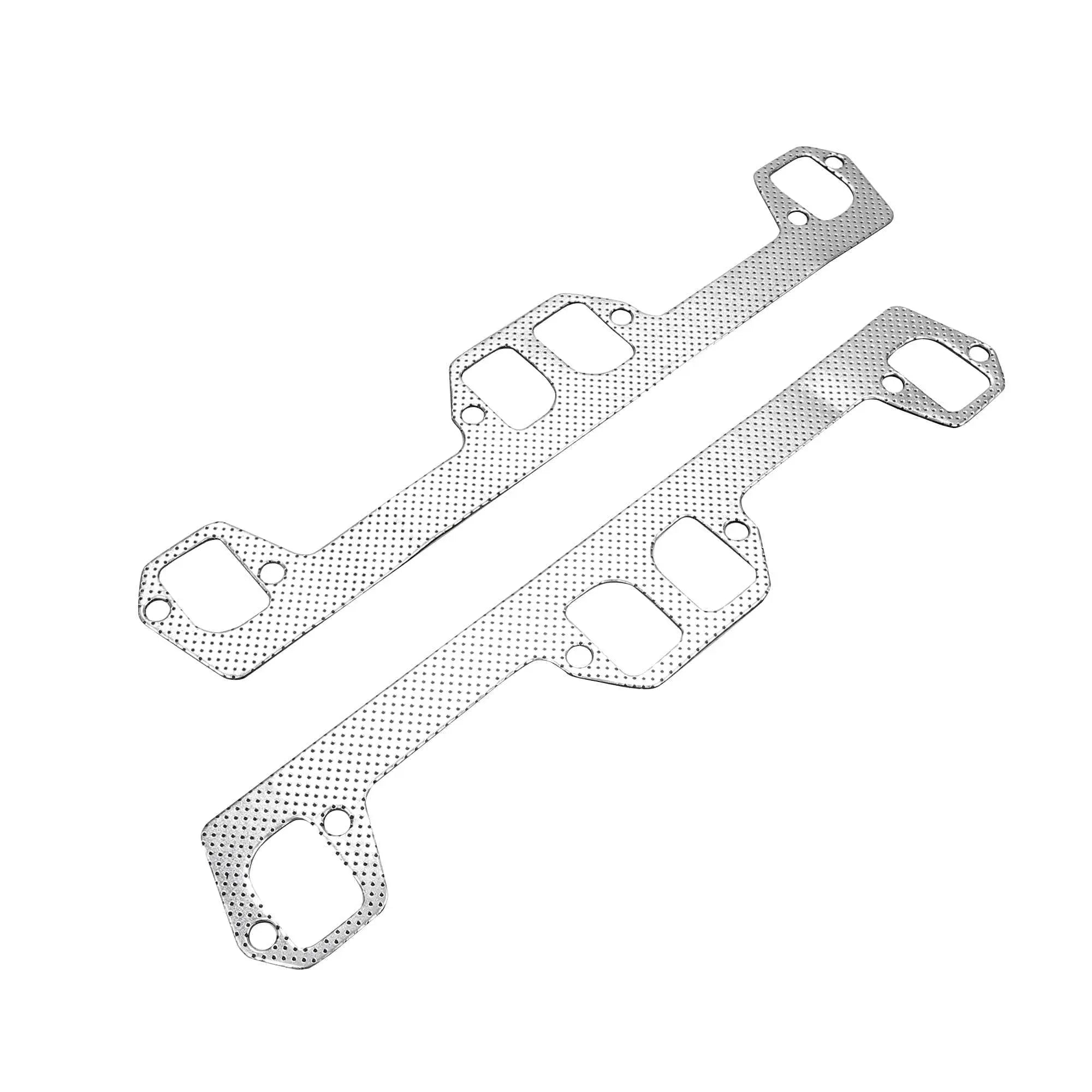

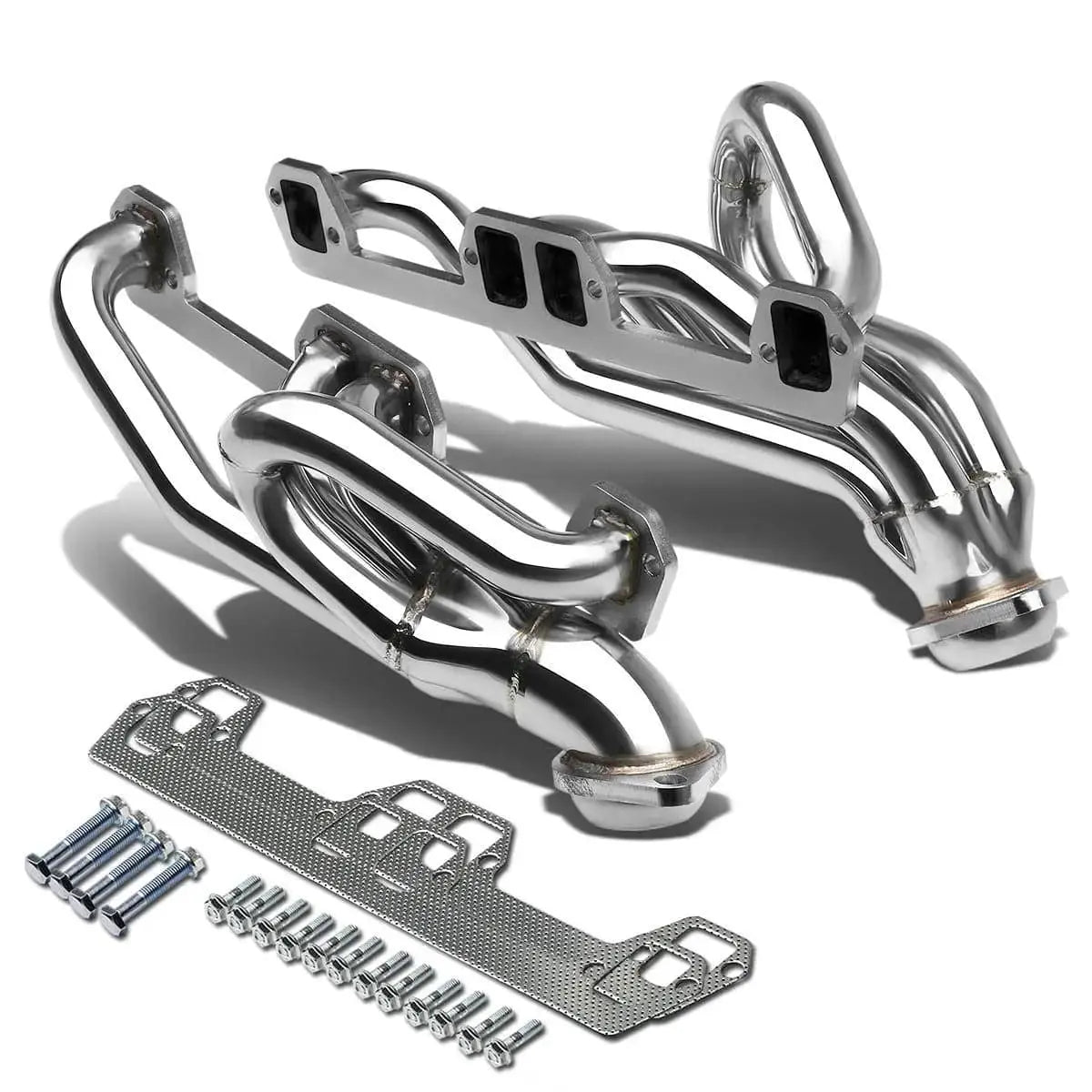

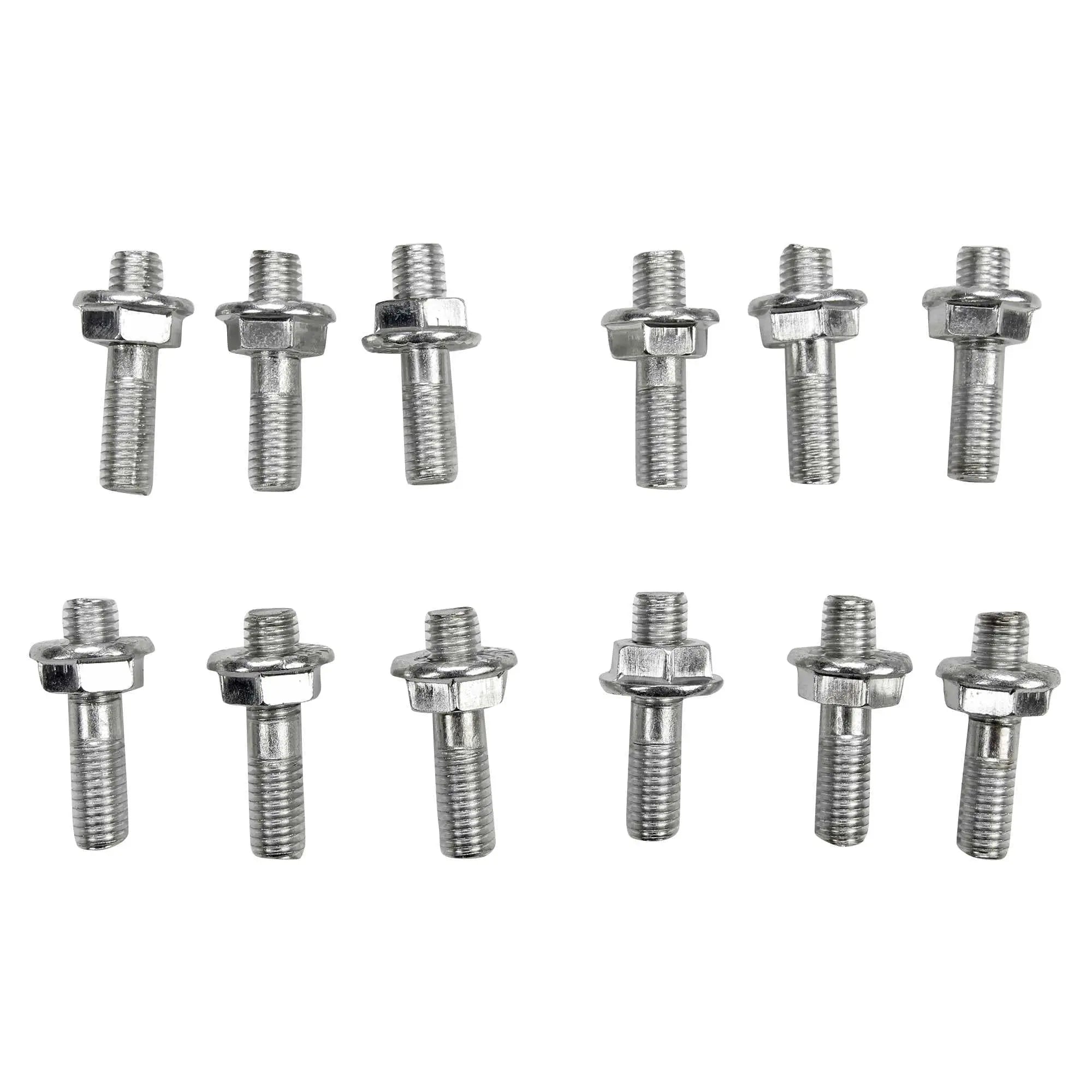

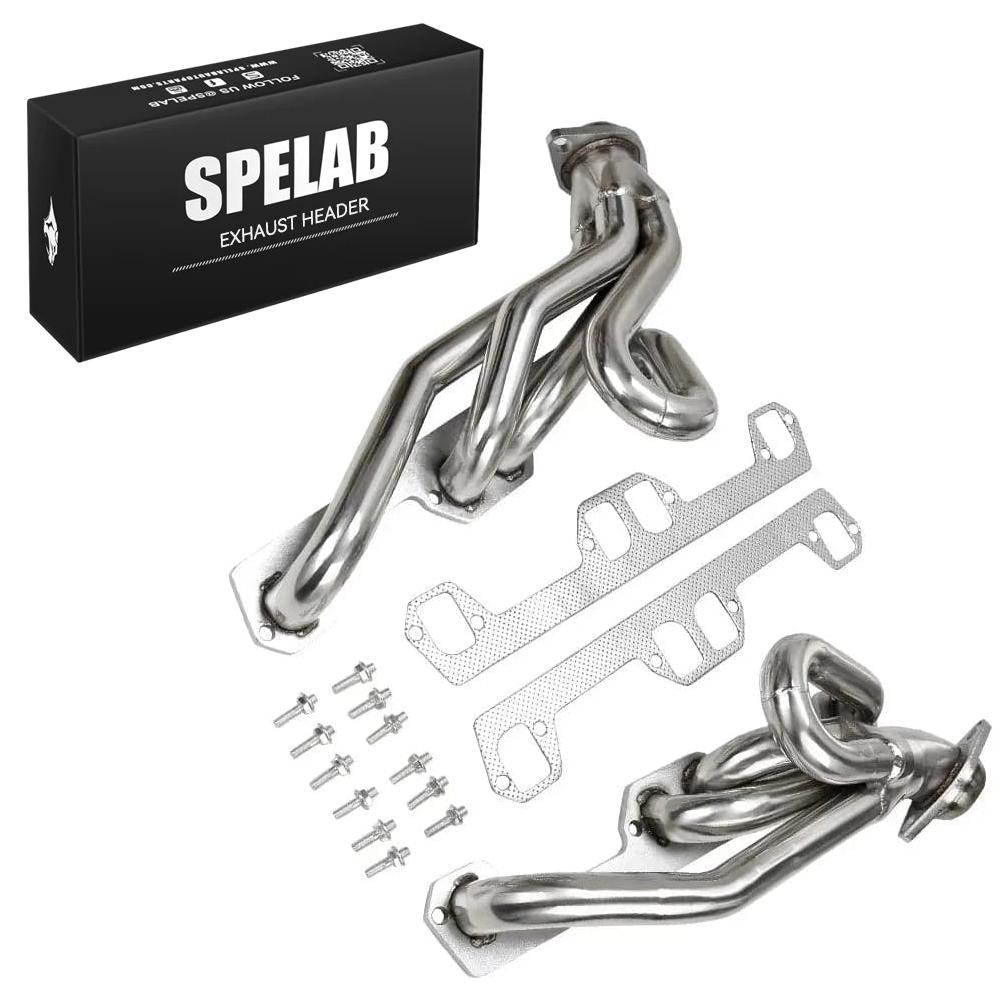

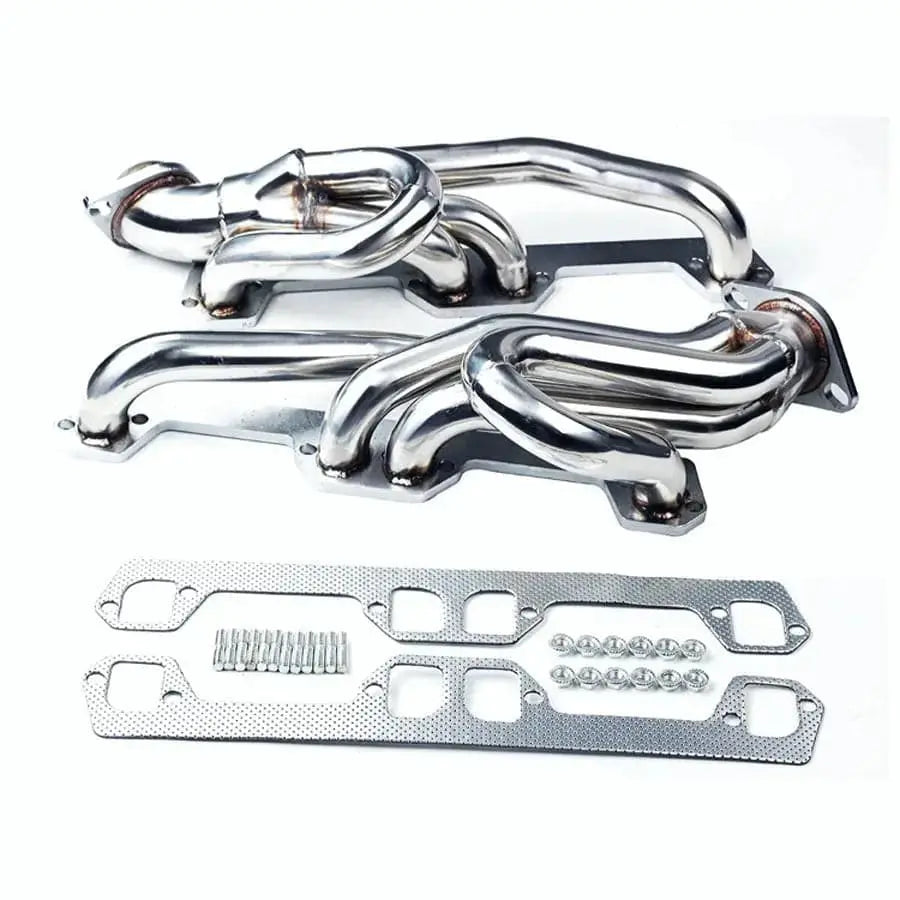

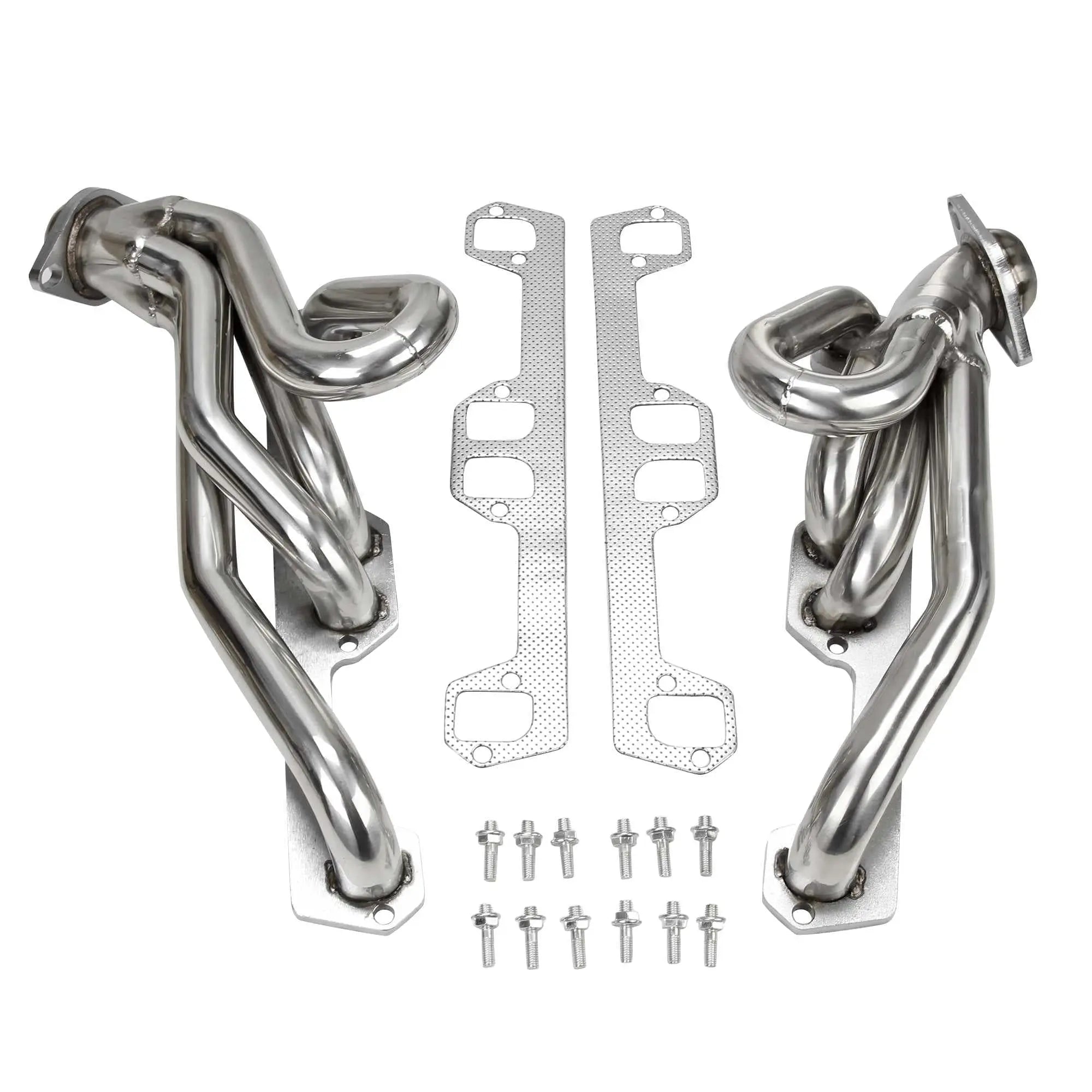

Give a compatible Magnum V8 exhaust refresh a polished starting point with this stainless steel header pair for select 1994–2002 Dodge Ram pickups, 1997–2003 Dakota and 1998–2003 Durango models with the specified 5.2L or 5.9L gasoline V8 and a matching non-EGR exhaust configuration. Four individual runners per bank merge into 2-inch outlets, and the set includes head gaskets and mounting hardware. Match the model-year and engine combinations in Fitment rather than assuming every V8 in those years shares the same exhaust.

Best For

• Replacing a diagnosed failed manifold: refresh a cracked or damaged assembly on a matching Magnum V8 installation.
• Coordinating a front-exhaust rebuild: plan both cylinder banks and the retained Y-pipe connection together.
• Choosing tubular stainless construction: replace a compatible manifold layout with individual runners and a mirror-polished finish.
• Preparing a compatible exhaust project: establish the required emissions configuration and vehicle-side joints before buying other exhaust parts.

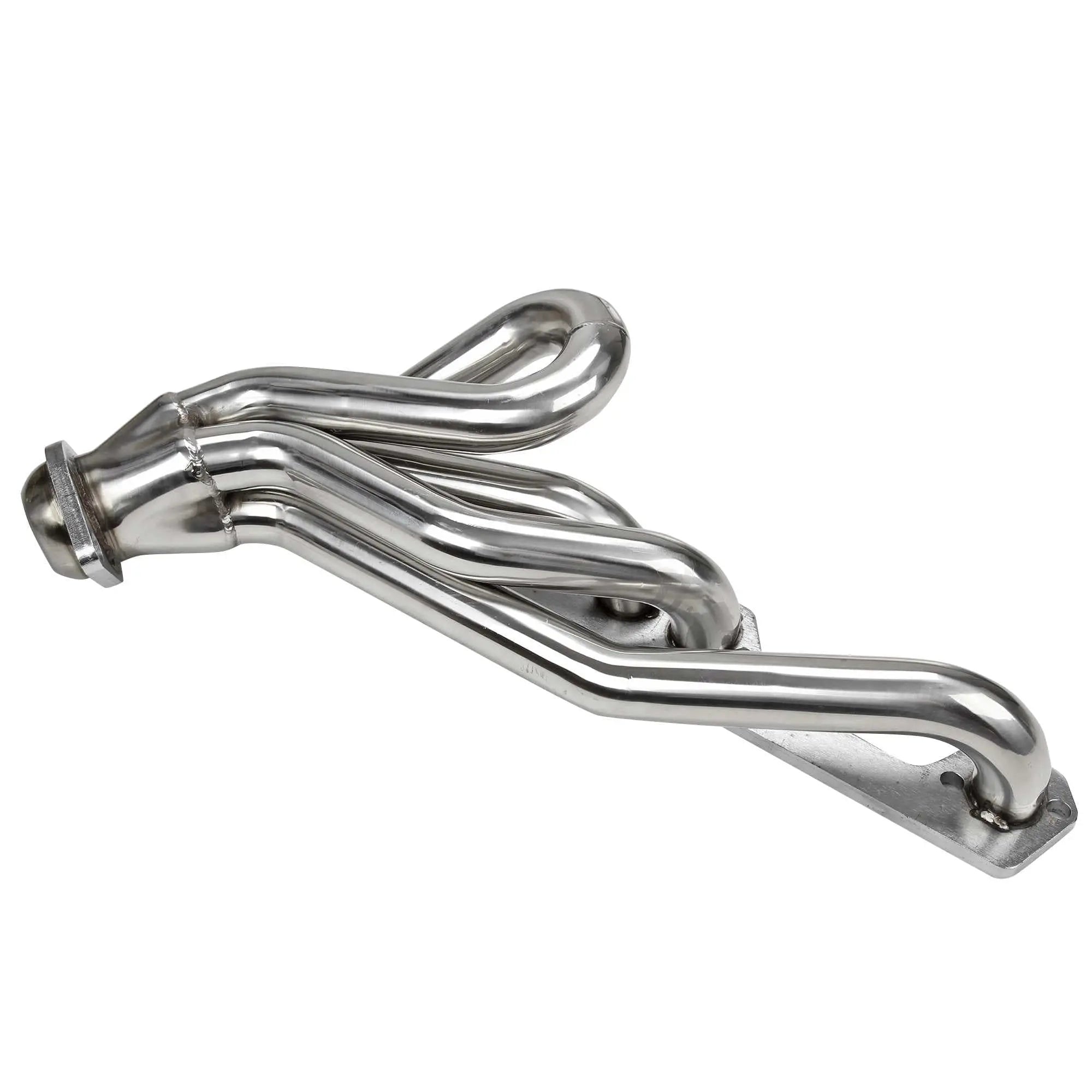

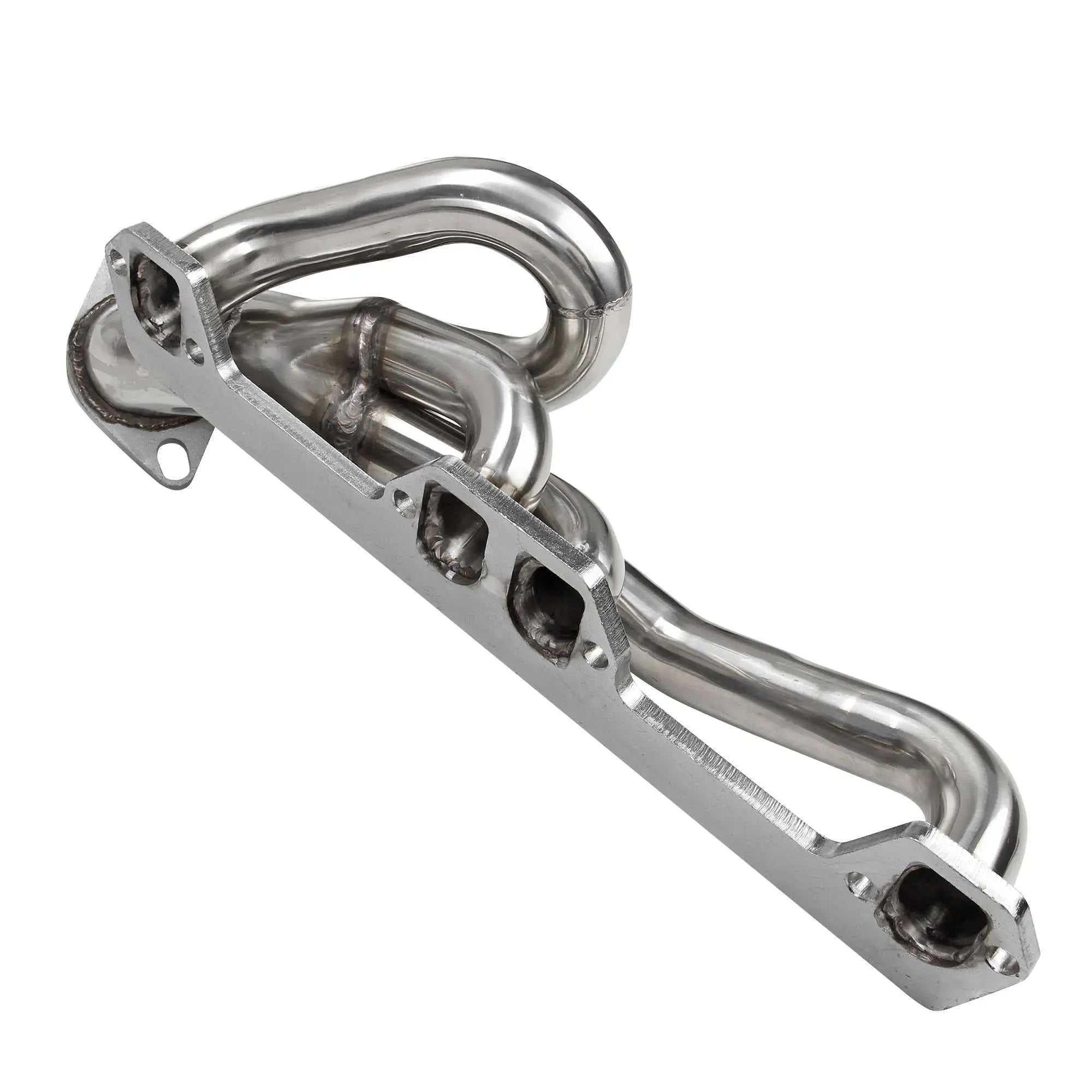

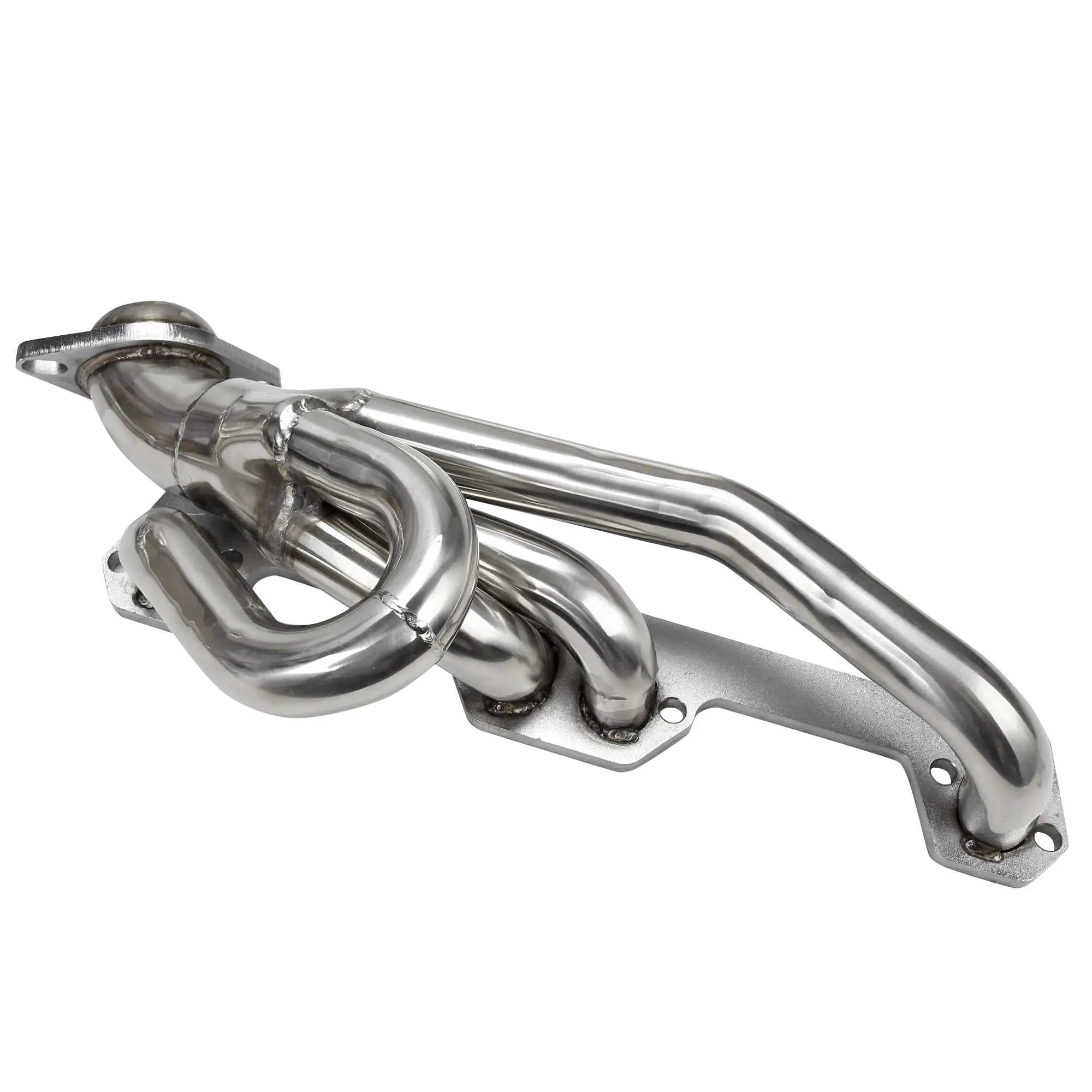

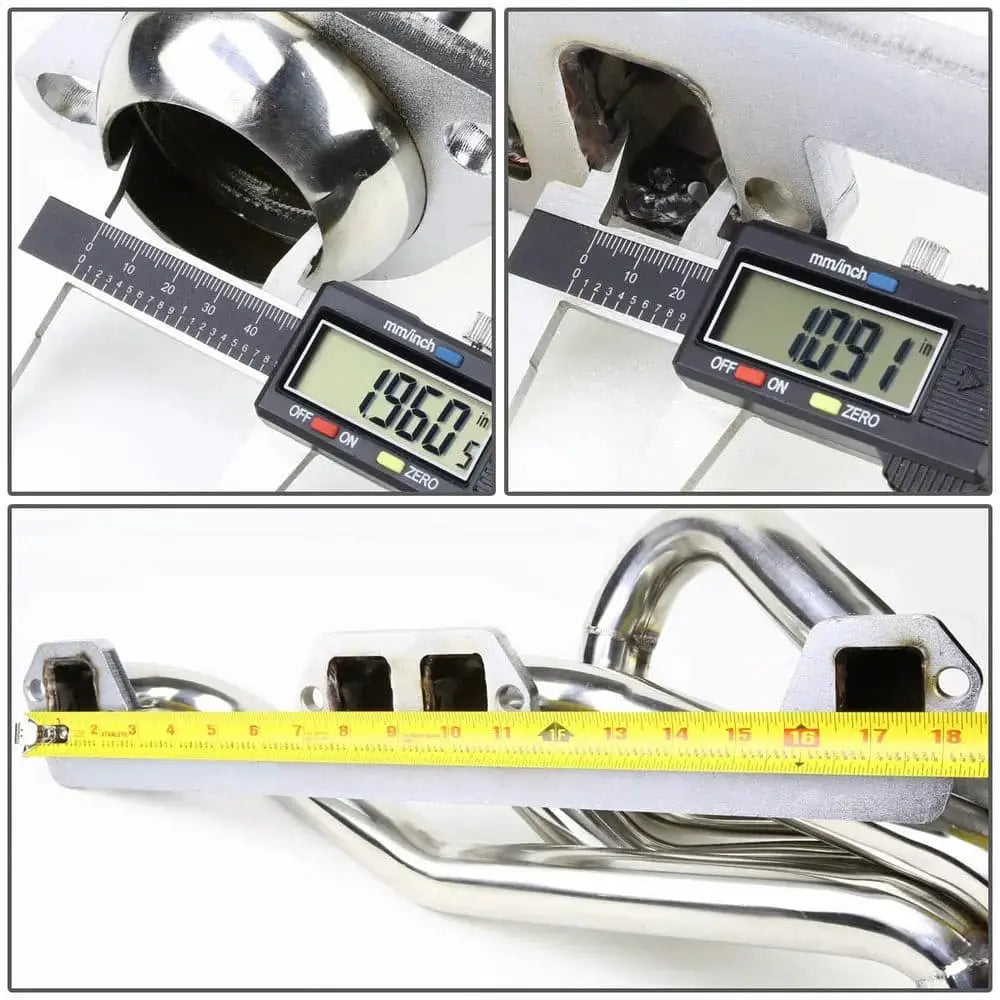

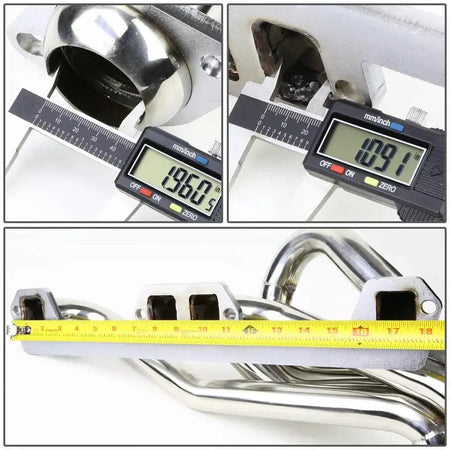

Individual Runners & 2-Inch Outlets

Each bank uses a four-into-one arrangement that directs the exhaust through separate primary tubes toward its collector. The compact layout and outlet size are useful details when comparing the original manifold and Y-pipe interfaces.

Power, sound and driveability depend on the complete engine and exhaust system. No measured horsepower increase, towing-capacity increase or guaranteed fuel-economy improvement is claimed.

Specs

What’s Included

Check retained collector seals, Y-pipe hardware and vehicle-side fasteners as part of the installation preparation. The accessories are not a complete replacement exhaust system.

Model-Year & Engine Combinations

All combinations require the correct head interface, non-EGR exhaust configuration and matching vehicle-side connections. Engine availability alone does not establish clearance for every cab, drivetrain or emissions package.

This is not a 4.7L PowerTech, 5.7L HEMI, 8.0L V10 or 5.9L Cummins diesel header. Use the model-year and engine combinations in the application table for this Magnum V8 header pair.

Before You Order & Install

• EGR compatibility: this assembly has no EGR provision. Identify the vehicle’s required system before purchase. Do not remove or disable required EGR equipment to fit these headers; choose a compatible assembly instead.
• Actual engine and truck: confirm the gasoline Magnum engine, head ports and mounting pattern. For 4x4 trucks, inspect the real front-driveline and chassis clearances; a model-year match is not a no-modification guarantee.
• Y-pipe connection: compare collector location, flange angle, sealing style and the 2-inch outlets with the retained system. Establish any additional adapters, seals or fabrication before removing the original manifolds.
• Heat and working clearance: check steering components, starter access, plug wires, hoses and other adjacent parts through the expected range of movement. Support the exhaust and do not pull misaligned joints together with the fasteners.
• Sealing and hardware: inspect head threads, gasket seating and retained collector hardware. Confirm the supplied fasteners suit the actual mounting locations and use vehicle-appropriate seals and tightening requirements.
• Required equipment and permitted use: retain required catalysts, sensors and emissions connections. Confirm applicable requirements for the intended use; no emissions certification or guaranteed inspection compliance is claimed.

Will the ECU Need Tuning?

Calibration requirements depend on the actual engine, emissions configuration and other modifications. Have a qualified technician assess the completed combination. Diagnose leaks, misfires and sensor faults before considering tuning; software cannot compensate for a missing required EGR connection or an incompatible exhaust joint.

Installation Overview

This general installation overview does not replace the service procedure for the actual vehicle. Complete the fitment, emissions and tuning checks above. Professional installation is recommended.

1. Identify the truck and interfaces. Confirm the model year, gasoline Magnum engine and required emissions configuration. Compare both head flanges and Y-pipe joints and complete the checks above.
2. Cool and support safely. Let the engine and exhaust cool fully. Use the prescribed lifting points and a suitable lift or rated stands; never work under a vehicle supported only by a jack.
3. Document and remove the manifolds. Record wiring and required connections, support the Y-pipe and follow the vehicle-specific removal procedure. Protect head threads and surrounding components.
4. Prepare joints and fasteners. Clean sealing faces without damaging them. Inspect head threads and retained hardware, and prepare the correct gaskets and collector seals.
5. Trial-fit both headers. Start fasteners by hand and align both collectors with the supported downstream pipe. Check steering, starter, drivetrain, wiring and hose clearance before tightening.
6. Secure and restore connections. Tighten heads and collector joints according to the applicable service requirements. Restore required equipment and supports, and keep wiring away from heat and movement.
7. Check for leaks and abnormal operation. Run in a well-ventilated area and inspect joints, contact points and running condition. Investigate ticking or popping instead of assuming it is a normal upgrade sound. Recheck after cooling as prescribed and arrange any needed calibration assessment.

Frequently Asked Questions

Will these fit my 1998 Ram 1500 5.9L 4x4 without modifications?

The 1998 Dodge Ram 1500 5.9L Magnum V8 is within the listed application range with a matching non-EGR configuration. On a 4x4, check collector alignment and clearance around the front driveline and chassis before installation; prepare any adapters or fabrication needed for the retained exhaust.

Can I use them if my truck requires an EGR connection?

Not as a matching replacement for that required connection. These headers have no EGR provision. Choose a compatible assembly rather than removing or disabling required equipment.

Do these fit the 5.9L Cummins diesel?

No. The 5.9L scope here is the Magnum gasoline V8, not the Cummins inline-six diesel. Displacement alone is not a fitment identifier.

Will the 2-inch outlets connect to every factory Y-pipe?

No universal connection is promised. Compare outlet position, angle, flange and sealing style with the installed Y-pipe, and establish any additional parts before disassembly.

Should ticking or popping after installation be considered normal?

Do not assume it is normal. Check for leaking joints, contact, loose or unsuitable hardware and engine-running faults. A sound description alone does not identify the cause.

Do headers alone guarantee more towing power or better fuel economy?

No. Results depend on the engine condition, calibration and complete exhaust. These headers do not change the vehicle manufacturer’s towing rating.
