Exhaust Header for 1969-1979 Ford F-100 F100 5.0L 302W | SPELAB

Black-Painted Steel Headers for the F-100 302 Windsor

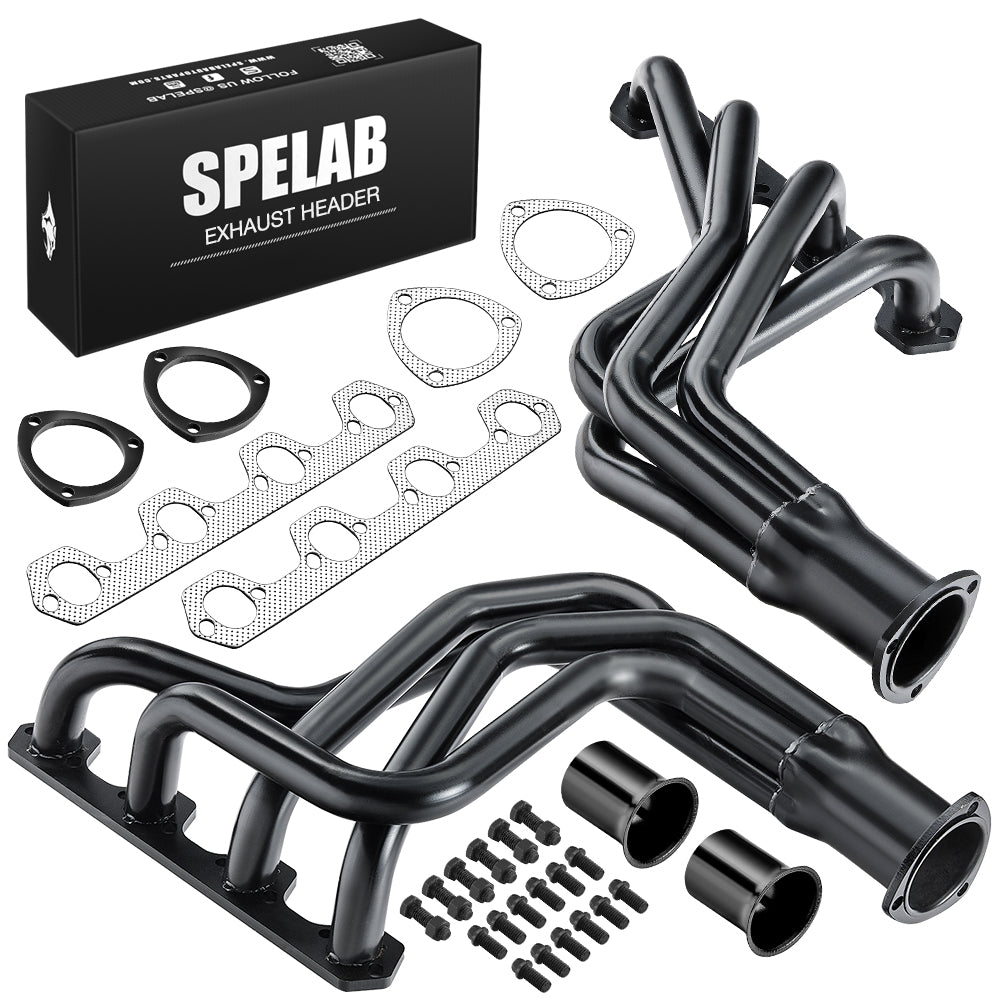

Refresh the engine-side exhaust on a compatible 1969–1979 Ford F-100 powered by the 5.0L 302 Windsor V8 with this black-painted steel header pair. Four runners per bank feed a single collector, with head and collector gaskets, flared connectors, separate mating flanges and fastening hardware supplied for the assembly. The pair provides a starting point for an exhaust replacement or truck build, with fitment based on the installed heads, engine position and chassis configuration.

Best For

• Replacing a diagnosed damaged manifold or header: renew a cracked or deteriorated engine-side assembly on a compatible F-100 302W installation.
• Refreshing an older truck’s exhaust: coordinate both engine banks and their collector joints when rebuilding an aging exhaust system.
• Choosing a black engine-bay finish: use a painted steel header pair when a dark appearance suits the project better than polished metal.
• Planning a compatible 302 Windsor build: assess the tubular header route alongside the engine mounts, steering and transmission controls before finalizing the downstream pipes.

Tubular Exhaust Routing & Performance

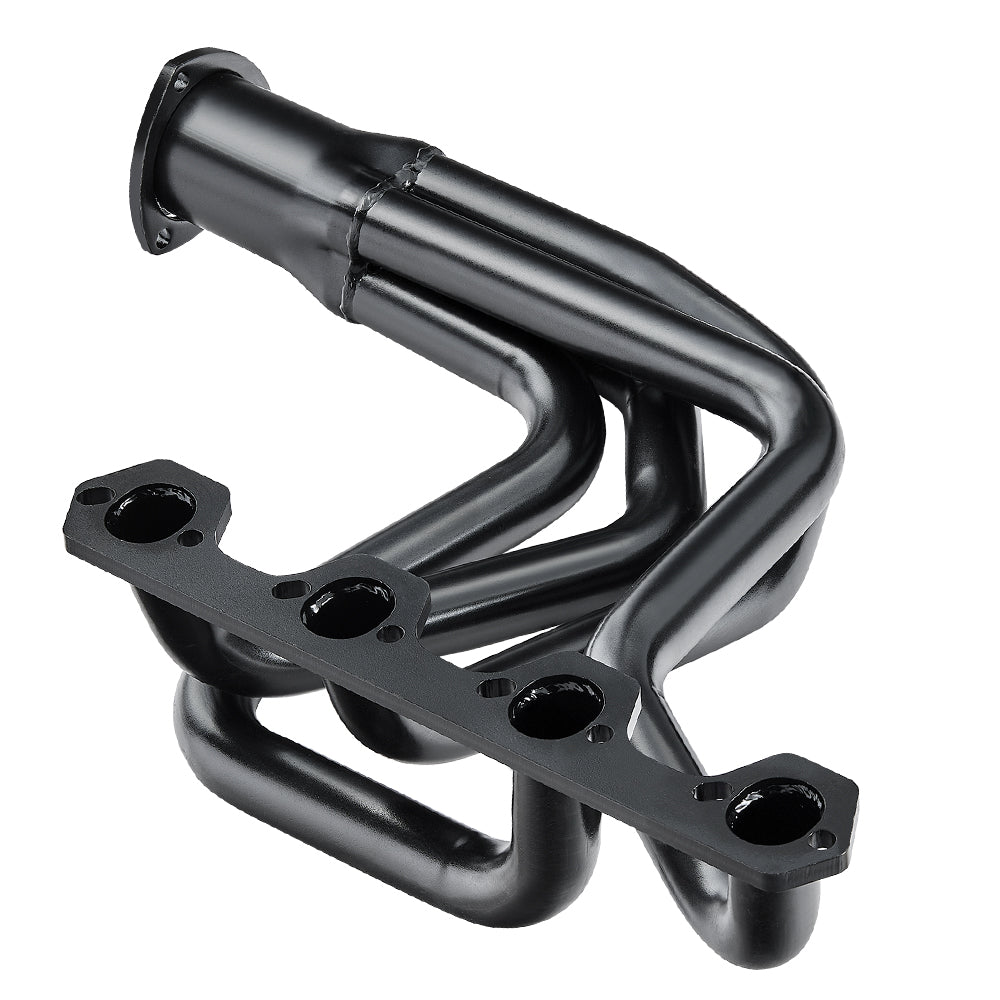

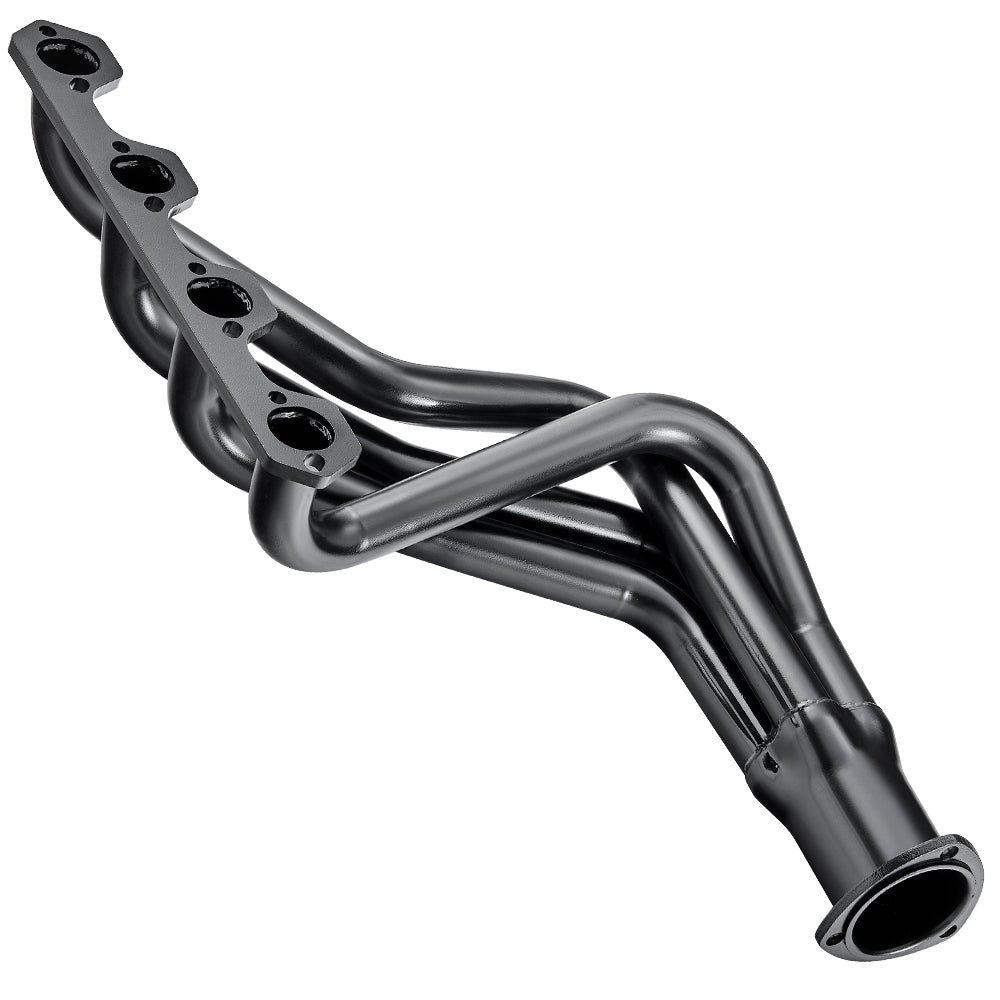

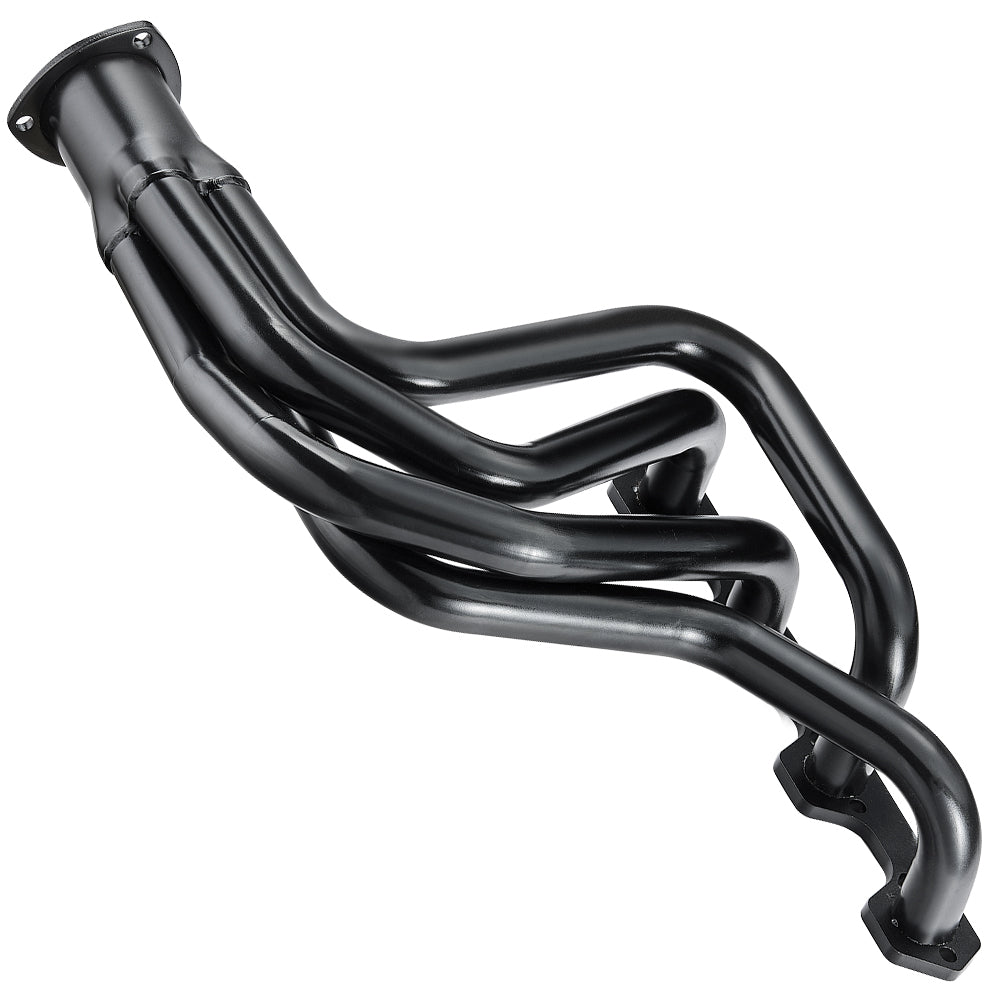

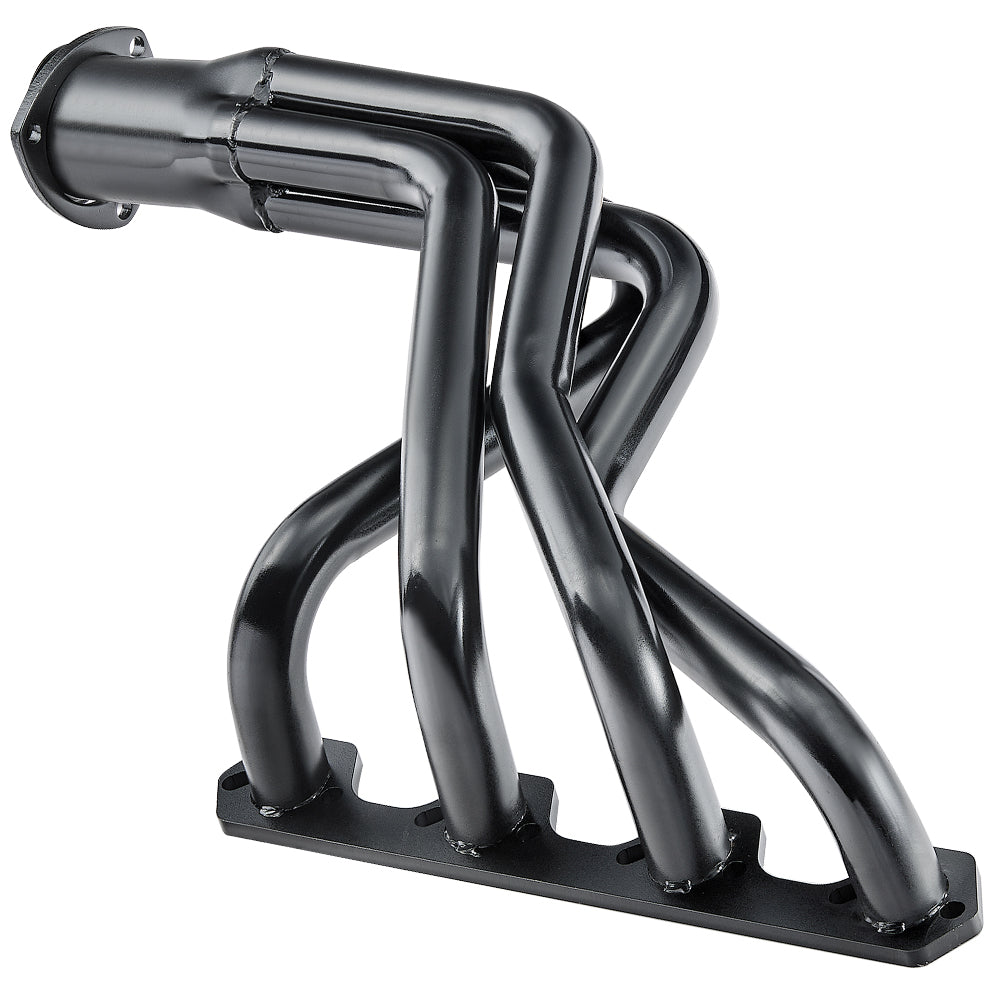

Each engine bank uses four runners feeding a shared collector. The layout offers a different exhaust path from a compact cast manifold, but the effect on power, torque and sound depends on the engine, fuel delivery, calibration and complete exhaust system.

No fixed 10–15 horsepower or torque increase is promised. Headers alone do not diagnose a ticking noise, cure every exhaust leak or establish a particular sound level.

Specs

What’s Included

Complete the vehicle-side sealing and connection checks in Installation before disassembly.

Vehicle & Engine Application

F-100 and F100 describe the same model name here. Confirm the engine actually installed in the truck, especially after a swap; a shared Ford badge or a 5.0L label alone does not identify every engine family or chassis configuration.

Before You Order & Install

• Engine and heads: confirm the 302 Windsor and match the installed head ports, bolt pattern and spark-plug access. GT40P or other changed heads need a separate clearance check; the 302 name alone does not confirm plug-boot access.
• Truck configuration: identify the drivetrain, steering, mounts and transmission controls. Do not infer universal 2WD/4WD compatibility or extend the application to F-150, F-250, Bronco, Mustang, 351 engines or a Coyote swap.
• Chassis changes: aftermarket front suspension, a Crown Victoria front-end conversion, changed mounts or altered ride height can move the clearance boundaries. Check the crossmember, steering, clutch linkage, starter and ground clearance on the actual build.
• Collectors and pipework: measure the collector interface and plan how the flared pieces and mating flanges connect to the retained exhaust. Establish any pipe fabrication or additional connection parts before starting; universal no-modification fit is not promised.

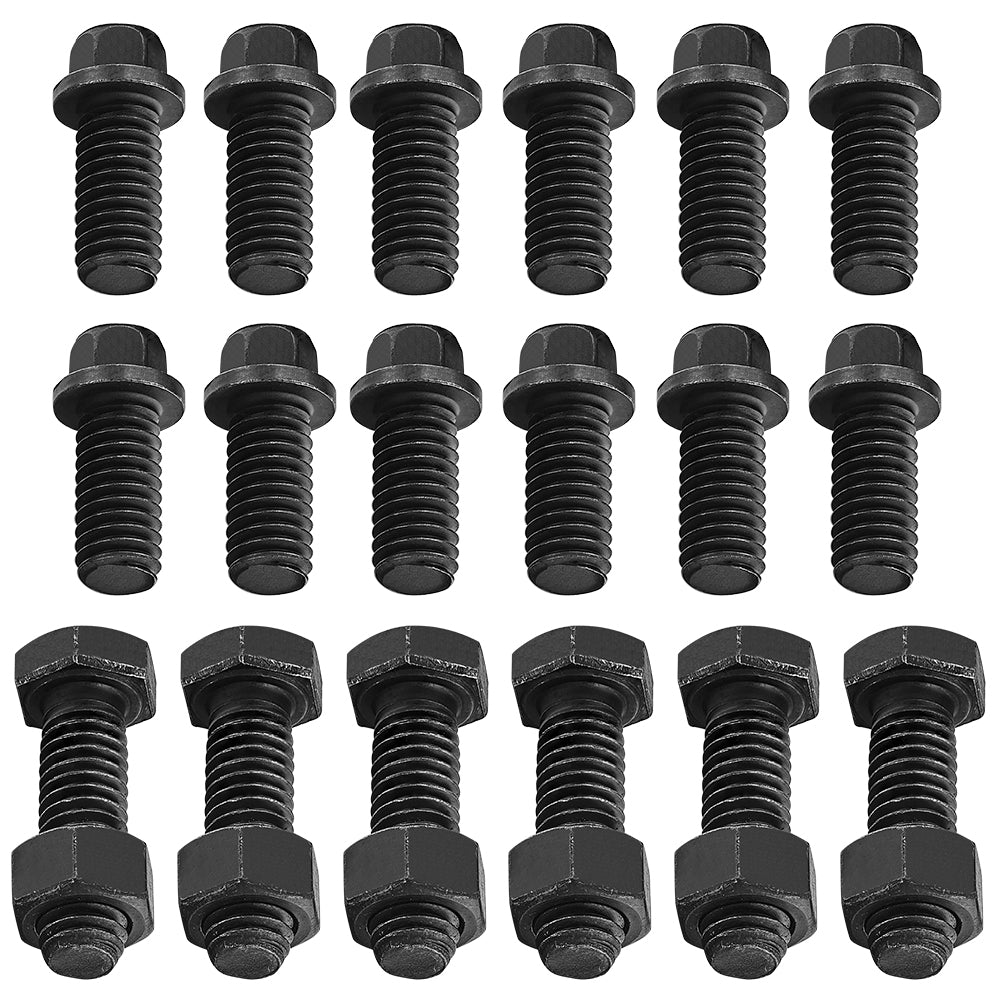

• Seals and fasteners: check the required bolt count, thread engagement, gaskets and downstream hardware against both heads and the planned joints. Do not assume the illustrated fastening set covers every vehicle-side requirement.
• Heat, sensors and required equipment: check wire and hose clearance and identify any sensor or emissions connections required by the installed engine. A collector joining piece is not an oxygen-sensor bung.
• Finish and use: black paint is not a claim of ceramic coating, a temperature rating or permanent color retention. Check the applicable emissions and noise requirements; no public-road certification is claimed for this assembly.

Will My 302W Need Tuning?

A carbureted engine without an ECU has no ECU calibration to change, but the completed exhaust combination should be evaluated for mixture, ignition and drivability. If the truck has an EFI conversion or other electronic engine management, calibration needs depend on the installed controls, sensors and modifications. Diagnose leaks and connection faults first; tuning does not correct incompatible parts or replace required equipment.

Installation Overview

This is a general installation overview, not a truck-specific service manual. Use the procedures for the actual engine, chassis and retained equipment; complete the clearance and tuning checks above. Professional installation is recommended.

1. Confirm the truck and parts. Identify the installed 302W, heads, drivetrain and transmission controls. Lay out both headers, gaskets, flared connectors, loose flanges and hardware, then complete the configuration checks above.
2. Cool and support the truck. Allow the engine and exhaust to cool fully. Use the vehicle’s specified lifting points and a suitable lift or rated stands; never work beneath a truck supported only by a jack.
3. Remove the relevant original components. Support the downstream pipes and record retained connections. Remove the engine-side exhaust using the service procedure for the installed engine, protecting adjacent wiring, hoses and controls.
4. Inspect the sealing faces and threads. Clean the head and collector mating surfaces without damaging them. Check fastener holes, studs and thread engagement, and replace unsuitable seals or damaged hardware.
5. Trial-fit and align the pair. Start the head fasteners by hand, position the collector connection pieces and check the steering, crossmember, linkage, starter and plug access. Align the downstream route without forcing the headers into position.
6. Secure the exhaust and retained equipment. Complete the planned pipe joints and tighten the hardware in the sequence and to the specifications for the installed heads and connections. Restore required equipment and secure wiring and hoses clear of heat and movement.
7. Check sealing and running condition. Start the engine in a well-ventilated area and check for leaks, contact and abnormal operation. Allow it to cool, inspect the joints again and follow any required fastener recheck; assess mixture, ignition or calibration as appropriate.

Frequently Asked Questions

Are these stainless steel or ceramic-coated headers?

This version uses steel with a black-painted finish. It is not described here as stainless steel or as a certified ceramic-coated assembly.

Will they fit my GT40P or other replacement cylinder heads?

A separate check is required. Match the head ports and bolt pattern, and verify spark-plug and wire-boot access against the runner route. An engine being a 302 does not establish that every replacement head will clear.

Do the same headers fit every 2WD, 4WD or Crown Victoria-swapped F-100?

No universal configuration is established. Drivetrain, front suspension, crossmember and engine-mount changes can affect the route. Assess the actual truck before ordering rather than relying on the F-100 name alone.

Will they clear the manual-clutch linkage and starter?

Check the installed linkage travel, starter and engine position during trial fit. Those parts can differ between original and modified trucks, so a matching year and engine does not confirm all clearances.

Is the complete exhaust system included?

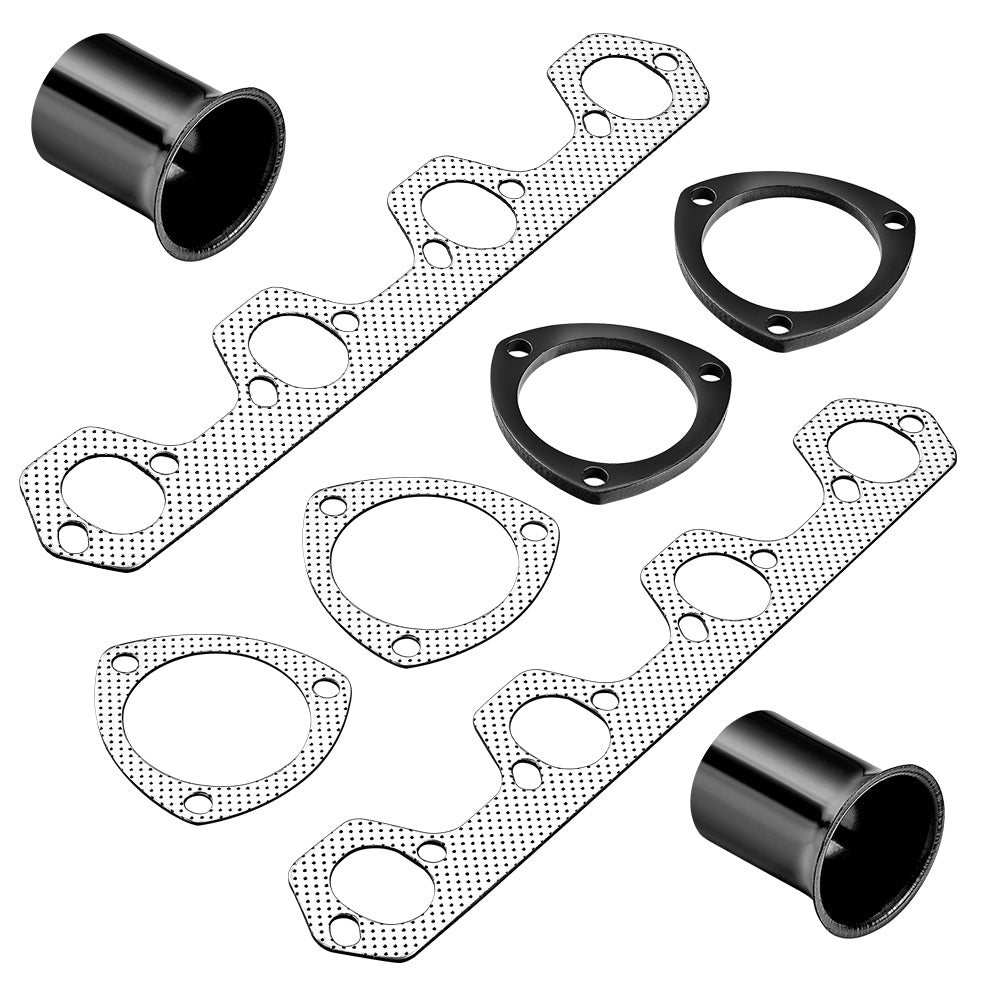

This is a header pair with head and collector gaskets, flared connecting pieces, separate collector flanges and mounting hardware. Plan the downstream pipes, mufflers and vehicle-side connection requirements for your actual installation.

Are the short connecting pieces oxygen-sensor bungs?

No. They are flared collector connection pieces. An EFI-converted truck needs the appropriate sensor provisions established for its actual engine-management system.

Does a carbureted 302 need an ECU tune?

An engine without an ECU has no ECU calibration to change. Have mixture, ignition and drivability assessed after the exhaust work. EFI or electronically managed conversions need their own calibration assessment.

Warranty & Customer Support

A one-year limited warranty from delivery covers qualifying material and workmanship defects under normal use for the original purchaser. Proof of purchase is required. Improper installation, alteration and modification are excluded, as are installation and removal labor costs.

Returns within 30 days are subject to product condition and the applicable shipping terms. Read the Warranty & Return Policy for eligibility and claim procedures.

For fitment questions or an order issue, email service@spelabautoparts.com or call +1 888 301 8666. Hours: Monday–Friday, 9:00 AM–6:00 PM EDT. Share your vehicle year, model, engine, chosen style and relevant photos; include the order number for an existing purchase.
