Intercooler Pipe & Intake Manifold Kit for 2003-2007 Dodge Ram 2500/3500 5.9L Diesel | SPELAB

3.5" Intercooler Pipe & Intake Elbow Kit for 5.9L Cummins

If you use your 2003–2007 5.9L Cummins for towing heavy loads, running performance tunes, or driving off-road, the factory 3-inch intercooler piping can become a restriction. Aging factory rubber hoses may expand, deteriorate, or blow off under high boost, while the factory intake horn can restrict the final charge-air path into the engine. These conditions may contribute to slower throttle response, higher exhaust gas temperatures (EGTs) under load, and unexpected charge-air leaks.

Bulletproof Your Cummins Breathing System.

The SPELAB 3.5-inch intercooler charge pipe and intake elbow kit replaces the factory hot-side and cold-side charge-air paths with larger mandrel-bent aluminum tubing and a high-flow intake elbow. The kit routes charge air from the turbocharger, through the intercooler, and into the engine using reinforced silicone couplers and stainless steel constant-tension spring clamps.

The larger, smoother charge-air path is designed to reduce restriction, support faster turbo response, and help manage EGTs during demanding use. It is suitable for stock trucks as well as vehicles running compatible performance tuning.

Fitment

• 2003 Dodge Ram 2500/3500 5.9L Cummins Diesel
• 2004 Dodge Ram 2500/3500 5.9L Cummins Diesel
• 2005 Dodge Ram 2500/3500 5.9L Cummins Diesel
• 2006 Dodge Ram 2500/3500 5.9L Cummins Diesel
• 2007 Dodge Ram 2500/3500 equipped with the 5.9L Cummins Diesel

Important for 2007 trucks: Confirm that the vehicle is equipped with the 5.9L Cummins before ordering. This kit does not fit 2007.5 and later trucks equipped with the 6.7L Cummins.

Fitment and Compatibility Check

This charge pipe kit is engineered around factory-spec intercooler connection diameters and connection locations. Before ordering, confirm the engine displacement and compare the vehicle's turbocharger, intercooler, and intake connection layout with the product photos. Compatibility with an aftermarket intercooler depends on whether its inlet and outlet diameters and positions match the factory layout.

Product Highlights

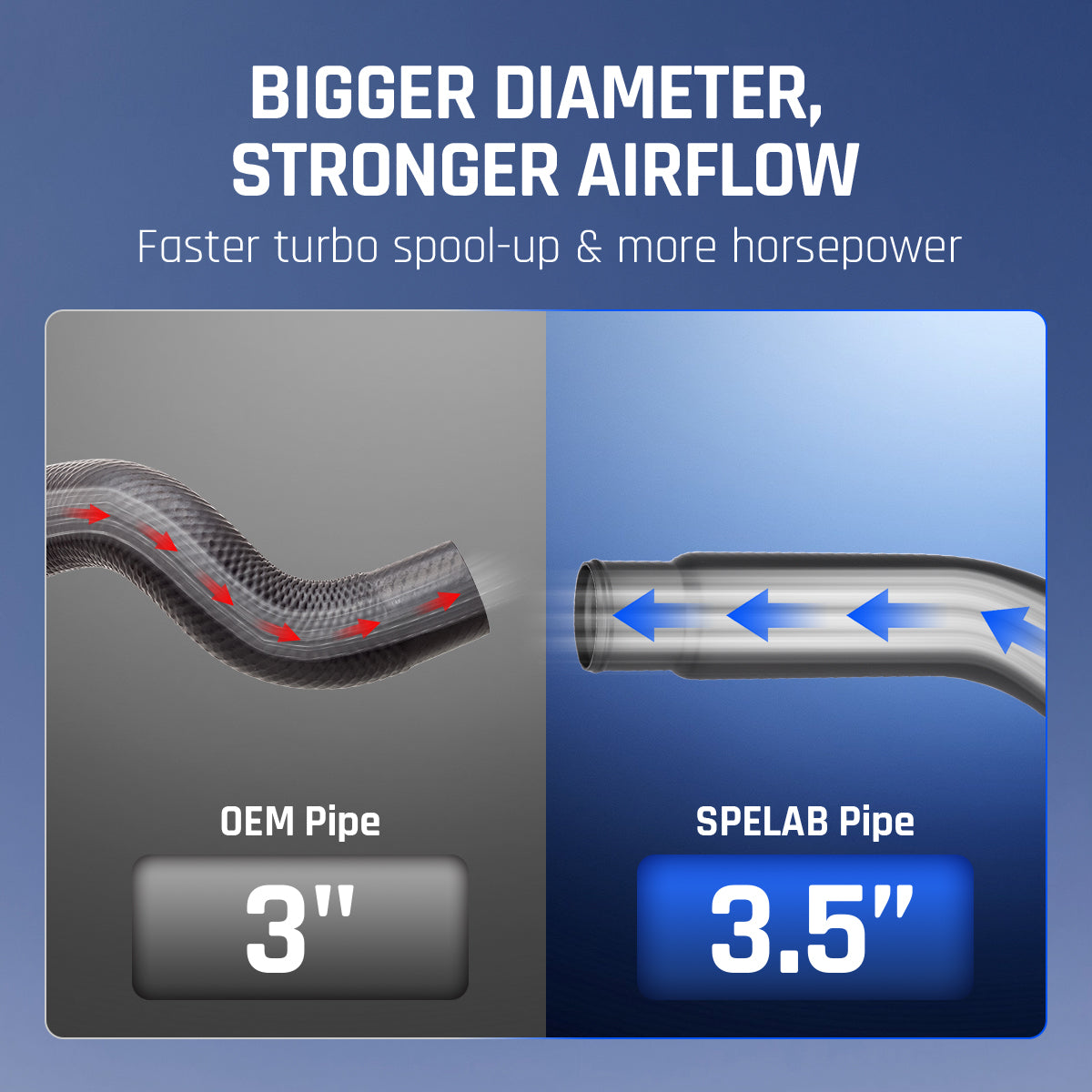

3.5-Inch High-Flow Tubing

Upgrades the factory 3-inch pipe path to 3.5-inch mandrel-bent aluminum tubing. The larger, smoother path is designed to reduce internal airflow resistance, minimize disruptive bends, and support improved throttle and turbo response.

High-Flow Intake Elbow Included

Replaces the factory intake horn with a smoother intake elbow geometry, addressing the final airflow transition before the intake manifold. This design is intended to improve engine breathing and help control EGTs during towing, performance use, and other high-load driving.

Constant-Tension Spring Clamps

Stainless steel spring-loaded clamps maintain clamping force as components expand and contract through engine heat cycles. Their 360-degree grip is designed to help reduce the chance of couplers loosening or blowing off under boost.

High-Pressure Silicone Couplers

Reinforced, heat-resistant silicone couplers replace aging factory rubber connections. They are designed to resist ballooning, tearing, and heat-related deterioration in the engine bay.

Direct-Fit OEM-Style Installation

The components are designed to use the factory connection locations without custom pipe fabrication or permanent engine modifications when installed on a compatible factory-layout vehicle.

Rugged, Lightweight Construction

Mandrel-bent aluminum charge pipes and the aluminum intake elbow use a black finish for a clean engine-bay appearance. The construction provides durability for towing and off-road use without unnecessary front-end weight.

Best For

• 5.9L Cummins trucks with aging, swollen, leaking, or loose factory charge-air hoses.
• Owners who want to upgrade the hot side, cold side, and intake elbow together.
• Trucks used for towing, hauling, off-road driving, or other sustained-load conditions.
• Stock or tuned trucks that need a larger, more durable charge-air path.
• Vehicles retaining factory-spec turbocharger, intercooler, and intake connection locations.

Product Specifications

• Application: 2003–2007 Dodge Ram 2500/3500 with 5.9L Cummins Diesel
• Pipe Diameter: 3.5 inches, upgraded from the 3.0-inch factory pipe
• Charge Pipe Material: Mandrel-bent aluminum
• Finish: Black

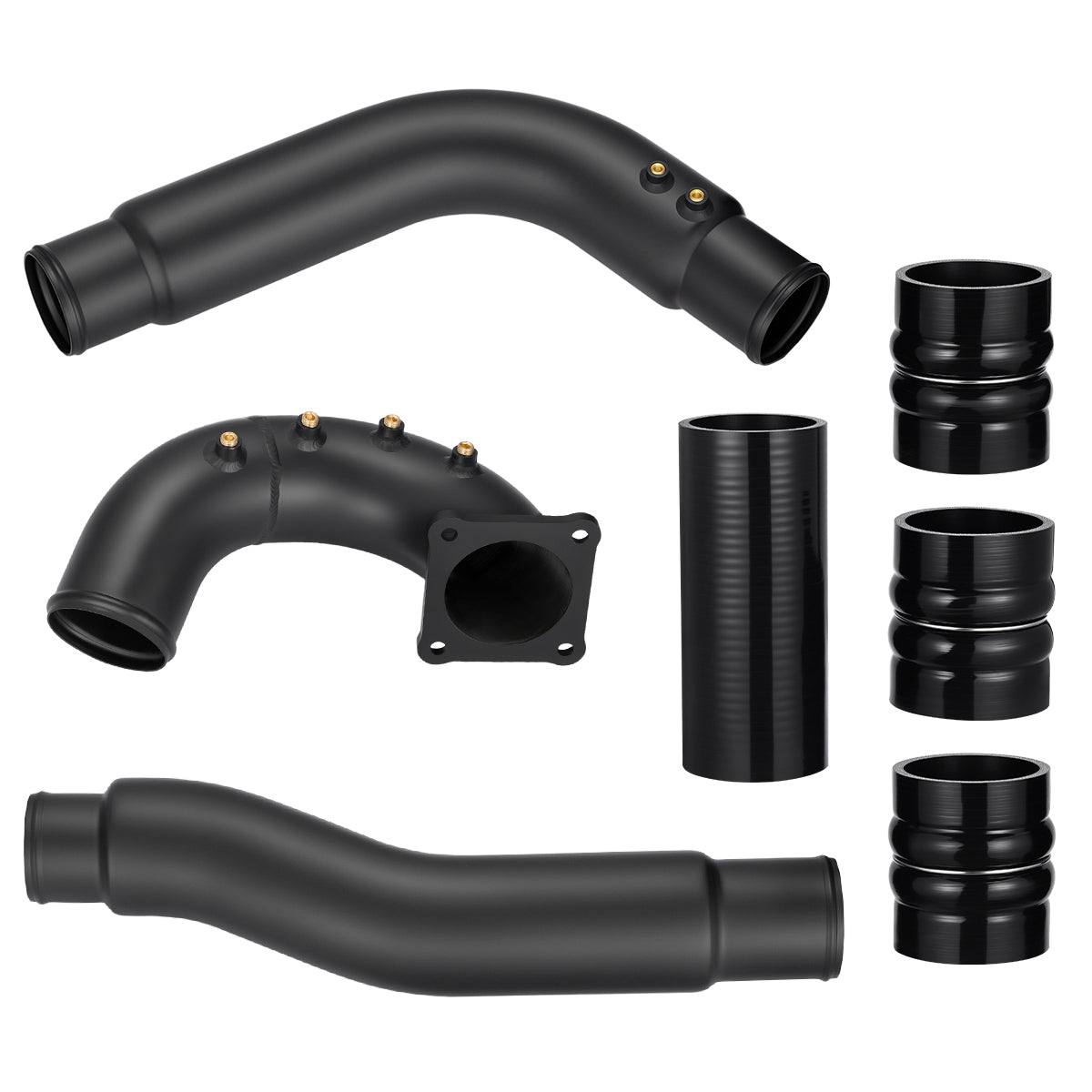

• System Components: Hot-side pipe, cold-side pipe, and intake elbow
• Coupler Material: High-temperature reinforced silicone
• Clamp Style: Stainless steel constant-tension spring clamps
• Connection Layout: Designed around factory-spec intercooler connection diameters and locations
• Gross Package Weight: Approximately 4.5 kg / 9.9 lb
• Emissions Status: Not CARB compliant; off-road or race use only

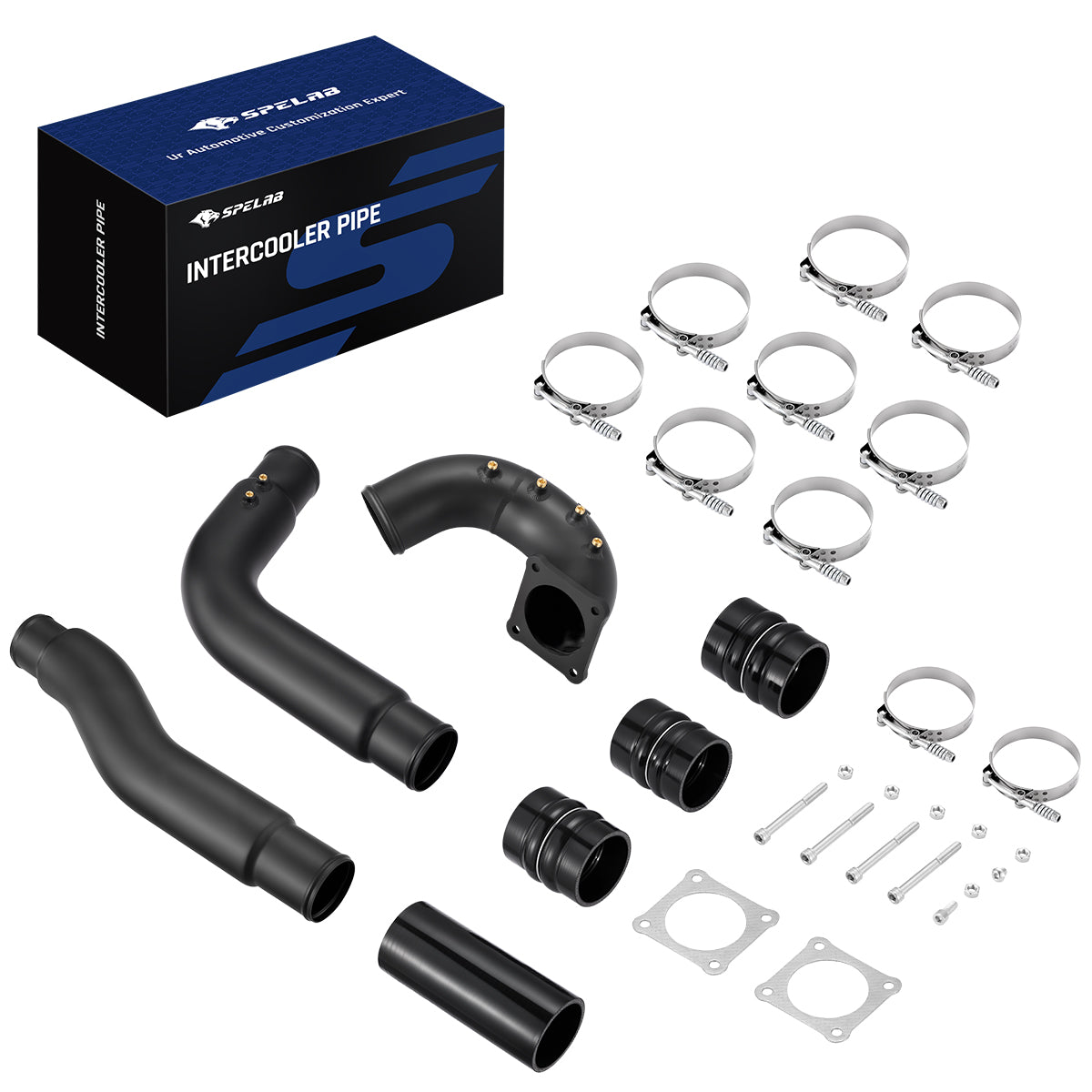

Package Contents

• Hot-side aluminum intercooler pipe
• Cold-side aluminum intercooler pipe
• Intake elbow
• Reinforced silicone couplers
• Stainless steel constant-tension spring clamps
• O-rings and installation hardware shown in the product images

FAQ

Q: Does this kit include both the hot-side and cold-side pipes?

A: Yes. The kit includes the hot-side pipe from the turbocharger to the intercooler, the cold-side pipe from the intercooler toward the engine, and the intake elbow.

Q: Does the package include the couplers, clamps and O-rings?

A: The package includes reinforced silicone couplers, stainless steel constant-tension spring clamps, O-rings and the installation hardware shown in the product images.

Q: Do I need a custom tune to run this kit?

A: No custom tune is required for installation. The kit is a direct-fit charge-air system upgrade for a compatible stock-layout truck. It can also support the airflow requirements of a truck running compatible performance tuning.

Q: Why are constant-tension spring clamps used instead of standard clamps?

A: Charge-air connections experience repeated heating and cooling. Spring-loaded constant-tension clamps are designed to maintain pressure as the pipes and couplers expand and contract, helping reduce loose connections and coupler blow-off.

Q: Does this kit fit every 2007 Dodge Ram 2500 or 3500?

A: No. It fits 2007 trucks equipped with the 5.9L Cummins. It does not fit 2007.5 trucks equipped with the 6.7L Cummins. Confirm the engine displacement before ordering.

Q: Will this kit fit an aftermarket intercooler?

A: The kit is designed around factory-spec intercooler connection diameters and locations. Compatibility with an aftermarket intercooler depends on whether its inlet and outlet sizes and positions match the factory layout. Compare the intercooler specifications and product images before ordering.

Q: Will this fit a 2008 6.7L Cummins?

A: No. This kit is specifically designed for 2003–2007 trucks equipped with the 5.9L Cummins. The 6.7L engine uses a different intake layout and requires a different kit.

Q: What should I check after installation?

A: Confirm that every coupler is fully seated, all clamps are positioned correctly, and the pipes do not contact the fan, belts, wiring, or hot components. Start the engine, inspect for charge-air leaks, and recheck the clamps after the first complete heat cycle.

Q: Is this product street legal in California?

A: No. This product does not have a CARB Executive Order and is intended for off-road or organized racing use only. Check applicable federal, state, and local regulations before purchase and installation.

Q: Do you sell Cummins intercooler pipe kits for other model years?

A: Yes. For a 2007.5–2009 Ram equipped with the 6.7L Cummins, see the SPELAB 6.7L Cummins intercooler pipe kit.

Installation

Before Installation

• Allow the engine to cool completely and disconnect the batteries.
• Confirm the truck is equipped with the 5.9L Cummins and retains compatible factory-spec connection locations.
• Compare all supplied pipes, couplers, clamps, O-rings and hardware with the product images before removing the factory components.
• Inspect the turbocharger, intercooler and intake connection surfaces for oil residue, damage or debris.

Basic Installation Steps

1. Remove the factory hot-side and cold-side charge pipes and the factory intake horn.
2. Clean and dry the turbocharger, intercooler and intake connection surfaces.
3. Install the supplied O-rings and intake elbow, making sure the sealing surfaces are clean and evenly seated.
4. Loosely assemble the aluminum pipes, silicone couplers and constant-tension clamps.
5. Align the pipes so they do not contact the fan, belts, wiring, bodywork or high-temperature components.
6. Fully seat each coupler, position the clamps behind the connection beads where applicable, and tighten the connections evenly.

After Installation

• Reconnect the batteries and start the engine.
• Inspect every connection for air leaks, movement or interference.
• Perform a controlled test drive and monitor for unusual noises, loss of boost or a loose connection.
• After the first complete heat cycle, allow the engine to cool and recheck pipe clearance, coupler seating and clamp security.
