Exhaust Header for Chevy SBC Small Block Hugger

Compact Block-Hugger Headers for a Matching Traditional SBC

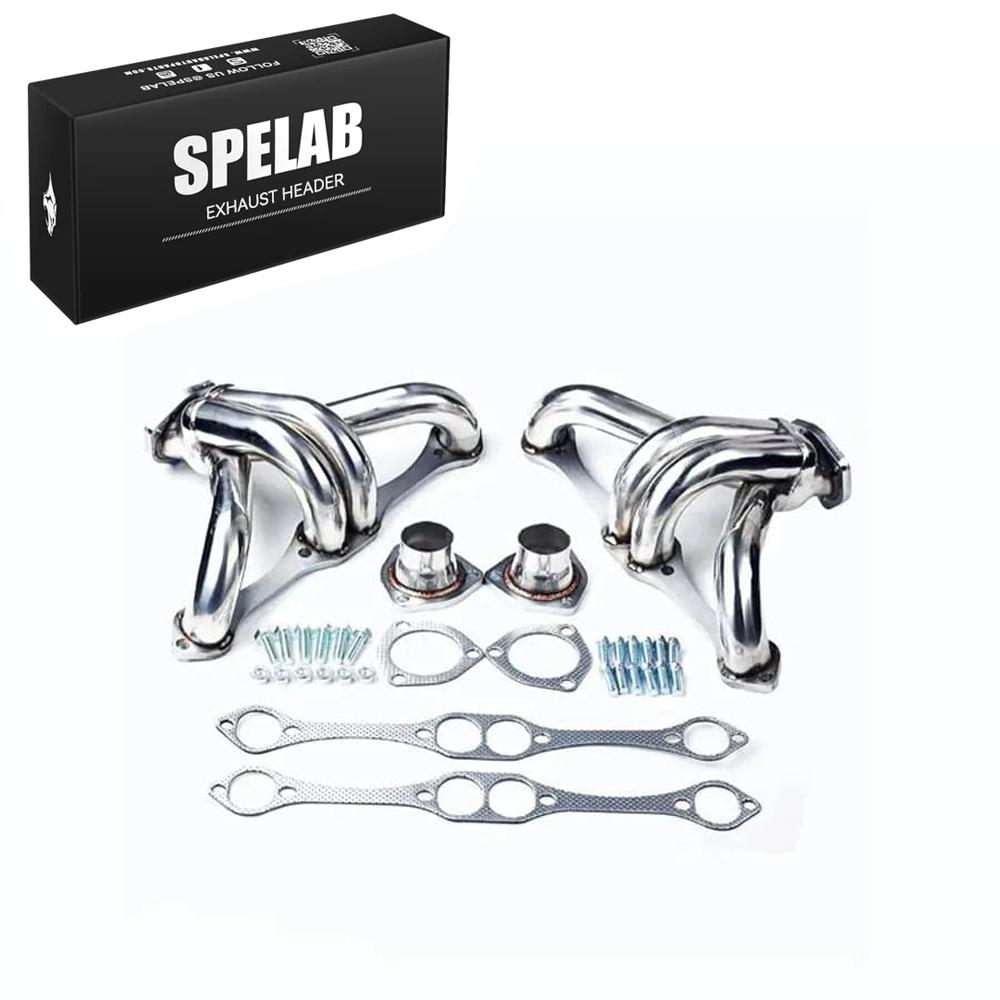

The SPELAB stainless block-hugger header pair is intended for a compatible traditional Chevrolet small-block V8 using the standard exhaust-bolt pattern, including the listed 283, 305, 327, 350 and 400 cubic-inch engines. The mirror-polished SBC pair places its runners close to the block and uses nominal 2.5-inch collectors with 2-inch reducer outlets. Chassis fitment depends on the actual heads, mounts and steering and remains subject to the listed vehicle exclusions.

Best For

• Planning a tight engine-bay route: the SBC block-hugger runner route requires comparison with the actual steering, starter and engine mounts.
• Building around traditional SBC heads: the SBC header pair requires matching cylinder-head exhaust ports and bolt patterns before collector routing is planned.
• Coordinating a custom exhaust: the SBC header pair’s reducer connections, supports and downstream pipes must be planned as one complete exhaust system.

Compact Packaging With Separate Reducers

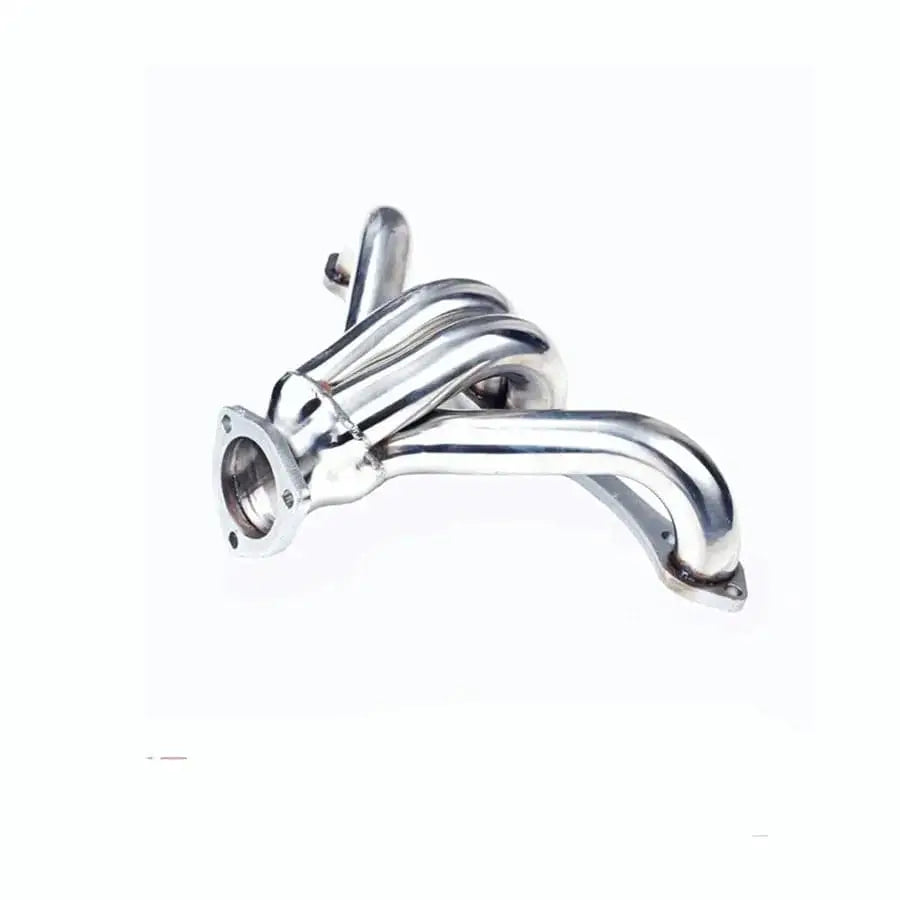

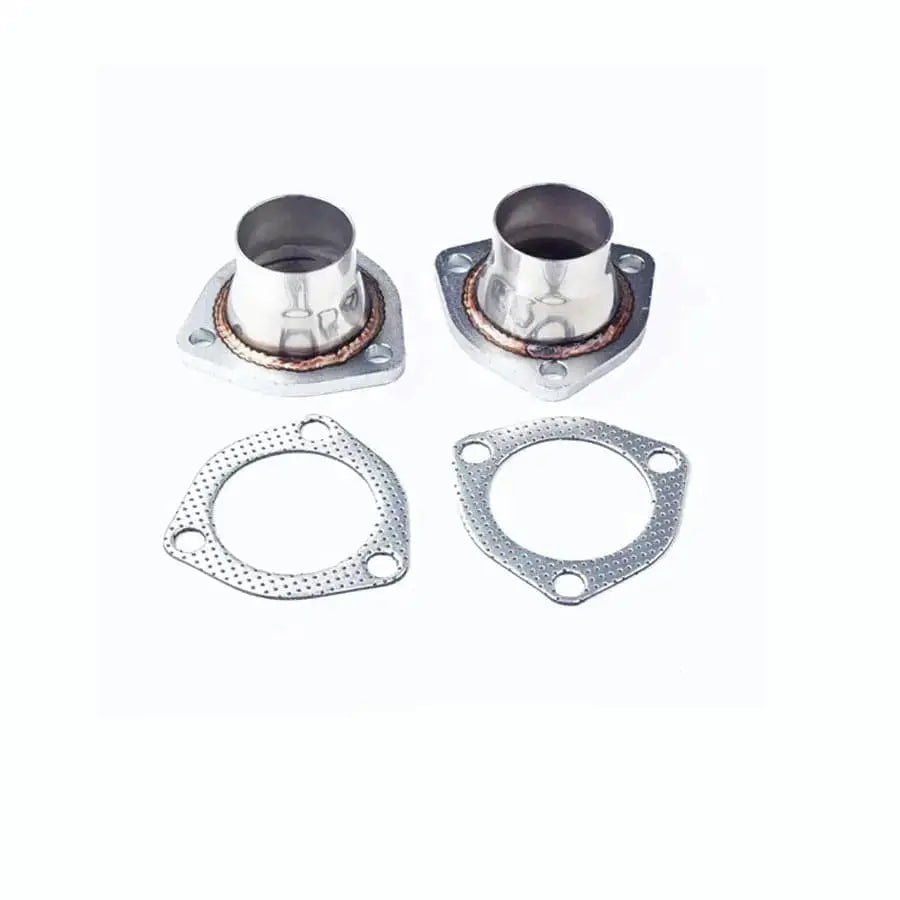

Each SBC block-hugger header tucks four runners toward the engine and discharges through a compact collector. The pair’s flanged reducers provide a nominal transition from 2.5-inch collectors to 2-inch outlets for compatible downstream pipes.

The SBC pair’s block-hugger description identifies compact packaging, not guaranteed clearance in every chassis. Power, sound and low-speed response with these headers depend on the full engine and exhaust combination; no universal gain is established.

Specs

What’s Included

Check the Installation section for vehicle-side seals, fasteners and connections that may need to be retained or renewed.

Vehicle & Engine Fitment

The SBC block-hugger header pair excludes: 1971 Chevrolet Nova; 1972 Chevrolet Caprice; 1983 Chevrolet Caprice Classic Sedan 4-Door 5.0L; 1984 Buick Regal; 1986 Chevrolet Caprice 5.7L; 1987 Chevrolet Caprice; 1978 Chevrolet Corvette; and 1973 Chevrolet Nova Base 5.7L 350.

The SBC block-hugger pair has no established positive model-year chassis list. Its engine-family date does not establish header fitment for every car built since 1955 or every later Chevrolet V8. LS/LT engines, big-block engines, nonstandard heads and altered chassis require a separately confirmed, appropriate header assembly.

Before You Order & Install

• Cylinder heads: the SBC block-hugger pair must match the actual cylinder-head exhaust pattern, port shape and straight- or angle-plug arrangement. Spark-plug boots, access and heat clearance require checking against the header tubes before fastening.
• Engine position and steering: the SBC header collectors must clear the installed mounts, frame, steering box or rack, shaft and clutch linkage through their required movement. The block-hugger layout does not guarantee clearance from those components.
• Starter and heat: the SBC block-hugger installation requires inspection of starter, solenoid, line and wiring clearance. Suitable heat protection or supporting parts depend on the actual configuration; this header pair does not establish a universal starter-replacement requirement.
• Collector route: the SBC header reducers must match the planned downstream pipes in outlet size, flange, sealing and direction. The supported downstream system and any necessary professional fabrication must be established before header installation.
• Dimensions and hardware: tight-clearance decisions for the SBC block-hugger pair require measurements of the specific assembly. The installation also requires verification of head fasteners, collector seals and every required sensor or auxiliary connection.
• Intended use: the SBC block-hugger installation must retain all required catalysts, sensors and auxiliary equipment and meet applicable noise and emissions requirements. The product name does not establish road-use certification or inspection compliance for this pair.

Will the ECU Need Tuning?

Tuning assessment for the SBC block-hugger pair depends on the actual induction and control system. A carbureted SBC needs a qualified technician’s assessment of carburetor calibration and ignition after exhaust fitment and sealing are resolved; fuel-injected or engine-swapped builds need assessment of their actual ECU, sensors and complete exhaust. No universal tuning requirement is established for this header pair, and calibration cannot correct clearance, flange or required-equipment mismatches.

Installation Overview

This is a general installation overview. Follow the service procedure for the actual vehicle and complete the configuration and connection checks above. Professional installation is recommended.

1. Confirm the configuration and parts. Identify the traditional SBC head pattern and check the complete exclusion list. Compare both headers and reducers with the actual engine position, plug layout and planned pipes.
2. Cool and support the vehicle. Allow the engine and exhaust to cool completely. Use the correct lifting procedure with a suitable lift or rated stands on a firm level surface; never work beneath a vehicle supported only by a jack.
3. Record connections and remove the original assembly. Document plug-wire routes, linkages and supports. Support the retained exhaust and remove the old assembly using the applicable engine and chassis procedure.
4. Prepare the joints. Inspect threads, mating surfaces, supports and retained pipes. Address damaged fasteners and clean sealing faces carefully. Match the appropriate seal and hardware to every joint.
5. Trial-fit the complete route. Fit both headers and reducers loosely. Check steering travel, mounts, starter, plug boots and collector routes, aligning supported pipes without force.
6. Secure and restore connections. Tighten using the applicable engine and joint requirements. Restore all required sensors, auxiliary equipment, supports and heat protection, keeping plug wires away from the tubes.
7. Check sealing and operation. Run the engine in a well-ventilated area and inspect for leaks, contact, abnormal sound and warning lights. Investigate faults before use and recheck the cooled assembly as required by the applicable service procedure.

Frequently Asked Questions

Does block-hugger mean it fits every SBC-powered car?

The SBC block-hugger header pair does not establish fitment for every SBC-powered car. Engine position, cylinder heads, steering and collector routes determine compatibility, and the actual chassis must also satisfy the listed exclusions.

Does the engine range establish fitment for a 1971 Nova?

The SBC block-hugger pair specifically excludes the 1971 Chevrolet Nova. A standard SBC exhaust-bolt pattern does not override that exclusion or any other vehicle exclusion in Fitment.

Are angle-plug heads confirmed to clear?

Universal angle-plug head clearance is not established for the SBC block-hugger pair. The actual spark-plug angle, boots and access must be compared with the header tubes before purchase.

Do I have to fit a mini starter?

Installing the SBC block-hugger pair does not establish a universal requirement for a mini starter. Starter replacement and heat protection depend on the actual starter, solenoid and header clearances.

What size are the collector and reducer outlet?

The SBC block-hugger pair has nominal 2.5-inch collectors and 2-inch reducer outlets. Actual mating dimensions and sealing must be confirmed before the downstream pipes are planned.
