Shorty Headers for a Matched Chevelle LS Conversion

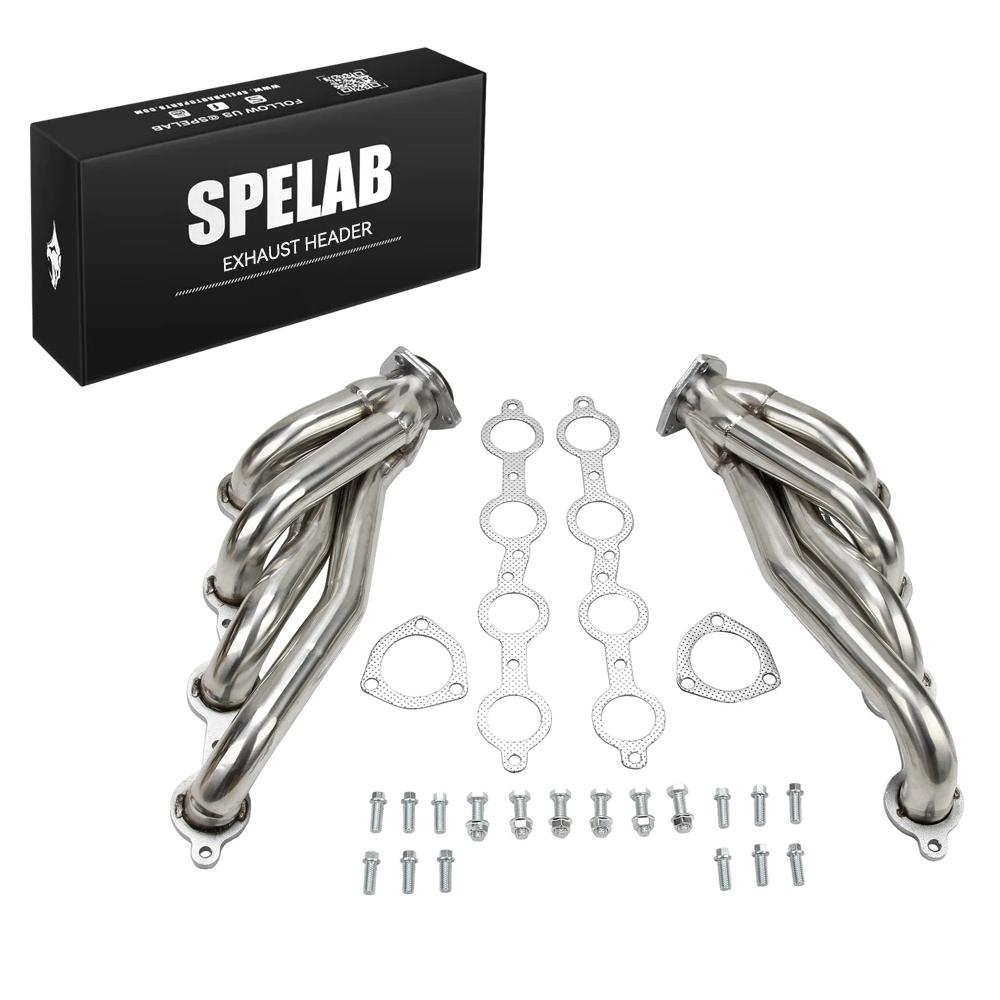

The SPELAB shorty stainless header pair is offered for 1964–1973 Chevrolet Chevelle LS-engine conversions using compatible 4.8L, 5.3L, 5.7L, 6.0L or 6.2L configurations. The package has nominal 1-5/8-inch primaries, 2.5-inch three-bolt collectors, gaskets and mounting hardware. Chevelle body year alone does not establish fit: the actual cylinder heads, engine position, steering and complete exhaust route must match the swap.

Best For

• Planning a Chevelle LS conversion: the shorty header pair provides a compact four-into-one layout to assess against the actual installed engine position.
• Building a custom front exhaust: the Chevelle headers use three-bolt collectors that require matching flanges, seals and downstream routing.
• Comparing swap packaging: the Chevelle shorty design is an alternative layout to evaluate, not a guarantee of better clearance or greater power than every manifold or long-tube header.

Compact Runners with Separate Outlet Planning

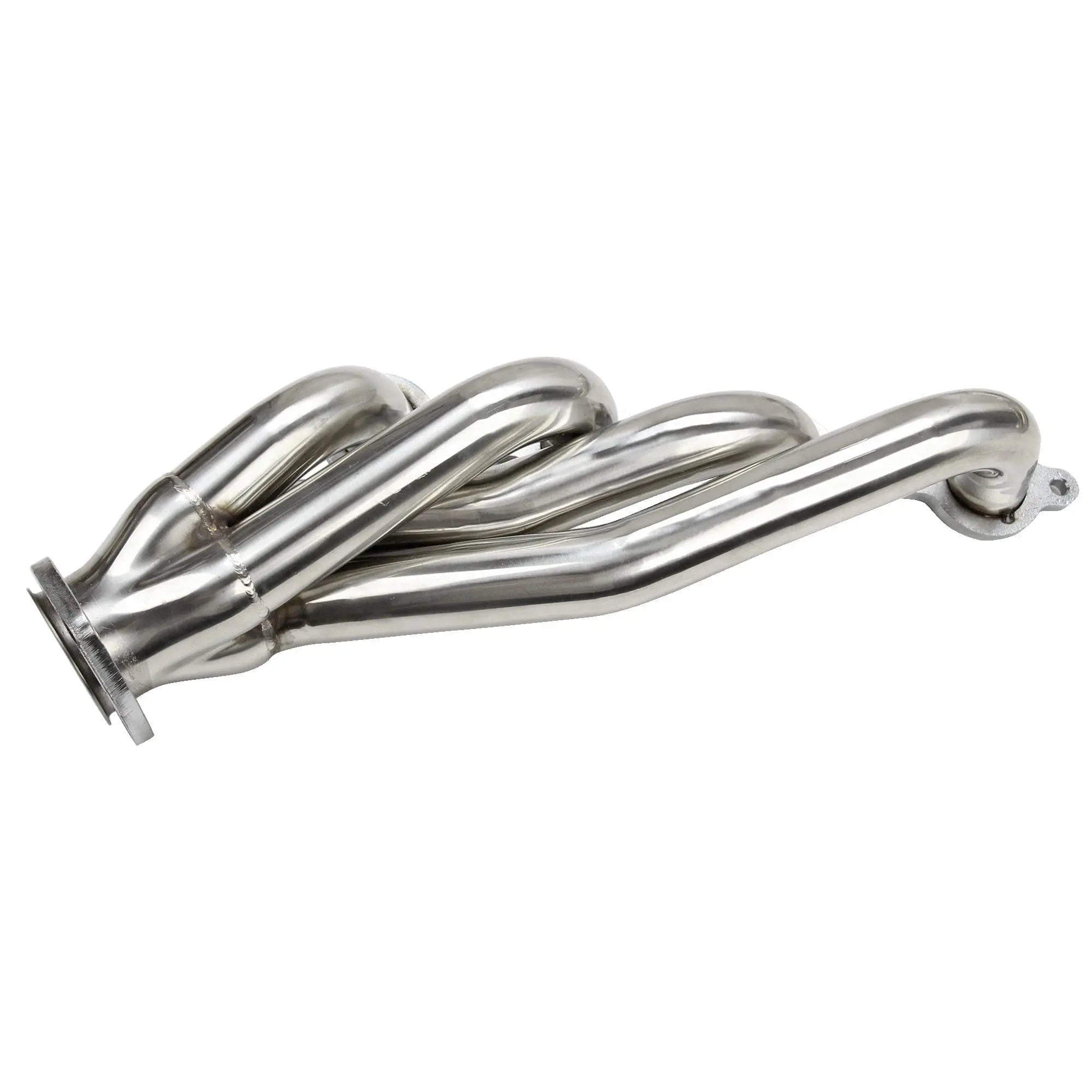

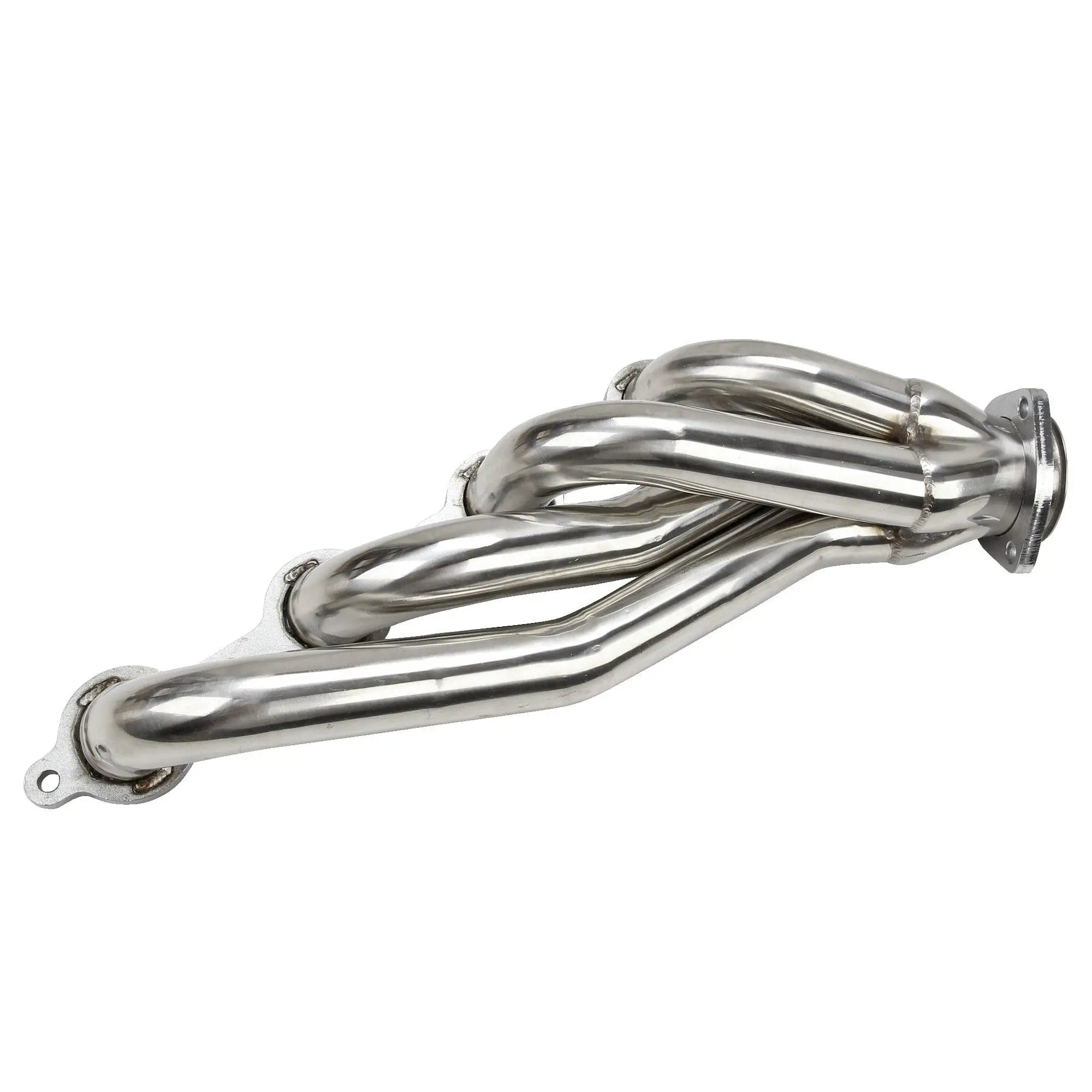

The Chevelle LS shorty pair brings four runners into one collector on each bank. The collector geometry and three-bolt joints need to be checked as part of the complete swap; nominal pipe diameter alone does not establish compatibility with an existing exhaust.

No product-specific dyno data establishes a power or torque gain for these Chevelle headers. The final result depends on the actual LS engine, camshaft, controls and complete exhaust rather than the shorty label alone.

Specs

What’s Included

Check the Installation section for vehicle-side seals, fasteners and connections that may need to be retained or renewed.

Vehicle & Engine Fitment

The Chevelle years describe the classic body receiving the LS conversion, not factory-installed LS engine availability. Confirm the actual engine code and exhaust-port / bolt pattern rather than selecting by displacement alone; a traditional 5.7L small-block and an LS-family 5.7L are not interchangeable applications.

The Chevelle 1973 application requires its own chassis and clearance check rather than an assumption that a 1964–1972 installation proves the later body. The broad Camaro, Nova and Firebird wording does not establish every 1960s or 1970s model year. No compatibility with a particular third-party mount, steering-box or crossmember kit is established.

Before You Order & Install

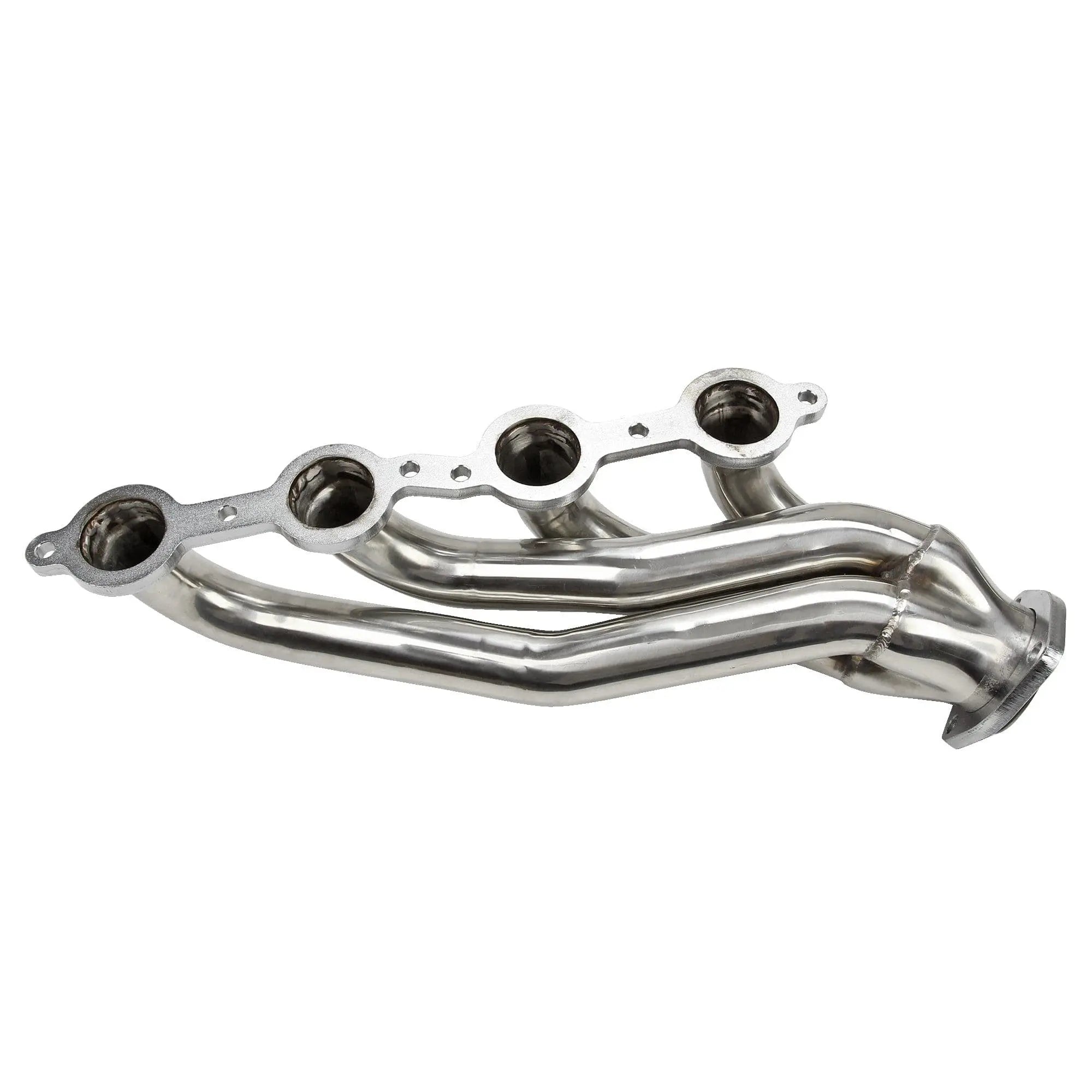

• Head and engine identity: the Chevelle LS header flange and gasket must match the actual cylinder-head exhaust ports, bolt locations and sealing faces. Do not substitute intake-port labels or displacement for an exhaust-side comparison.
• Mounts and steering: the Chevelle swap must be checked at its final engine height, fore-aft position and transmission angle. Confirm steering-box, shaft and linkage clearance through the required movement before tightening.
• Accessories and service access: the Chevelle header route must clear plug boots, starter, oil filter, dipstick, accessory drive, clutch / shift linkage and lines. Retain required heat protection and service access.
• Collector routing: the Chevelle three-bolt collectors require matching flange geometry, seals and supported front pipes. Crossmember, floor and ride-height clearance need to be assessed separately; existing pipes or another brand’s swap kit are not established bolt-on matches.
• Hardware: the pictured Chevelle header bolts are not a verified universal thread or length specification for every LS head. Check engagement, seating and gasket suitability before installation.
• Required equipment: the Chevelle conversion needs an explicit oxygen-sensor, catalyst and auxiliary-equipment plan for the actual engine and permitted use. Sensor bosses and a complete compliant exhaust are not established as included.

Will the ECU Need Tuning?

Tuning requirements for the Chevelle LS shorty headers depend on the actual swap engine, ECU or standalone controller, sensors and complete exhaust. No header-specific calibration data establishes a universal requirement or exemption. A qualified technician should check the existing swap calibration and diagnose leaks or sensor faults; tuning cannot correct mechanical contact or incompatible collector joints.

Installation Overview

This is a general installation overview. Follow the service procedure for the actual vehicle and complete the configuration and connection checks above. Professional installation is recommended.

1. Confirm the configuration and parts. Confirm the actual Chevelle body year, LS engine and head configuration, final mount position and transmission. Compare the head flange, supplied gaskets, hardware and three-bolt collectors and plan all required downstream equipment.
2. Cool and support the vehicle. Allow the engine and exhaust to cool completely. Use the correct lifting procedure with a suitable lift or rated stands on a firm level surface; never work beneath a vehicle supported only by a jack.
3. Record connections and remove the original assembly. Document the current swap, sensor wiring, heat protection, steering and shift / clutch linkages. Support the retained pipes and follow the applicable vehicle and engine procedures to remove the existing exhaust components.
4. Prepare the joints. Inspect threads, mating surfaces, supports and retained pipes. Address damaged fasteners and clean sealing faces carefully. Match the appropriate seal and hardware to every joint.
5. Trial-fit the complete route. Loosely position both Chevelle shorty headers and the supported planned pipes with the engine and transmission in their final positions. Check steering, linkages, starter, plug boots, accessories, floor, crossmember and ground clearance without forcing alignment.
6. Secure and restore connections. Secure matching head and collector joints to the applicable engine / component requirements. Restore all required sensors, catalysts, auxiliary equipment, supports and heat protection with wires and lines clear of heat and moving parts.
7. Check sealing and operation. Run the engine in a well-ventilated area and inspect for leaks, contact, abnormal sound and warning lights. Investigate faults before use and recheck the cooled assembly as required by the applicable service procedure.

Frequently Asked Questions

Are these replacement headers for a factory 1960s Chevelle engine?

The Chevelle shorty pair is an LS-conversion product, not an established replacement for a traditional factory small-block or big-block engine. Confirm the actual LS cylinder-head exhaust ports and bolt pattern before ordering.

Will the shorty design automatically clear my steering box?

The Chevelle shorty layout does not guarantee steering clearance. Engine mounts, installed engine position, steering hardware and required movement must be checked together in the actual swap.

Will my existing exhaust bolt to the collectors?

The Chevelle headers have nominal 2.5-inch three-bolt collectors, but matching diameter alone is insufficient. Flange geometry, outlet position, sealing, crossmember clearance and pipe supports must match the actual installation.

Does the title confirm every LS engine and every Chevelle body?

The Chevelle title identifies a stated body-year and displacement scope, not every possible swap configuration. Confirm the actual engine code, head, mount position and chassis; LS7 and broadly mentioned additional GM platforms require separate confirmation.

What installation accessories are shown?

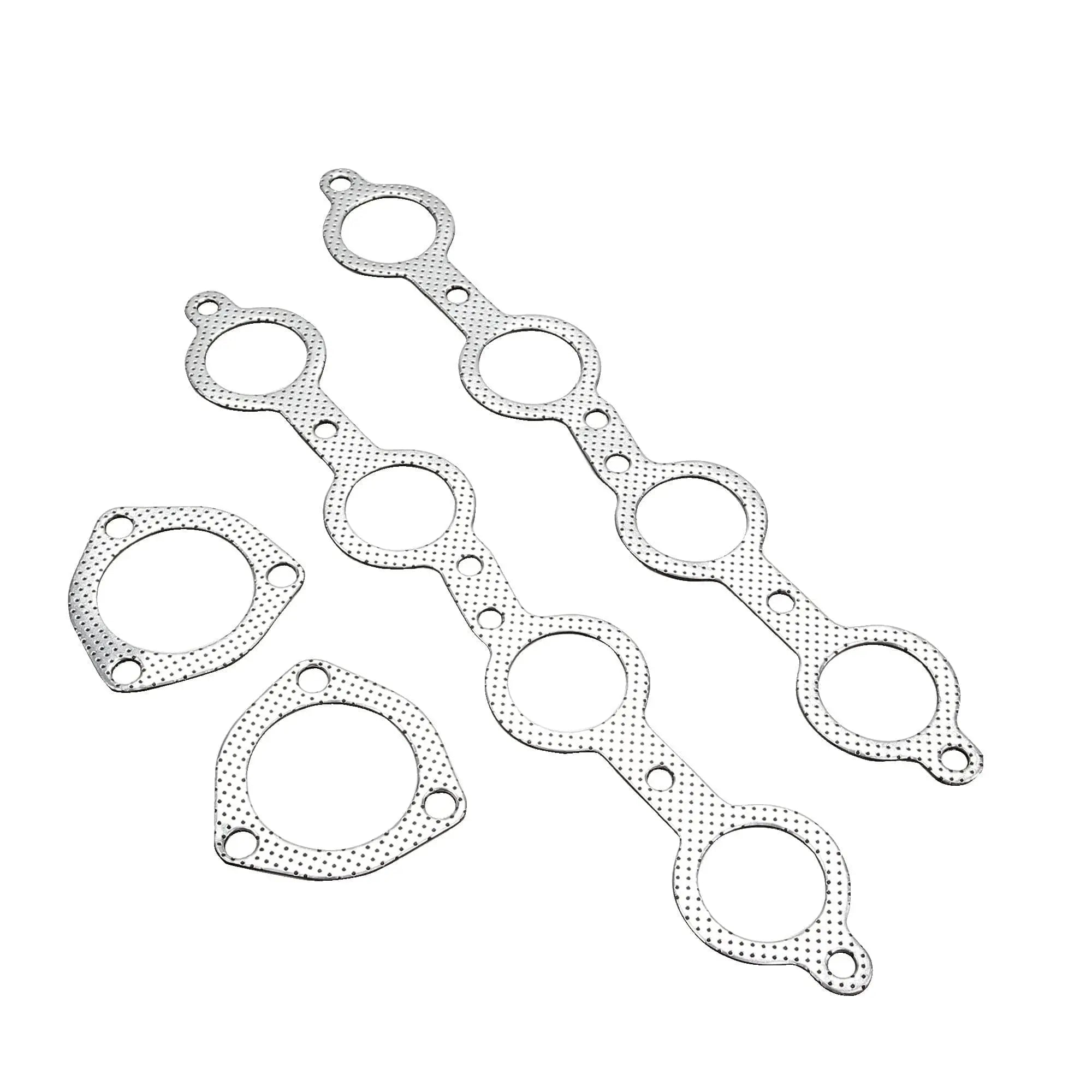

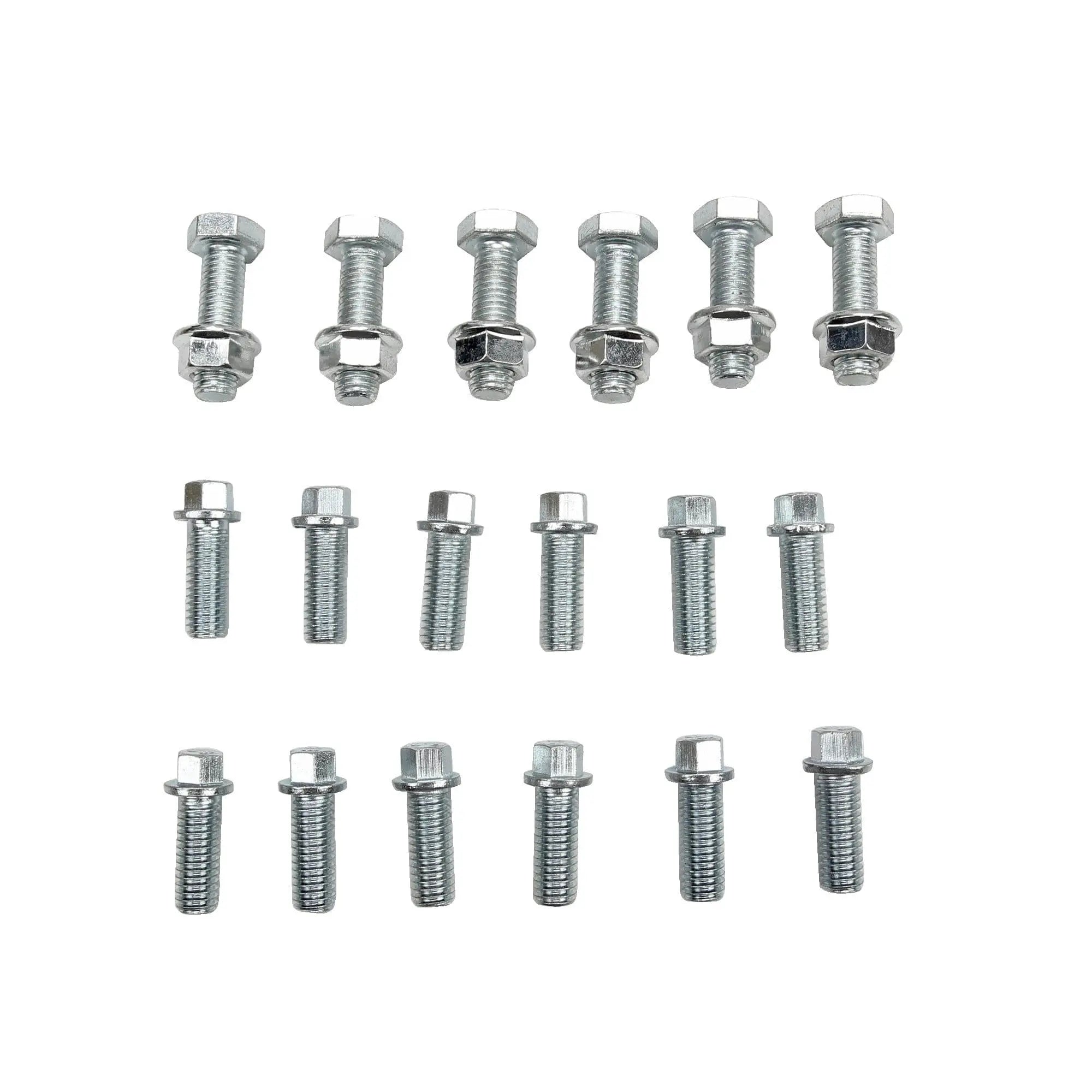

The Chevelle package shows two head gaskets, two collector gaskets, twelve individual mounting bolts and six bolt / nut assemblies. Verify each seal and fastener against the actual engine and joints rather than assuming universal thread sizes or gasket construction.

Are oxygen sensors and a complete exhaust included?

The Chevelle package does not establish included oxygen sensors, sensor bosses, catalysts, mounts or a complete exhaust system. Plan the required monitoring and downstream connections for the actual LS conversion before purchase.

Warranty & Customer Support

A one-year limited warranty from delivery covers qualifying material and workmanship defects under normal use for the original purchaser. Proof of purchase is required. Improper installation, alteration and modification are excluded, as are installation and removal labor costs.

Returns within 30 days are subject to product condition and the applicable shipping terms. Read the Warranty & Return Policy for eligibility and claim procedures.

For fitment questions or an order issue, email service@spelabautoparts.com or call +1 888 301 8666. Hours: Monday–Friday, 9:00 AM–6:00 PM EDT. Share your vehicle year, model, engine, chosen style and relevant photos; include the order number for an existing purchase.
