SPELAB Exhaust Header for 2004-2010 Ford F150 5.4L V8

Stainless Header Banks for a Matched 5.4L F-150 Exhaust

The SPELAB stainless steel header pair is intended for 2004–2010 Ford F-150 5.4L V8 exhaust projects with verified cylinder-head and collector interfaces. Confirm the redesigned F-150’s 5.4L three-valve engine configuration and the actual downstream connection before purchase. The year range does not establish compatibility with a 2004 Heritage or earlier two-valve truck.

Best For

• F-150 5.4L owners planning a manifold replacement after inspecting the existing studs and sealing faces.
• Exhaust refreshes with matched two-hole collector joints and verified pipe alignment.
• Owners checking the installed engine, chassis clearance and retained emissions equipment before ordering.

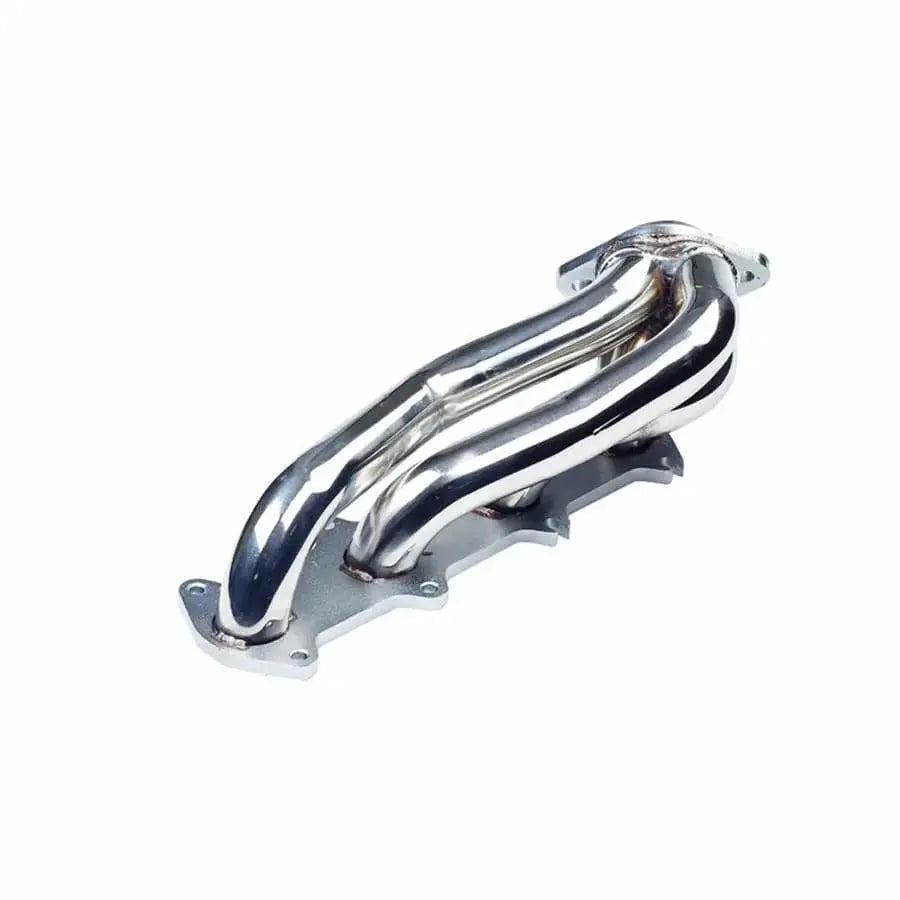

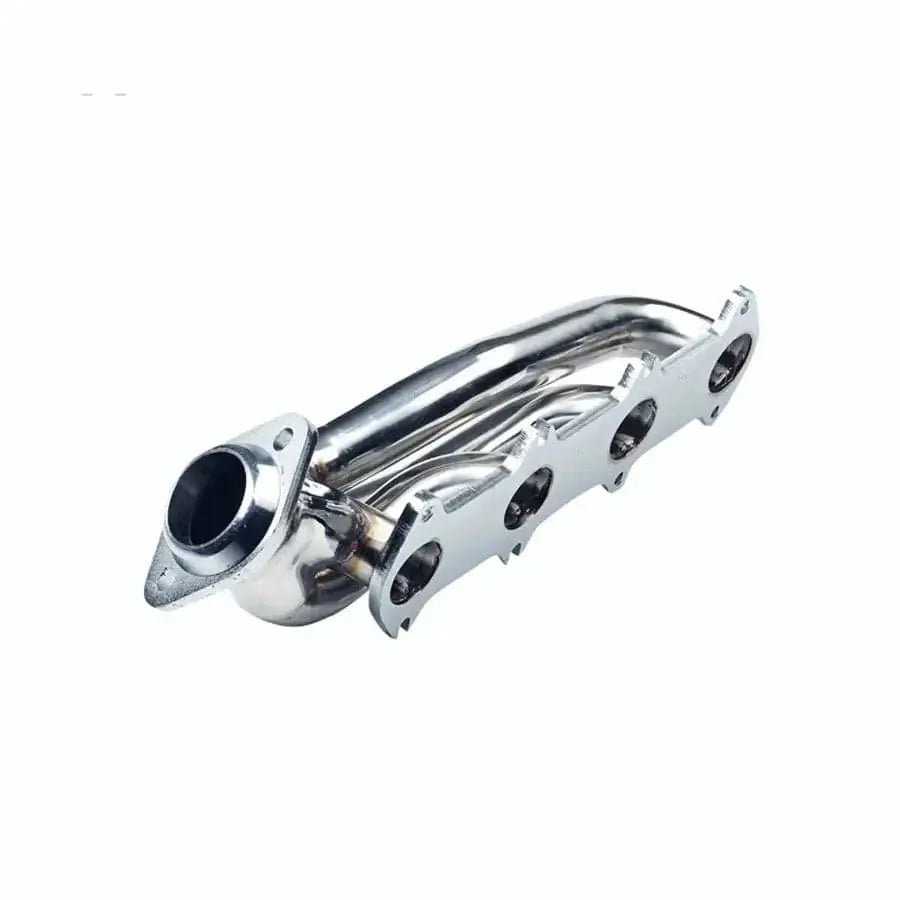

Compact Runners and Collector Connections

The SPELAB F-150 header pair uses four runners per bank leading to round flanged collectors. Exhaust tone and any performance change depend on the complete exhaust, engine condition and calibration.

A tubular header does not repair damaged cylinder-head threads or broken manifold studs. Inspect those conditions first; no product-specific dyno result or installation evidence supports a fixed gain or a universal no-modification claim.

Specs

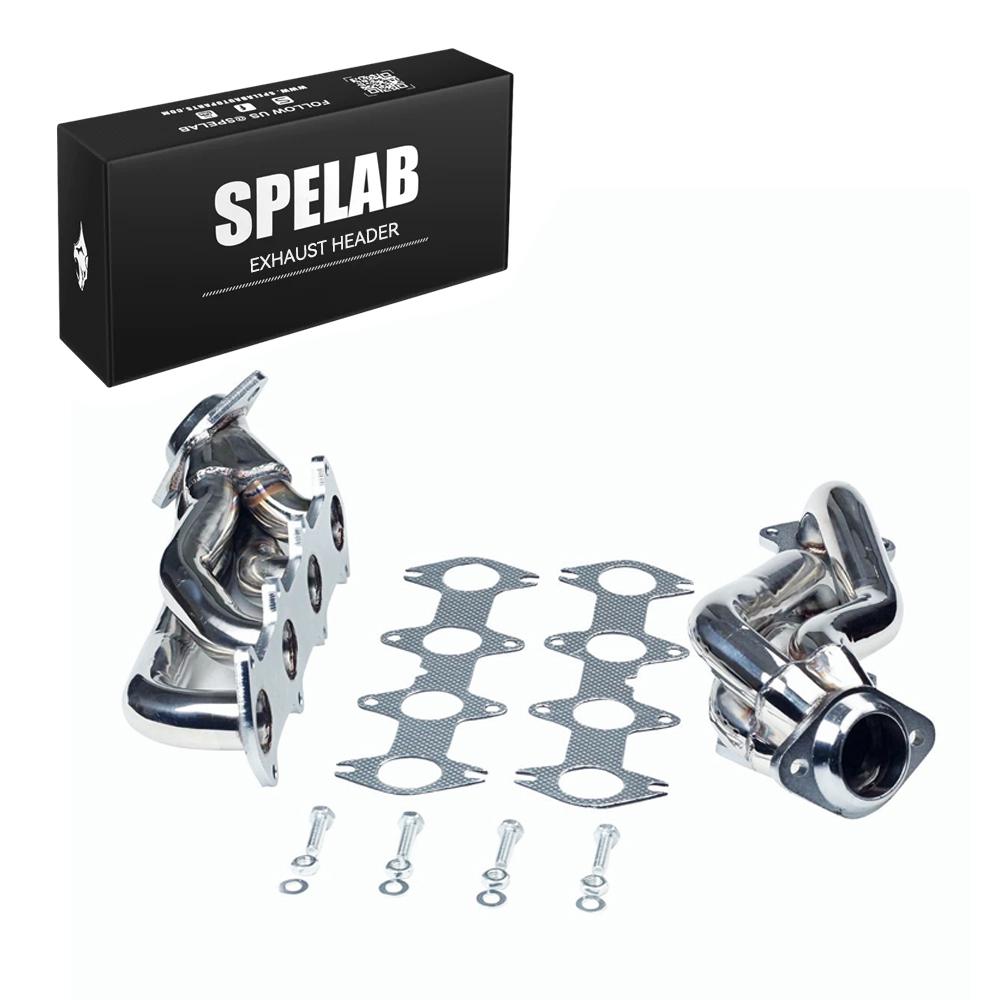

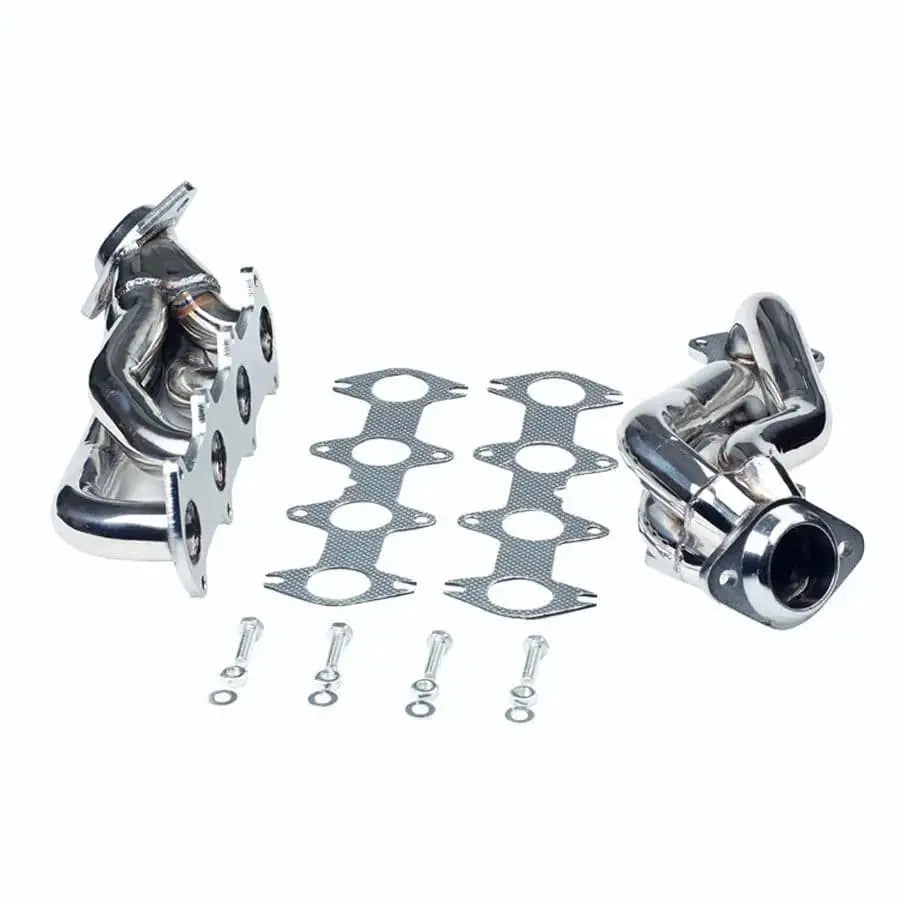

What’s Included

Check the Installation section for vehicle-side seals, fasteners and connections that may need to be retained or renewed.

Vehicle & Engine Fitment

The 5.4L application does not establish fitment for a 4.6L engine, earlier two-valve F-150, 2004 Heritage, Expedition or Super Duty. Confirm the transmission, drivetrain, body and existing collector arrangement rather than assuming both 2WD and 4WD installations are identical.

Intended use: establish applicable noise and emissions requirements before purchase. Retain all required catalysts, sensors and auxiliary equipment. Product naming alone does not establish road-use certification or inspection compliance.

Before You Order & Install

• Engine: confirm the actual 5.4L three-valve configuration, especially on a 2004 truck or an engine-swapped vehicle.
• Studs and head faces: inspect for broken or seized studs, damaged threads and leaking surfaces. Have damaged mounting points repaired correctly before fitting the headers.
• Collectors and clearance: compare both outlet seats and flange patterns and check steering, chassis, transmission and drivetrain clearance.
• Required parts: confirm retained or replacement head fasteners, collector seals, sensors, catalysts and supports. The four supplied connection sets are not all the hardware needed at the cylinder heads.

Will the ECU Need Tuning?

Have a qualified technician assess the actual engine, sensor arrangement and complete exhaust. Product-specific calibration data does not support a universal claim that tuning is required or unnecessary. Diagnose leaks, sensor faults and warning lights first. Calibration cannot correct incompatible joints, poor clearance or missing required emissions equipment.

Installation Overview

This is a general installation overview. Follow the service procedure for the actual vehicle and complete the configuration and connection checks above. Professional installation is recommended.

1. Confirm the configuration and parts. Confirm the F-150 year, 5.4L engine configuration, collector interfaces and complete exhaust route. Inspect the head fasteners and arrange any required repairs.
2. Cool and support the vehicle. Allow the engine and exhaust to cool completely. Use the correct lifting procedure with a suitable lift or rated stands on a firm level surface; never work beneath a vehicle supported only by a jack.
3. Record connections and remove the original assembly. Record sensor and support locations. Support the downstream exhaust and remove the original manifolds using the correct F-150 service procedure.
4. Prepare the joints. Inspect threads, mating surfaces, supports and retained pipes. Address damaged fasteners and clean sealing faces carefully. Match the appropriate seal and hardware to every joint.
5. Trial-fit the complete route. Loosely fit both header banks and match the collectors to the downstream pipes. Check wiring, steering and drivetrain clearance without pulling the pipes into position with the bolts.
6. Secure and restore connections. Secure compatible head and collector joints to the applicable specifications. Restore all required sensors, catalysts, supports and wiring protection.
7. Check sealing and operation. Run the engine in a well-ventilated area and inspect for leaks, contact, abnormal sound and warning lights. Investigate faults before use and recheck the cooled assembly as required by the applicable service procedure.

Frequently Asked Questions

Will this header pair fit a 2004 F-150 Heritage?

Fitment of this SPELAB header pair on a 2004 F-150 Heritage is not established. Confirm the actual engine and body generation; the redesigned F-150 5.4L three-valve application must not be confused with an earlier two-valve truck.

Does this 5.4L header pair also fit a 4.6L F-150?

Compatibility of this SPELAB 5.4L header pair with a 4.6L F-150 is not established. Match the actual engine, head flanges, collectors and vehicle configuration before ordering.

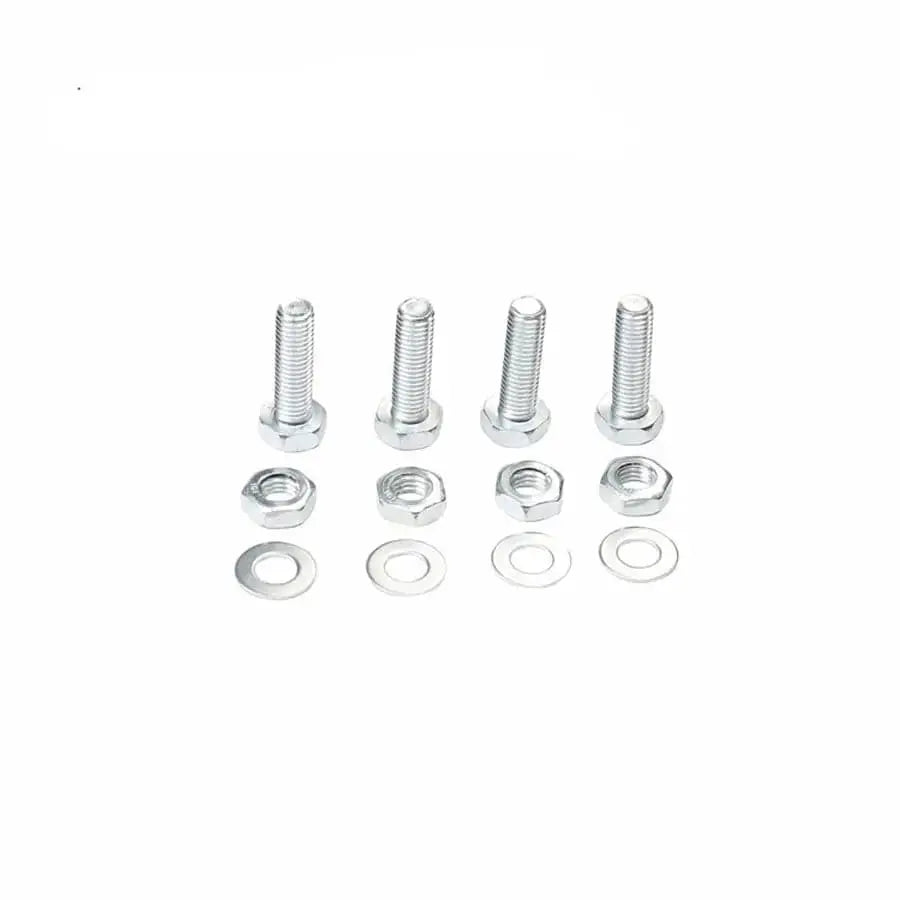

Are the four supplied bolts a complete head-fastener kit?

The four bolt, nut and washer sets in the SPELAB F-150 package are connection hardware, not a complete cylinder-head stud kit. Confirm the correct retained or replacement head fasteners and all seals required by the actual installation.

Will new headers solve broken manifold studs?

The SPELAB F-150 headers do not repair broken studs or damaged cylinder-head threads. Have the mounting points inspected and repaired correctly before installing the header pair.

Are both 2WD and 4WD installations confirmed?

The SPELAB F-150 year and engine range does not establish identical fitment for every 2WD and 4WD configuration. Confirm transmission, drivetrain clearance and downstream collector connections for the actual truck.
