Exhaust Manifold for 2003-2007 Ford 6.0L Powerstroke Diesel F250 F350 | SPELAB

For compatible 2003–2007 Ford F250 and F350 6.0L Powerstroke owners dealing with a leaking, warped, corroded, or damaged factory-style manifold, the SPELAB DP29759 stainless steel tubular exhaust manifold provides a replacement and upgrade path for towing, work-truck, and street-performance applications.

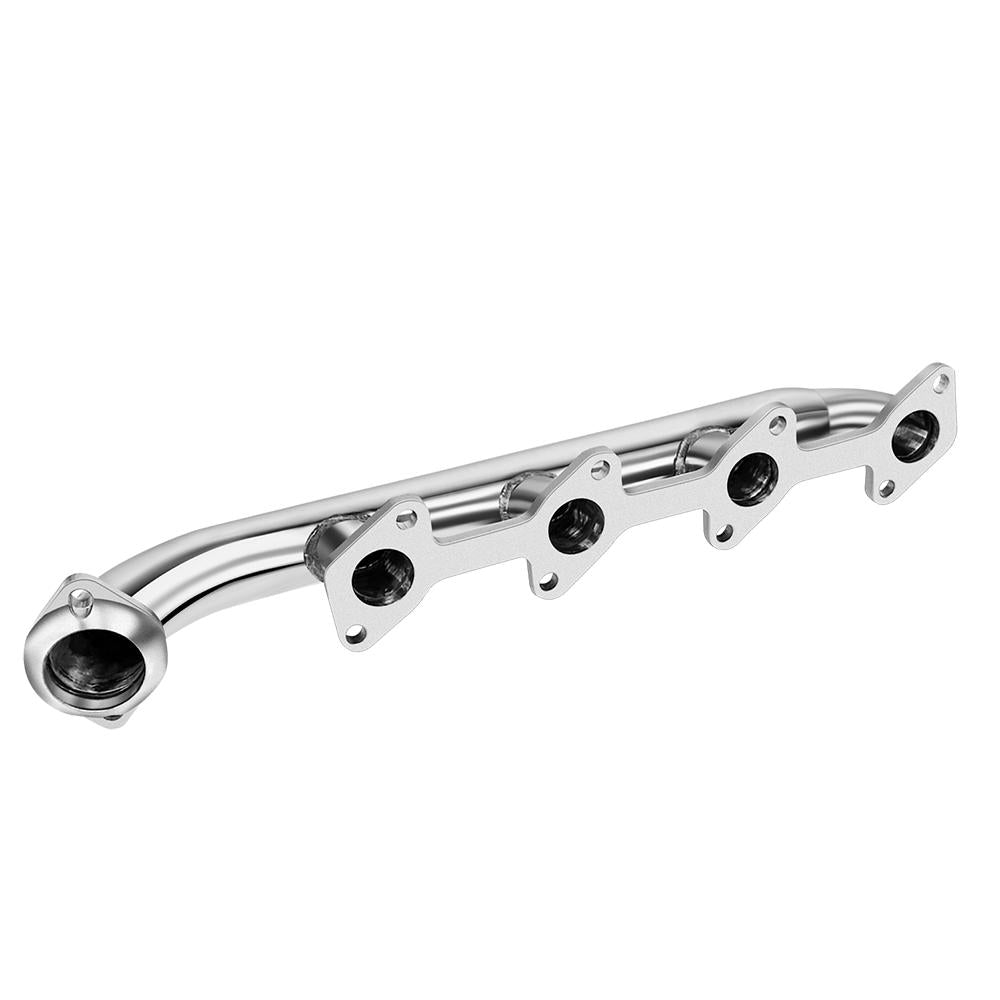

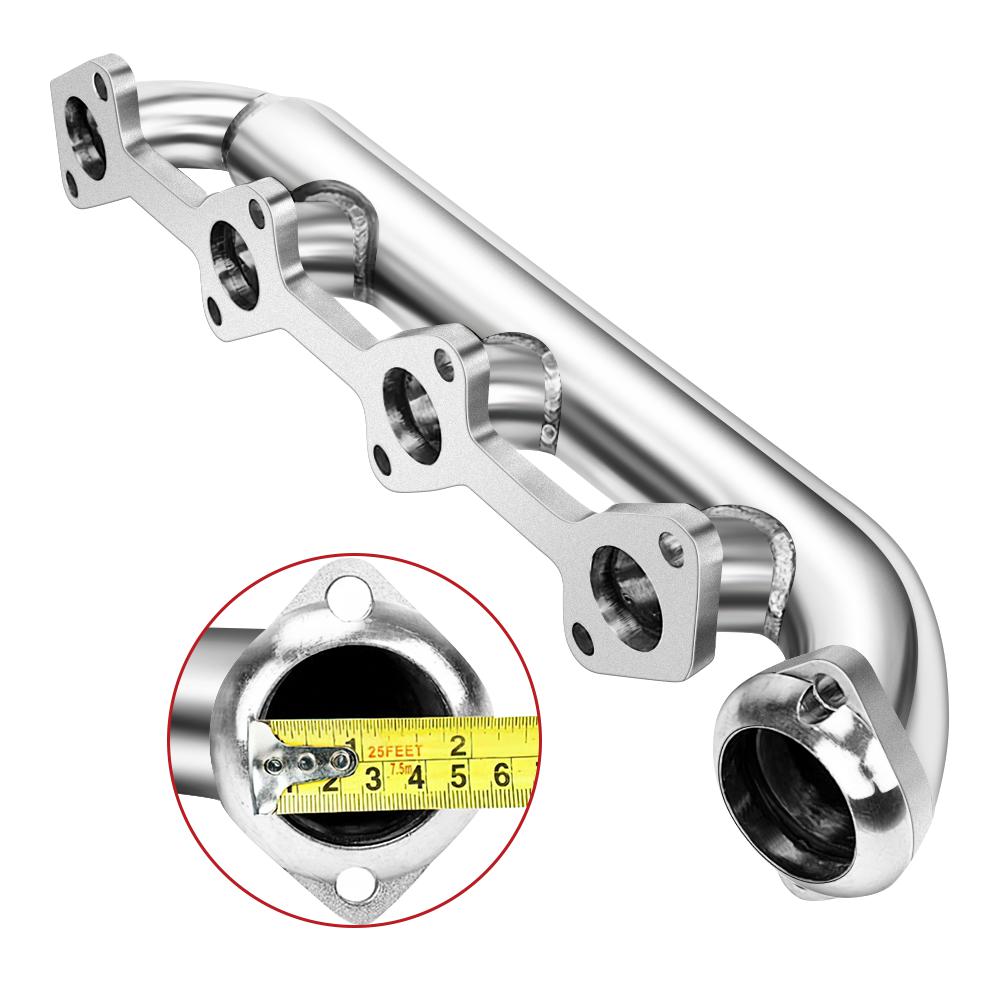

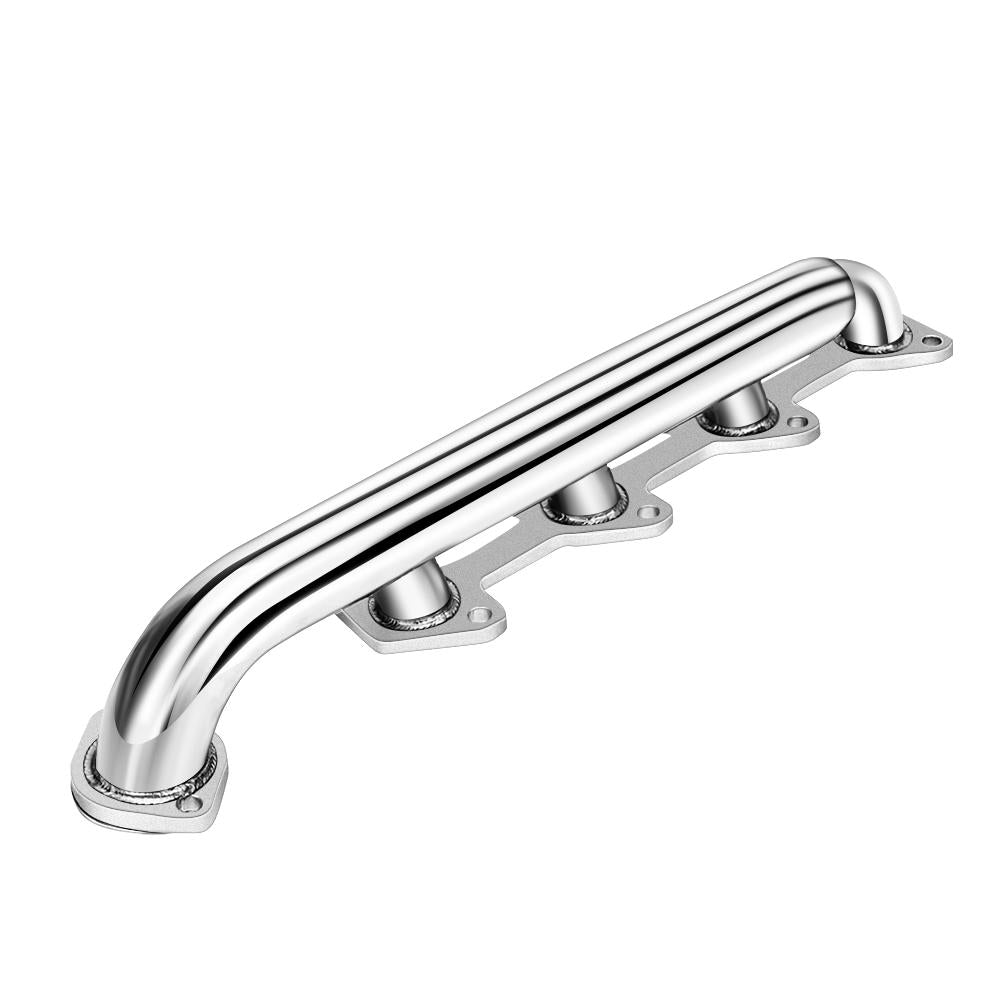

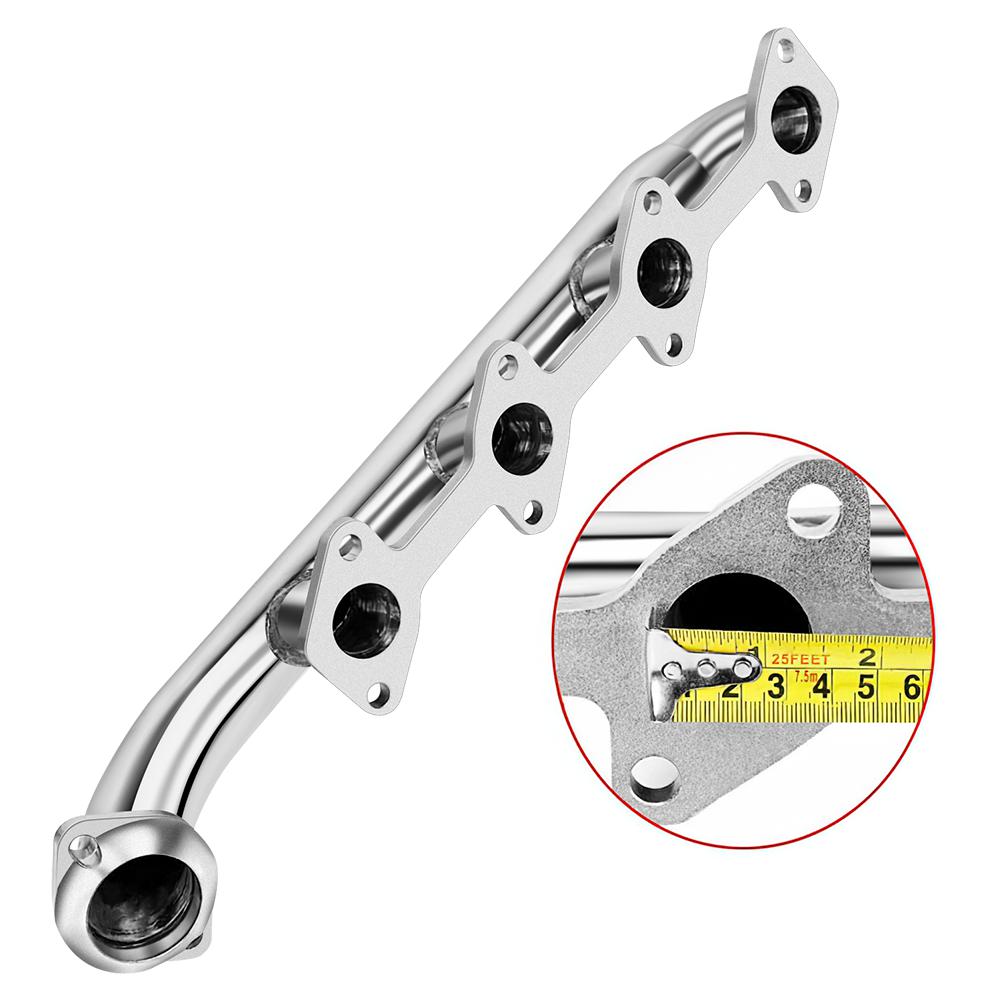

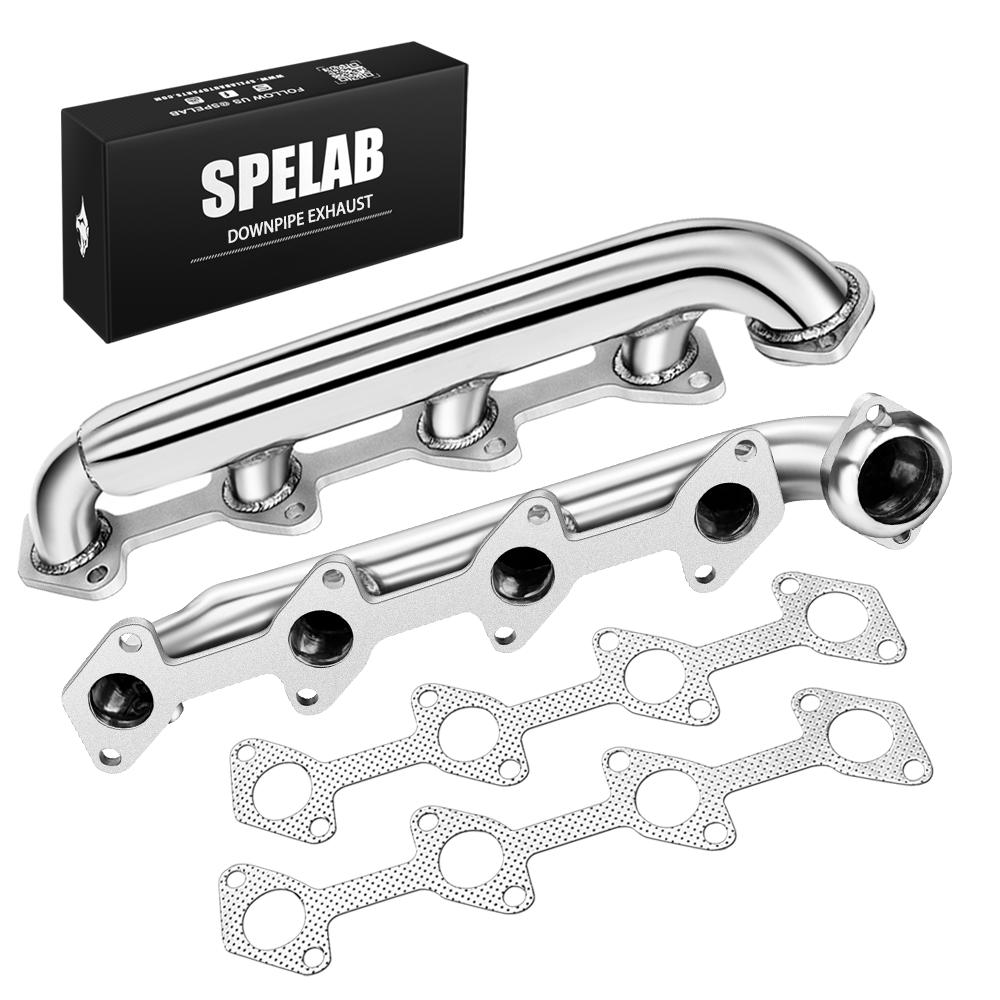

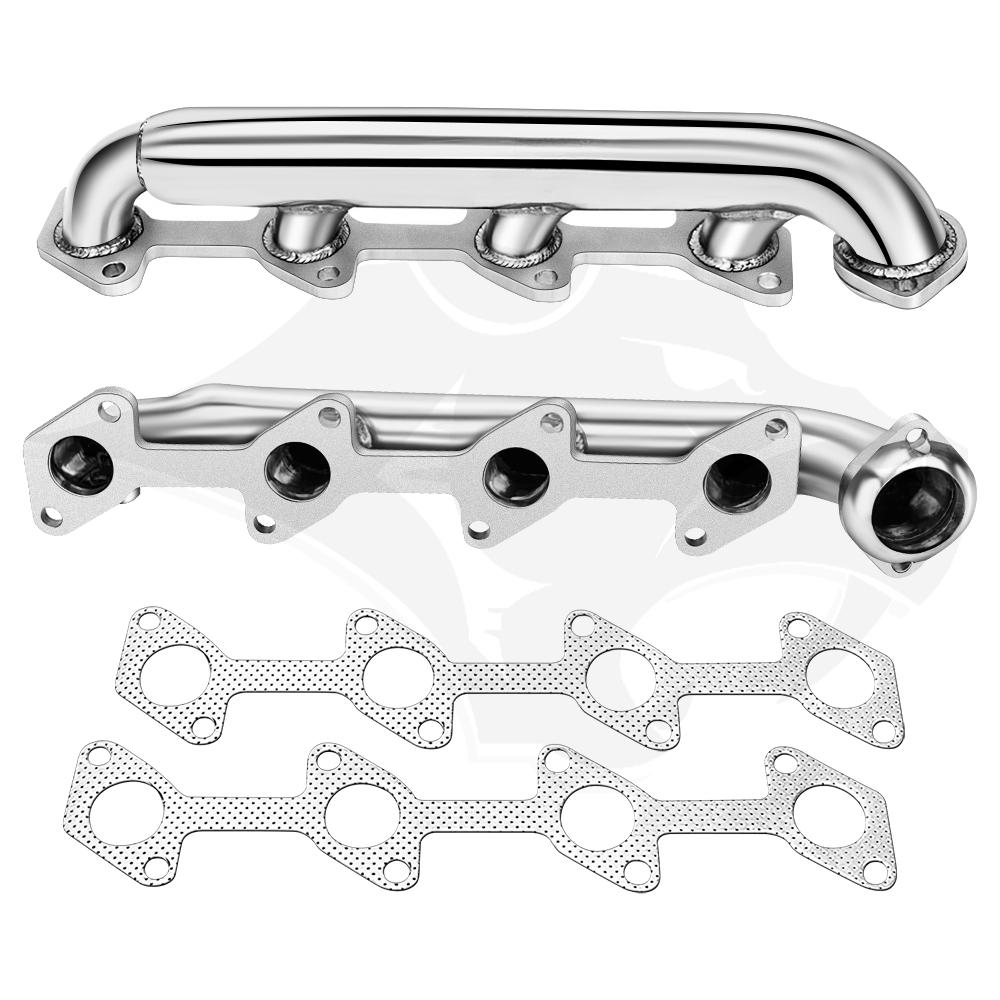

The SPELAB DP29759 exhaust manifold is designed for compatible 2003–2007 Ford F250 and F350 Super Duty trucks equipped with the 6.0L Powerstroke diesel engine. Its listed construction includes a tubular layout, equal-length runners, mandrel-bent pipes, pressed flanges, chrome-plated flange surfaces, and TIG-welded joints.

This is not a fully custom race manifold. It is intended for high-mileage 6.0L Powerstroke trucks used for towing, hauling, daily work, or street-performance projects where exhaust sealing, pre-turbo flow, and resistance to repeated diesel heat cycles matter.

Key Features and Benefits

• Tubular Manifold Design: Provides a defined exhaust path intended to reduce unnecessary restriction compared with a damaged or unsuitable existing manifold.
• Equal-Length Runners: The listed runner arrangement is designed to deliver more consistent exhaust pulses, although actual turbo response depends on the complete engine and exhaust system.
• Mandrel-Bent Pipes: Mandrel bending helps maintain a smoother internal tube shape through each bend.
• Pressed Head Flanges: The listed pressed-flange process is intended to provide consistent sealing-surface contact when the cylinder-head surfaces, gaskets, and hardware are in serviceable condition.
• Chrome-Plated Flanges: The listed plated flange surfaces provide additional surface protection in the exhaust environment.
• TIG-Welded Construction: TIG-welded joints are used throughout the assembly; installation support and clearance still affect long-term durability.
• Stainless Steel Construction: Stainless steel offers useful corrosion resistance for trucks exposed to heat, moisture, road conditions, towing, and work use.

Best For

• High-Mileage 6.0L Powerstroke Trucks: A replacement option for compatible 2003–2007 F250 and F350 trucks with a confirmed leaking, warped, corroded, or damaged manifold.
• Towing and Hauling Use: Suitable for compatible trucks that pull trailers, campers, equipment, or other loads when the complete cooling, fuel, turbo, and exhaust systems are in serviceable condition.
• Work Trucks and Daily Diesels: Intended for owners who need a stainless steel manifold for repeated heat cycles and demanding engine-bay conditions.
• Street-Performance Builds: The tubular construction may support a less restrictive pre-turbo exhaust path as part of a properly matched diesel performance setup.
• Exhaust-Leak Repairs: Appropriate when diagnosis confirms that the manifold, flange, gasket, or related hardware is causing ticking, soot, or exhaust leakage.
• Preventive Refresh Projects: Suitable for owners servicing an older 6.0L Powerstroke before towing season, long trips, or additional supporting modifications.

Factory-Style/OEM vs. SPELAB vs. High-End Custom Manifolds

Some 6.0L Powerstroke owners need a basic stock-style repair, while others are assembling a specialized competition setup. The SPELAB stainless steel manifold is positioned between those approaches, providing a tubular design and listed fabrication features without being presented as a fully custom race manifold.

Bottom Line: The SPELAB DP29759 can provide a practical tubular stainless steel option for compatible 6.0L Powerstroke trucks when the product configuration matches the vehicle and the owner does not require a fully custom race manifold.

Why Upgrade Your 6.0L Powerstroke Exhaust Manifold?

A high-mileage diesel exhaust manifold is exposed to repeated heat cycles, vibration, moisture, road salt, and sustained load. Over time, the manifold, flange, gasket, fasteners, or nearby exhaust connections can leak, corrode, distort, or otherwise require service.

• Replaces a compatible manifold that is leaking, corroded, warped, cracked, or otherwise damaged
• Provides a tubular exhaust path using the listed equal-length runner and mandrel-bent construction
• Can help restore the sealed pre-turbo exhaust path when the manifold or manifold connection is the confirmed source of leakage
• Suitable for compatible towing, hauling, work-truck, and street-performance applications
• Uses stainless steel construction for useful resistance to corrosion and repeated exhaust heat cycles

Replacing a leaking manifold may help restore normal turbo-side exhaust delivery, but it does not guarantee a specific horsepower, exhaust-gas-temperature, towing, or turbo-response improvement. Results depend on the turbocharger, up-pipes, fuel system, intake, intercooler, tuning, engine condition, load, altitude, ambient temperature, and installation quality.

Fitment for 2003–2007 6.0 Ford F250/F350

Note: Confirm the truck year, model, 6.0L Powerstroke engine, manifold position, flange arrangement, nearby up-pipe configuration, and current exhaust setup before ordering. Previous repairs and performance modifications can change compatibility.

Need options for other vehicle applications? Browse more SPELAB exhaust manifolds.

Exhaust Manifold Specifications

Installation Notes for Manifold Replacement

• Installation is suitable for an experienced DIY owner or professional technician, depending on the tools, diesel-engine experience, vehicle condition, and existing modifications.
• Compare model DP29759, the product images, manifold position, flange layout, and nearby exhaust connections with the truck before installation.
• Inspect the exhaust gaskets, mounting hardware, cylinder-head sealing surfaces, and nearby up-pipe connections.
• Older trucks may have corroded, seized, broken, or repeatedly heat-cycled hardware, so removal time can vary substantially.
• Replace damaged gaskets and hardware as required, and correct any sealing-surface damage before installing the manifold.
• Follow the applicable Ford service information for the fastener sequence and torque specifications.
• For a basic manifold replacement on an otherwise stock truck, tuning is typically not required; larger turbochargers, fuel-system changes, custom exhaust systems, or other performance modifications may require appropriate calibration.
• Allow the engine, turbocharger, and exhaust system to cool completely before removal or installation.
• After the initial heat cycles, inspect the flanges, gaskets, hardware, and up-pipe area for soot or leakage.

Symptoms of a Worn or Leaking Exhaust Manifold

• Ticking near the exhaust manifold, especially during a cold start or acceleration
• Soot deposits around the manifold, flange, gasket, or nearby exhaust connection
• Exhaust odor around the engine bay or entering the cabin
• Increased exhaust noise under acceleration or load
• Slower or less consistent turbo response when a pre-turbo leak is present
• Reduced pulling performance when exhaust leakage is one of the contributing causes

These symptoms can also result from leaking up-pipes, damaged gaskets, loose hardware, turbocharger problems, boost leaks, fuel-system faults, or other engine conditions. Diagnose the source before replacing the manifold.

Important Fitment and Use Note

This product is intended for compatible 2003–2007 Ford F250 and F350 trucks equipped with the 6.0L Powerstroke diesel engine. Fitment and final results can vary because of vehicle condition, previous repairs, turbo or exhaust modifications, and installation quality. Confirm compatibility and applicable emissions, warranty, and road-use requirements before installation.

FAQ About This Exhaust Manifold

Q: Will this exhaust manifold fit my 2005 Ford F350 6.0L Powerstroke?
A: The DP29759 manifold is designed for compatible 2003–2007 Ford F250 and F350 Super Duty trucks with the 6.0L Powerstroke diesel engine. Confirm the manifold position and existing exhaust configuration before ordering.

Q: Is this a direct replacement for the factory manifold?
A: It is designed as a replacement-style tubular upgrade for the listed applications, but vehicle condition and previous modifications can affect fitment. Compare model DP29759, the product images, flange layout, and existing exhaust connections before ordering.

Q: Can I install this exhaust manifold myself?
A: An experienced diesel DIY owner may be able to complete the installation with suitable tools and preparation. Corroded or broken hardware, damaged sealing surfaces, and restricted access can make professional installation more appropriate.

Q: Does this exhaust manifold require tuning?
A: A basic manifold replacement on an otherwise stock 6.0L Powerstroke typically does not require tuning. Larger turbochargers, fuel-system changes, custom exhaust systems, or other substantial modifications may require appropriate calibration.

Q: Is this exhaust manifold suitable for towing?
A: It is intended for compatible trucks used for towing and hauling, but the manifold alone does not determine towing performance or safety. Results depend on the engine, turbocharger, cooling system, transmission, vehicle ratings, load, altitude, ambient temperature, and calibration.

Q: What problem does this exhaust manifold help solve?
A: It replaces a compatible leaking, warped, corroded, cracked, or damaged manifold. When the manifold is the confirmed source of a pre-turbo leak, replacement can help restore the sealed exhaust path.

Q: What symptoms may indicate a worn or leaking exhaust manifold?
A: Possible signs include ticking, soot deposits, exhaust odor, increased exhaust noise, or inconsistent turbo response. Similar symptoms can come from up-pipes, gaskets, hardware, boost leaks, or turbo and engine faults.

Q: What should I inspect during installation?
A: Inspect the gaskets, mounting hardware, cylinder-head flange surfaces, nearby up-pipe connections, and surrounding components. Replace damaged parts as required and use the applicable service procedure and torque specifications.
