3" Suspension Lift Kit for 2011-2016 Ford F250 4WD Diesel | SPELAB

Stop Compromising on Ride Quality Just to Fit Bigger Tires.

The 2011-2016 Ford F-250 Super Duty is an absolute workhorse, but its factory "nose-down" rake limits ground clearance and prevents you from running the aggressive 35-inch tires you actually want.

The Lift Kit Trap:
Most aftermarket 3-inch spacer lifts ruin your truck's factory steering geometry. This leads to wandering steering, uneven tire wear, and a harsh, jarring ride when you hit a pothole or tow a heavy trailer. You want the height and the aggressive SEMA-truck stance, but you don't want to sacrifice your daily driving comfort.

SPELAB 3-Inch Suspension Solution

We engineered this 3-Inch Lift Kit to properly elevate your F-250 while perfectly correcting your front-end geometry. By utilizing heavy-duty Radius Arm Drop Brackets and a Track Bar Drop Bracket, this system restores your factory Caster angles and keeps your front axle perfectly centered.

Choose Your Performance Level:

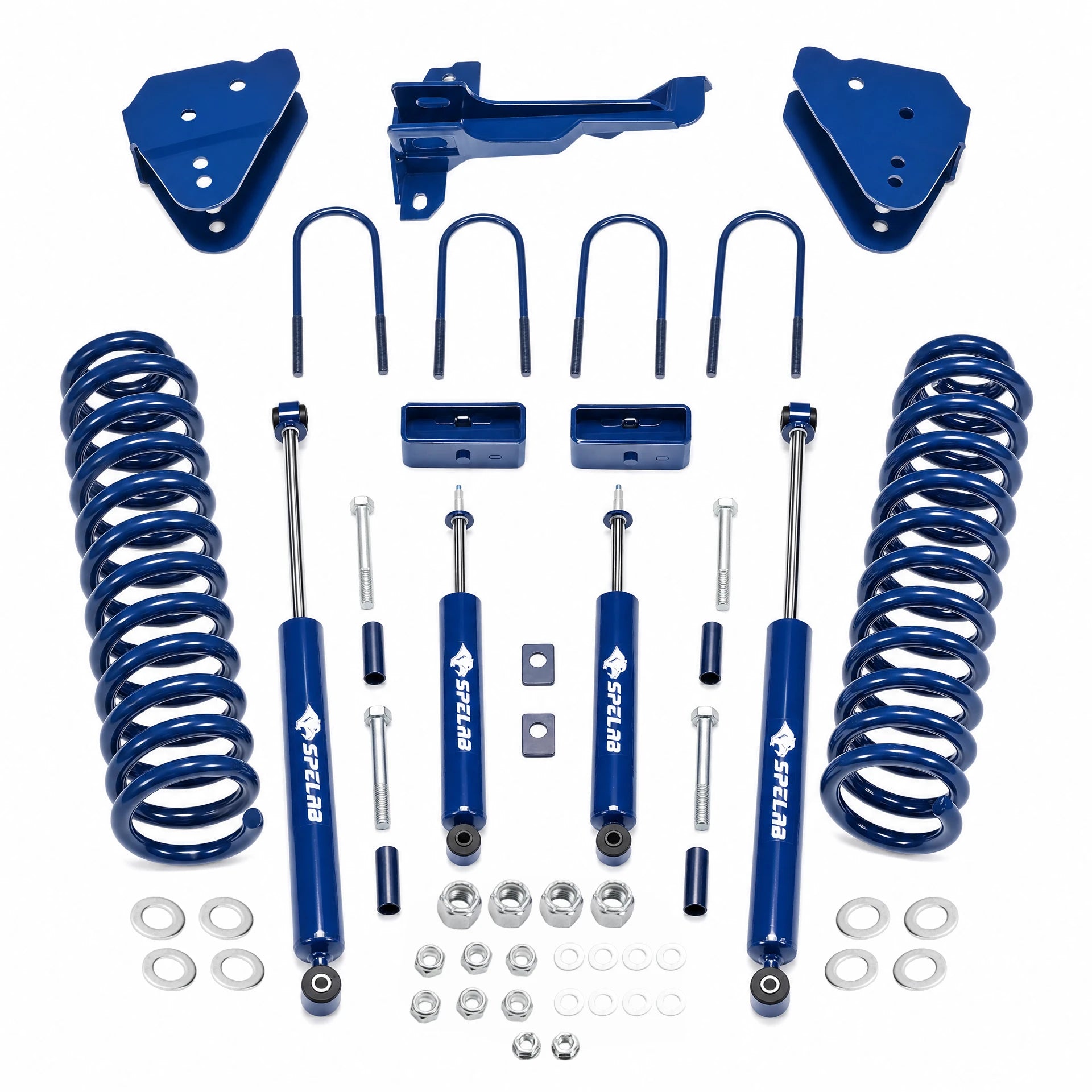

• Standard Coil Spring Kit: Upgrades your front end with lifted coil springs for a comfortable, factory-like ride and true 3-inch lift. Perfect for daily driving and standard towing.

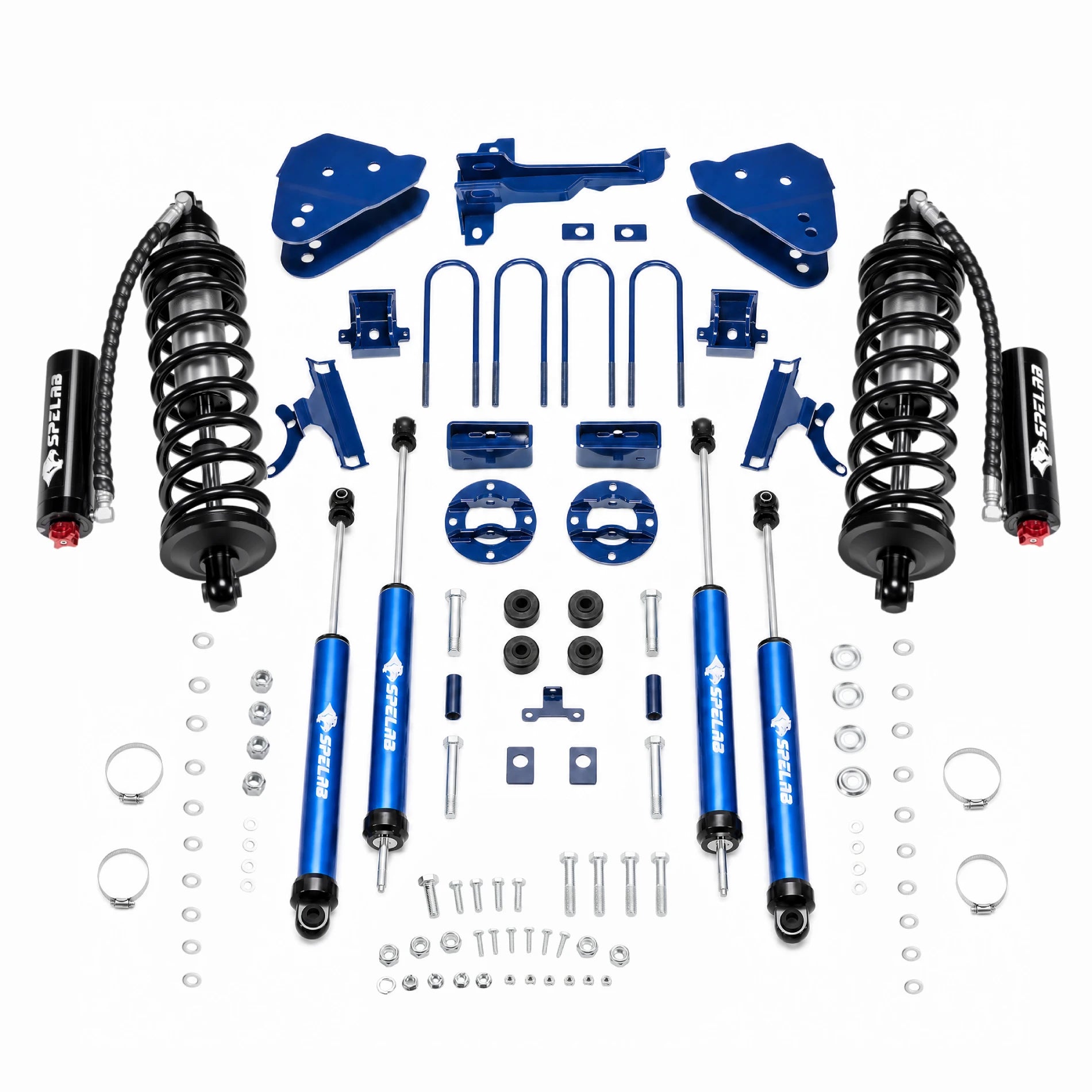

• Premium Coilover Conversion Kit: The ultimate off-road and heavy-hauling upgrade. Replaces the coils with massive 2.5-inch Remote Reservoir Coilovers featuring 8-stage adjustable damping. Dial in a plush ride for the city, or stiffen it up for extreme rock crawling and 5th-wheel towing.

Fitment

• FITS: 2011-2016 Ford F-250 Super Duty 4WD (Diesel Engine Only)

• DOES NOT FIT: Ford F-350 Models

• DOES NOT FIT: Gas Engine Models

• DOES NOT FIT: Dually (DRW) Models

• DOES NOT FIT: Trucks equipped with a 2-piece rear driveshaft (Specifically for Coilover Kit).

Key Features

• Aggressive Stance & Capability

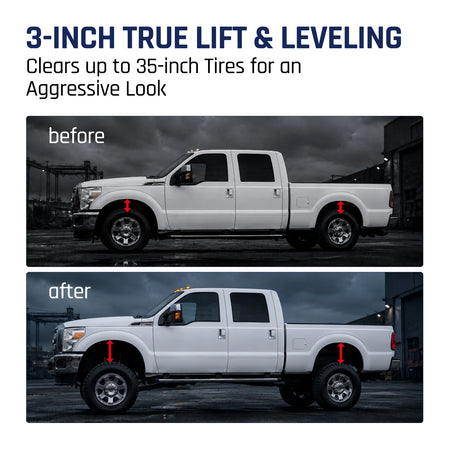

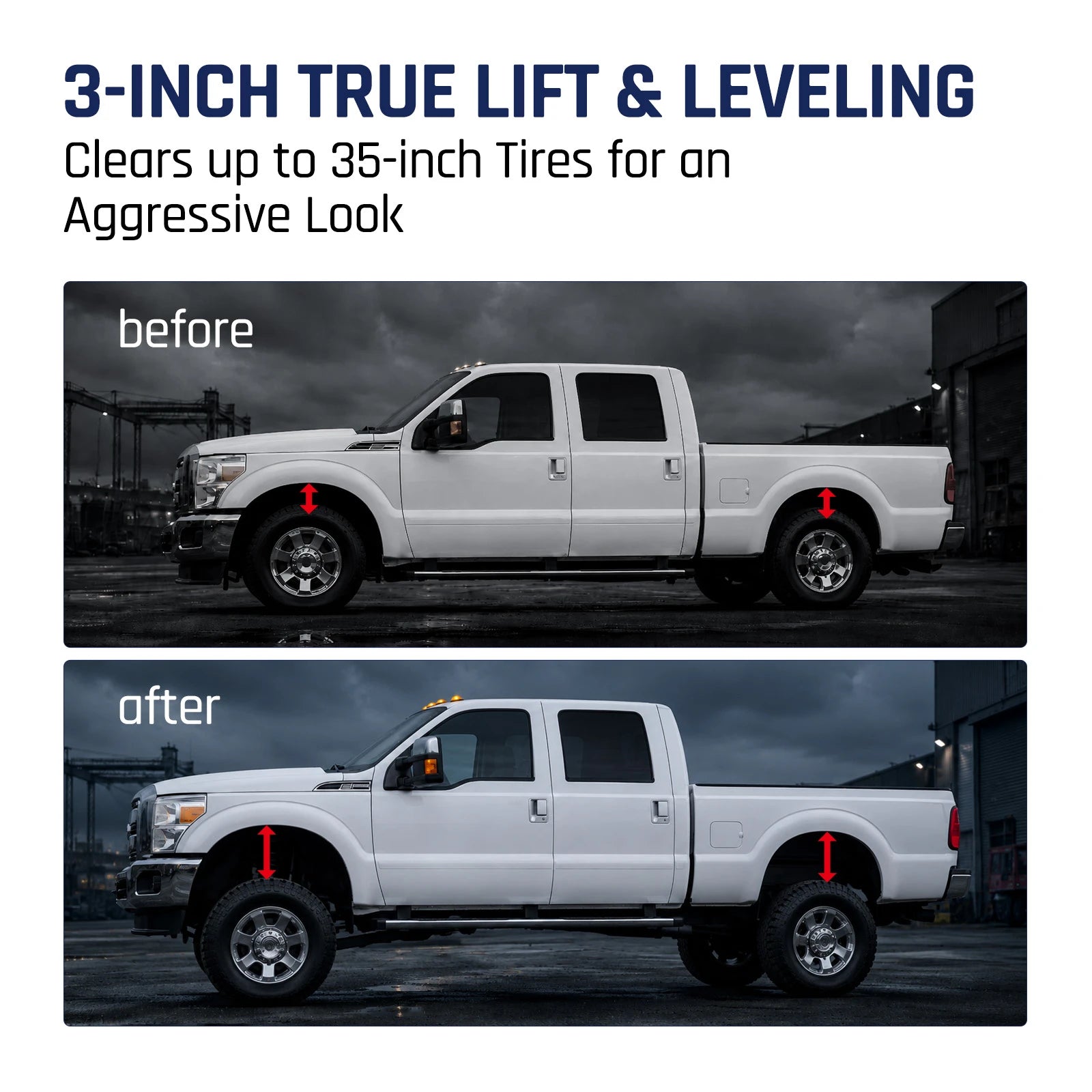

  Raises your F-250 by a true 3 inches, eliminating factory rake and providing the essential ground clearance needed to easily clear 35-inch mud or all-terrain tires without extreme body modifications.

• Choose Your Performance Level (Standard or Premium)

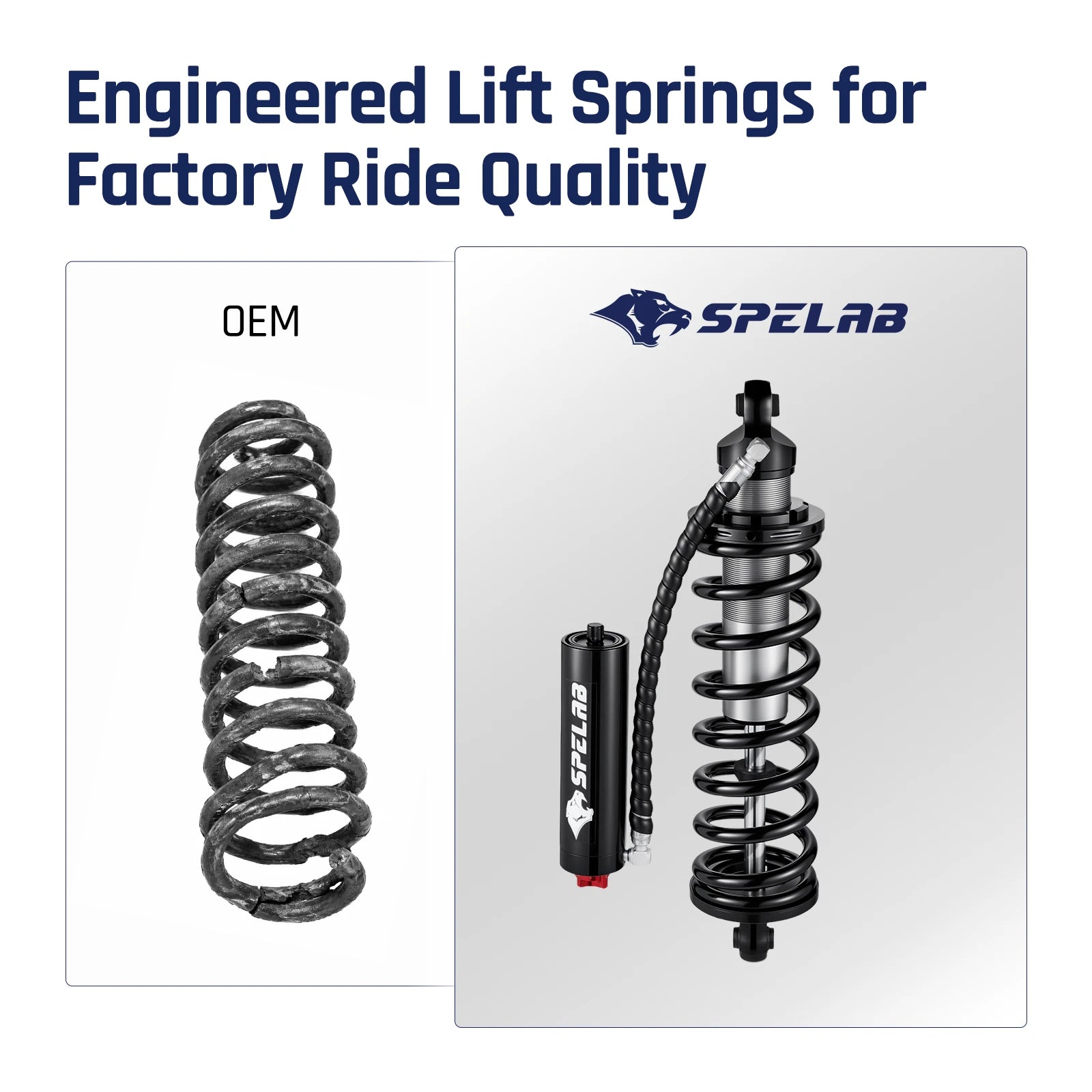

  Select the Standard Coil Springs for a durable, budget-friendly lift that maintains factory ride quality, or upgrade to the Premium Coilover Conversion featuring 2.5" pistons, remote reservoirs, and 8-stage adjustable damping for unmatched heat dissipation and off-road control.

• Factory-Perfect Steering Geometry
  Includes heavy-duty Radius Arm Drop Brackets and a Track Bar Drop Bracket to perfectly correct caster angles and keep your front axle centered. Benefit: Eliminates the "death wobble," steering wander, and uneven tire wear common in cheap lift kits.

• Built for Heavy-Duty Abuse
  Manufactured using ultra-rugged 1/4" thick steel brackets, heavy-duty U-bolts, and fabricated rear lift blocks (infinitely stronger than cast blocks), ensuring your truck remains structurally sound whether you are towing heavy equipment or rock crawling.

• Premium Rear Monotube Shocks included
  Both kits feature upgraded rear monotube shocks that offer superior thermal stability and precise damping control, keeping your rear wheels planted when towing RVs, boats, or hauling heavy payloads.

Product Specifications

Ideal Usage Scenarios:

• Off-Road Exploration (Coilover): Maximum thermal stability for mud, rocks, desert trails, and snow.

• Heavy Towing (Both): Pull RVs, boats, and engineering equipment with a level, stable stance.

• Show Trucks / Daily Drivers (Both): Achieve that aggressive SEMA-style look while retaining a comfortable ride for long road trips and city commuting.

FAQ

Q: Do I need to get an alignment after installing this lift kit?
A: Yes. This is absolutely mandatory. While our drop brackets correct the bulk of the geometry, changing the ride height inherently alters your steering alignment. Failing to get a professional four-wheel alignment immediately after installation will result in an off-center steering wheel, vehicle pulling, and rapid, uneven tire wear.

Q: Will 35-inch tires bolt on without any rubbing?
A: A 35-inch tire will clear, but depending on your exact wheel width and offset, minor trimming is required on the plastic bumper valance or inner fender liner. Always check for clearance at full steering lock and full suspension compression.

Q: Do I need to buy extended brake lines?
A: You must carefully check your factory brake hoses and ABS wiring harnesses during installation. Ensure there is adequate slack when the suspension is at "full droop" (fully extended). Do not allow the lines to pull tight. Rerouting may be necessary.

Q: Is there any post-installation maintenance required?
A: Yes. Because suspension components settle after initial installation, you must re-torque all bolts and U-bolts to factory specifications after the first 500 miles of driving.
