Updated on July 17, 2026.
A Ford Super Duty radiator can last a long time, but mileage alone does not tell the whole story. An F250, F350, F450, or F550 that tows in summer heat, idles on a jobsite, pushes payload near GVWR, or runs through mud and salt-belt winters will age the cooling stack faster than a lightly used highway truck.
Key Takeaways
- Many Ford Super Duty radiators live around 100,000 to 150,000 miles or 8 to 12 years, but towing, idle hours, coolant condition, and airflow matter more than the odometer alone.
- Temperature creep under load, coolant smell, weak heater output, repeated fan roar, and crust near the lower core are reasons to inspect the whole cooling system.
- Do not call the radiator bad until thermostat behavior, fan command, trapped air, coolant chemistry, blocked stack layers, and transmission cooler line seepage have been checked.
- Front-face cleanliness can fool you; chaff, bugs, mud, and jobsite dust can pack between the CAC/intercooler, A/C condenser, transmission cooler, and radiator.
- A higher-capacity radiator makes sense for some tow rigs and work trucks, but only when fitment, shroud seal, cooler connections, and real thermal symptoms line up.
How Long Does a Ford Super Duty Radiator Last?
A maintained Ford Super Duty radiator often lasts about 100,000 to 150,000 miles or 8 to 12 years, but that range can shrink when towing heat, corrosion, poor coolant maintenance, blocked airflow, and pressure cycling stack together.
That range is a planning window, not a promise. A clean highway F250 can age gently. A 6.7L Powerstroke tow rig pulling a fifth-wheel through summer grades may eat up cooling margin much faster, even with similar mileage.
If the truck behaves fine empty but climbs in temperature with a trailer, payload, long idle time, or hot weather, inspect the radiator as part of the entire cooling stack instead of treating it as a single isolated part.
Radiator Lifespan and Failure Clues by Use Case
Super Duty radiator life is shaped by workload, airflow, coolant chemistry, pressure control, and nearby support parts.
| Use Case or Failure Clue | Why It Matters | Common Misread | Best Next Check |
|---|---|---|---|
| Fifth-wheel or gooseneck towing | Coolant temperature, ATF temperature, fan demand, and pressure cycling stay high longer | Assuming any towing heat means the radiator core is bad | Watch coolant temp, ATF temp, fan command, gear selection, and grade/load pattern |
| Jobsite idle and PTO-style work | Idle hours add heat cycles without adding road miles or strong ram-air flow | Judging service life only by odometer mileage | Check idle hours, fan operation, cooling stack debris, and coolant age |
| Salt-belt winter use | Brine and road salt can attack lower fittings, clamps, seams, mounts, and cooler connections | Calling every wet lower-corner stain a radiator tank leak | Inspect lower tank area, transmission cooler line fittings, O-rings, clamps, and residue trails |
| Temperature creep under load | The cooling system may be losing reserve capacity only when the truck works | Replacing the radiator before checking fan control or thermostat operation | Compare coolant temp, IAT, ATF temp, fan command, and thermostat behavior under load |
| Dirty or packed cooling stack | Air may not reach the radiator even if the grille face looks clean | Looking only at the front face and missing debris between layers | Inspect between CAC/intercooler, condenser, transmission cooler, and radiator where accessible |
| Unknown coolant history | Depleted inhibitors, mixed coolant, hard water, or contamination can promote deposits and corrosion | Waiting until coolant looks terrible before servicing it | Verify coolant type, test condition, pressure-test the system, and use a practical flush interval |
Cooling Stack Blockage: The Hidden Super Duty Problem
A Super Duty can look clean from the grille and still have airflow blocked between the charge-air cooler, A/C condenser, transmission cooler, and radiator.
Farm trucks, landscaping rigs, construction pickups, and trucks that tow through bug season can pack grass seed, mud, chaff, flying insects, road film, and jobsite dust between the cooling stack layers. The radiator may be healthy, but it cannot reject heat if the air never reaches it cleanly.
Do not blast the fins with a careless high-pressure stream. Bent fins make airflow worse. A better path is to inspect with light, mirror, or borescope where possible; remove shields or covers as needed; and, depending on the model and access, separate part of the cooling stack for careful cleaning. If the truck has repeated towing heat after a radiator replacement, this inspection belongs near the top of the list.
Do Not Blame the Radiator Too Fast
A Super Duty running warm or losing coolant does not automatically have a bad radiator core, because nearby parts can create the same evidence.
| Symptom | Radiator Could Be Involved | Other Causes To Check | Next Diagnostic Step |
|---|---|---|---|
| Wet lower radiator area | Tank seam, drain, or core seepage | Transmission cooler line quick-connect fitting, O-ring seepage, hose clamp leak, old repair residue | Clean the area, pressure test, trace the highest wet point, then recheck after a heat cycle |
| Runs hot while towing | Restricted core, blocked fins, weak heat rejection | Fan clutch/control issue, thermostat fault, low coolant, trapped air, dirty CAC/condenser layer, high ATF temp | Scan coolant temp, IAT, fan command, fan speed if available, and ATF temp under the same load |
| Fan roars at odd times | Radiator may not be shedding heat | Electronic fan clutch command issue, sensor data problem, A/C pressure demand, calibration/control logic | Compare fan command to coolant temp, IAT, A/C pressure, ATF temp, and ambient temperature |
| Coolant loss with no puddle | Pressure-only seam leak | EGR cooler leak, heater core seep, degas bottle, cap, hose neck, head gasket concern | Pressure test cold and hot; inspect coolant residue before topping off again |
| Weak heater output | Low coolant or internal restriction | Air pocket, heater core restriction, thermostat issue, blend door fault | Verify coolant level, bleed quality, heater hose temperature, and thermostat behavior |
If hose ends are swelling, cracking, turning soft, or leaving clamp-area residue, review the rubber-aging clues before blaming the radiator alone.
When Should You Replace or Upgrade the Radiator?
Replacement makes sense when symptoms, age, coolant condition, and workload show the radiator no longer has enough margin for the truck's job.
A stock, lightly used Super Duty with clean coolant and stable temperatures may only need inspection and service. A tow rig that shows temperature creep under load, crust near the tanks, seepage around lower fittings, or repeated fan demand deserves more aggressive diagnosis. For budgeting, use replacement-cost planning before a hot weekend tow trip turns into a rush repair.
When diagnosis supports replacement, match the radiator to year, engine, cab/chassis configuration, cooler fittings, shroud interface, and fan clearance. A direct-fit Powerstroke radiator is the cleanest path for many Ford diesel owners, while the broader diesel radiator category helps when comparing heavy-duty platforms.
OEM-Style Replacement vs Higher-Capacity Radiator
The right radiator choice depends on duty cycle, confirmed symptoms, fitment, and the health of the rest of the cooling system.
| Option | Best Fit | Advantages | Tradeoffs | Before Ordering |
|---|---|---|---|---|
| Inspect and service existing radiator | No leaks, stable temp, clean coolant, light use | Lowest cost and avoids unnecessary parts swapping | Does not restore a weak, corroded, or internally restricted core | Pressure test, inspect stack layers, test cap, verify coolant condition |
| OEM-style replacement | Stock truck, moderate use, direct repair need | Predictable fit and stock-level cooling performance | May not add margin for heavy towing or hot-climate work | Confirm fittings, shroud fit, engine year, cooler connections, and fan clearance |
| Higher-capacity direct-fit radiator | Tow rig, hot-climate truck, commercial use, repeated heat symptoms | More cooling margin when airflow and support parts are healthy | Needs correct fitment and clean stack airflow to deliver value | Compare core size, mounting points, fan shroud seal, and cooler layout |
| Full cooling-system refresh | High-mileage truck with unknown service history | Addresses cap, hoses, coolant, thermostat checks, fins, and radiator together | More labor and parts cost up front | Plan coolant, cap, hoses, clamps, thermostat checks, and bleed process |
If the truck also has aged lines or heat-related drivetrain complaints, related transmission cooling parts may belong in the inspection plan. For upper coolant-path issues on 6.7L Powerstroke trucks, compare the Powerstroke coolant tube category before calling the radiator the only weak link.
Supporting Parts That Affect Radiator Life
A new radiator will not live its best life if the supporting cooling parts are worn, restricted, leaking, or mismatched.
- Coolant cap: A weak cap lowers boiling margin and can vent early under towing load.
- Degas bottle: Cracks, cap-seat damage, sensor issues, or level changes can mimic radiator trouble.
- Transmission cooler line fittings: Quick-connect fittings and O-rings near the radiator can seep and leave residue that looks like a radiator leak.
- Hoses and tubes: Soft hoses, swollen ends, cracked quick-connects, and routing strain can leak under pressure.
- Thermostat: A thermostat stuck open or closed can create confusing temperature behavior.
- Fan and shroud: Electronic fan clutch command, missing seals, or shroud gaps can reduce low-speed cooling.
- Coolant quality: Wrong coolant, mixed coolant, hard water, or depleted inhibitors can promote deposits and corrosion.
For support parts, a Powerstroke coolant expansion tank or 6.7 Powerstroke radiator hose kit should be matched to the actual failure pattern, not added blindly.
Fitment Checks Before Buying a Super Duty Radiator
Radiator fitment on a Super Duty needs year, engine, chassis, cooler fittings, and shroud layout confirmed before money changes hands.
- Confirm F250, F350, F450, or F550 and whether the truck is pickup or cab-and-chassis.
- Confirm engine and model-year range, especially 6.7L Powerstroke trucks split across 2011-2016 and later layouts.
- Verify transmission cooler line fittings, quick-connect style, O-ring condition, and any integrated cooler connections.
- Check fan shroud fit, mounting tabs, lower support, radiator cap or degas routing, and sensor provisions.
- Inspect intercooler, A/C condenser, transmission cooler, and grille airflow before blaming the radiator.
- Confirm the old radiator is actually the leak or heat issue before ordering parts.

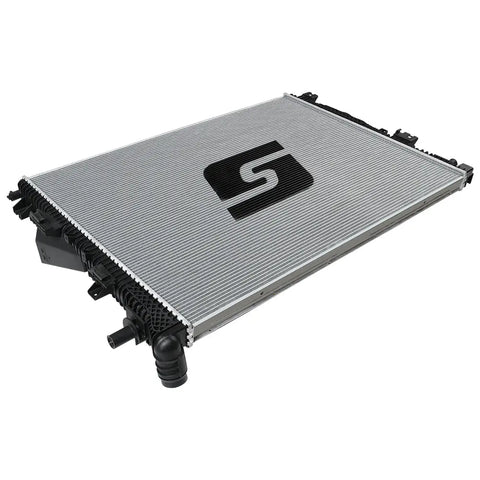

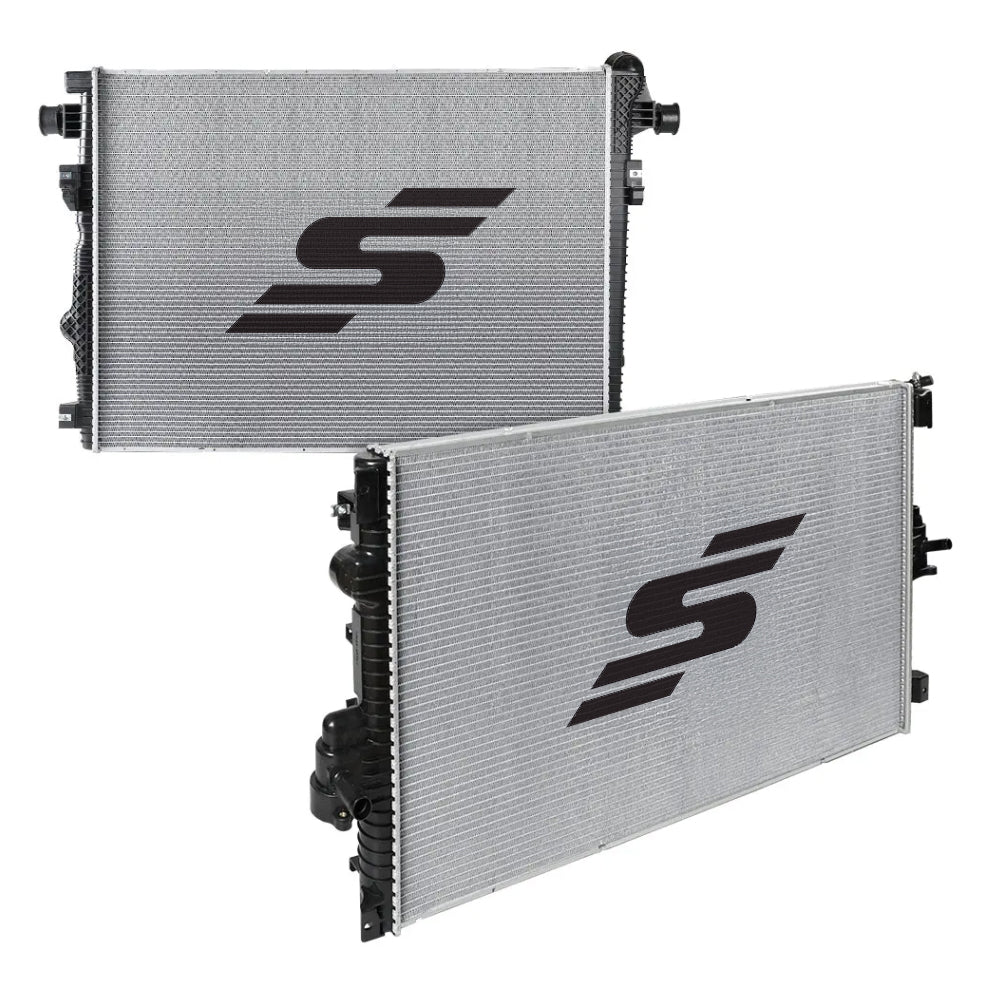

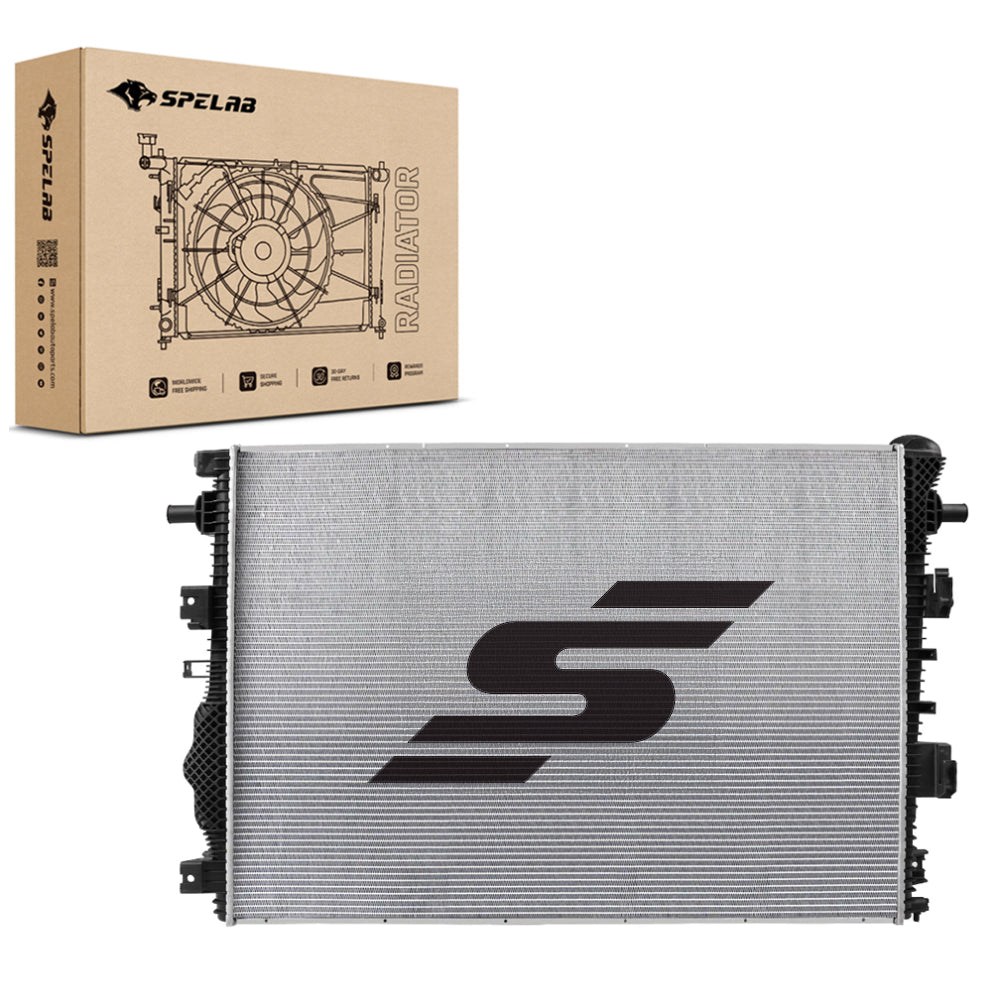

Product fitment examples include the 2011-2016 6.7L Powerstroke radiator and the 2017-2024 6.7L Powerstroke radiator. Use those pages to verify application details, not as a shortcut around checking the truck in front of you.
Service Note
Radiator replacement touches coolant, pressure, hot surfaces, fan components, and sometimes transmission cooler connections, so treat it like a full cooling-system service instead of a simple parts swap.
Final Advice
A Super Duty radiator does not fail by calendar alone; it fails when heat, pressure, corrosion, airflow loss, vibration, and poor coolant maintenance finally remove the system's safety margin.
If your F250, F350, F450, or F550 tows, hauls, idles, or works in ugly weather, watch the cooling system like you watch tires and brakes. Check coolant condition, inspect the stack, pressure-test leaks, verify fan control, and trace cooler-line seepage before a long trip. A clean diagnosis beats a hot shoulder-of-the-road repair every time.
FAQ
Q: How long does a Ford F250 radiator usually last?
A: Many F250 radiators last around 100,000 to 150,000 miles or 8 to 12 years. Towing, heat, coolant neglect, corrosion, fan issues, and dirty stack layers can shorten that range.
Q: Does towing shorten radiator life on a Super Duty?
A: Yes. Heavy towing raises coolant temperature, transmission heat, fan demand, and pressure cycling, so a tow rig usually needs closer cooling-system inspection than a light-use truck.
Q: Can transmission cooler line seepage look like a radiator leak?
A: Yes. Quick-connect fittings, O-rings, and cooler line connections near the radiator can seep and leave residue near the lower core. Clean, pressure test, and trace the highest wet point.
Q: Can a dirty cooling stack make a good radiator run hot?
A: Yes. Chaff, bugs, mud, dust, and oil film between the CAC/intercooler, condenser, transmission cooler, and radiator can block airflow even when the grille face looks clean.
Q: Should I replace my Super Duty radiator at 120,000 miles?
A: Not automatically. Around 120,000 miles is a good inspection point, especially on tow rigs, but replacement should be based on condition, symptoms, coolant history, and workload.
Q: Is a higher-capacity radiator always better?
A: No. It helps when the truck needs more cooling margin, but fitment, airflow, fan shroud seal, coolant quality, thermostat function, and real symptoms still matter.
Q: What should I check before ordering a Super Duty radiator?
A: Confirm year, engine, F250/F350/F450/F550 model, pickup vs cab-and-chassis, cooler fittings, shroud layout, mounting tabs, hose routing, fan operation, and whether the old radiator is actually the cause.
