If you already see seepage, metal fuzz on the magnet, dark gear oil, or a wet cover flange, use this as a maintenance decision first. The early warning signs matter more than whether the cover looks impressive in a product photo.
Stock Steel vs Aluminum vs Cast Iron: What Actually Changes?
Stamped steel is cheap, thin, and flexible. That is not automatically bad. It can survive daily driving for a long time when the truck is stock and the fluid is changed on schedule. The problem starts when heat, load, corrosion, and repeated service cycles stack up.
Finned aluminum covers are popular because aluminum moves heat away from the gear oil better than steel, and the fins add outside surface area. That helps when the axle is working hard for a long time, such as towing up grades, hauling payload, or running larger tires that add leverage to the drivetrain.
Cast iron or very thick steel covers can be useful for impact-heavy crawling, but they are heavy and not usually the best cooling choice for a road-going tow truck. For most pickup owners, the practical choice is a properly fitted aluminum differential cover with a strong flange, cooling fins, drain and fill access, and a durable coating.
The Biggest Buying Mistake: Guessing the Axle
Do not buy a differential cover from the truck model alone. The same truck name can use different axles depending on year, trim, payload package, front or rear axle, engine, and 2WD or 4WD setup.
Count the bolts, but do not stop there. Check the axle tag, door sticker, housing shape, ring gear size, and whether you are working on the front or rear axle. On some Ford F-150 trucks, for example, two rear axles can have similar bolt counts but different cover shapes. That is exactly why F-150 axle identification deserves a few minutes before ordering.
The same rule applies to Dana and AAM axles. A Dana 35, Dana 44, Dana 60, Dana 80, AAM 9.25, AAM 11.5, and Ford Sterling rear axle can all sit under trucks that look similar from ten feet away. Ring gear size, cover pattern, depth, fill location, and internal clearance can still be different.
| Truck / Axle Family | Relevant SPELAB Page | Best Use Case | Fitment Warning |
|---|---|---|---|
| General truck, SUV, front and rear axle shopping | truck differential covers | Start here when the exact axle still needs sorting | Do not assume every cover fits every axle in the same vehicle family |

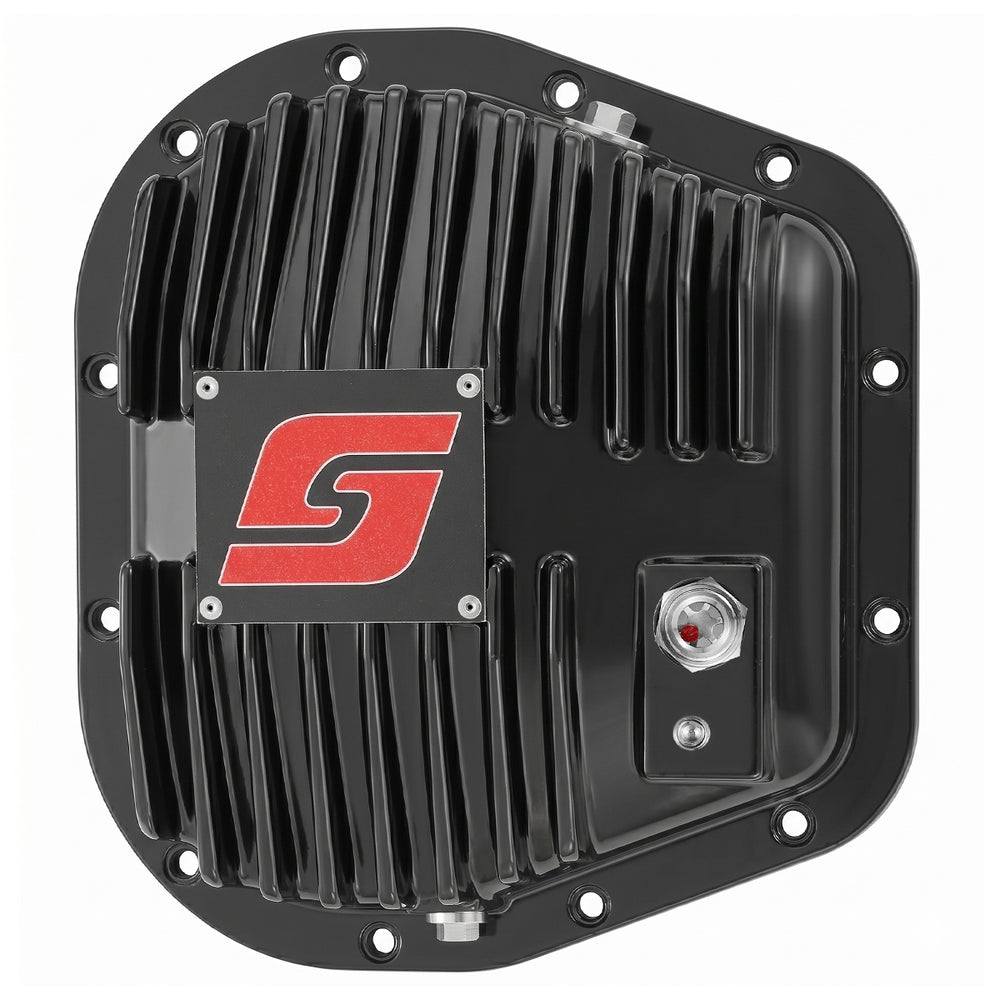

| Ford F-150 / Expedition 9.75 rear axle | Ford 9.75 12-bolt rear axle cover page | F-150 owners towing, hauling, or servicing a 9.75 rear axle | Confirm 9.75 housing shape before buying |

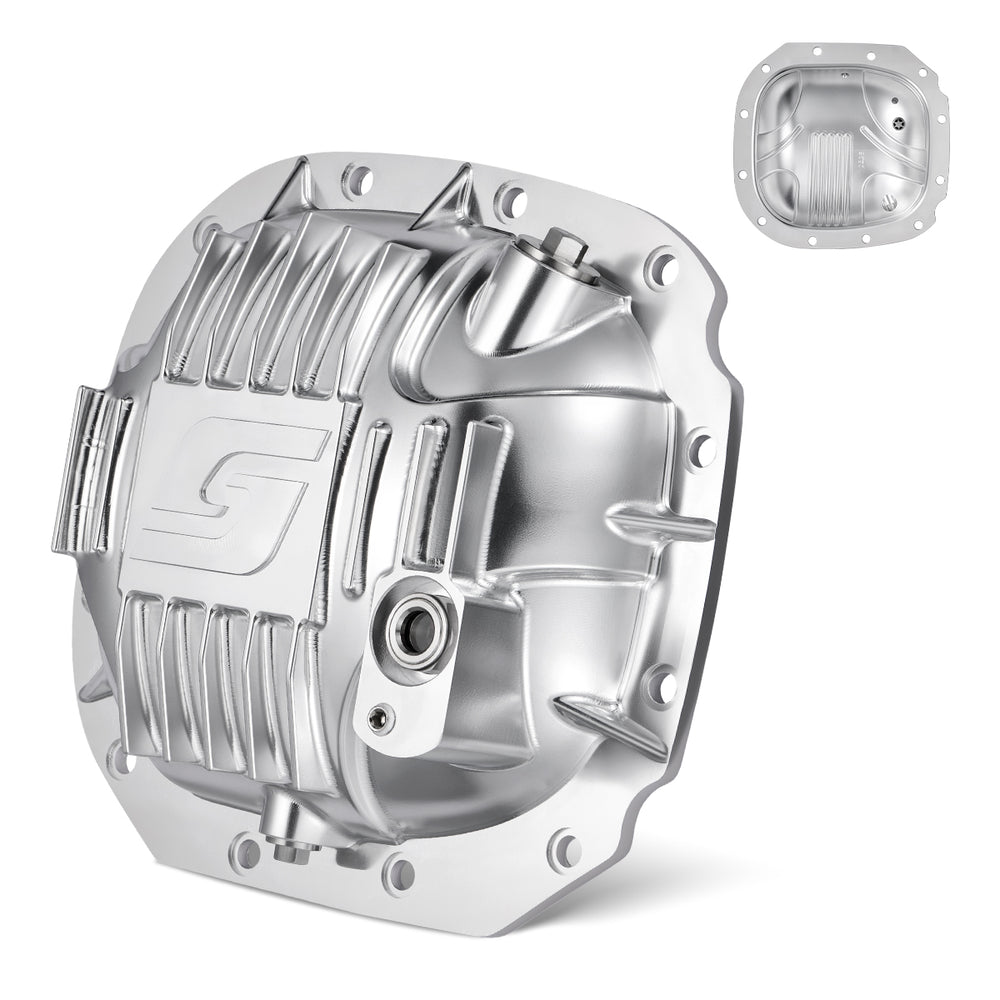

| Ford 8.8 10-bolt rear axle | Ford 8.8 10-bolt rear differential cover | Ford 8.8 applications where a 10-bolt cover is correct | Not the same as later 12-bolt Super 8.8 layouts |
| Ford Super Duty 10.25 / 10.5 rear axle | Ford Super Duty differential cover options | F-250 and F-350 tow rigs that work the rear axle hard | Watch late-model Super Duty trucks carefully: some use Dana M275 or M300 rear axles instead of the classic Sterling 10.5. Check the axle tag before ordering. |

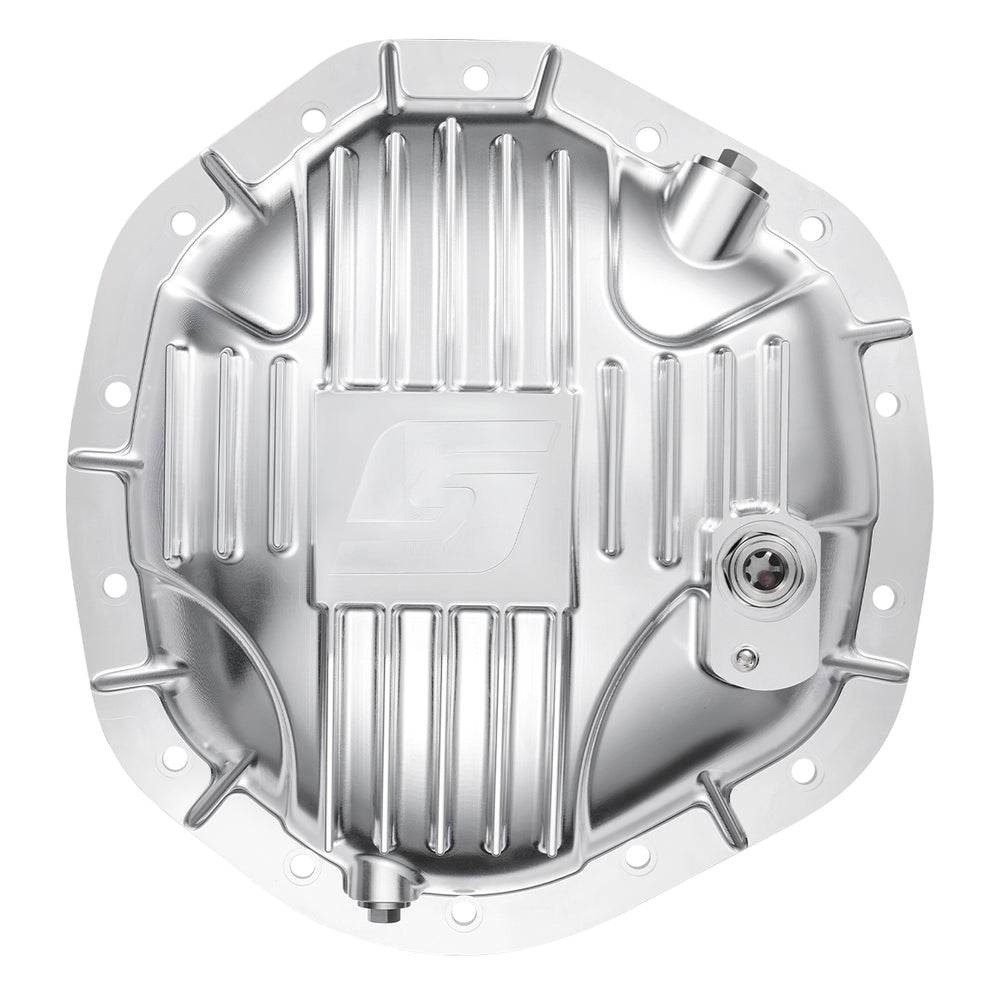

| 2020-2025 GM and 2019-2024 Ram AAM 11.5 / 12 14-bolt rear axle | AAM 11.5 / 12 14-bolt rear axle cover page | Late-model HD trucks with heavy towing or work use | Verify rear axle, not front axle, before ordering |
| Ram / Cummins differential cover shopping | Cummins differential covers | Ram 2500/3500 owners comparing AAM and Dana options | Front and rear covers are not interchangeable |
| Chevy / GMC Duramax differential cover shopping | Duramax differential covers | Silverado and Sierra HD trucks towing under sustained load | Confirm year range and axle size before matching a cover |
The Features That Matter in Real Use
1. A Flat, Thick Sealing Flange
A cover that cannot seal correctly is not an upgrade. Look for a machined sealing surface and a flange thick enough to resist warping. Many repeat leaks are caused by distorted stock covers, over-tightened bolts, or leftover RTV, not by the gear oil itself.
2. External Fins, Not Just Extra Capacity
Extra gear oil can slow heat saturation, but more oil alone does not magically cool the axle. Fins matter because they give air more surface area to carry heat away. A smooth high-capacity box can still hold heat if it has poor airflow and little surface area.
3. Drain Plug, Fill Port, and Magnetic Plug
This is where daily ownership changes. A drain plug makes service cleaner. A magnetic drain plug gives you a quick look at normal wear metal before it becomes a bearing problem. A good fill port or sight glass can make fluid checks easier, but the fill level still needs to match the axle requirement.
4. Coating for Salt, Mud, and Road Film
Raw aluminum may look good when it is new, but road salt, mud, and winter chemicals can attack the surface over time. Powder coating or another durable finish helps protect the cover and keeps the sealing area cleaner for future service.
5. Clearance Around Real Truck Hardware
Deeper covers can interfere with spare tires, sway bars, track bars, exhaust routing, or suspension parts on some builds. A lifted truck may have more visual room but still have a different axle angle. Before ordering, measure the tightest point around the stock cover.
John Lee's Shop-Floor Checks Before You Install
Here is the part most buying guides skip: a good cover can still leak if the install is sloppy. I have seen owners blame a new cover when the real issue was an old RTV ridge, a gouged housing face, or bolts tightened like lug nuts.
- Break the fill plug loose first. Never drain the axle before confirming you can refill it. A stuck fill plug turns a simple service into a truck that cannot be driven.
- Clean the housing face completely. Old RTV, dirt, and oil film can create a leak path. Use patience and avoid gouging the sealing surface.
- Inspect the old cover bolt holes. If the stamped cover is dimpled around the holes, it may have been over-tightened while someone tried to stop a leak.
- Use the correct seal method. Some covers use a gasket, some use RTV, and some can use either depending on the axle and cover design. This RTV-versus-gasket choice is worth settling before the truck is open. If a reusable LubeLocker gasket is available for your axle and cover, many DIY owners prefer it because it avoids scraping cured RTV during the next service.
- Tighten in a pattern. Snug the bolts evenly and follow the correct torque guidance for the cover and axle. Over-tightening can create the leak you were trying to fix.
- Fill with the right oil. Use the gear oil viscosity and limited-slip friction modifier required for the axle and differential type. Do not fill by internet rumor.
- Recheck after a heat cycle. After the first drive, inspect for seepage around the flange, drain plug, fill port, and sensor or sight-glass areas if equipped.
Spend or Save: When to Keep Stock and When to Upgrade
Not every truck needs an aftermarket cover. If the truck is stock, stays in town, does not tow, has clean gear oil, and the factory cover is dry and straight, save the money and service the fluid. A school-run pickup does not need a trophy axle cover.
An upgraded differential cover becomes easier to justify when the truck works for a living: fifth-wheel towing, hotshot loads, construction trailers, farm use, oversized tires, frequent mountain grades, repeated gear oil darkening, or seepage around a warped steel cover. For a high-mileage diesel pickup, this is not about horsepower. It is about keeping gear oil stable, making fluid service easier, catching wear metal earlier, and reducing the chance that a small leak turns into a bearing or ring-and-pinion repair.
FAQ
How do I know which differential cover fits my truck?
Identify the axle, not just the truck model. Check bolt count, housing shape, axle tag, door sticker, front versus rear location, and year range. If two axles look similar, compare the product fitment notes before ordering.
Is an aluminum differential cover better than steel?
For most towing and street-use trucks, a finned aluminum cover is usually the better balance of heat transfer, rigidity, corrosion resistance, and service access. Steel can still work for basic daily driving, and very heavy steel or iron covers may appeal to impact-focused off-road users.
Does a differential cover add horsepower?
No. A differential cover does not add engine power. Its job is axle protection, gear oil cooling support, sealing reliability, and easier maintenance.
Will a larger cover make my differential run cooler?
It can help when the design includes useful surface area, fins, and airflow. Extra oil capacity alone mainly slows heat buildup. Cooling performance depends on material, fin design, vehicle speed, load, ambient temperature, and oil condition.
Should I use RTV or a gasket?
Follow the cover manufacturer's instructions and the axle service requirements. RTV can seal well when surfaces are clean and dry. A quality reusable gasket, including LubeLocker-style gaskets where available, can be cleaner for repeat service. The wrong seal method or poor surface prep is a common reason new covers leak.
Why is my new differential cover leaking?
The usual causes are old RTV left on the housing, an oily sealing surface, uneven bolt torque, over-tightening, a damaged gasket, wrong sealant cure time, or a fill/drain plug that was not sealed correctly.
How much gear oil do I add after installing a new cover?
Use the axle's required fill method and the cover manufacturer's guidance. Do not simply add oil based on extra capacity claims. Overfilling can cause foaming, venting, and leaks.
Do magnetic drain plugs really matter?
Yes, they are useful. A magnetic plug catches fine ferrous wear particles and gives you a quick health check during service. A little gray fuzz can be normal. Larger chunks or heavy metal buildup deserve inspection.
The Smart Buyer's Takeaway
The right differential cover is the one that matches your axle, your truck use, and your maintenance habits. For a light-duty commuter, the factory cover may be enough. For a truck that tows, works, runs larger tires, sees off-road impact, or already has heat-related gear oil symptoms, a finned aluminum cover with proper service features is a practical upgrade.
Before you spend money, crawl under the truck with a light. Identify the axle, check clearance, inspect for leaks, make sure the fill plug can move, and decide whether you need cooling, strength, easier service, or all three. That five-minute check prevents most bad orders and most garage-floor regrets.
