Wastegate Complete Guide

Key Takeaways

Choose a wastegate around the turbo system's minimum boost target and exhaust routing, then verify control under load.

• Internal and external wastegates describe valve location; single-port and dual-port describe actuator pressure connections.
• A low boost target can require substantial exhaust bypass flow, even on a modest-power build.
• Valve diameter and spring pressure answer different questions: flow capacity versus actuator force.
• Variable-geometry turbo control requires its own diagnosis; an external valve is not a universal diesel repair.
• Confirm flange geometry, control plumbing, discharge routing, and the supplied spring before ordering.

Does Your Turbo System Need an External Wastegate?

An external wastegate suits a turbo system designed for a separate exhaust-bypass valve; a healthy factory boost-control system does not automatically need conversion.

A 6.7L Cummins fixed-geometry conversion or a custom Power Stroke or Duramax compound build can create a real need for external bypass control. Identify the actual turbine housing and exhaust layout first. A T4 mounting flange alone does not tell you whether the housing has an internal wastegate.

For a towing truck that recently lost boost, distinguish a repair from a planned turbo conversion. The conversion requires coordinated manifold, control, and calibration decisions rather than simply adding a valve to the existing system.

Internal, External, and Dual-Port: What Actually Changes?

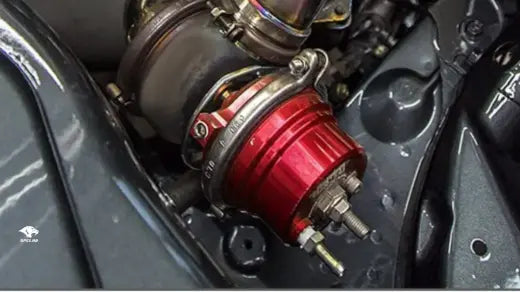

An internal wastegate uses a bypass valve in the turbine housing, while an external wastegate uses a separate valve connected to the exhaust manifold.

Internal packaging saves space and can provide adequate control for the intended turbo system. An external design gives the builder more freedom over valve size and routing, but requires a suitable manifold connection and a safe discharge path.

Pressure ports are not exhaust passages

A dual-port pneumatic actuator provides pressure connections to opposite sides of the diaphragm or piston; two control ports do not mean two exhaust valves.

For a conventional bottom-port-only external-gate setup, connect the approved boost reference to the opening chamber and leave the upper chamber vented as the instructions specify. With multiple fittings into one chamber, the manual may require blanking duplicate ports while preserving the required vent path. Use the port diagram rather than judging a fitting by its height on the housing.

Upper-chamber pressure can help hold the valve closed in an approved dual-port control system. Adding a three-port or four-port solenoid does not remove the need to match the valve, controller, and plumbing arrangement.

Separate twin-scroll manifold branches may need separate bypass paths to preserve pulse separation. Whether one valve or two valves makes sense depends on how the branches connect.

Diaphragm versus piston-style actuation

A diaphragm actuator uses a flexible membrane to separate pressure chambers; a piston actuator uses a moving piston and its sealing arrangement.

The SPELAB Gen3 44mm and 60mm models use piston-style actuation. A piston actuator uses a moving piston and seals in place of a flexing diaphragm. Keep the actuator clear of direct radiant exhaust heat, and inspect serviceable seals according to the product's maintenance instructions.

How Do You Choose Between 38mm, 44mm, and 60mm?

Wastegate sizing depends on required bypass flow and the valve's access to exhaust flow, not a universal horsepower-to-diameter chart.

Lower boost can require more bypass flow. For the same engine and turbo combination, a lower target often means routing more exhaust around the turbine. A high boost target does not automatically justify a smaller valve: turbine efficiency, engine flow, and manifold routing still matter.

Compare external wastegate kits by valve configuration, flange dimensions, control ports, and documented flow performance. For a two-bolt flange, match bolt spacing and the specified gasket or sealing face. For a V-band flange, match the clamp profile, mating register, and valve-seat arrangement. Do not assign the connection type from diameter alone.

Write down engine displacement, turbo and turbine-housing identification, minimum and maximum boost targets, manifold layout, and available mounting space. Those inputs let the builder evaluate bypass demand; a universal horsepower range for 38mm, 44mm, or 60mm would hide the differences between builds.

Does a 9 PSI Spring Mean the Engine Will Always Make 9 PSI?

A 9 PSI spring identifies a nominal actuator setting; measured base boost establishes the starting point for controller setup.

Select a spring compatible with the lowest intended boost setting and the controller's supported range. Exhaust pressure, pressure-reference location, and actuator geometry affect the base boost the engine actually reaches.

For a conventional spring-and-boost-reference setup, a controller typically raises boost above the mechanical base setting; it cannot reliably turn an overly stiff spring into a lower base-pressure configuration. Advanced dual-port systems require their own control strategy and ratings.

1. Measure the starting point. Use the manufacturer's baseline plumbing and controller setting to record actual boost under a controlled test load.
2. Increase the target in planned steps. Log boost response and controller command. Compare the result with the intended target at the same engine speed and load.
3. Investigate high-rpm falloff. Check charge-air integrity, pressure supply to the actuator, and premature valve opening before increasing duty cycle or changing springs.

For a hypothetical 9 PSI base setting and an 18 PSI target, start by checking whether the controller supports that adjustment range. Choose a different spring or approved dual-port arrangement only after identifying the limit in the existing setup.

Have the calibrator establish the safe target and protection limits for the engine, fuel system, and drivetrain. A change that works during a short acceleration run may behave differently during sustained towing or repeated track laps.

Why Does Exhaust Drive Pressure Matter on a Diesel Build?

Exhaust drive pressure is measured upstream of the turbine and helps evaluate how strongly the exhaust system loads the engine and turbocharger.

Record drive pressure alongside manifold boost, engine speed, load, and exhaust gas temperature (EGT). For comparisons, identify both measurement locations and state whether pressures are gauge or absolute; mixing conventions produces a misleading ratio.

Use a known, validated configuration as the starting baseline, then compare drive pressure at matched boost, engine speed, and load. Rising drive pressure without a useful increase in boost can point toward a turbine-stage restriction. Select the acceptable range with the builder using the engine, turbine, valvetrain, and calibration limits.

In a conventional serial diesel compound layout, a high-pressure-turbine bypass routes exhaust around the smaller manifold turbine and rejoins the intermediate hot-pipe before the larger low-pressure turbine. The bypassed exhaust therefore still supplies energy to the low-pressure stage.

An open atmospheric dump at that high-pressure bypass removes exhaust flow from the downstream turbine. Keep the high-pressure bypass distinct from any separate low-pressure-stage wastegate, and follow the actual system routing rather than treating every compound gate as the same connection.

Is the Problem Boost Creep, a Spike, or Low Boost?

Boost creep is a sustained rise in boost as engine speed and load increase; a brief overshoot and persistent low boost require different checks.

Diagnose boost-control faults with the recorded operating conditions, not only the peak number on a gauge. When comparing manifold absolute pressure with gauge boost, account for ambient pressure and keep the units consistent.

For low boost with hissing or oily connection marks, check charge-air leaks before increasing controller output. For shaft damage or abnormal mechanical noise, investigate turbocharger failure causes separately from wastegate sizing.

What Must Be Right Before the First Loaded Test?

External wastegate installation requires a suitable manifold takeoff, correct pressure plumbing, secure mounting, and controlled verification under load.

1. Document the hardware. Identify the turbo, manifold branches, valve model, installed spring, controller, and pressure-source location.
2. Confirm the mechanical connection. Match flange dimensions and sealing geometry. Use a smooth, flow-aligned takeoff, with about 45 degrees as a layout starting point. Avoid an abrupt 90-degree side branch that limits the valve's access to exhaust flow.
3. Check the valve seat before clamping. If the design uses a separate fire ring or removable seat, install the specified part in the correct orientation. A missing or misaligned seat can leave a bypass leak even when the actuator closes.
4. Plan heat and discharge clearance. Keep the actuator, hoses, wiring, brake lines, and fuel lines away from damaging heat. Route discharged exhaust away from occupants and vulnerable components.
5. Connect the specified control ports. Follow the valve and controller diagrams, including unused-port treatment. Do not cap a vented actuator chamber by guesswork.
6. Check movement and sealing. Use the manufacturer's regulated-pressure procedure. Verify valve travel, linkage freedom where fitted, and secure connections before running the engine.
7. Verify the baseline under controlled load. Establish the mechanical or approved baseline with the calibrator, then increase the target in planned stages while logging actual boost and relevant engine data.

Validate boost control on a suitable dynamometer or controlled test facility, not by free-revving the engine. Stop if boost exceeds the planned limit, control becomes unstable, or a connection leaks. Never disconnect the pressure reference as an improvised high-boost test.

Use the exact product's torque values, spring-change procedure, and pressure limits. A spring-loaded cap can release stored energy during disassembly; a generic tool list is not a substitute for the valve's instructions.

Road-use boundary: Preserve required emissions equipment and follow applicable noise and emissions rules. An open dump tube or a competition label does not establish road-use approval.

During service, inspect pressure hoses, mounting joints, and heat-exposed connections. If boost behavior changes, log the symptom and test valve operation before altering the spring or tune.

Frequently Asked Questions

Wastegate size, spring pressure, and controller plumbing must work together to maintain the intended boost target.

Is a larger wastegate always better?

A larger wastegate is useful when the turbo system needs more bypass capacity. Choose valve size with the minimum boost target, manifold flow path, and available installation space.

Does a dual-port wastegate have two exhaust outlets?

Dual-port commonly describes actuator pressure connections, not two exhaust outlets or two valves. Identify each port from the manufacturer's plumbing diagram.

Can a boost controller lower boost below the spring setting?

A conventional spring-and-boost-reference arrangement typically sets a mechanical base boost that the controller raises. Choose the spring for the lowest intended setting and use the controller's approved configuration.

Can an external wastegate fix boost creep?

An external wastegate can resolve insufficient bypass capacity when the valve has adequate flow access and receives the correct control signal. A poor manifold takeoff can still cause creep with a larger valve.

Does a diesel pickup with a VGT need an external wastegate?

A factory VGT diesel pickup does not routinely need an external wastegate. Diagnose vane control, actuator operation, and charge-air integrity before planning a custom turbo conversion.

Where should a high-pressure wastegate discharge in a compound diesel system?

In a conventional serial compound layout, the high-pressure-turbine bypass rejoins the intermediate hot-pipe upstream of the low-pressure turbine. Routing that bypass to atmosphere removes exhaust flow that would otherwise drive the downstream turbine.

Can I select a replacement using only the valve diameter?

Valve diameter alone is insufficient for replacement fitment. Match flange geometry, actuator clearance, control-port layout, spring configuration, and the controller's requirements.
