Quick Answer: A diesel fuel pressure regulator—often called the FPR, FCA, MPROP, or VCV depending on the engine—controls how much fuel the high-pressure pump can send to the rail. Common diesel fuel pressure regulator symptoms include rough idle, hard starts, surging, black smoke, limp mode, fuel knock, fuel dilution, and rail-pressure codes such as P0087 or P0088.
The catch is that those same symptoms can also come from a clogged fuel filter, weak lift pump, bad rail pressure sensor, leaking injector, pressure relief valve issue, wiring fault, or CP4 pump contamination. Do not throw parts at the truck until you compare commanded rail pressure against actual rail pressure with a scan tool.
- The FPR / FCA / MPROP / VCV meters fuel going into the high-pressure pump on many common-rail diesel systems.
- A bad regulator can cause low rail pressure, pressure spikes, unstable idle, limp mode, hard starts, or fuel knock.
- P0087 or P0088 does not automatically prove the regulator is bad. Filters, lift pump supply, sensors, injectors, wiring, and PRV issues must be checked.
- CP4-equipped trucks need extra caution. Metal debris on a regulator screen can be an early warning of pump wear.
- Common-rail fuel pressure is dangerous. Never loosen high-pressure lines or check leaks with your hand while the system is pressurized.
Rough idle? Long crank? Black smoke? Sudden limp mode while towing? The fuel pressure regulator might be part of the problem—but it should not be the first and only part you blame. This guide explains how the regulator works, how to read diesel fuel pressure regulator symptoms, what trouble codes matter, and how to diagnose the issue on Cummins, Duramax, and Powerstroke diesel engines.
What Does a Diesel Fuel Pressure Regulator Do?
On a modern common-rail diesel, the engine control module constantly tries to match desired rail pressure with actual rail pressure. The regulator, metering valve, or actuator helps control that pressure by managing how much fuel enters the high-pressure pump.
Different platforms use different names:
- FPR: Fuel Pressure Regulator
- FCA: Fuel Control Actuator, common on many Cummins CP3 systems
- MPROP: Metering proportional valve, often used in Bosch common-rail discussions
- VCV: Volume Control Valve, used on some Ford / Bosch-style systems
- PCV: Pressure Control Valve, used on some systems to control rail-side pressure behavior
The exact name and location vary by engine, but the job is the same: keep fuel delivery controlled so the injectors receive the pressure the ECU is asking for. For related pumps, rails, and delivery parts, compare SPELAB diesel fuel system parts before replacing random components.
| Stage | What Happens | Why It Matters |
|---|---|---|
| Fuel tank | Stores diesel fuel | Contamination starts here if water, dirt, or rust enters the tank |
| Lift pump and filters | Supply clean low-pressure fuel to the high-pressure pump | A weak lift pump or plugged filter can mimic a bad regulator |
| FPR / FCA / MPROP / VCV | Meters fuel entering the high-pressure pump | Unstable metering causes rail pressure mismatch |
| CP3 / CP4 pump | Builds high pressure for the common rail | Pump wear or metal debris can damage the regulator and injectors |
| Fuel rail and injectors | Store and deliver high-pressure fuel for injection | Leaks, sensor issues, or injector return problems can look like regulator failure |
Diesel Rail Pressure: Why This Small Part Matters
Gas engines may run around 40–60 PSI in many traditional port-injection systems. A modern diesel common-rail system operates at many thousands of PSI, and under heavy load some platforms can reach the mid-to-high 20,000 PSI range. That is why a small metering issue can turn into a big drivability problem.
Never crack open high-pressure fuel lines, touch suspected leaks with your hand, or work around the rail while the system is pressurized. Common-rail fuel can penetrate skin and cause serious injury. Use a scan tool and proper service procedures instead of guessing with live fuel pressure.
Normal Diesel Fuel Rail Pressure Reference
Every engine has its own exact specification, but these broad ranges help explain the scale of the system:
| Operating Condition | Typical Rail Pressure Range | What to Watch |
|---|---|---|
| Idle | Roughly 4,000–8,000 PSI | Actual pressure should stay stable instead of hunting up and down |
| Cruising | Roughly 8,000–18,000 PSI | Pressure should follow throttle load smoothly |
| Heavy load / towing | Can rise into the 20,000+ PSI range on many modern trucks | Large actual-vs-commanded gaps can trigger limp mode |
Do not diagnose by pressure number alone. The key is whether actual rail pressure follows commanded rail pressure under the condition where the symptom happens.
Bad Fuel Pressure Regulator Symptoms at a Glance
The most common diesel fuel pressure regulator symptoms are not random. They usually show up when the ECU commands one rail pressure number and the fuel system delivers another. If these bad fuel pressure regulator symptoms appear only under towing load or hard throttle, pay extra attention to supply restriction, injector return, and pump health before blaming the regulator alone.
| Symptom | What May Be Happening | Severity |
|---|---|---|
| Rough idle / lope | Fuel metering is unstable at low demand | Medium |
| Hard start or long crank | Rail pressure is slow to build or bleeds off | High |
| Black smoke | Possible over-fueling, poor atomization, air-side issue, or injector problem | High |
| Loss of power / limp mode | Actual rail pressure does not match commanded rail pressure | Critical |
| Fuel in oil | Possible injector, pump, or internal fuel leak issue | Severe |
| Fuel knock / metallic clatter | Possible pressure spike or poor injection control | Engine damage risk |
| No-start | Rail pressure cannot reach minimum injection threshold | Critical |
How the Symptoms Feel in a Real Truck
A bad FCA or MPROP does not always fail cleanly. Sometimes the truck starts fine cold, idles rough at a stoplight, then falls flat only when towing up a grade. Sometimes it runs perfectly empty but sets P0087 when rail pressure demand jumps under load. Sometimes black smoke shows up because fueling and air are no longer matched cleanly.
Use the symptom pattern, not just the symptom name. Rough idle points you toward low-demand control. Limp mode under load points you toward supply volume, commanded-vs-actual rail pressure, injector return, or pump health. Fuel in oil is serious enough to stop driving and investigate before the repair bill grows.
Common Trouble Codes Related to Fuel Pressure Control
| Code | Meaning | What to Check Before Replacing the Regulator |
|---|---|---|
| P0087 | Fuel rail pressure too low | Fuel filter, lift pump, air in fuel, injector return, CP4 debris, FCA command |
| P0088 | Fuel rail pressure too high | Sticking regulator, sensor reading, wiring, rail pressure control strategy |
| P0093 | Large fuel leak detected | External leaks, injector return, rail relief valve, low-side supply |
| P0191 | Fuel rail pressure sensor performance | Rail pressure sensor, connector, wiring, pressure mismatch |
| P0193 | Fuel rail pressure sensor circuit high | Sensor circuit, connector corrosion, wiring damage |
| P2293 or similar rail pressure performance codes | Fuel pressure regulator or rail pressure performance issue | Commanded vs actual pressure, filter restriction, pump supply, regulator response |
These codes point you toward the fuel pressure control system. They do not prove the FPR, FCA, MPROP, or VCV is bad by themselves. For a broader non-diesel comparison, SPELAB’s symptom overlap guide explains why fuel-pressure faults can look similar across very different fuel systems.
Do Not Misdiagnose It: FPR vs Filter vs Sensor vs Injector
This is where a lot of driveway diagnosis goes wrong. A truck with low rail pressure does not automatically need a new regulator. A truck with black smoke does not automatically need injectors. Use the symptom pattern to narrow the cause.
| Looks Like | Could Be | Best First Check |
|---|---|---|
| Low rail pressure under load | Bad FCA, clogged fuel filter, weak lift pump, air in fuel, CP4 wear | Replace filters, check low-side supply pressure, log desired vs actual rail pressure |
| Rail pressure reading jumps erratically | Bad regulator, bad rail pressure sensor, wiring issue | Inspect sensor connector and regulator connector before replacing parts |
| Hard start after sitting | Pressure bleed-off, injector return leak, PRV leak, air intrusion | Return / leak-off testing and rail pressure build rate during cranking |
| Black smoke | Over-fueling, boost leak, dirty air filter, injector issue, tuning, sensor error | Check air path, boost, MAF/MAP data, injector balance, and rail pressure |
| Metal debris on FCA screen | High-pressure pump wear, especially CP4 concern | Stop and inspect the full fuel system before replacing only the regulator |
Engine Platform Deep Dive: Cummins, Duramax, and Powerstroke
Cummins 5.9L and 6.7L
On many Cummins common-rail engines, the part is commonly called the FCA. It is often mounted on the Bosch CP3 pump. If your Cummins has idle surge, lope, or limp mode under load, log desired rail pressure and actual rail pressure. If actual pressure jumps around while commanded pressure stays steady, the FCA may be sticking.
Do not skip the simple stuff. A restricted diesel fuel filter or weak supply pump can make a good FCA look bad. If low-side supply has been modified, review the low-side supply setup before blaming rail-side control.
Duramax LB7 to L5P
Duramax owners need to separate CP3-era behavior from later CP4-era concerns. Early CP3 trucks may have issues that mimic a weak regulator, including a leaking pressure relief valve. A bottle test on the return side can help identify whether the PRV or injector return path is dumping pressure.
If rail volume or injector distribution becomes part of a larger build, inspect related fuel rail kits and fittings as a system, not as isolated shiny parts.
Powerstroke 6.4L and 6.7L
Ford systems may use terms such as VCV or PCV depending on the platform. These parts work with the ECU to control fuel volume and pressure behavior. On CP4-equipped 6.7L Powerstroke trucks, fuel quality and pump wear matter. Metal debris at the valve screen can be an early warning that the pump is starting to fail.
CP3 vs CP4 Pumps: Why It Matters
CP3 pumps are known for durability and contamination tolerance. They are commonly found on many Cummins and earlier Duramax platforms. An FCA issue on a CP3 truck can often be diagnosed and repaired without condemning the whole fuel system.
CP4 pumps operate with tighter tolerances and are more sensitive to fuel lubricity and contamination. When a CP4 starts failing, metal debris can spread through the pump, regulator, fuel rails, injectors, and return system. That is why a “bad regulator” on a CP4 truck should trigger a deeper inspection, not just a quick part swap.
John Lee’s CP4 Reality Check
If you pull the MPROP, VCV, or metering valve from a CP4 pump and find glitter-like metal on the screen, do not just clean it, reinstall it, and hope the ghost codes disappear. That debris came from somewhere. On a CP4 truck, a contaminated valve can be the first warning that the pump is starting to shed material into the fuel system.

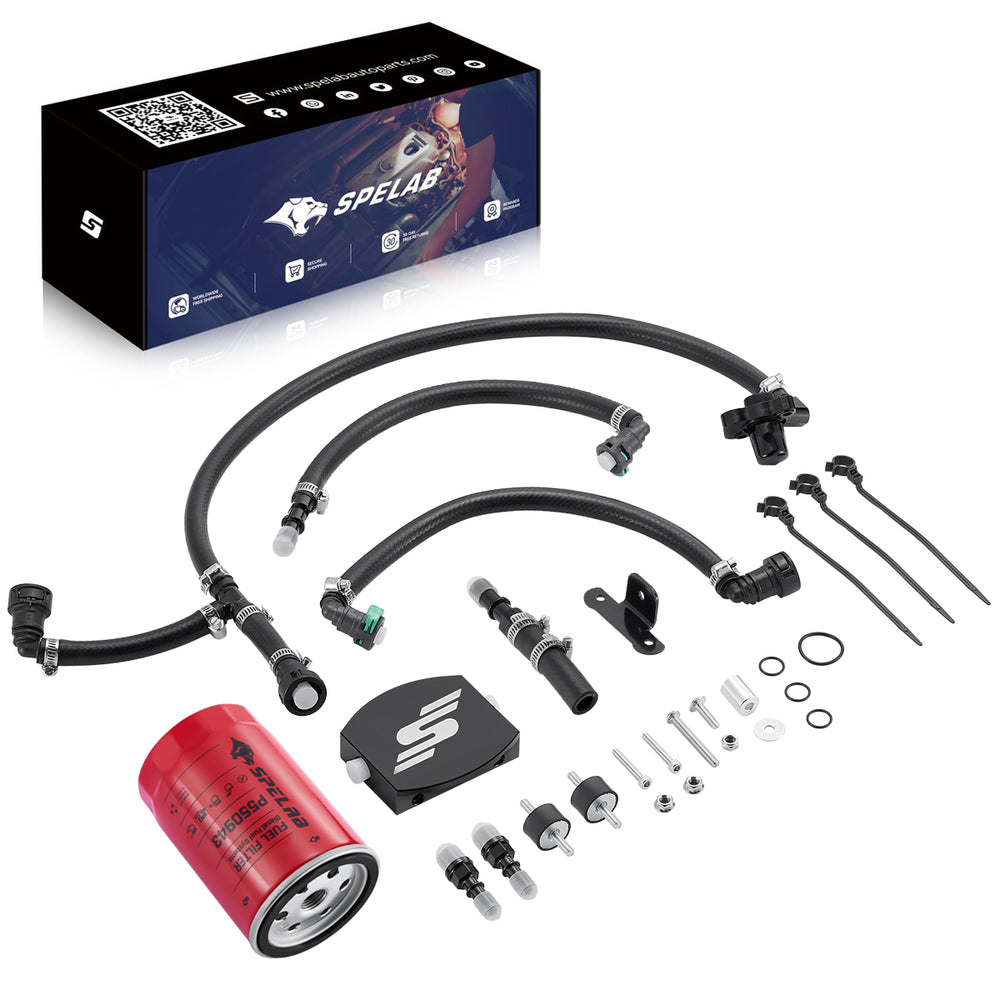

For Ford 6.7L Powerstroke owners, the CP4 bypass/disaster prevention kit for 6.7 Powerstroke is the kind of protection to consider before a small pressure-control problem turns into rails, lines, injectors, and pump cleanup.
Common Causes of Fuel Pressure Regulator Failure
- Dirty fuel: microscopic dirt, rust, or debris can jam the precision valve.
- Restricted fuel filter: a plugged filter can starve the pump and mimic regulator failure.
- Weak lift pump: inconsistent supply pressure can make rail pressure unstable under load.
- Electrical issues: corroded connectors, loose pins, rubbed wiring, or bad ECU command can cause unstable regulator behavior.
- Water contamination: water in diesel fuel can damage precision components and accelerate pump wear.
- CP4 pump wear: metal shavings from a failing CP4 pump can contaminate the regulator and injectors.
Good pump-maintenance habits matter even when the engine is in a truck, not a generator: clean fuel, clean filters, and no water contamination are still the basics.
How to Diagnose a Bad Fuel Pressure Regulator
Real-world case example: A towing-driven 6.7L Cummins had intermittent limp mode only under load. Desired rail pressure climbed near 23,000 PSI, while actual pressure dropped below 19,000 PSI. After filters and supply pressure checked out, replacing the Fuel Control Actuator restored stable pressure.
- Scan for codes: Record P0087, P0088, P0093, P0191, P0193, or other rail-pressure-related codes.
- Compare desired vs actual rail pressure: Log data at idle, during light throttle, and under the condition where the problem happens.
- Check fuel filters first: A restricted filter is cheaper and more common than many owners want to admit.
- Verify low-side supply: Make sure the lift pump is delivering clean, consistent fuel to the high-pressure pump.
- Inspect connectors and wiring: Look for corrosion, loose pins, chafed wires, oil intrusion, or broken lock tabs.
- Run an electrical sanity check: On many 2-pin Bosch CP3-style FCA units, resistance should be in a low-ohm range. A rough field screen sometimes uses about 1.5–5.0 ohms as a broad check, but the correct value must come from the service information for your exact engine. An open circuit, infinite resistance, or a dead short is a strong warning sign.
- Look for metal debris: Debris near the FCA or metering valve can point toward pump wear, especially on CP4 systems.
- Run return / leak-off tests when needed: Leaking injectors or PRV problems can mimic a regulator fault.
- Replace the regulator only after the pattern fits: A regulator is a good suspect when actual pressure is unstable or does not respond correctly while supply and sensor data check out.
The ECM usually controls the metering valve with a pulsed electrical command, not a simple on/off switch. Do not diagnose PWM control with resistance alone. Resistance only tells you whether the solenoid coil is obviously open, shorted, or in a plausible range. Command, duty cycle, rail-pressure response, and wiring integrity still matter.
The Bottle Test / Injector Return Leak-Off Test
A bottle test is useful because it helps answer one brutal question: is rail pressure disappearing through the return side, or is the regulator failing to meter pump supply correctly?
On many common-rail diesels, excessive injector return flow, a leaking PRV, or a return-side leak can make the truck look like it has a bad FCA. The ECU commands rail pressure, the pump tries to build it, but fuel escapes back through the return path faster than the system can hold pressure.
| Test Result | What It Suggests | Next Move |
|---|---|---|
| One injector returns far more than the others | Possible injector internal leakage | Confirm with platform-specific leak-off specs before replacing parts |
| Return volume is high across multiple injectors | Worn injectors, fuel temperature issue, or system-wide leakage | Compare to OEM limits and rail-pressure build rate |
| PRV return bottle fills quickly | Pressure relief valve may be leaking or opening early | Test PRV before blaming the FCA |
| Return looks normal but actual rail pressure still hunts | Regulator command, metering valve, wiring, sensor, or pump supply issue | Continue with FCA electrical and scan-data testing |
Do not use generic bottle-test limits across all platforms. Cummins, Duramax, and Powerstroke procedures vary, and high-pressure fuel work can be dangerous if done carelessly. The value is in the logic: separate a return-side pressure loss from a metering-control problem before replacing the wrong part.
DIY Replacement: When It Is Reasonable and When to Stop
Replacing an FCA on many CP3-equipped trucks, such as some 5.9L and 6.7L Cummins applications, can be a reasonable DIY repair for an experienced owner. Access is usually manageable, and the job may take under an hour if the area is clean and the correct tool is used.
But not every diesel regulator job is that simple. On CP4-equipped trucks, Ford platforms, newer Duramax applications, or any truck showing metal debris, severe fuel contamination, no-start, or fuel dilution, slow down. A quick regulator swap may hide a larger pump or injector problem.
Required Tools for a Typical CP3 FCA Job
- T25 or T30 Torx bit, depending on pump year
- 1/4-inch drive mini-ratchet and small extension
- Penetrating oil
- Brake cleaner or electrical contact cleaner
- Clean, lint-free shop rags
- Inch-pound torque wrench
- Scan tool capable of reading desired and actual rail pressure
The trap on many Bosch CP3 pumps is not the valve. It is the tiny soft Torx screws holding the FCA. They have been heat-cycled for years, often with thread-locker baked into place, and they sit in a miserable pocket near the fan shroud or front engine hardware. Seat the Torx bit fully, keep it straight, and shock the fastener loose before leaning on it. If you strip those shallow star heads in that blind pocket, a 30-minute job can turn into pump removal just to extract a ten-cent screw.
- Clean the area first: Dirt in the pump cavity is how a small repair becomes an expensive fuel-system problem.
- Soak and shock the screws: Apply penetrating oil around the screw ears, seat the Torx bit fully, and tap the bit/socket lightly to help break the thread-locker grip.
- Disconnect the harness: Release the connector carefully and inspect the pins before removing the valve.
- Remove the screws: Use the correct Torx bit, hold it square, and do not use a loose-fitting bit. Stop if the head starts to cam out.
- Extract the old valve: Twist gently and pull straight out. Make sure the old O-ring comes out with it.
- Inspect the screen and cavity: Stop if you see metal flakes or heavy contamination.
- Install the new regulator: Lubricate new O-rings with clean diesel fuel or clean engine oil and seat the valve squarely.
- Torque to spec: A common reference on some applications is around 60–70 in-lbs, but always verify the correct spec for your exact engine.
- Recheck rail pressure data: Do not call the repair fixed until actual pressure follows commanded pressure during the condition that caused the symptom.
Fuel Pressure Regulator Replacement Cost
For many diesel trucks, a quality FCA, FPR, MPROP, or VCV replacement part can commonly fall in the rough $100–$250 range, depending on platform and brand. Shop labor may add another $150–$300+ depending on access, diagnosis time, and whether additional fuel-system testing is required.
The expensive part is not always the regulator itself. The expensive part is guessing wrong. If the real problem is a CP4 pump starting to shed metal, a leaking injector, or a weak lift pump, replacing only the regulator may buy you a few miles and a much larger repair bill later.
How to Prevent Fuel Pressure Regulator Problems
- Use quality fuel filters: clean fuel is the first defense for the regulator, pump, and injectors.
- Do not ignore water-in-fuel warnings: water contamination can damage precision fuel-system parts.
- Monitor low-side supply pressure: starving the high-pressure pump is a bad habit for any diesel fuel system.
- Watch rail pressure under load: towing problems often show up before empty driving problems.
- Address CP4 risk early: a prevention setup can reduce the damage path if the pump starts to fail.
If your truck tows heavy or has a history of fuel pressure issues, better filtration and consistent supply pressure matter. Lift pump systems, fresh filters, and fuel-quality discipline help protect the regulator, injectors, and high-pressure pump.
Final Thoughts
The Fuel Pressure Regulator is a small part with a big job. When it sticks, leaks, loses control, or gets contaminated, the truck can rough idle, hard start, smoke, lose power, or drop into limp mode.
The smartest move is to diagnose the system instead of gambling on one part. Start with codes, filters, low-side supply, desired vs actual rail pressure, wiring, return/leak-off behavior, and the condition of the metering valve screen. If the pattern points back to the FPR, FCA, MPROP, or VCV, replace it cleanly and verify the repair with scan data under load.
Frequently Asked Questions
Q: What are the most common diesel fuel pressure regulator symptoms?
A: Common diesel fuel pressure regulator symptoms include rough idle, hard start, surging, black smoke, limp mode, fuel knock, no-start, and rail-pressure codes such as P0087 or P0088.
Q: Where is the Fuel Pressure Regulator located on a diesel engine?
A: On many common-rail diesel engines, the regulator or actuator is mounted on the high-pressure fuel pump. On some systems, pressure control parts may also be rail-mounted. The name and exact location depend on whether the platform uses terms like FPR, FCA, MPROP, VCV, or PCV.
Q: Can I clean a Fuel Pressure Regulator instead of replacing it?
A: Sometimes cleaning may temporarily help if the issue is minor debris, but these valves operate with tight tolerances. If the valve is sticking, worn, electrically failing, or contaminated with metal, replacement and deeper diagnosis are usually smarter.
Q: What resistance should a diesel FCA or MPROP have?
A: Some 2-pin Bosch CP3-style FCA units may show low resistance, and 1.5–5.0 ohms is sometimes used as a rough field sanity check. Do not treat that as a universal spec. An open circuit, infinite resistance, or dead short is suspicious, but the correct value must come from the service information for your exact engine.
Q: What happens if I unplug the Fuel Pressure Regulator?
A: On some CP3 systems, unplugging the FCA may cause the pump to default toward high pressure. That can be useful as a controlled diagnostic clue, but it can also create fuel knock or excessive rail pressure. Do not use it as a long-term test.
Q: Is it safe to drive with a bad Fuel Pressure Regulator?
A: No. Low rail pressure can cause stalling, hesitation, or limp mode. Excessive rail pressure can damage injectors, pistons, or the high-pressure pump. Diagnose and repair the issue as soon as possible.
Q: Can a bad Fuel Pressure Regulator cause black smoke?
A: Yes, if it contributes to over-fueling or poor injection control. But black smoke can also come from boost leaks, dirty air filters, injector problems, sensor errors, tuning, or DPF-related issues.
Q: Can a bad Fuel Pressure Regulator cause white smoke?
A: Yes, low rail pressure can lead to poor atomization and unburnt diesel vapor, which may show up as white smoke. However, white smoke can also come from bad injectors, low compression, coolant intrusion, or cold-start conditions.
Q: What is the difference between the FPR and the Pressure Relief Valve?
A: The FPR or FCA controls how much fuel enters the high-pressure pump or how pressure is managed by the system. The Pressure Relief Valve, or PRV, is a safety valve on the rail that opens when pressure exceeds its limit. A leaking PRV can mimic low rail pressure.
Q: How much does it cost to replace an FPR or FCA?
A: A quality replacement valve often costs around $100–$250. Shop labor may add $150–$300+ depending on engine layout and diagnosis time. The cost rises quickly if the real problem is CP4 debris, injector leakage, or pump damage.
