Updated on July 28, 2026.
Most diesel tuner problems are not a dead tuner. A device that will not connect, shows no vehicle profile, freezes during setup, or refuses a write is often exposing low battery voltage, a loose OBD-II connection, unsupported controller software, missing licensing, a locked gateway, a mismatched calibration file, or an existing truck fault. Diagnose the failed stage before replacing hardware or trying another file.
Key Takeaways
The fastest troubleshooting path separates power, communication, authorization, file compatibility, and mechanical complaints instead of treating every failure as the same problem.
- Before a write, verify stable battery support, exact VIN/controller coverage, current software, licensing, and authorized module access; once the write is active, follow only the platform's documented procedure.
- EZ Lynk is a connected diagnostic and technician-delivery workflow; HP Tuners is a software, interface, controller-license, and calibration ecosystem.
- Edge Insight CTS3 is primarily an in-cab monitor and diagnostic display, so missing flash controls may be an expectation problem rather than a fault.
- A tune cannot repair low rail pressure, a boost leak, weak batteries, transmission slip, overheating, or an emissions-system fault.
These Devices Do Different Jobs
A cloud-connected interface, professional flashing tool, monitor, legacy handheld, and inline power module should not be compared as if each performs the same job.
| Device Type | Primary Job | What The Owner Still Needs | Common Expectation Mistake |
|---|---|---|---|
| EZ Lynk Auto Agent | Connect the truck, mobile app, live data, and a remote technician workflow | Supported vehicle, correct cable, app account, technician link, and compatible file | Assuming the interface automatically includes every tune and vehicle function |
| HP Tuners MPVI4 or supported older interface | Scan, log, read, license, edit, and write supported controllers through VCM Suite | Computer, current software, controller support, credits, unlock service where required, and calibration knowledge | Assuming the interface arrives with preloaded diesel files |
| Edge Insight CTS3 | Display gauges, log data, set alerts, and perform supported diagnostic functions | Correct vehicle coverage and any external sensors needed for parameters not supplied by the truck | Expecting the base Insight monitor to behave like a full flash platform |
| Legacy handheld | Load supported canned files and perform limited diagnostics on listed vehicles | Working update path, original storage media, current coverage, and intact cables | Buying used hardware before confirming it is unmarried, updateable, and supported |
| Inline power module | Modify selected sensor or control signals without the same workflow as a full ECM reflash | Exact engine application, harness compatibility, firmware, and clean factory connectors | Troubleshooting it like a corrupted flash when the issue is harness, connector, or module communication |
For a deeper buying framework, compare how the three main tuning ecosystems differ before choosing a device by brand recognition alone.
Do Not Blame The Tuner Too Fast
If the truck had hard starts, low boost, unstable rail pressure, overheating, transmission slip, network DTCs, or weak batteries before tuning, the calibration tool did not create the original mechanical or electrical fault.
In our testing as a parts manufacturer, poor grounds and tired dual batteries cause more confusing setup complaints than owners expect. The device may power up from the diagnostic connector while voltage at the truck's modules still falls apart when relays cycle, the grid heater loads the system, or a cooling fan starts.
- Load-test both batteries as a matched system and inspect positive and ground connections.
- Scan and save all DTCs before changing software.
- Check DLC pins for spreading, corrosion, pushed terminals, and accessory wiring tapped into the network.
- Disconnect or isolate unrelated OBD/CAN accessories according to their maker's instructions during diagnosis and flashing, including splitters, trackers, insurance dongles, monitors, OBD-connected power-step controllers, remote starters, and alarm modules.
- Correct low fuel pressure, boost leaks, coolant faults, and transmission slip before requesting more torque.
Diesel Tuner Symptoms And Likely Cause Groups
The exact moment a problem occurs usually tells more than the error wording: power-up, vehicle identification, file delivery, controller read, active write, first start, and loaded road operation are different diagnostic stages.
| Symptom | Likely Cause Group | First Safe Check | Do Not Do |
|---|---|---|---|
| Device will not power on | DLC power, fuse, cable, connector, or internal hardware | Verify vehicle battery state, DLC power/ground, cable seating, and visible pin damage | Force the connector or probe CAN terminals with an unapproved test method |
| Phone sees no EZ Lynk network | Device power, phone Wi-Fi state, permissions, app state, or cable | Confirm the device is powered and the phone is connecting to the correct local network | Assume mobile internet and the device's local Wi-Fi are the same connection |
| No vehicle profile or tune appears | Unsupported controller, wrong VIN/year selection, unlinked technician, missing file, licensing, or server account | Record VIN, engine, transmission, controller IDs, software version, account, and selected product option | Load a file from another model year because the engine displacement matches |
| Interface not recognized by computer | USB cable, port, driver, VCM Suite version, operating-system permission, or interface firmware | Use a known-good data cable and the platform's current supported software | Buy controller credits before the interface and vehicle support are confirmed |
| Read or write is refused before it starts | Controller not licensed, unsupported OS, security access, unlock requirement, file mismatch, or low voltage check | Save the exact error and verify the official support list for every module involved | Keep retrying with different random files |
| Progress stops during an active write | Voltage drop, network interruption, computer sleep, cable movement, application crash, or controller recovery state | Capture the exact error, write percentage, interface state, and ignition state for the documented recovery path | Improvise recovery steps |
| Truck starts but runs poorly | Wrong file, incomplete module strategy, existing mechanical fault, relearn issue, or unsuitable torque request | Stop loading the truck, save DTCs and logs, and compare commanded versus actual engine data | Mask knock, rail-pressure loss, turbo control, or transmission slip with a hotter file |
| Gauge freezes or shows implausible data | Unsupported PID, bus traffic, firmware, accessory conflict, sensor scaling, or loose connection | Reduce displayed channels, verify PID support, and compare against a trusted scan tool or mechanical gauge | Make towing decisions from a value that has not been validated |
Voltage Stability And Flash Recovery
A controller write needs stable module voltage, uninterrupted communication, and the exact ignition state specified by the platform; the dash lighting up does not prove the electrical system is stable enough to flash.
Use the vehicle and tuning-platform provider's specified regulated power supply or charger, sized to maintain the required voltage through the expected key-on load and matched to the truck's battery chemistry. A small trickle maintainer may show that it is charging yet still be unable to support a dual-battery truck when relays, the grid heater, fans, or other modules wake. Begin with fully charged, load-tested batteries; turn off unnecessary loads, complete any provider-required key-on initialization, disable computer sleep, secure every cable, and keep doors, brake switches, lighting, and accessories from waking modules during the write.
If the write stops, photograph the screen, note the percentage, capture the error text, and leave the physical setup alone. Recovery instructions vary by controller. A blind key cycle can turn a recoverable session into a no-start ECM or TCM.
A black screen or freeze on an older handheld follows a different path than a stalled ECM write. The guide to what a frozen-screen failure pattern can reveal shows why device power and controller-write state must be separated.
EZ Lynk Connection And Profile Problems
EZ Lynk problems usually fall into four buckets: Auto Agent power, phone-to-device connection, account or technician linking, and vehicle/controller support.
Phone Will Not Connect
The mobile device communicates with the Auto Agent over a local wireless connection, so cellular service alone does not prove the phone is connected to the interface.
Confirm the Auto Agent is powered, the application has the required phone permissions, the phone is on the correct network, and VPN or aggressive network-switching features are not pushing it away from a connection without internet access.
No Tune Or Vehicle Function Appears
A blank profile list can mean the technician relationship, file delivery, application-specific support, or account setup is incomplete rather than the Auto Agent being defective.
Record the VIN, engine, transmission, pickup or Cab & Chassis configuration, controller information, app version, and order option. Then ask the provider to confirm what functions and files are actually assigned to that vehicle.
Firmware Or App Update Appears Stuck
An update that appears stalled should be handled through the current app and official support path, with steady device power and a stable phone connection.
Do not delete accounts, factory-reset the phone, or disconnect a device during an active vehicle write simply because the progress display pauses. First establish whether the app is updating the interface, downloading a file, or writing a controller.
Owners new to this workflow can review the questions to settle before choosing a remote workflow.
HP Tuners Interface, Credits, And Controller Errors
HP Tuners is a professional software and licensing workflow, so interface recognition, vehicle support, controller licensing, unlock requirements, and file integrity must all pass before a write can begin.
MPVI Interface Is Not Detected
A missing interface should be diagnosed at the computer first: current VCM Suite version, supported operating system, known-good USB data cable, direct USB port, interface firmware, and device status.
Vehicle Reads But Will Not Write
A successful scan does not prove the controller is licensed or writable; some vehicles expose data while requiring credits, a specific interface generation, an unlock service, or a different procedure for ECM and TCM access.
Negative Response Or Transfer Error
An error from the controller is evidence to save, not a reason to force another file. Record the full message, controller type, operating-system ID, VCM Suite build, interface serial, license state, and whether the file originated from that vehicle.
Never segment-swap, compare, or write across model years and controller families without a qualified calibrator who understands the strategy. Matching engine names do not make binary files interchangeable.
CTS3, Legacy Handheld, And Inline Module Issues
Monitor freezes, old handheld update loops, and inline-module limp complaints need separate workflows because only some of these devices write the factory controller.
Edge Insight CTS3
The base Insight CTS3 is strongest as a gauge, logger, alert display, and diagnostic companion, and available parameters vary with the truck and installed sensors.
If a gauge stalls, verify the PID is supported, reduce unnecessary channels, update through the official path, inspect the OBD connection, and compare the reading with a trusted source. Do not assume the monitor can display EGT when the truck does not broadcast the needed value or an external probe is not installed.
Legacy Handheld Devices
A used or older handheld may be married to another VIN, missing original storage media, unable to reach its old update service, or outside current model-year coverage.
Before buying used hardware, verify serial number status, unmarried condition, update availability, original cables and memory media, and exact support. A cheap unit that cannot return a vehicle to stock is expensive bench decoration.
Inline Power Modules
An inline module depends on clean factory connectors, correct harness routing, solid power and ground, exact firmware, and the supported engine application.
When a CEL or reduced-power event starts immediately after installation, return the truck to the manufacturer-approved stock connection, scan every code, inspect bent or backed-out pins, and contact product support. Do not erase the evidence before recording it.
Vehicle Fitment, Controller Access, And Security
Year, engine badge, and OBD connector are not enough to establish tuning support; controller part number, software level, transmission, body configuration, security architecture, and required services can change inside one model-year range.
| Fitment Item | Why It Matters | What To Confirm |
|---|---|---|
| VIN and emissions family | Separates engines and certified calibrations that share a badge | VIN, underhood label, market, and current factory software |
| ECM and TCM IDs | Determines read/write coverage and file compatibility | Controller part number, OS or strategy ID, and official support listing |
| Transmission | Torque management and available TCM functions differ | 68RFE, Aisin, 10R140, Allison generation, or other exact unit |
| Pickup versus Cab & Chassis | Power rating, calibration, emissions hardware, and supported options may differ | Body configuration and the exact product variant |
| Security gateway or controller unlock | Data viewing may work while clearing, routines, or writing remain restricted | Authorized access method and any required controller service |
| Credits, licenses, and technician support | Owning an interface does not automatically license every vehicle or include files | What the order includes, what is non-refundable, and who supports the calibration |
FCA's Security Gateway documentation explains that a locked 2018-and-newer gateway can still allow DTC and data viewing while restricting programming, clearing, and routines until authorized authentication succeeds. Do not assume a generic bypass cable is the correct answer for every Ram.
Towing, Payload, Jobsite, And Off-Road Use
A work-truck calibration should protect temperature and driveline margin under sustained load instead of chasing the largest unloaded dyno number.
Heavy Towing
Log commanded and actual rail pressure, boost, transmission temperature, coolant temperature, fan behavior, and EGT when properly instrumented. A file that feels clean empty can hunt, flare, or build heat with a fifth-wheel on a long grade.
Payload And Jobsite Operation
Low-speed driving, long idle time, dust, PTO use, repeated short trips, and stop-and-go Payload work expose cooling and regeneration limits that a highway pull does not. Keep air filtration, cooling-stack cleanliness, battery condition, and charging output in the baseline.
Off-Road And Extreme Weather
Vibration, mud, water, cold-soaked batteries, and under-dash cable movement can create intermittent communication failures. Mount the interface and cables so boots and knees cannot pull them loose, and do not leave sensitive electronics baking in direct sun.
No tune changes the door-sticker Payload, GCWR, axle ratings, tire limits, brake capacity, or hitch rating. Torque should be matched to the engine, turbo, fuel system, transmission, and actual job.
Which Diesel Tuning Workflow Fits The Owner?
The best choice is the platform whose real workflow matches the truck, the owner's skill level, the required data, and the available support.
| Platform | Strongest Use | Learning Curve | Main Buying Check |
|---|---|---|---|
| EZ Lynk Auto Agent 3 | Remote technician support, mobile diagnostics, logs, and file delivery | Low to moderate for the owner | Exact vehicle option, technician relationship, included files, and support term |
| HP Tuners MPVI4 | Professional scanning, logging, controller licensing, and custom calibration work | High | Controller coverage, credits, required unlock service, and calibrator skill |
| Edge Insight CTS3 | In-cab gauges, alerts, logging, and supported diagnostics | Low | Available PIDs, external sensor needs, and whether monitoring is the real goal |
| Legacy handheld | Older supported trucks needing a simple canned-file workflow | Low to moderate | Unmarried status, update availability, and current vehicle coverage |
| Inline module | Supported owners wanting a calibrated plug-in power module without the same editing workflow | Moderate | Exact harness, engine application, firmware, emissions status, and data safeguards |
Diesel Tuner Buyer Checklist
A good order answers the support questions before money changes hands and before the truck is opened up for a Mod.
- What exact VIN, engine, transmission, body configuration, ECM, TCM, and software level are supported?
- Is the item a device only, device plus one file, SOTF package, monitor, inline module, or professional interface?
- Who creates and supports the calibration, and how are logs and revisions handled?
- Are credits, licenses, cables, unlock services, sensors, or technician support separate purchases?
- Which selected options are non-refundable or tied to a VIN?
- Can the truck be returned to its original calibration, and who holds the stock read?
- What battery support, computer, phone, operating system, and internet access are required?
- Is the intended calibration emissions-compliant and legal for the truck's actual use?

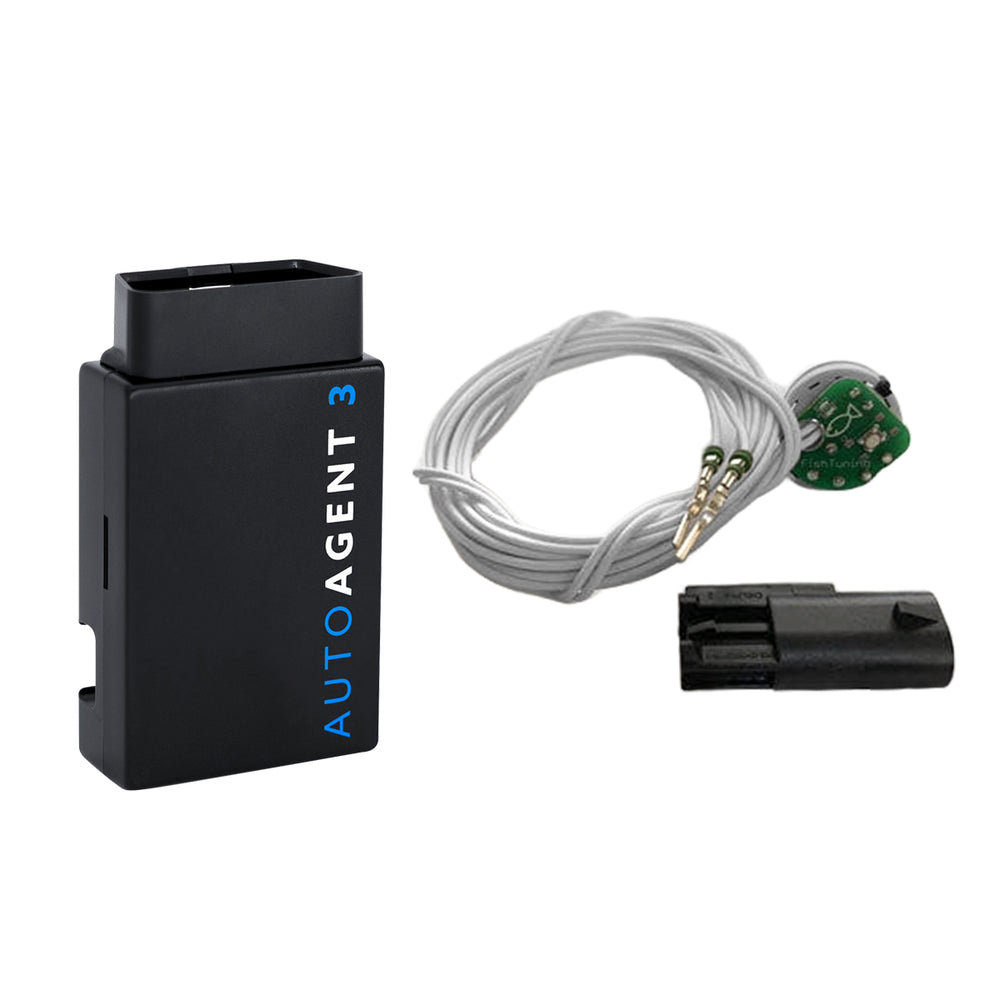

Three Platform-Specific EZ Lynk Packages To Check
These SPELAB products make sense only when the owner wants a remote-support workflow and the exact engine, year, transmission, body configuration, selected file, and legal use have been confirmed.
Broader vehicle and service combinations are listed in the EZ LYNK tuner package collection.
Legal And Safety Notice
Calibration legality, emissions compliance, warranty impact, controller access, and safe road use vary by vehicle and location, so a supported flash is not automatically a lawful or mechanically safe flash.
FAQ
The right answer depends on the failed stage, exact controller support, and whether the device is a flash platform, monitor, legacy handheld, or inline module.
Q: Why does my diesel tuner power on but not recognize the truck?
A: Device power only proves that part of the DLC circuit is live. Check cable seating, DLC pins, network DTCs, unsupported accessories, VIN/controller coverage, software version, and any required authenticated gateway or controller access.
Q: Why does EZ Lynk show no tune profiles?
A: The account may not be linked to the correct technician, no compatible file may be assigned, the selected order option may be device-only, or the exact controller may not be supported. Send the provider the VIN, engine, transmission, body configuration, controller IDs, and order details.
Q: Is HP Tuners MPVI3 obsolete?
A: No. Current HP Tuners documentation says MPVI3 remains supported by VCM Suite, but it does not provide the complete feature set of MPVI4. Confirm whether the target controller or service specifically requires the newer interface.
Q: Can Edge Insight CTS3 load a diesel tune?
A: The base Insight CTS3 is primarily a monitor, logger, and diagnostic display, and its manual states that tuning is not available in the standard Insight configuration. Separate supported upgrade paths may exist for some vehicles, so verify the exact part number and application.
Q: What should I do if a flash freezes?
A: Preserve the current setup, photograph the screen, record the percentage and error, and follow the platform's official recovery instructions or contact its support team. Unsupported key cycles or cable removal can make recovery harder.
Q: Can a tune fix low boost or transmission slipping?
A: Not when the cause is mechanical. Pressure-test the charge-air system, verify turbo control and fuel delivery, and diagnose converter, clutch, line-pressure, or temperature problems before requesting additional torque.
Q: Which diesel tuner is best for towing?
A: Choose the supported workflow that provides trustworthy logs, controlled torque delivery, useful temperature data, and responsive calibration support. A conservative file with stable EGT, coolant, and transmission behavior is more useful than the highest advertised power level.
