6.7 Powerstroke CP4 Pump Problems and Prevention

Updated on March 12, 2026.

TL;DR: The CP4 pump in the 6.7 Powerstroke is critical for fuel delivery, but its lubrication-sensitive design makes it one of the most discussed failure points on these trucks. When it fails, it can contaminate the entire fuel system and turn a single-part problem into a full-system repair. Regular maintenance, quality fuel, and a CP4 Bypass/Disaster Prevention Kit can significantly reduce that risk.

1. Understanding the Importance of CP4 Pumps

1.1 What Is a CP4 Pump?

The CP4 pump is a high-pressure fuel pump used in modern diesel engines, including the 6.7 Powerstroke. Its job is simple in theory but critical in practice: build and maintain the fuel pressure needed for precise injector operation. Without stable high-pressure fuel delivery, even a well-built diesel will suffer from poor combustion, rough operation, and reduced efficiency.

On the 6.7 Powerstroke, the CP4 is not just another fuel component. It sits at the center of how the engine makes power cleanly and efficiently, which is why its condition has such a direct effect on drivability and long-term reliability.

1.2 The Role of CP4 Pumps in 6.7 Powerstroke Engines

In the Ford 6.7 Powerstroke, the CP4 pump delivers fuel to the injectors at the pressure required for modern common-rail diesel performance. That pressure window is what allows the engine to run smoothly under load, respond cleanly to throttle input, and maintain the balance between power, fuel economy, and emissions control.

When the pump begins to wear or lose its ability to maintain pressure, the truck may still run, but the system is no longer operating with much margin. That is where small internal wear can turn into a major fuel system event.

2. Common Issues With CP4 Pumps

2.1 Typical Failures and Their Impact

The CP4 pump is widely known for its susceptibility to failure, especially when lubrication quality is compromised. Unlike older diesel pump designs with more tolerance for poor fuel conditions, the CP4 operates with very tight internal clearances. Once wear starts inside the pump, the damage often does not stay contained.

When a CP4 pump fails, it can send metal debris through the fuel system. That debris can contaminate injectors, rails, lines, and other precision components downstream. What begins as pump wear can quickly become a full-system repair.

In real-world shop scenarios, this is the part that hurts owners the most. A truck may come in with hard-start complaints or reduced power, but once contamination is confirmed, the repair scope often expands far beyond the pump itself.

2.2 Why CP4 Pumps Are Prone to Failures

The CP4 pump relies on diesel fuel for internal lubrication. That means fuel quality is not just a performance issue; it is a durability issue. Low lubricity fuel, contamination, air intrusion, or inconsistent fuel supply can accelerate wear on the pump’s internal moving parts.

From an engineering standpoint, the weakness is not that the CP4 cannot make pressure. It is that its tolerance for poor operating conditions is lower than many owners expect. On a 6.7 Powerstroke, once that lubrication margin is lost, the pump can deteriorate quickly and the failure can become systemic rather than isolated.

Cases seen in the field often follow the same pattern: the truck starts showing intermittent drivability issues, then the pump sheds material internally, and by the time the system is opened up, the damage has already spread.

3. The Financial Impact of CP4 Pump Failures

3.1 Repair Costs Associated With CP4 Pump Failures

When a CP4 pump fails, the repair cost is rarely limited to replacing the pump. The real expense usually comes from the collateral damage to the rest of the fuel system. Once contaminated fuel has passed through injectors, rails, and lines, the number of parts involved in the repair climbs quickly.

That is why CP4 failures are so expensive on the 6.7 Powerstroke. Owners are not just paying for one failed component. They are paying for the cleanup and replacement of every precision fuel part that can no longer be trusted after contamination.

It is not unusual for a truck that initially looked like it needed a pump diagnosis to end up needing a far more extensive repair once metal debris is found in the system.

3.2 Long-Term Consequences of Neglecting CP4 Pump Maintenance

Neglecting CP4 pump maintenance can lead to repeated fuel system issues, reduced reliability, and shorter engine service life. Even when a failure is caught before the worst-case scenario, ongoing wear in the system can keep showing up as drivability complaints, inconsistent fuel pressure behavior, and expensive repeat visits.

For truck owners who tow, daily drive long distances, or depend on the truck for work, reliability matters as much as peak performance. A neglected fuel system does not just cost money; it makes the truck harder to trust.

From a resale standpoint, fuel system history also matters. A 6.7 Powerstroke with known CP4 concerns or prior contamination repairs can be harder to sell and easier for buyers to discount.

4. Preventive Measures for CP4 Pump Failures

4.1 Routine Maintenance Practices

Regular maintenance remains one of the most effective ways to reduce CP4-related risk. That means changing fuel filters on schedule, monitoring fuel system condition, and avoiding contaminated or questionable fuel whenever possible. Clean fuel and consistent service intervals give the pump the best chance of surviving long term.

For 6.7 Powerstroke owners, preventive maintenance should be treated as risk management, not just routine ownership. The CP4 is one of those components where neglect can become very expensive very quickly.

4.2 Importance of Using High-Quality Fuel

Fuel quality has a direct effect on CP4 pump life. Poor-quality diesel can reduce lubrication, introduce contaminants, and create the conditions that accelerate internal wear. Since the pump depends on the fuel itself for lubrication, fuel quality becomes part of the pump’s survival strategy.

On trucks that see mixed fueling habits, long storage periods, or inconsistent maintenance, the risk tends to stack up. A 6.7 Powerstroke that is fed clean, reputable diesel and maintained consistently usually has a much better chance of avoiding premature pump damage.

5. Solutions for CP4 Pump Problems

5.1 Why Prevention Matters

Once a CP4 pump fails and sends debris into the system, the repair conversation changes immediately. At that point, the goal is no longer simple maintenance; it becomes damage control. That is why prevention matters so much on the 6.7 Powerstroke platform.

For many owners, the smarter move is to reduce the chances of contamination before failure happens. That approach protects expensive downstream components and helps keep a pump issue from becoming a full fuel system event.

5.2 Common Prevention Strategies

Most prevention strategies revolve around three ideas: maintaining clean fuel delivery, reducing wear risk, and limiting the spread of damage if the pump does fail. Regular service and fuel quality are the first line of defense. A CP4 Bypass/Disaster Prevention Kit adds another layer of protection by managing contamination risk more effectively.

This is where engineering and real-world ownership line up. A system does not have to be perfect to be worth protecting. It just has to be expensive enough downstream that containment becomes worthwhile.

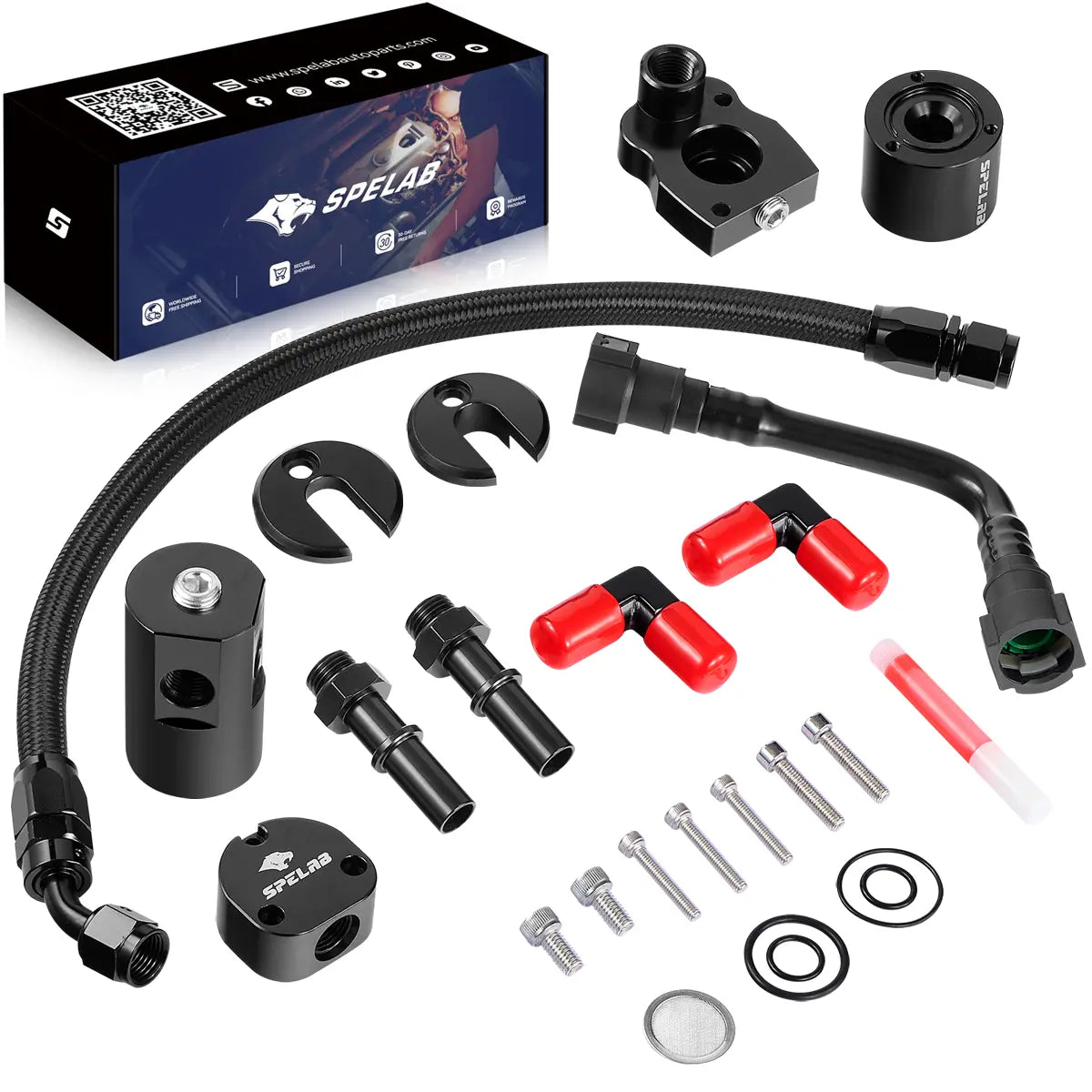

6. Introducing the CP4 Bypass/Disaster Prevention Kit

6.1 Key Features of the CP4 Bypass Kit

The CP4 Bypass/Disaster Prevention Kit is designed to protect the fuel system from the most damaging consequence of CP4 failure: contamination spreading beyond the pump. Its main features include:

• Enhanced Protection: Filters out debris from the CP4 pump to reduce the chance of fuel system contamination.
• Simple Installation: No vehicle modifications required, making it a practical plug-and-play solution.
• Optimal Filtration Efficiency: Uses a patented, reusable 20-micron return-side fuel filter.
• High-Quality Materials: Built with billet stainless steel and aluminum components for long-term durability.

For owners who understand how expensive a contaminated fuel system can become, the value of a bypass kit is easy to see. It is not about making the truck flashy. It is about controlling the consequences of a known weak point.

6.2 Benefits of Installing a CP4 Bypass Kit

Installing a CP4 Bypass Kit provides several practical benefits:

• Prevents Fuel System Damage: Protects injectors, rails, and other critical components from contamination.
• Reduces Repair Costs: Helps avoid large repair bills by containing debris before it spreads.
• Extends CP4 Pump Life: Supports cleaner fuel system operation and better long-term pump conditions.
• User-Friendly: Designed for straightforward installation and maintenance.

On trucks that are used for towing, hauling, or daily work, that extra protection can make the difference between a manageable repair and a truck that is down for a major fuel system rebuild.

7. Installation Guide for CP4 Bypass Kit

7.1 Step-by-Step Installation Process

Installing the CP4 Bypass Kit is straightforward and can be completed with basic tools. A typical installation process includes:

1. Preparation: Gather the required tools and verify that all parts included in the kit are present.
2. Mounting the Fuel Filter: Secure the 20-micron fuel filter in an accessible and appropriate location.
3. Connecting Fuel Lines: Attach the stainless braided, PVC-coated PTFE hoses to the fuel system.
4. Final Check: Confirm that all connections are properly tightened and leak-free.
5. System Test: Start the engine and verify normal operation.

A clean installation matters. Fuel system protection only works if the routing, fittings, and final checks are handled carefully.

7.2 Tools and Materials Required

For installation of the CP4 Bypass Kit, the following tools and materials are typically required:

• Basic hand tools such as wrenches and screwdrivers
• Mounting hardware included in the kit
• High-quality fuel lines included in the kit
• Protective gloves and eyewear for safety

Most owners with basic mechanical experience can handle the installation, provided they take the same care they would with any fuel system work.

8. Compatibility and Fitment of the CP4 Bypass Kit

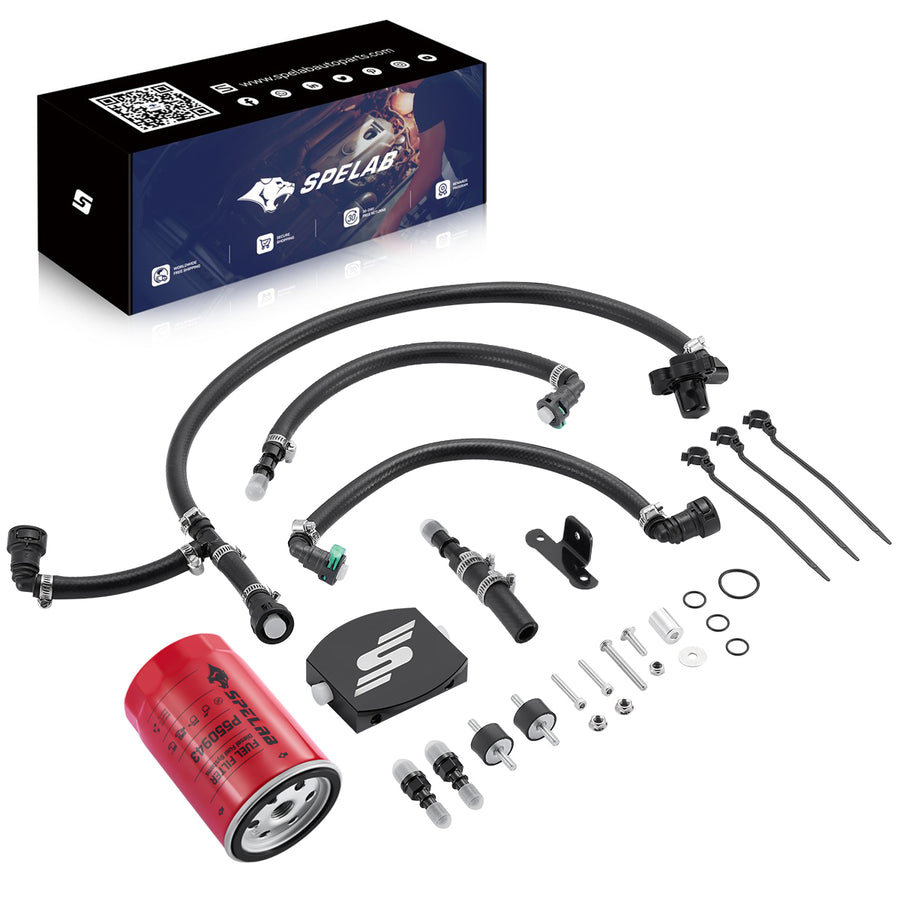

CP4 Bypass/Disaster Prevention Kit Fitment

2011-2025 6.7 Powerstroke Diesel Ford F250/F350/F450

Know More

8.1 Compatible Models and Years

8.2 Ensuring Proper Fitment for Your Vehicle

To ensure the CP4 Bypass Kit fits your 2011-2016 Ford 6.7 Powerstroke properly:

1. Verify Model and Year: Confirm that your truck is one of the compatible models listed above.
2. Check Engine Specifications: Make sure the engine is the 6.7L Powerstroke diesel.
3. Consult Installation Instructions: Follow the guide included with the kit to avoid routing or fitment issues.

Fitment should never be treated as an afterthought. On diesel trucks, small mistakes in parts selection can lead to major frustration during installation.

9. Conclusion

Installing a CP4 Bypass/Disaster Prevention Kit for your 6.7 Powerstroke offers several clear advantages:

• Enhanced Protection: Helps safeguard the fuel system from contamination and downstream damage.
• Cost Savings: Reduces the risk of large repair bills caused by debris spreading through the system.
• Extended Pump Life: Supports cleaner fuel system operation and helps reduce wear-related issues.
• Ease of Installation: Provides a straightforward solution without requiring vehicle modification.

For 6.7 Powerstroke owners, this is less about chasing performance claims and more about protecting the truck against a failure pattern that can become extremely expensive. Regular maintenance and quality fuel still matter, but added protection makes sense when the downside of pump failure is so high.

That is why many owners treat a CP4 bypass kit as cheap insurance. The truck may never need it at full value, but if the pump ever comes apart internally, the system protection can pay for itself very quickly.

10. FAQs

Q1: What is a CP4 pump?

A1: The CP4 pump is a high-pressure fuel pump used in modern diesel engines, including the 6.7 Powerstroke, to pressurize fuel for efficient injection.

Q2: Why is the CP4 pump prone to failure?

A2: The CP4 pump is prone to failure because it depends on diesel fuel for internal lubrication. Poor fuel quality, reduced lubrication, or contamination can accelerate wear inside the pump.

Q3: What are the common symptoms of a failing CP4 pump?

A3: Common symptoms include hard starts, reduced fuel efficiency, rough running, power loss, and metallic debris in the fuel system.

Q4: How much does it typically cost to repair a failed CP4 pump?

A4: Repairing a failed CP4 pump can cost several thousand dollars, especially if injectors, rails, and other contaminated fuel system components also need replacement.

Q5: How does the CP4 Bypass Kit prevent pump failures?

A5: The CP4 Bypass Kit does not prevent internal pump wear itself, but it helps prevent debris from contaminating the rest of the fuel system if the pump fails.

Q6: Is the CP4 Bypass Kit easy to install?

A6: Yes. The CP4 Bypass Kit is designed as a straightforward, plug-and-play solution that does not require vehicle modification.

Q7: What vehicles are compatible with the CP4 Bypass Kit?

A7: The CP4 Bypass Kit is compatible with 2011-2016 Ford F250, F350, F450, and F550 6.7L Powerstroke Diesel models.

Q8: Can the CP4 Bypass Kit improve the performance of my 6.7 Powerstroke?

A8: Its main purpose is protection, not power gains. However, supporting a cleaner fuel system can help maintain consistent engine performance.

Q9: How often should I check or replace the components of the CP4 Bypass Kit?

A9: The components should be inspected regularly, and the filter should be serviced or replaced according to the manufacturer's maintenance guidelines.

Q10: Will installing the CP4 Bypass Kit void my vehicle's warranty?

A10: The kit is designed to be non-invasive and generally should not void your vehicle's warranty, but owners should always confirm with their dealer or manufacturer.

John Lee

Mechanical Engineer | 10+ Years Experience

John has spent the last decade engineering and testing high-performance automotive components. Specializing in drivetrain durability and thermal management across Powerstroke, Cummins, and Duramax applications, he bridges the gap between OEM limitations and aftermarket performance. His philosophy: "Factory parts are just a starting point."
