SPELAB Exhaust Header for 1988-1997 Chevy GMC Truck 305 350 5.0/5.7L
Secure and trusted checkout with
Product Information +
- Brand: SPELAB
- SKU: SPES08255
- Availability: Many in stock
- Product Type: Exhaust Header
-
PLEASE NOTE!
Stainless Long-Tube Headers for Individually Listed Chevrolet and GMC Small-Block Projects
The SPELAB polished stainless long-tube pair is offered for the individually listed Chevrolet and GMC pickup / utility applications with a matching traditional 305 5.0L or 350 5.7L Chevrolet small-block V8. Most specific applications end in 1995; GMC C2500 has a separately stated 1988–1997 scope that needs configuration confirmation. Four-into-one banks use three-bolt collector joints with separate mating pieces.
Best For
- Refreshing a matched traditional-SBC truck exhaust: confirm the exact model, year and installed engine rather than the title span alone.
- Planning a complete long-tube route: assess collectors, supported pipes and required equipment before ordering.
- Evaluating an older or modified chassis: check engine position, steering, drivetrain and accessory clearances as a complete package.

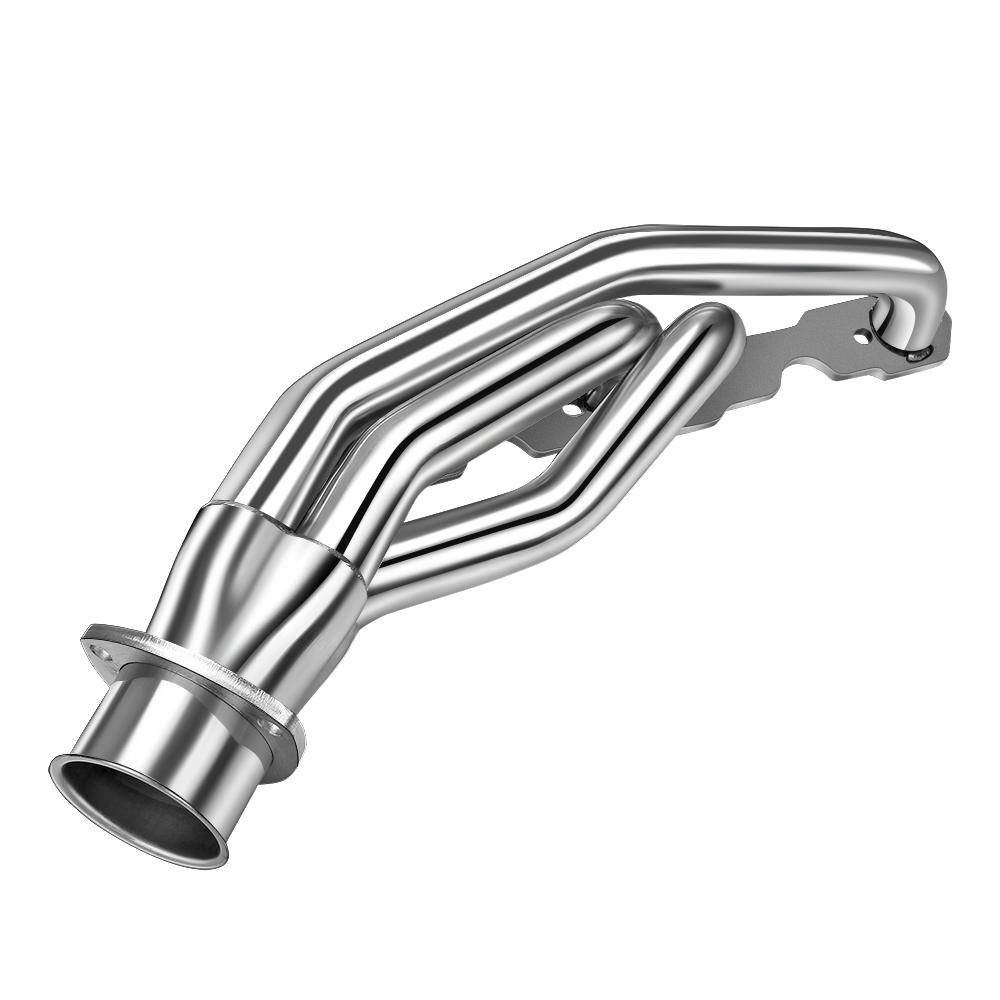

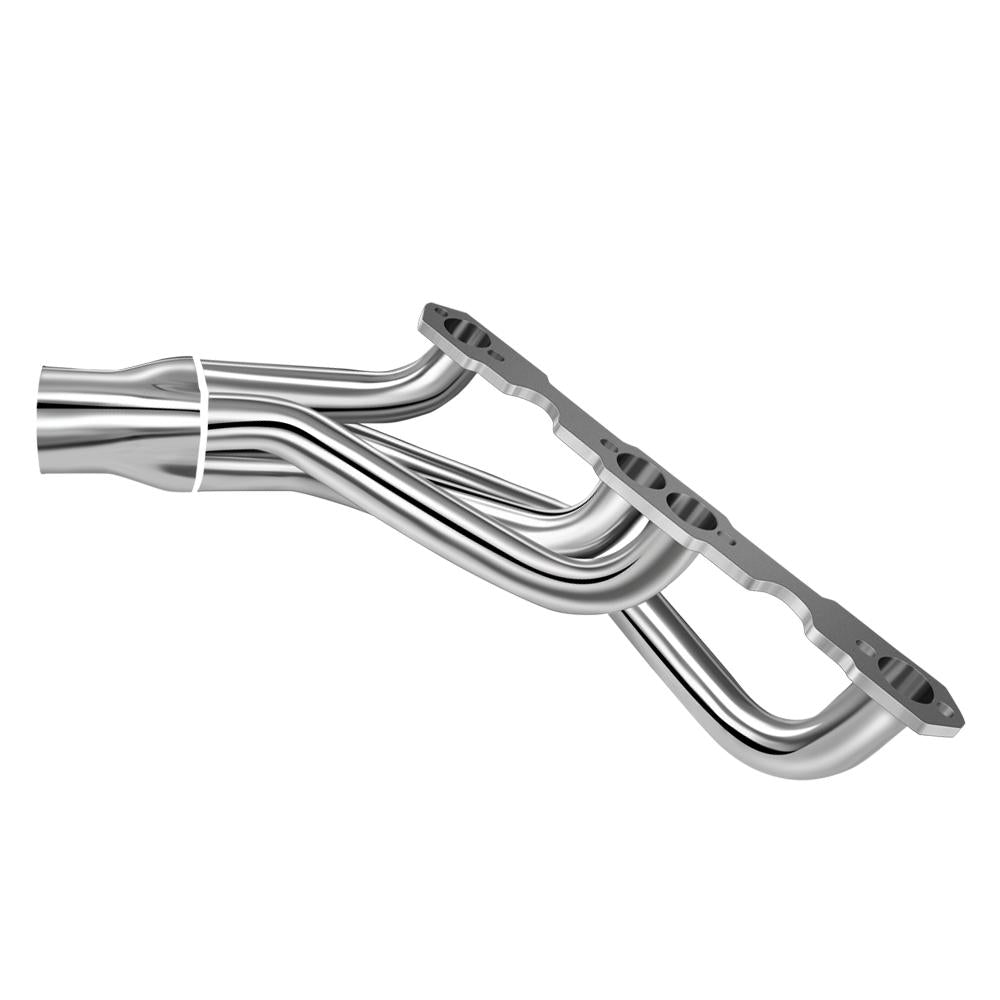

Long-Tube Banks with Separate Collector Pieces
The Chevrolet / GMC pair uses four-into-one long-tube banks and three-bolt collector flanges. Separate flared pipe pieces, mating flanges and flat gaskets require measured, compatible downstream connections.
No product-specific test establishes a guaranteed power, economy or towing improvement for this pair. Engine specification, head pattern, required equipment and the complete exhaust determine suitability and operating results.
Specs
| Specification | Detail |
|---|---|
| Material / finish | Stainless steel / mirror polish; alloy grade unconfirmed |
| Layout | Four-into-one long-tube pair |
| Engine boundary | Compatible traditional Chevrolet 305 / 350 small-block; exact engine / model / year combination required |
| Collector connection | Three-bolt flanges with separate mating pieces |
| Dimensions | Primary / collector sizes, flange thickness and tube-wall gauge require confirmation |

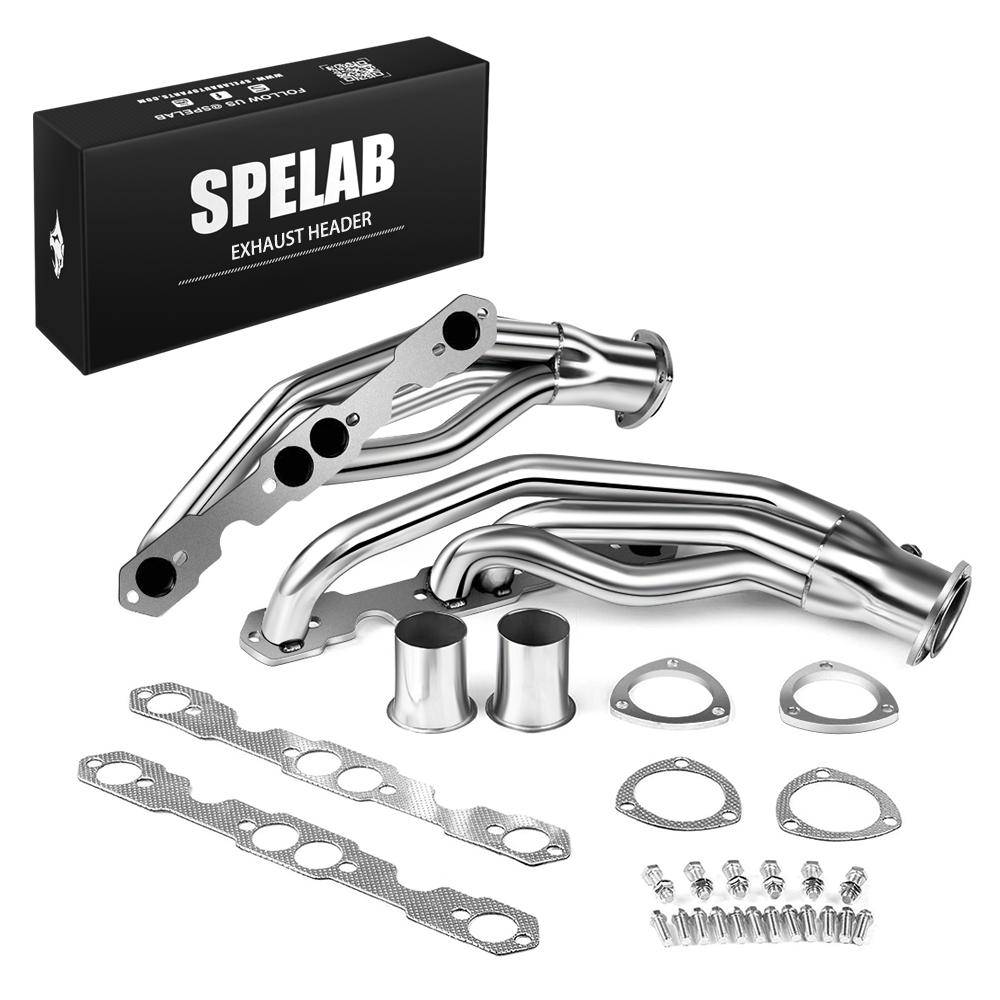

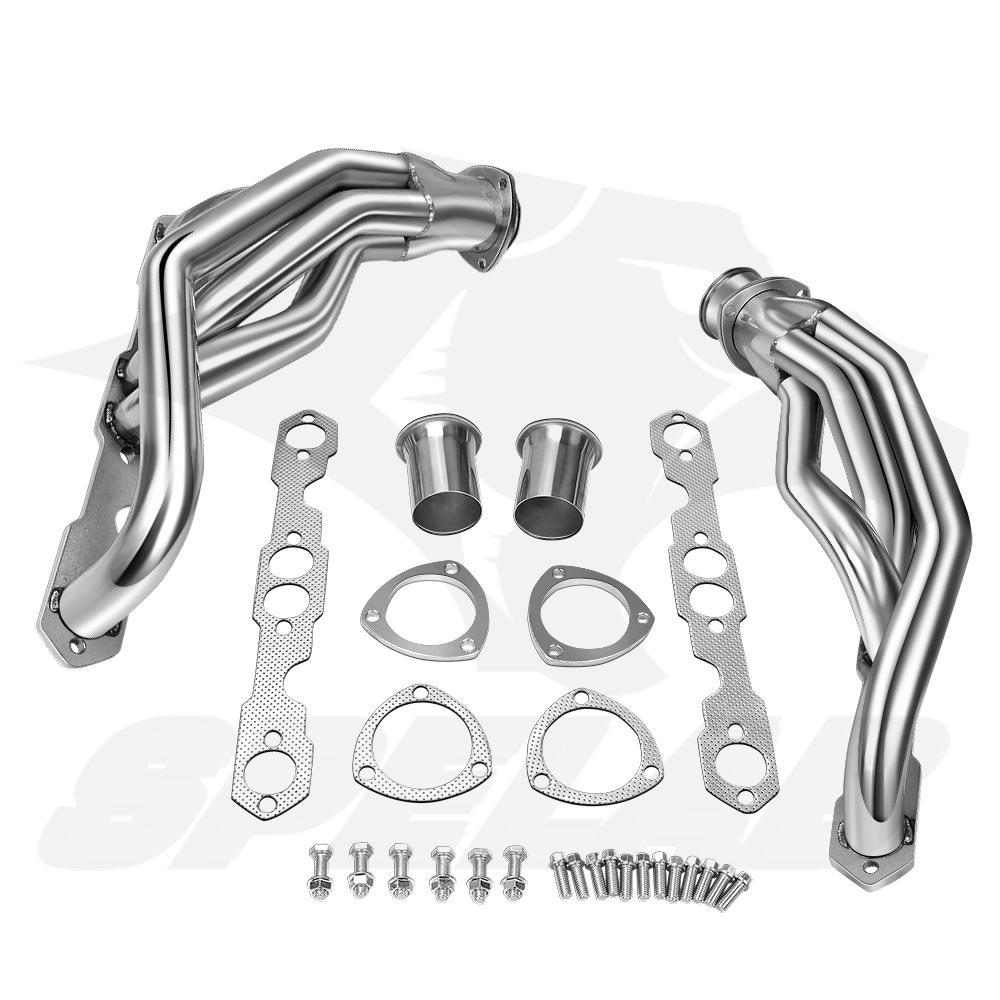

What’s Included
| Component | Description |
|---|---|
| Main components | Two long-tube header assemblies |

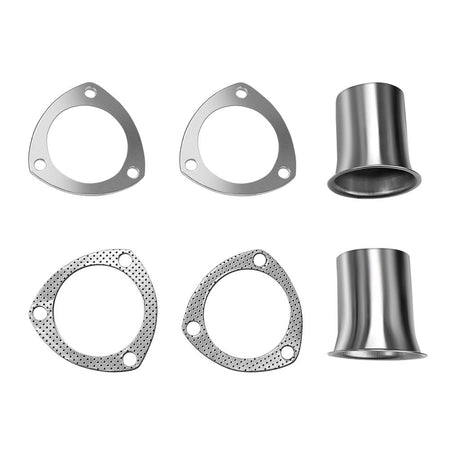

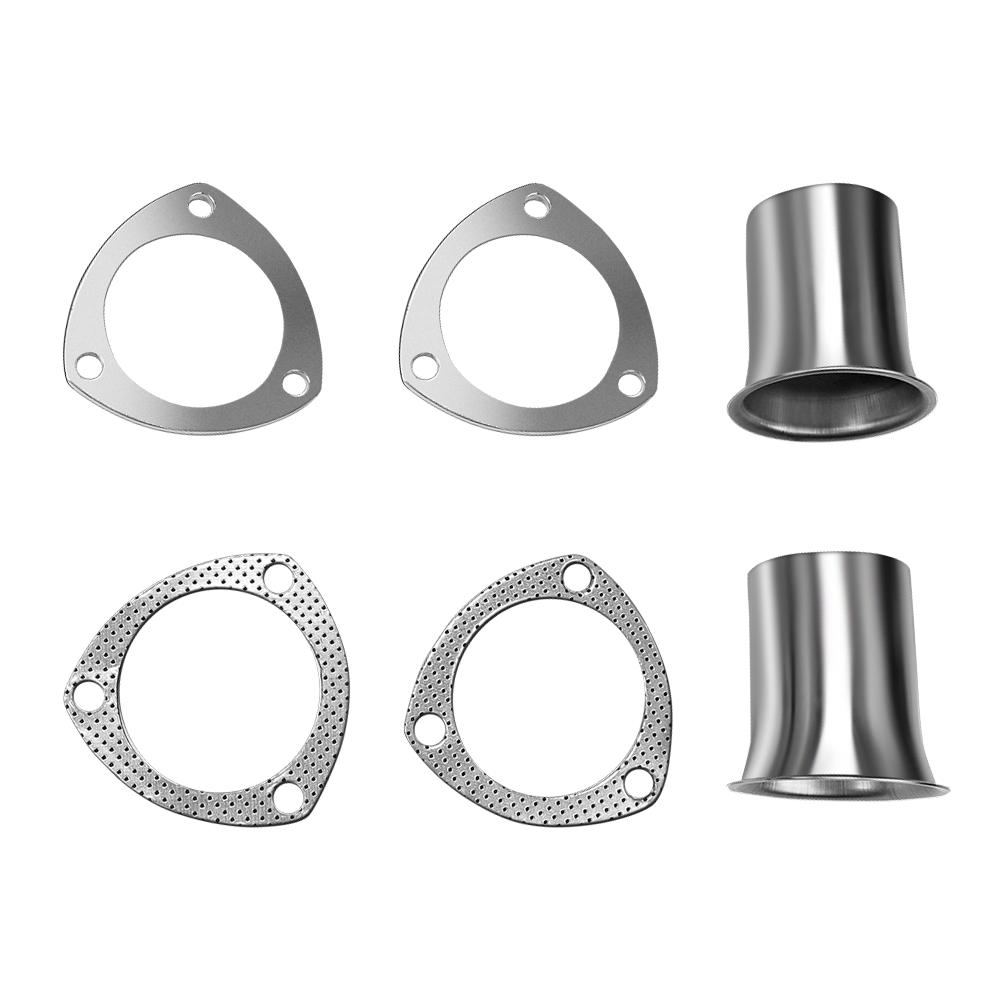

| Collector components | Two flared pipe pieces, two three-bolt mating flanges and two flat collector gaskets shown |

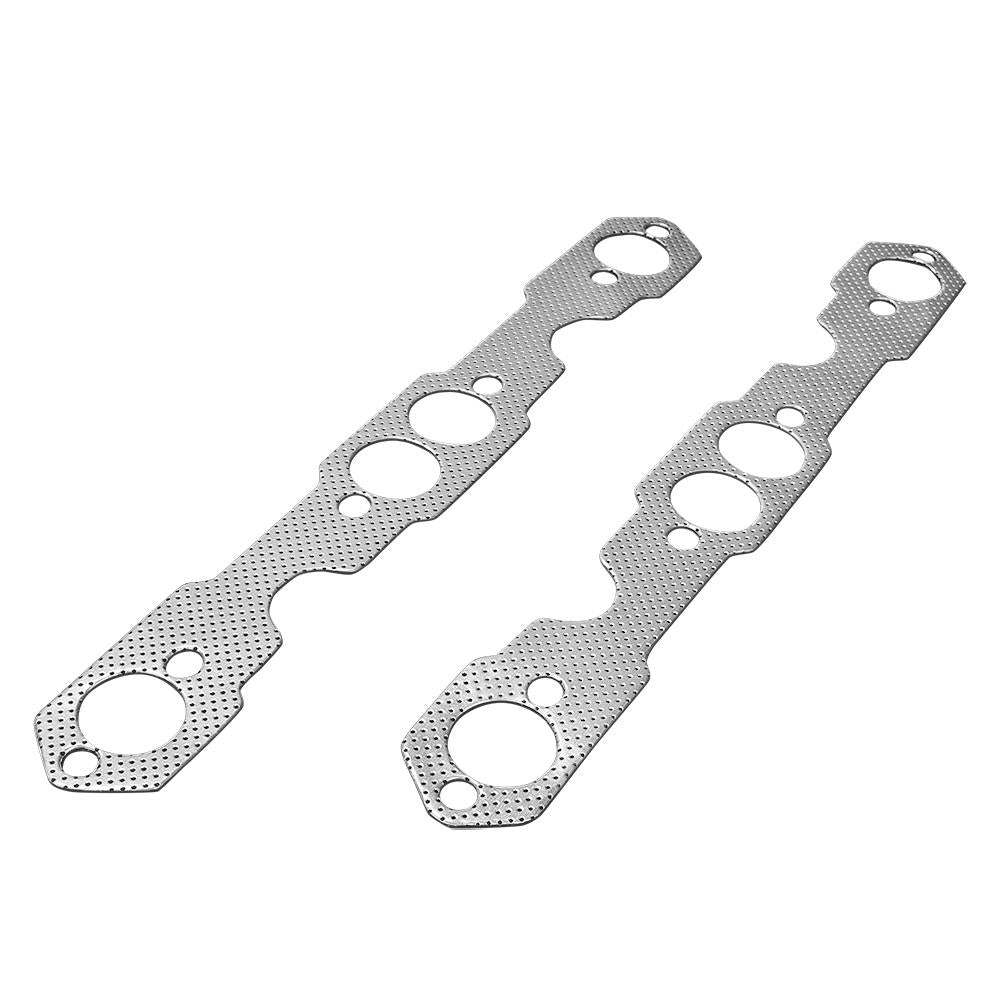

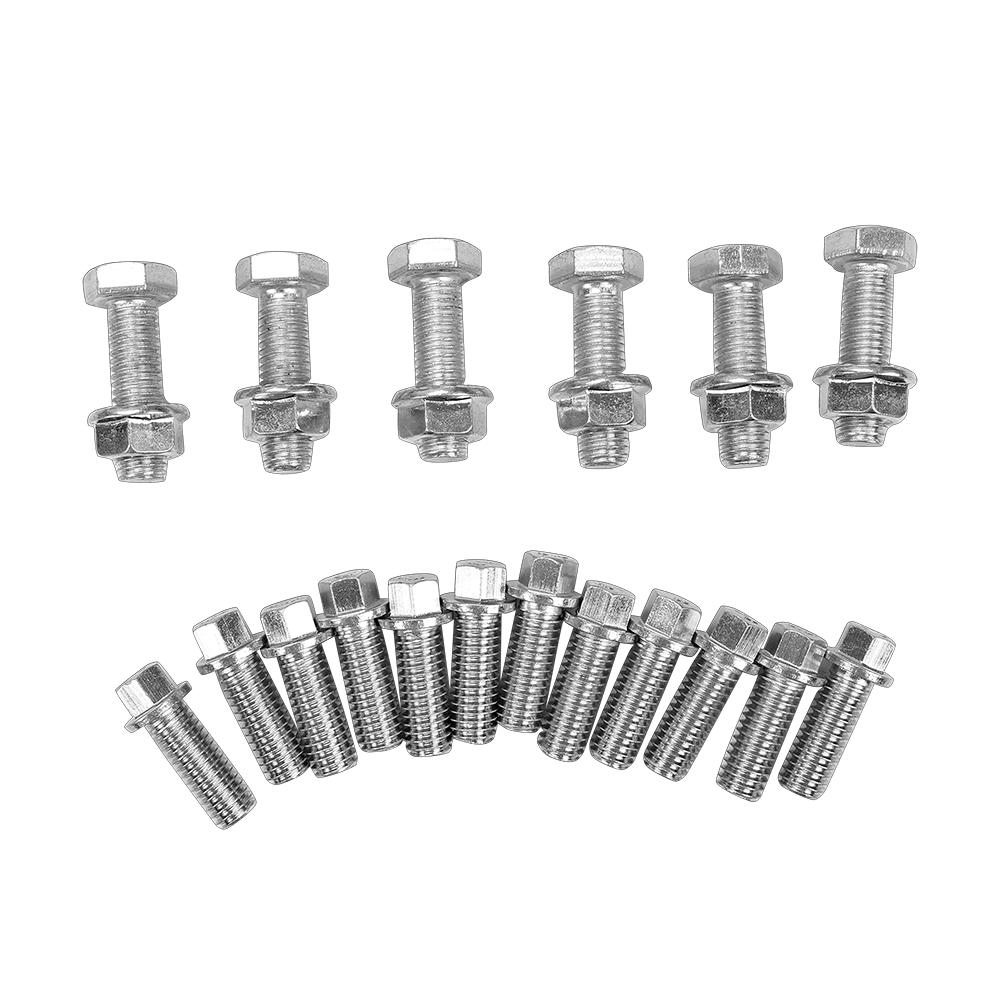

| Head seals / fasteners | Two head gaskets, twelve head bolts and six collector bolt / nut assemblies shown; verify actual threads and engagement |
Check the Installation section for vehicle-side seals, fasteners and connections that may need to be retained or renewed.
