Date: January 27, 2026
- The Duramax “Low Coolant Level” warning is usually caused by plastic coolant reservoir failure—not actual coolant loss.
- OEM plastic degas bottles fatigue under repeated heat cycles, leading to seam cracking and false sensor readings.
- The factory magnetic float sensor can stick or weaken over time, triggering intermittent warning lights.
- An aluminum coolant reservoir permanently fixes both leaks and sensor-related ghost warnings across LB7–LML engines.
The “Low Coolant Level” Warning Is a Design Failure, Not a Maintenance Issue
Engineer insight: In most Duramax trucks, a recurring “Low Coolant Level” warning is the result of OEM plastic reservoir design limitations rather than actual coolant loss or improper maintenance.
If you drive a Chevy Silverado or GMC Sierra 2500HD/3500HD equipped with a Duramax engine, you’ve likely encountered the infamous coolant warning ghost. The alert often appears while towing, cruising, or idling—yet the coolant reservoir is completely full when inspected. This contradiction leads many owners to replace sensors or top off coolant repeatedly, only for the warning to return.
Why OEM Duramax Plastic Coolant Tanks Fail Over Time
Engineere insight: Repeated heat cycling causes OEM Duramax plastic coolant reservoirs to become brittle, discolor, and eventually crack at the heat-welded seam.
The factory coolant reservoir (also called a degas bottle) is constructed from two molded plastic halves heat-welded together. Over tens of thousands of heat cycles, the plastic expands and contracts until material fatigue sets in. In field observations, micro-cracks commonly begin appearing between 80,000 and 120,000 miles—especially on LML platforms.
The Hidden Sensor Problem Behind the “Ghost” Warning
Engineer insight: The factory Duramax coolant level sensor relies on a magnetic float that frequently sticks or weakens with age, causing false low-coolant alerts.
Even when no visible leak is present, sludge buildup or magnetic degradation can cause the float-style sensor to remain stuck at the bottom of the reservoir. Because the sensor is molded into the plastic tank, correcting the warning often requires replacing the entire reservoir—making sensor replacement alone a temporary or ineffective fix.
Why Aluminum Coolant Reservoirs Are the Permanent Fix
Engineer insight: Replacing a failure-prone plastic coolant reservoir with a TIG-welded aluminum unit corrects the root engineering flaw rather than masking symptoms.
Aluminum coolant tanks eliminate the material fatigue inherent in plastic designs. TIG-welded 6061 aluminum handles extreme heat cycling without cracking, resists discoloration, and improves long-term durability. Integrated, replaceable level sensors ensure accurate readings while maintaining compatibility with factory wiring.
Duramax Coolant Tank Fitment Guide (LB7–LML)
While all Duramax engines suffer from similar plastic reservoir failures, each generation uses a different mounting location, hose routing, and sensor configuration. Selecting the correct aluminum coolant tank is critical for proper fitment and long-term reliability.

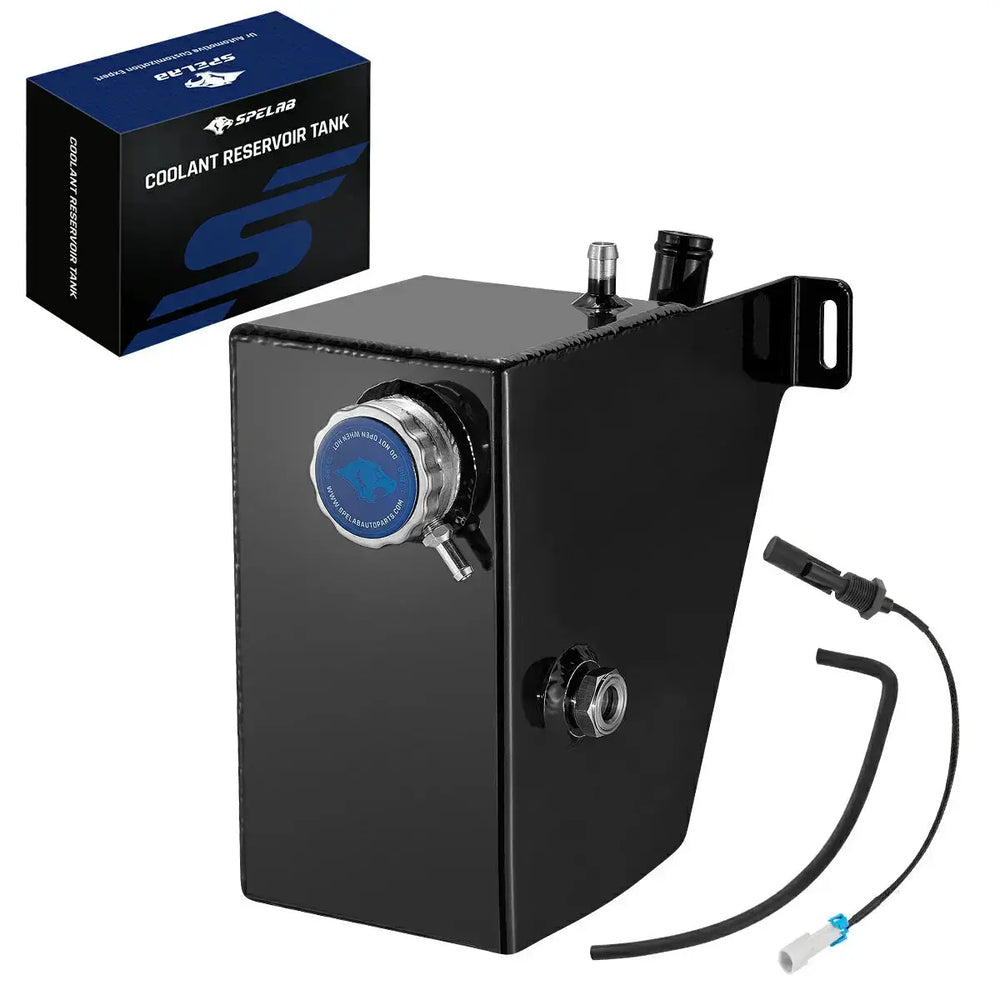

Generation 1: LB7 / LLY / LBZ (2001–2007)
- Compatible Engines: 6.6L Duramax LB7, LLY, LBZ 2001-2007
- Vehicles: Chevrolet Silverado & GMC Sierra 2500HD / 3500HD
- Design Focus: Space optimization and durability in a crowded engine bay
- Engineering Details: TIG-welded aluminum construction with reinforced mounting points to address early-platform vibration and heat cycling
- Why Upgrade: Early-generation plastic tanks are especially prone to seam failure and sensor inaccuracy due to age and thermal fatigue
Recommended for owners experiencing intermittent low-coolant warnings or visible seam discoloration on the OEM bottle.
Generation 2: LMM (2007.5–2010)
- Compatible Engines: 6.6L Duramax LMM
- Vehicles: Chevrolet Silverado & GMC Sierra 2500HD / 3500HD
- Design Focus: Direct bolt-on replacement with OEM hose routing
- Engineering Details: Generation-specific bracket geometry and upgraded sight glass for easy visual coolant checks
- Important Note: LMM trucks require a unique mounting configuration—LML tanks are not interchangeable
Ideal for owners who want a true drop-in solution without modifying hoses or brackets.
Generation 3: LML (2011–2016)
- Compatible Engines: 6.6L Duramax LML
- Vehicles: Chevrolet Silverado & GMC Sierra 2500HD / 3500HD
- Design Focus: Long-term reliability under higher operating pressures and EGTs
- Engineering Details: Powder-coated aluminum finish for corrosion resistance, integrated replaceable level sensor, and upgraded cap and overflow hose
- Common Failure Point: OEM plastic reservoirs frequently crack or leak around the 80k–120k mile range
The most failure-prone OEM design—and the generation that benefits the most from an aluminum correction.
Installation Tips from the Engineer
- Never open the cooling system while hot.
- Inspect hoses while the reservoir is removed.
- Run the heater on high to burp trapped air.
- Always use the correct pressure-rated cap.
- Ensure your radiator and intercooler are functioning correctly.
Conclusion
From an engineering standpoint, replacing a known failure-prone plastic component with aluminum isn’t an upgrade—it’s a correction. Don’t risk engine damage over a part designed to fail. A properly engineered aluminum coolant reservoir eliminates leaks, false warnings, and long-term reliability concerns.
Understanding car cooling systems helps diagnose these ghost warnings. Read more about plastic coolant reservoir failure analysis, Plastic vs. Aluminum Coolant Expansion Tanks
Frequently Asked Questions (FAQ)
Q: Can I just replace the coolant level sensor instead of the whole reservoir?
A: In most cases, no—and I’ve seen this mistake plenty of times. I once worked on an LML Duramax where the owner replaced the sensor twice within a year. The warning light kept coming back because the real issue was sludge buildup inside the plastic tank and micro-cracks forming at the seam. Since the sensor is integrated into the plastic reservoir, replacing the sensor alone often masks the symptom but doesn’t fix the root cause.
Q: My coolant tank looks full. Is it safe to keep driving with the warning on?
A: I wouldn’t recommend ignoring it. I’ve seen a Silverado 3500HD towing a fifth-wheel where the tank looked full, but a hairline crack only leaked under pressure. By the time steam was visible, the engine was already overheating. A “ghost” warning can still indicate a real problem developing—especially under load.
Q: How common are coolant reservoir failures on Duramax trucks?
A: Very common, especially on higher-mileage trucks. In the shop, it’s almost routine to see LML plastic tanks failing between 80,000 and 120,000 miles. I’ve personally seen trucks with perfectly maintained cooling systems still develop seam cracks simply from years of heat cycling.
Q: Will an aluminum coolant reservoir actually lower engine temperatures?
A: It won’t magically drop coolant temps by 20 degrees, but it does help stabilize the system. I’ve seen trucks that used to push coolant out of the overflow during long uphill pulls stop doing it after switching to aluminum. The key benefit is consistency—no pressure loss, no expansion-related leaks.
Q: Are aluminum coolant tanks overkill for daily-driven trucks?
A: Not at all. One daily-driven LMM I worked on never towed and still cracked its plastic reservoir just from commuting and summer heat. Aluminum isn’t about racing—it’s about eliminating a known failure point, even for stock trucks.
Q: Do I need to modify hoses or wiring to install an aluminum coolant tank?
A: With a properly engineered kit, no. I’ve installed tanks where everything plugged straight into the factory harness and hoses lined up perfectly. Problems usually happen when people try to force the wrong generation tank—like installing an LML tank on an LMM truck.
Q: Is this problem limited to deleted or tuned Duramax engines?
A: Not at all. I’ve seen bone-stock, emissions-intact trucks with factory tuning crack reservoirs just as often. Higher EGTs and towing make it worse, but even stock trucks suffer from the same plastic fatigue over time.
Q: How do I know if my coolant reservoir is about to fail?
A: Yellowing plastic, a sweet coolant smell after shutdown, or dried residue near the seam are all red flags. I once inspected a truck that had no visible leaks—but when pressure-tested, coolant seeped out only at operating temperature. If you see discoloration or get intermittent warnings, failure usually isn’t far behind.
John Lee
Mechanical Engineer | 10+ Years Experience
John has spent the last decade engineering and testing high-performance automotive components. Specializing in drivetrain durability and thermal management across Powerstroke, Cummins, and Duramax applications, he bridges the gap between OEM limitations and aftermarket performance. His philosophy: "Factory parts are just a starting point."
